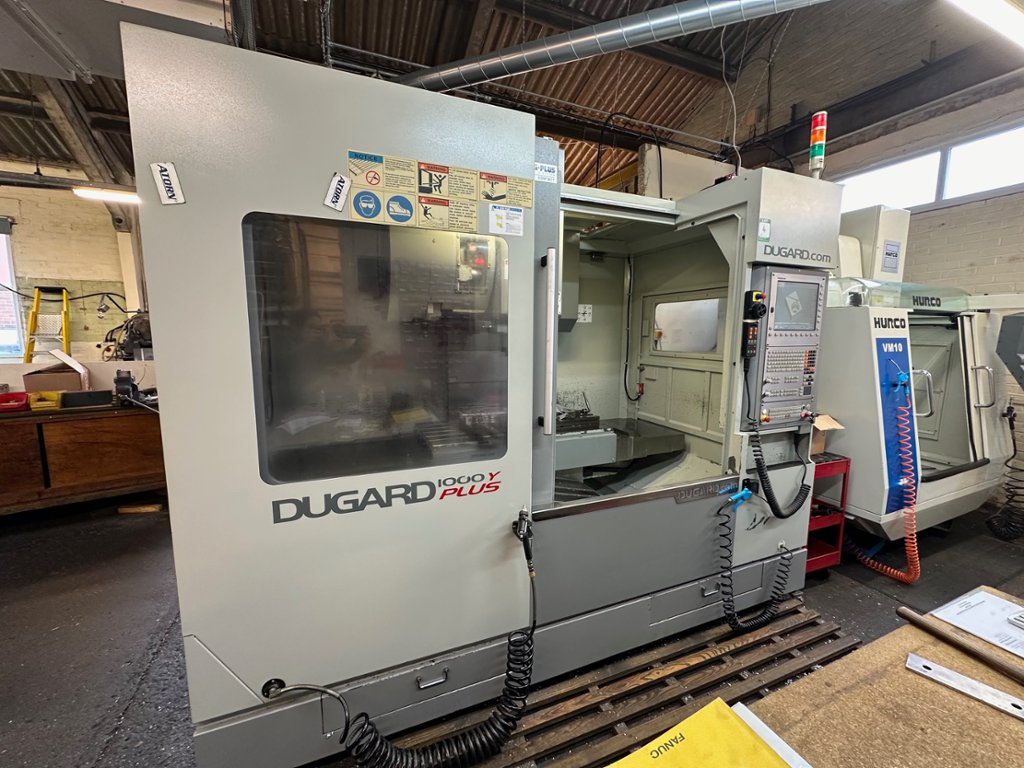

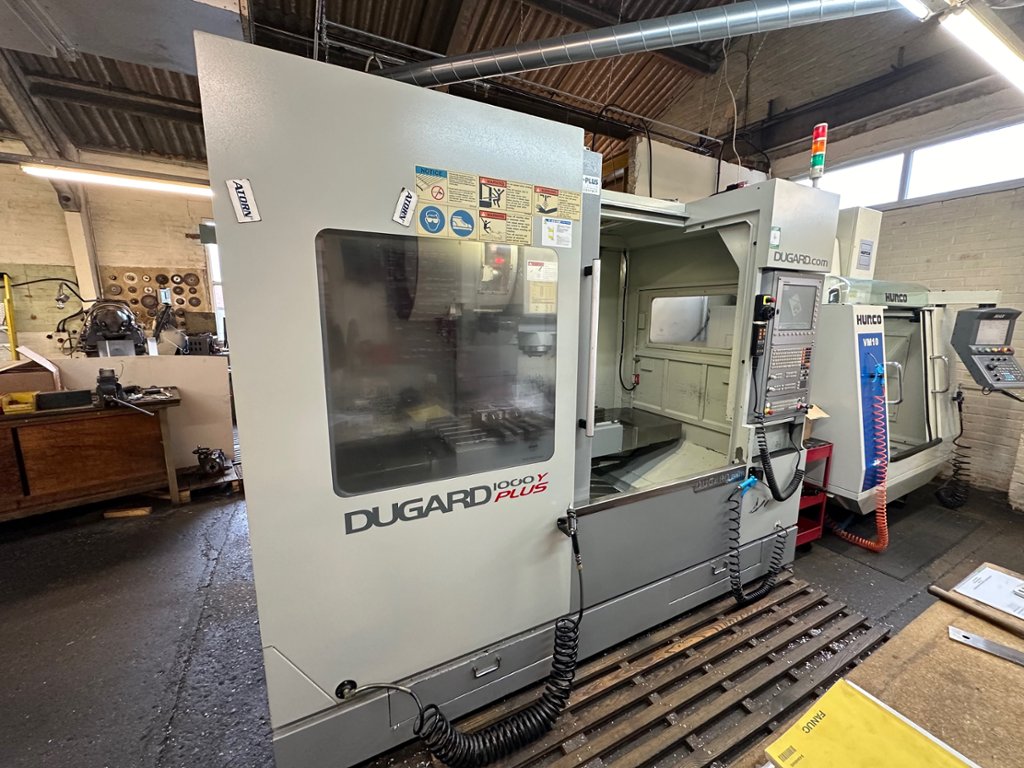

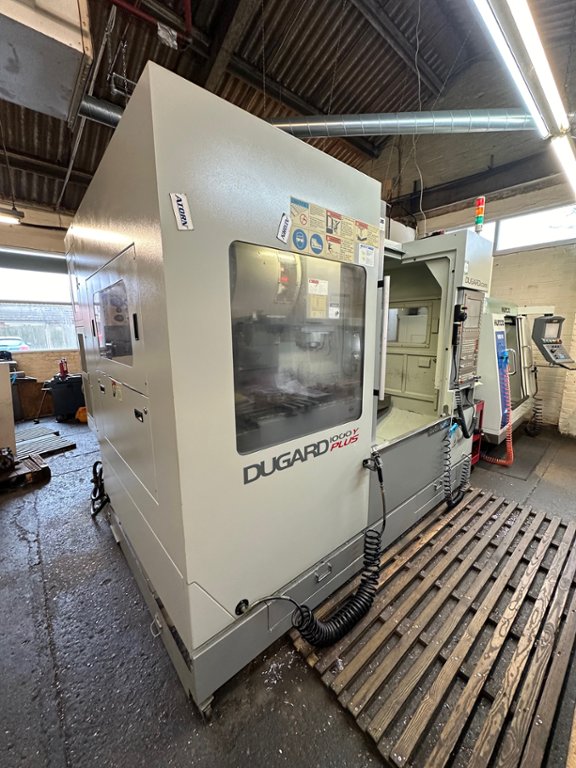

Dugard 1000 Vertical Machining Centre (2014)

Lot 4 - Dugard 1000 Vertical Machining Centre (2014)

Description:

Vice NOT included

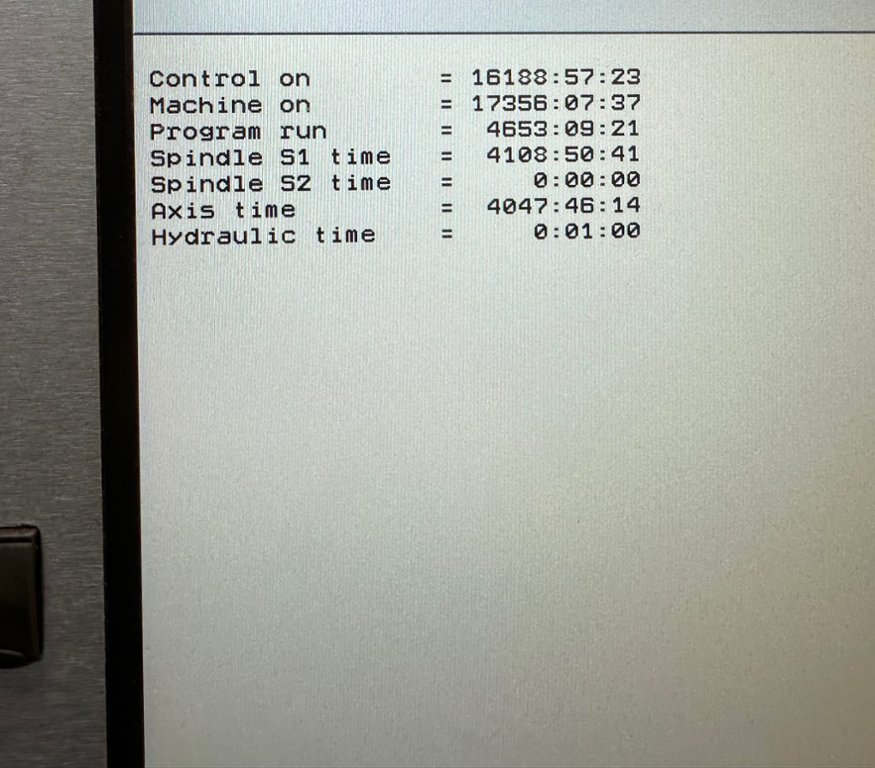

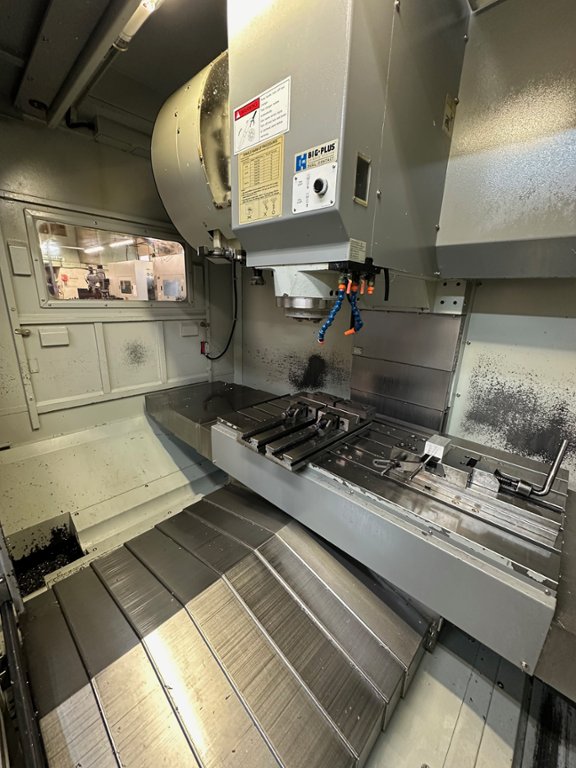

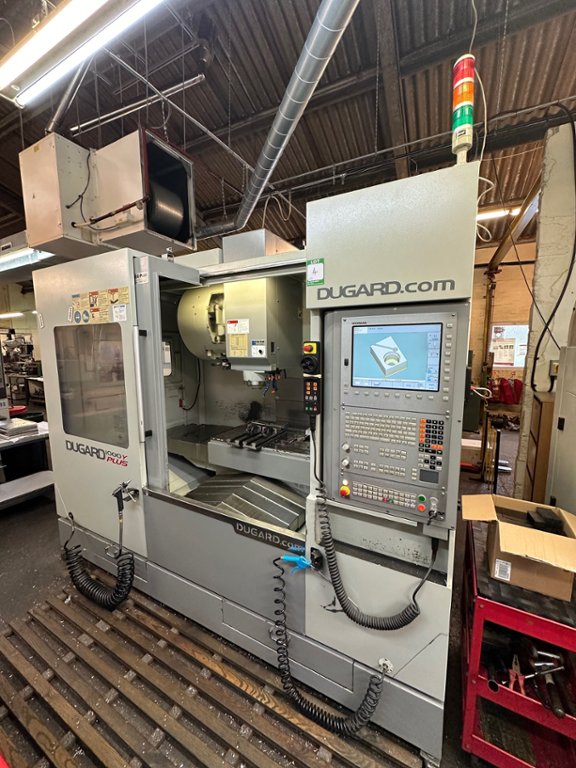

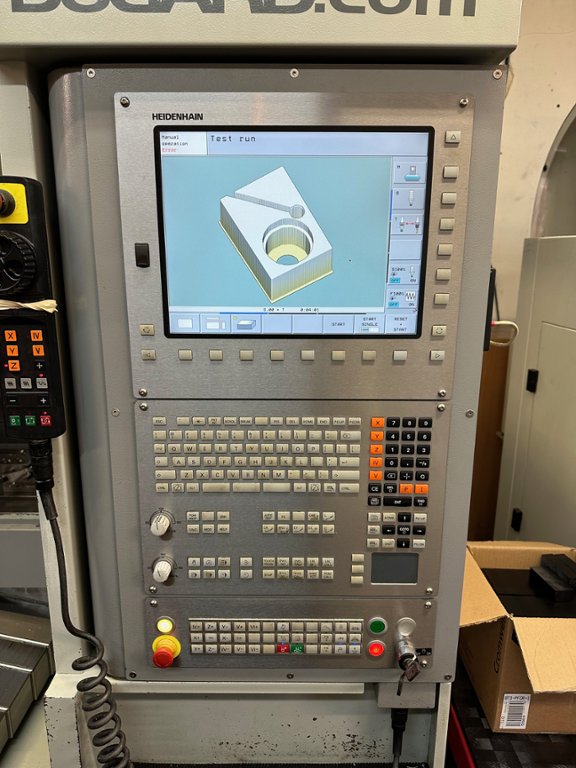

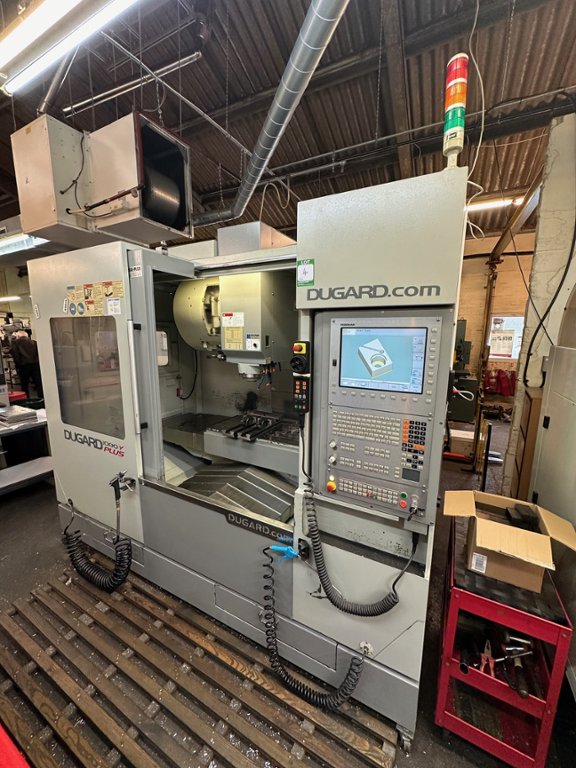

Heidenhain ITNC-530 Control, Chevalier-Big Plus System, 10,000rpm Spindle, Through Spindle Coolant, 24-Station ATC, Handwheel

Capacity

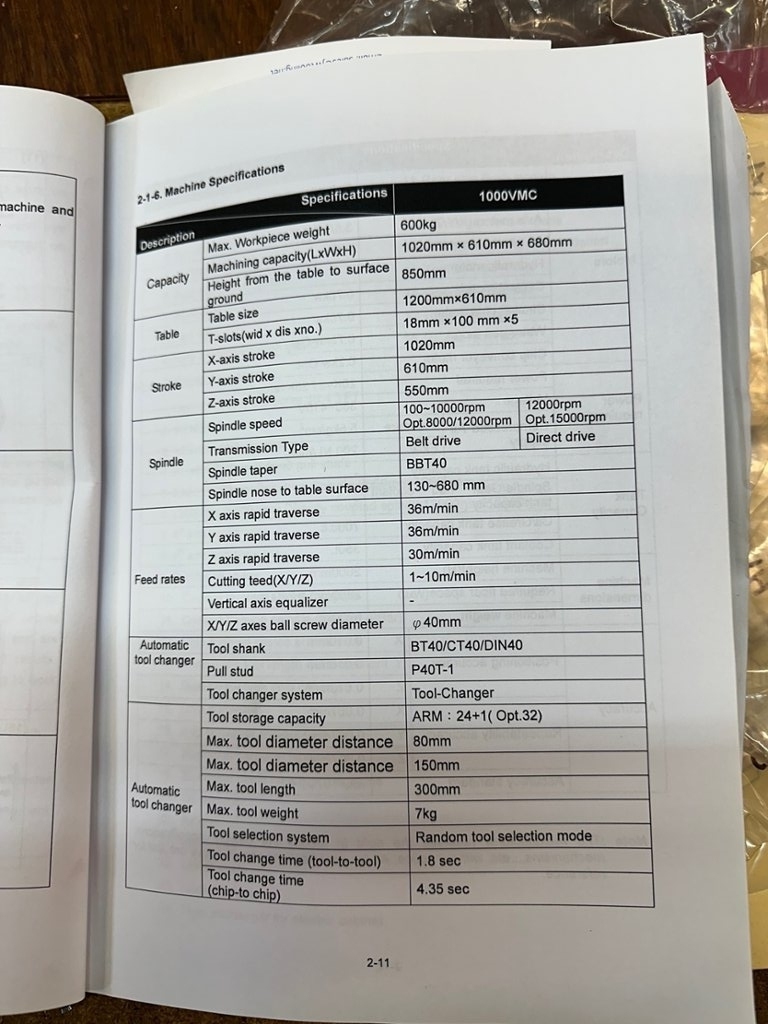

Max Workpiece Weight - 600kg, Machining Capacity (L x W x H) - 1020mm x 610mm x 680mm, Height from Table to Surface Ground - 850mm

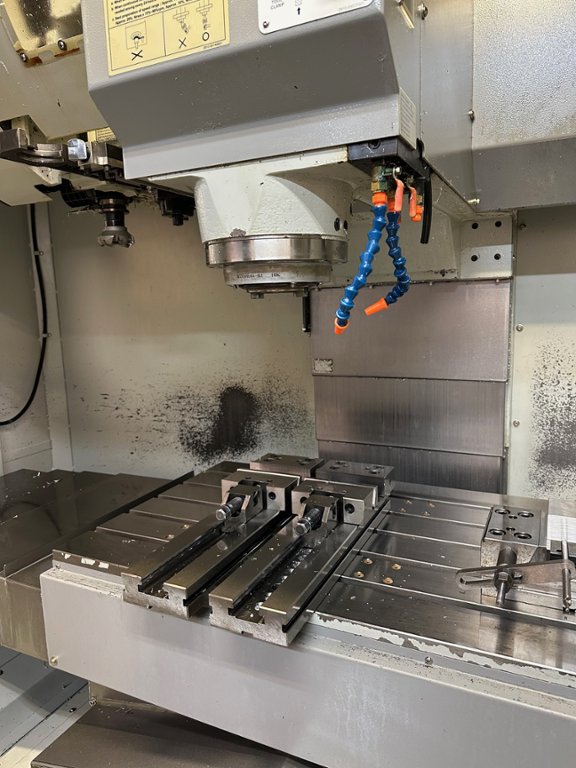

Table

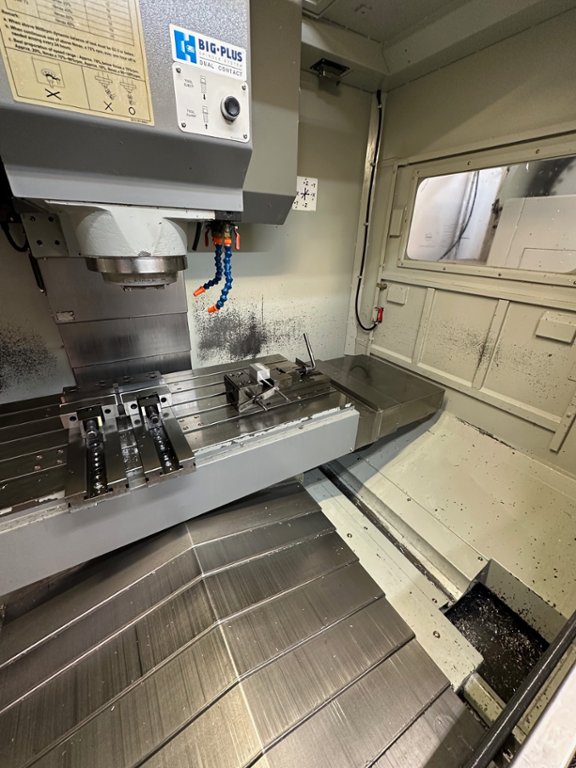

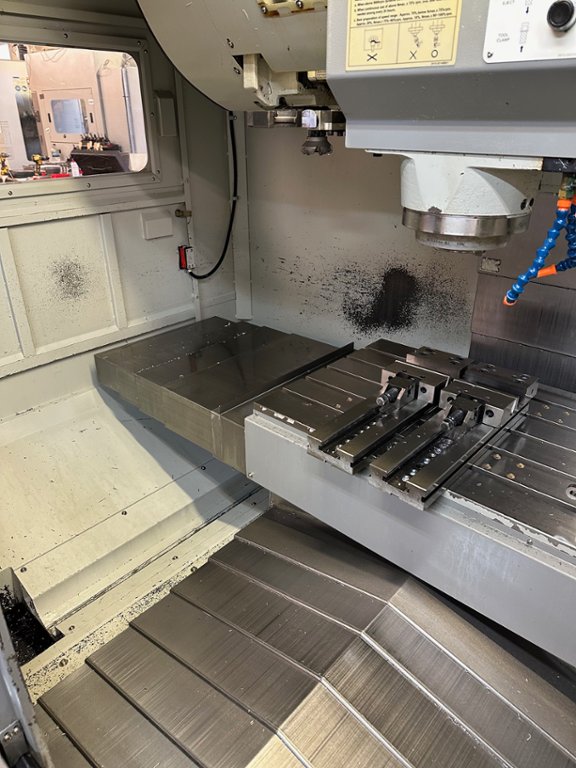

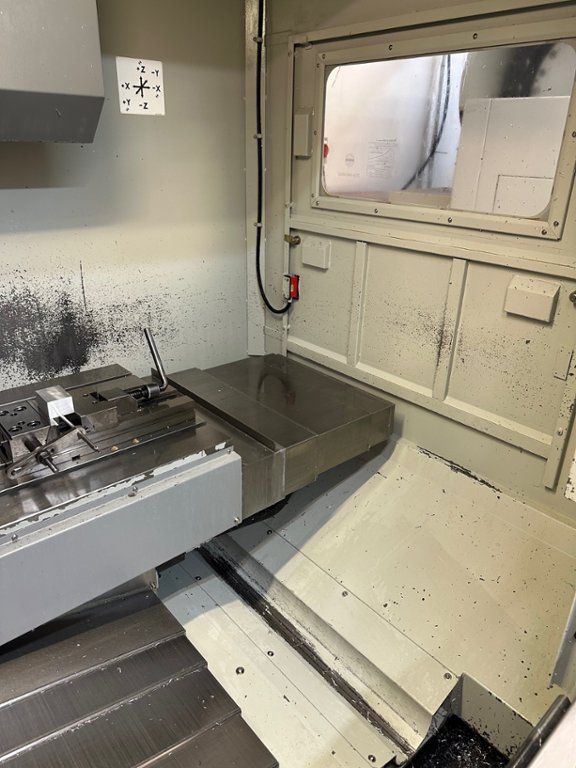

Table Size - 1200mm x 610mm, T-alots (wid x dis x no) - 18mm x 100mm x 5

Stroke, X Axis Stroke - 1020mm, Y Axis Stroke - 610mm, Z Axis Stroke - 550mm

Spindle

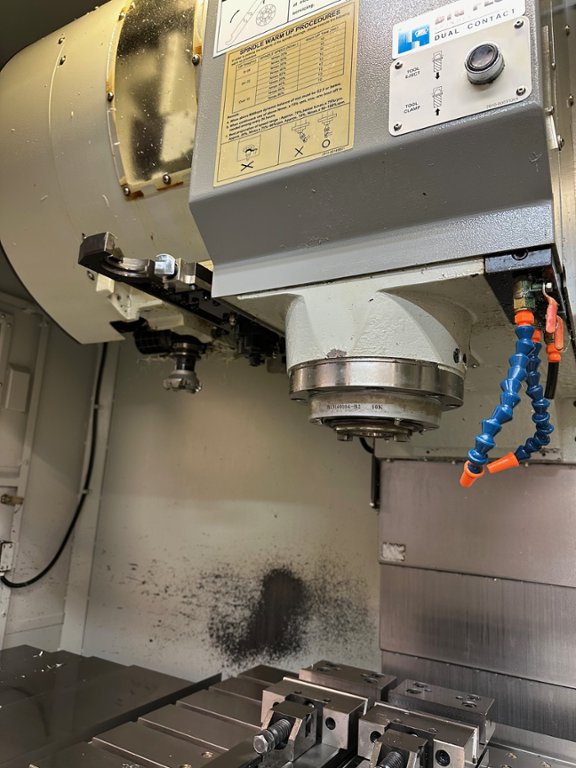

Spindle Speed - 100- 10000 RPM OR 12000 RPM, Transmission Type - Belt Drive or Direct Drive, Spindle Taper - BBT40, Spindle Nose to Table Surface - 130 - 680mm

Feedrates

X Axis Rapid Traverse - 36 m/min, Y Axis Rapid Traverse - 36 m/min, Z Axis Rapid Traverse - 30 m/min, Cutting Feed (X/Y/Z) - 1-10 m/min, X/Y/Z Axis Ball Screw Diameter - 40mm

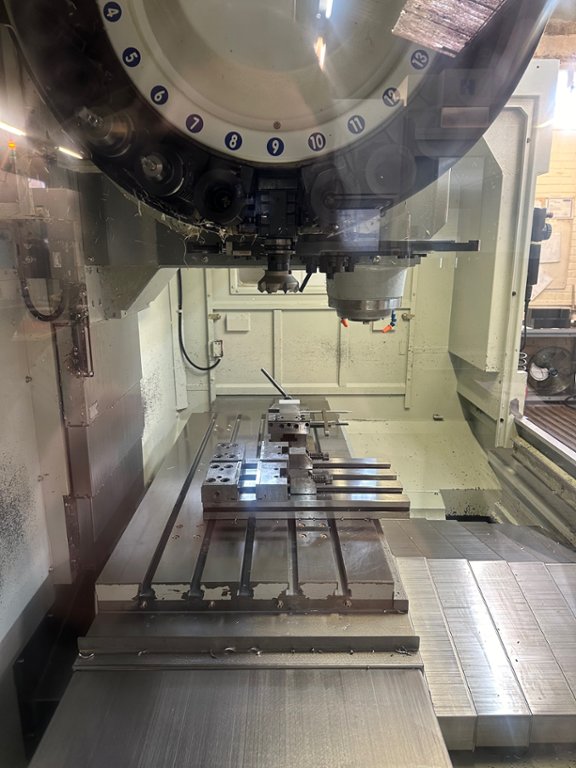

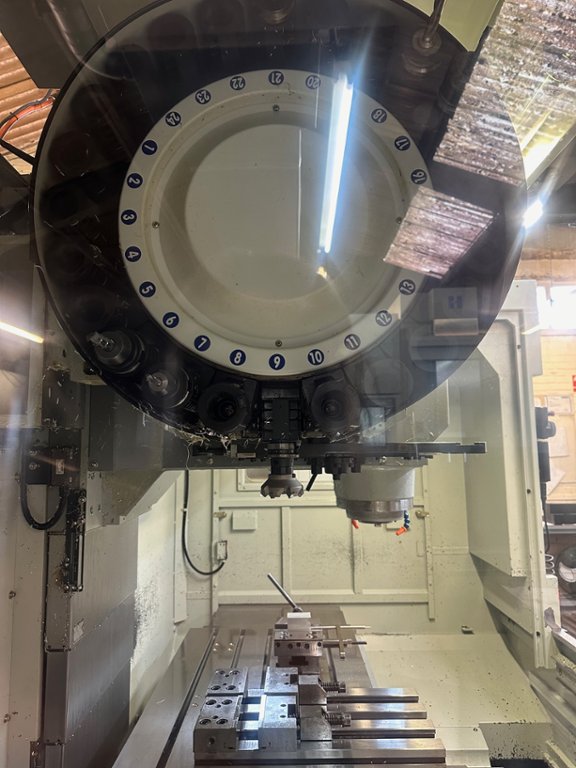

Automatic Tool changer

Tool Shank - BT40/CT40/DIN40, Pull Stud - P40T-1, Tool Changer System - Tool-Changer

Automatic Tool Changer

Tool Storage Capacity - ARM: 24 + 1, Max Tool Diameter Diameter Distance - 80mm, Max Tool Diameter Diameter Distance - 150mm, Max Tool Length - 300mm, Max Tool Weight - 7kg, Tool Selection System - Random Tool Selection Mode, Tool Change Time (tool-to-tool) - 1.8 sec, Tool Change Time (chip to chip) - 4.35 secs

Motors

Spindle Motor - Belt Drive:7.5kw (cont) / 10kw (cont) option, Axis Motors (X/Y/Z) - 3.5/3.5/5.7kw, Oil Lubrication Motor - 0.1kw, Coolant Motor - 0.75kw, Shower Cip Motor - 0.75kw, Water Gun Motor - 0.75kw Opt, Chip Conveyor Motor - 0.2kw opt

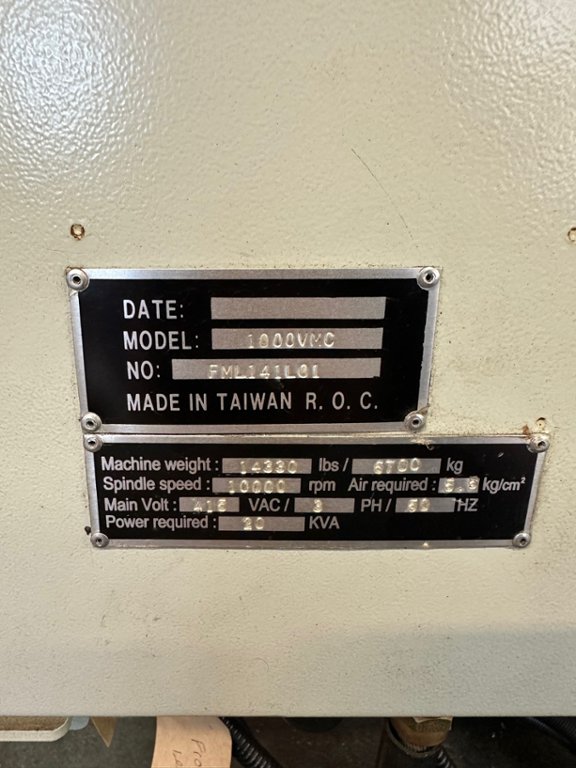

Power Requirement

Power Required - 20Kva, Voltage - 380-415V, Compressed Air Supply - Pressure - 5.5kg/cm2 - Flow - 200NL/min

Tank Capacity

Oil/Grease Tank Capacity - 700 c.c, Coolant Tank Capacity - 350L

Accuracy

Positioning Accuracy - X - 0.010mm, Y - 0.010mm, Z - 0.010mm, Repeatability Accuracy - X - 0.007mm, Y - 0.007mm, Z - 0.007mm, Accuracy Standard - ISO 10791-4
