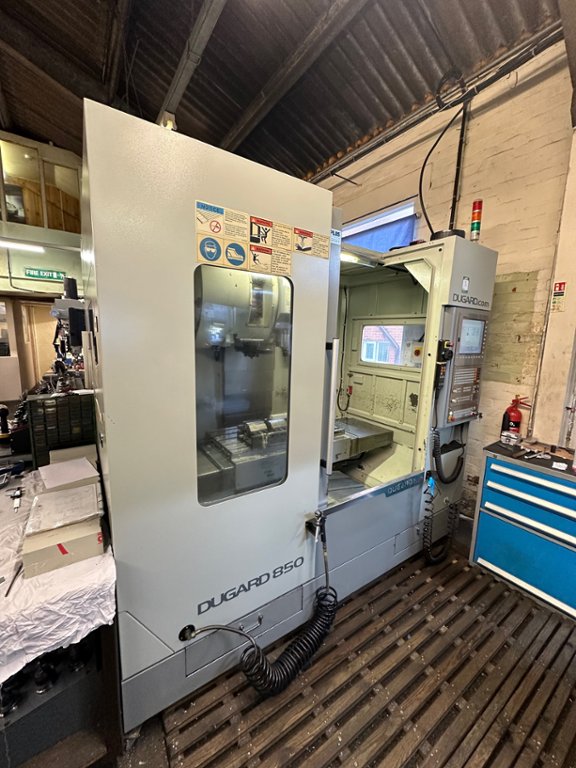

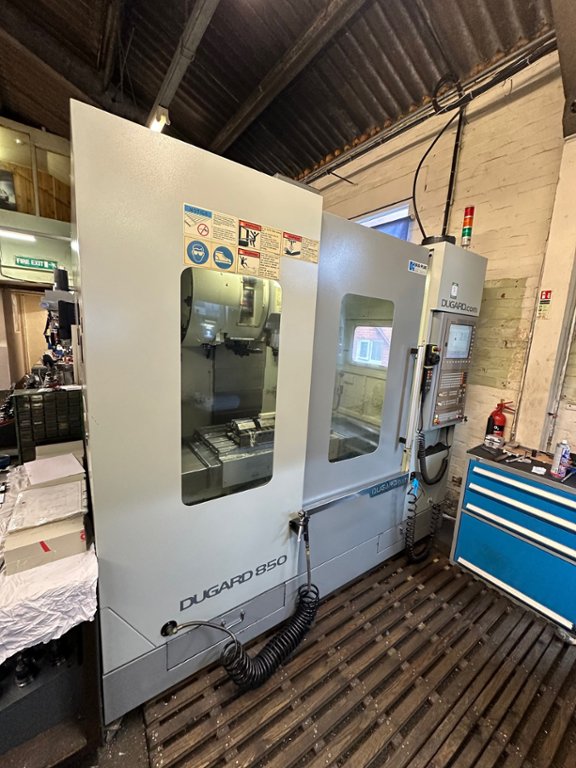

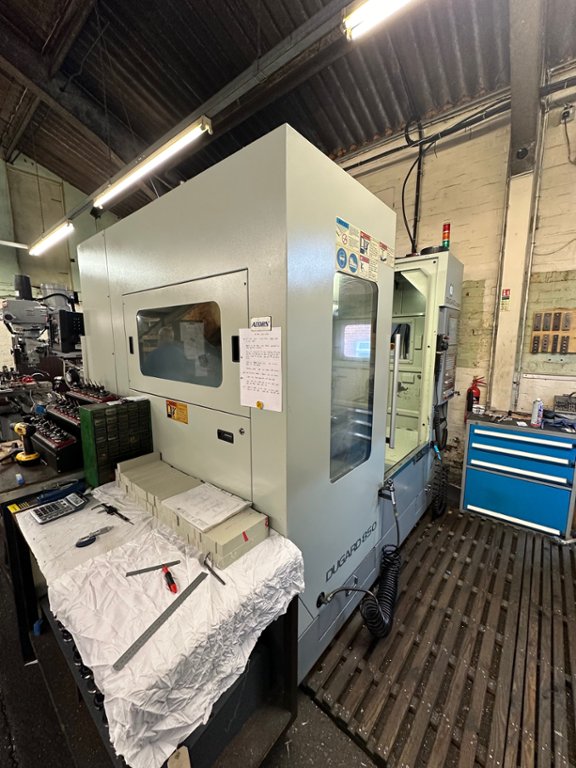

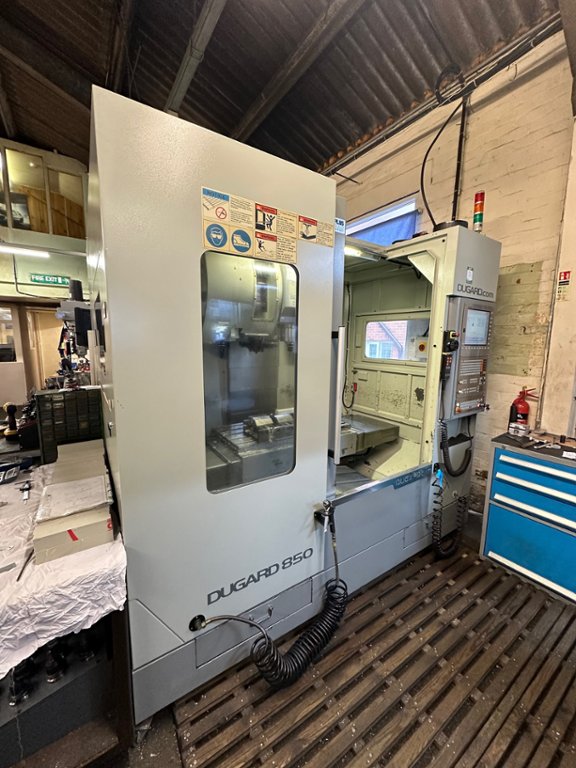

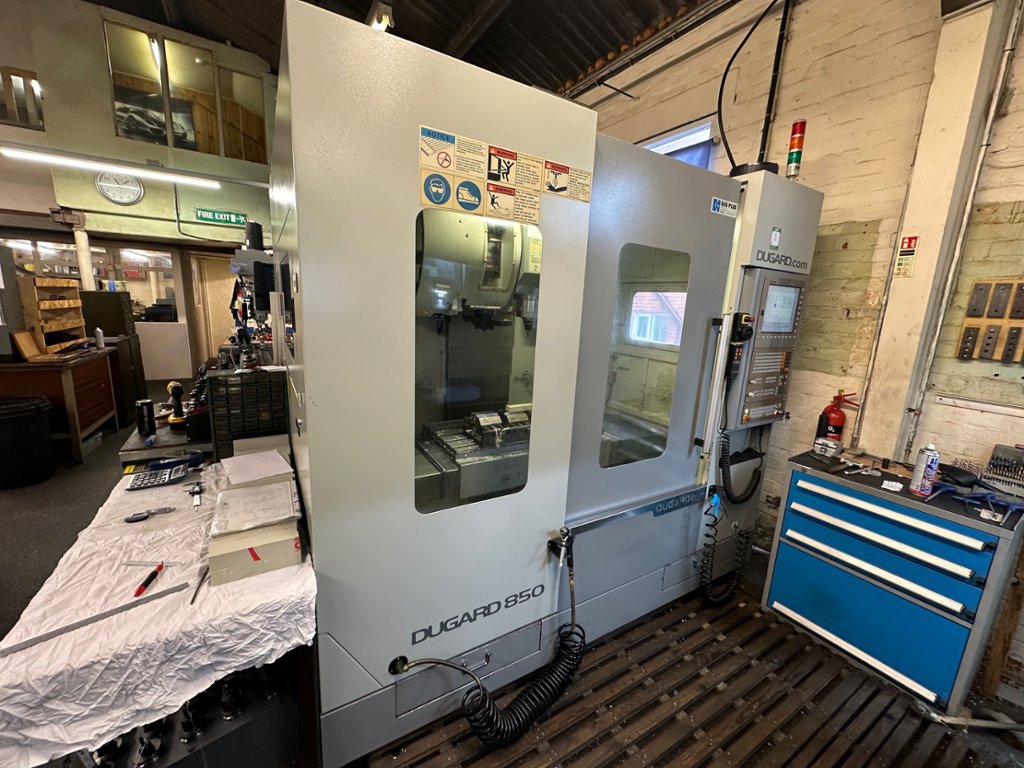

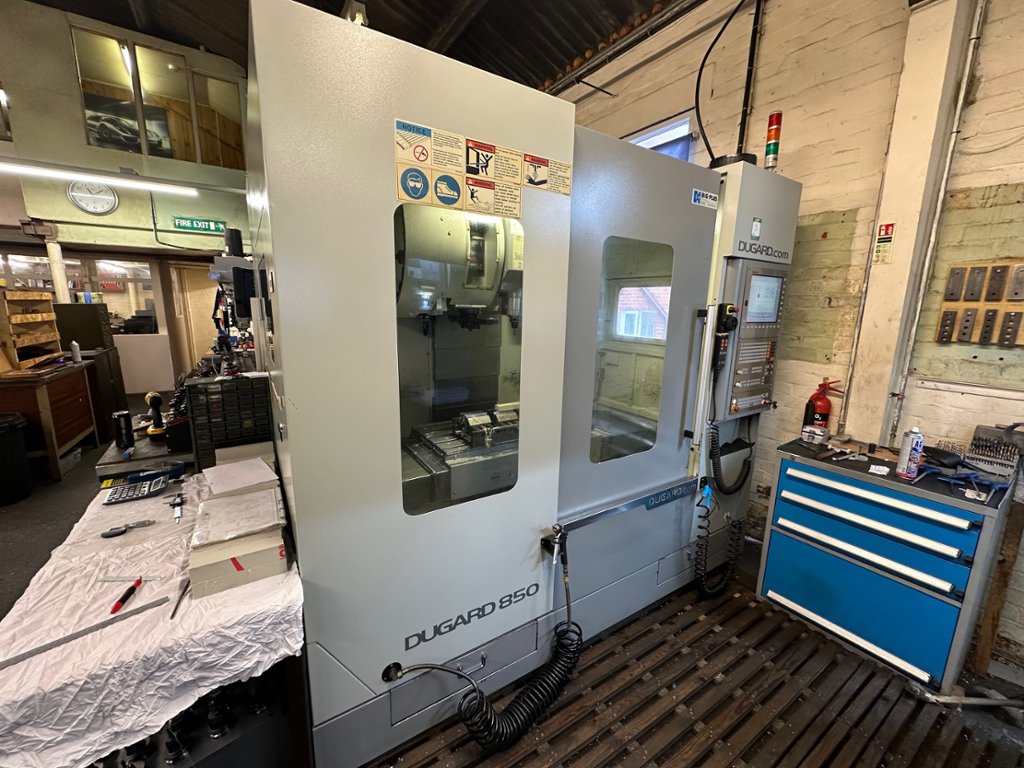

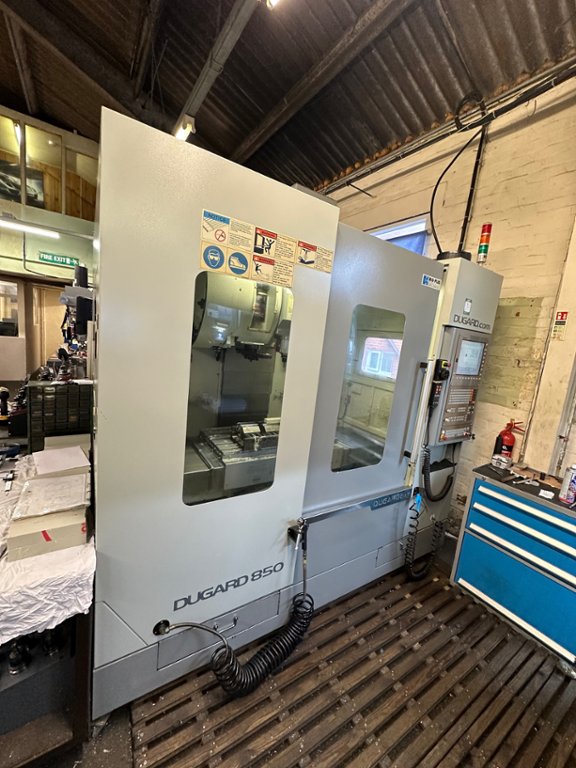

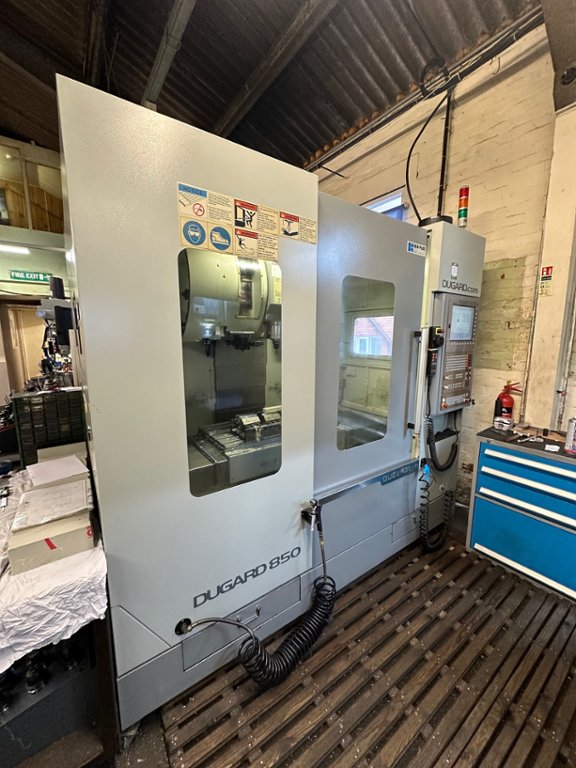

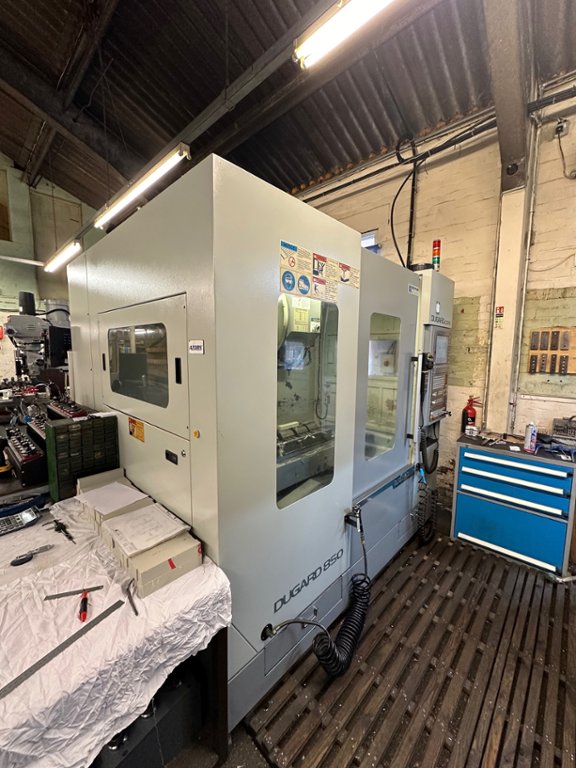

Dugard 850 Vertical Machining Centre (2014)

Lot 3 - Dugard 850 Vertical Machining Centre (2014)

Description:

Vice NOT included

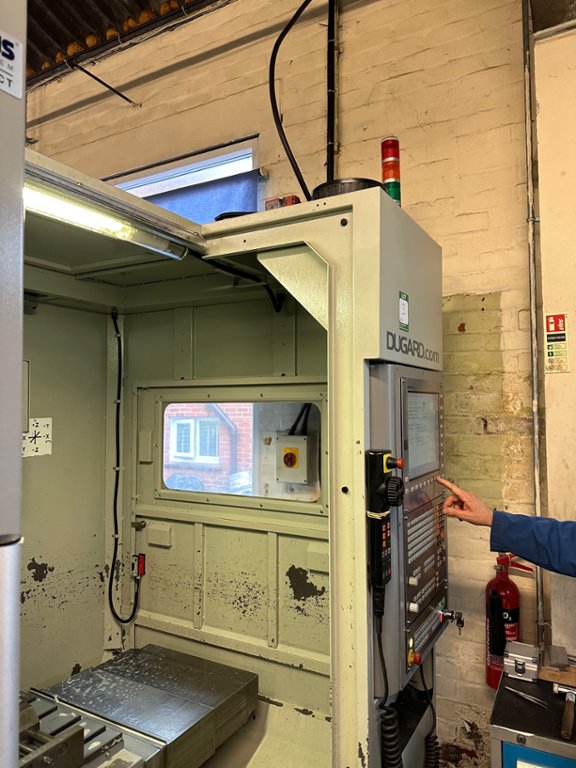

Heidenhain iTNC 530 Control, 24-Station ATC, Chevalier-Big Plus System 10,000rpm Spindle

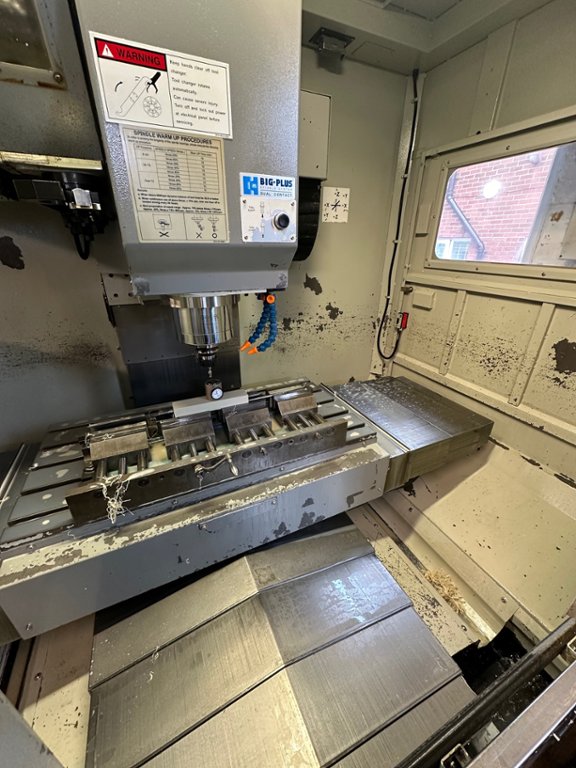

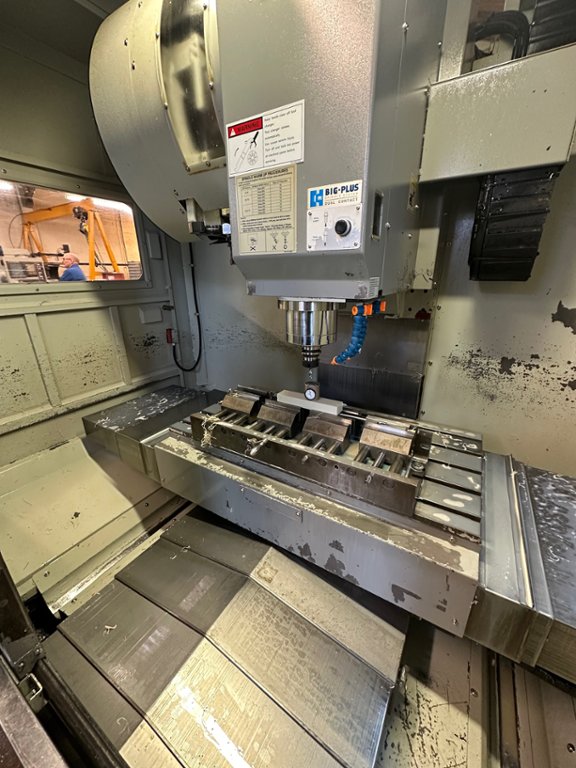

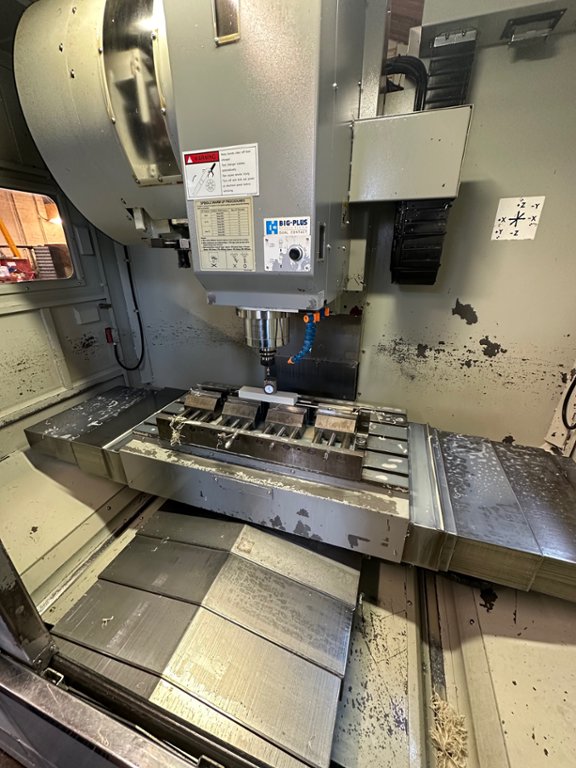

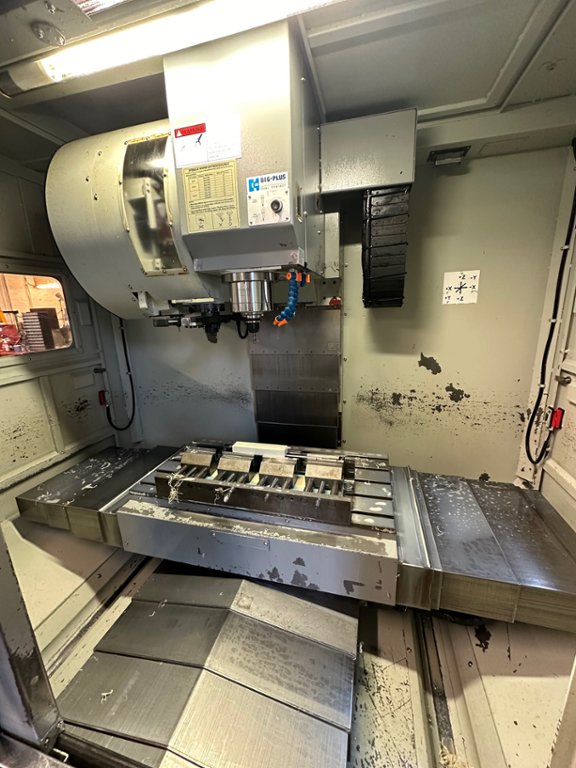

Table

Table size - 1000 x 510mm

T-slots (no x wid x dis) - 5 x 18mm x 100mm

Table Load - 500kg

Travel

X Travel - 850mm

Y Travel - 530mm

Z Travel - 510mm

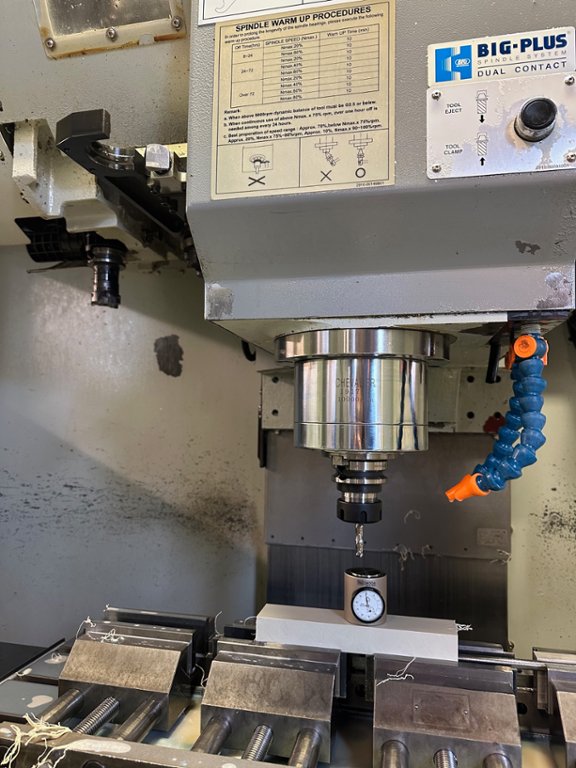

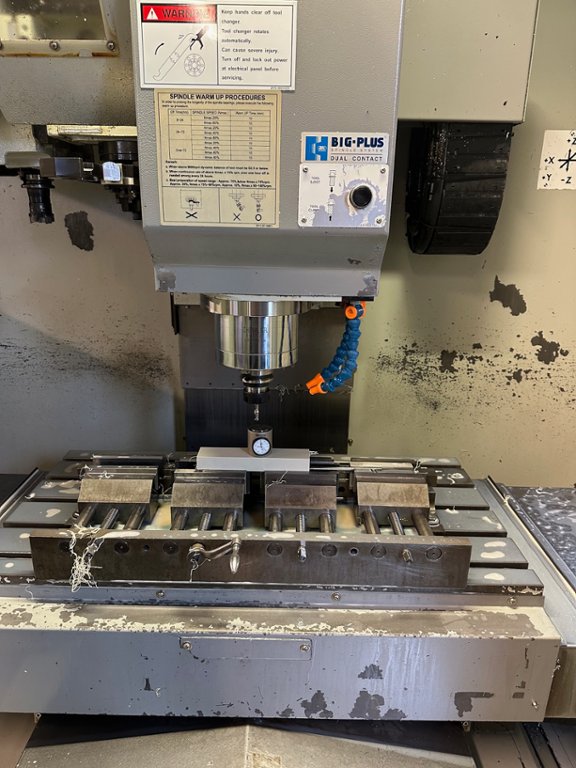

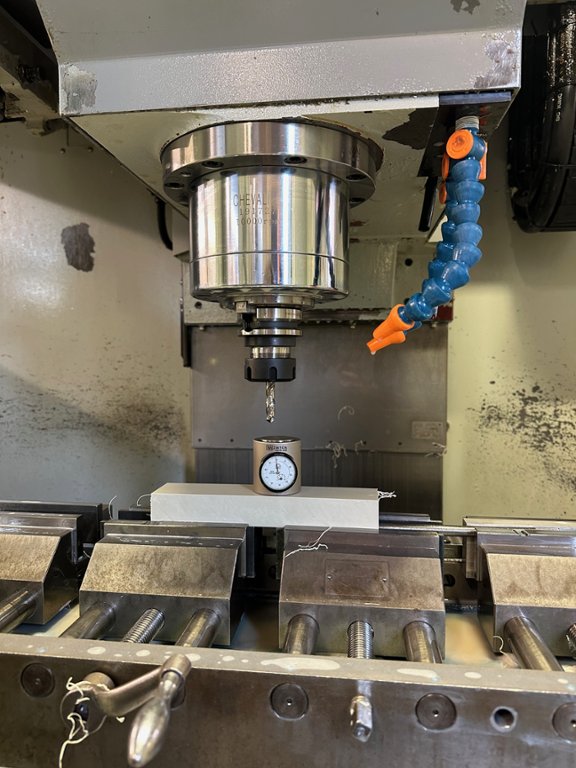

Spindle

Spindle Nose to Table - 150~660mm

Spindle Centre to Column - 585mm

Spindle Taper - BT40 (CT40 opt)

Spindle Speed - 80~10,000rpm (8000 / 12,000 / 15,000rpm opt)

Feedrates

Rapid on X/Y/Z Axes - 30/30/24 m/min

Cutting Feedrate - 1~10,000 mm/min

Accuracy

Positioning - ±0.004mm

Repeatability - ±0.003mm

Tool Changer

Tool Capacity - 24 twin arm

Tool Shank - BT40, CT40 or DIN40

Pull Stud - P40T-1

Max Tool Diameter - 76mm, 24 station cam-arm type

Max Tool Weight - 7kg

Motor

Drive Motor X, Y, Z Digital - 1.8 / 1.8 / 2.5kW

Coolant Pump - 0.76kW

General

Power Required - 15KVA

Air Required - 5kg/cm2 ; 200L/min

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
