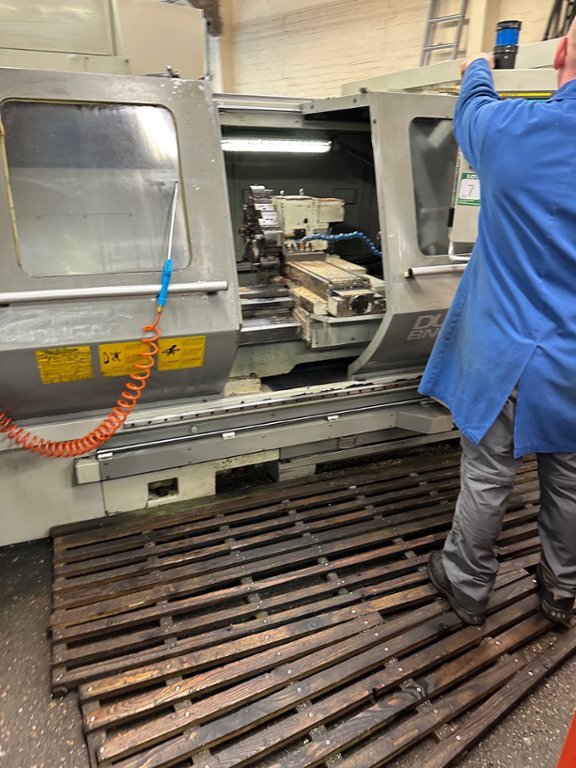

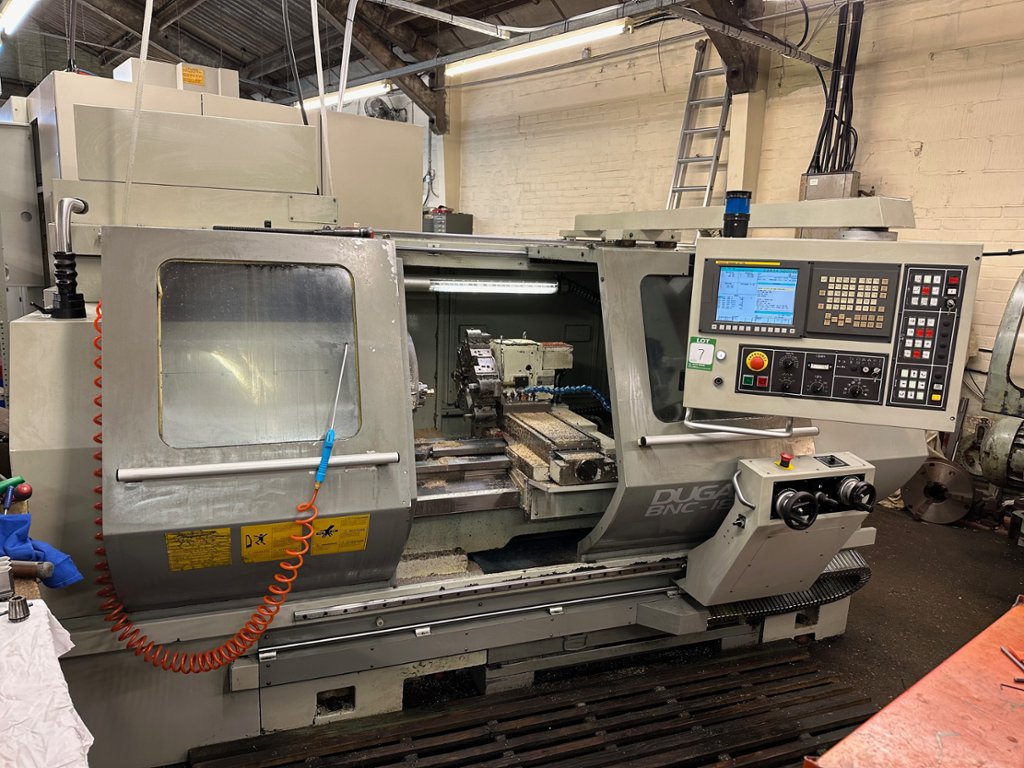

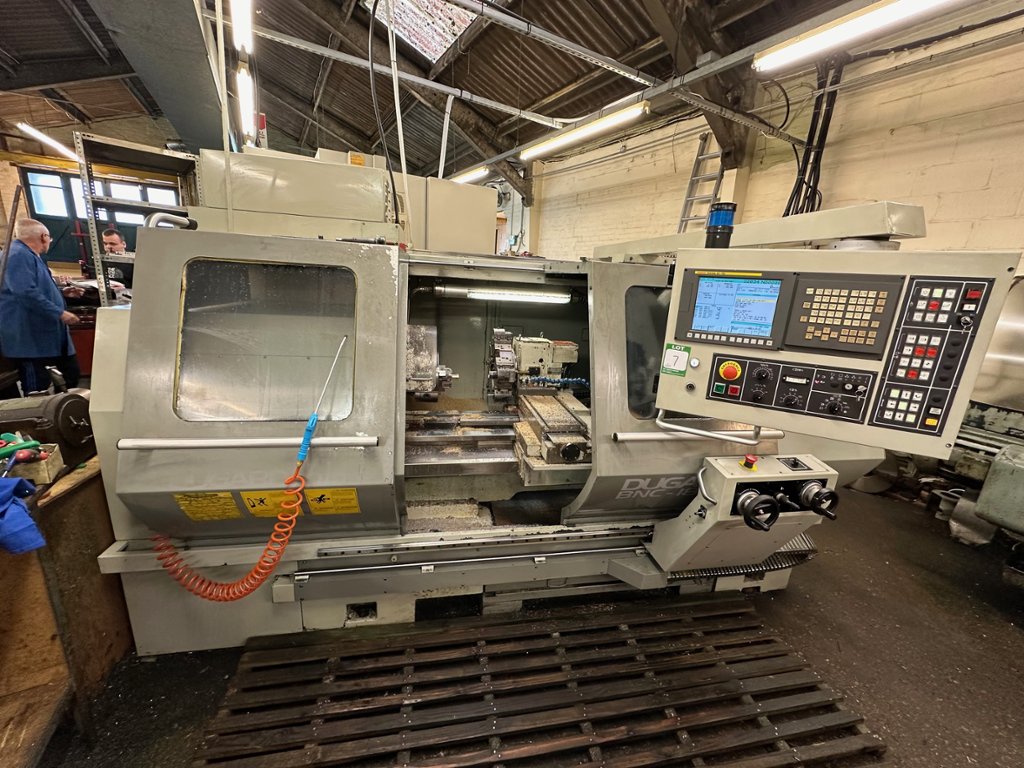

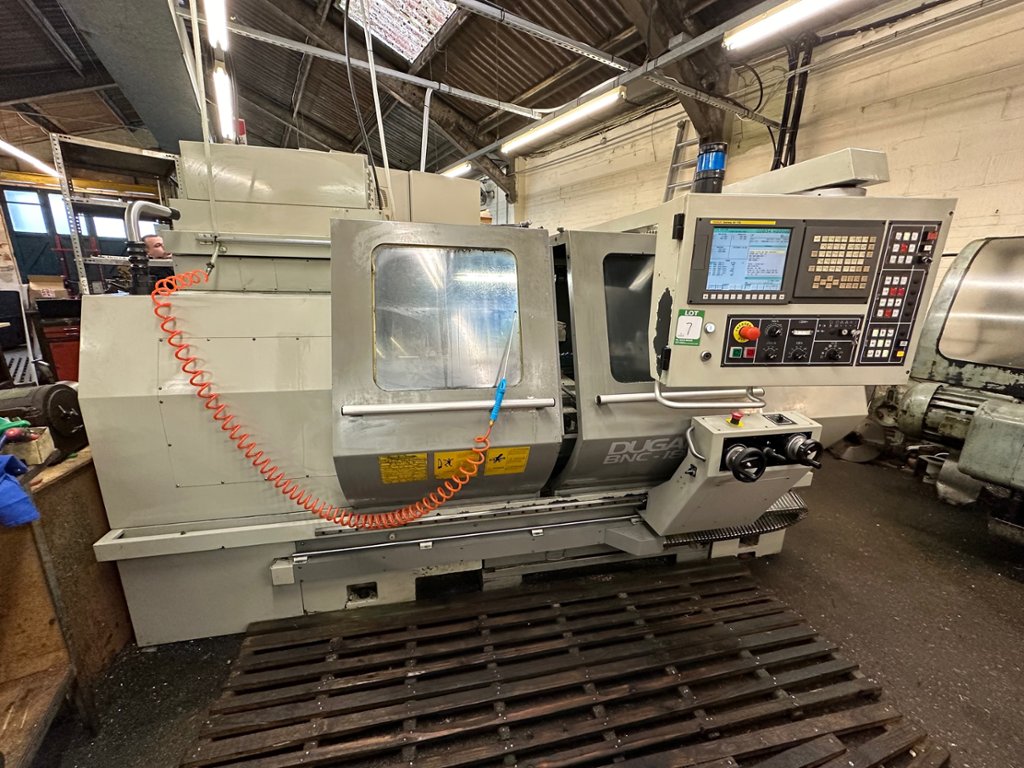

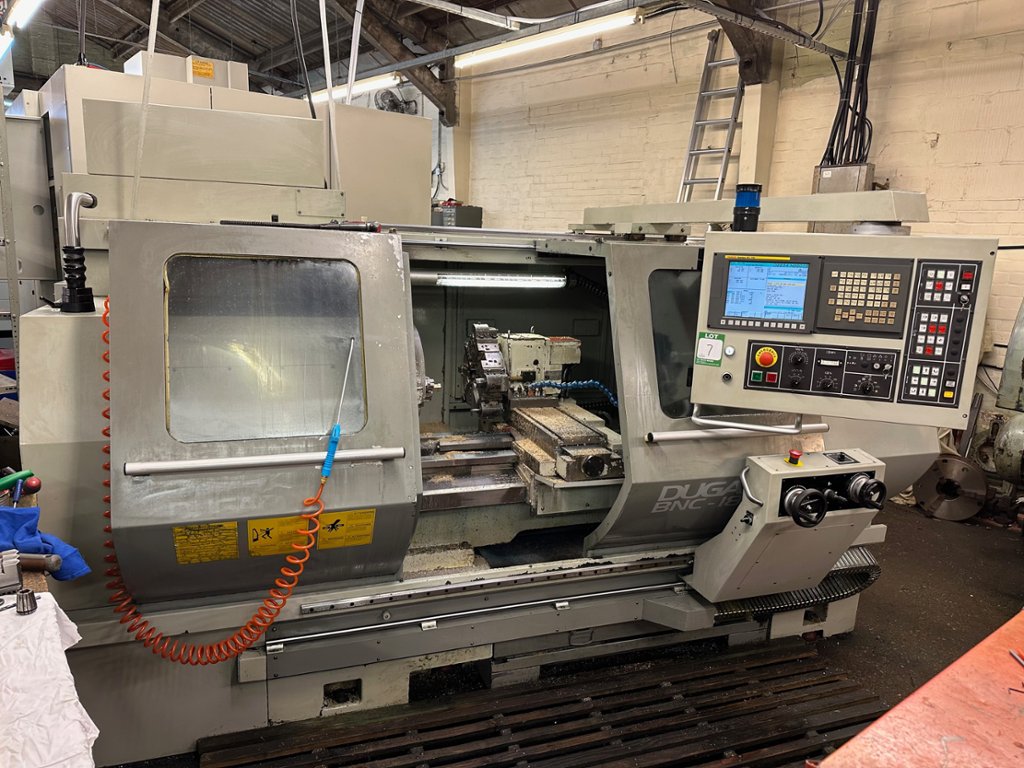

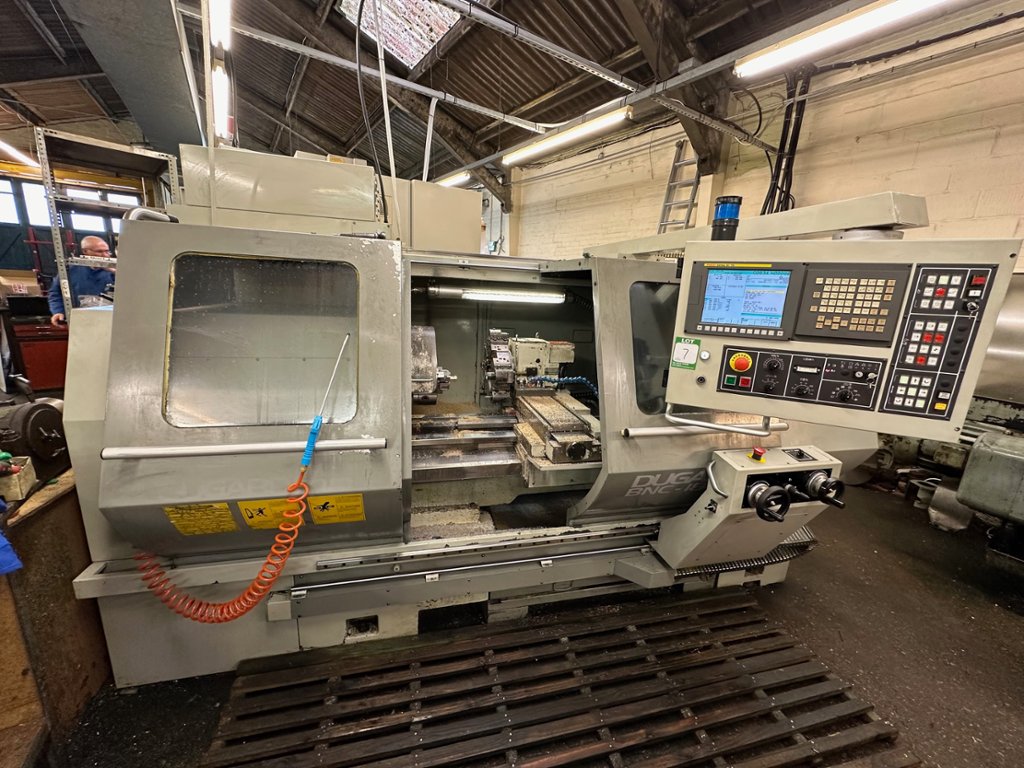

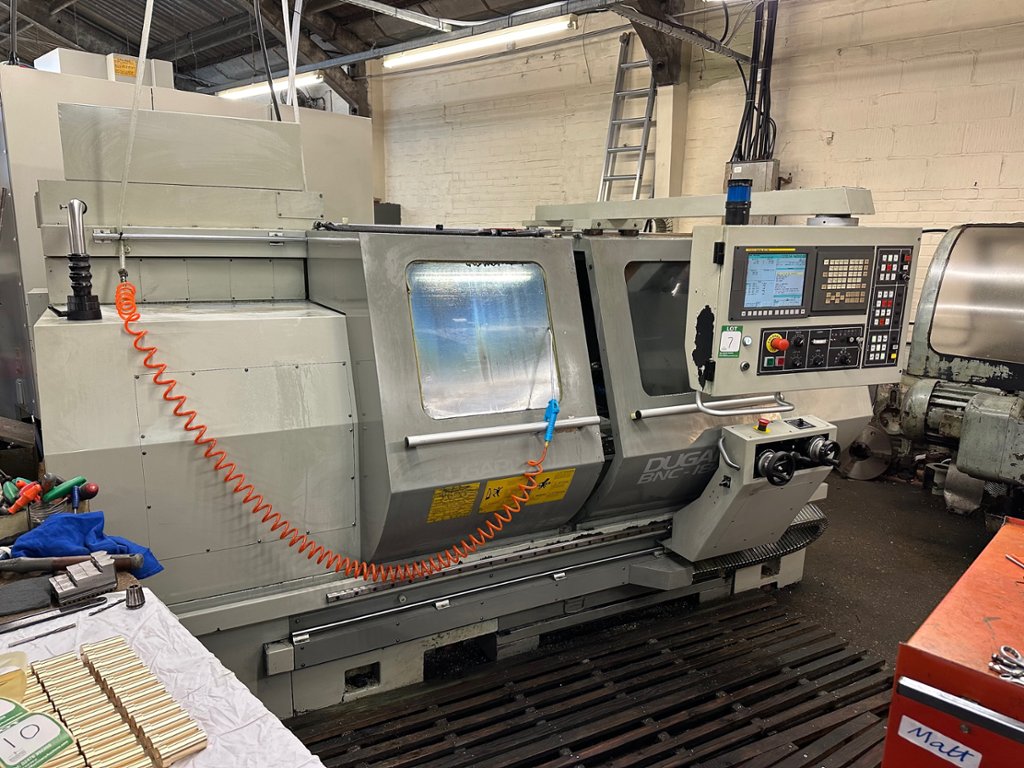

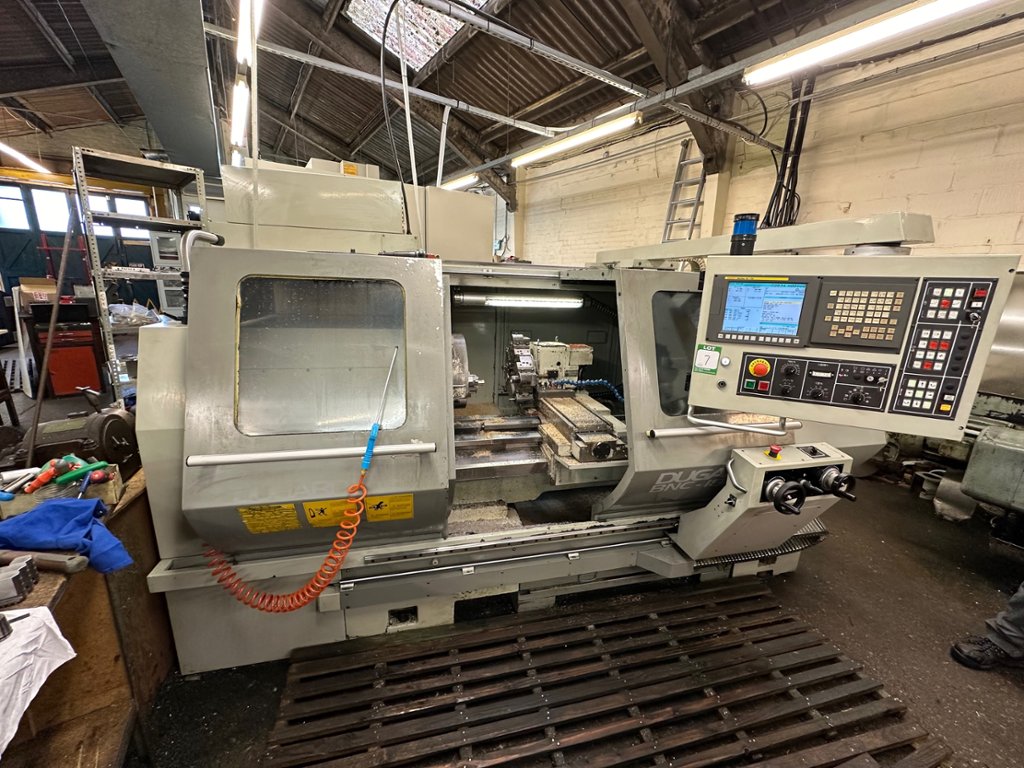

Lot 7 - Dugard BNC-1840 CNC Lathe (2011)

Description:

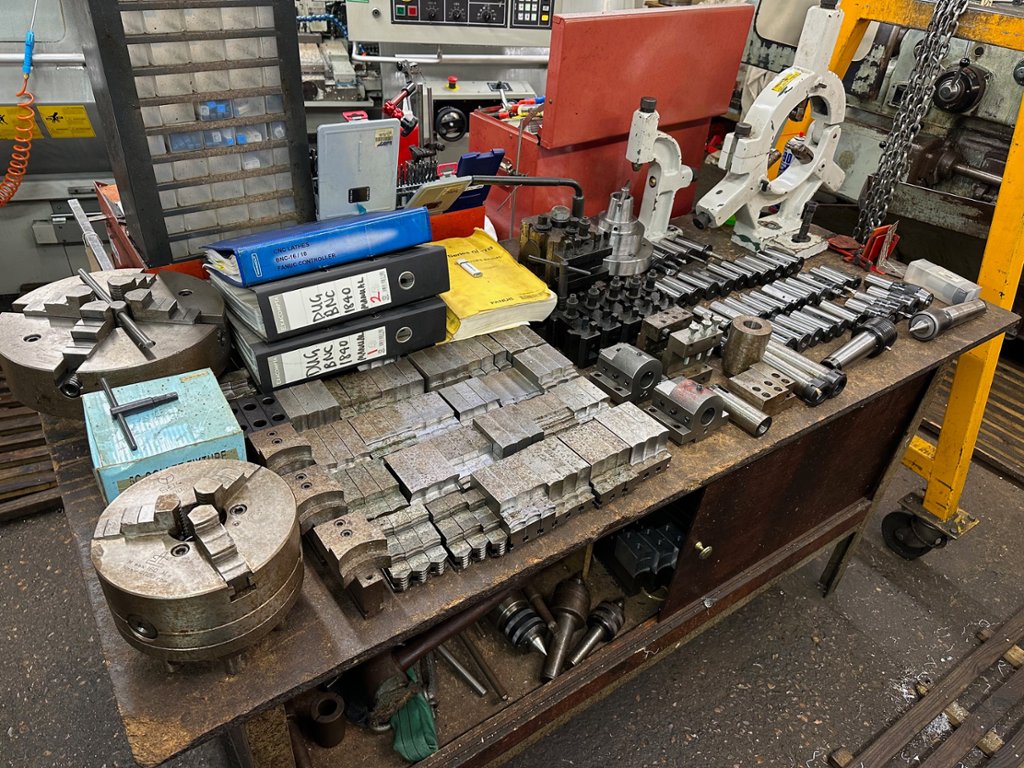

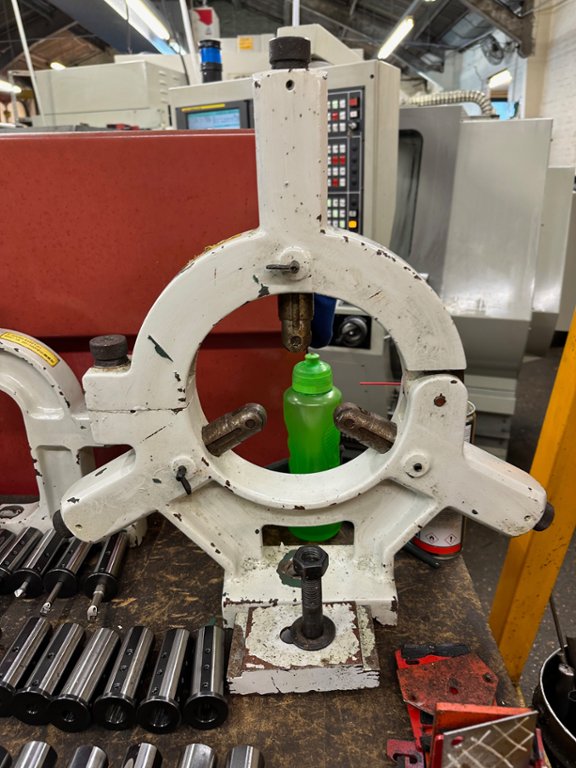

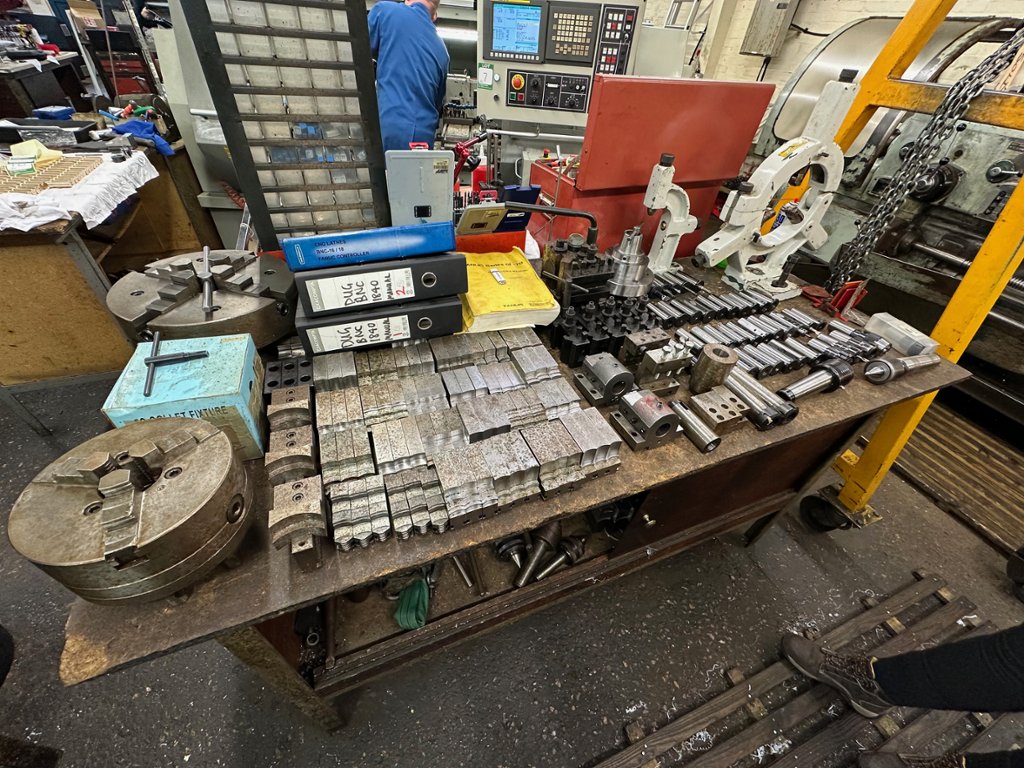

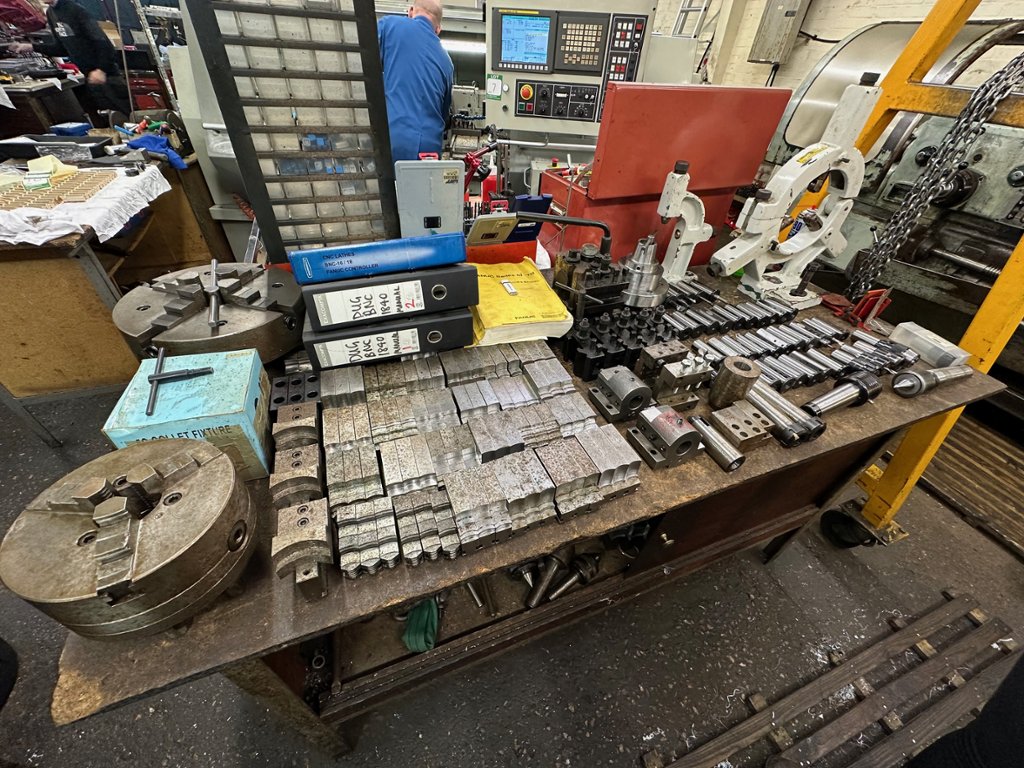

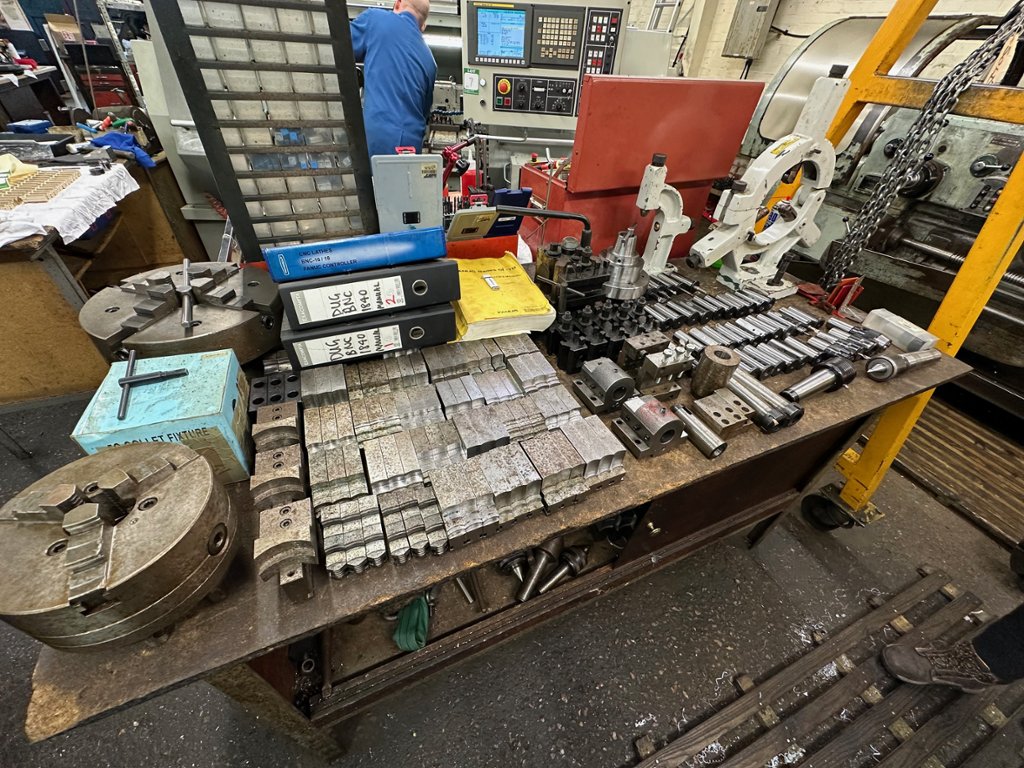

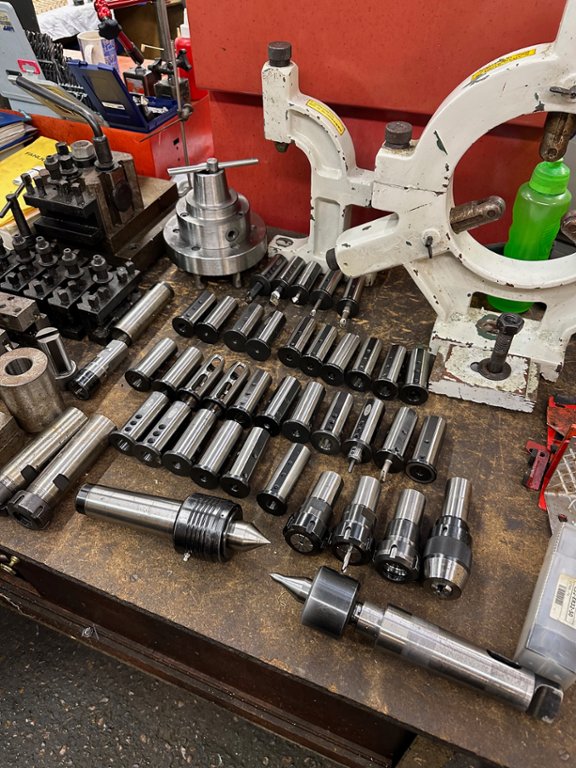

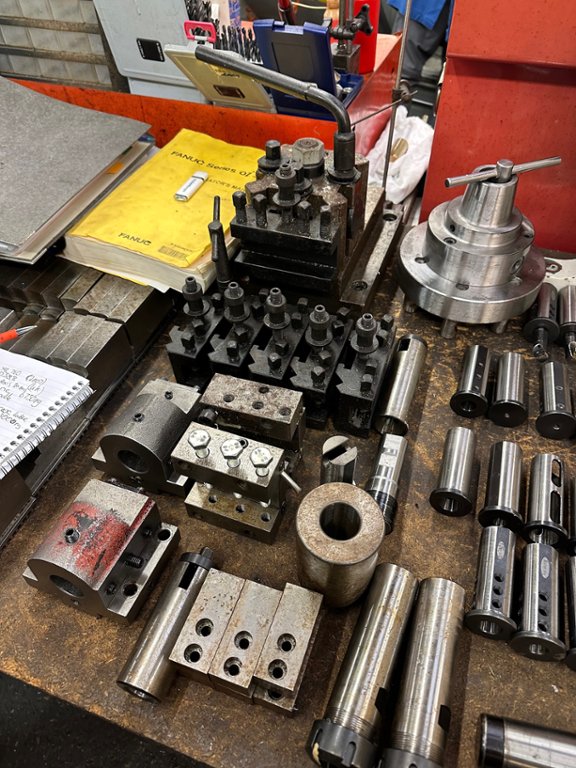

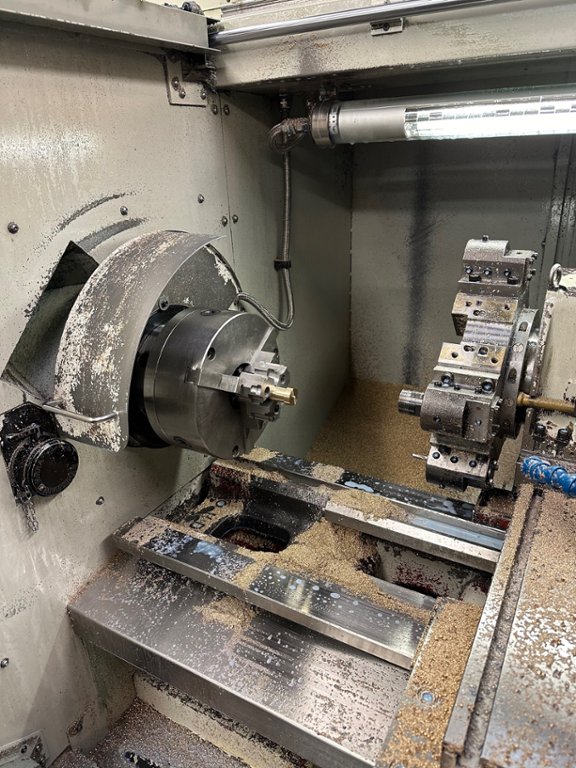

Comes with a selection of tooling

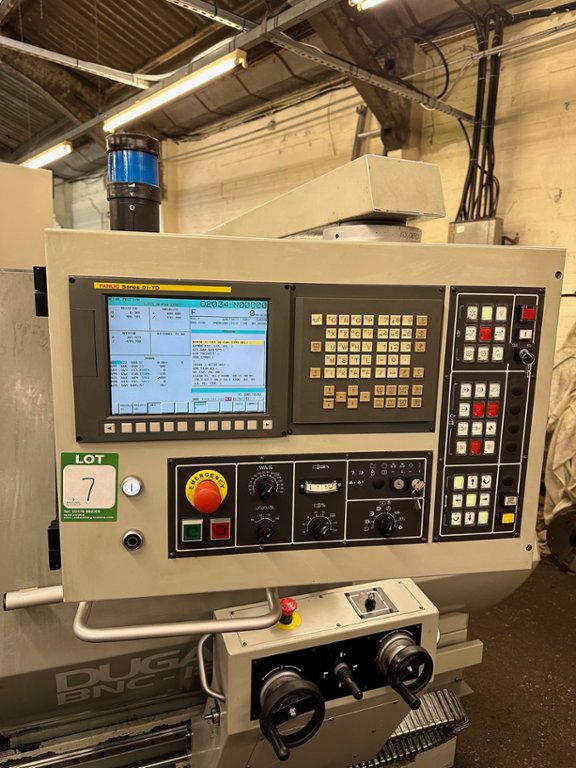

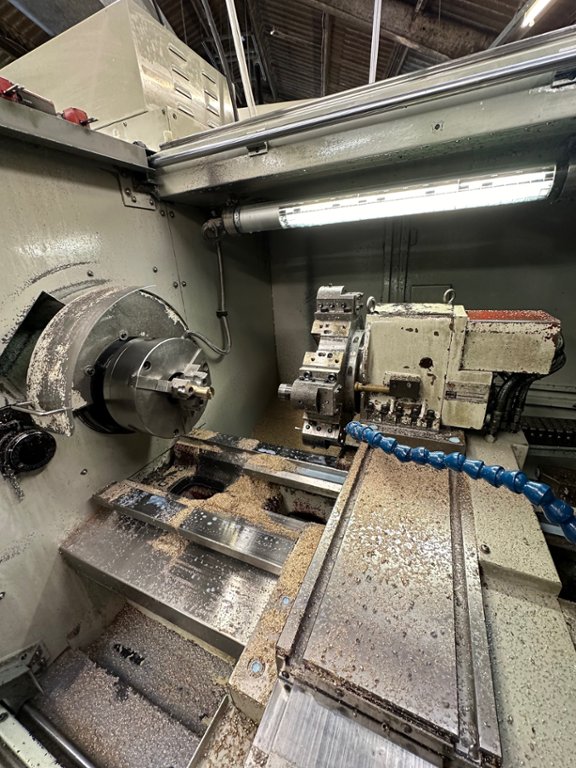

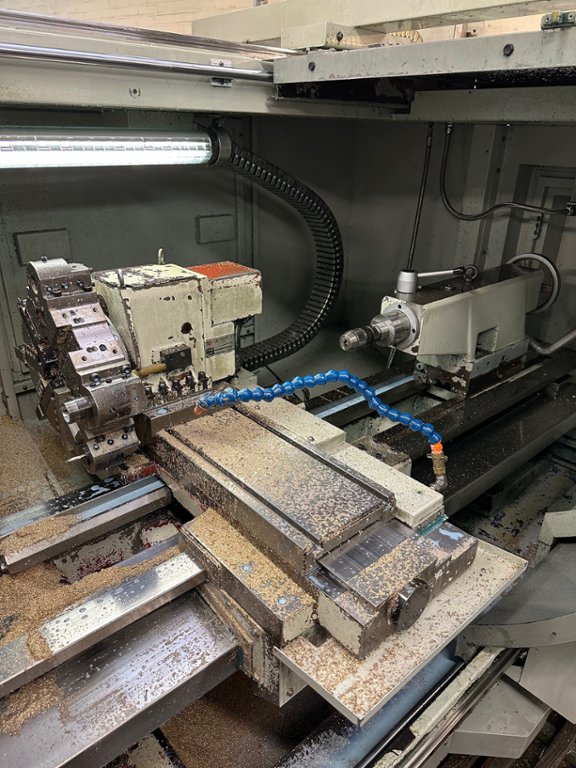

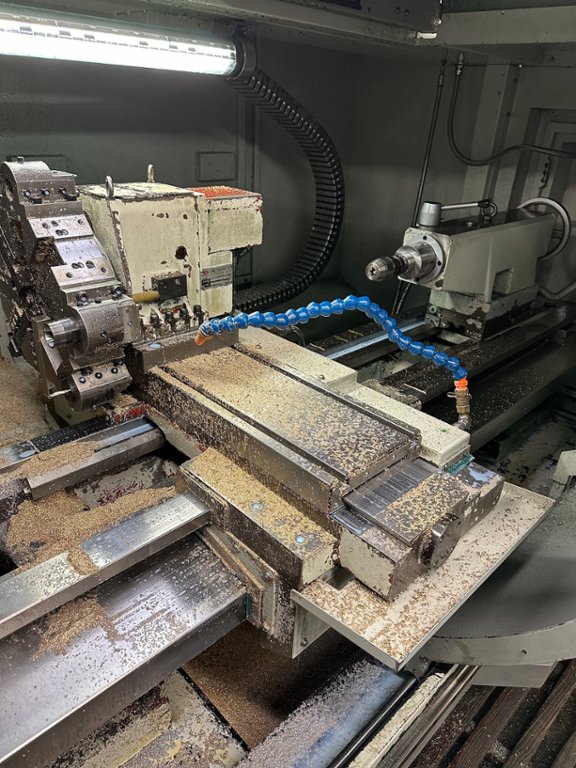

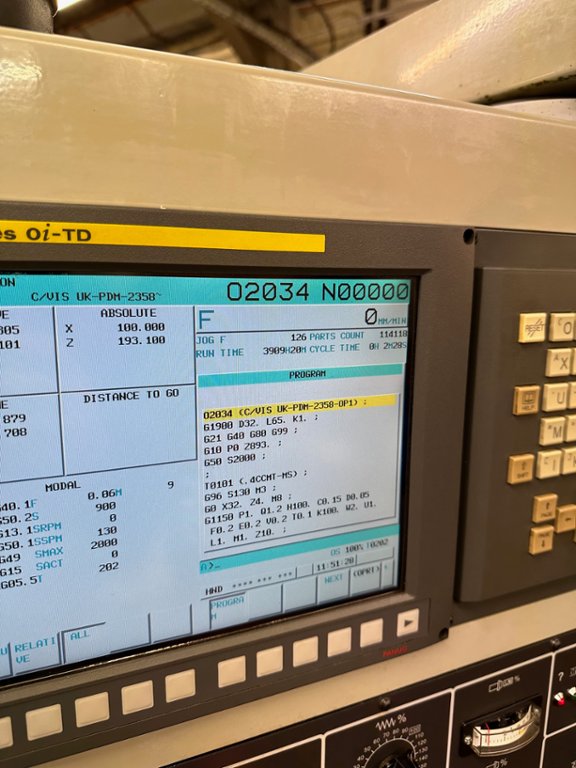

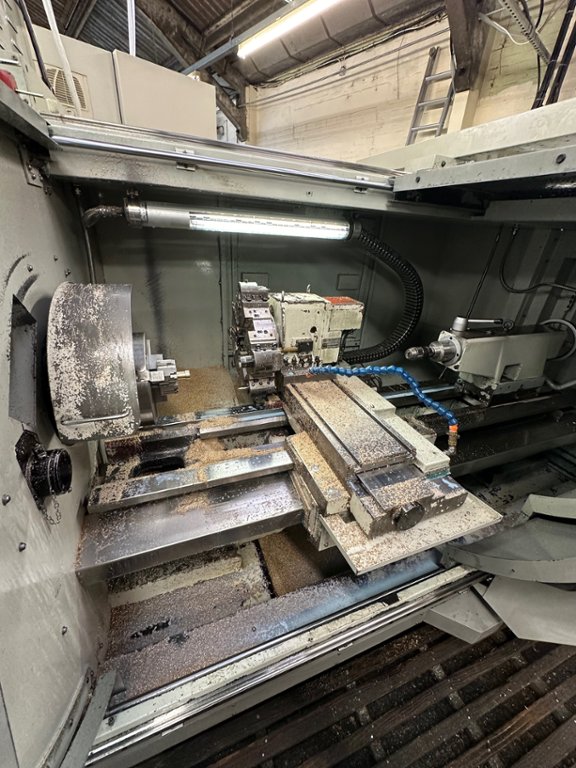

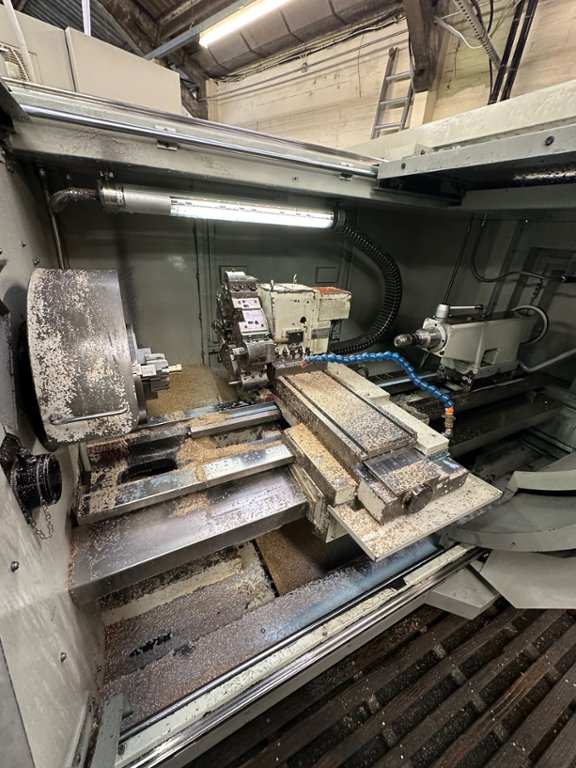

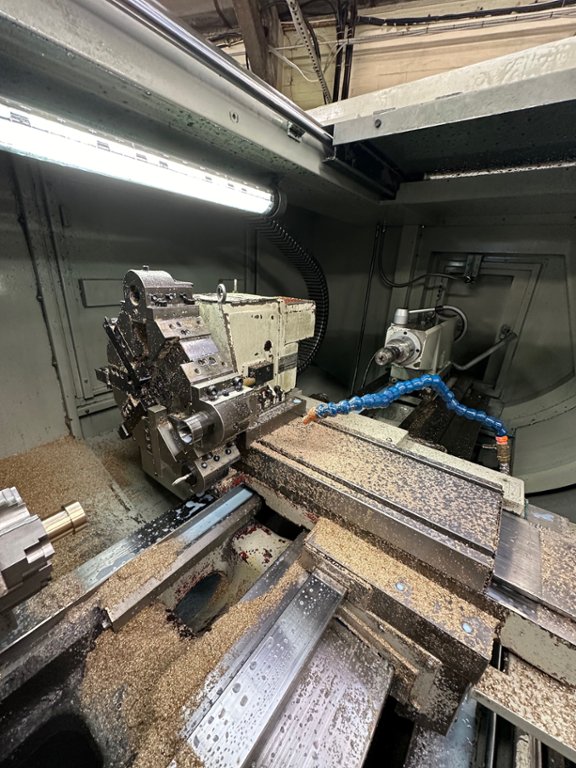

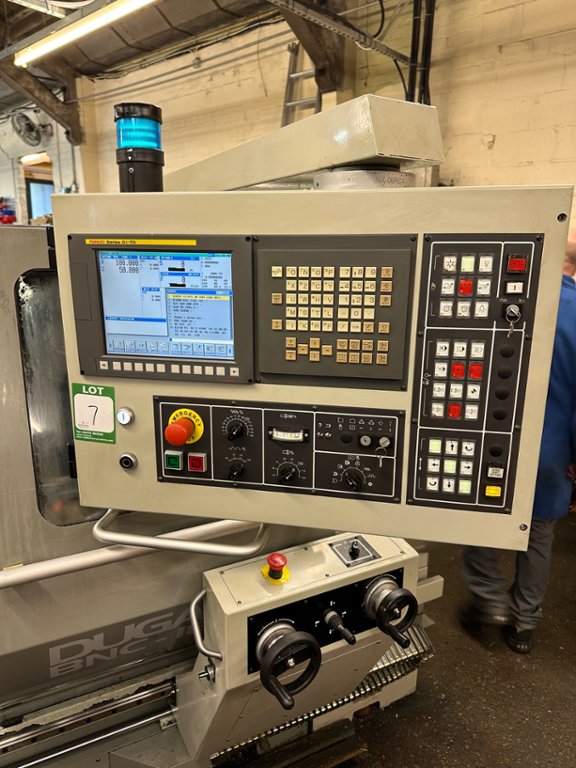

with Fanuc Oi-TD Control, 8-Station Turret, Tailstock & Tooleye

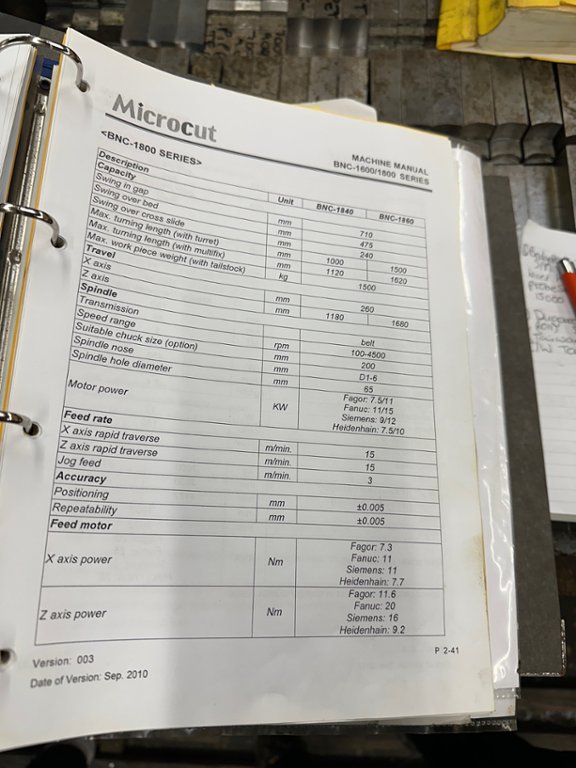

Capacity

Swing in Gap - 710mm, Swing over Bed - 475mm, Swing over Cross slide - 240mm, Max turning length (with turret) - 1000mm, Max turning length (with multifix) - 1120mm, Max work piece weight (with tailstock) - 1500kg

Travel

X Axis - 260mm, Z Axis - 1180mm

Spindle

Transmission - Belt, Speed Range - 10-4500RPM, Suitable chuck size (option) - 200mm, Spindle Nose - D1-6mm, Spindle Hole Diameter - 65mm, Motor Power - Fagor: 7.5/11kw, Fanuc: 11/15kw, Siemens: 9/12kw, Heidenhain: 7.5/10kw

Feedrate

X Axis Rapid Traverse - 15m/min, Z Axis Rapid Traverse - 15m/min, Jog Feed - 3m/min

Accuracy

Positioning - ±0.005mm, Repeatability - ±0.005mm

Feed Motor

X Axis Power - Fagor: 7.3Nm, Fanuc: 11Nm, Siemens: 11Nm, Heidenhain: 7.7Nm, Z Axis Power - Fagor: 11.6Nm, Fanuc: 20Nm, Siemens: 16Nm, Heidenhain: 9.2Nm

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Bid information

Time remaining

HRSMINSEC
000000

24 Apr 2024 15:00:00 BST


Final remove by date: 08/May/2024

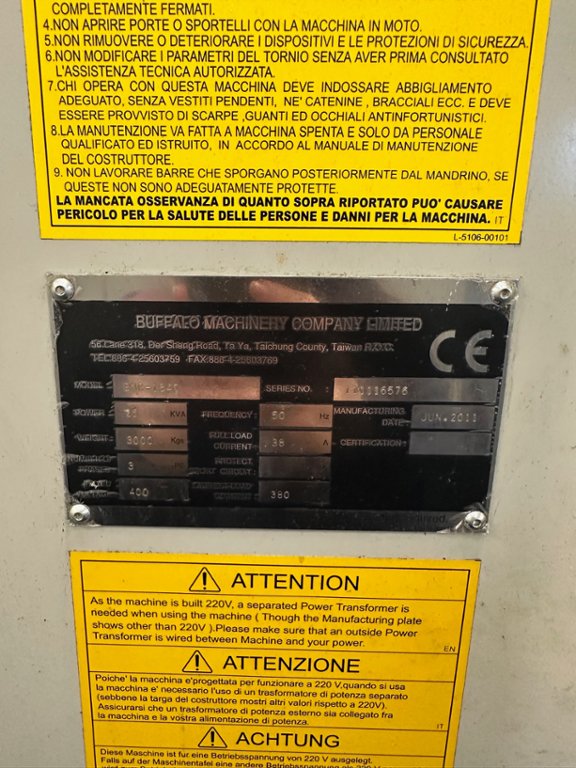

Serial Number: 111116576

Location: Southampton

Lot location

Transport information

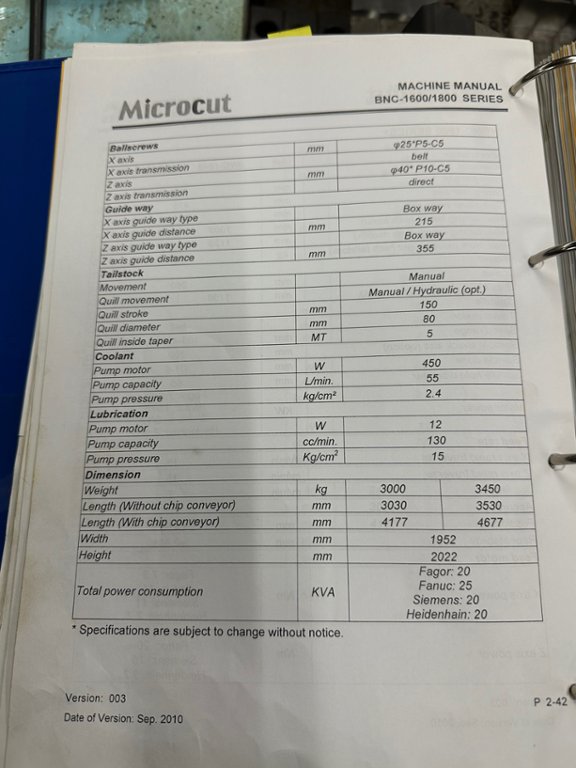

  • Width: 4177mm
  • Depth: 1952mm
  • Height: 2022mm
  • Weight: 3000kg
  • Other Transport Details: No loading facilities on site
