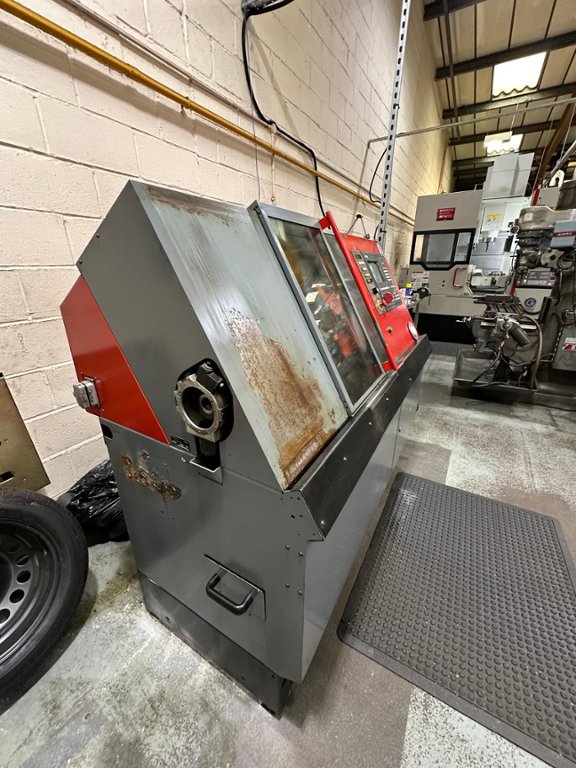

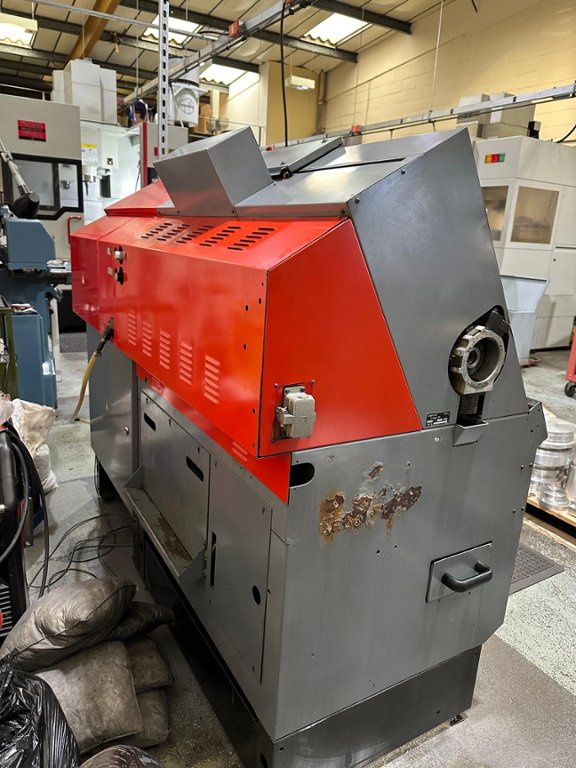

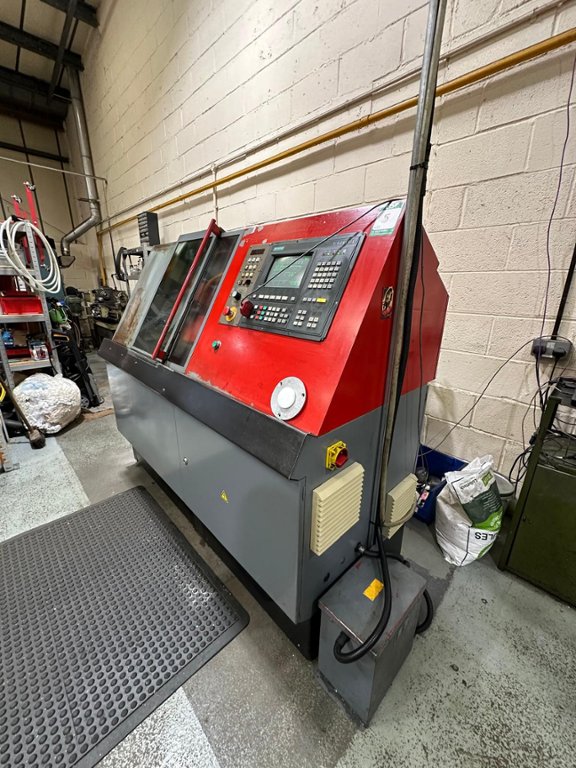

Emco Emcoturn 320 CNC Lathe

Lot 5 - Emco Emcoturn 320 CNC Lathe

Description:

Neumatic tailstock, 8 tool station, 1" Bar capacity

Working Area

Turning diameter above bed - 180mm, Turning diameter over cross slide - 75mm, Turning diameter (theoretical) - 120mm, Size of workpiece for chuck & tailstock - diameter 75mm length 120mm, Size of workpiece for collet & tailstock - diameter 22mm length 140mm, Slide way (longitudinal) (Z Axis) - 180mm, Slide way (cross) (X Axis) - 60mm

Headstock

Spindle connection (centering shoulder) - 70h5, Spindle bore - 30mm, Tube bore - 25.5mm

Main drive

Direct current motor, Performance (100/60%) - 2.6/4.0kW, Torque (2.6/4.0 kW) - 17.6/23Nm, Speed range - 30-6300 rev/min, Speed control - Stepless

Feed Drive

Direct current motors in X & Z axis, Feed force longitudinal (Z Axis) - 3000N, Feed force cross (X Axis) - 3000N, Rapid traverse rate - 6 m/min, Resolution accuaracy (X & Z axis) - 0.0005/0.001mm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
