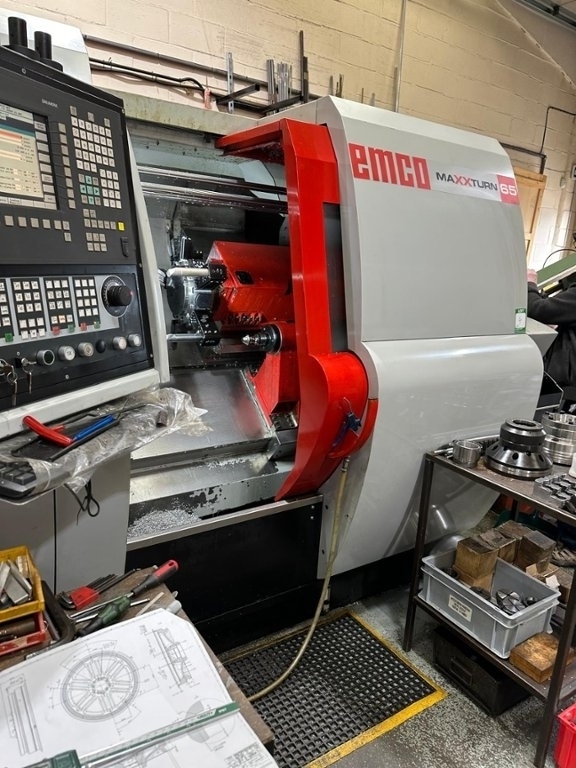

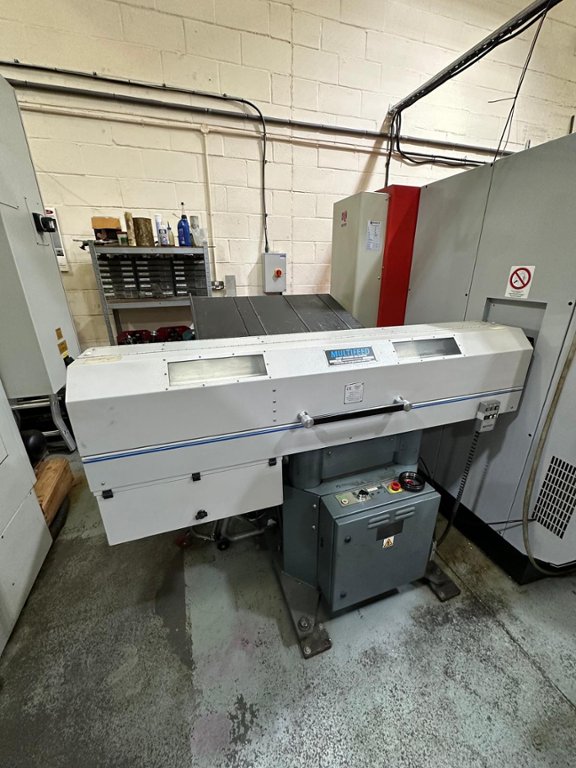

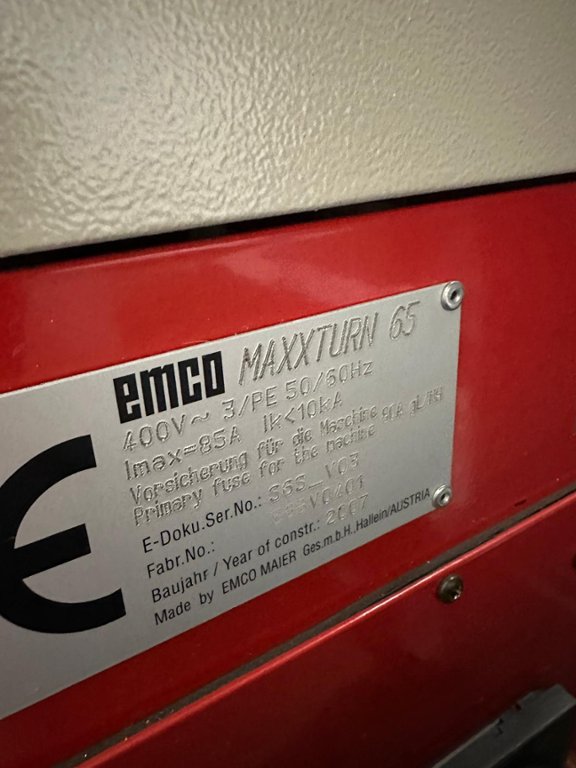

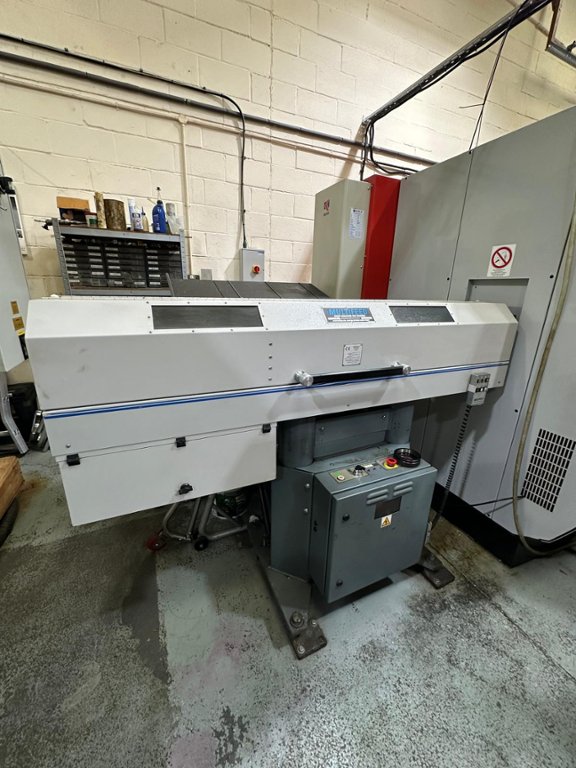

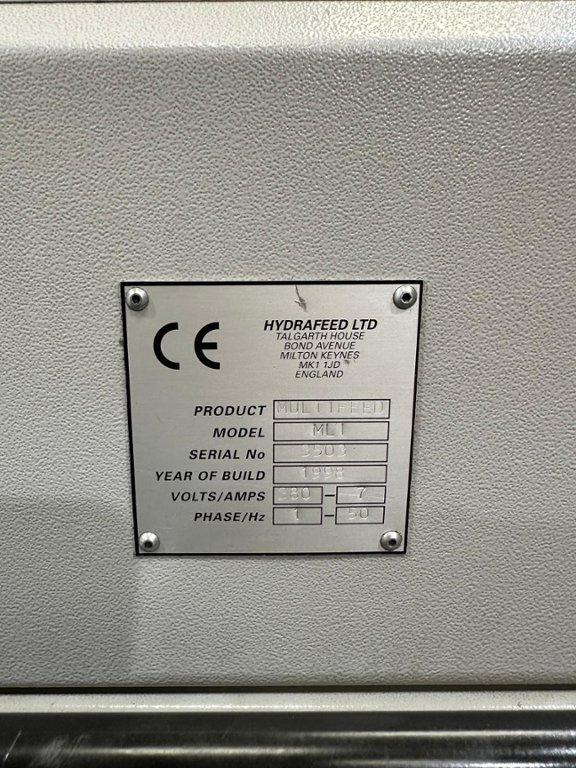

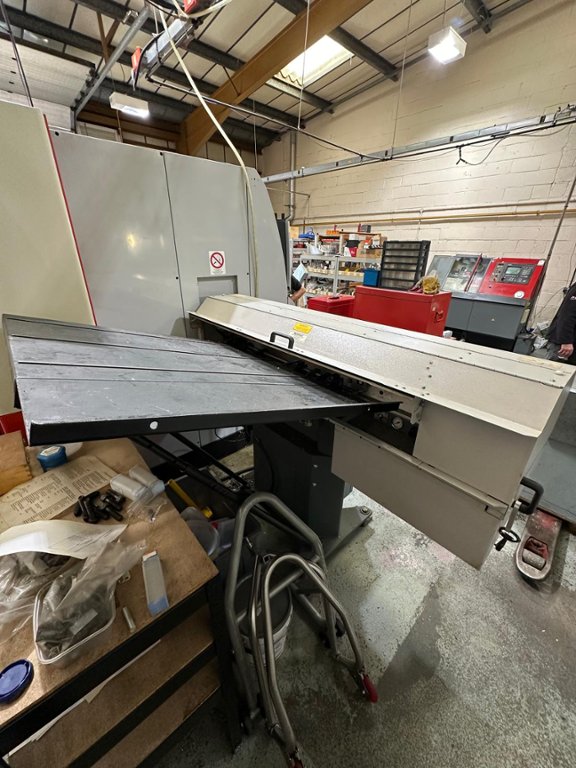

Emco Maxxturn 65 CNC Lathe (2007) With Multifeed ML1 Barfeed (1998)

Lot 4 - Emco Maxxturn 65 CNC Lathe (2007) With Multifeed ML1 Barfeed (1998)

Description:

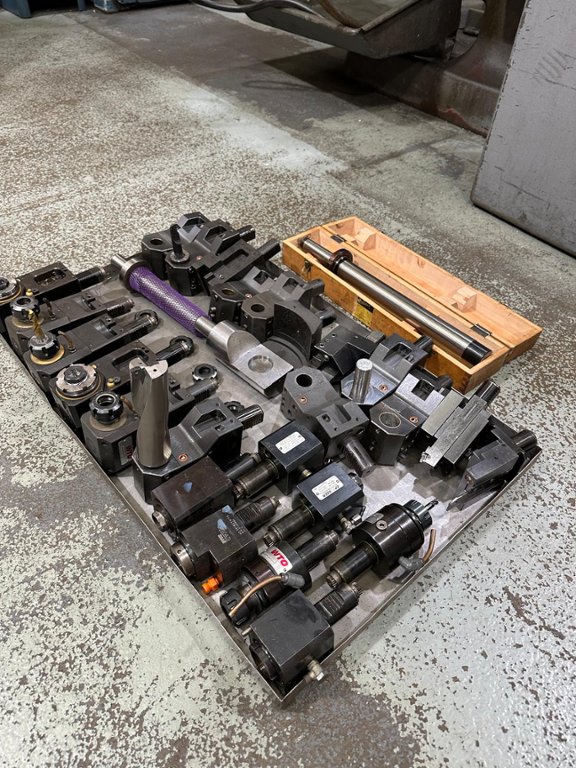

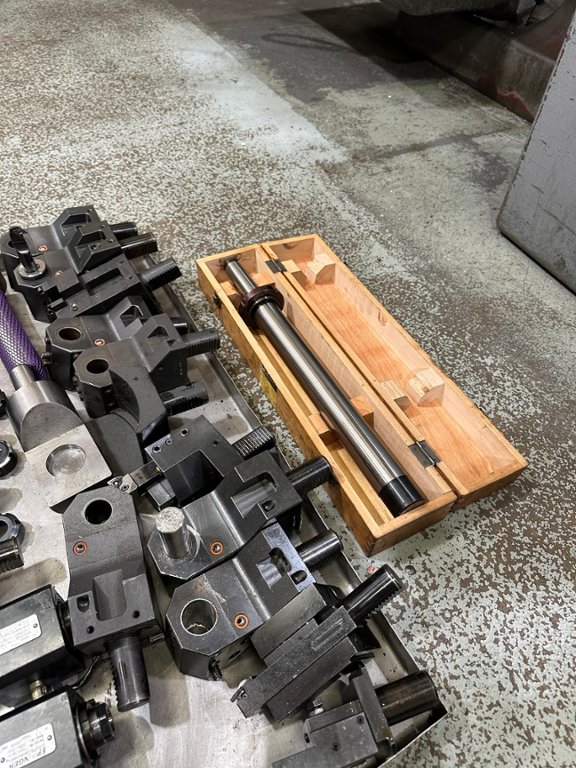

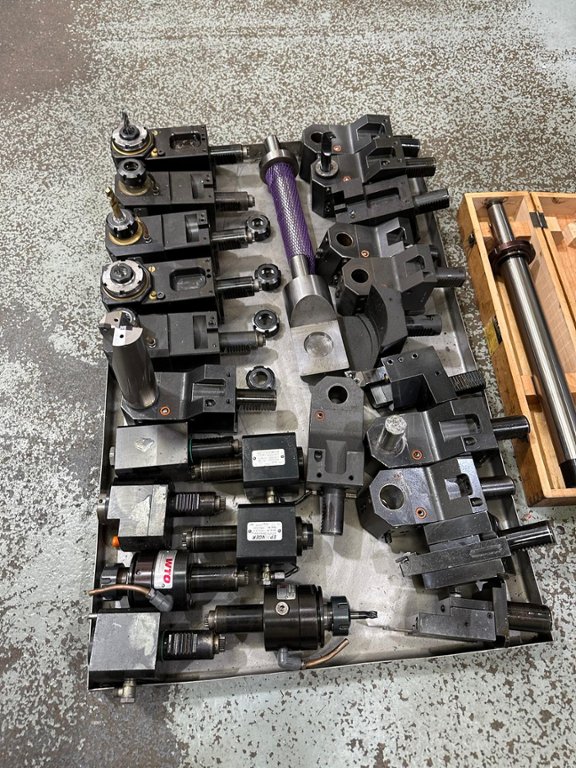

Comes with 12 Driven Tools - Drive tools on all stations + or - 40mm Y Axis

Cutting Tools are NOT included.

Will take 3" Bar

Working Range

Swing over bed - 610mm,nSwing over cross slide (at Y=0) - 360mm, Distance main spindle (fixing flange) - tailstock centre - 682mm, Distance main spindle - counter spindle (fixing flange) - 830mm, Max turning diameter - 500mm, Max part length - 550mm, Max bar-stock diameter - standard/bigbore - 65/76.2mm

Travel

Travel X - 260mm, Travel Y - 610mm

Main Spindle (Spindle 1)

Spindle nose according to 55026 - KK6, Spindle bearing outside diameter (standard/bigbore) - 105/110mm, Spindle bore (without tensioning tube - standard/bigbore) - 73/86mm

Main Spindle - Clamping System

Clamping cylinder with bore, max diameter of bar - 65mm, Max size of chuck - 250mm

Main Spindle - Drive

Intergrated AC-spindle motor, power (100%/40% d.c) - 21/29kW, Speed range (infenitely variable-standard/bigbore) - 0-5000/4000 min, Max torque -250 Nm

Counter Spindle (spindle 2)

Spindle nose according to 55026 - KK6, Spindle bearing (outside diameter) - 85mm, Traverse in Z2 - 580mm, Rapid traverse speed - 30 m/min, Holding force - 8000 N

Counter Spindle - Clamping system

Clamping cylinder without bore for chuck work - 180mm, Max size of chuck - 200mm

Counter Spindle - Drive

Intergrated AC-spindle motor, power (100%/40% d.c) - 17/22kW, Speed range (infenitely variable) - 0-7000 min, Max torque -130 Nm

Tailstock

Automatic tailstock, operated with hydraulic unit, Tailstock travel - 500mm, Max tailstock thrust - 8000N, Tailstock travel speed - 20 m/min, Tailstock bore taper - MK4

Feed Drives

Rapid traverse speed X/Y - 24/30 m/min, Feeding force X - 5000N, Feeding force Z - 7000N, Positioning variation P according to VDI 3441 in X/Z - 3/5um

C-Axis (spindle 1 & 2)

Resolution of the C-axis - 0.001deg, Rapid traverse speed - 1000min

Y Axis

Travel - 80 (±40)mm, Feed force - 7000N, Rapid traverse speed Y - 12m/min

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
