Faro Gage - Personal Coordinate Measuring Machine

Lot 2 - Faro Gage - Personal Coordinate Measuring Machine

Description:

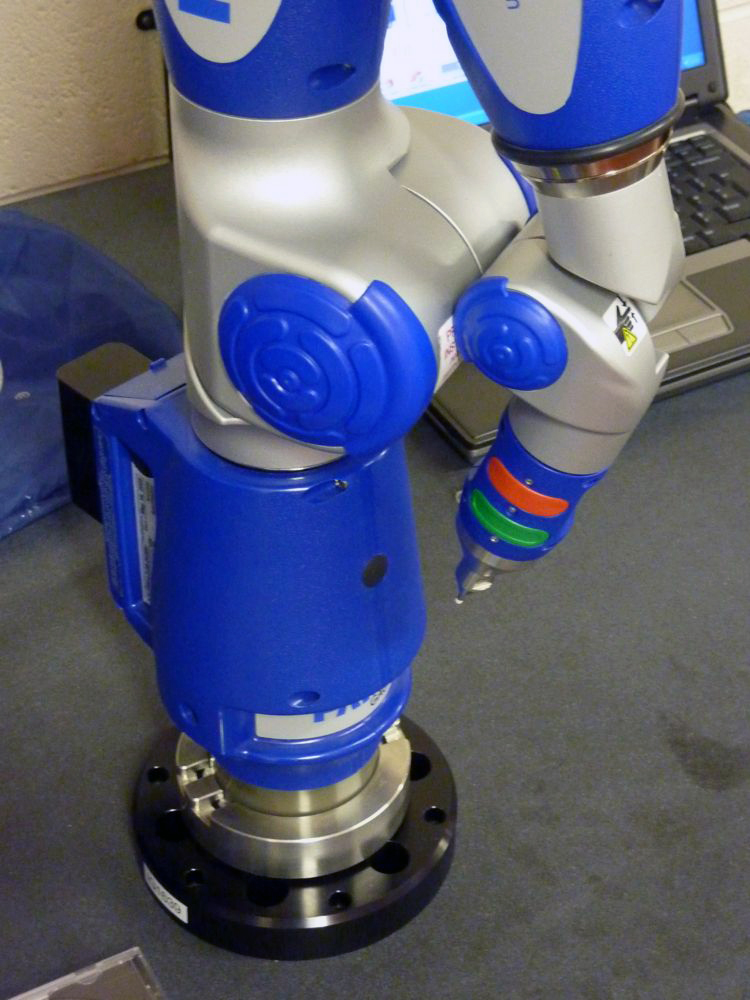

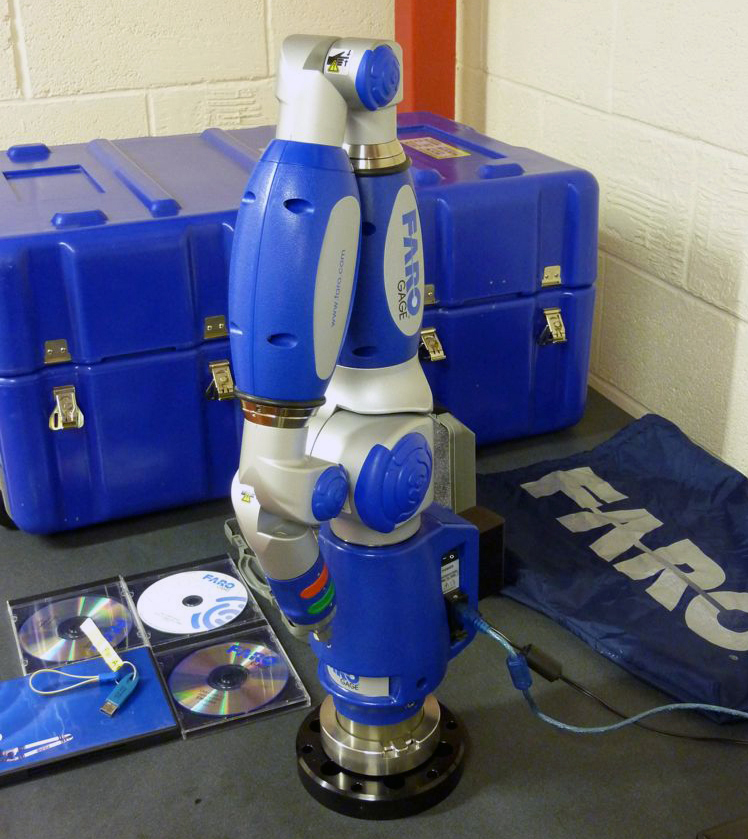

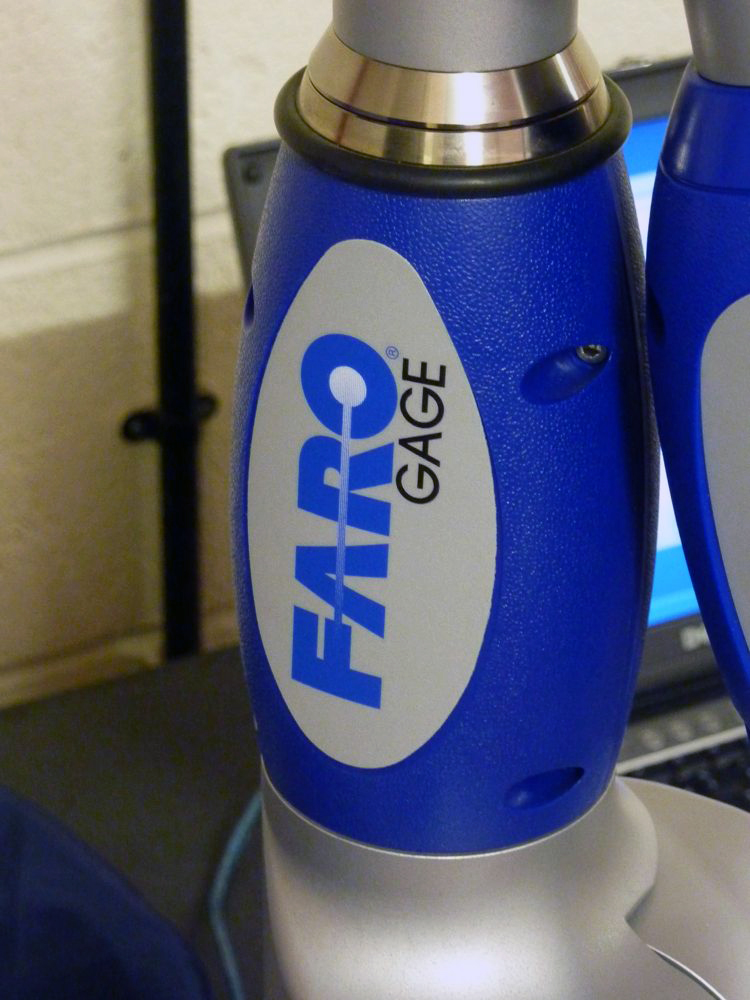

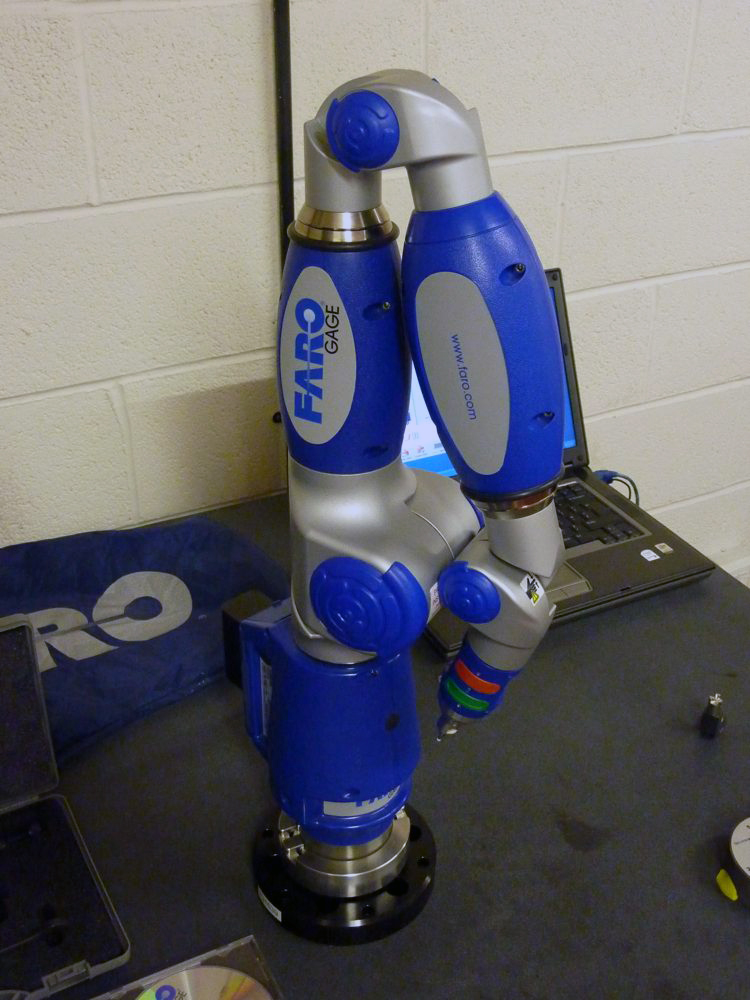

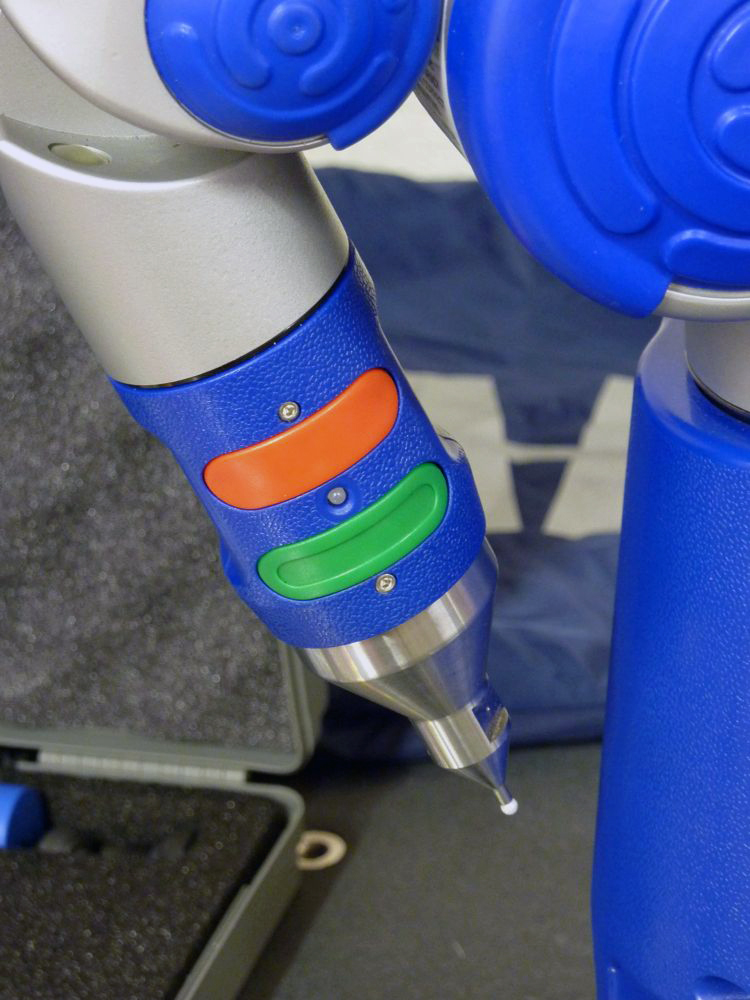

Faro Gage - Personal Coordinate Measuring Machine

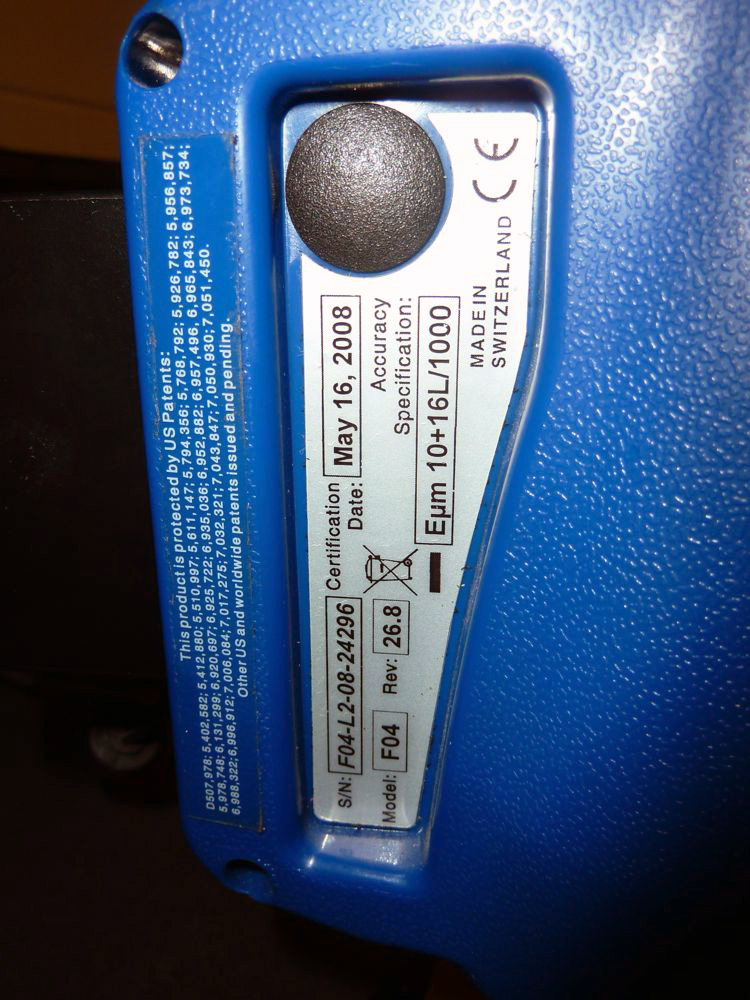

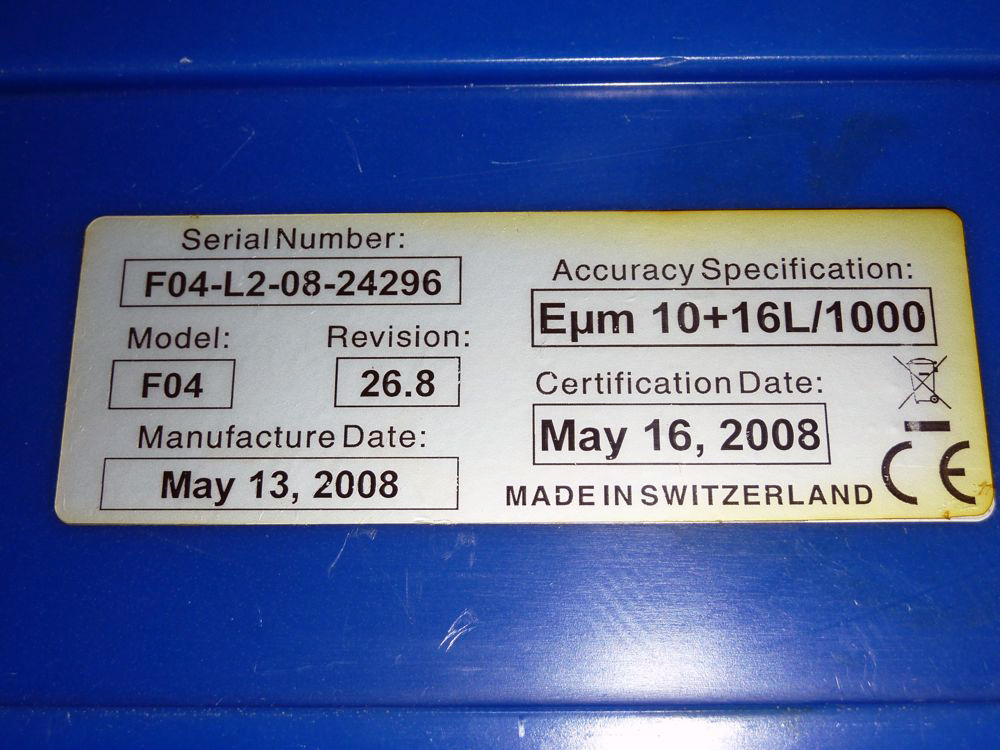

Model: F04 R26.8
May 2008
SN. F04-L2-08-24296

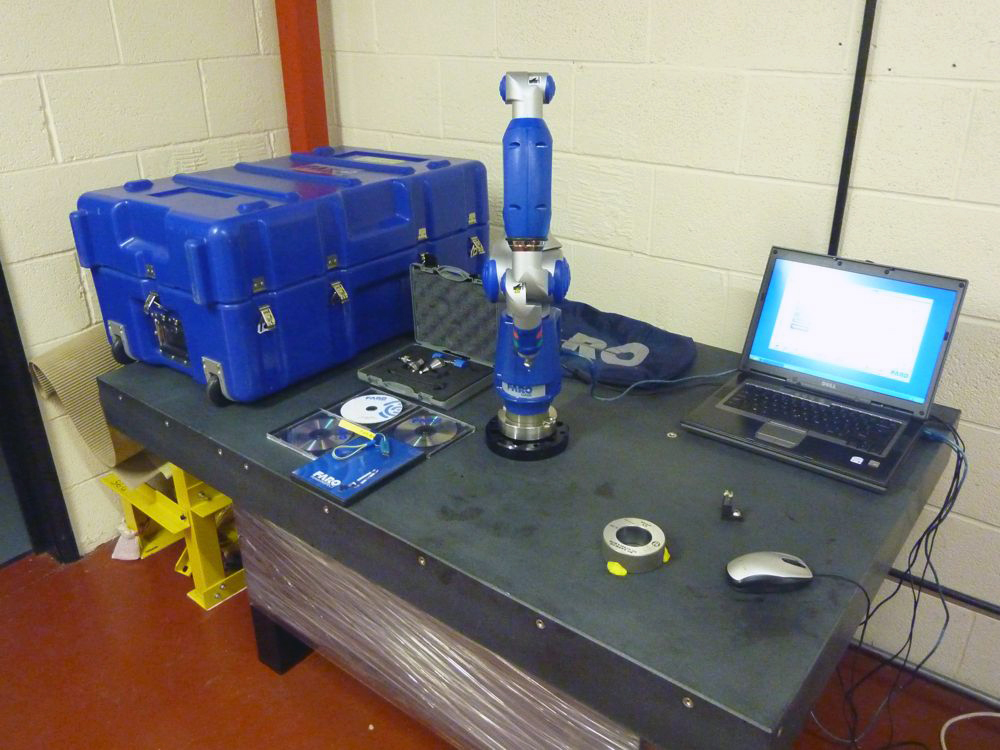

Includes:

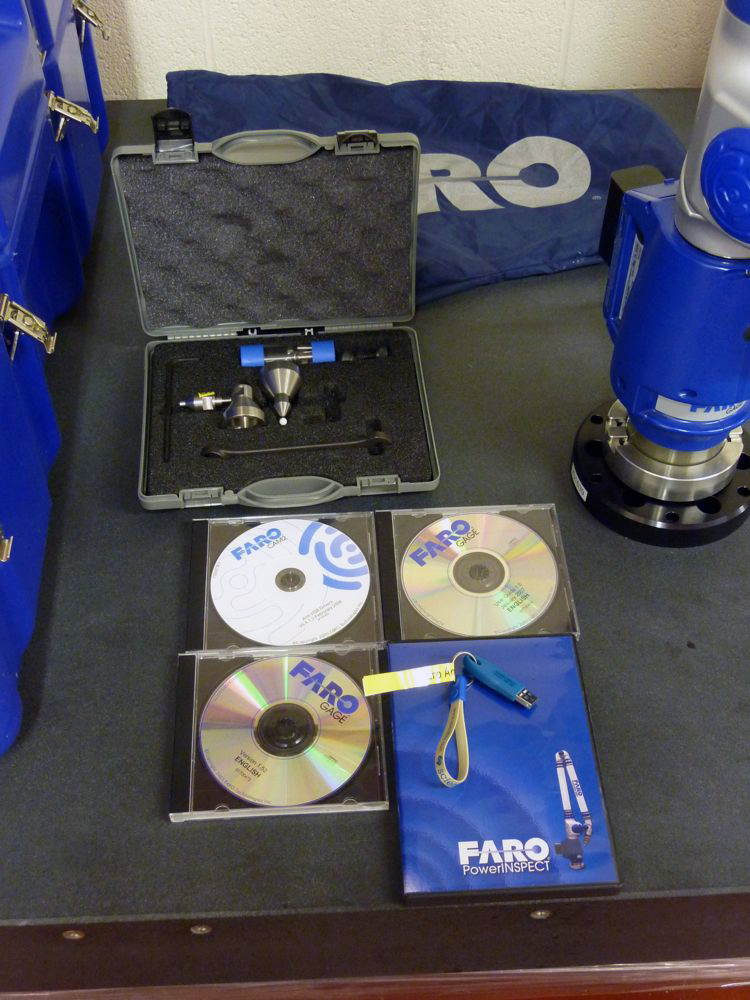

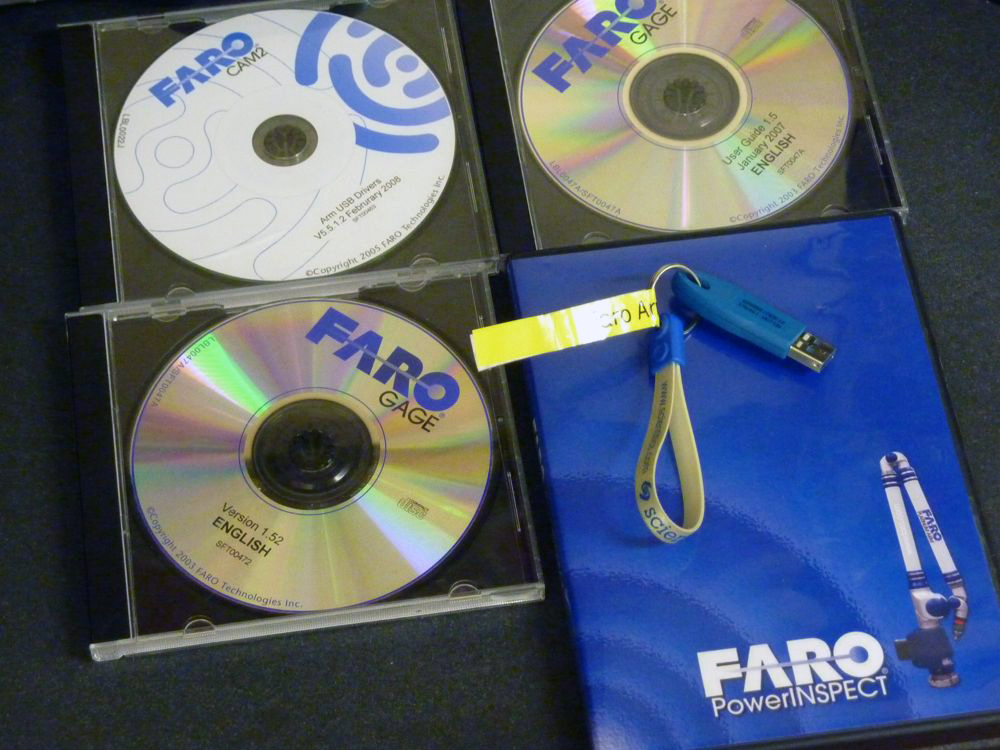

Faro CAM2 drivers.

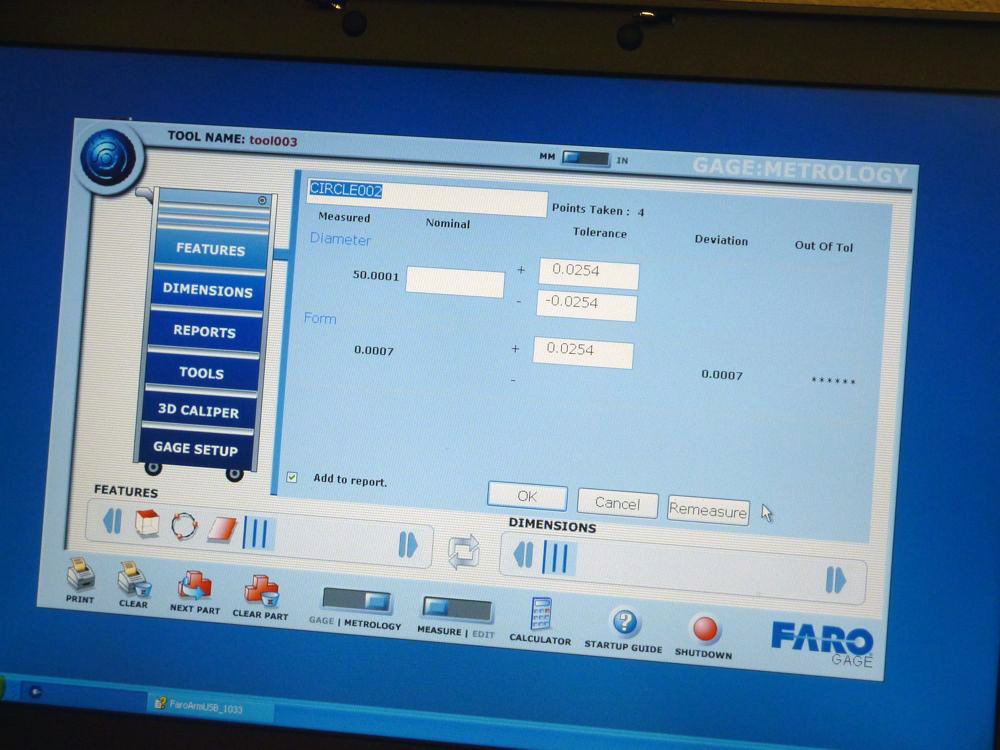

Faro Gauge Software.

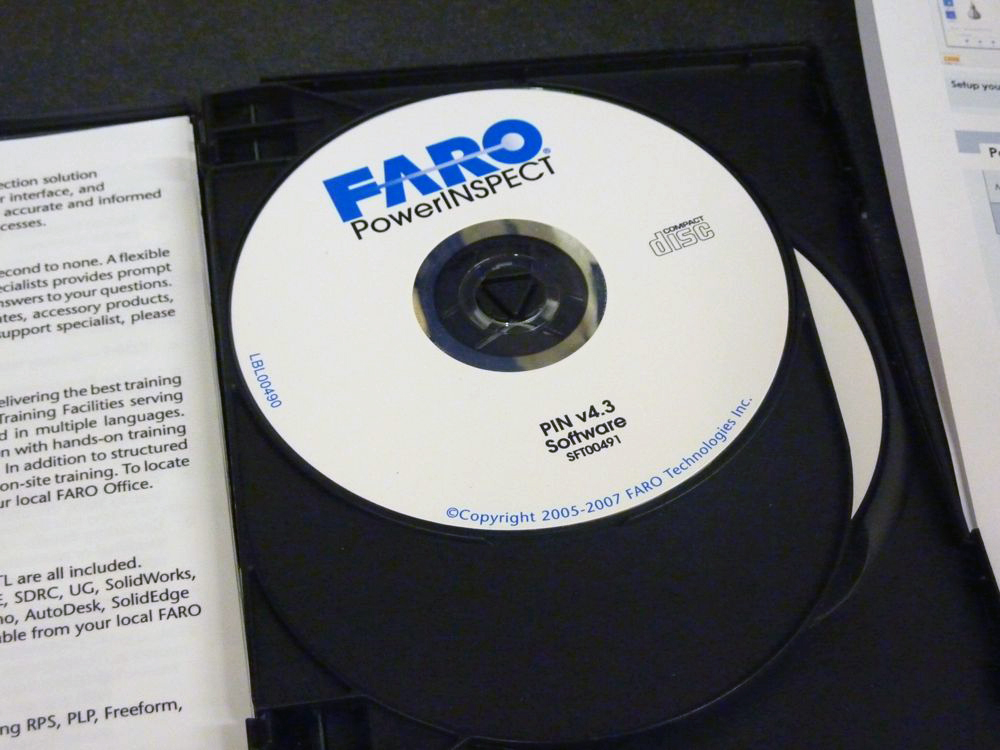

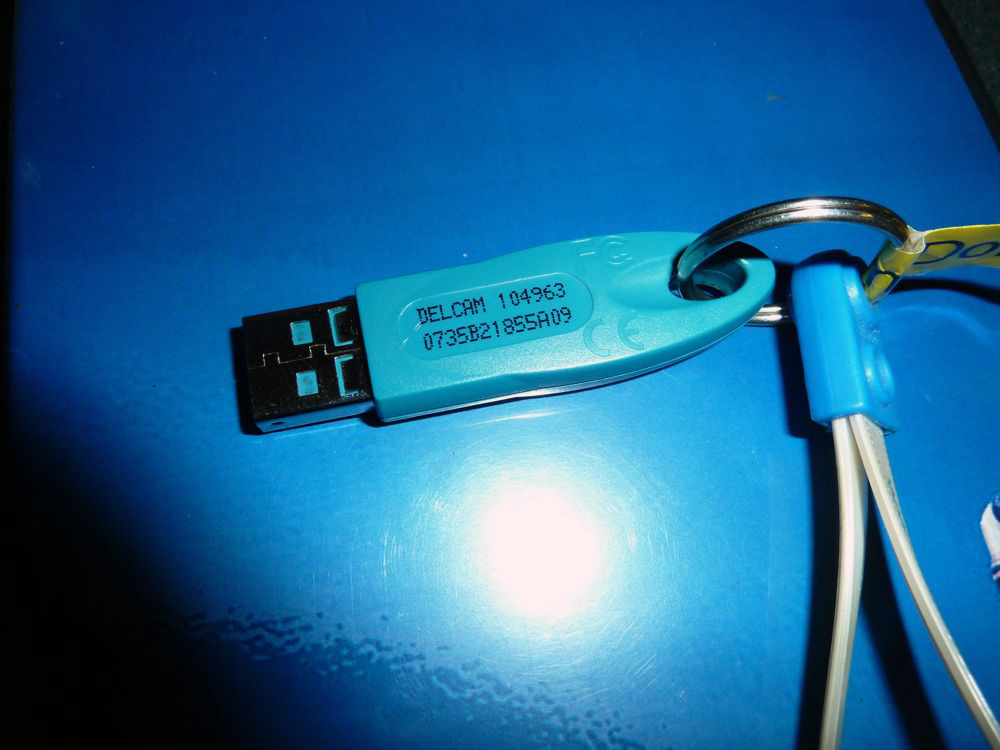

Declam PowerINSPECT v4.3 Software and Dongle (Requires valid PAF Key , not installed)

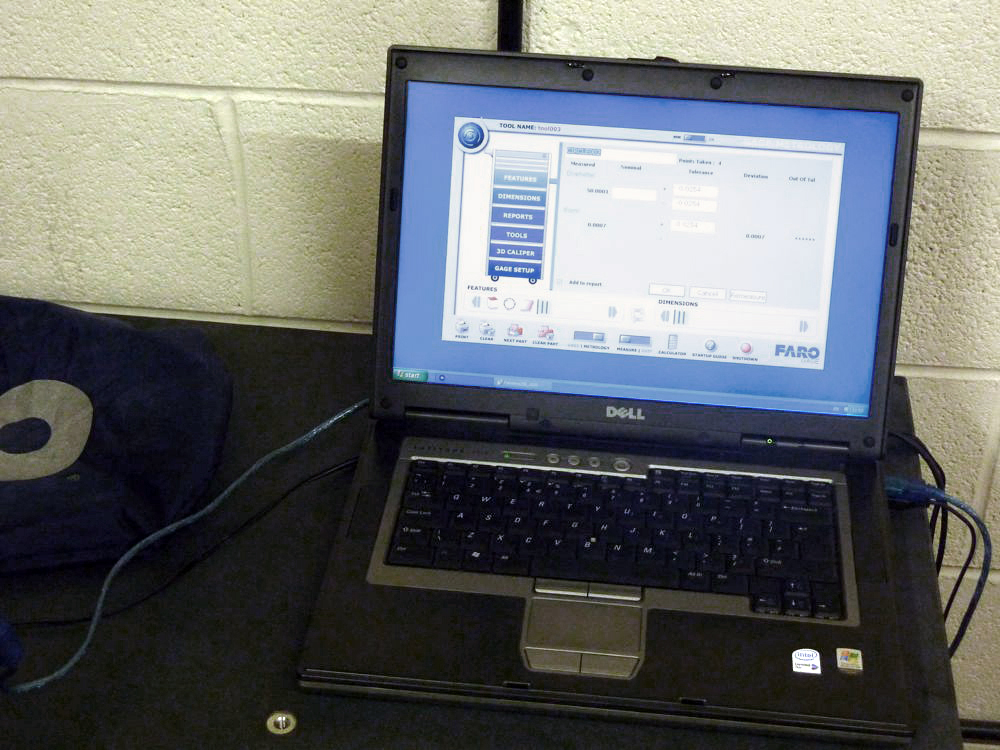

Includes DELL Windows Laptop.

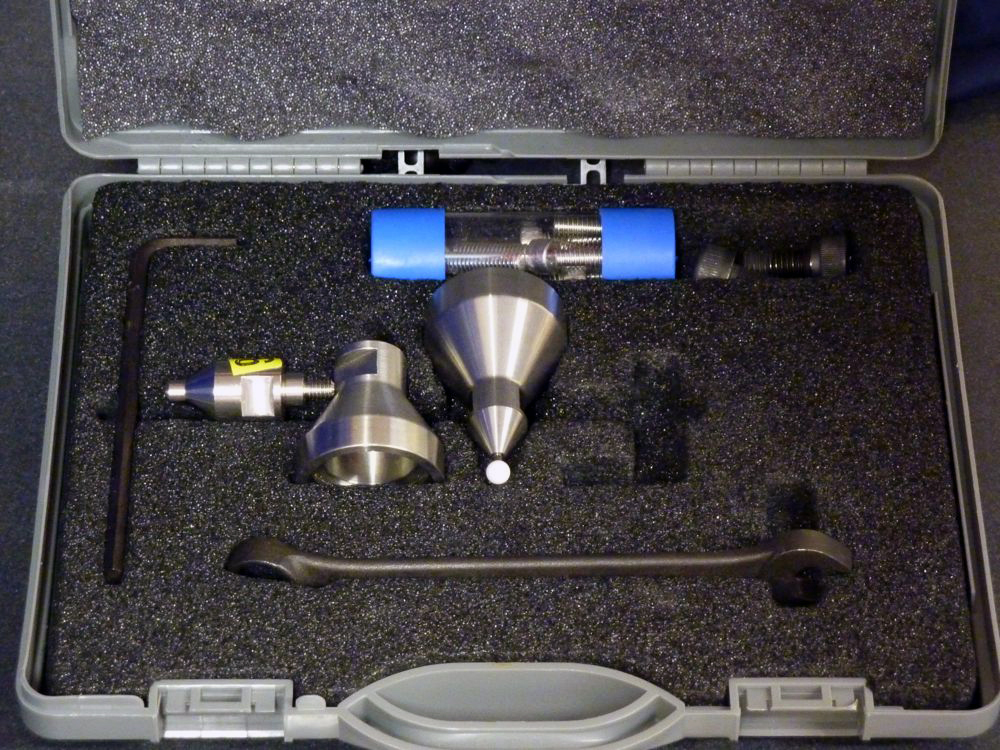

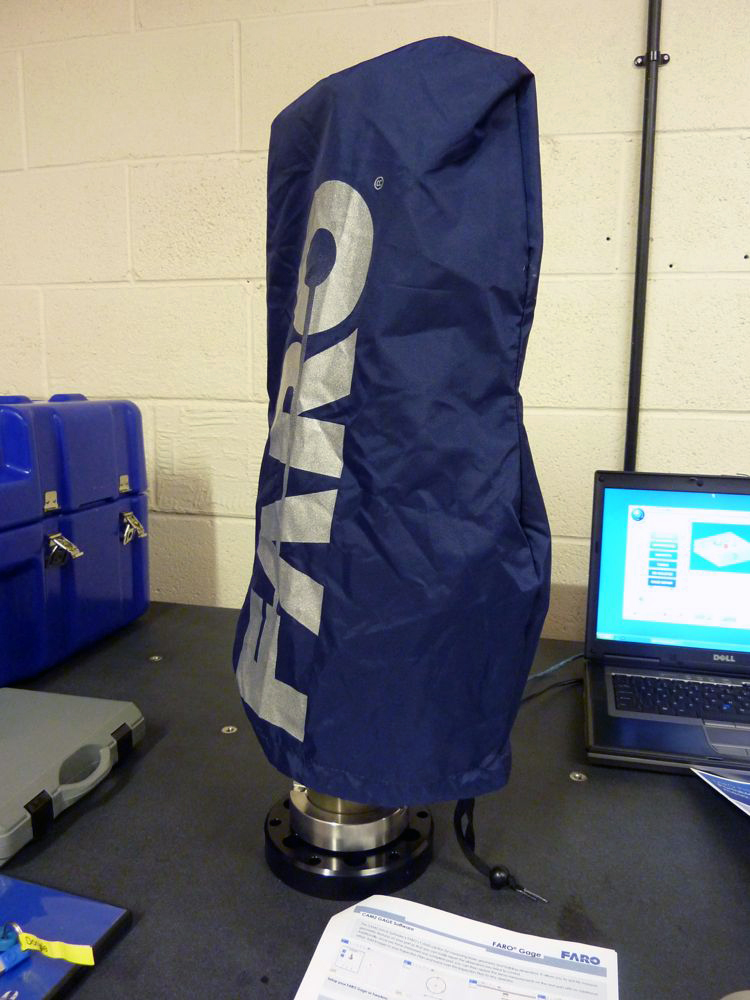

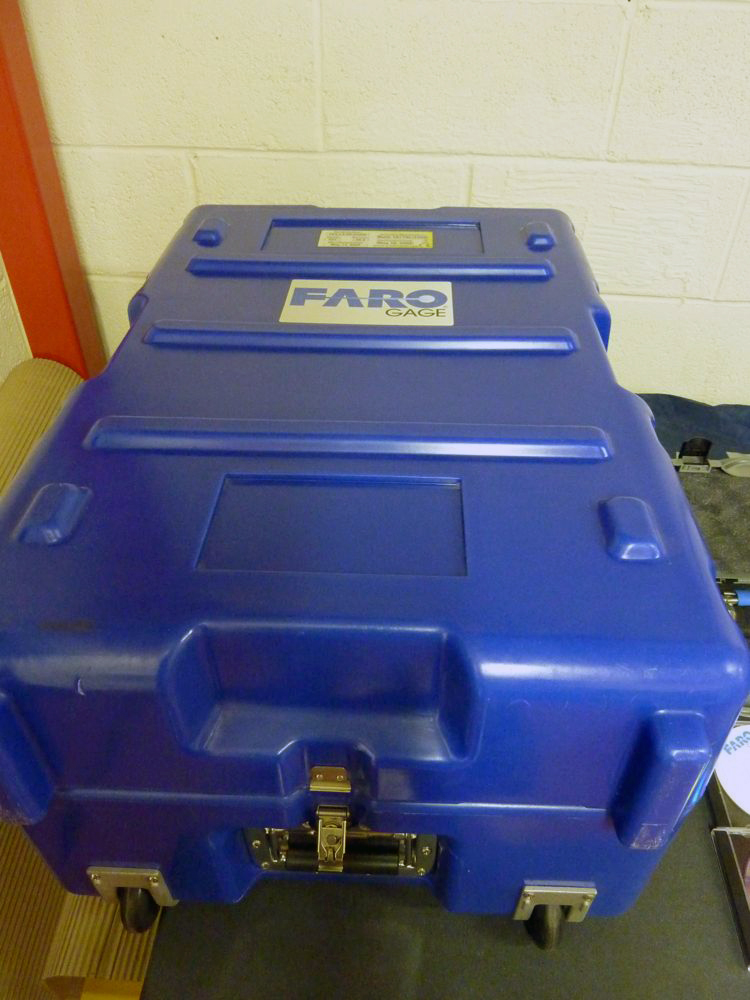

Carry Case and Accessories
Fixed Mounting system.

Half Day Training at current site will be included in price if required.
Location: Nottingham, On-site traing available at additional cost

General Description.
1.2m (48") Working Volume
Ideal for all your small parts, moulds and assembles.

Temperature & Overload Sensors allows the Gage to 'sense' and react to thermal variations and improper handling for maximum accuracy.

Internal Counter Balancing allowsthe user to move easily with one hand without becoming fatigued.

Multi-Probe Capablility, including bail diameters, touchsensitive, curved and extentions

Extented-Use Battery (Optional)Provides True measure anywhere capability.

Universal 3.5" Quick Mount offers 'mount it where you make it' convenience and downtime.

Angles
Hole to hole - Cylinder to cylinder - Cylinder to face - Edge to edge - Edge to face - Face to face

Geometry
4-hole bolt patterns - Round slot - Cylinder - Edge - Hole - Face

Distance
Face to face - Edge to edge - Cylinder to cylinder - Hole to hole centre - Hole to hole minimum - Hole to hole maximum

GD&T
Flatness - Circularity - Straightness - Parallelism - Perpendicularity - Concentricity

FARO Gage Plus
Personal Coordinate Measuring Machine

The FARO Gage Standard is the industry's first line of personal Coordinate Measuring Machines (CMMs). With their 1.2m (48") working volume, it is the "mount-it-to-where-you-make-it", truly portable, cost-effective, 3D, minimaltraining gages for machinists. The FARO Gage product line replaces all conventional gauging devices with an expandable library of gauging tools.

Features:
High accuracy
Portable and easier-to-use than a fixed CMM
Mount and measure parts in process
Up to ±0.018mm (±0.0007") accuracy
Generate GD&T & SPC reports

Location: Nottingham

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
