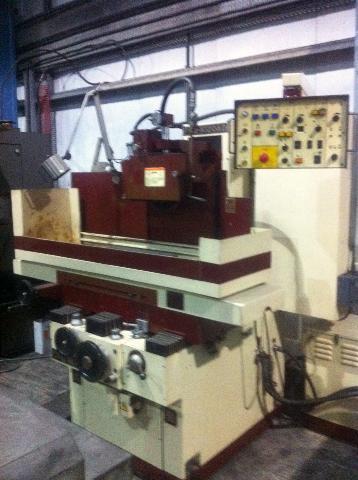

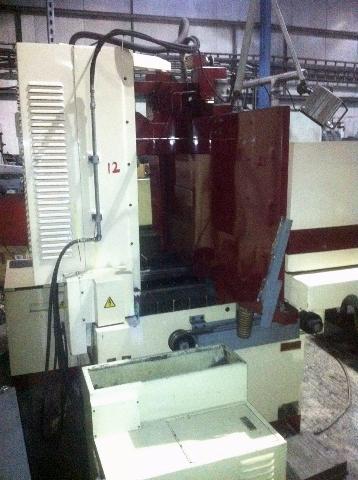

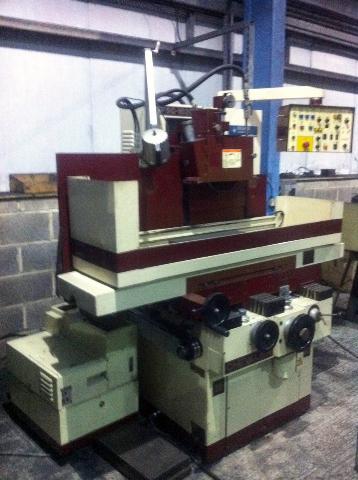

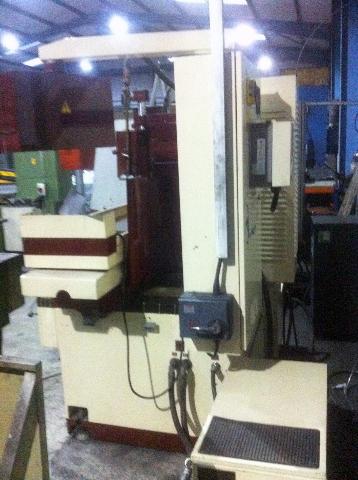

Lot 35 - Chevalier FSG-1020AD, surface grinder
Description:
Chevalier surface grinder model FSG 1020 AD
Hydraulic Horizontal Spindle Surface Grinder,
10" x 20" Rated Capacity,
24-3/8" Longitudinal Table Travel,
11-3/4" Cross Table Travel,
21" Maximum From Spindle Center to Table Top,
Chevalier Controls,

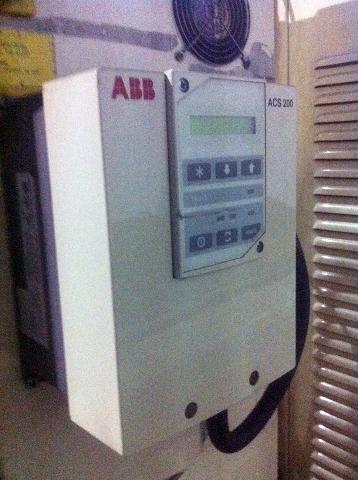

Wheel Guard, Wheel Dresser, Coolant Tank and Pump, 4.2 Kw, Three Phase Motor and Controls, Wheel speed electronic control

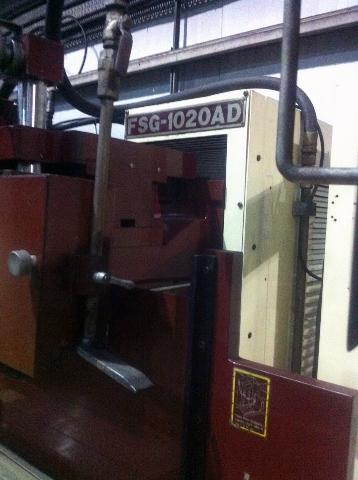

FSG-1020AD, surface grinder

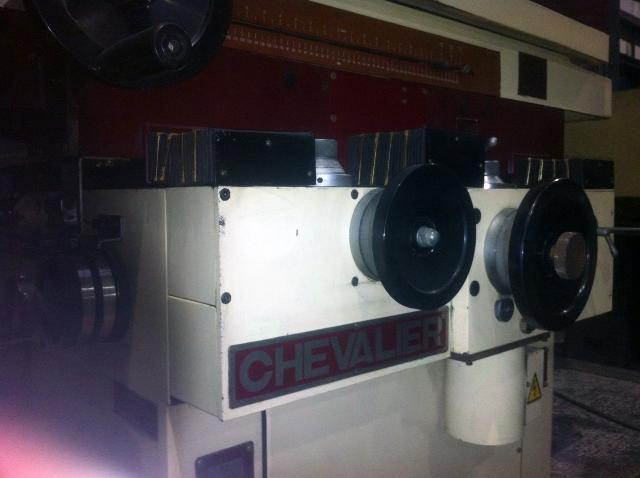

Brand : CHEVALIER
Model : FSG-1020AD
Maximum distance, top of table surface to centerline of spindle - 530mm (21")
Longitudinal travel of table, hydraulic - 530mm (21")
Maximum longitudinal travel of table, manual - 558mm (22")
Infinitely variable longitudinal table speed - 5 – 30 m/s (16-98 fpm )
Automatic transverse increment - 0.5mm (0.02")
Maximum cross travel, electro-mechanically actuated - 280mm (11" )
Maximum cross travel, manual - 282mm ( 11-1/8")
Standard grinding wheel diameter - 300mm (12")
Equipped with:
Hydraulically actuated longitudinal table feed
Electromechanically actuated feed of saddle

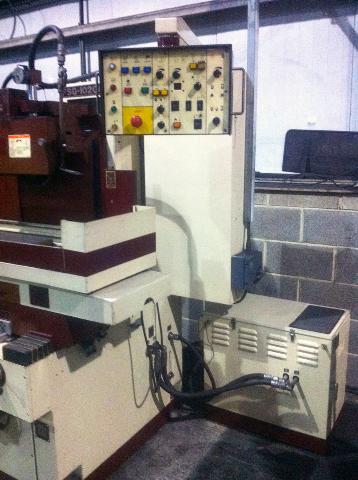

Pendant mounted and microprocessor controlled
automatic incremental down feed of grinding wheelhead in
surface or plunge modes of operation. Fully automatic grindng cycle including rapid
advance of grinding wheelhead, 0 to 7 spark out passes, and retraction of wheelhead
to a pre-set distance at the completion of the cycle.
Table and saddle guide ways made of special steel rails with high accuracy steel rollers
Precision needle roller bearings used on the elevating guide ways
Fine (micro) feeds graduated to .00005" for vertical and cross feeds
500 x 250mm Walker Magnetics Uk Ltd electromagnetic chuck
Over-the-wheel parallel dresser
(4) Leveling pads
External coolant system with table splash guards
External hydraulic system with 2 H.P. 3/60/220-440 volt pump motor and tank
Location: Machine Transport Services, Coventry and can be loaded for £100.00
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
