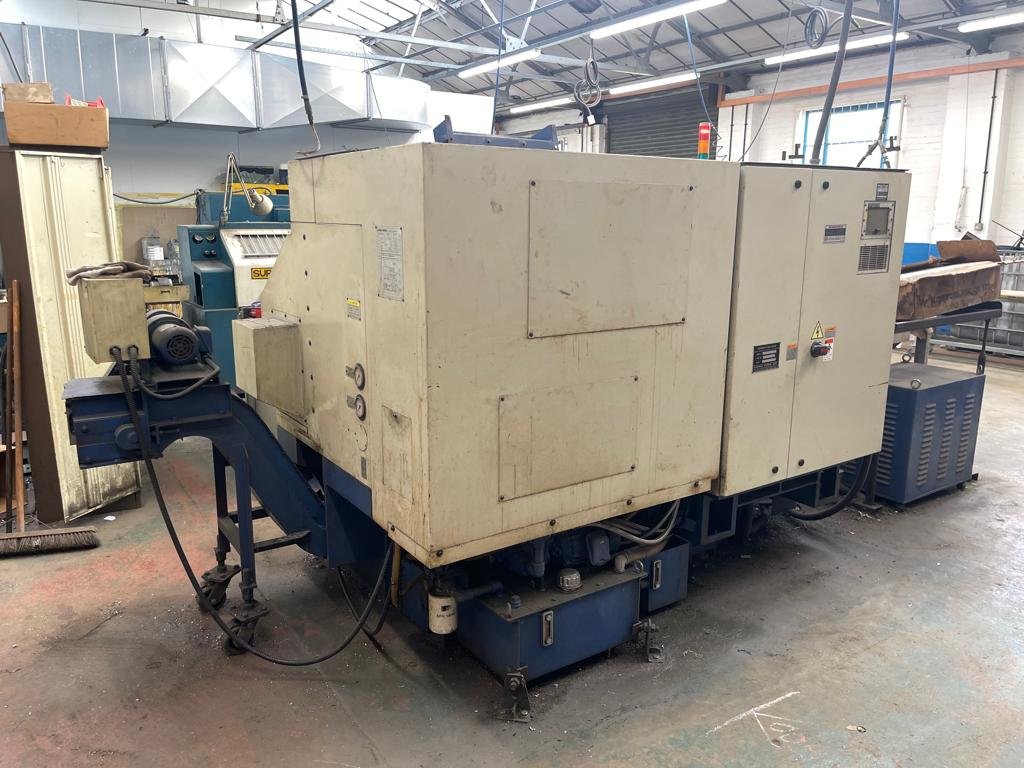

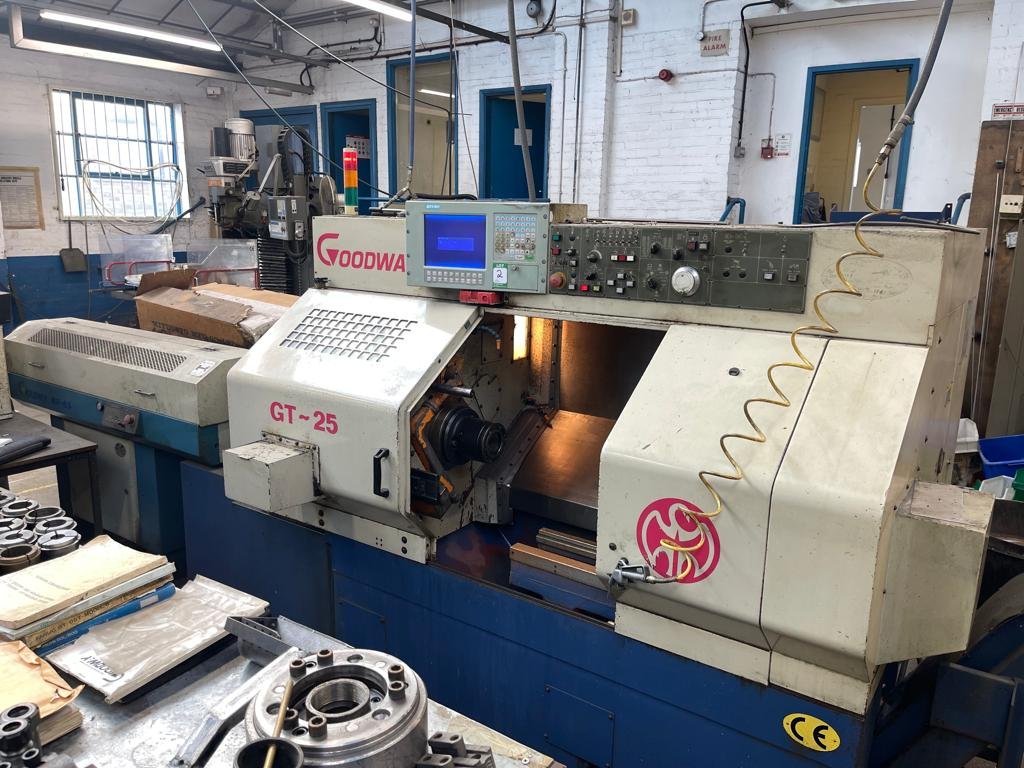

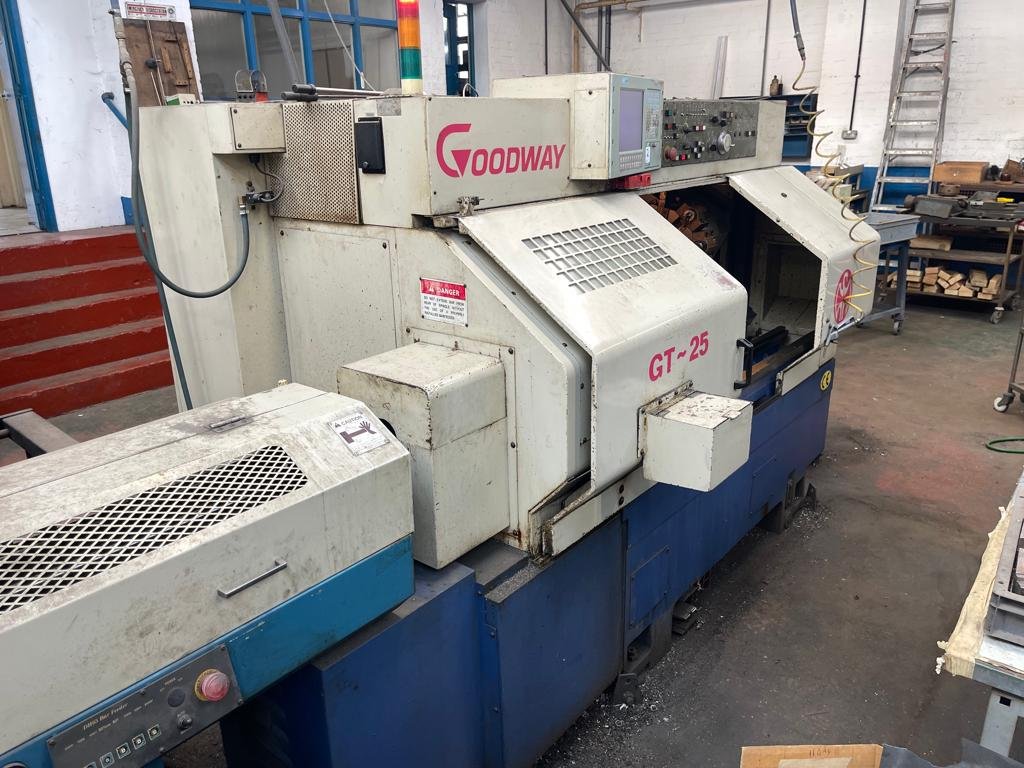

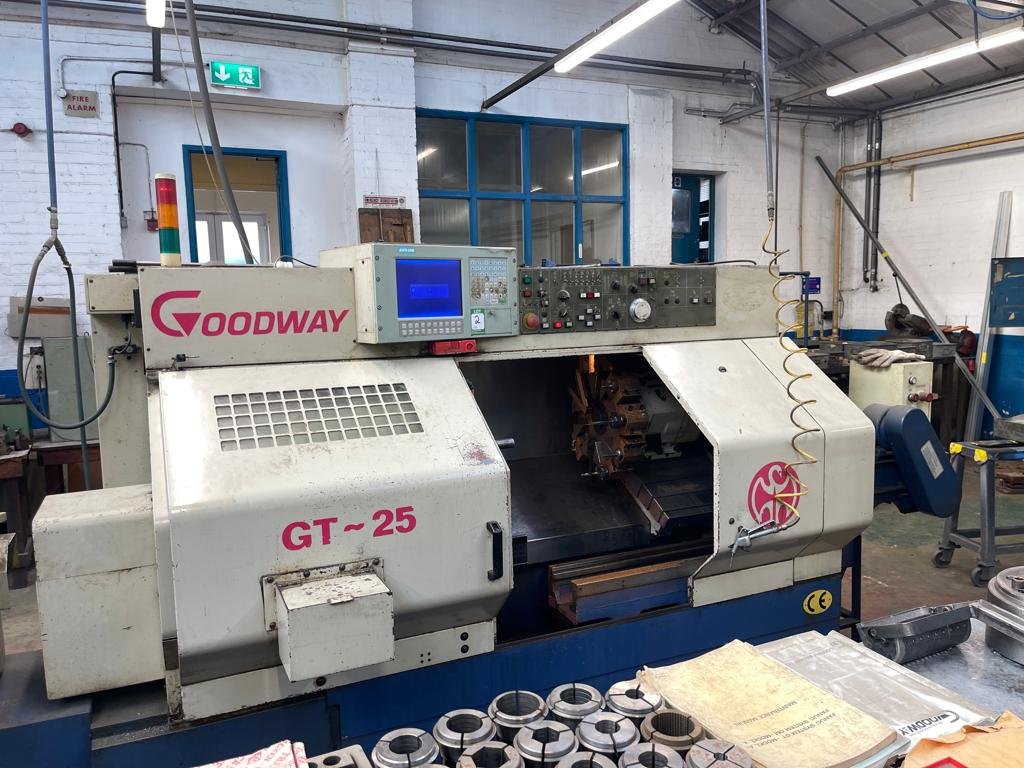

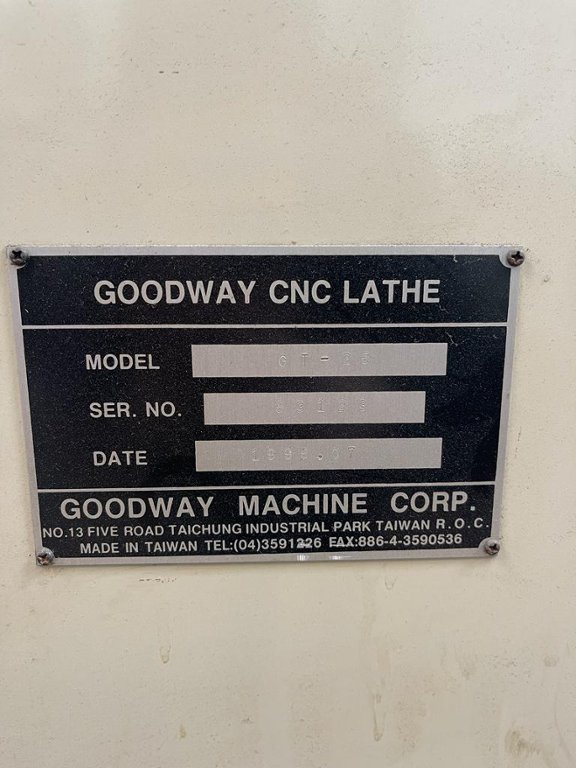

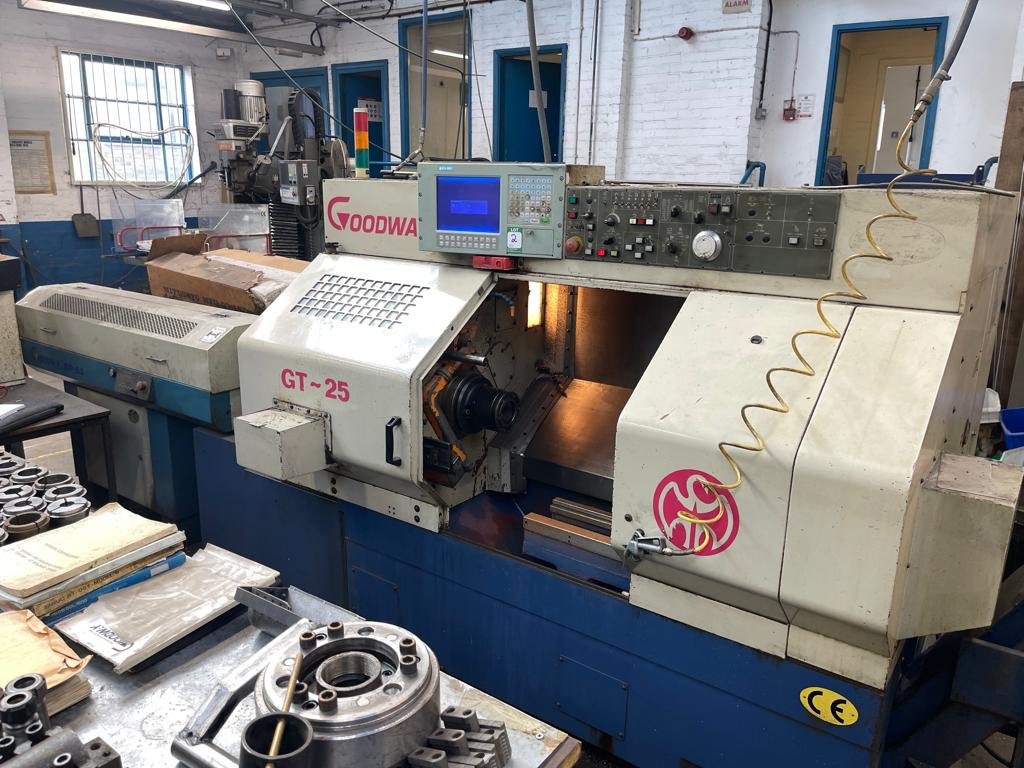

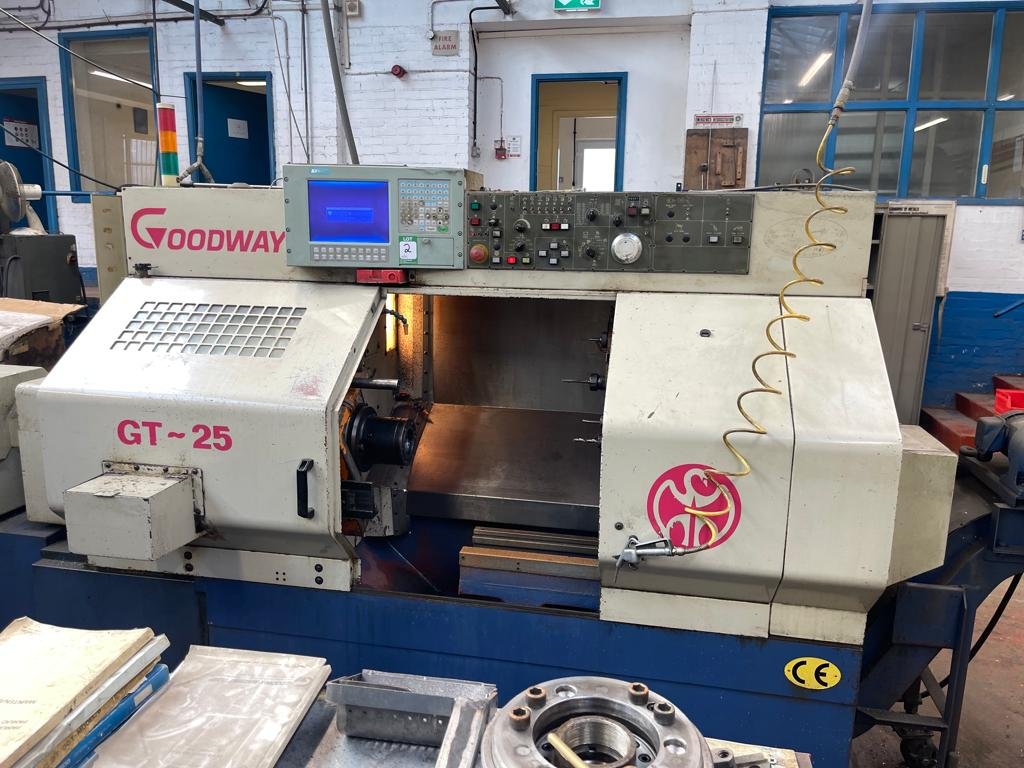

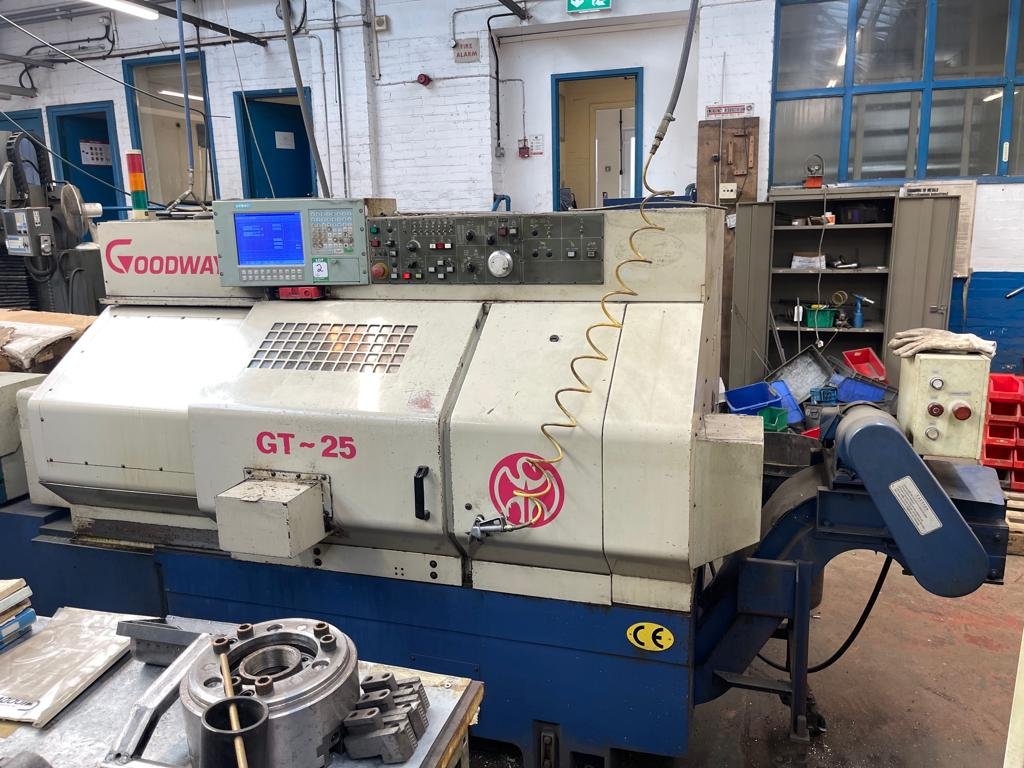

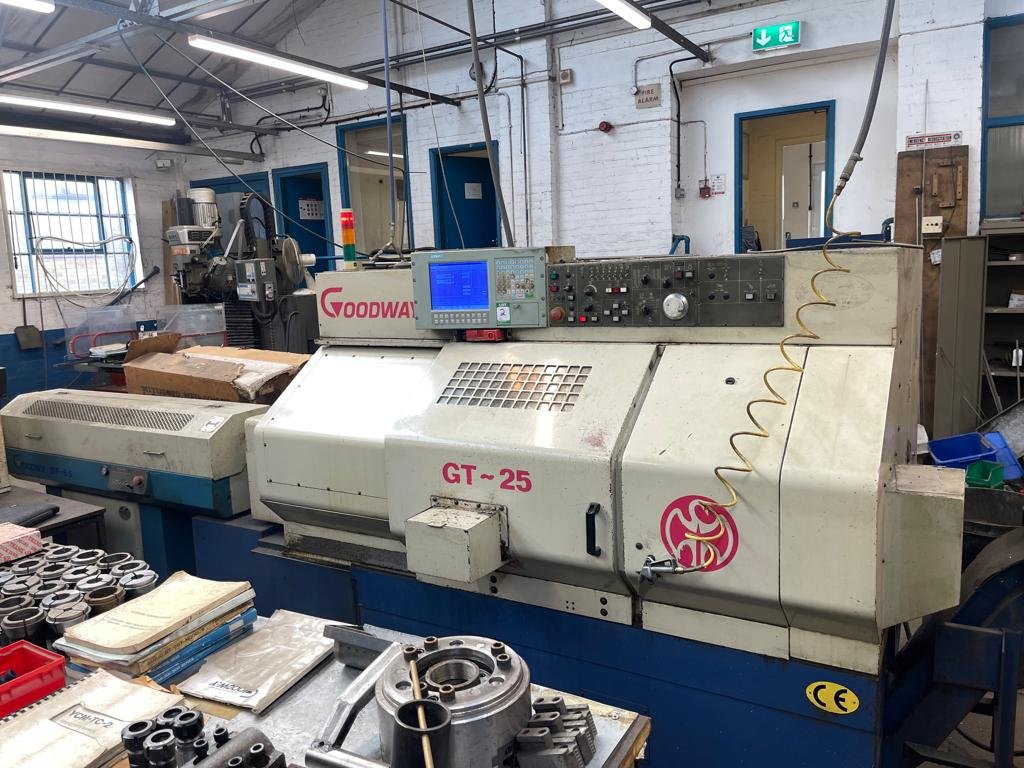

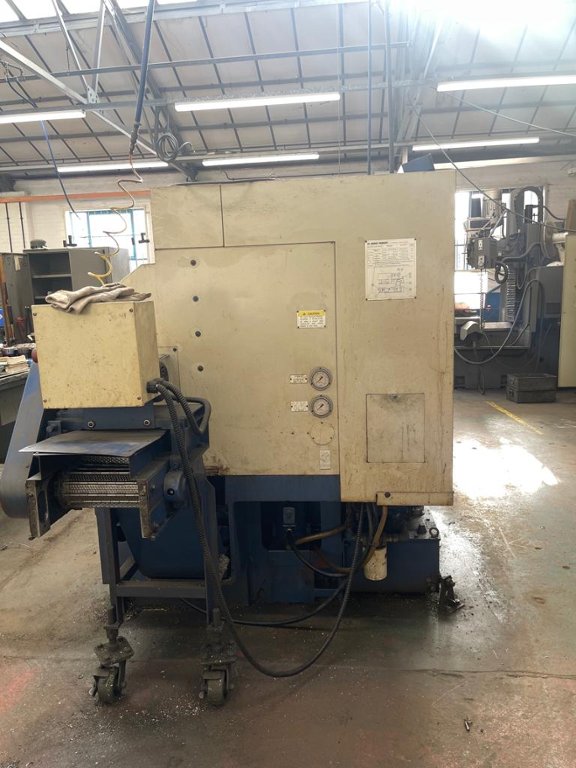

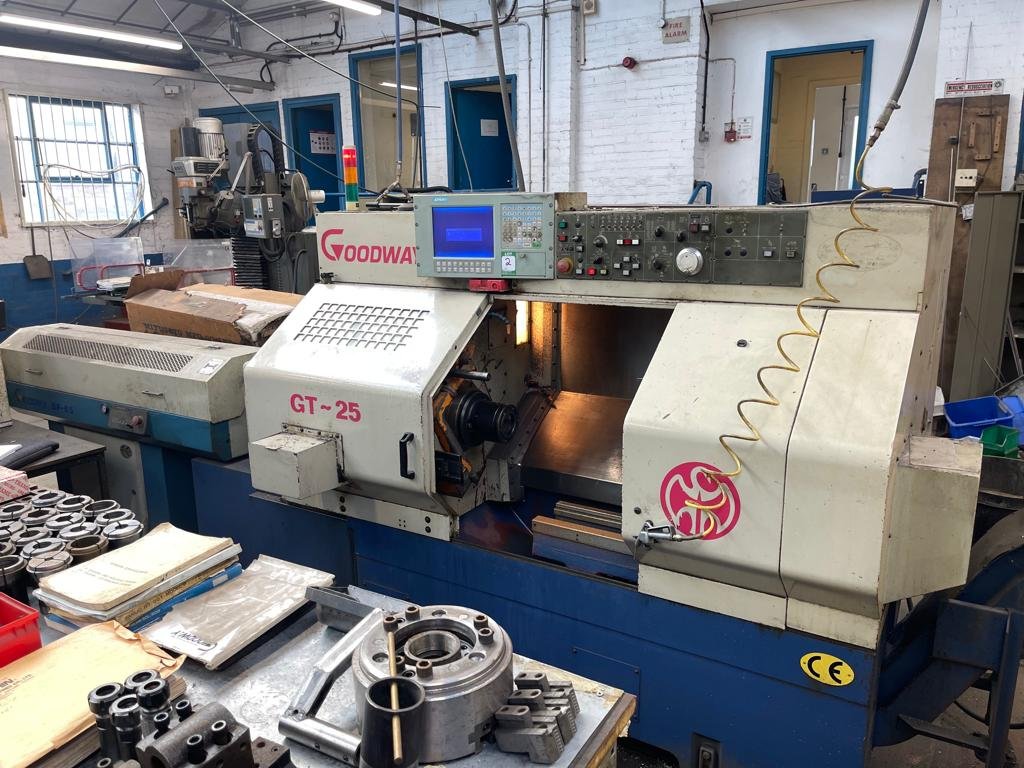

Goodway GT-25 CNC Lathe (1998)

Width: 2520mm
Depth: 1500mm
Height: 1920mm
Weight: 3000kg
Other Transport Details: Loading is available on site

Lot 2 - Goodway GT-25 CNC Lathe (1998)

Description:

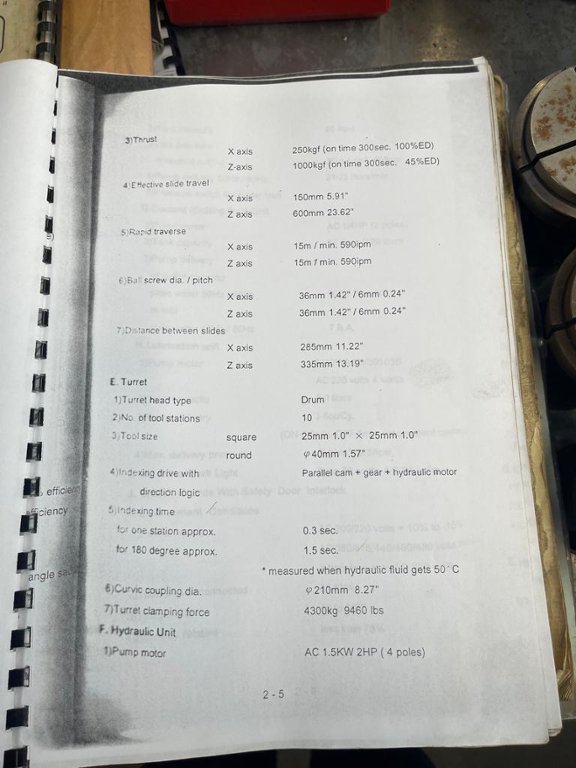

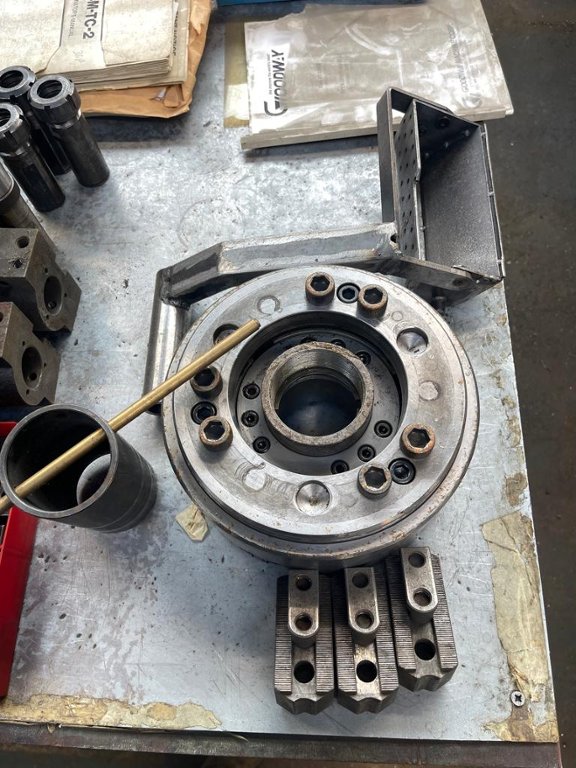

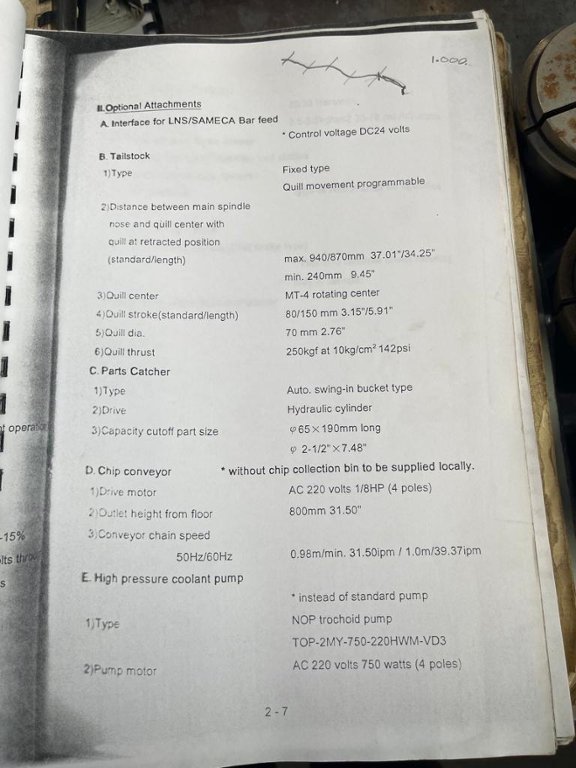

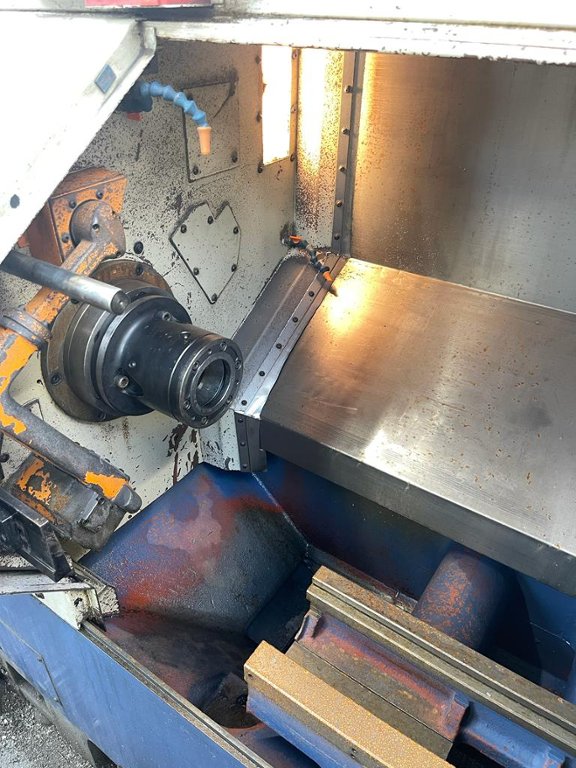

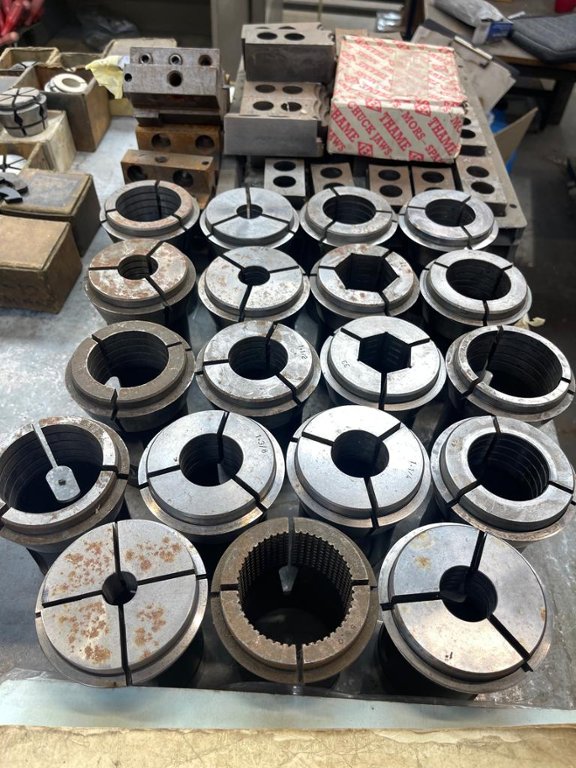

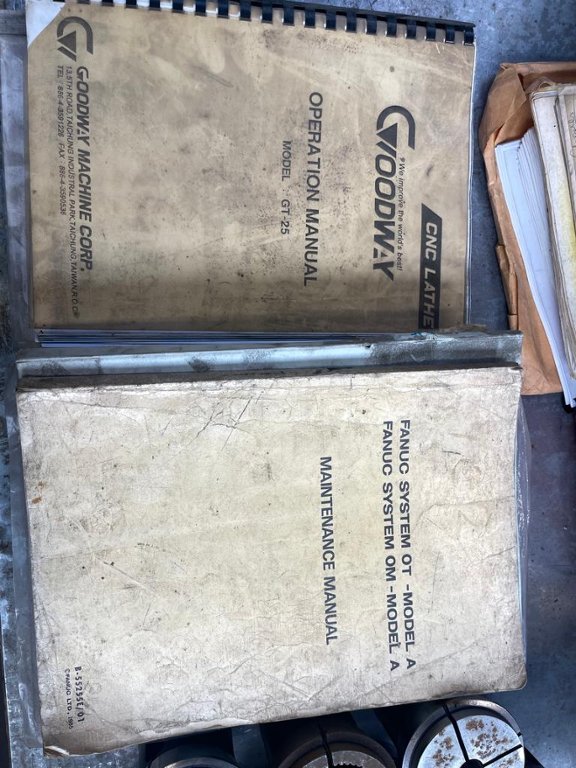

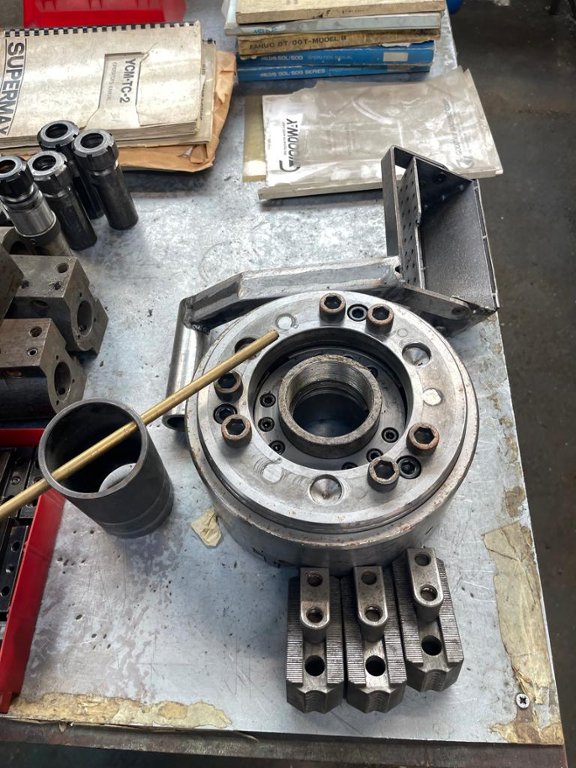

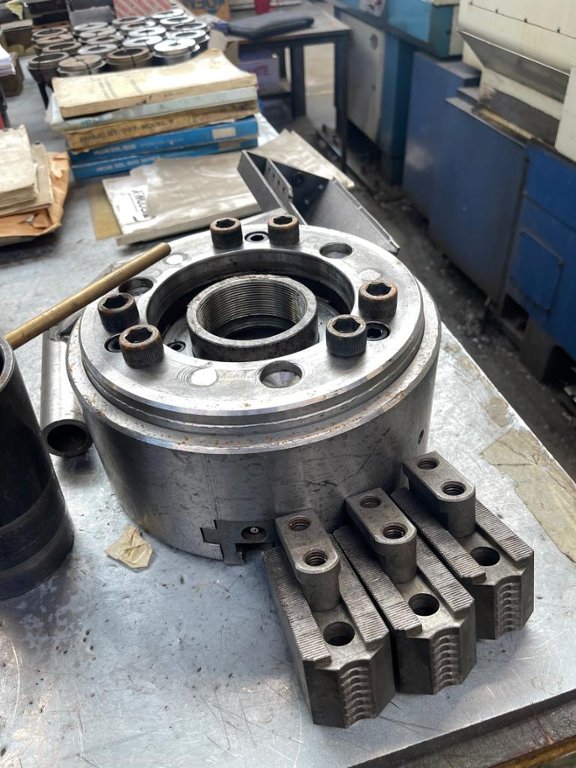

Comes with manuals, 1 10" chuck and selection of collets

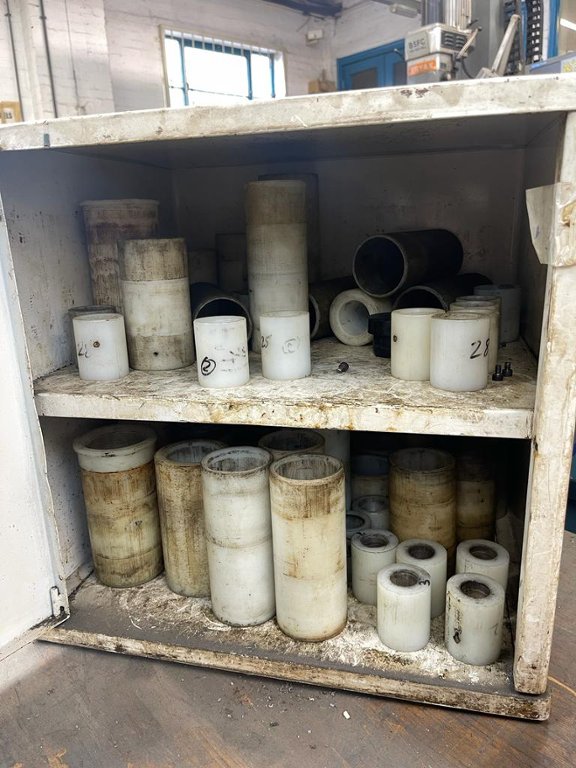

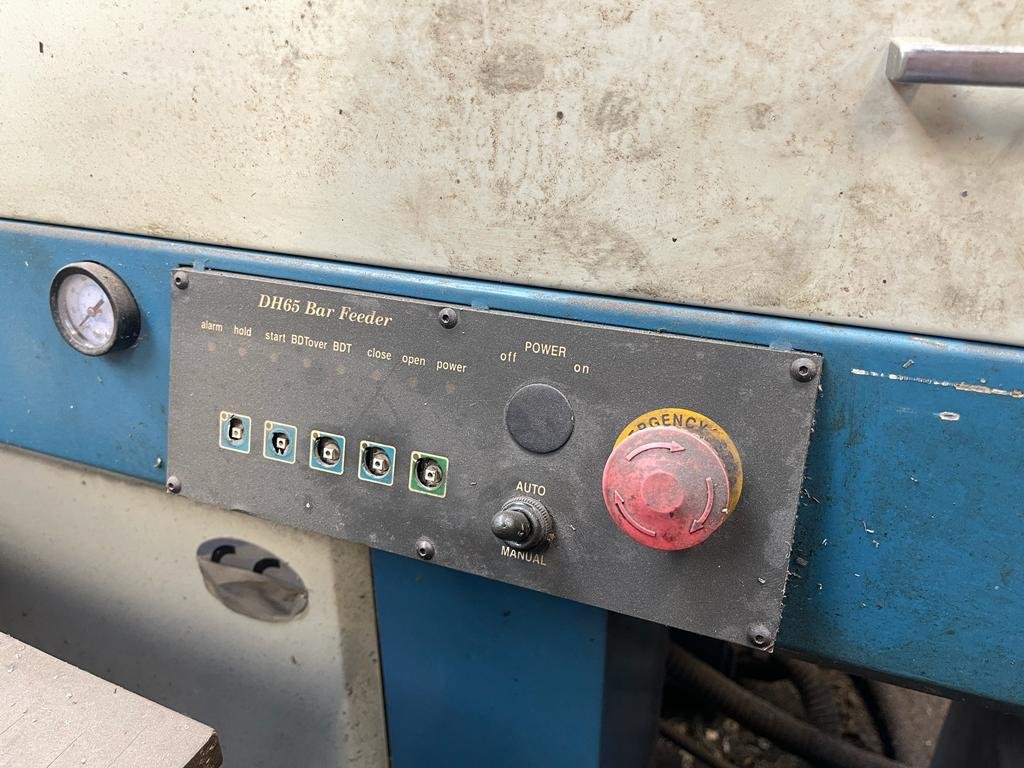

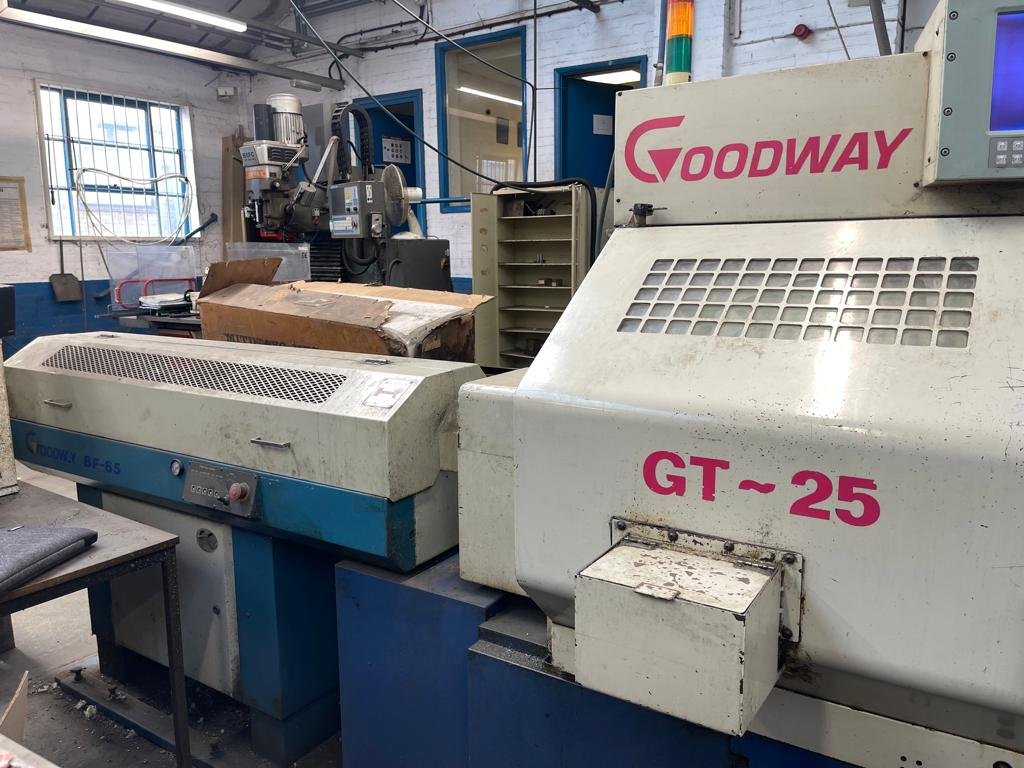

Barfeed - 5.5' Long

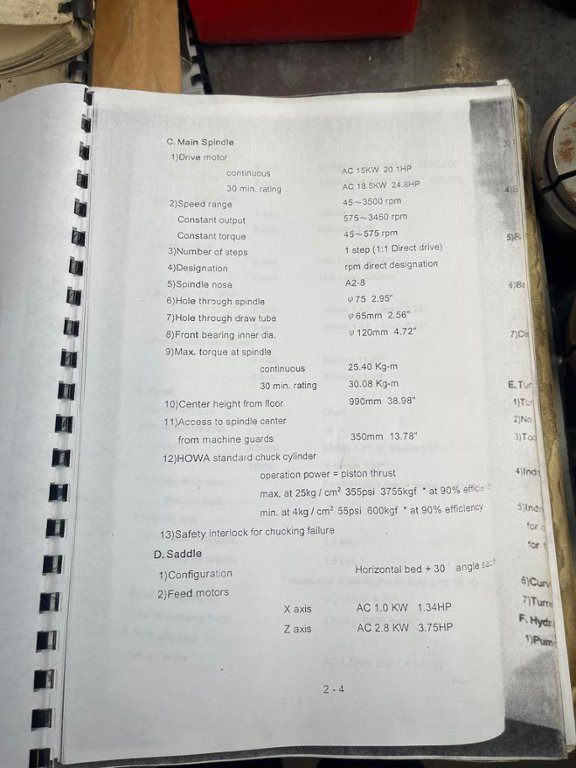

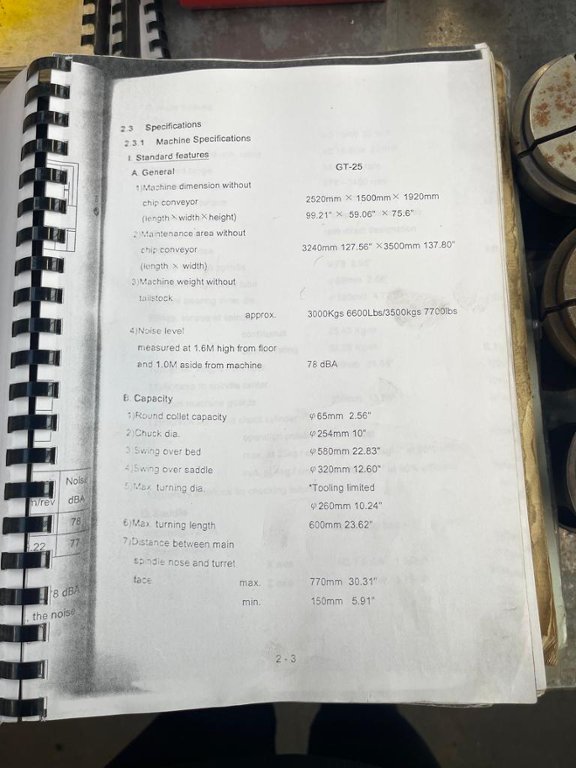

Round collet capacity - 65mm, Chuck dia - 254mm, Swing over bed - 580mm, Swing over saddle - 320mm, Max turning dia - 260mm, Max turning length - 600mm, Distance between main spindle nose and turret face - 150mm to 770mm, Drive motor - Continuous - AC 15kw - 30 min rating - AC 18.5kw, Speed range - 45 to 3500rpm - constant output - 575 to 3450rpm - constant torque - 45 to 575rpm, Number of steps - 1 step, Designation - RPM direct designation, Spindle nose - A2-8, Hole through spindle - 75mm, Hole through draw tube - 65mm, Front bearing inner dia - 120mm, Max torque at spindle - continuous - 25.40kg - 30 min rating - 30.08kg, Center height from floor - 990mm, Access to spindle center from machine guards - 350mm

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
