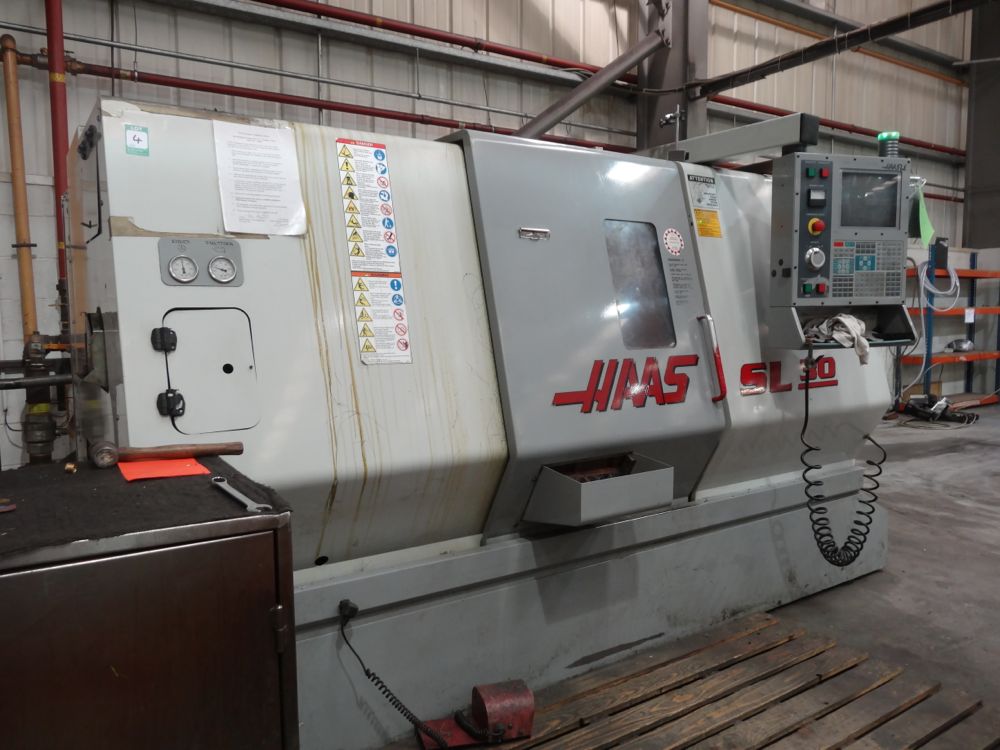

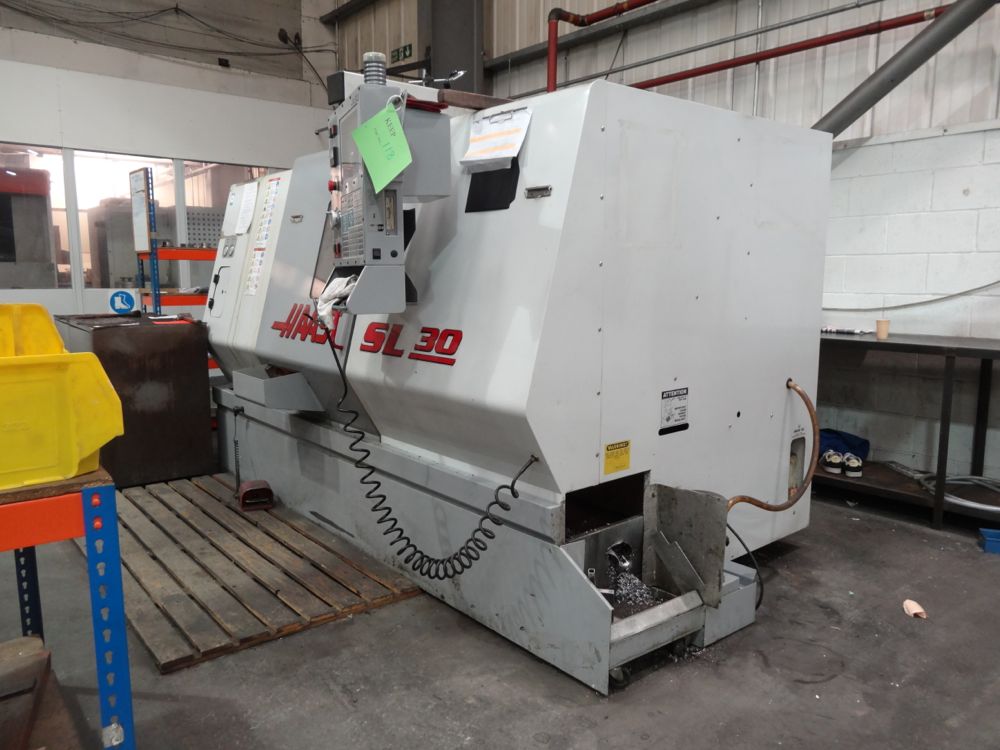

HAAS SL30 CNC Lathe (2002)

Lot 4 - HAAS SL30 CNC Lathe (2002)

Description:

Swing Diameter

Over front apron: 762mm

Over cross slide: 368mm

Capacities

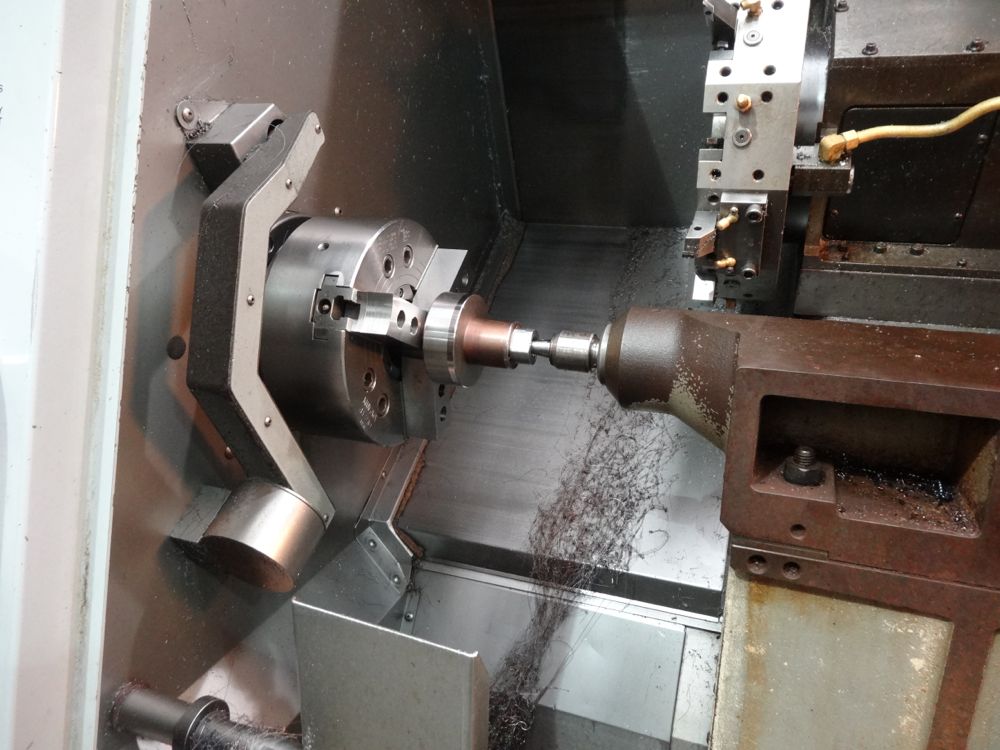

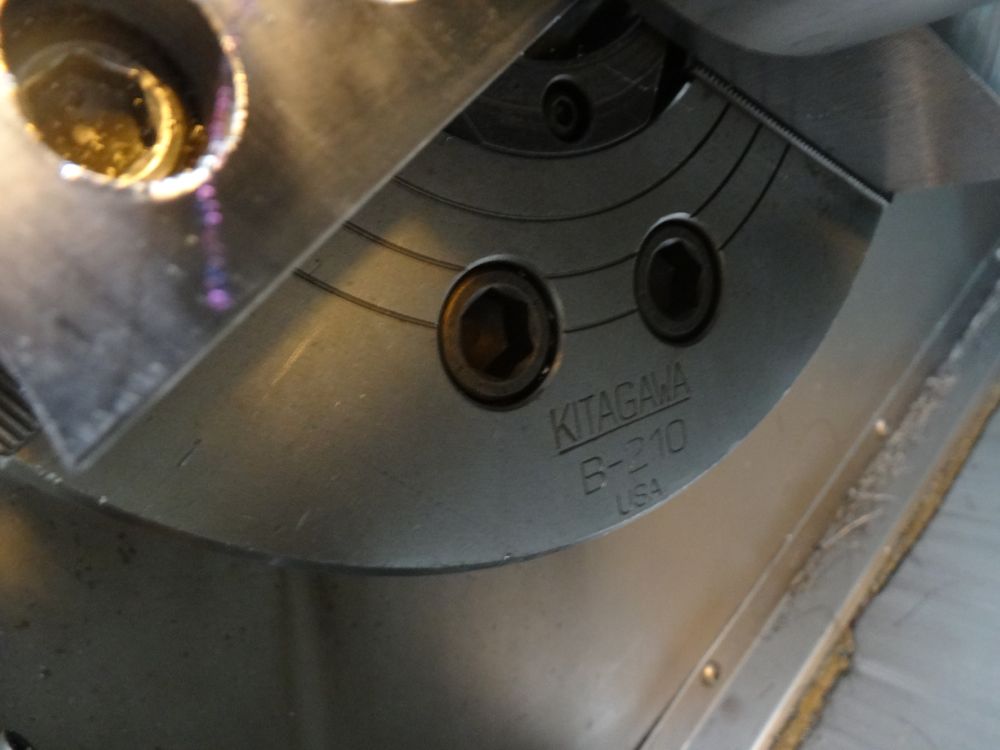

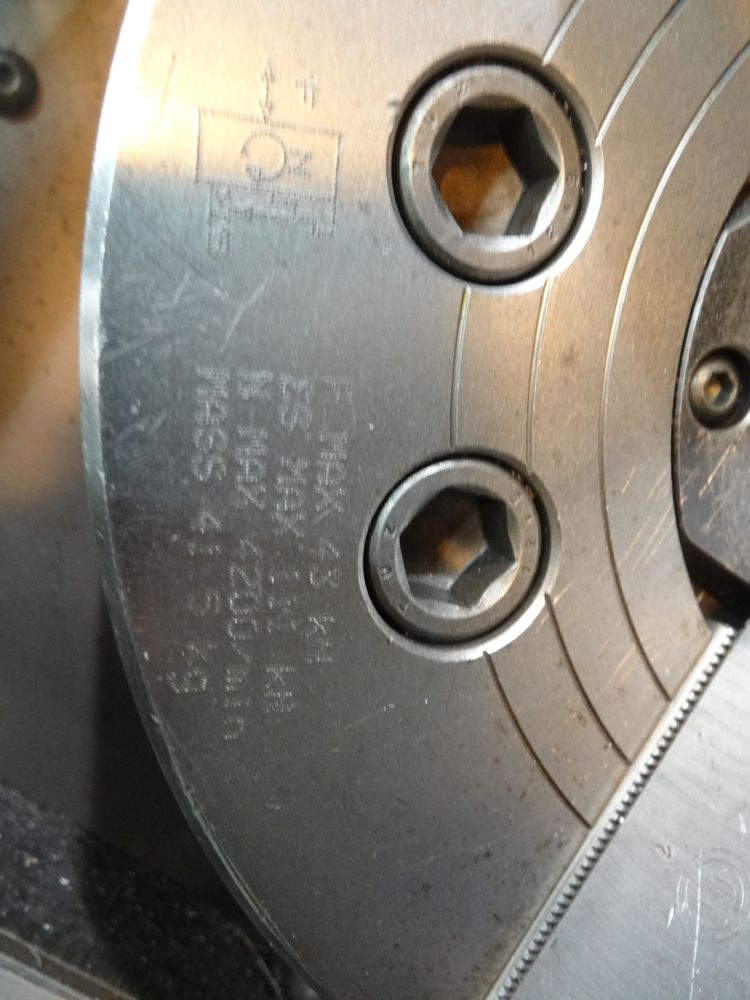

Chuck size: 254mm

Standard Bar Capacity: 64mm

Between centers: 991mm

Max cutting diameter: 368mm

Max cutting length: 864mm

Spindle

Max speed: 3400rpm

Torque: 407Nm @ 700rpm

Peak Horsepower: 22kW

Spindle nose: A2-6

Spindle bore: 76.2mm

Draw tube bore: 65.0mm

Travels & Feedrates

X- Axis: 287mm

Z- Axis: 864mm

Axis motor max. thrust: 15124N

Rapids (AC brushless): 710ipm

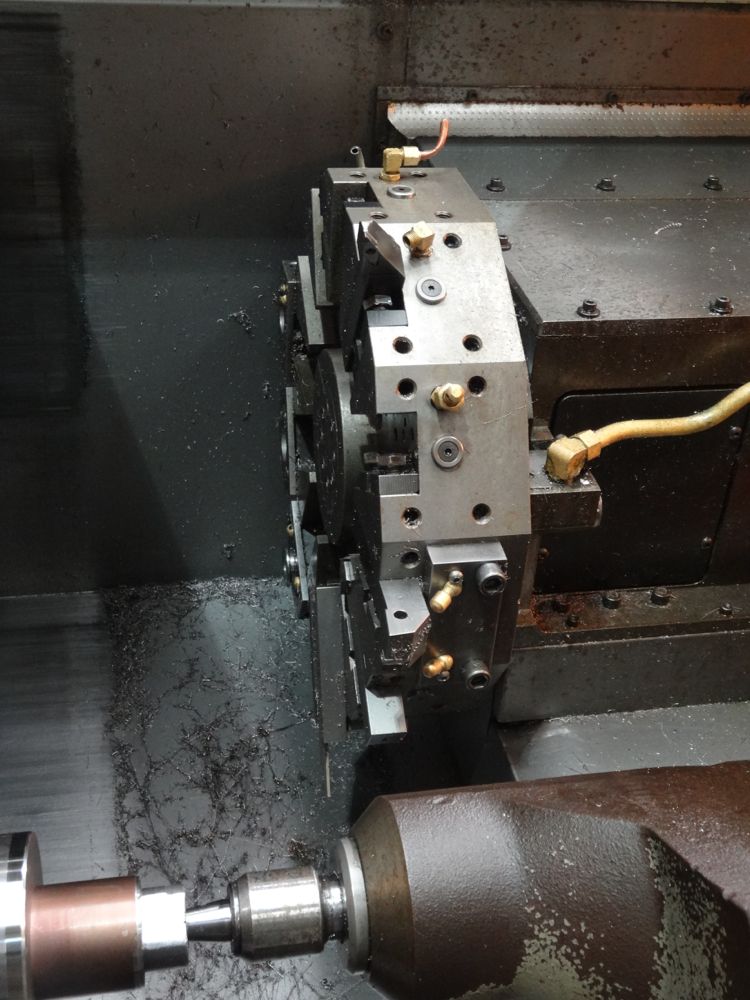

Turret

Number of tools: 12

Tool hole in turret: 50.8mm

Tool size (OD. turning): *1”

Boring bar rear clearance (from turret face):108.0mm

Index time (one tool): 1 second

Accuracy

Positioning: +0051mm

Repeatability: 00.25mm

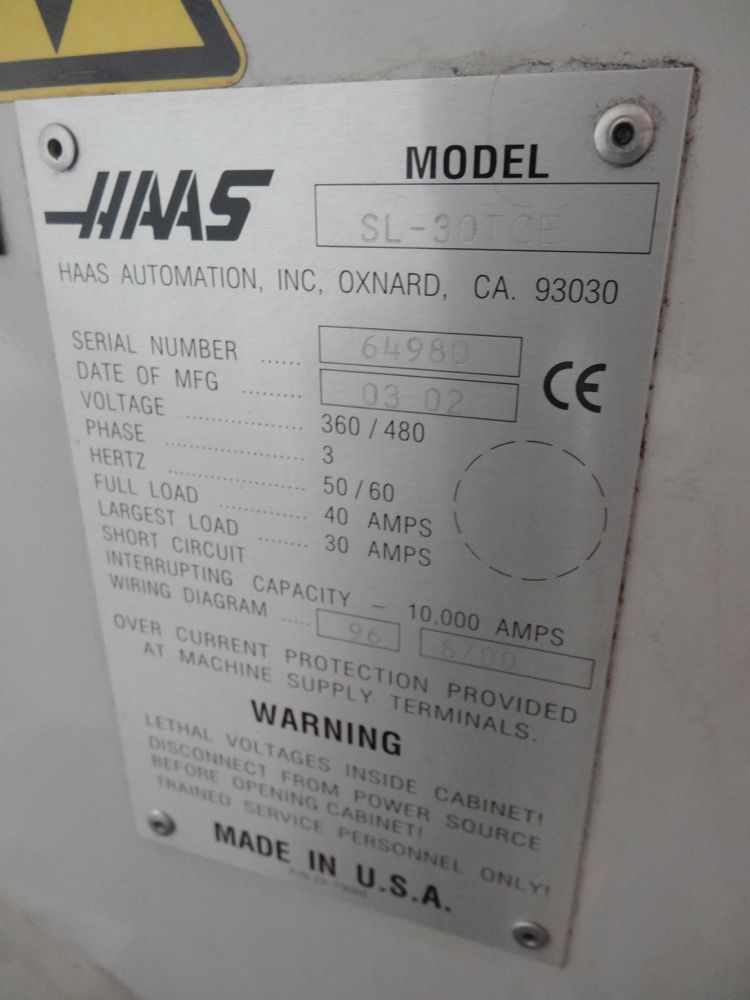

Miscellaneous

Weight: 6350kg

Power Requirement: 26kVA

Volts/phase: 200-250 VAC, 3 phase 60Hz

Coolant: 189L

Air Requirement: 1.42lps @ 6.9 bar

Standard Features

Massive cast iron construction

Anti-flex torque-tube base casting

Double anchored ballscrews

High speed brushless servo motors

12 position fast change turrets

Haas quick change tool holders

Direct coupled servo motors

Enhanced thermal stability

Massive ribbed castings

Symmetrical design for rigidity & stability

Double wall safety door design

Embedded coolant collection tray

Location: Seaham, County Durham

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
