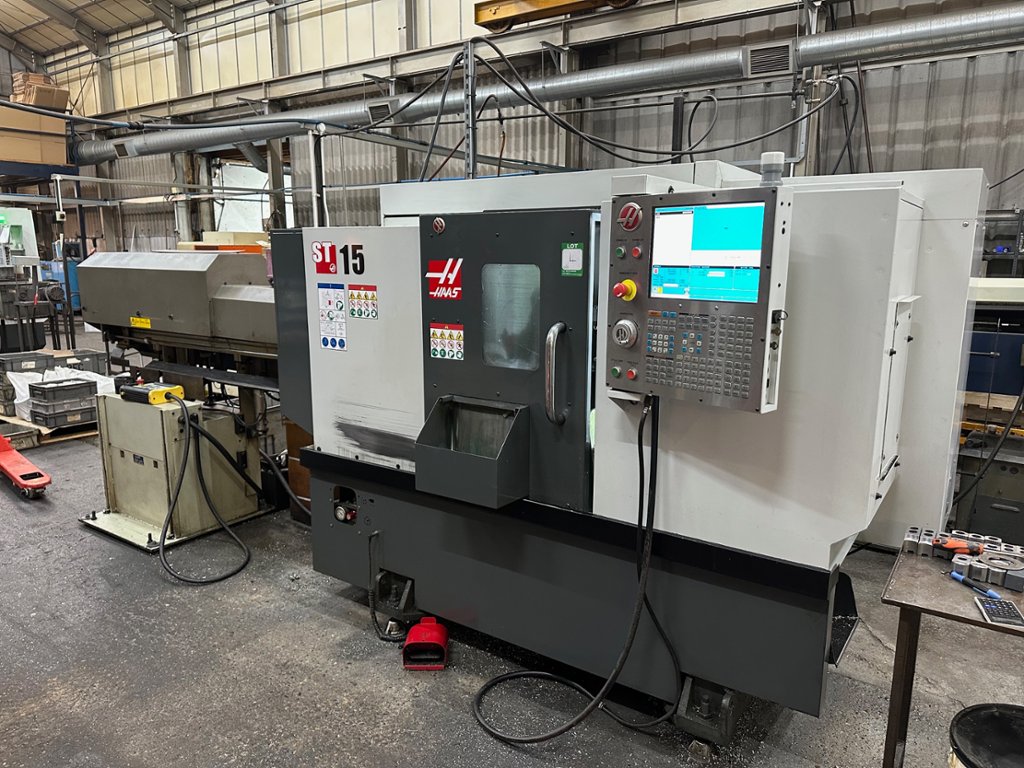

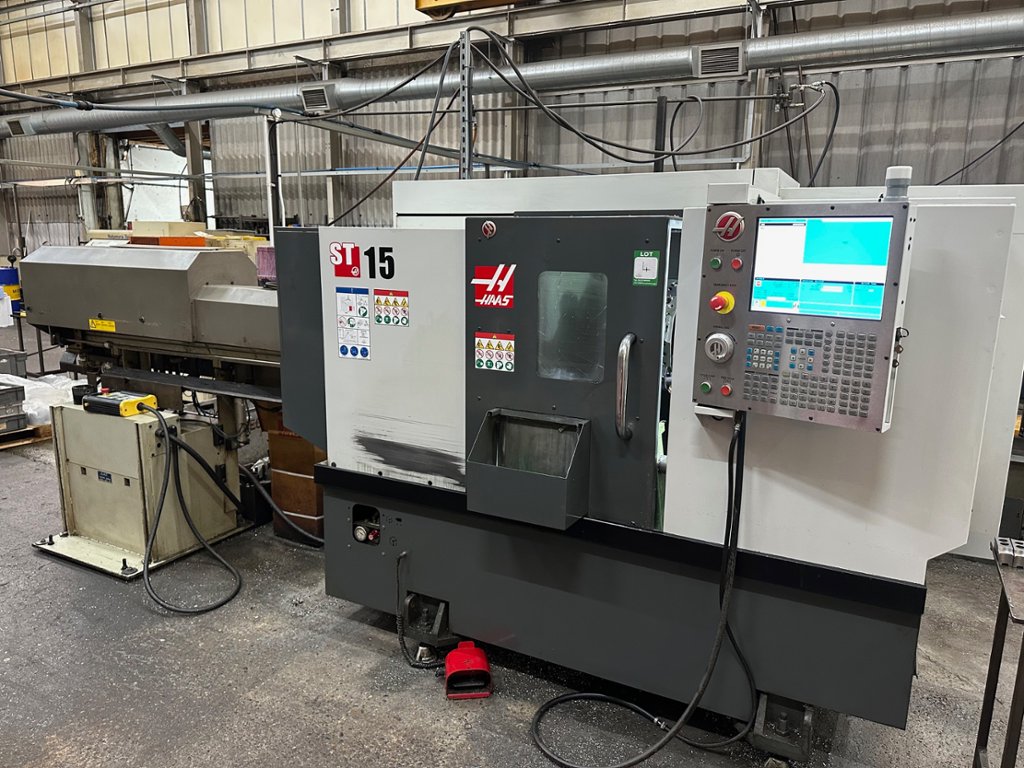

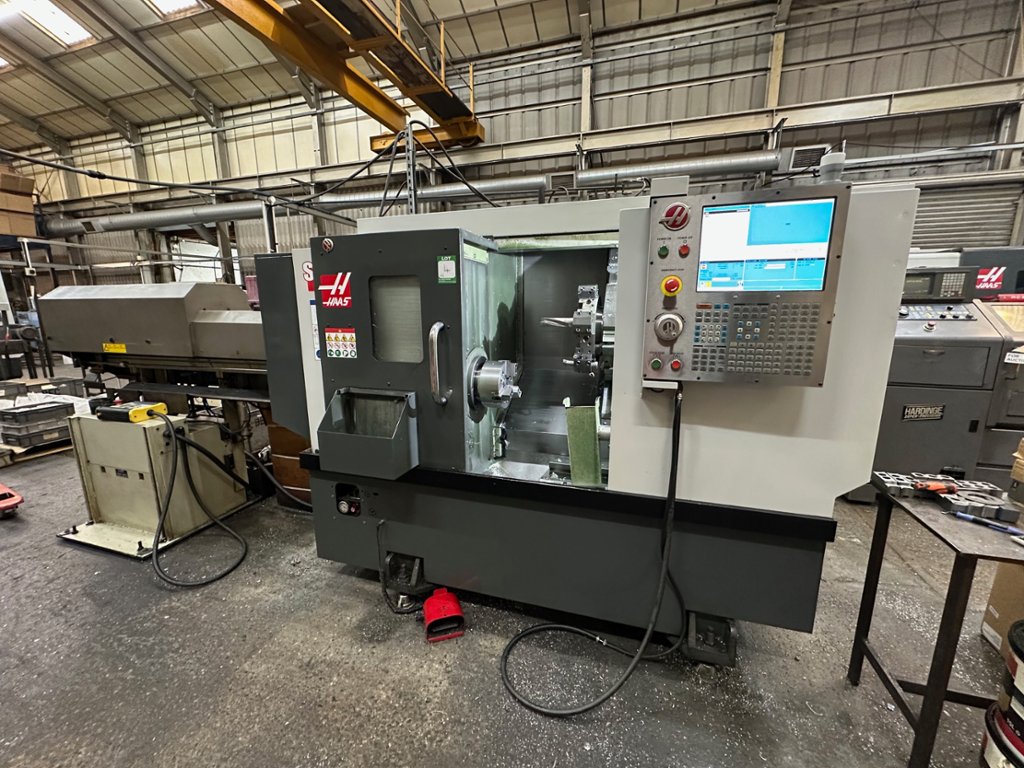

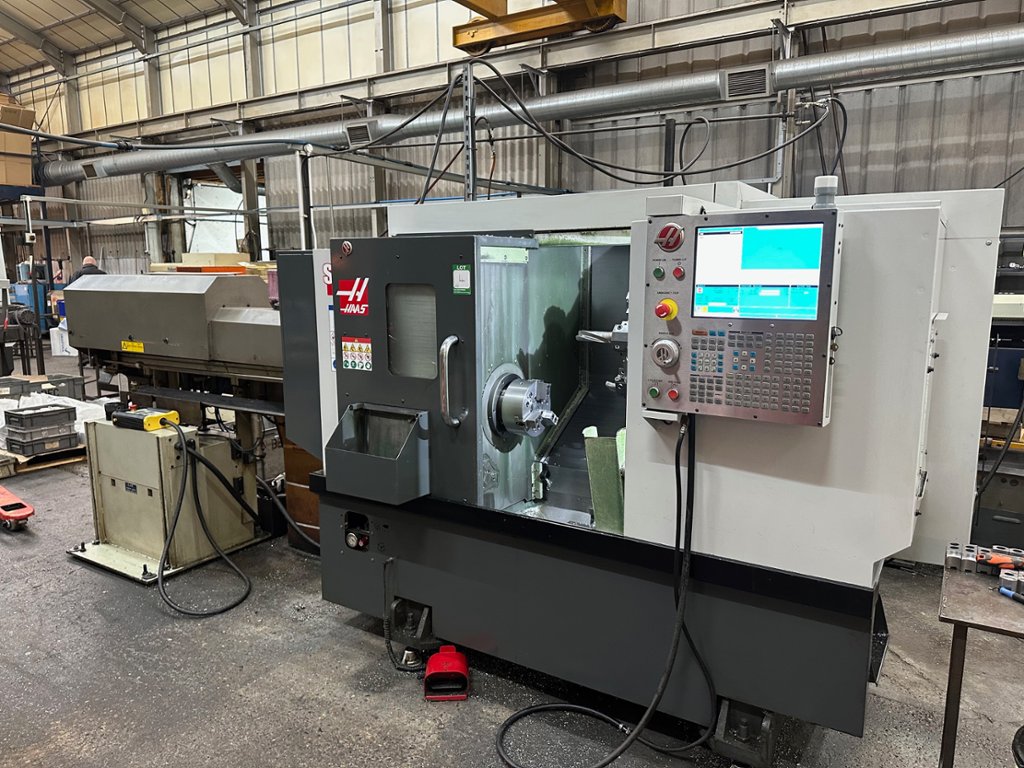

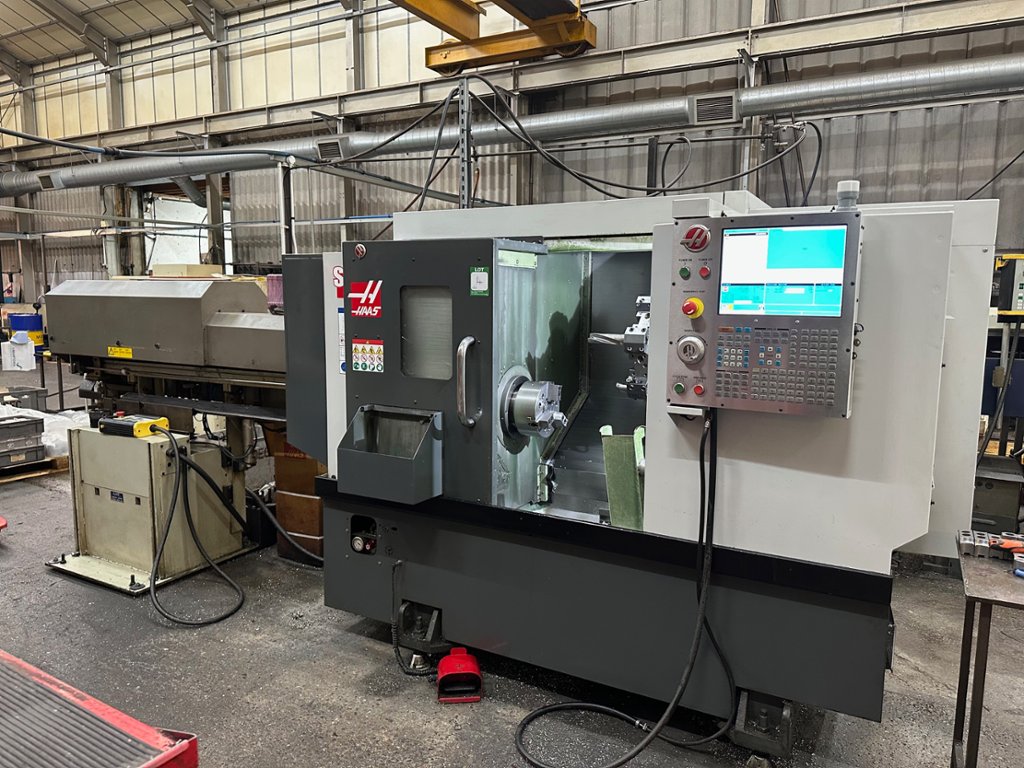

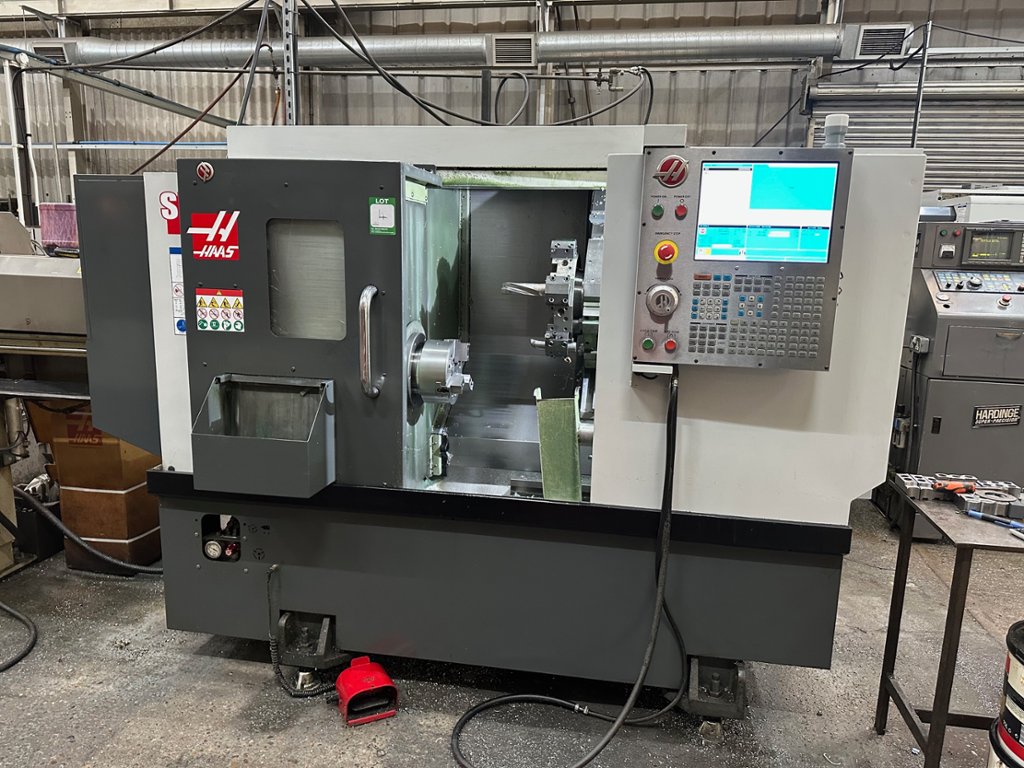

Haas ST15 CNC Lathe (2017)

Lot 4 - Haas ST15 CNC Lathe (2017)

Description:

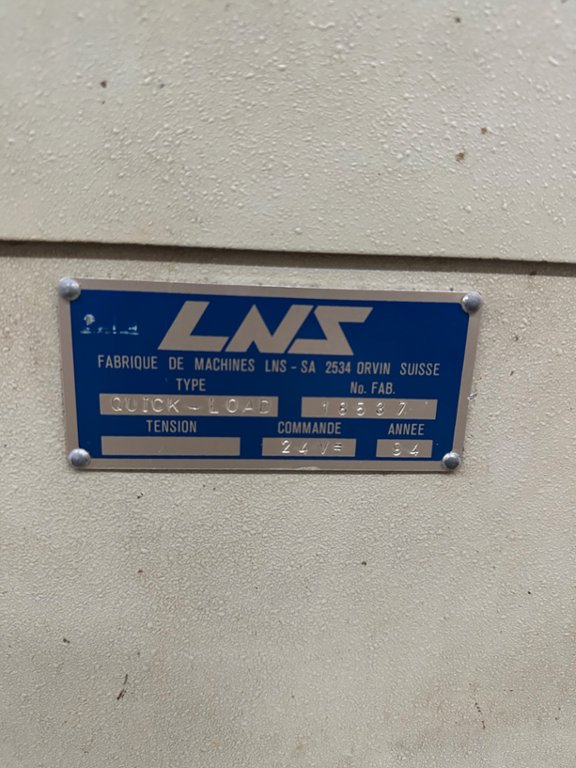

With LNS Quick Load Barfeed - 1920mm Long

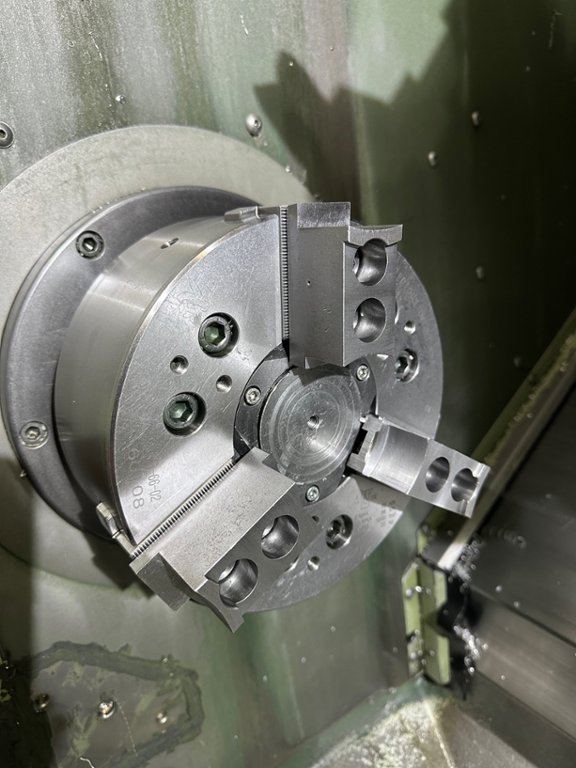

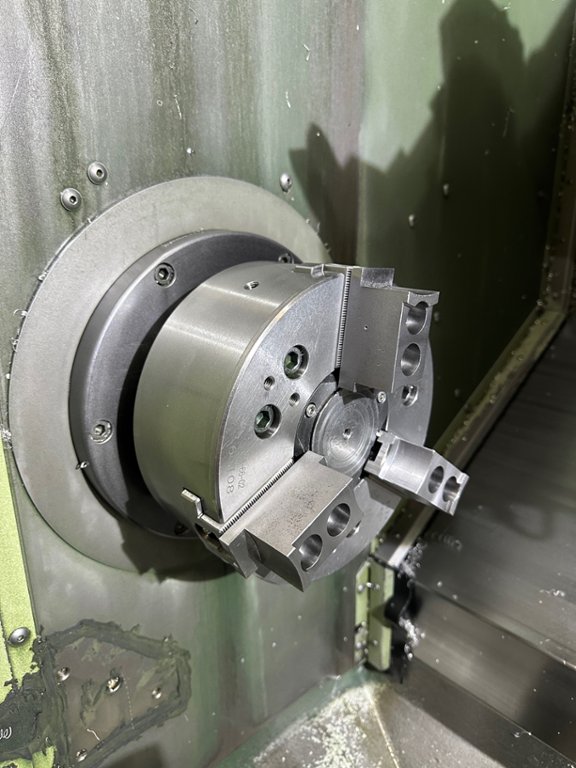

8" Chuck

3 x holders 32mm dia
4 x standard flat holders
1 x Boring bar
1 x u drill
1 x part off tool
1x turning tools
1 x threading tool
4 sets of soft jaws
1x set hard jaws

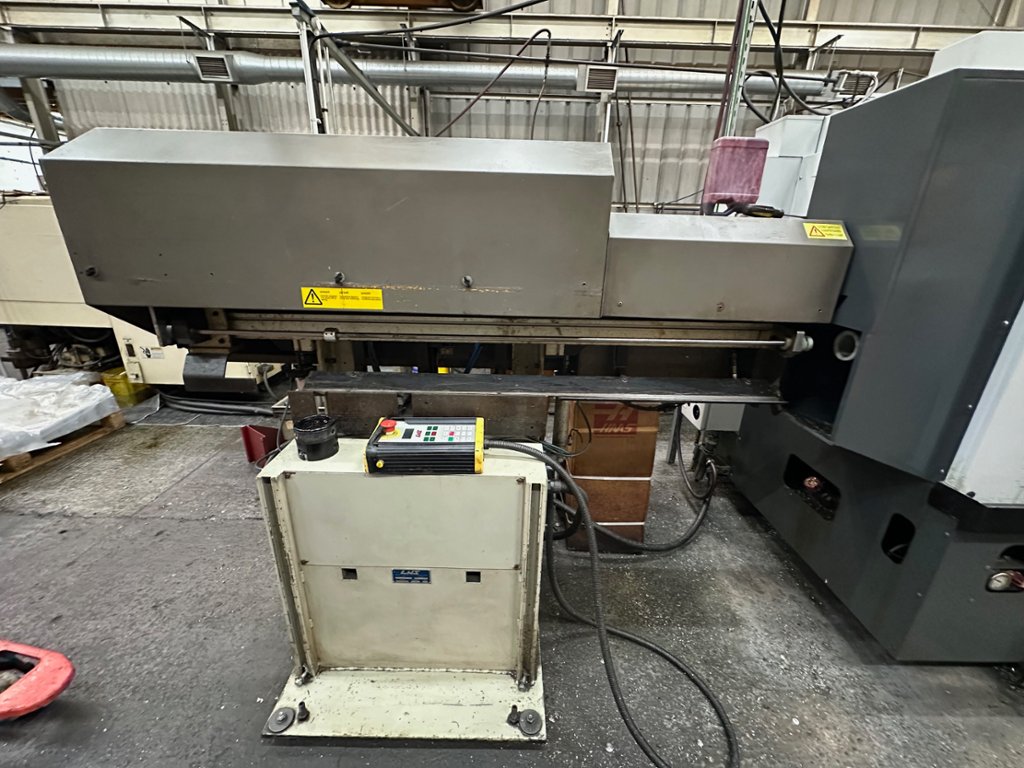

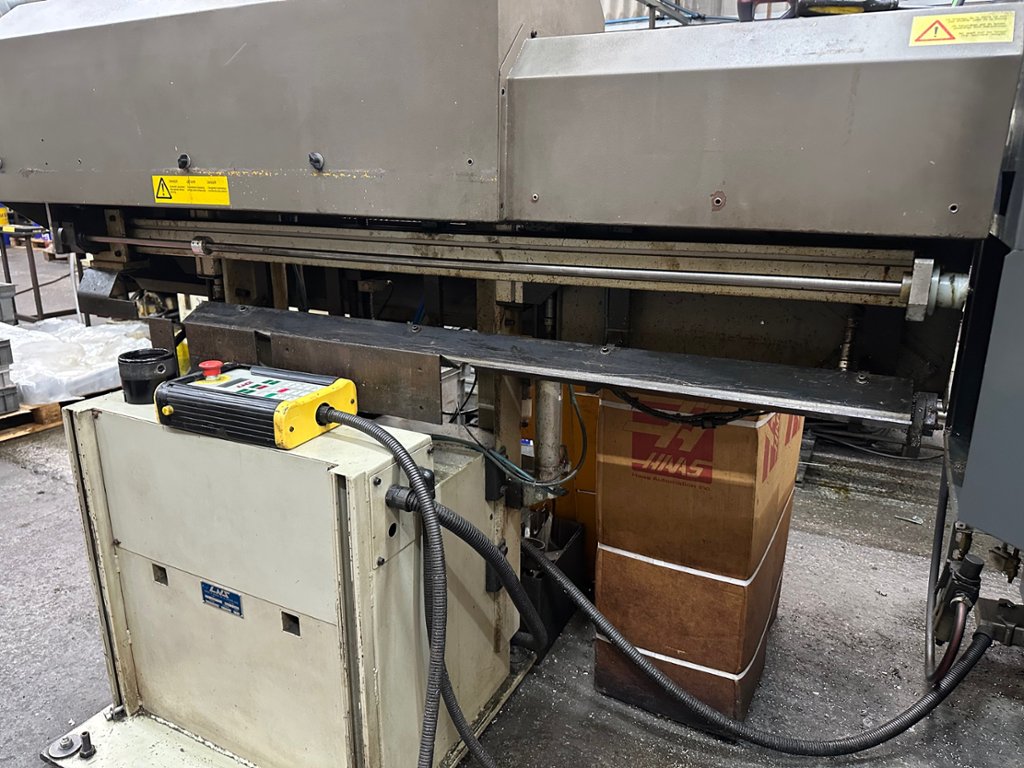

Lns mini roller bar feeder

CAPACITIES

Max Part Swing - 419 mm, Max Cutting Diameter (with BOT turret) - 305 mm, Max Cutting Diameter (with BMT45 turret) - 279 mm, Max Cutting Diameter (with VDI turret) - 173 mm
Max Cutting Length (varies with workholding) - 406 mm, Bar Capacity - 64 mm

TRAVELS
X Axis - 200 mm, Z Axis - 406 mm

FEEDRATES
Rapids on X - 30.5 m/min, Rapids on Z - 30.5 m/min

AXIS MOTORS

Max Thrust X - 14679 N, Max Thrust Z - 14679 N

SPINDLE

Spindle Nose - A2-6, Max Rating - 14.9 kW, Max Speed - 4000 rpm, Max Torque - 203.0 Nm @ 500 rpm, Spindle Bore ø - 88.9 mm

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
