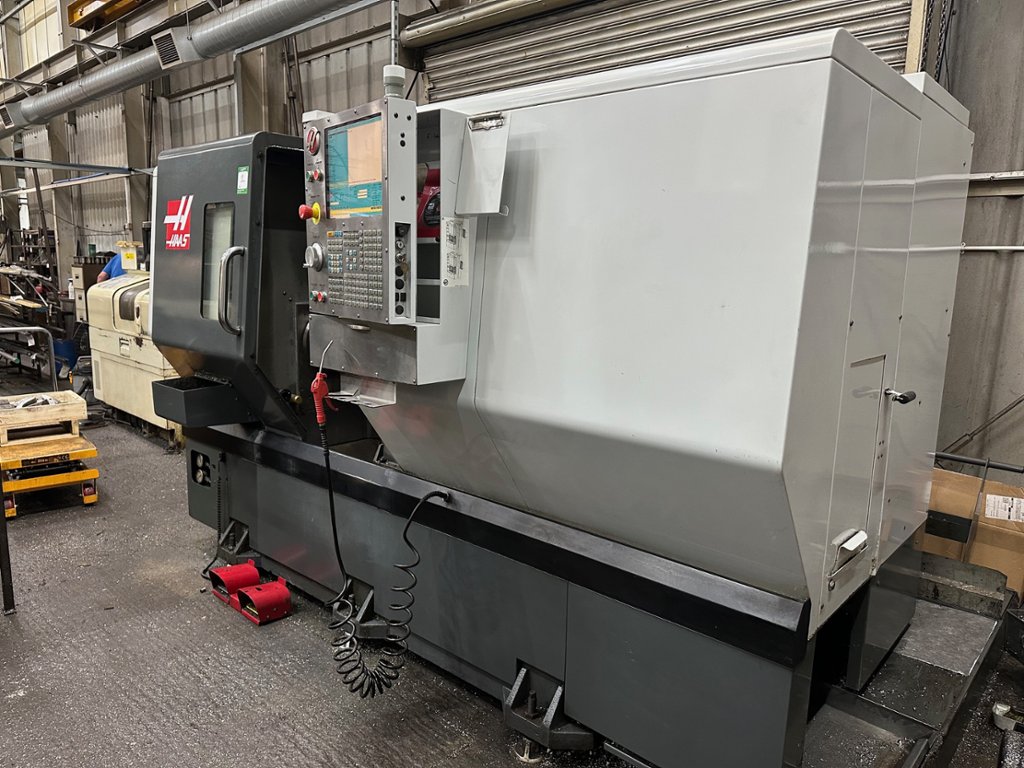

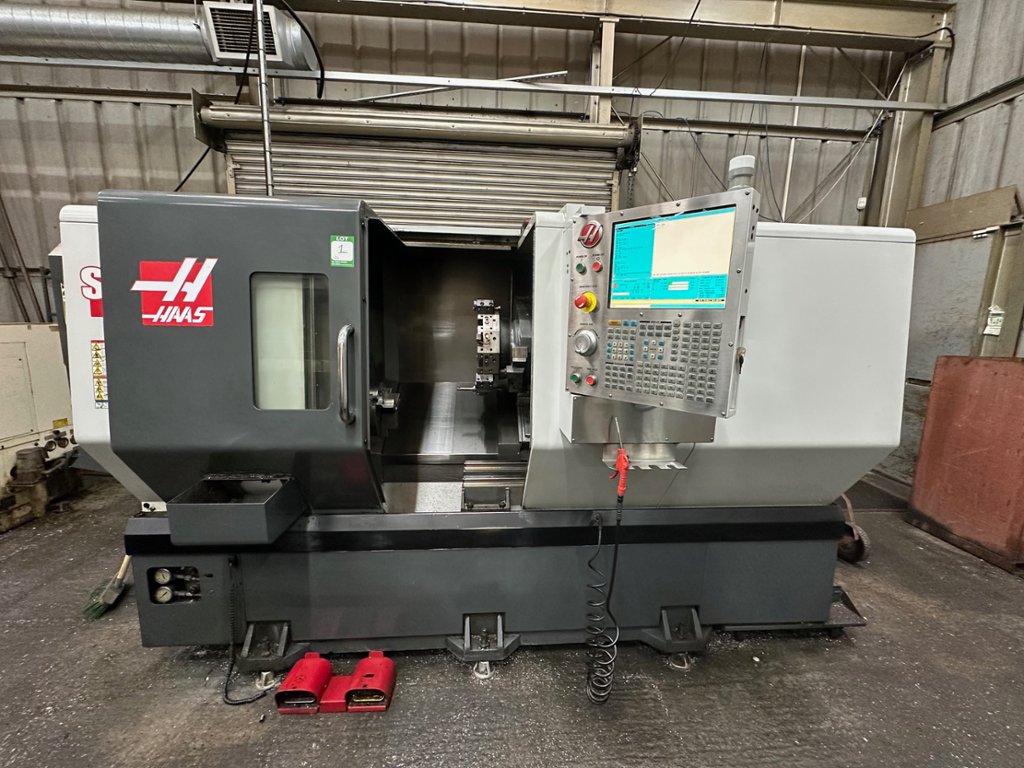

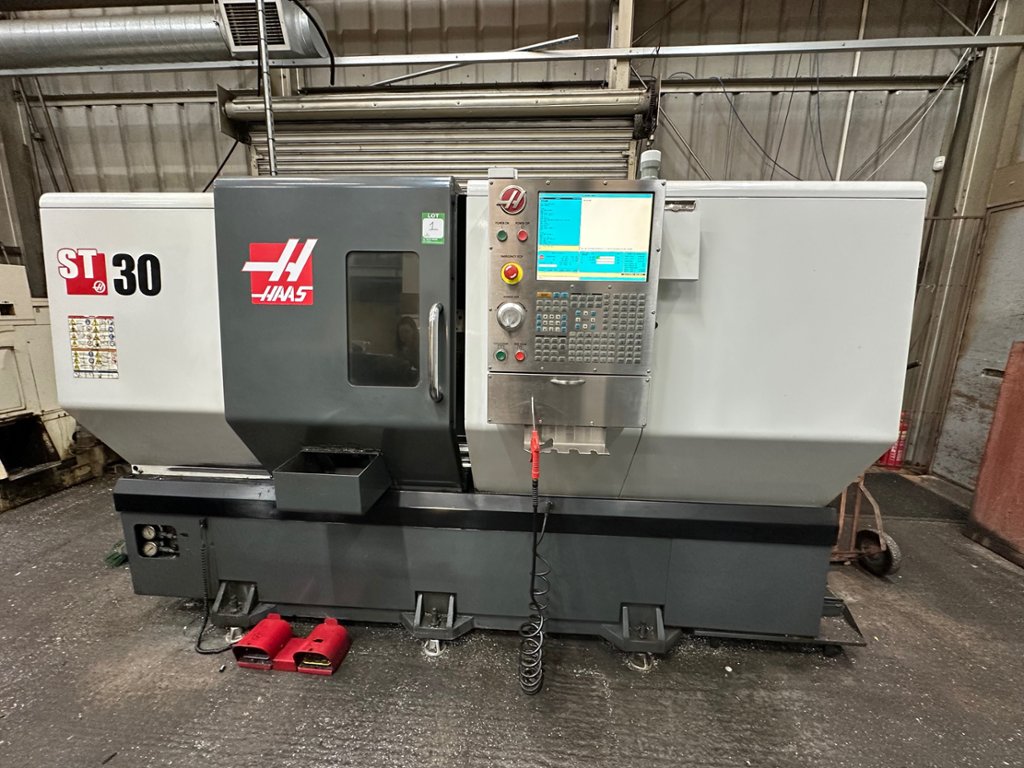

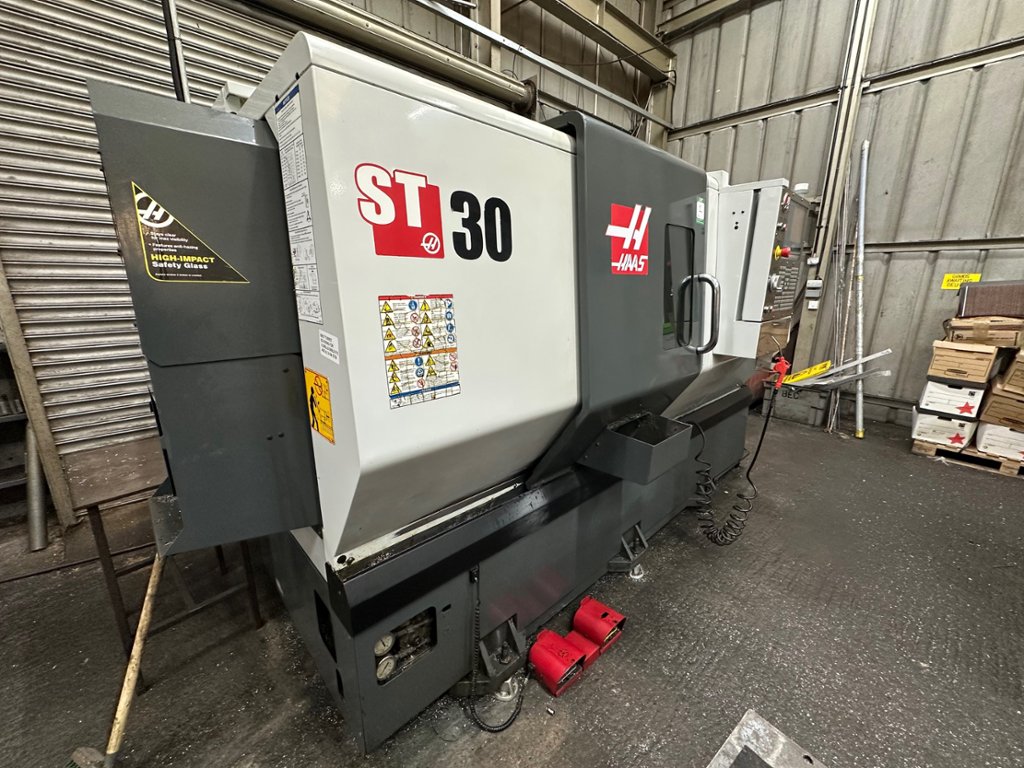

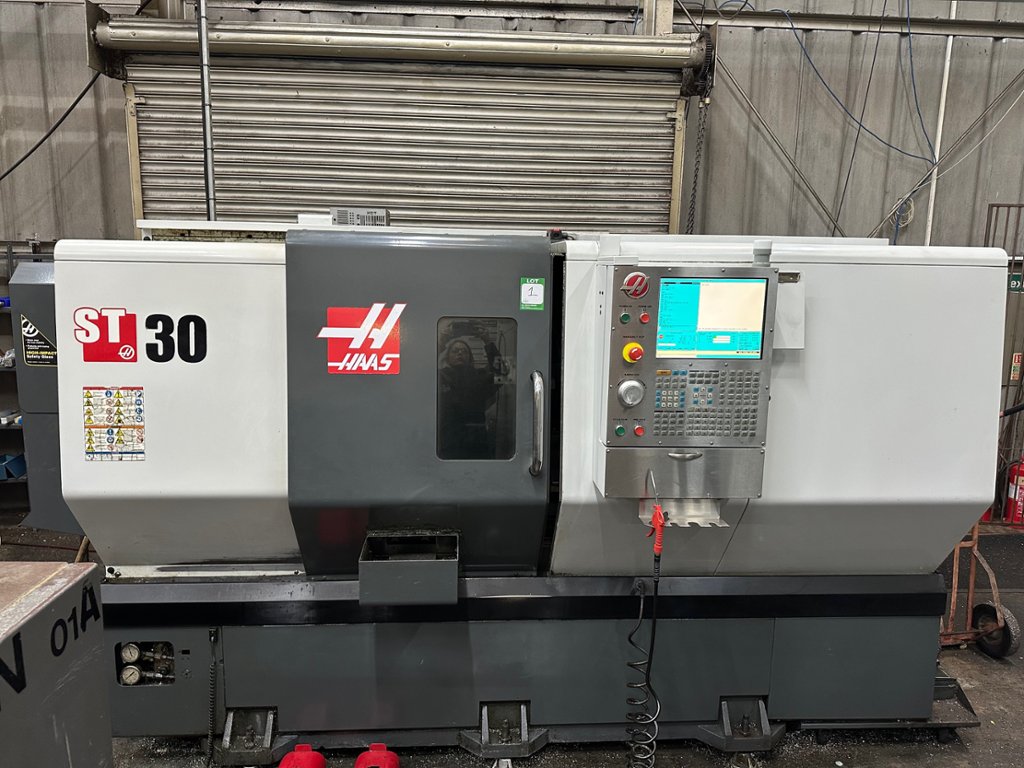

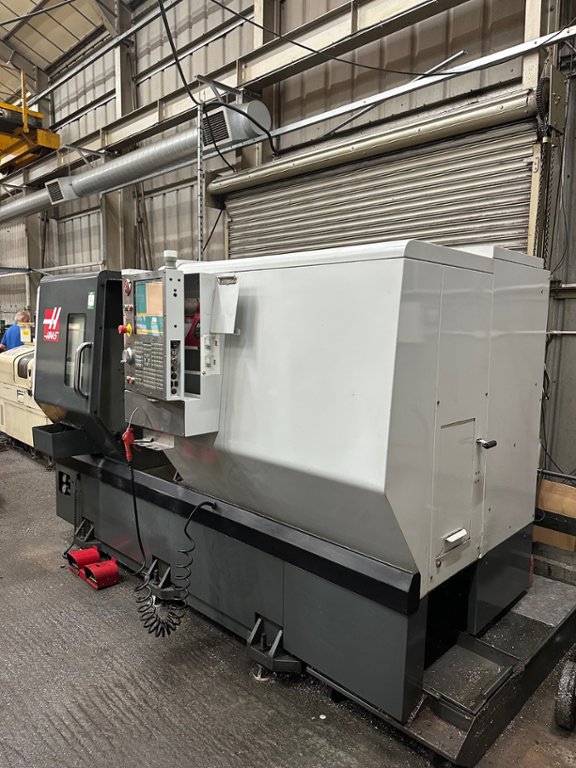

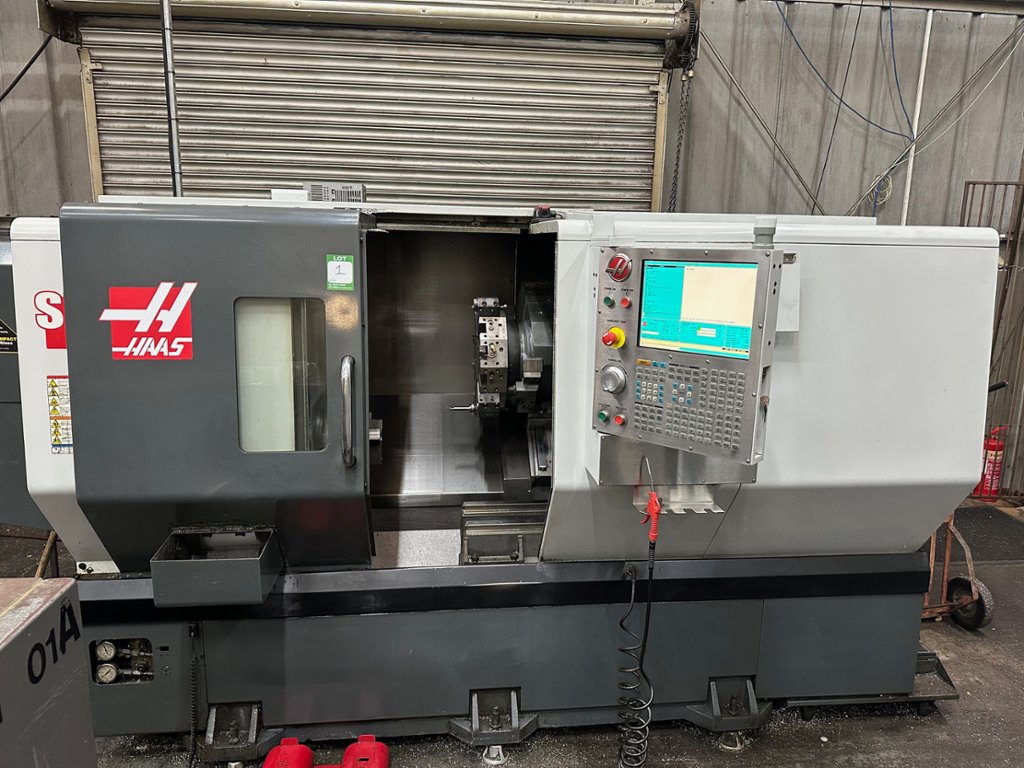

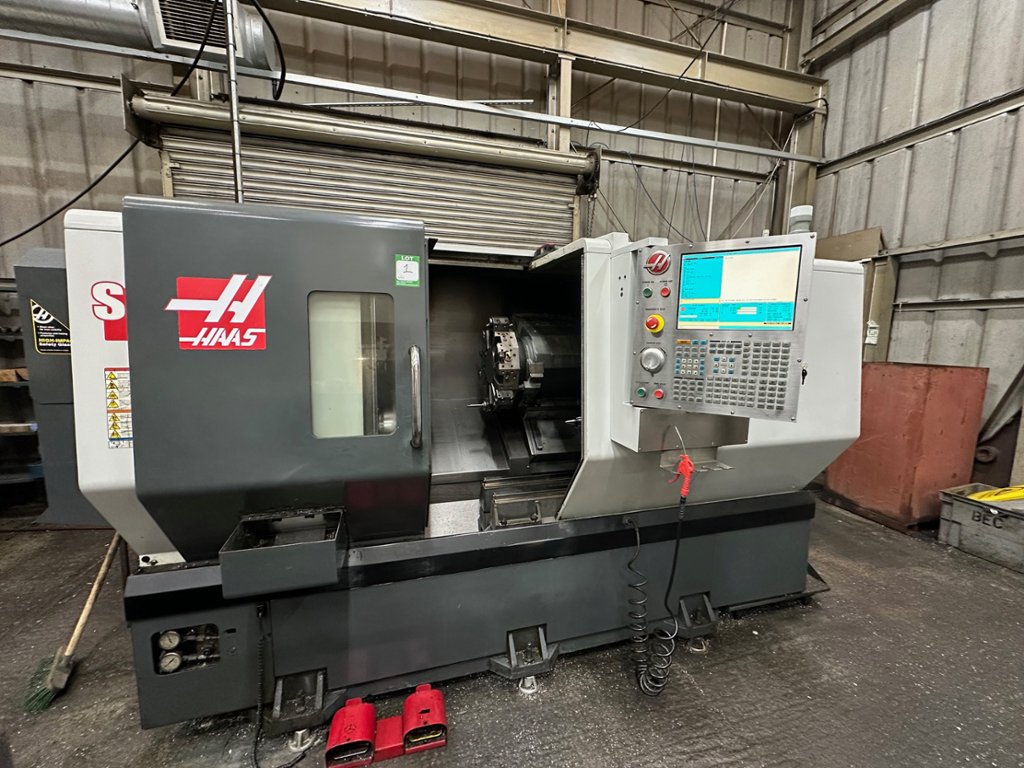

Haas ST30 CNC Lathe (2012)

Lot 1 - Haas ST30 CNC Lathe (2012)

Description:

INCLUDES

40mm dia holders
3 x sleeve holders with some sleeve reducers
1 x part off tool
2 x turning tools
1 x threading tool
1 x new tail stock revolving live centre
The tailstock is also programmable

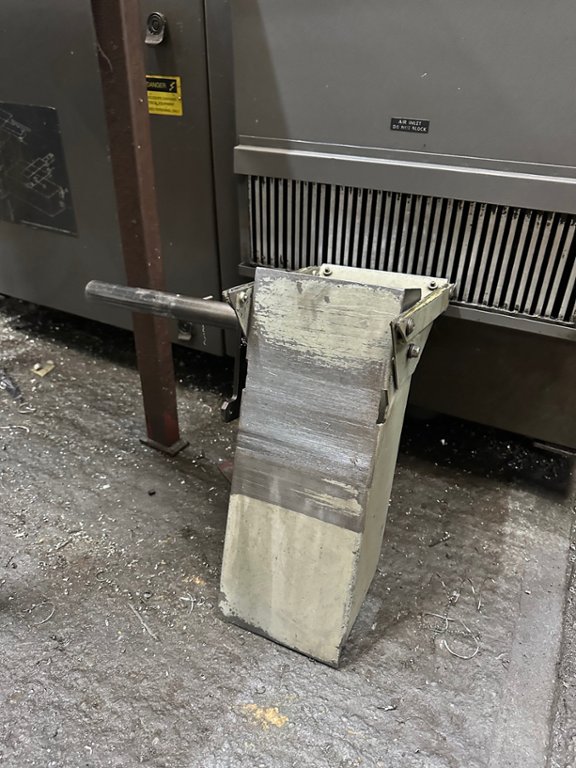

With Parts Catcher.

CAPACITIES

Max Part Swing - 533 mm, Max Cutting Diameter (with BOT turret) - 381 mm. Max Cutting Diameter (with BMT65 turret) - 349 mm, Max Cutting Length (varies with workholding) - 826 mm, Bar Capacity - 76 mm, Between Centers - 826 mm

TRAVELS

X Axis - 239 mm, Z Axis - 826 mm

FEEDRATES

Rapids on X - 24.0 m/min, Rapids on Z - 24.0 m/min

AXIS MOTORS

Max Thrust X - 18238 N, Max Thrust Z - 22686 N

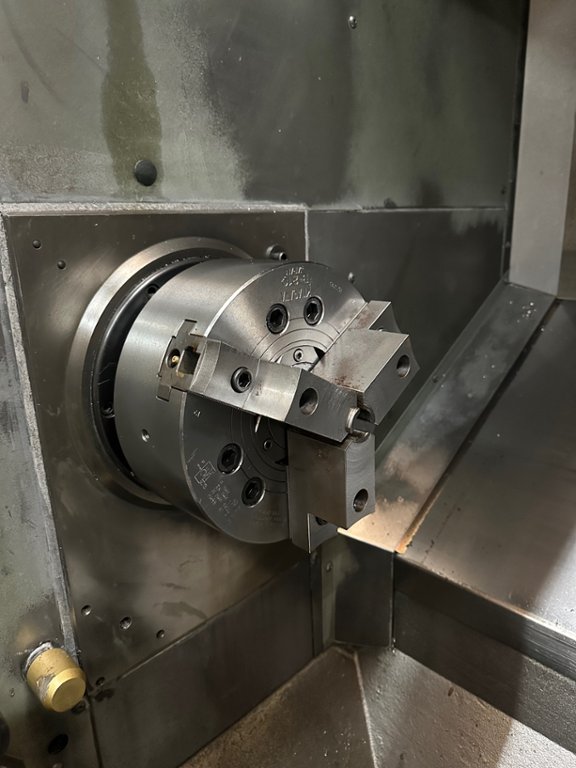

SPINDLE

Spindle Nose - A2-6, Max Rating - 22.4 kW, Max Speed - 3400 rpm, Max Torque - 407.0 Nm @ 500 rpm, Max Torque w/opt Gearbox - 1356 Nm @ 150 rpm, Spindle Bore ø - 88.9 mm

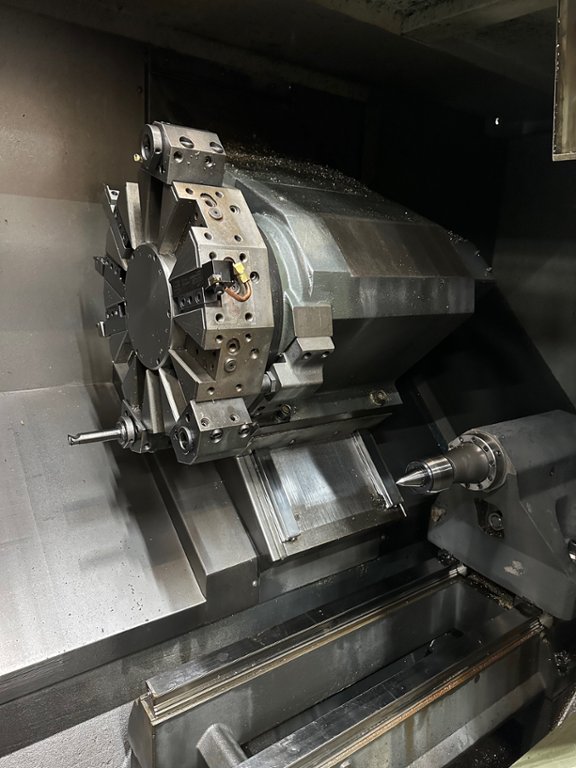

TURRET

Number of Tools - 12-Station BOT

GENERAL
Coolant Capacity - 208 L

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
