Lot 3 - HAAS TL1-CE Toolroom Lathe (2008)
Description:

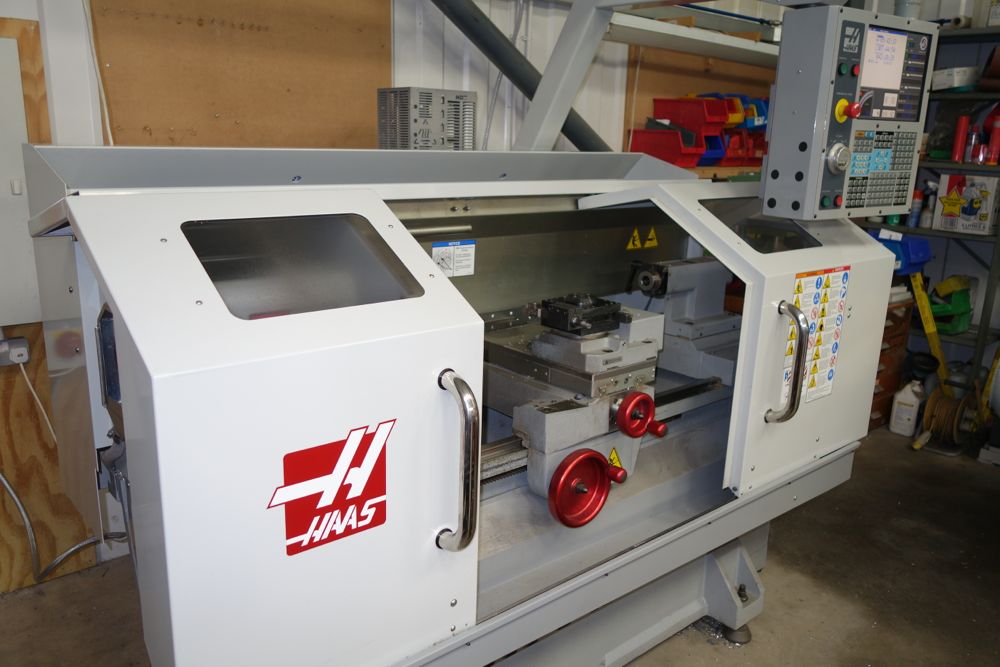

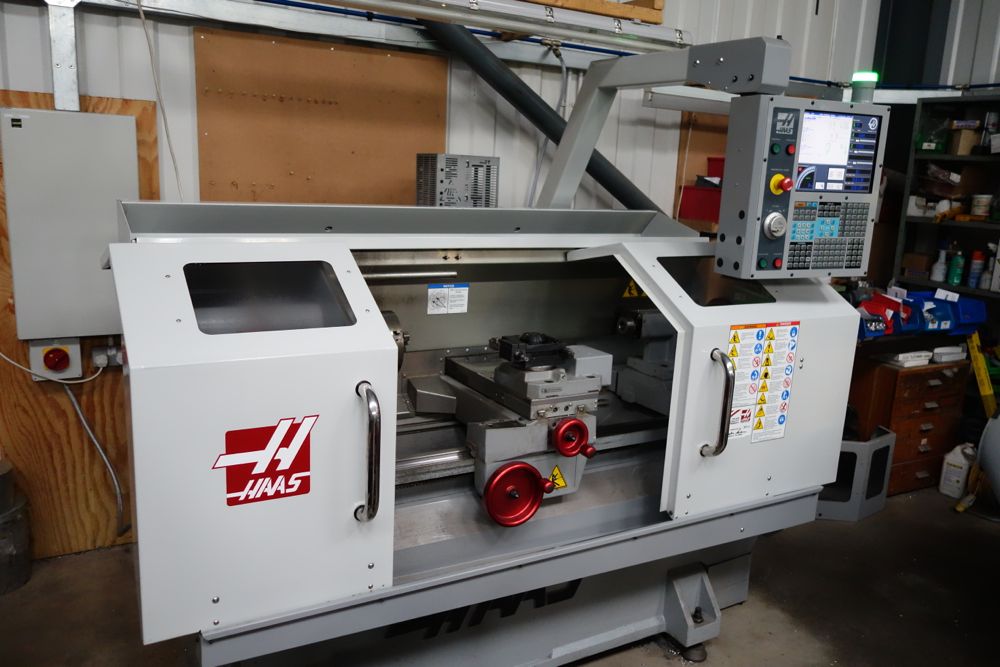

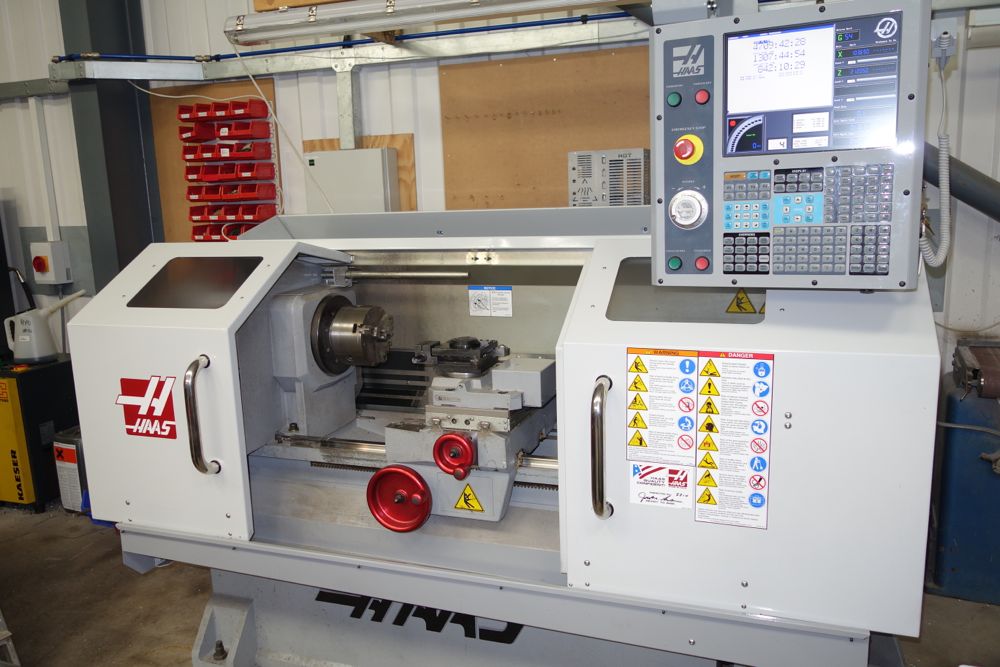

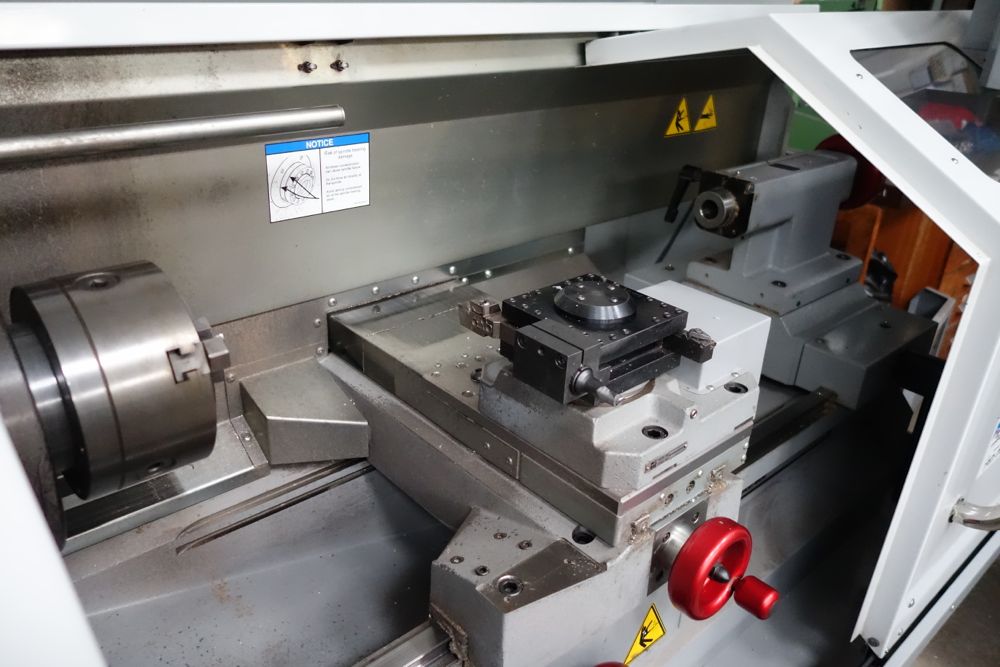

HAAS TL1-CE Toolroom Lathe

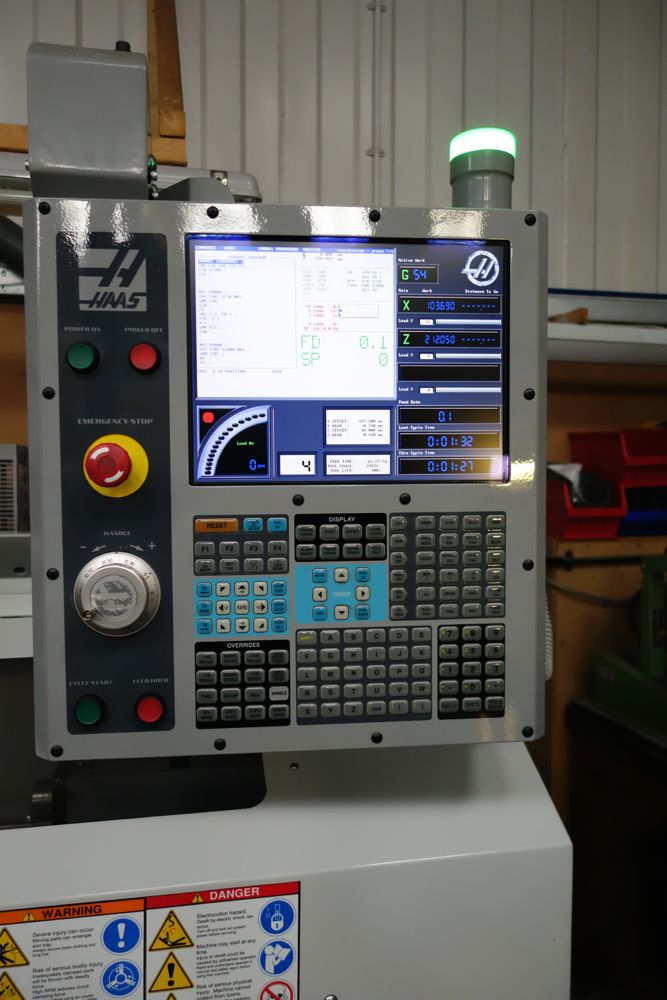

CNC/Manual Toolroom Lathe; 16" x 29" (406 x 737 mm) max capacity, 16" (406 mm) swing, 7.5 hp (5.6 kW) vector drive, 2000 rpm, A2-5 spindle, Intuitive Programming System, 1 MB program memory, memory lock keyswitch, 15" color LCD monitor and USB port.
Swing Diameter
Over Front Apron: 406 mm
Over Cross Slide: 241 mm
Max Cutting Diameter (varies with turret): 406 mm
Max Cutting Length (without workholding): 737 mm
Between Centers: 737 mm
Travels & Feedrates
X Axis: 203 mm
Z Axis: 737 mm
Rapids on X: 1.9 m/min
Rapids on Z: 3.8 m/min
Max Thrust X: 13772 N
Max Thrust Z: 6886 N
Spindle
Max Speed: 2000 rpm
Max Torque 100 ft-lb @ 375 rpm 136 Nm @ 375 rpm

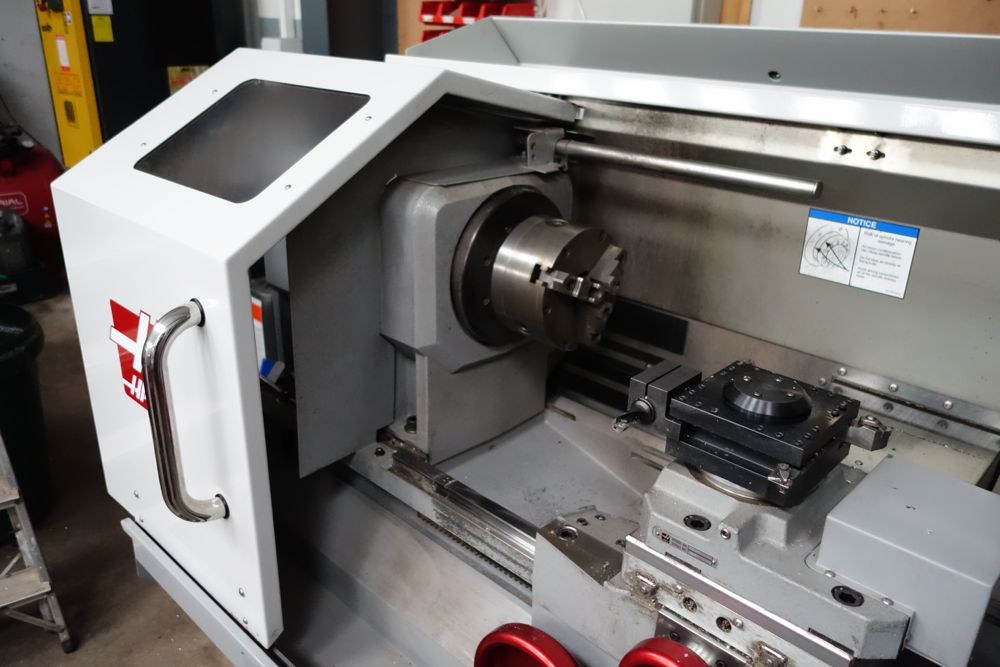

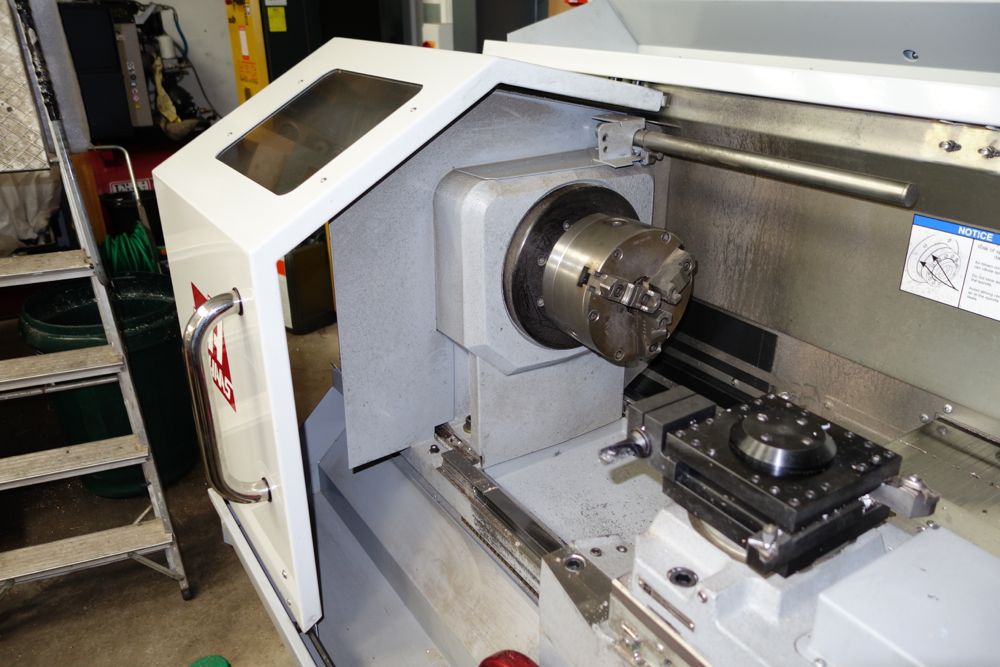

Spindle Nose: A2-5
Spindle Bore ø: 2.31", 58.7 mm

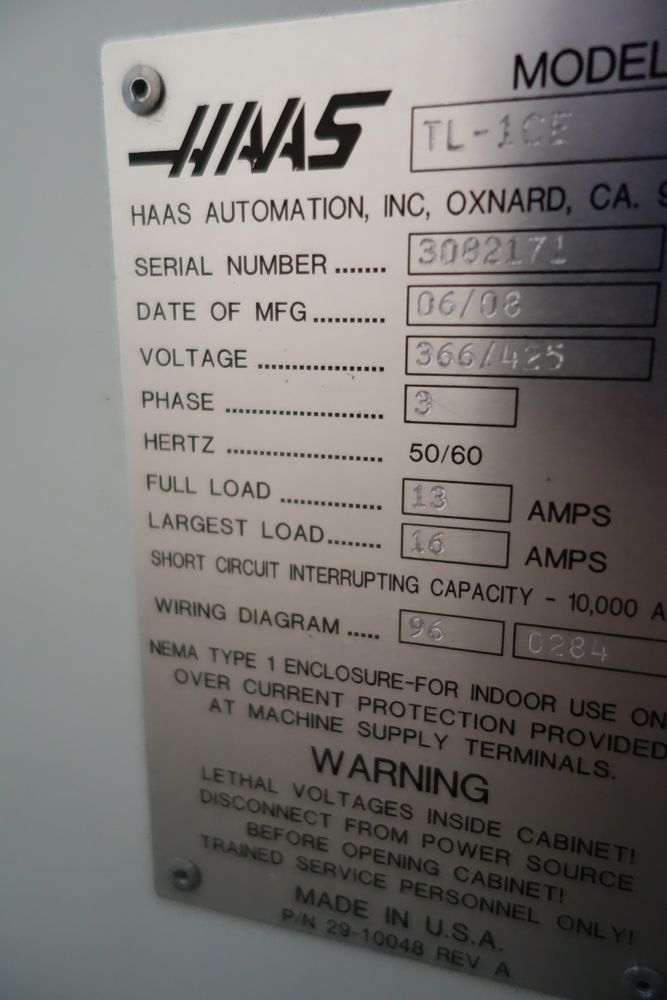

Serial - 3082171
year 06/08

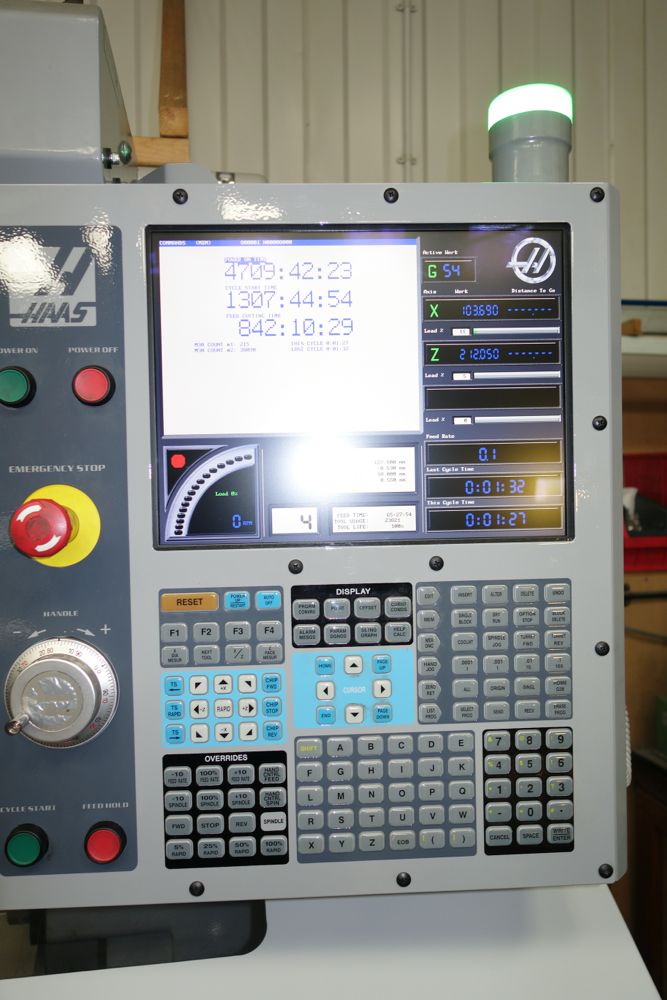

Power on hours - 4728
Cutting hours - 842
Comes with Boring Bar holder, triple collet holder and 2 turning tools.
Owned from new, Low Hours and has only ever cut Aluminum
Location: Devon
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
