Lot 1 - HAAS VF-2 SS VMC (2008)
Description:

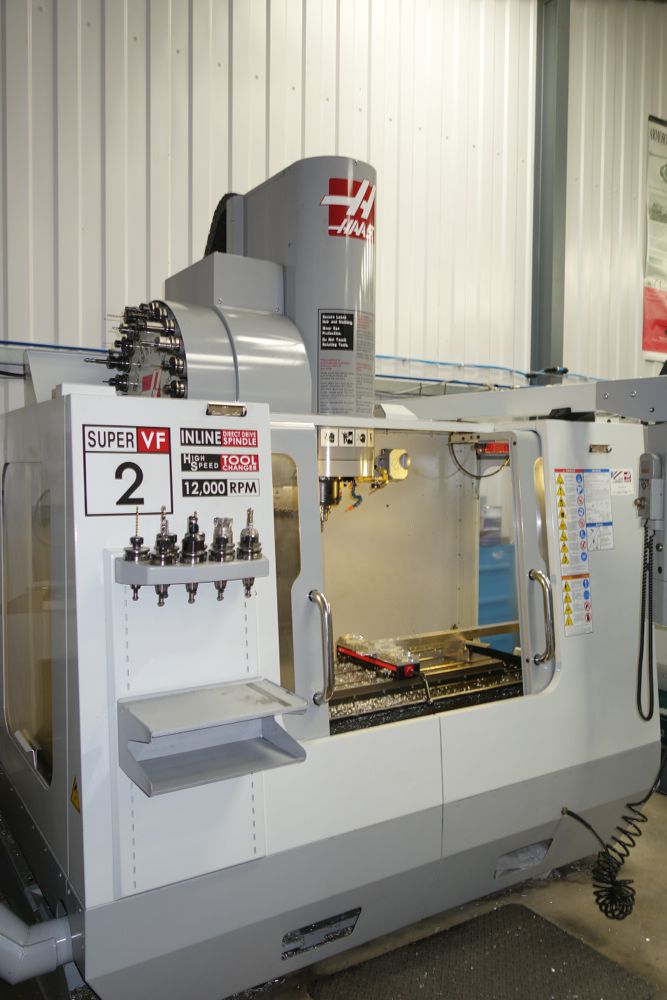

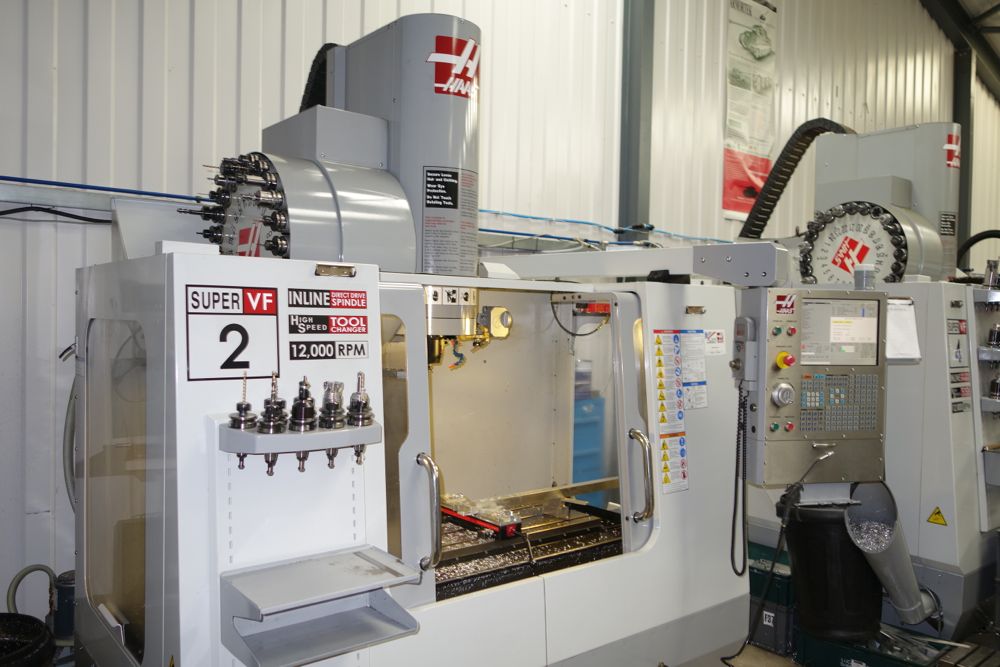

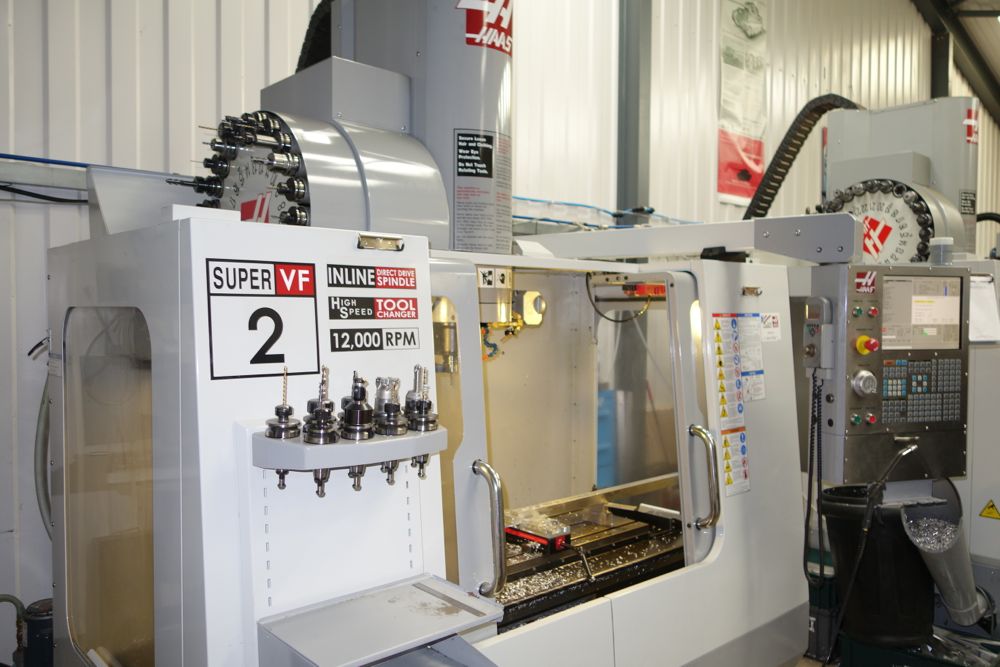

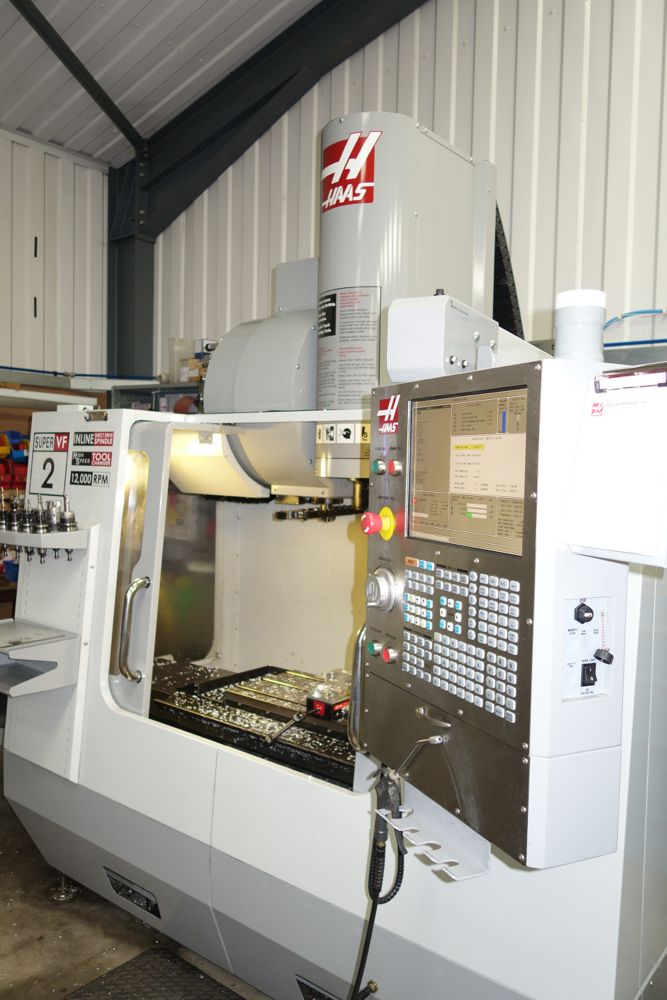

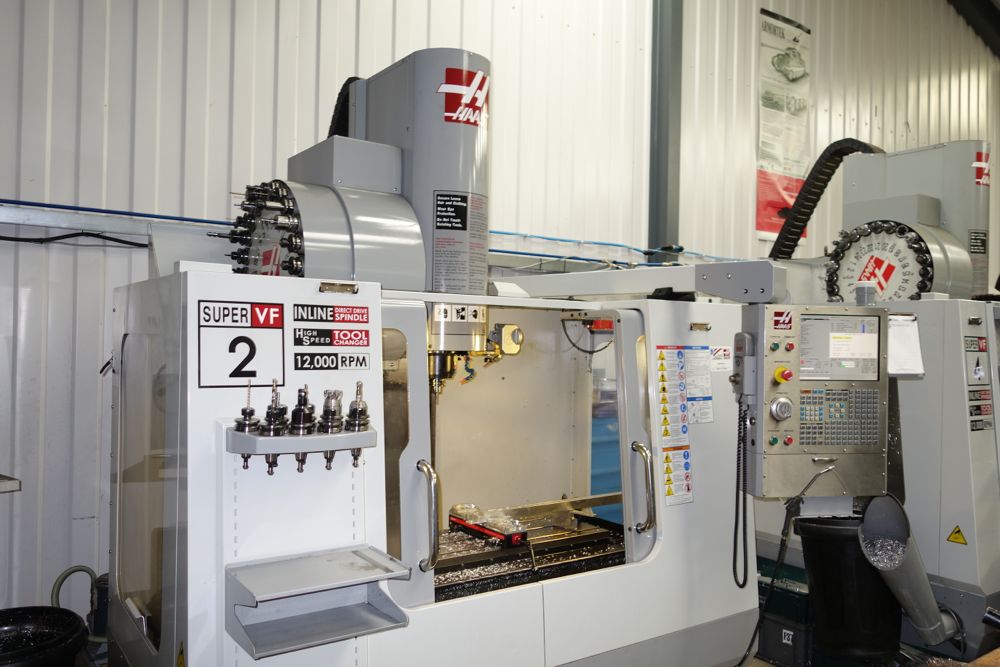

HAAS VF-2 SS

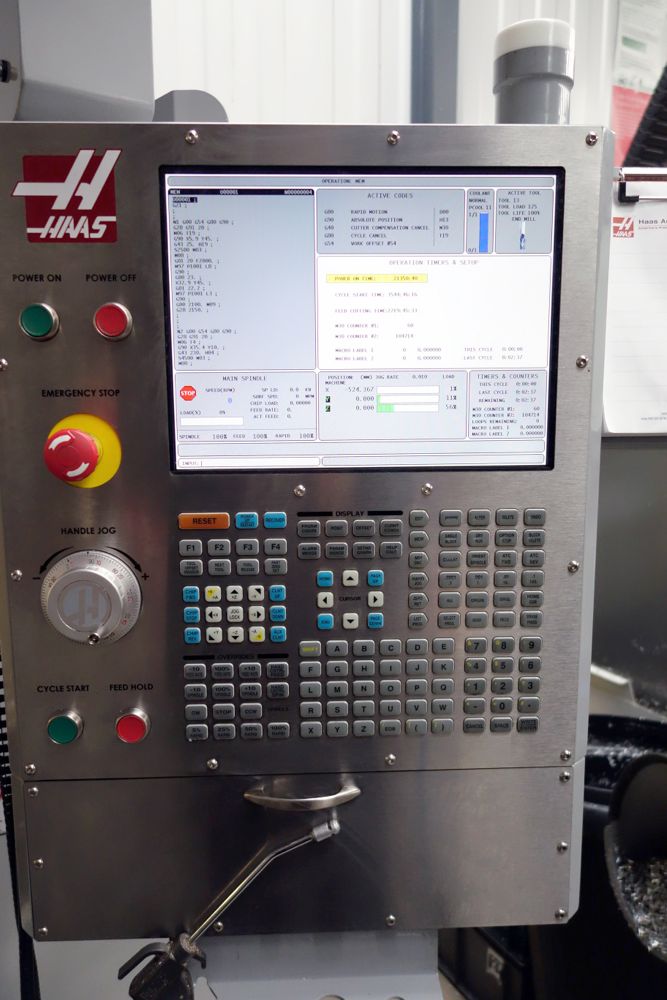

Super-Speed Vertical Machining Center; 30" x 16" x 20" (762 x 406 x 508 mm), 40 taper, 30 hp (22.4 kW) vector drive, 12,000 rpm, inline direct-drive, high-speed 24+1 side-mount tool changer, 1400 ipm (35.6 m/min) rapids, 1 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system. 4th Axis ready.
X Axis: 762 mm
Y Axis: 406 mm
Z Axis: 508 mm
Spindle Nose to Table (~ max): 610 mm
Spindle Nose to Table (~ min): 102 mm

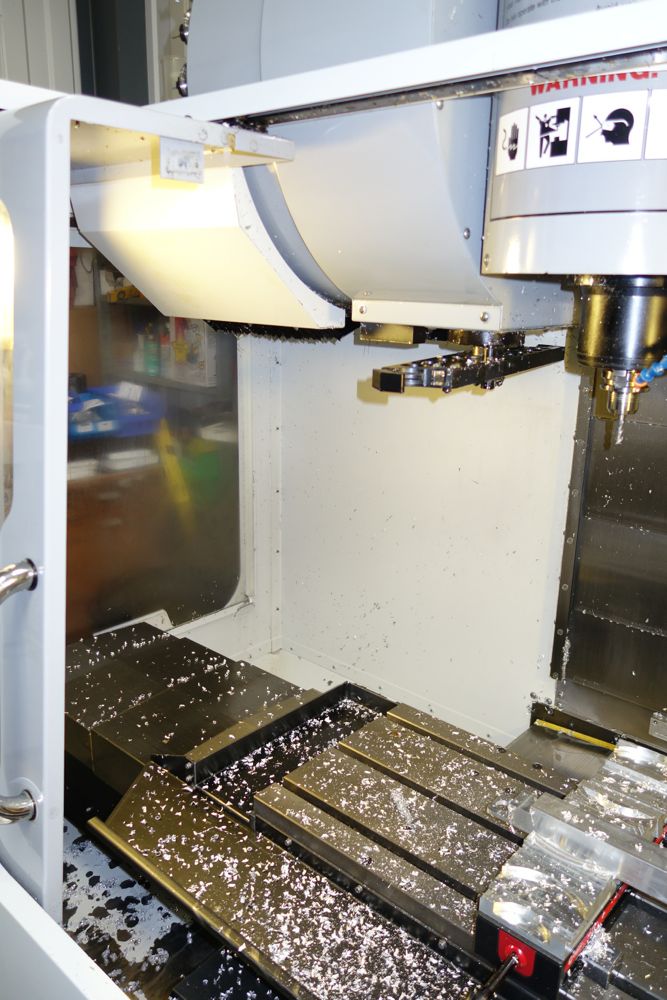

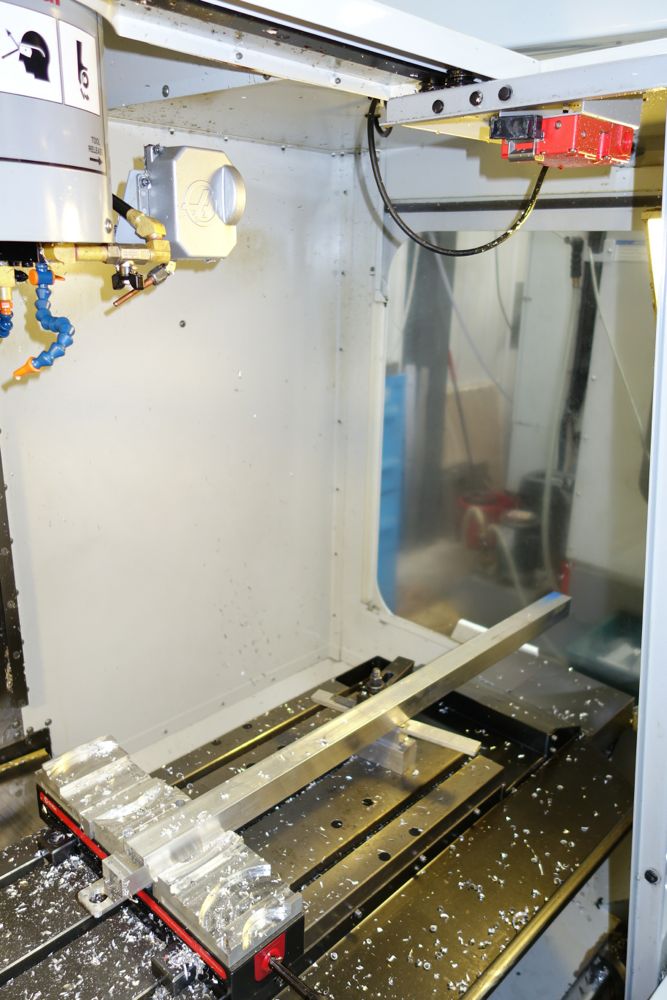

TABLE
Length: 914 mm
Width: 356 mm
T-Slot Width: 16 mm
T-Slot Center Distance: 125.0 mm
Number of Std T-Slots: 3
Max Weight on Table (evenly distributed): 680 kg
SPINDLE
Max Speed: 12000 rpm
Max Torque: 90 ft-lb @ 2000 rpm 122 Nm @ 2000 rpm
Drive System: Inline Direct-Drive
Bearing Lubrication: Air/Oil Injection
Cooling: Liquid Cooled
FEEDRATES
Rapids on X: 35.6 m/min
Rapids on Y: 35.6 m/min
Rapids on Z: 35.6 m/min
Max Cutting: 21.2 m/min
AXIS MOTORS
Max Thrust X: 8874 N
Max Thrust Y: 8874 N
Max Thrust Z: 13723 N
TOOL CHANGER
Type: SMTC
Capacity: 24+1
Max Tool Diameter (adjacent empty): 127 mm
Max Tool Diameter (full): 76 mm
Max Tool Length (from gage line): 279 mm
Max Tool Weight: 5 kg
Tool-to-Tool (avg): 1.6 sec
Chip-to-Chip (avg): 2.2 sec
GENERAL
Air Required: 113 L/min, 6.9 bar
Coolant Capacity: 208 L

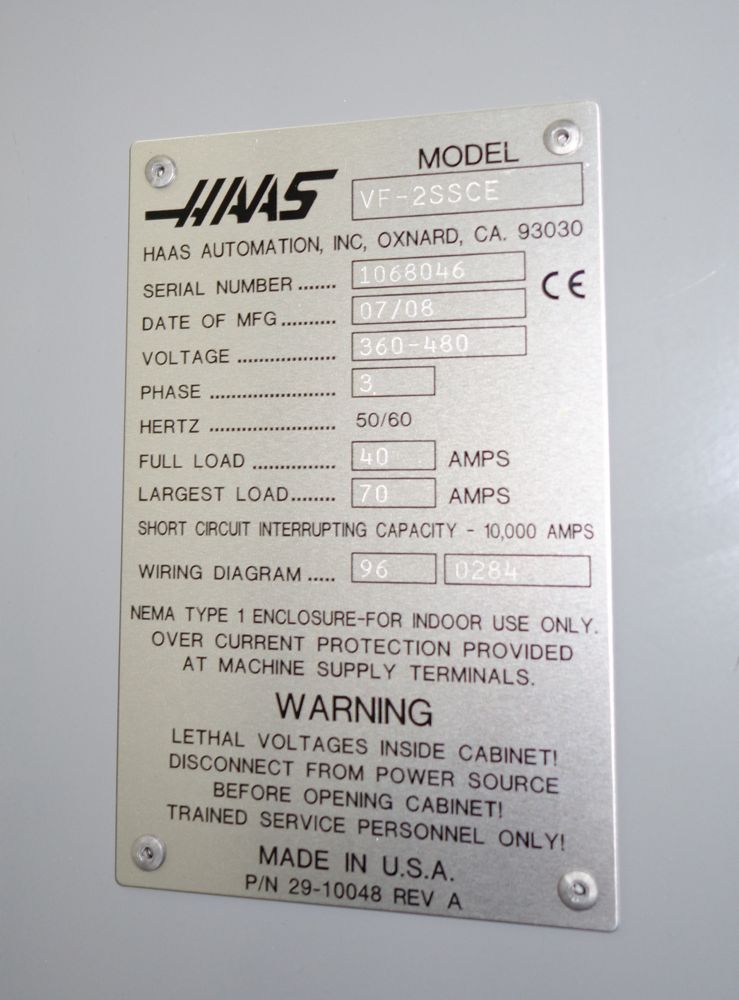

Serial - 1068046
Year 07/08
Comes with 5 Tool Holders
Owned from new, Low Hours and has only ever cut Aluminum
Cutting Hours 2745, Power on hours 21,400
Location: Devon
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
