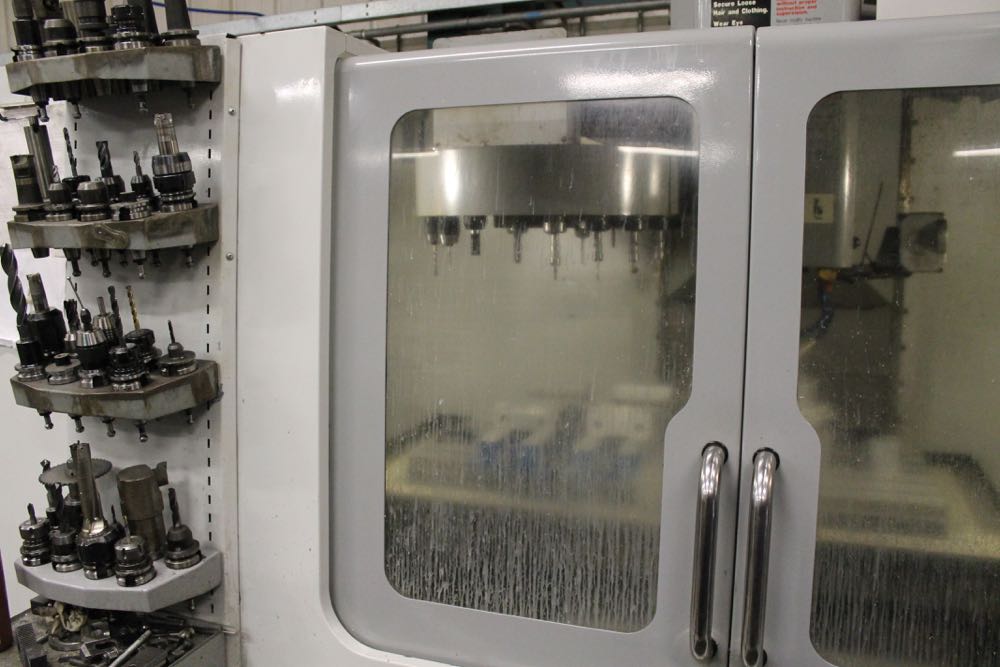

Lot 2 - Haas VF3-DHE (2005)

Description:

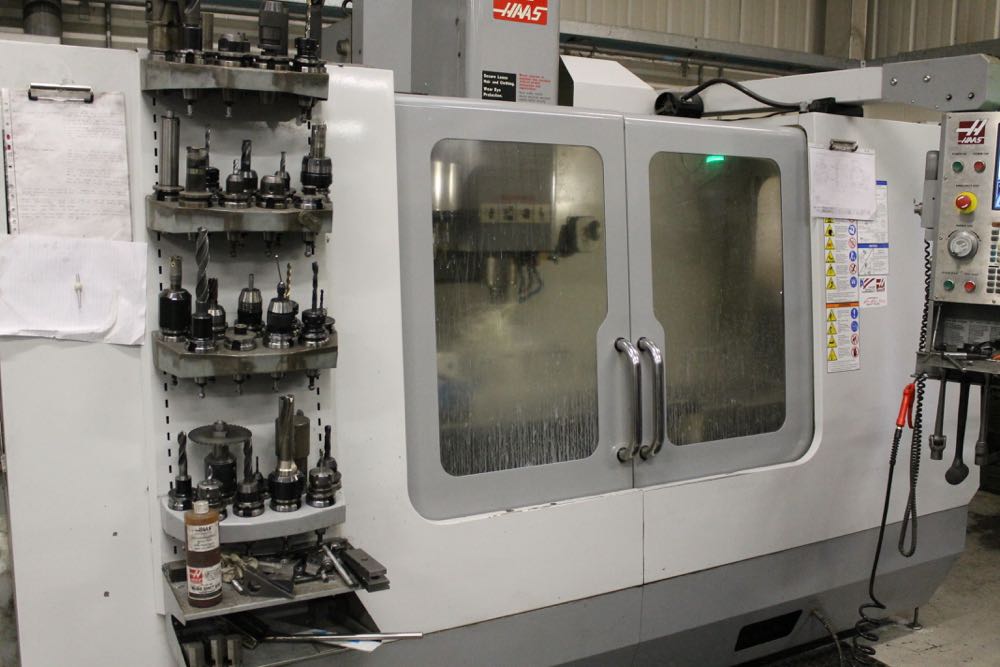

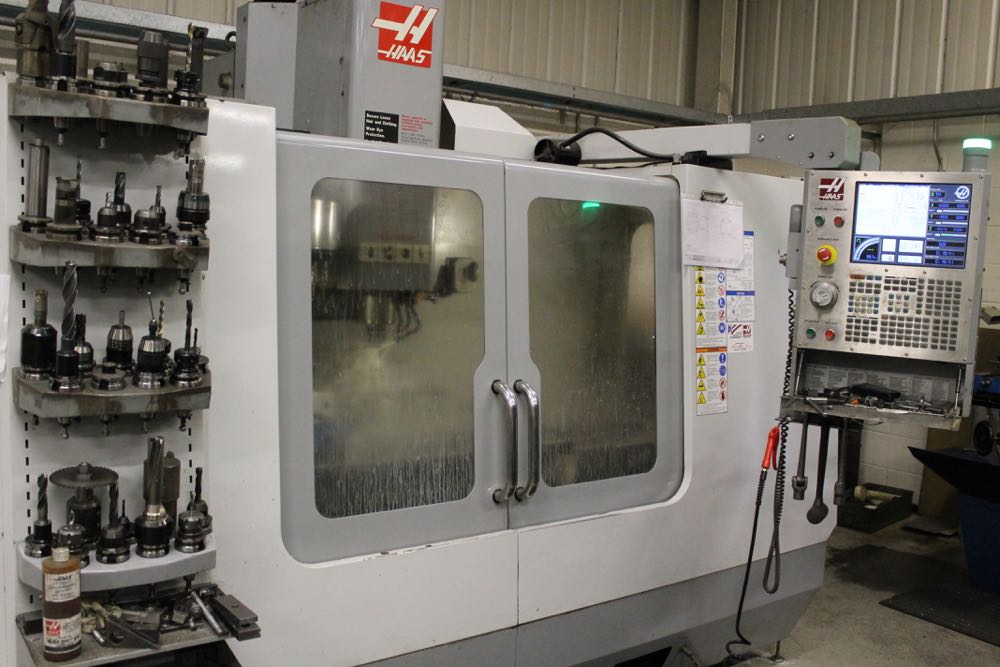

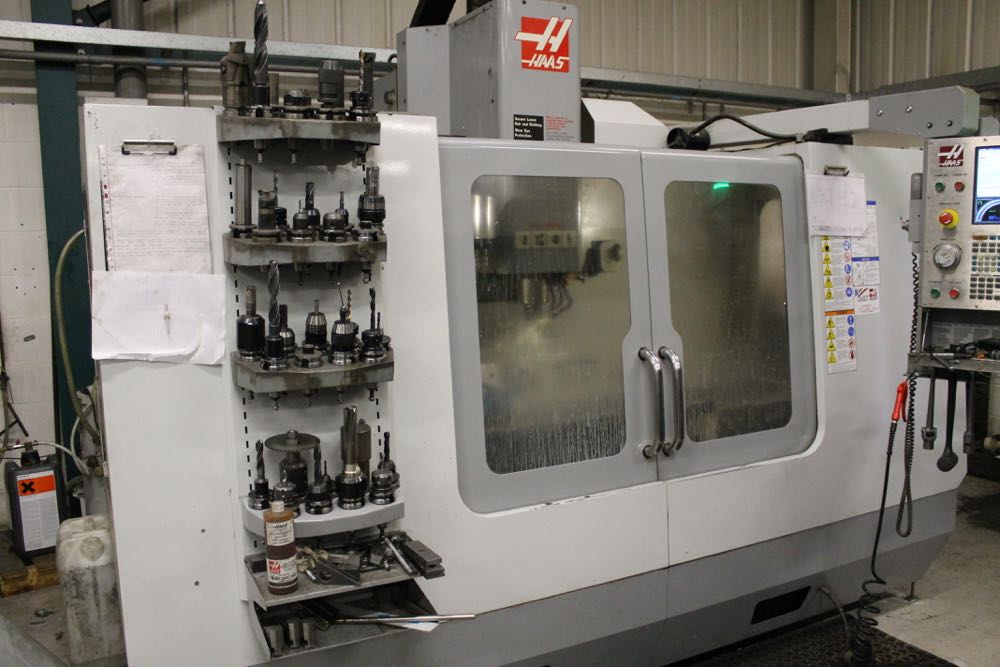

Haas VF3-DHE (2005)

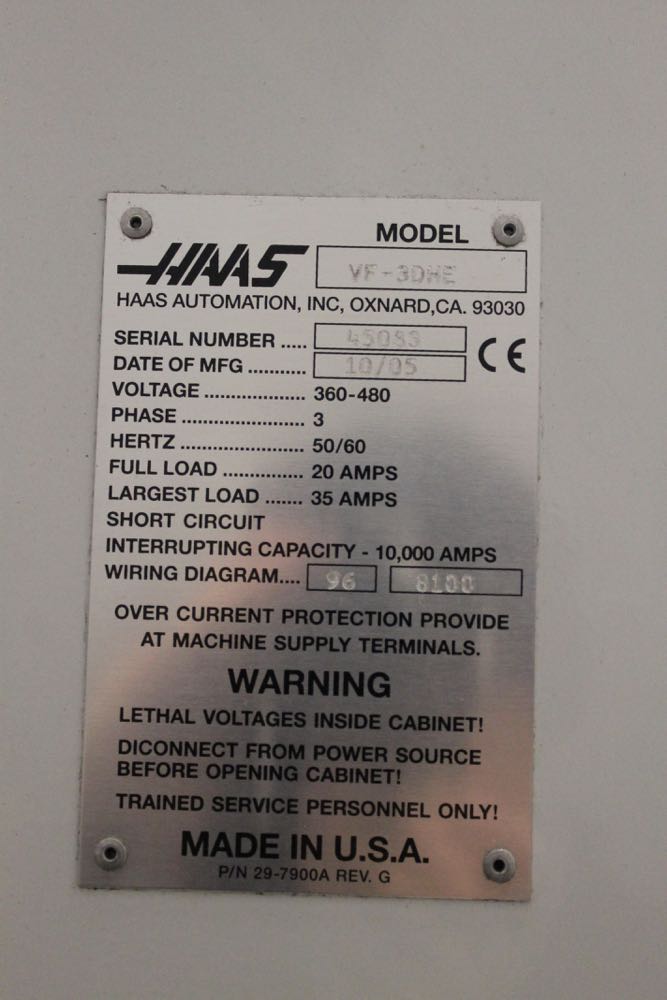

S/n: 45083
Date: 10/05

Gearbox Driven

X Axis: 1016mm
Y Axis: 508mm
Z Axis: 635mm
Spindle nose to table (~min): 102mm
Spindle nose to table (~max): 737mm

Table:
L x W: 1219mm x 457mm
T- Slot width: 16mm
T - Slot Centre Distance: 80mm
Number of Std T-slots: 5
Max weight on table: 1588kg

Spindle:
Max rating: 22.4kW
Max Speed: 10,000 rpm
Max Torque: 122Nm@2000 rpm
Drive system: inline
Taper: BT40

Feedrates:
Rapids on X: 25.4 m/min
Rapids on Y: 25.4 m/min
Rapids on Z: 25.4 m/min
Max Cutting: 16.5 m/min

Tool Changer:
Type: Carousel
Capacity: 20
Max Tool Diameter (full): 89mm
Max Tool Weight: 5.4kg
Tool to Tool (Avg): 4.2 Sec
Chip to Chip (Avg): 4.5 Sec

General:
Air Required: 113L/min. 6.9 bar
Coolant Capacity: 208L
Machine Weight: 5670kg
Max motor rating 20HP
includes 10 Pull stud (No Tool Holders)

Location: (Progress) Suffolk.



Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
