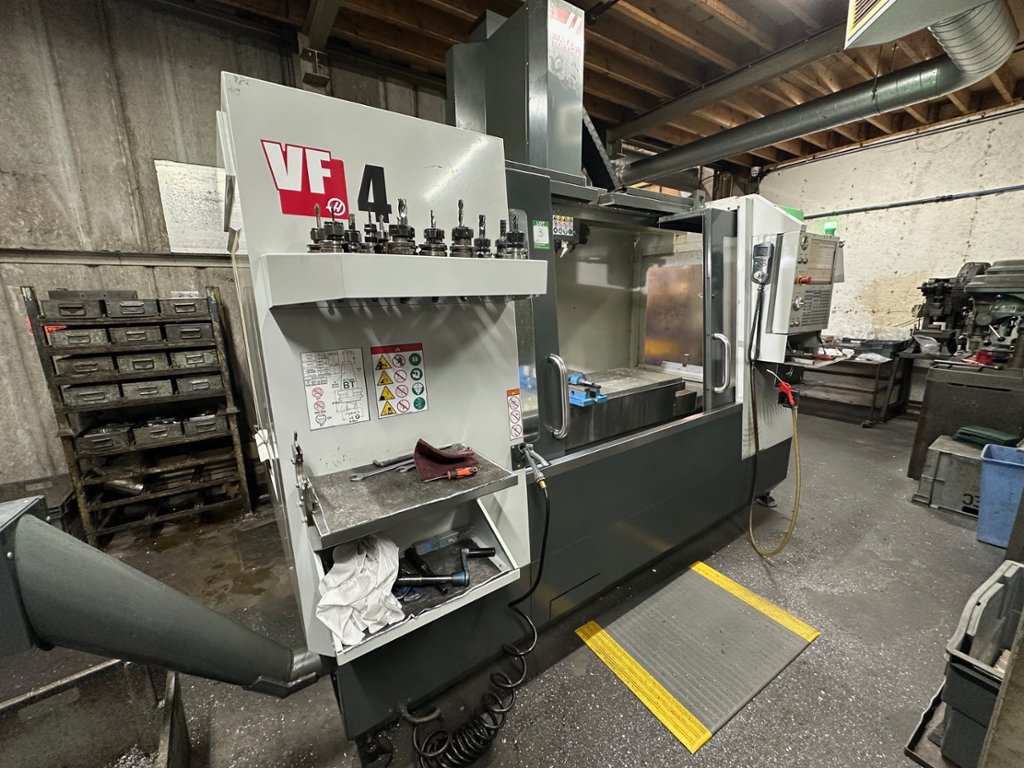

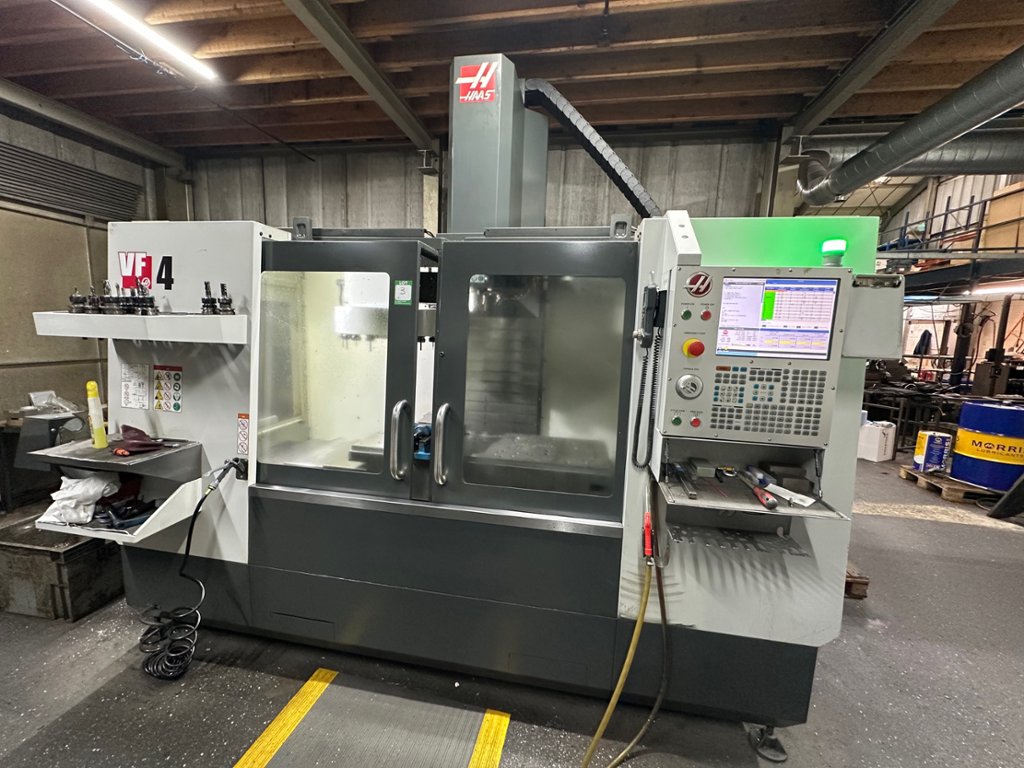

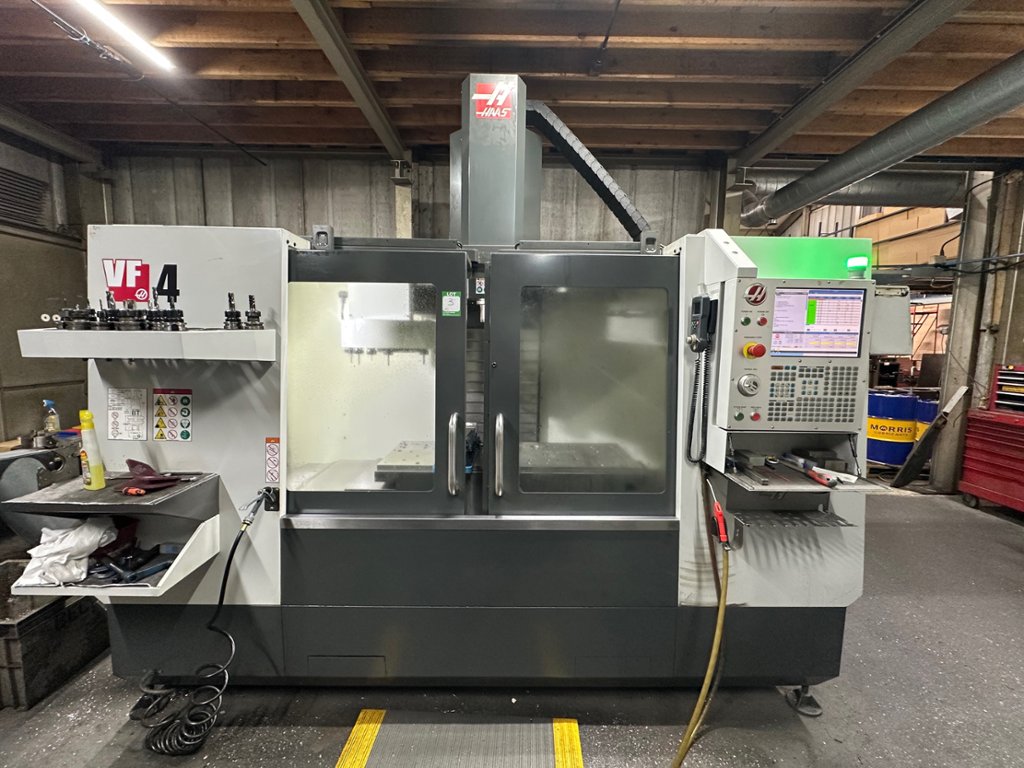

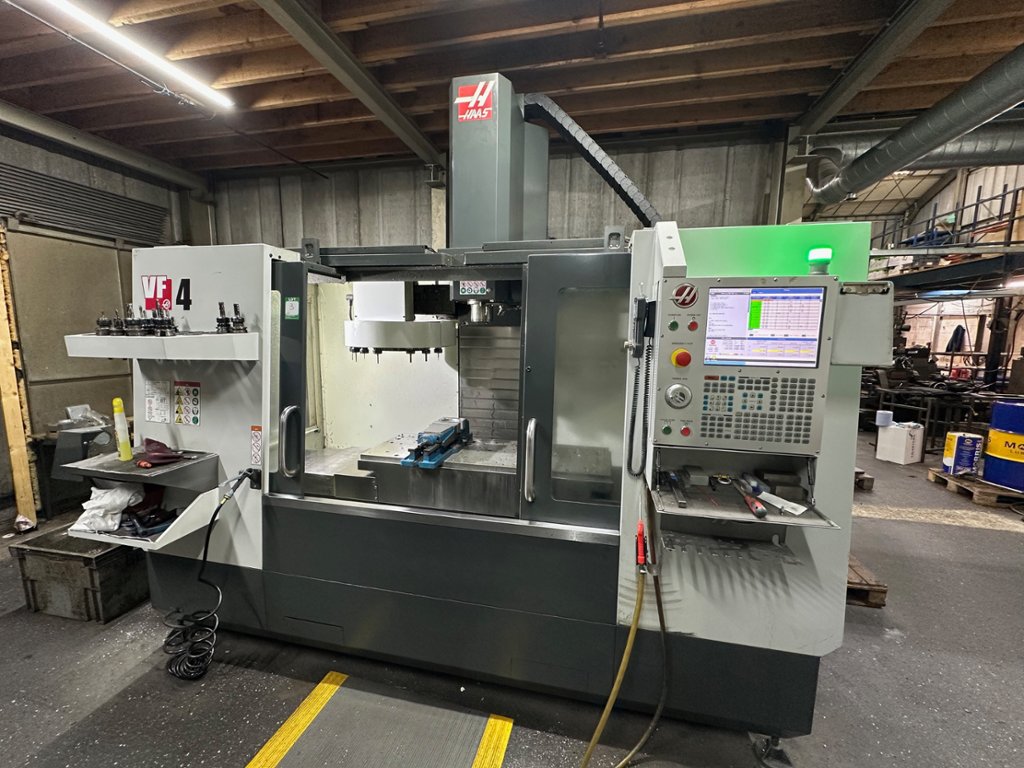

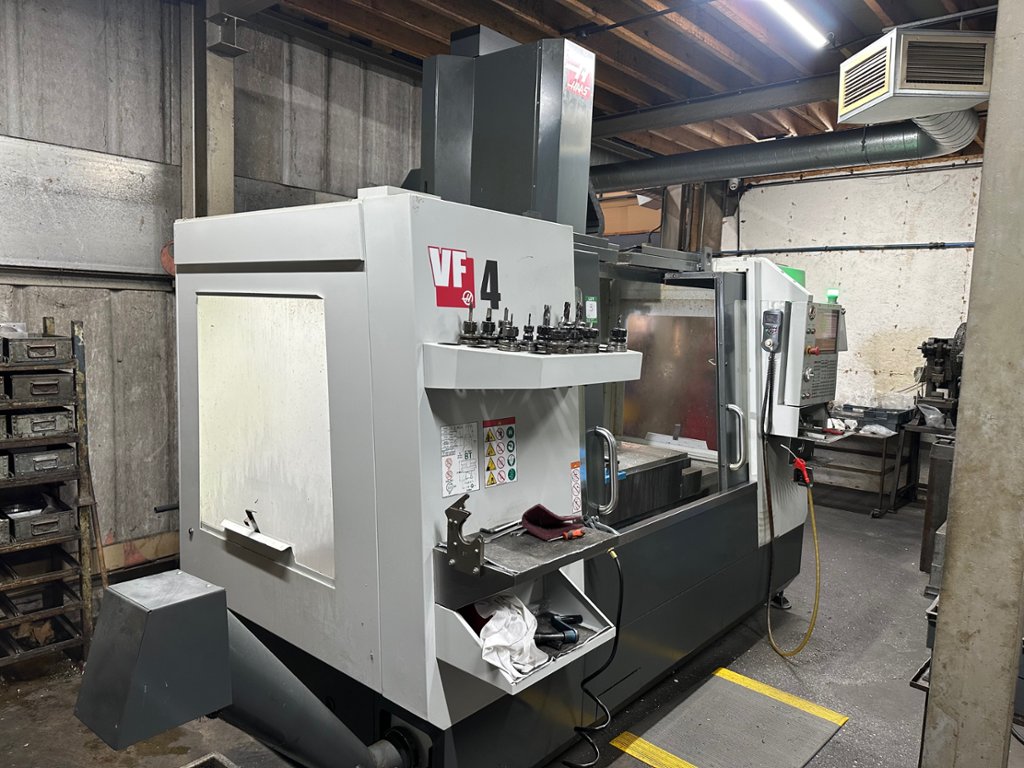

Haas VF4 CNC Vertical Machining Centre (2018)

Lot 3 - Haas VF4 CNC Vertical Machining Centre (2018)

Description:

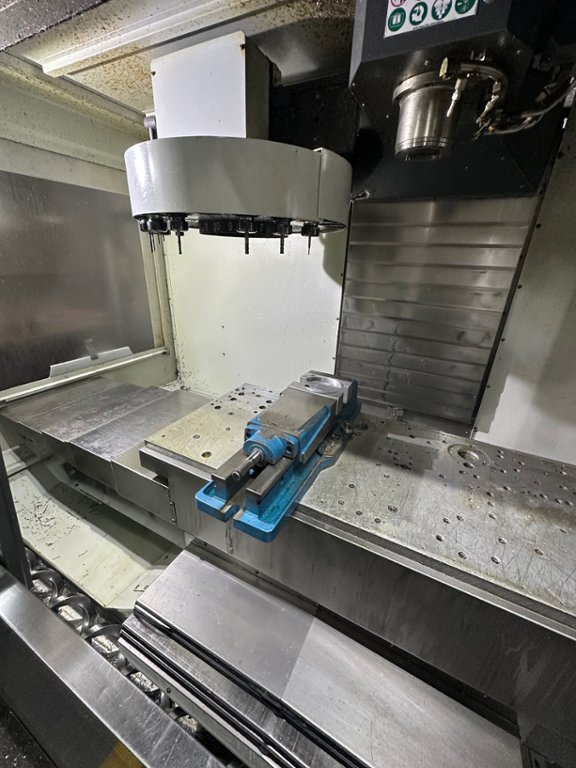

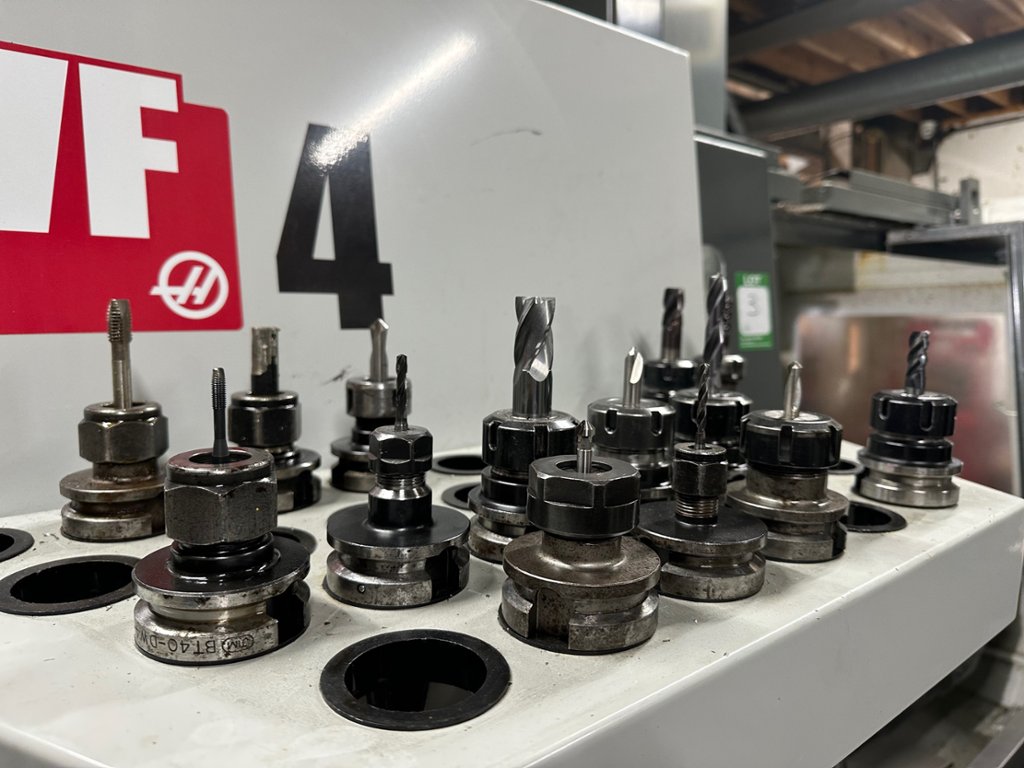

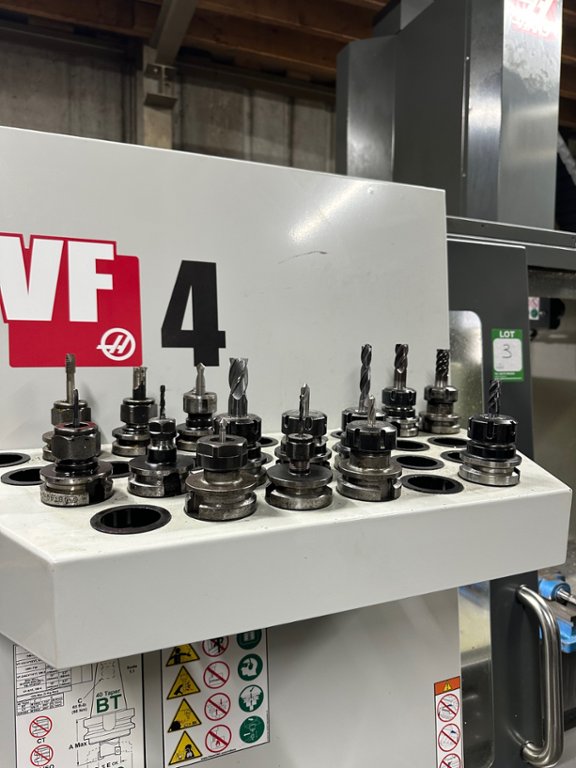

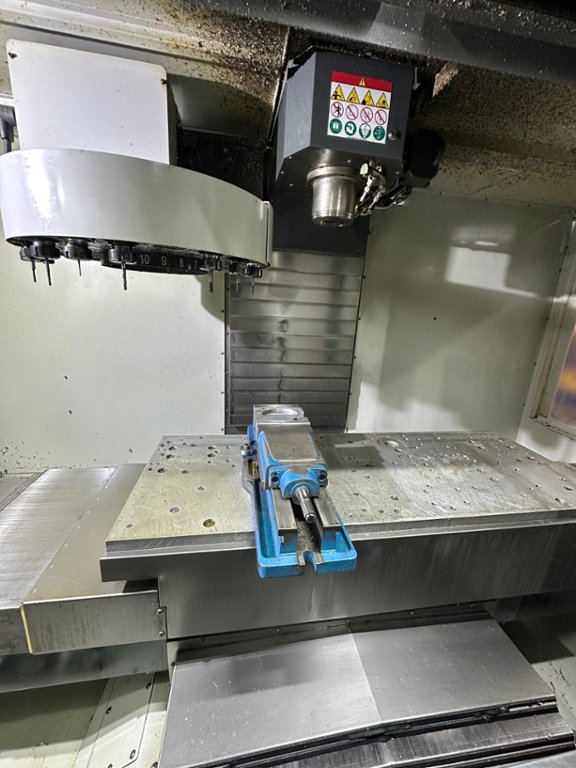

With 6" Vice & selection of BT40 Tooling

Travel (Axes)

X: 1,270 mm, Y: 508 mm, Z: 635 mm (25″)

Spindle Nose to Table

Min: ~102 mm, Max: ~737 mm

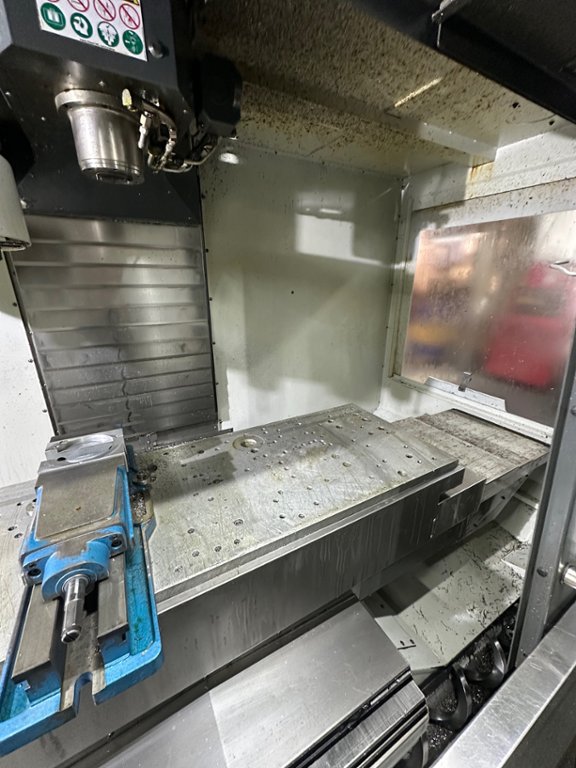

Table

Length: 1,321 mm, Width: 457 mm, T-slots: 5 slots, 16 mm wide, spaced 80 mm, Max load (even): ~1,588 kg

Spindle

Power: ~22.4 kW, Max Speed: 8,100 rpm, Taper: CT-40 or BT-40 Torque: ~122 Nm @ 2,000 rpm

Feeds / Rapid Traverse

Rapid (X/Y/Z): 25.4 m/min, Max Cutting Feed: ~16.5 m/min

Axis Motor Thrust

X: ~11,343 N, Y: ~11,343 N, Z: ~18,683 N

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
