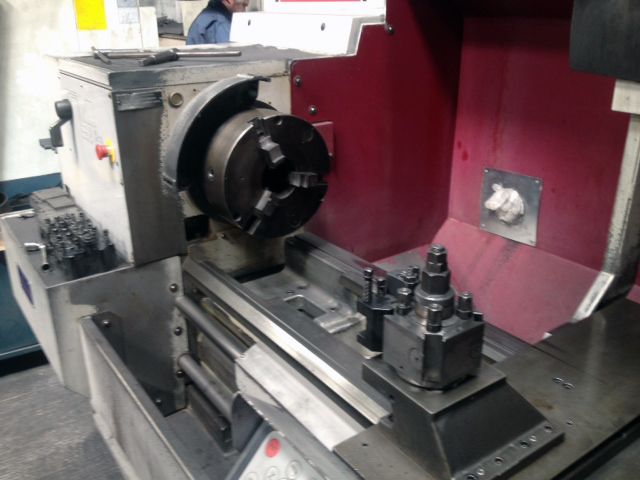

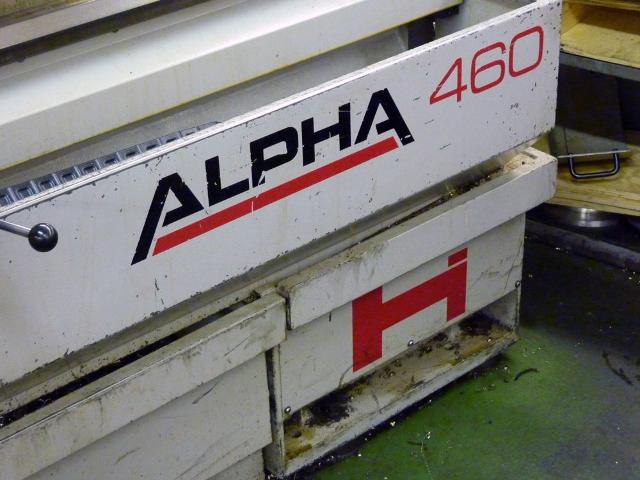

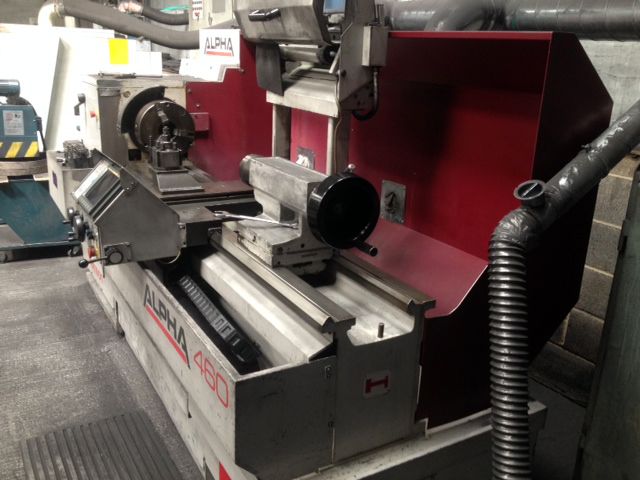

Lot 6 - HARRISON ALPHA 460 CNC Lathe
Description:

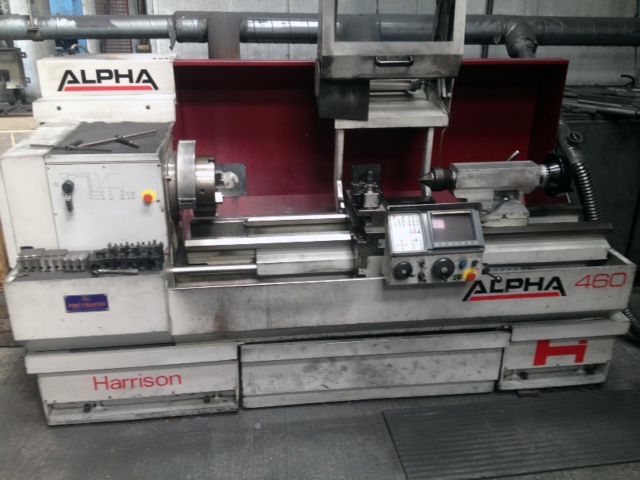

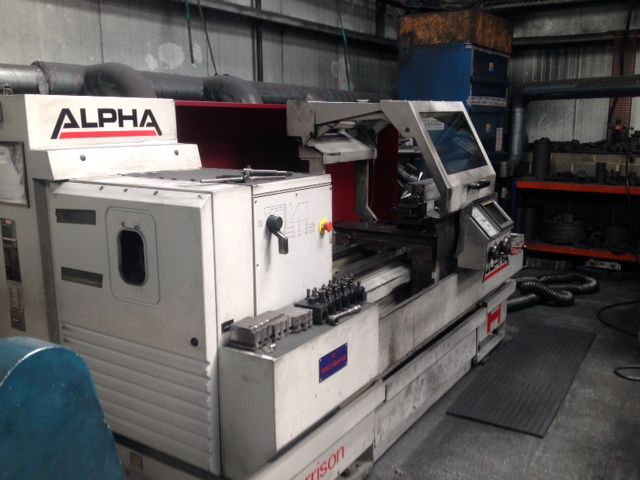

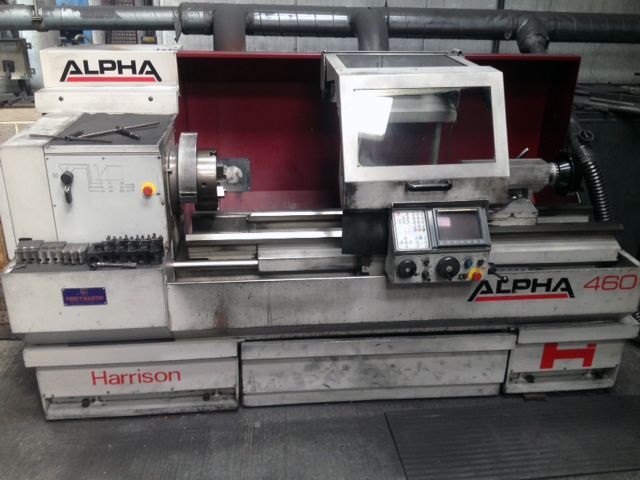

Harrison Alpha 460 CNC ‘Teach Lathe' (1997)
230mm Centre Height
460mm swing over bed
270mm swing over cross slide
1500mm between centres
20 - 2000rpm spindle speeds (3 ranges)
76mm spindle bore
Quick change toolpost & holders
26kW spindle motor

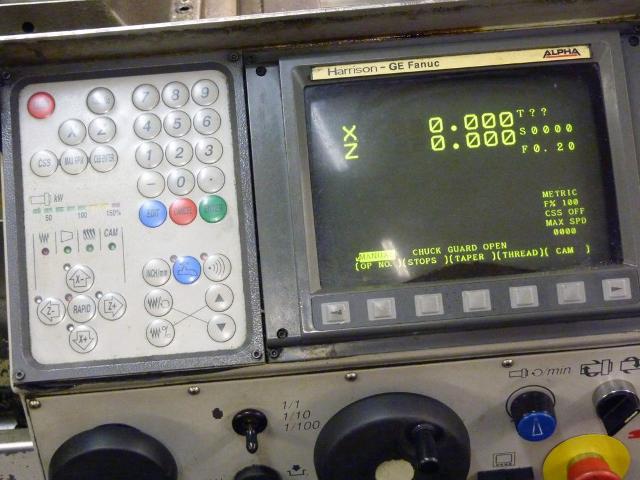

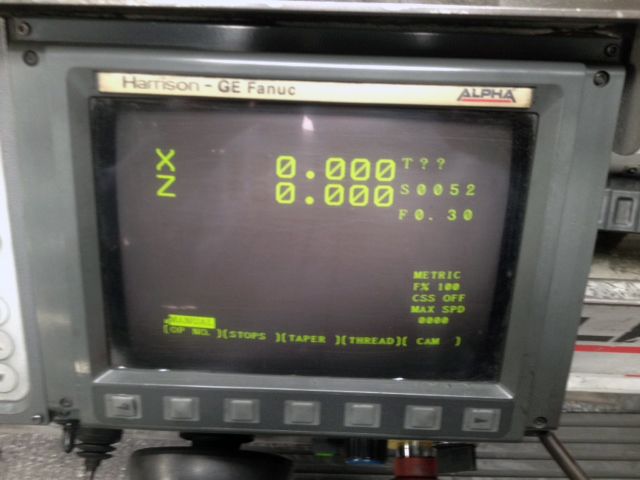

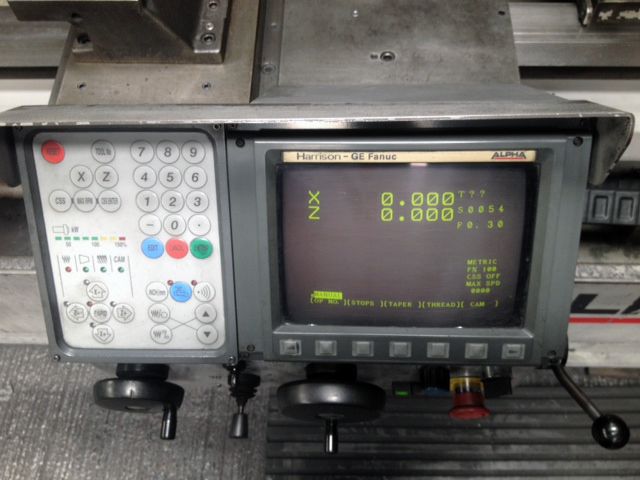

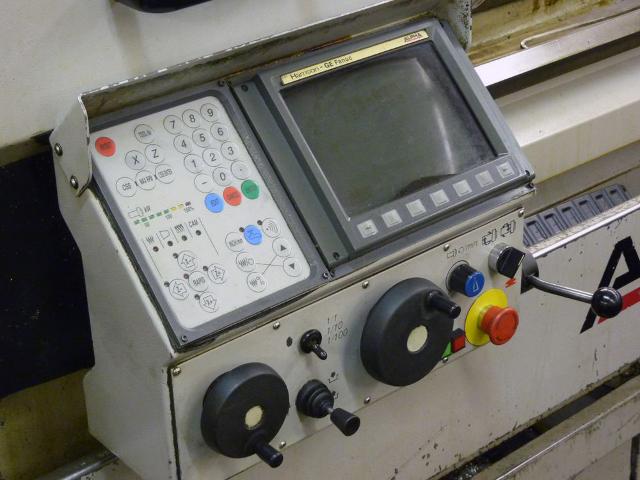

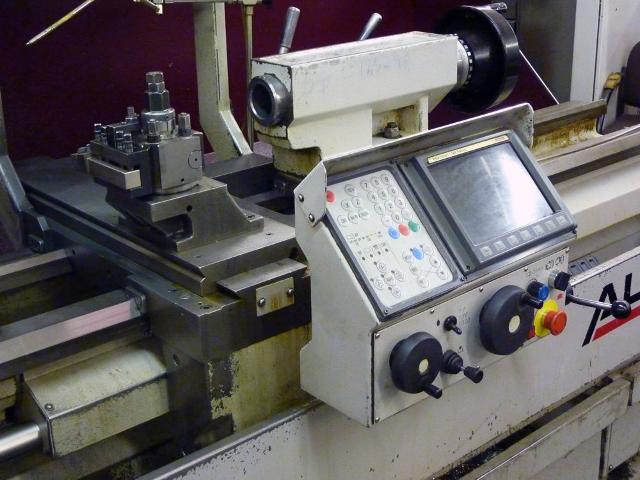

FANUC Control
99 Tool Presets

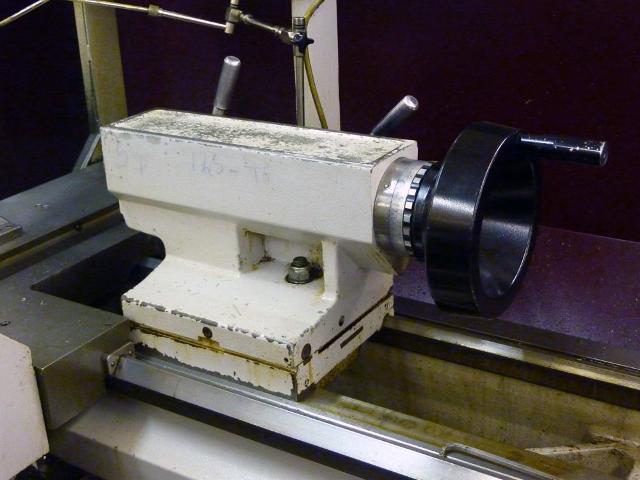

tailstock
3 Jaw chuck

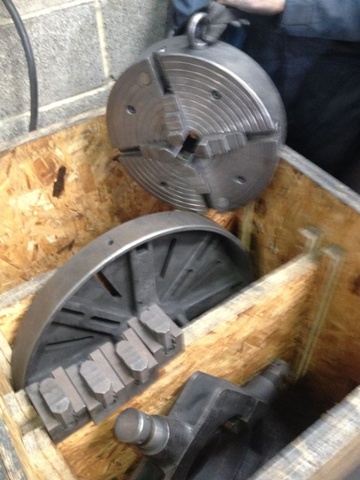

400mm independent 4 jaw chuck
700 mm face plate with 4 adjustable jaws

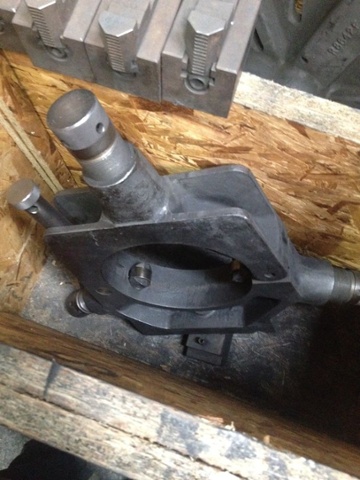

Three point steady

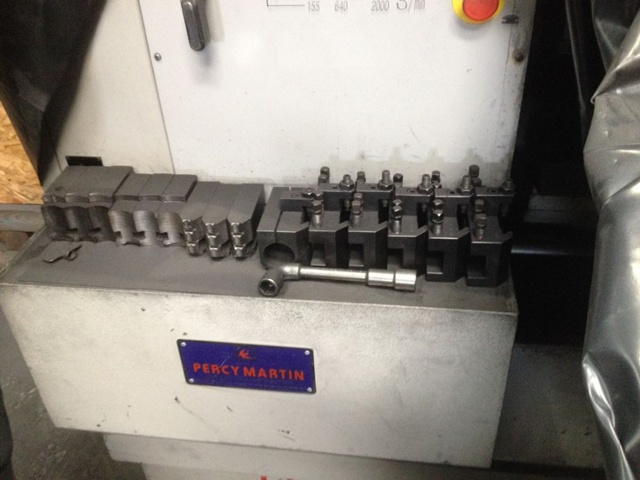

6 Quick change tool holders and a boring bar holder ( one on the machine – the other 5 and boring bar holder see photo)
interlocked guards
coolant

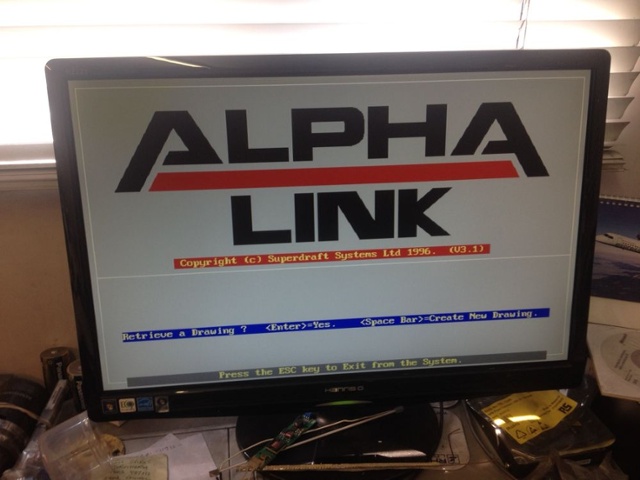

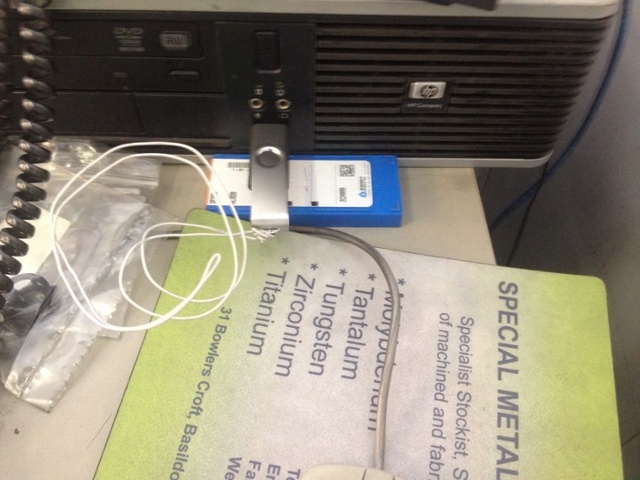

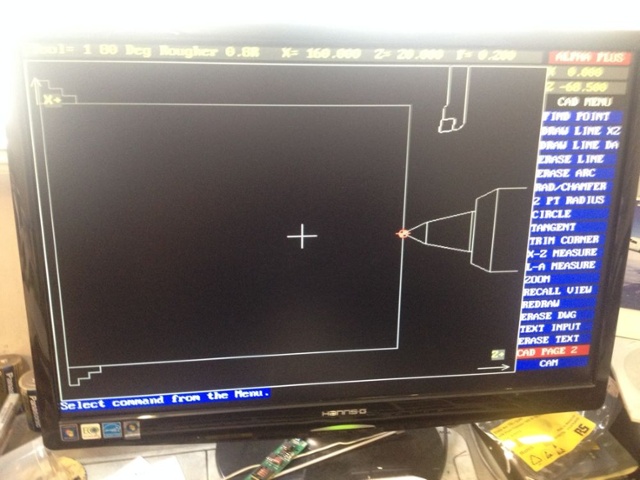

Alpha link software available on bootable USB memory stick with DOS 7.1
Original computer doesn't work, but included (Believe it to be power supply).

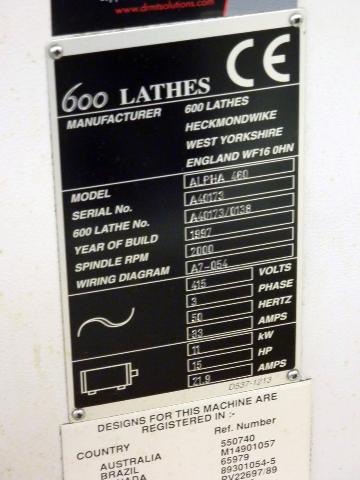

Year 1997
Location: York, Yorkshire
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
