Lot 7 - Hauser 3SM Jig Grinder
Description:

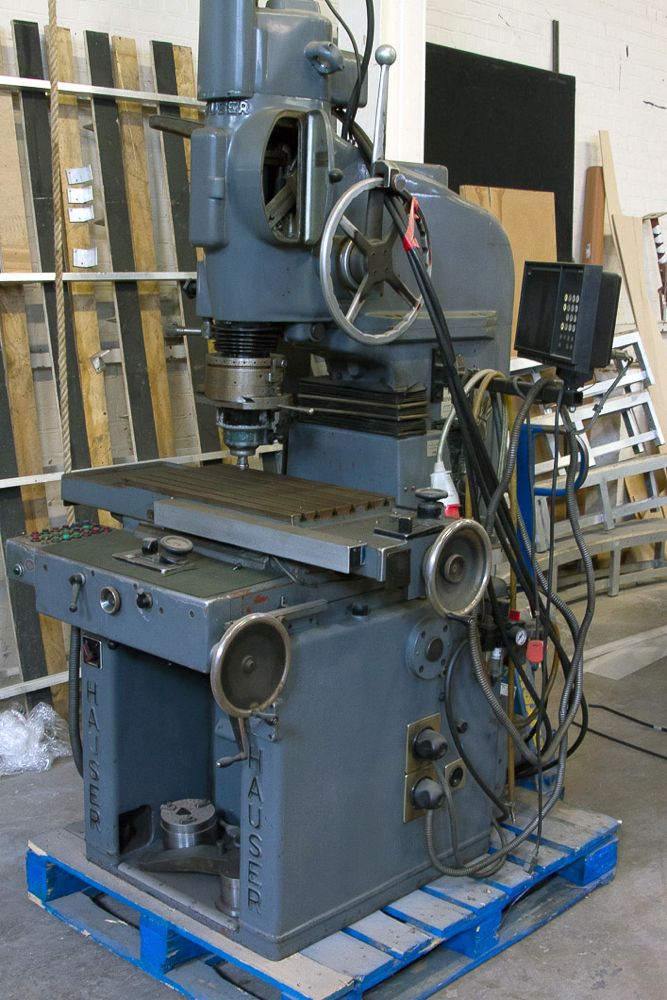

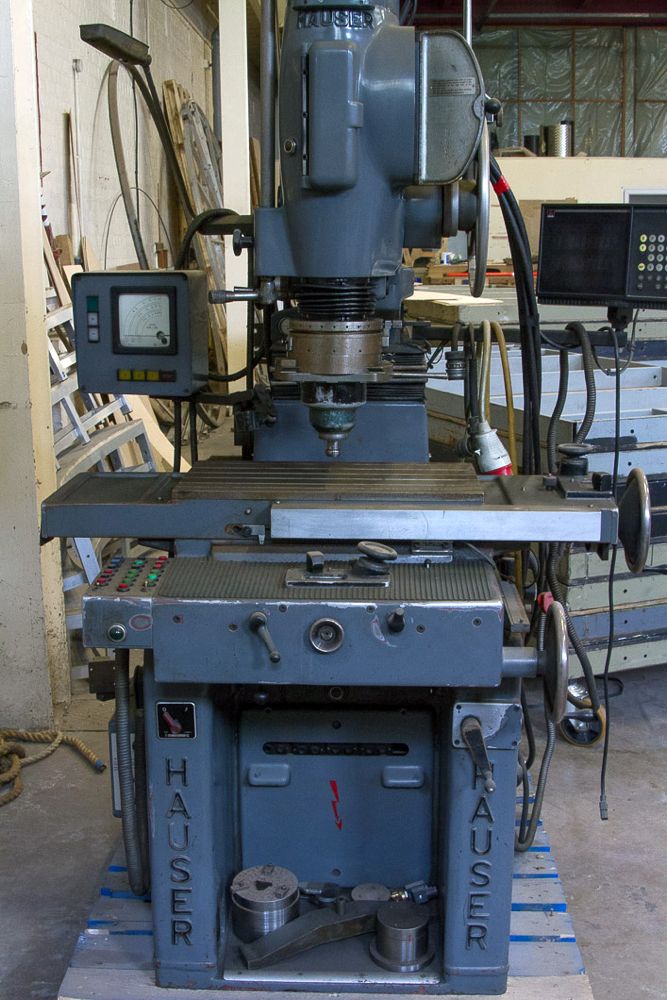

Hauser 3SM Jig Grinder
Year 1963
(ser no. 63)
Capacity
Range of traverse x and y....................................400 x 250 mm (16 x 10 ins)
Stroke of vertical slide.........................................400mm (16ins)
Distance between spindle and column................310mm (12 ¼ ins)
Diameter ground without ext. plate....................200mm (8 ins)
Diameter ground with ext. Plate..........................300mm (12 ins)
Taper grinding, max, included angle
(in either direction).............................................12 deg.
Table
Working surface...................................................550 x 320mm (21 5/8 x 12 5/8 ins)
Permissible load max..........................................200Kg (440 lb)
Grinding Head
Vertical stroke, stepless-variable.........................110 mm (4 3/8 ins)
Speed of planetary motion, stepless-variable ......330rpm. Max
Spindle speed with electric motors x 2 .................9,000-80,000 rpm
With grinding turbines...........................................225,000 rpm max
Positioning accuracy

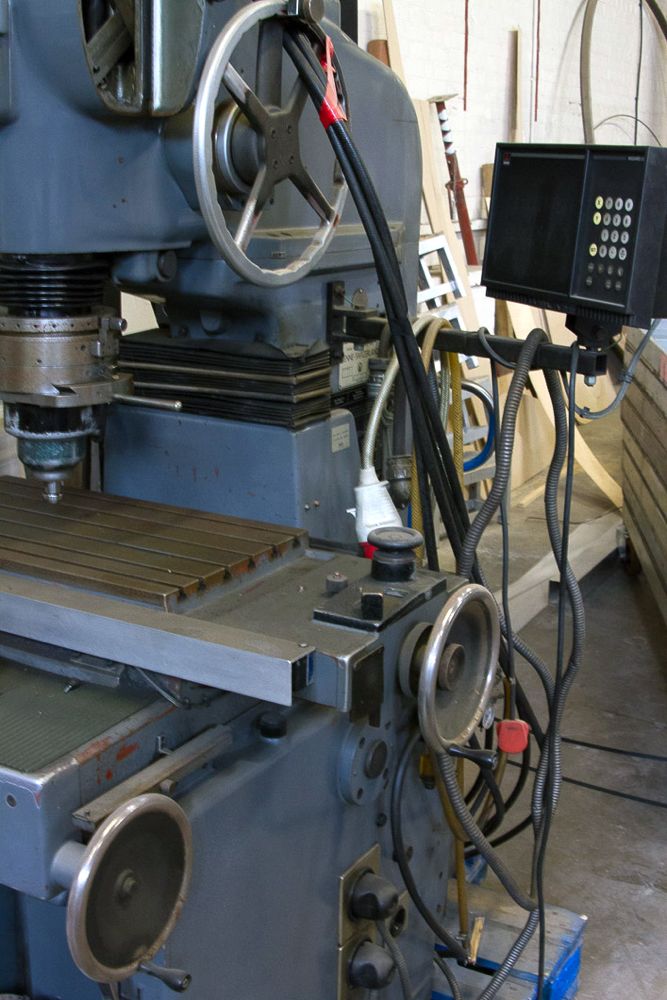

Fitted with 1 micron digital on x and y table movement.
Supplies with Hauser tool cupboard with clamping equipment, various spindles,
motors and various used grinding wheels. The machine is 1963 model, well

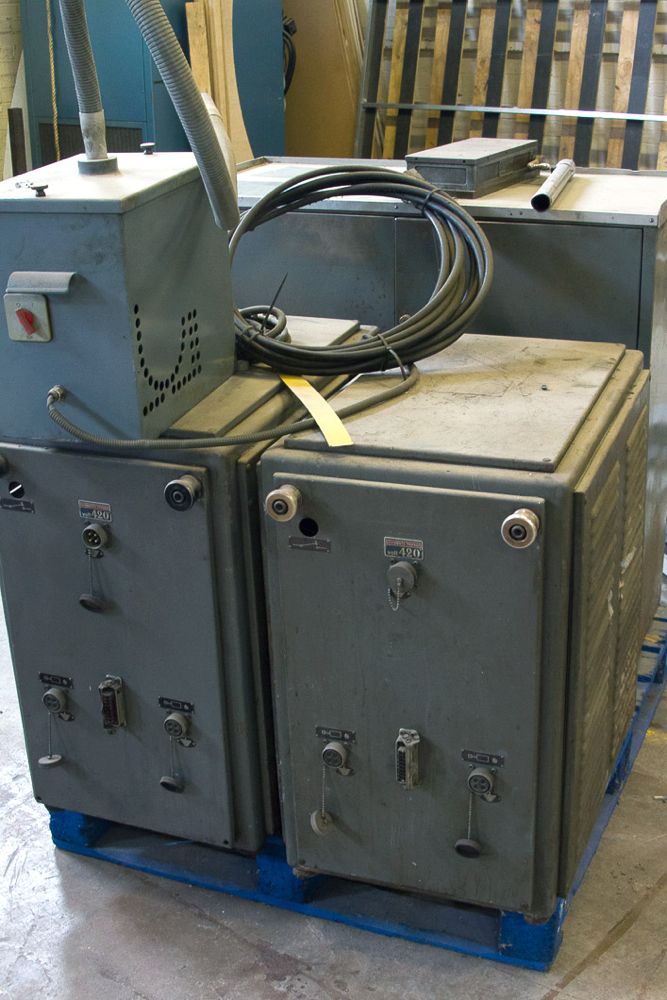

looked after and comes with hydraulic tank, mechanical inverter and dust
extractor unit. There is also a spare mechanical inverter and dust extractor
included. The machine is available due to retirement
Packing size 1.4m (w) x 1.4m (d) x 2.4m (h)
Approx weight – 1200kg
Location: Coventry
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
