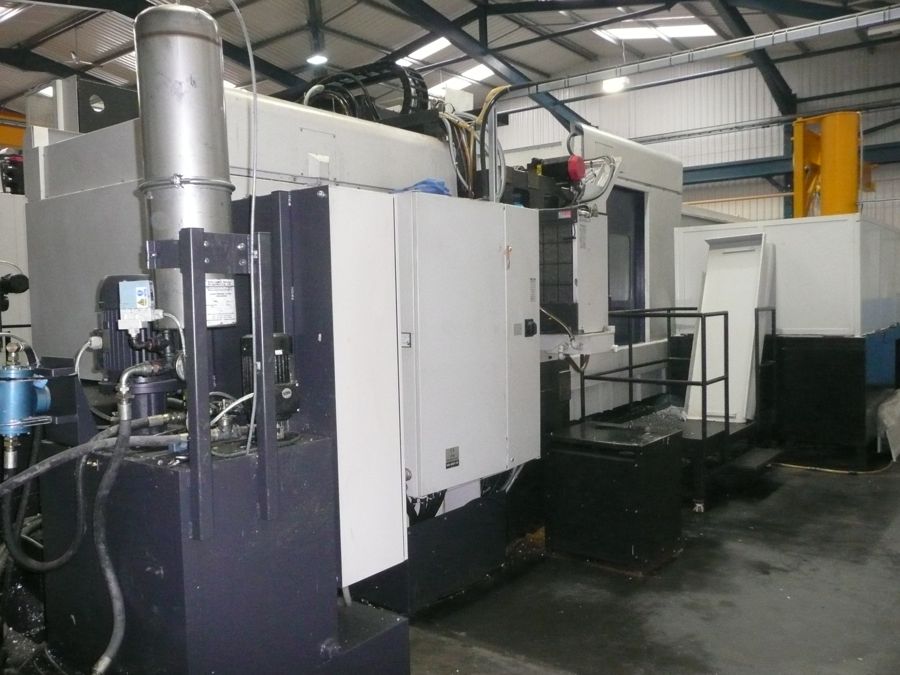

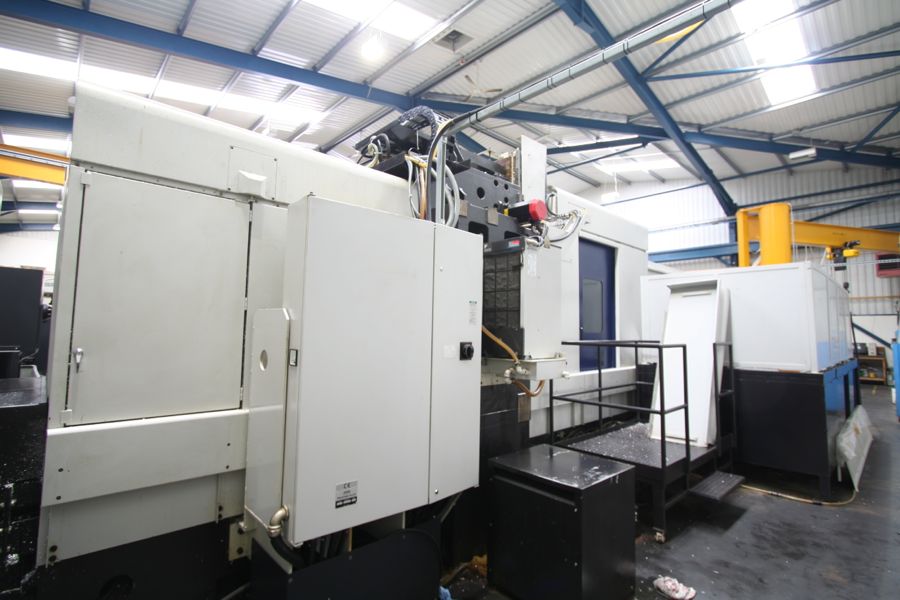

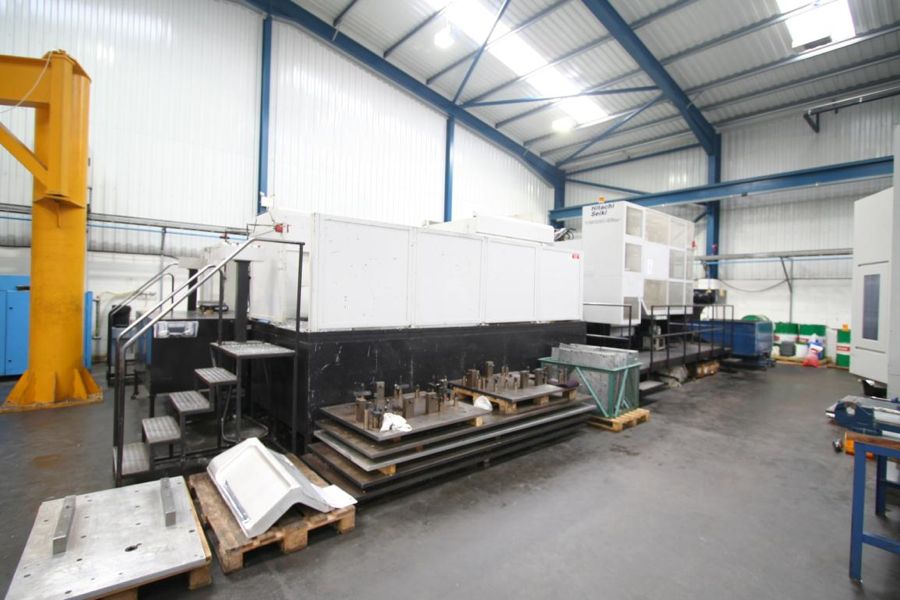

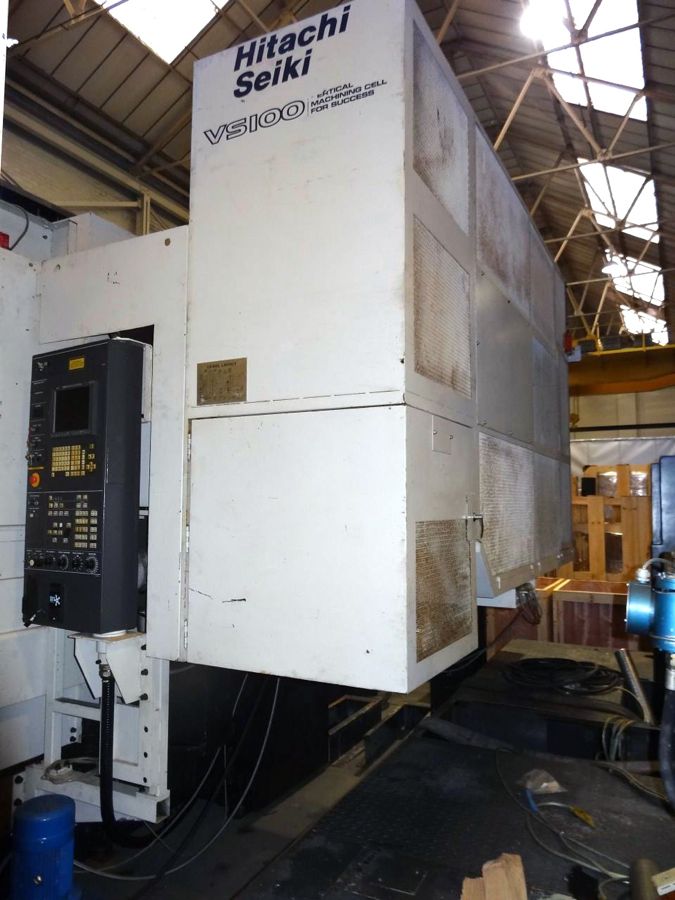

HITACHI SEIKI VS-100 High Precision Double Column Twin Pallet VMC (2001)

Lot 1 - HITACHI SEIKI VS-100 High Precision Double Column Twin Pallet VMC (2001)

Description:

90-station arm type auto toolchanger,

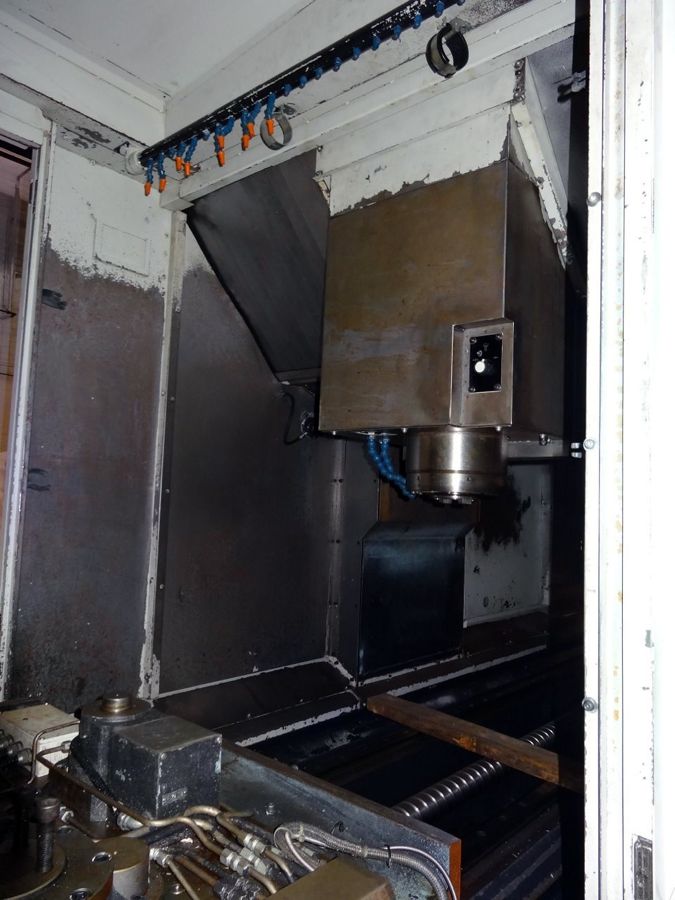

Direct drive spindle a

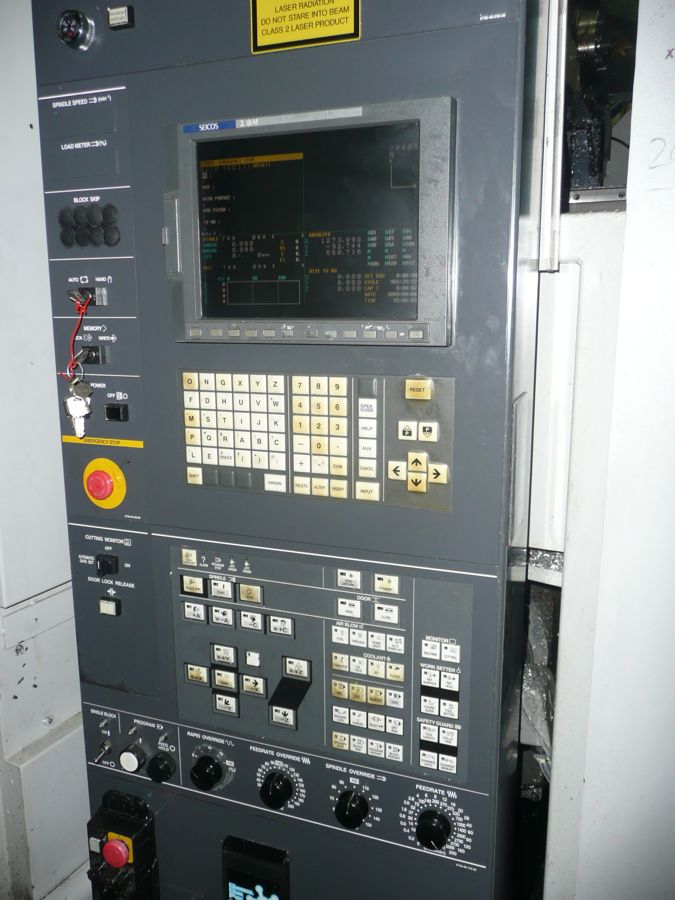

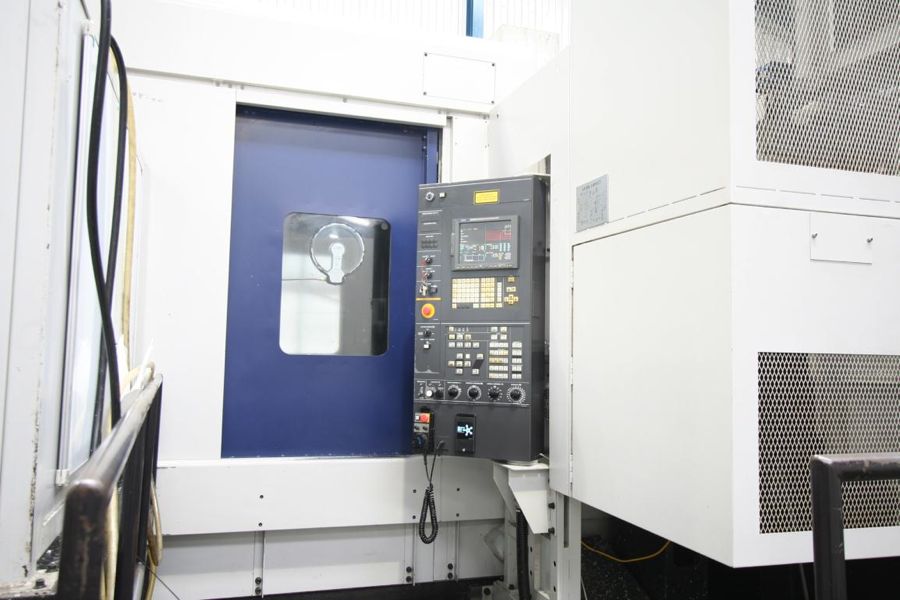

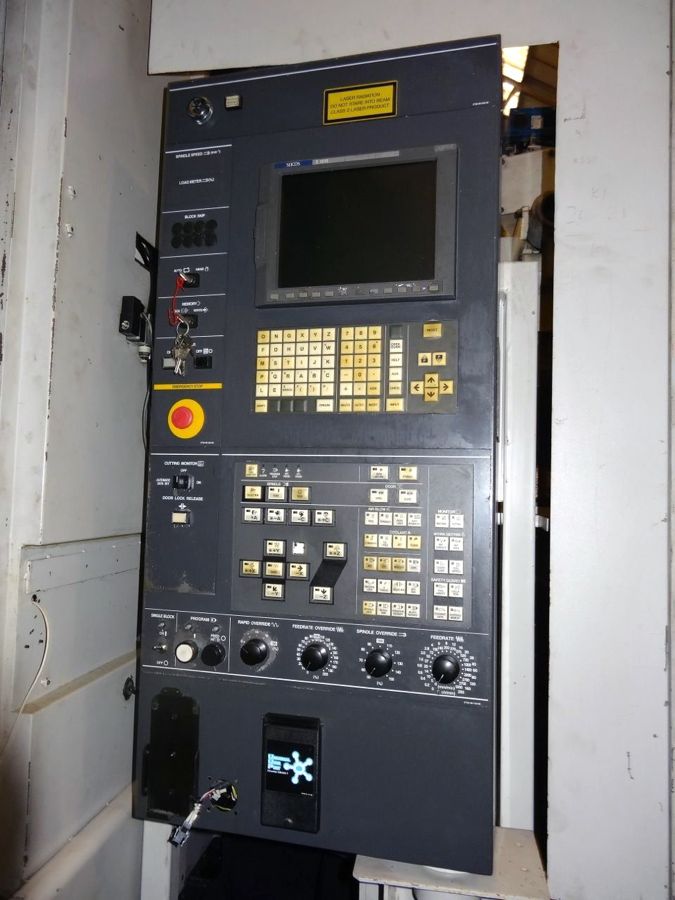

Seicos16m (fanuc16im) control system.

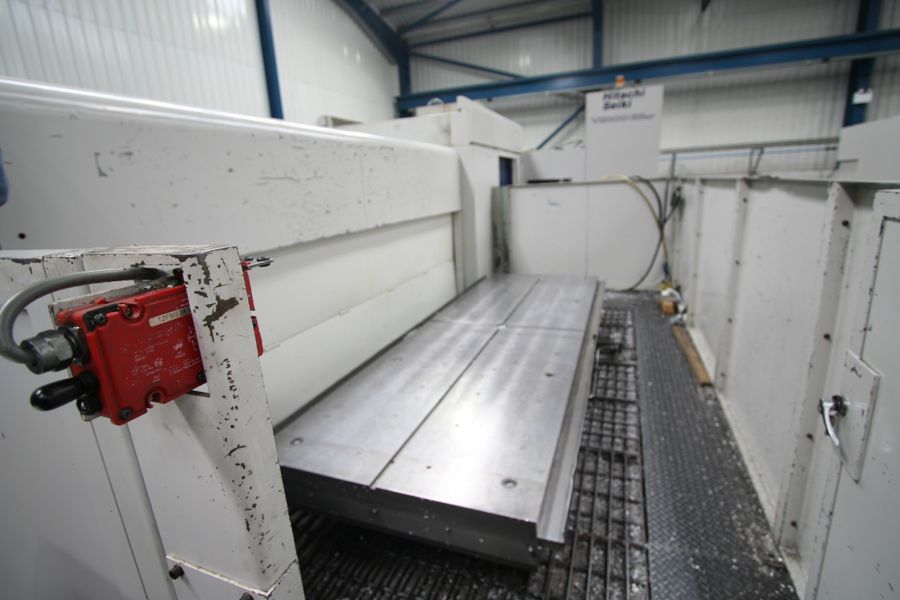

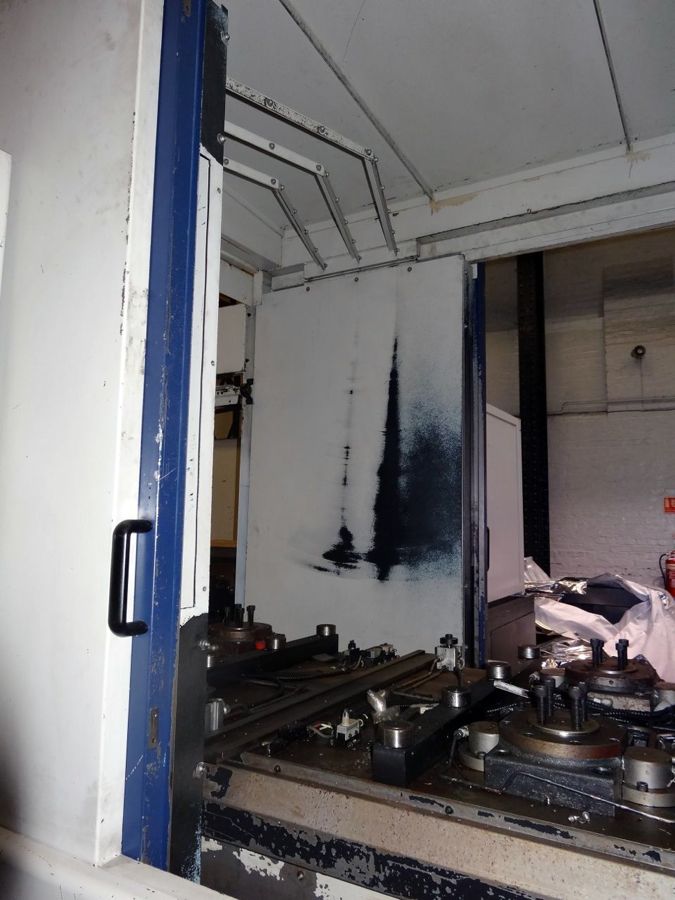

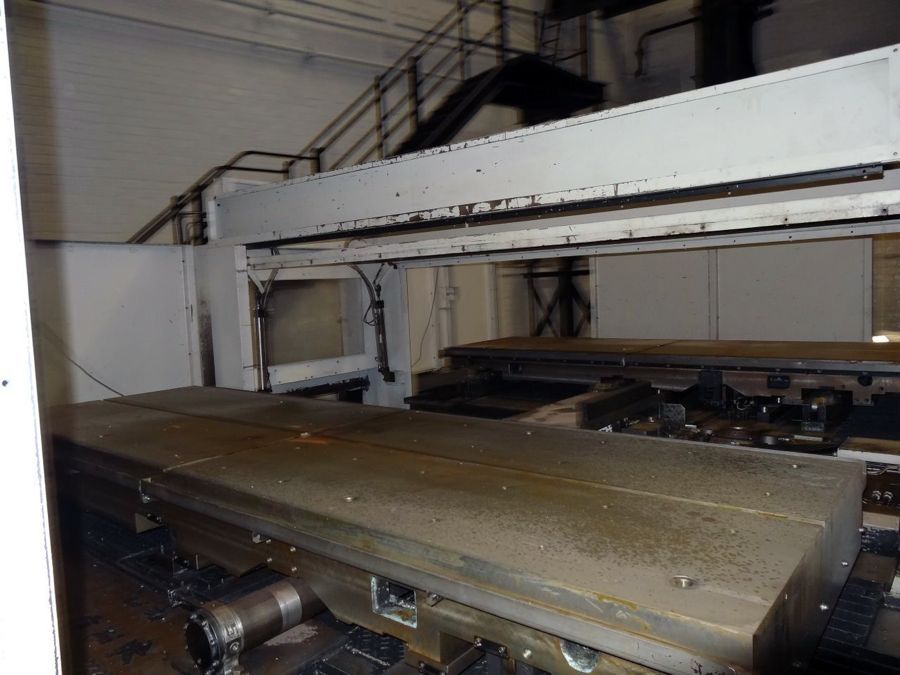

Pallet size 3,000 x 950 mm
X axis travel 3,150 mm
Y axis travel 1,000 mm
Z axis travel 450 mm
Table to spindle nose 150 - 600 mm
Max spindle speed (dds spindle) 0-12,000 rpm
Spindle taper iso 50 din 69871
Toolchanger capacity 90 stations
Spindle drive motor 26 kw
Rapid traverse rates x,30 y40 & z : 24 m/min
Electrics 415v, 3ph, 50hz

Equipped with

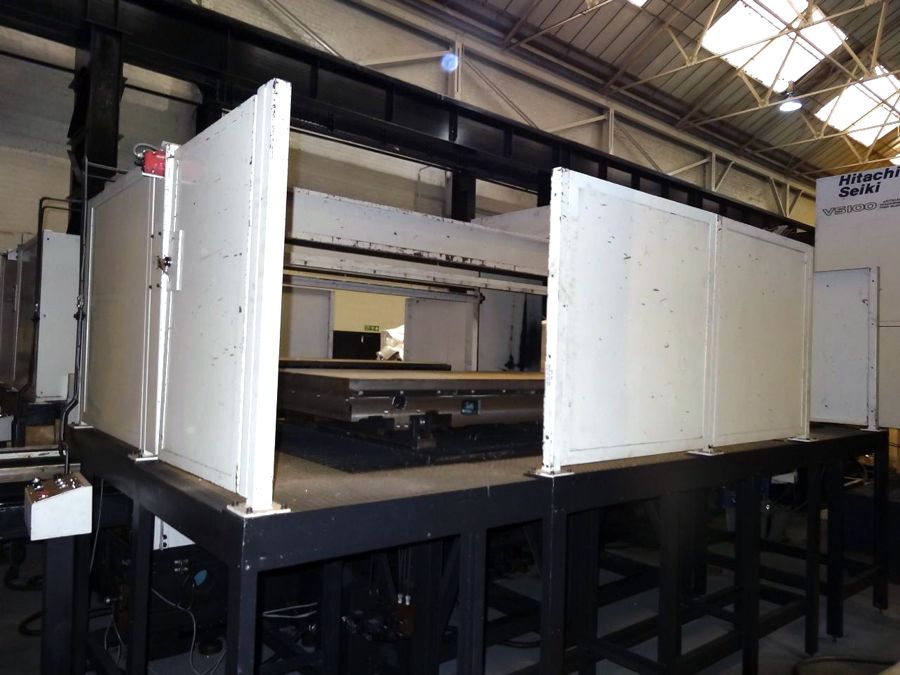

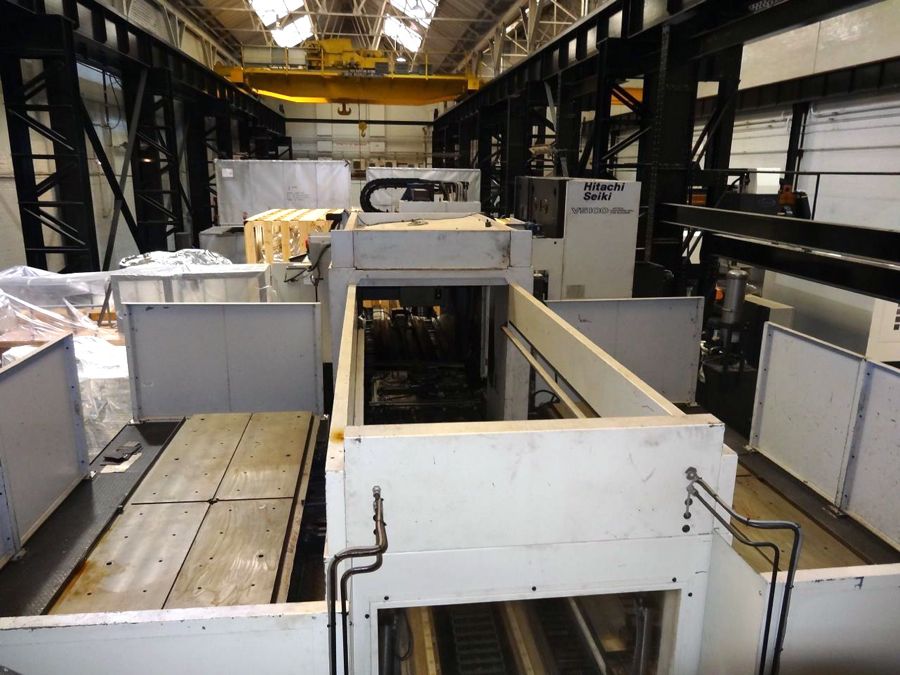

Swarf conveyor, through spindle coolant, shuttle pallet change system

Length 10,500 mm
Width 6,500 mm
Height 3,500 mm
Weight tbc

Location: Sheffield
Loading is free to Flatbed Transport

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
