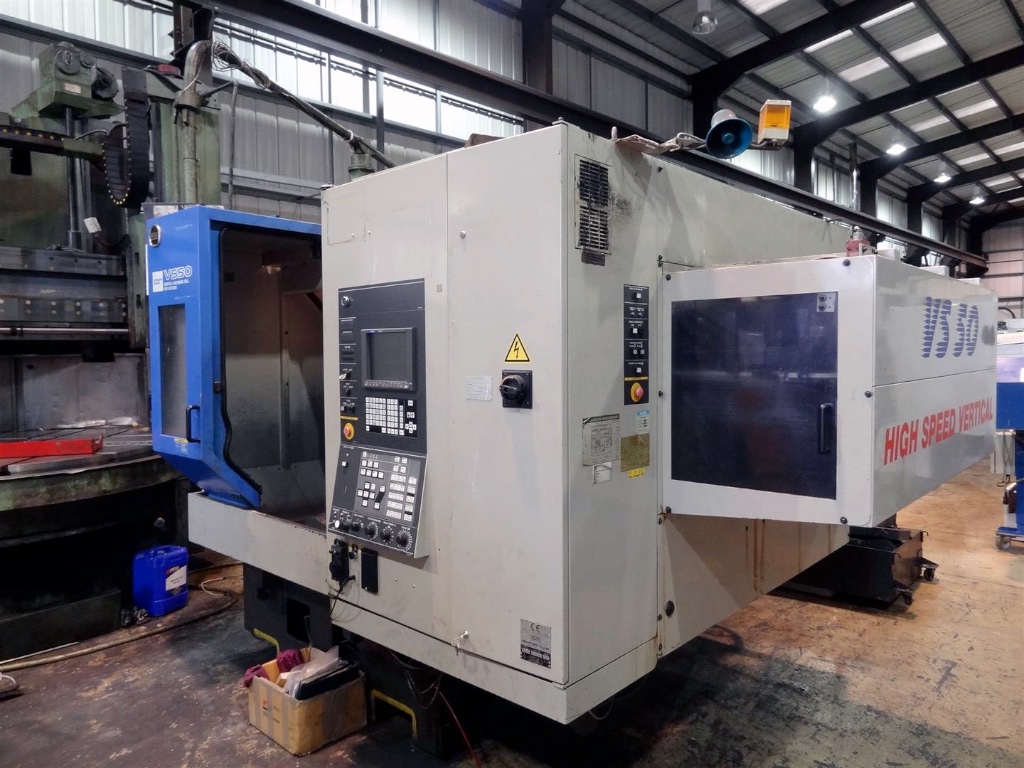

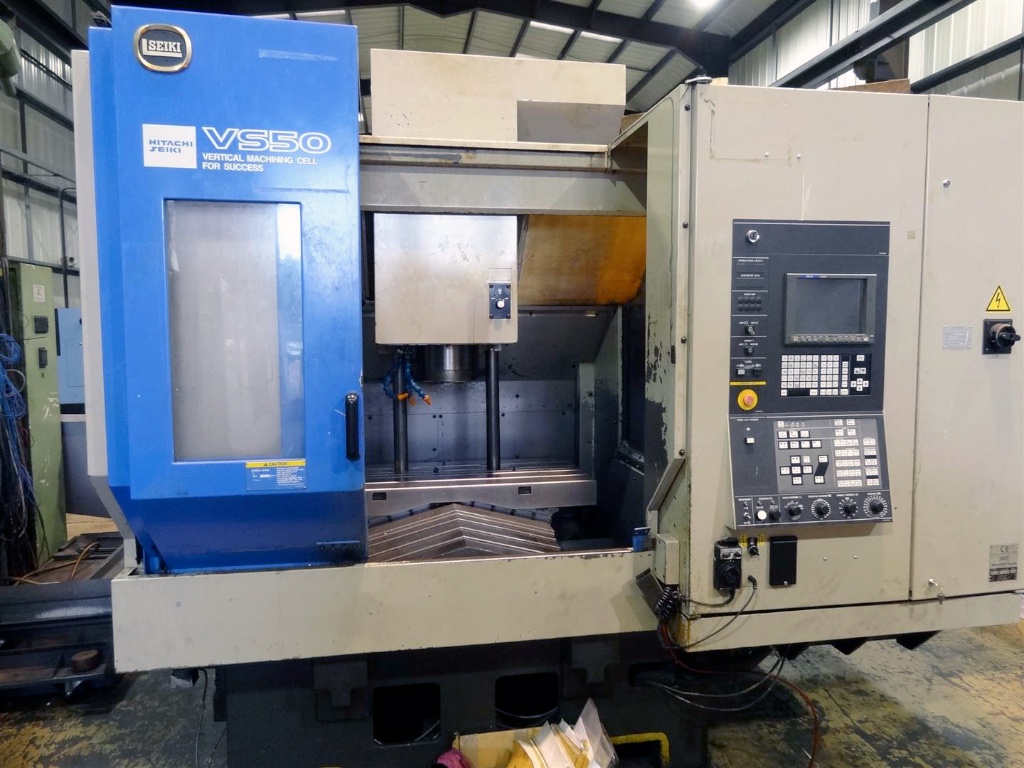

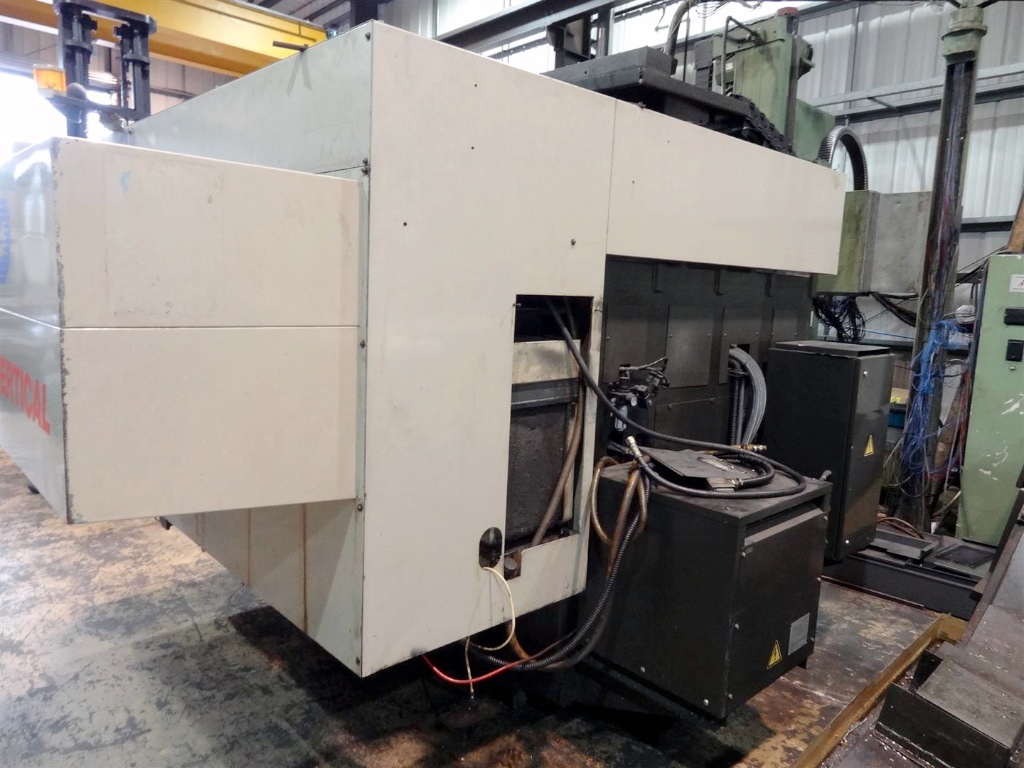

Lot 1 - Hitachi Seiki VS 50 Vertical Machining Centre
Description:

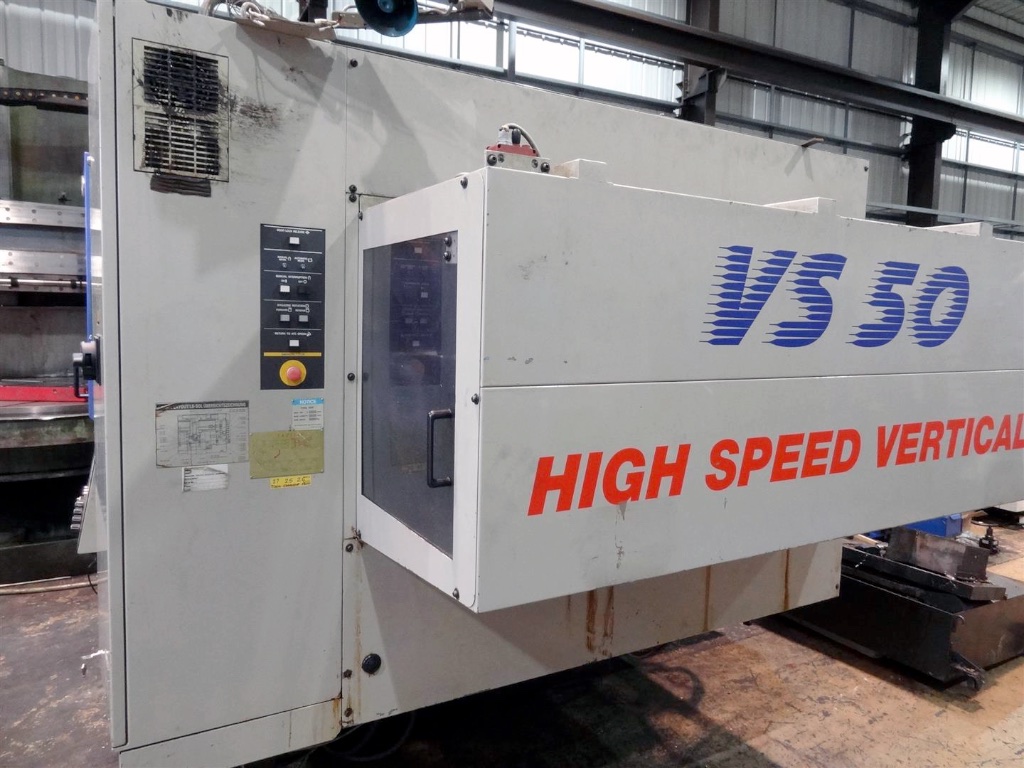

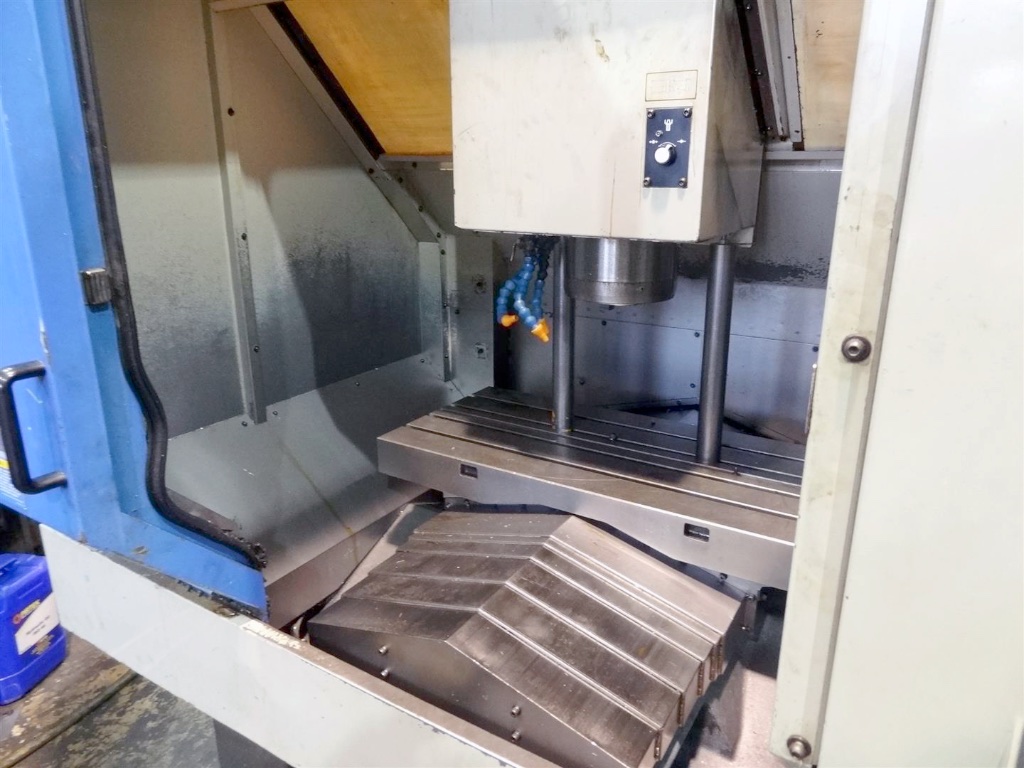

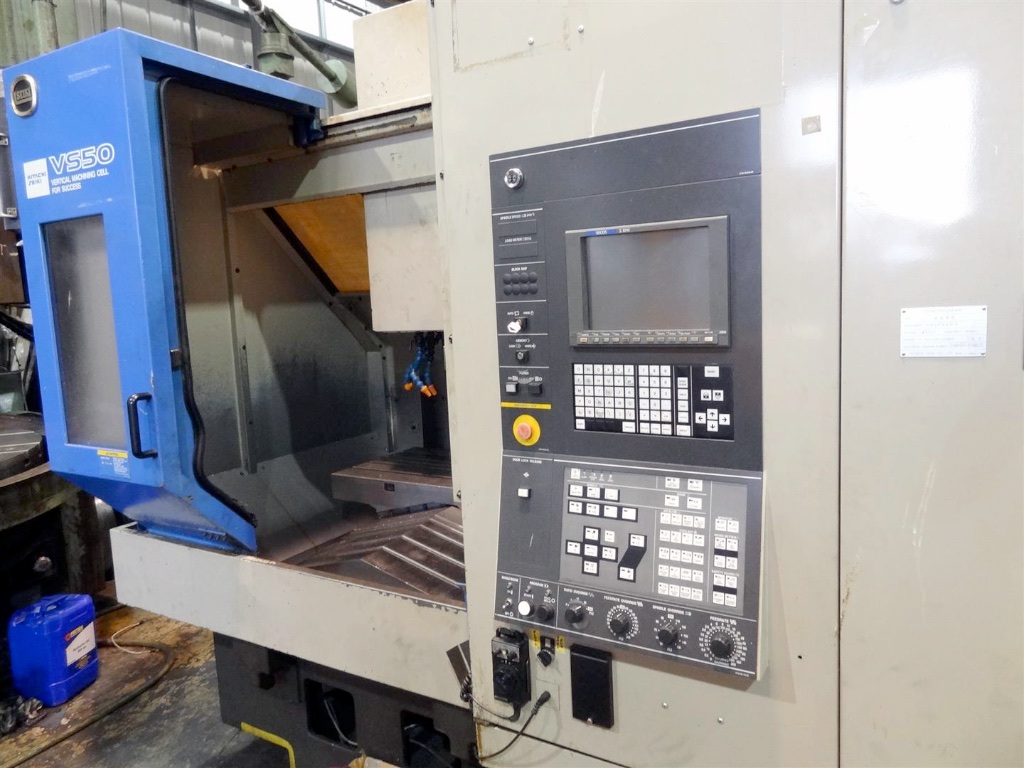

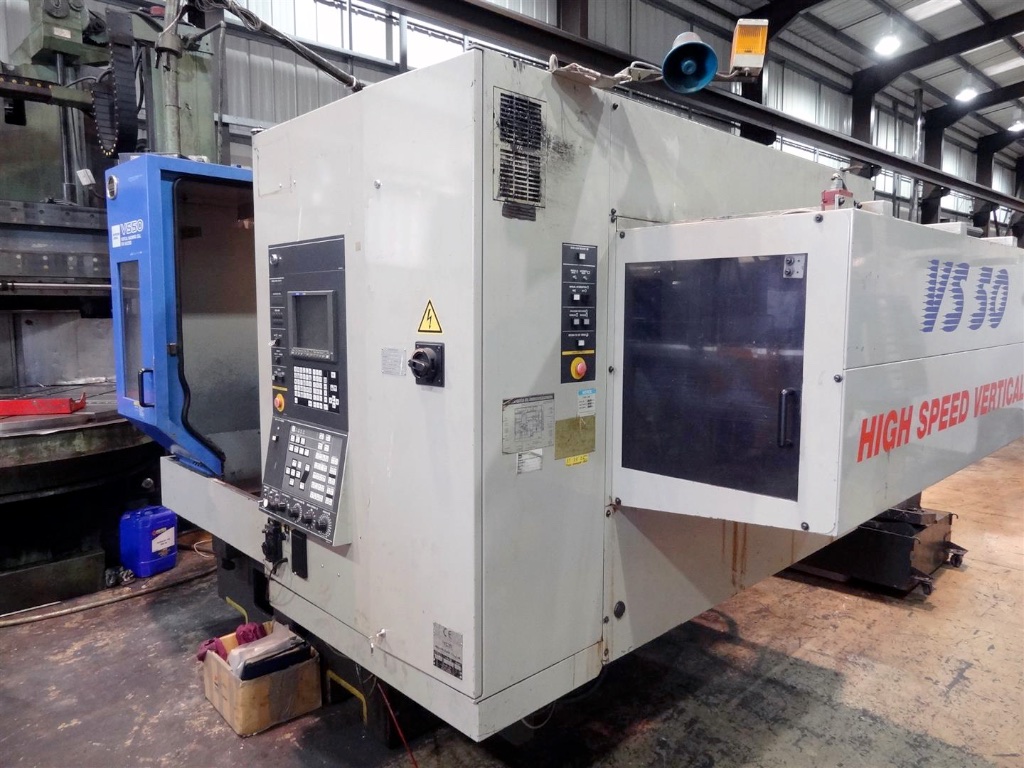

Hitachi Seiki VS 50 Vertical Machining Centre
Year: 1998

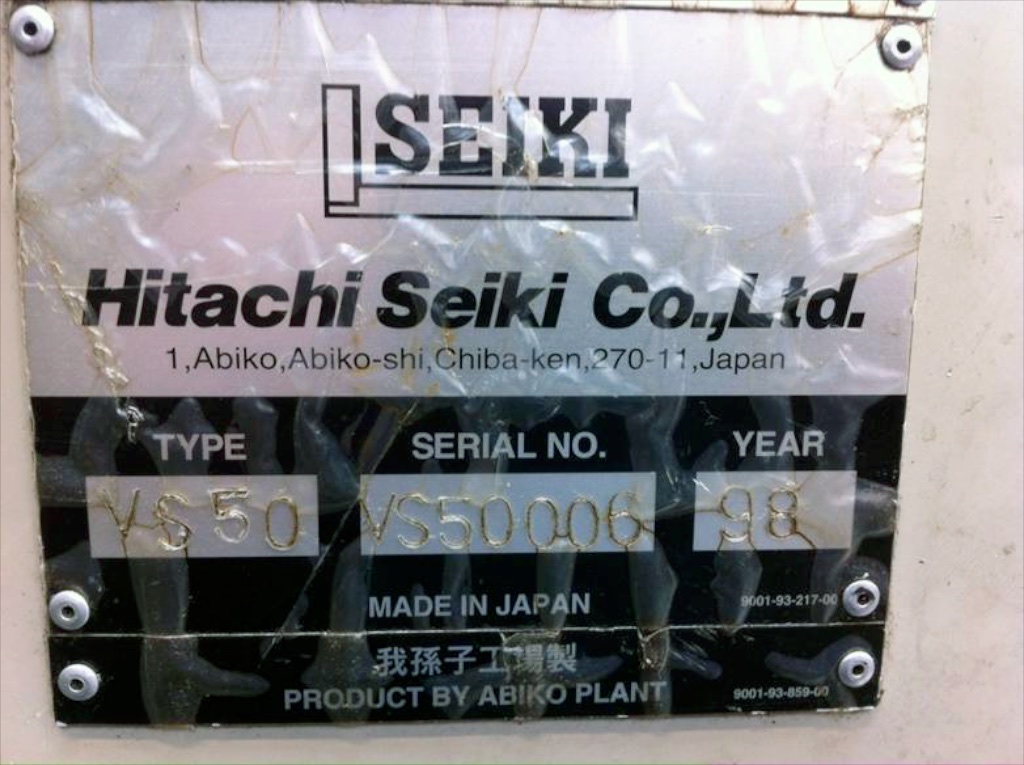

Sn. VS50006
Stroke:
X Axis: 1000mm, Y Axis: 510mm, Z Axis: 450mm
Distance from the table surface to spindle nose: 150~600mm
Distance from the column front to the spindle centre line: 640mm

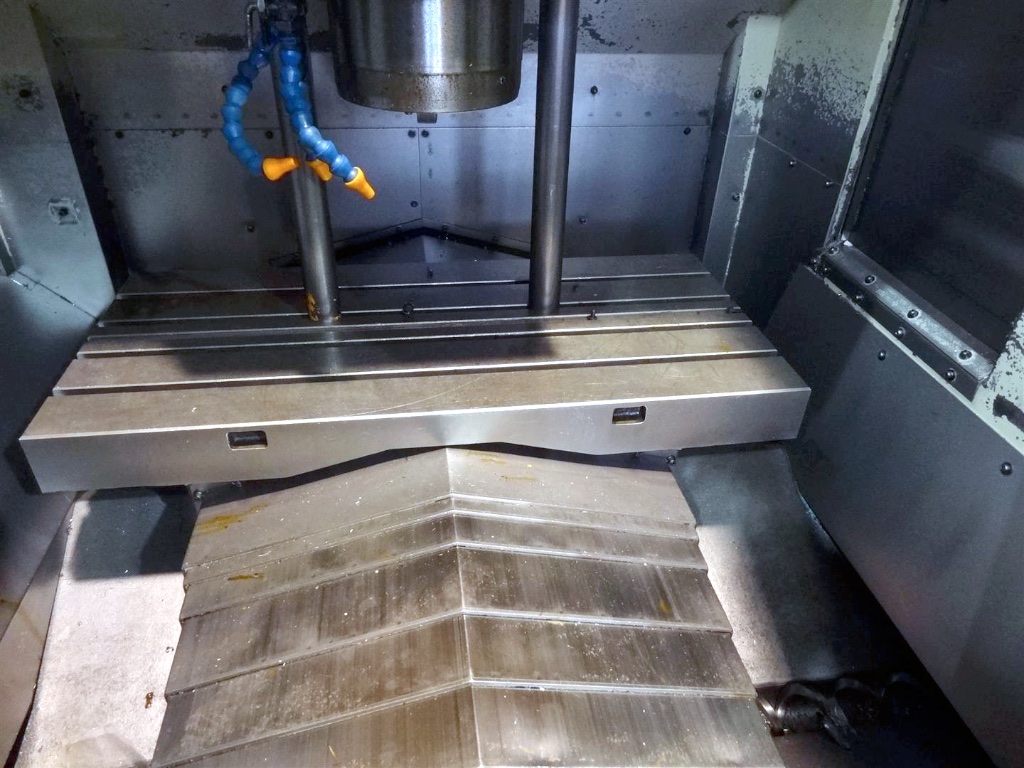

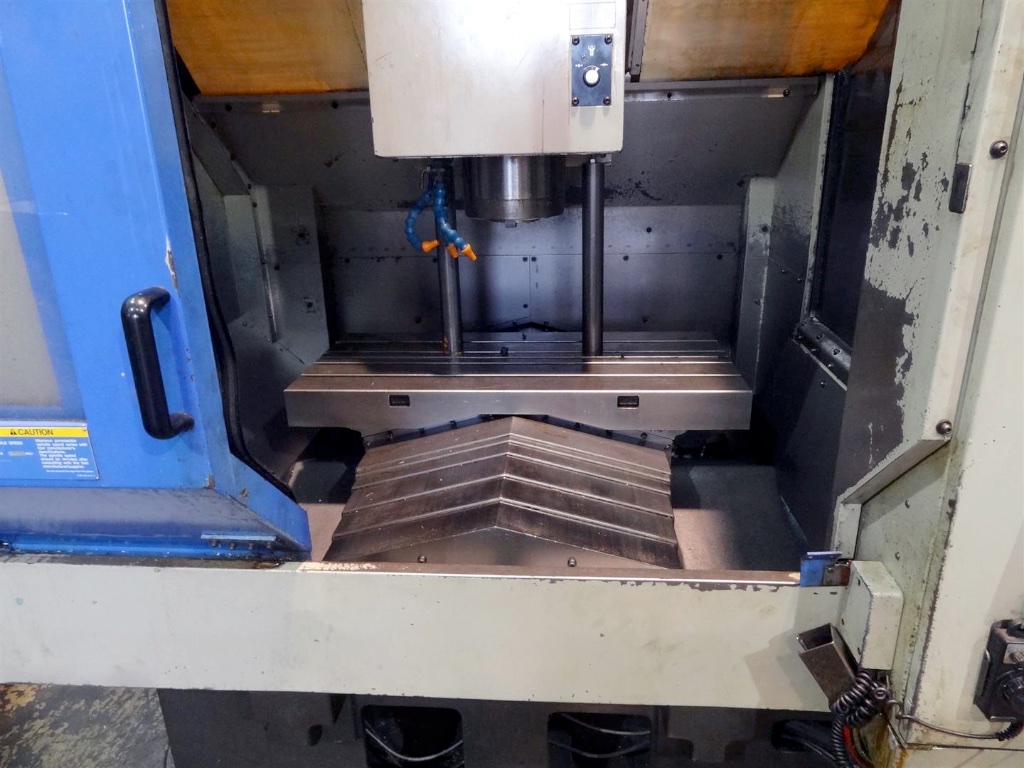

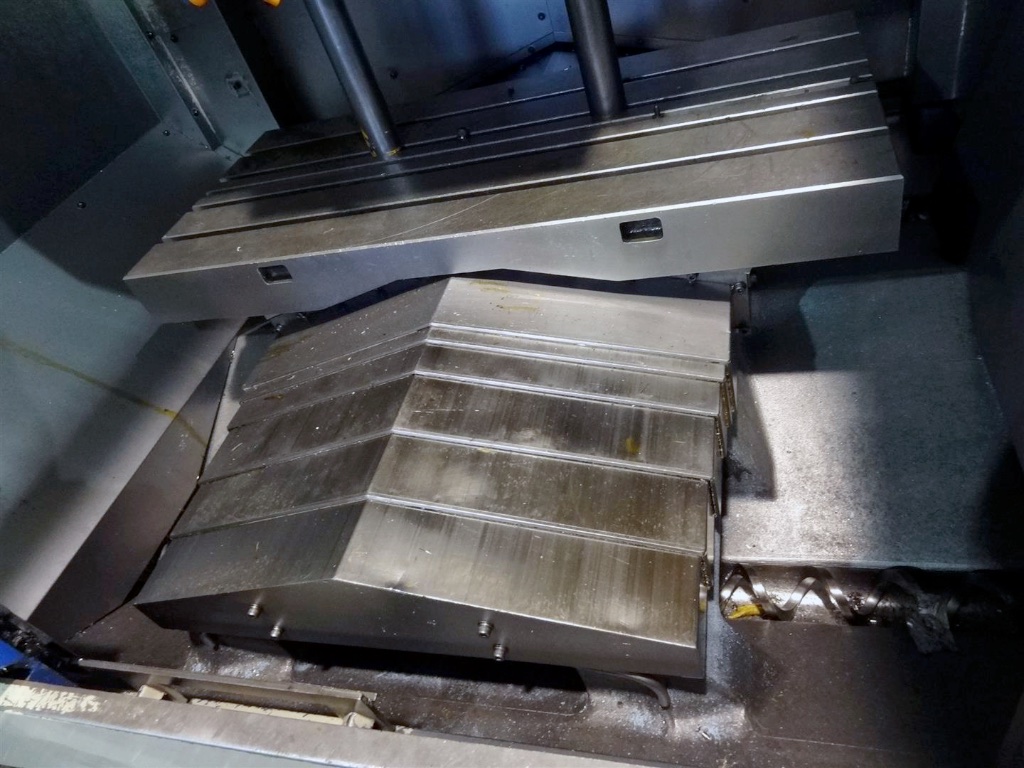

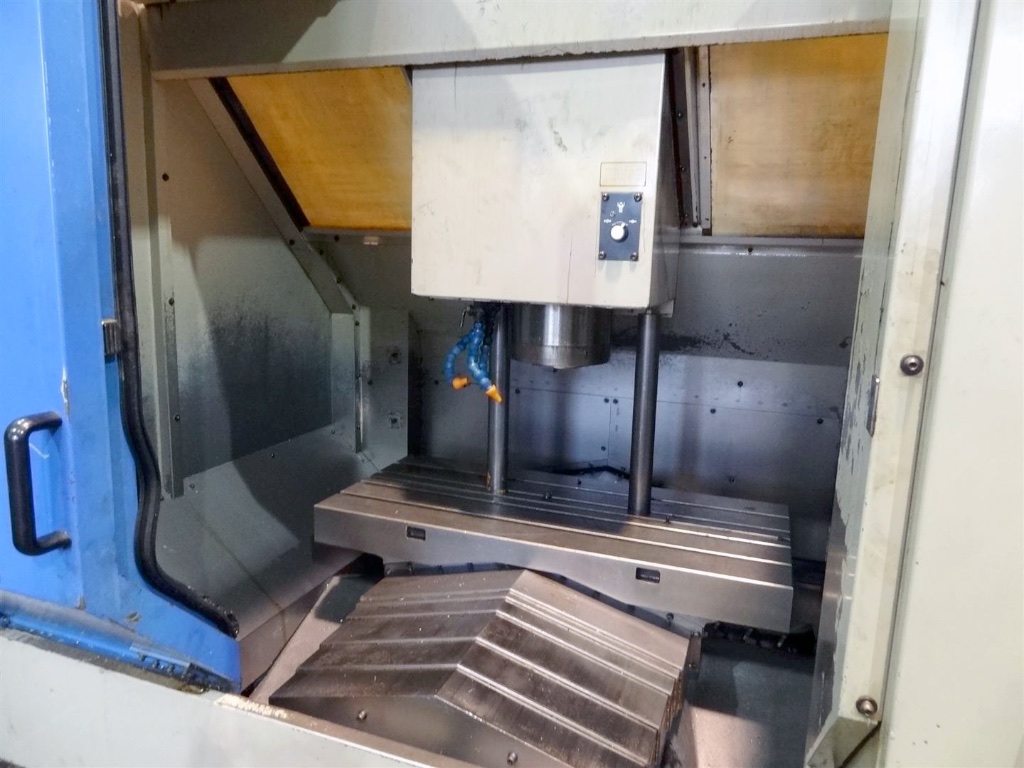

Table:
Table working surface: 1120 x 510mm
Max tabel loading capacity: 750kg
Shape of table surface: 18mm T-slot 4 lines

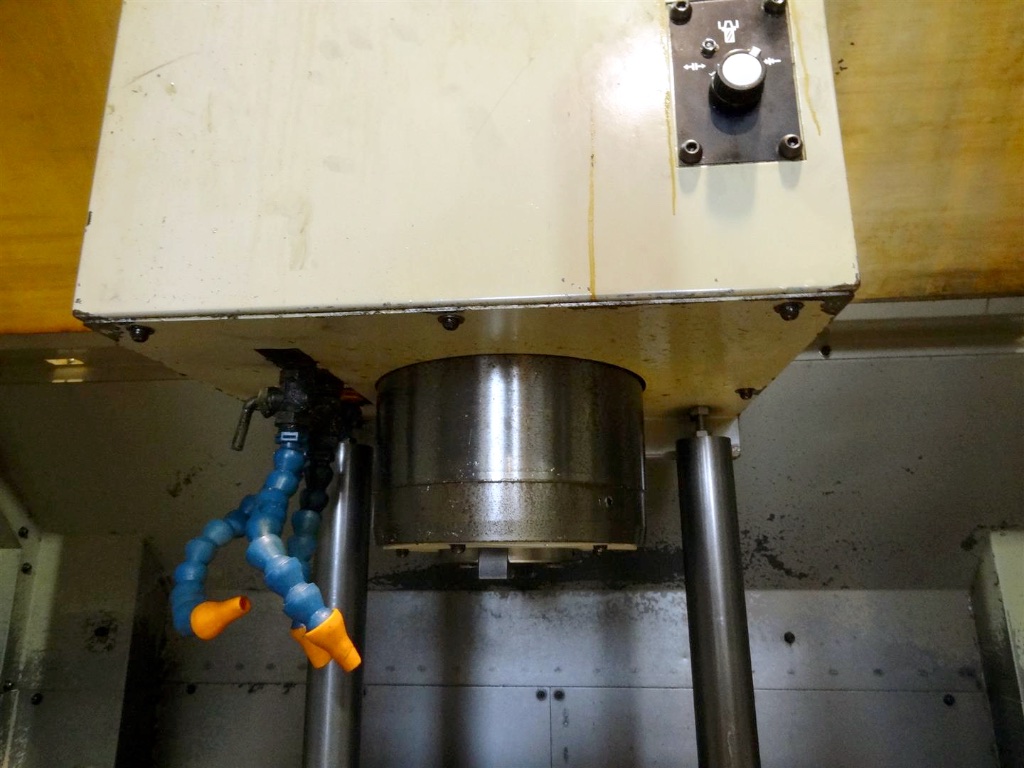

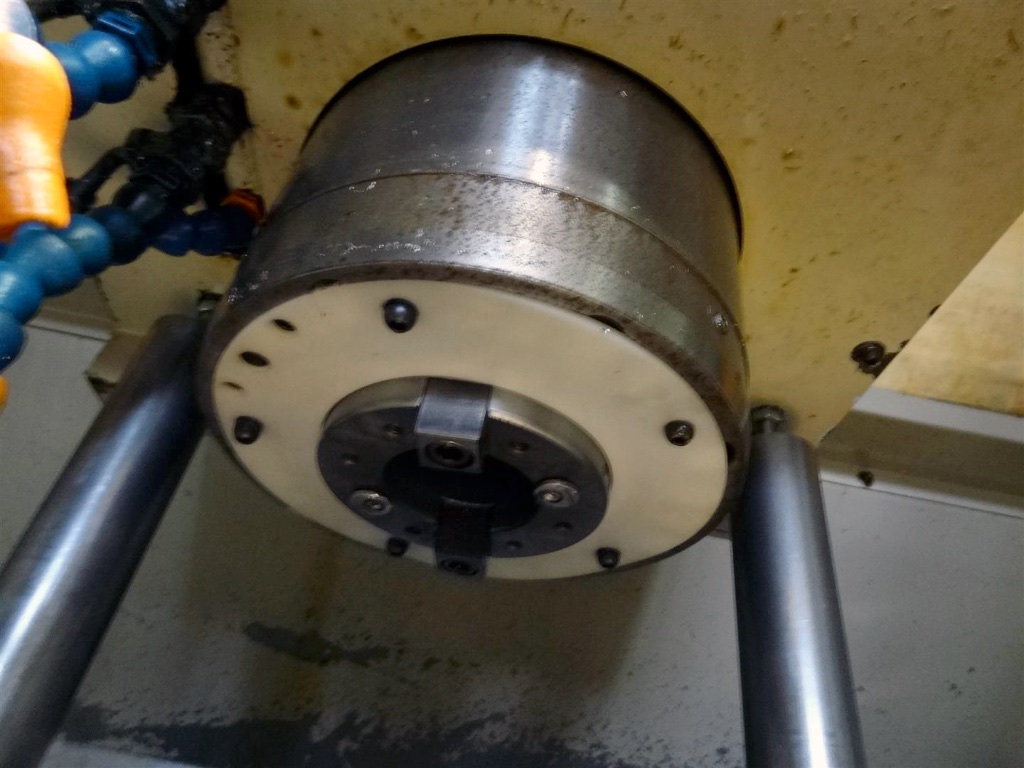

Spindle:
Spindle speed: 15-4500
Spindle speed change: Stepless
Spindle hole taper: 7/24 Taper No.50
Spindle bearing ID: 100mm
Max spindle torque: 298Nm
Feedrate:
Rapid traverse rate: X & Y: 40000, Z: 24000
Cutting feedrate: 1~15000mm/min
Jog Feeedrate: 0~5000 (21 Steps)
Tool Shank: MAS 403-BT50 / Din 50/CAT 50
Pull Stud: MAS P50-0˚
Pull Stud: MAS P50-45˚ (45 degrees)
Tool storage cap: 30
Max tool dia: 110 deg, when no adjacent tool exists: 180 deg
Max tool length: 300mm
Max tool weight: 15kg
Machine Diemensions L x W x H: 2900 x 2400 x 2785mm
Weight: 8200kg

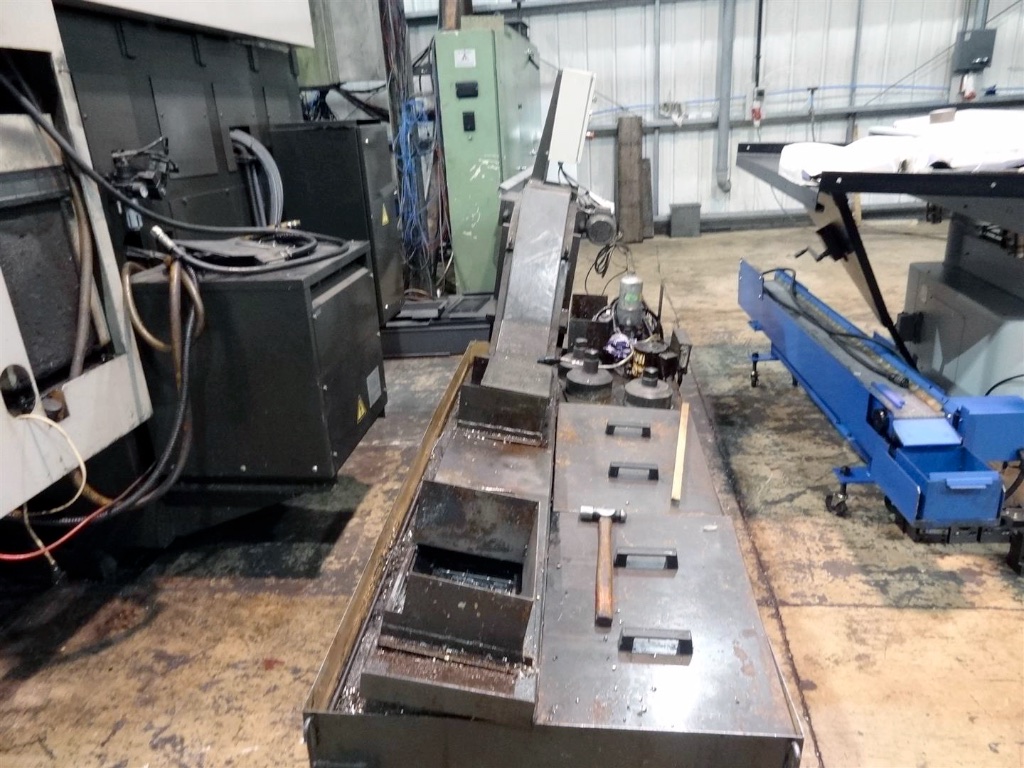

Swarf Conveyor
Manuals
Located Leicestershire - Loaded FOC
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
