Lot 5 - Hurco Pegagsus VSX320 3 Axis Vertical Machining Centre
Description:

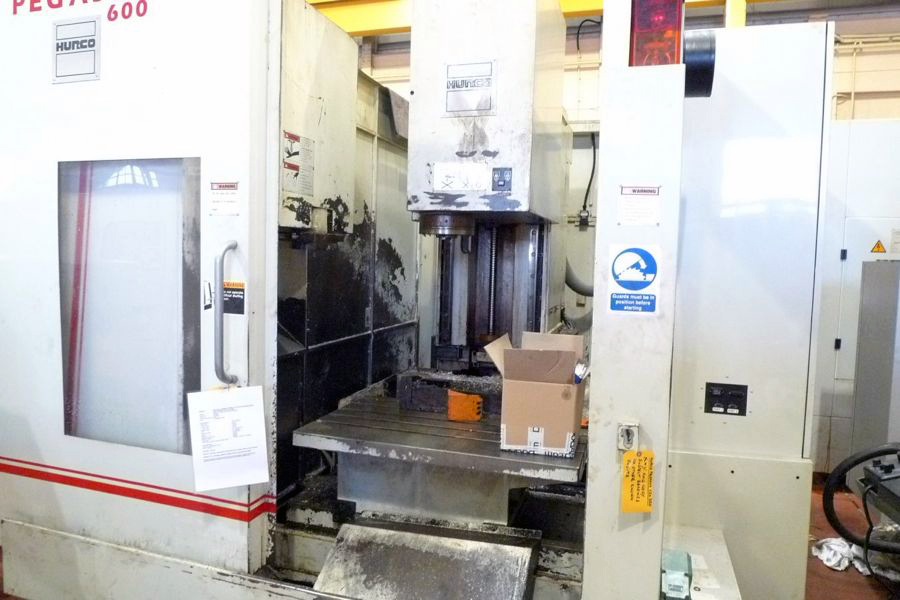

Hurco Pegagsus VSX320 3 Axis Vertical Machining Centre

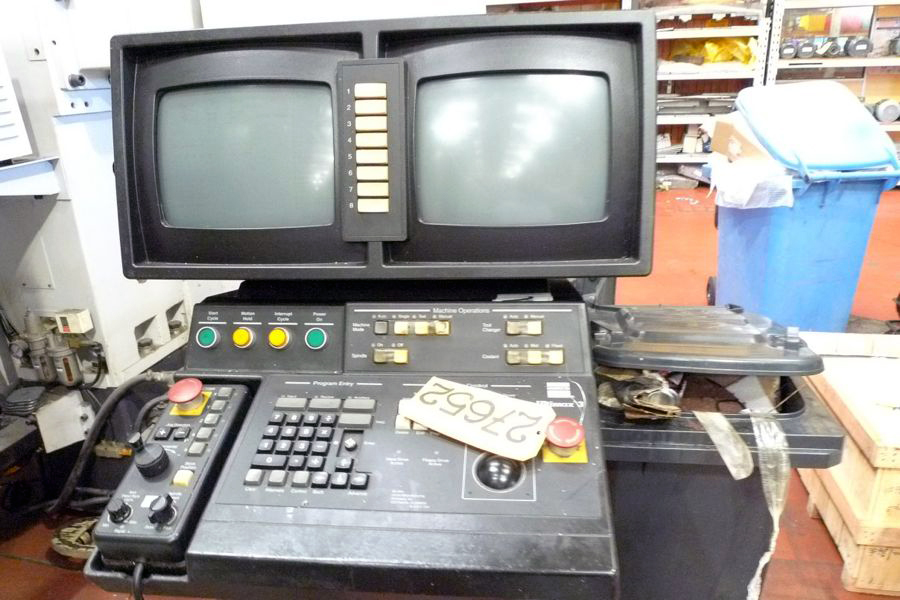

Control: Ultimax 3 Control with 3D Mold Package
Stock No.: U27652
Serial No.: 260 B052
Year of Manufacture: 1995
Specification:
Table Size 1000 x 620mm
X Axis Travel 612mm
Y Axis Travel 516mm
Z Axis Travel 516mm
Spindle Taper CAT40
ATC 30 Tool Twin Arm
Spindle Speeds 60 - 6000rpm
Feeds 3-7620m/min
Rapids X, Y & Z 20m/min
Maximum Table Load 2000kg
Machine Weight 6500kg
Dimensions 3700mm x 2700mm x 2400mm
4 Bar High Pressure Trough Spindle Coolant
Complete With:
Floppy disc parameter back up
Set of manuals
Location: Location: Hove, Brighton
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
06 Dec 2012 15:00:00 GMT
