Lot 4 - Hurco Pegasus VSX 330 Vertical Machining Centre
Description:

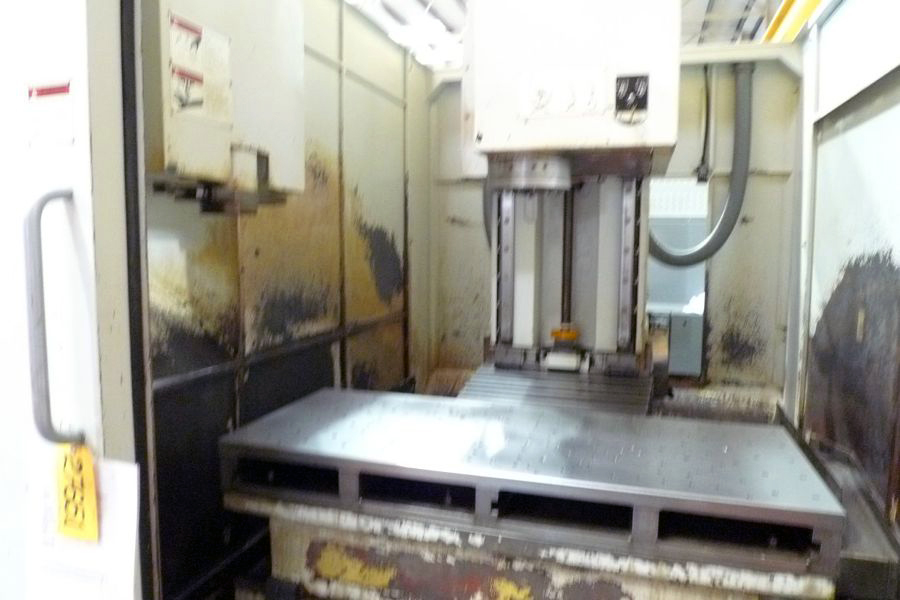

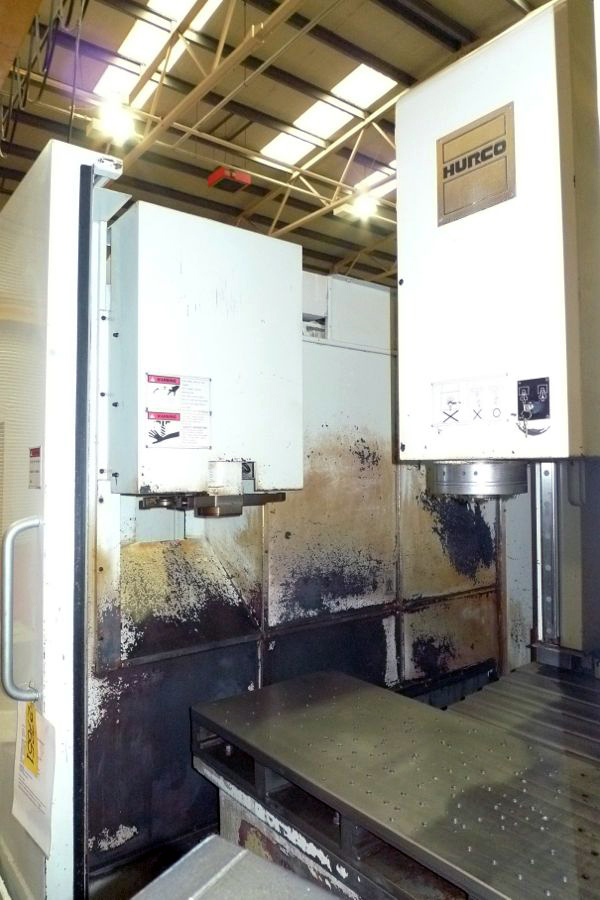

Hurco Pegasus VSX 330 Vertical Machining Centre

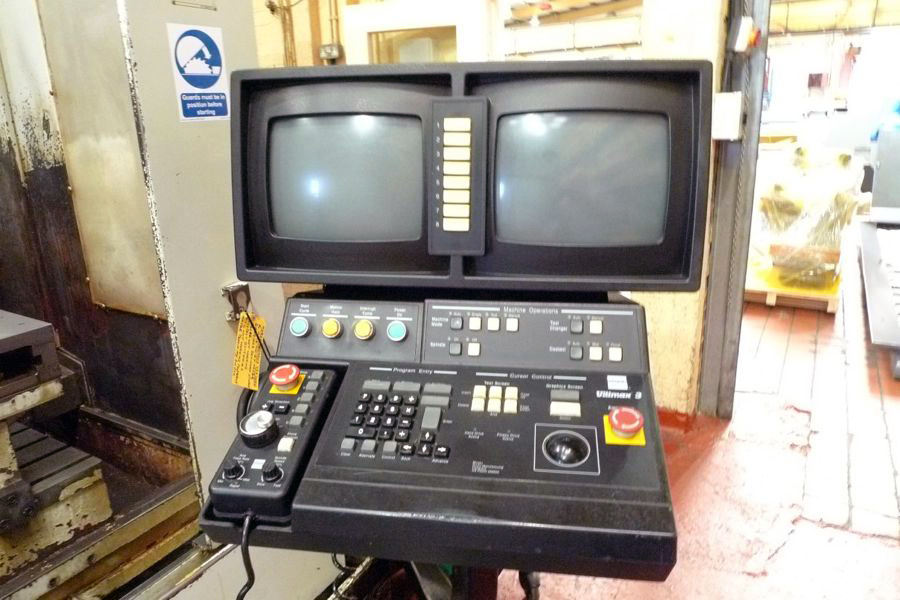

Control: Ultimax 3 Control
Stock No.: U27651
Serial No.: 260B046
Year of Manufacture: Oct 1993 – Installed Dec 1995
Specification:
Table Size 1300mm x 520mm
X Axis Travel 1020mm
Y Axis Travel 510mm
Z Axis Travel 510mm
Spindle To Column 630mm
Maximum Table Load 2000kg
Spindle Speeds 60 - 6000rpm
32 ATC CAT 40
Feeds 3 – 7620m/min
Rapids X, Y, Z 20m/min
4 Bar High Pressure Through Spindle Coolant
Machine Weight 10 Ton
Complete With:
1300mm x 520mm x 130mm Steel Sub Plate
Set of Manuals
Floppy Disc parameter back up
Location: Hove, Brighton
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
