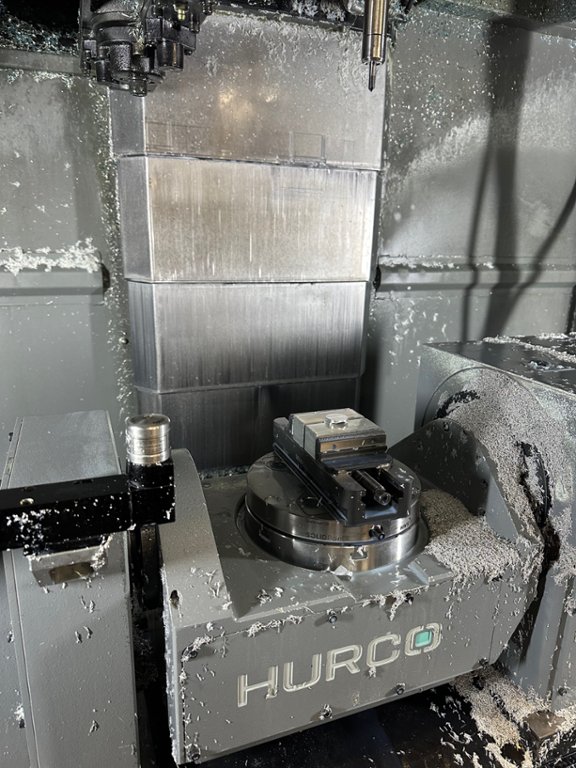

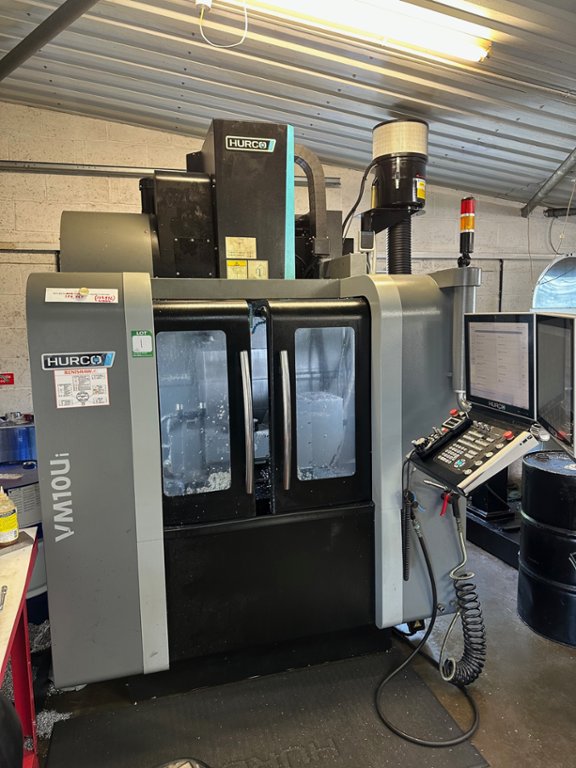

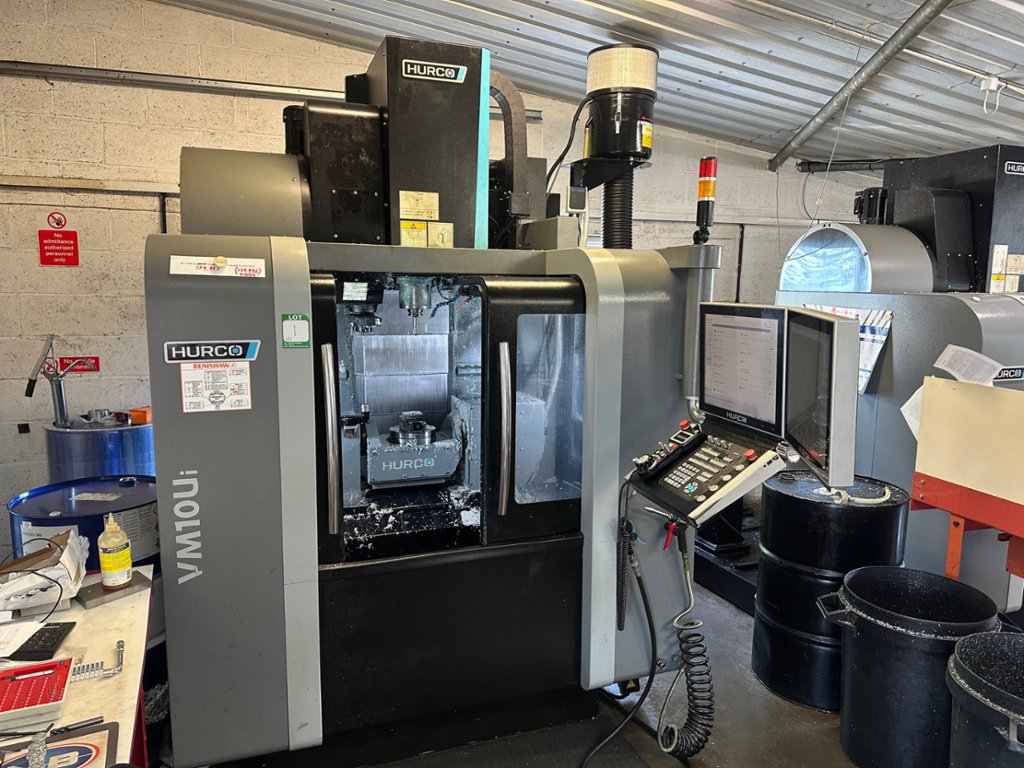

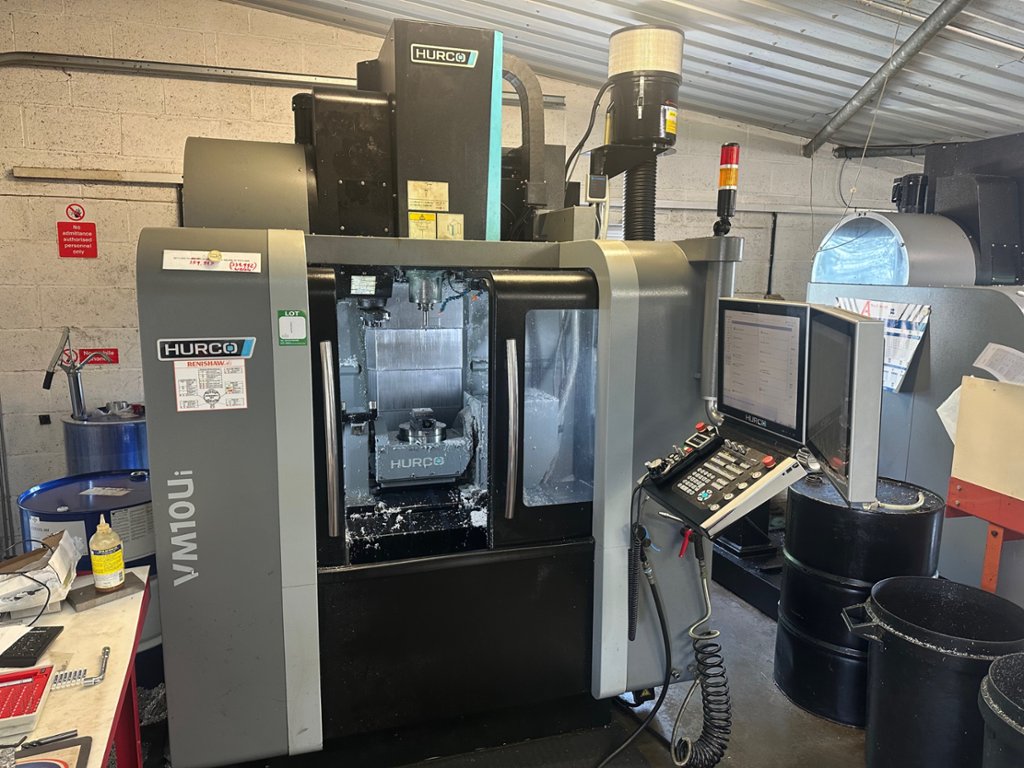

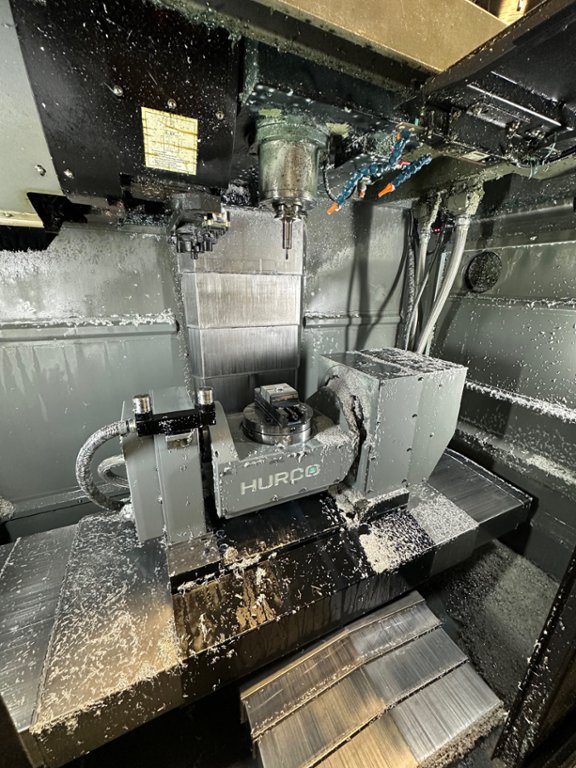

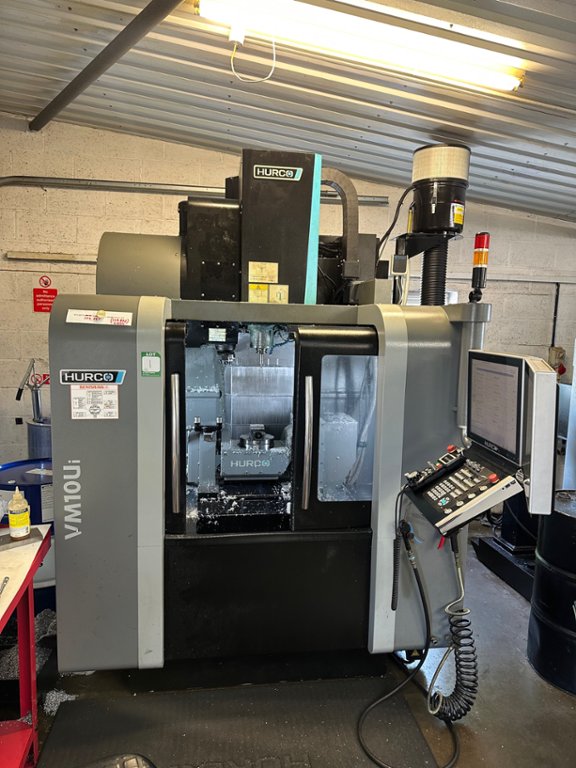

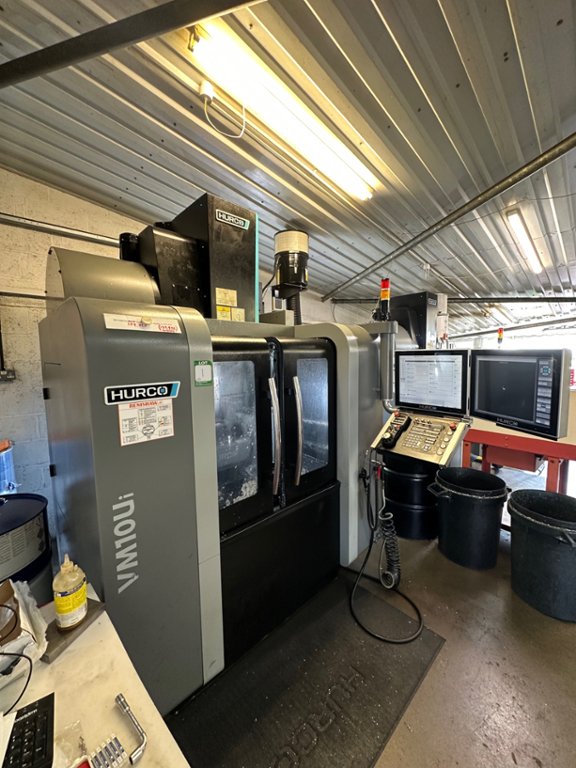

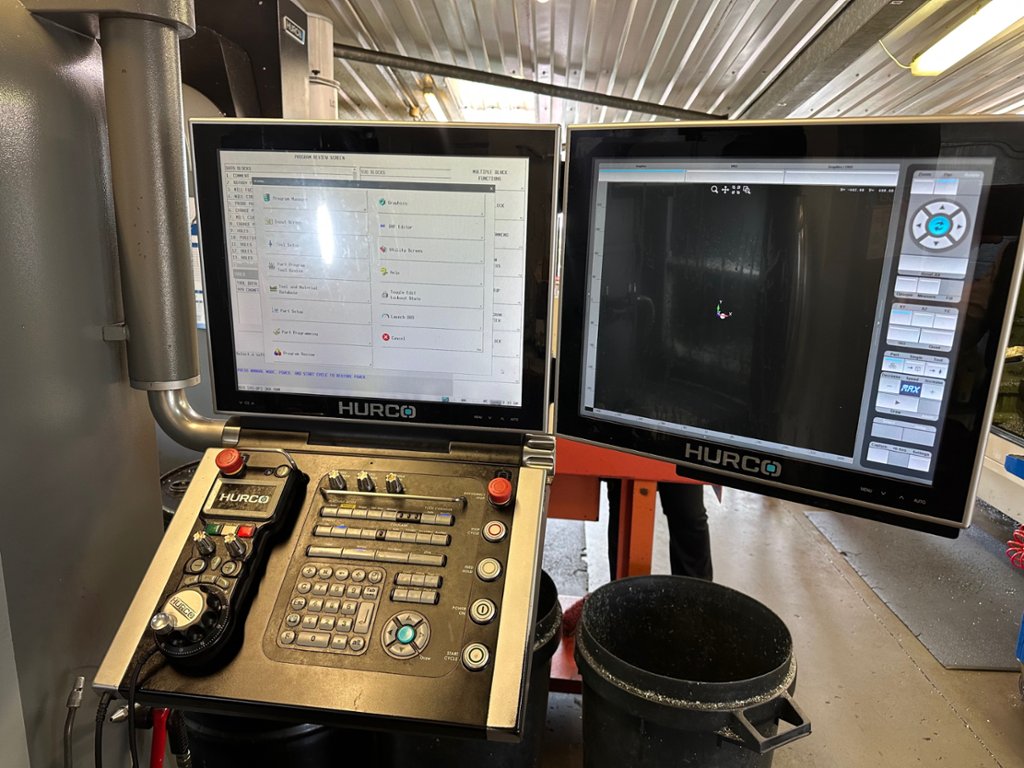

Hurco VM10Ui 5 Axis Integrated Trunnion Machining Centre with HSE compliant extraction (2017)

Width: 2994mm
Depth: 2487mm
Height: 2470mm
Weight: 3018kg
Other Transport Details: No loading facilities on site

Lot 1 - Hurco VM10Ui 5 Axis Integrated Trunnion Machining Centre with HSE compliant extraction (2017)

Description:

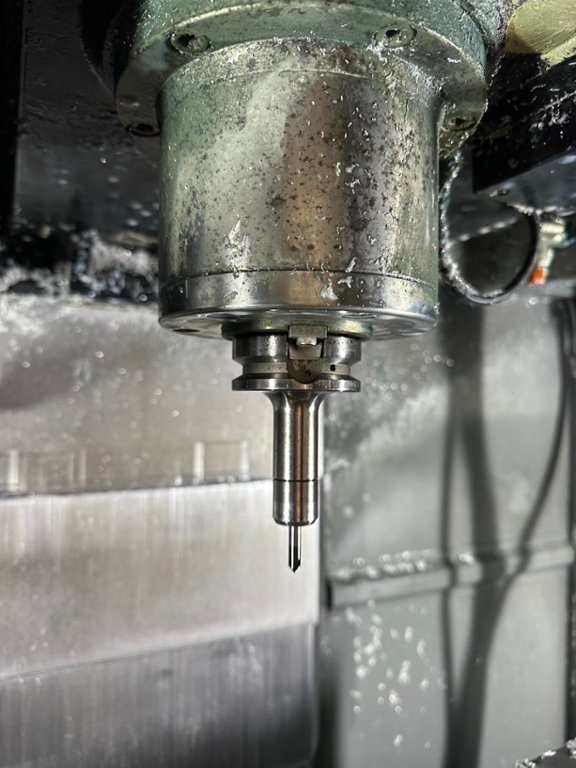

Comes with selection of tooling, has spindle chiller & Renishaw tool probe

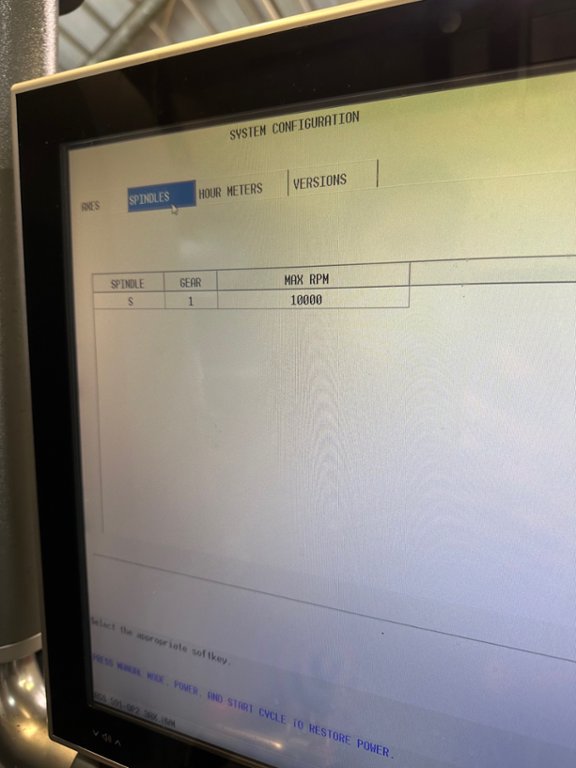

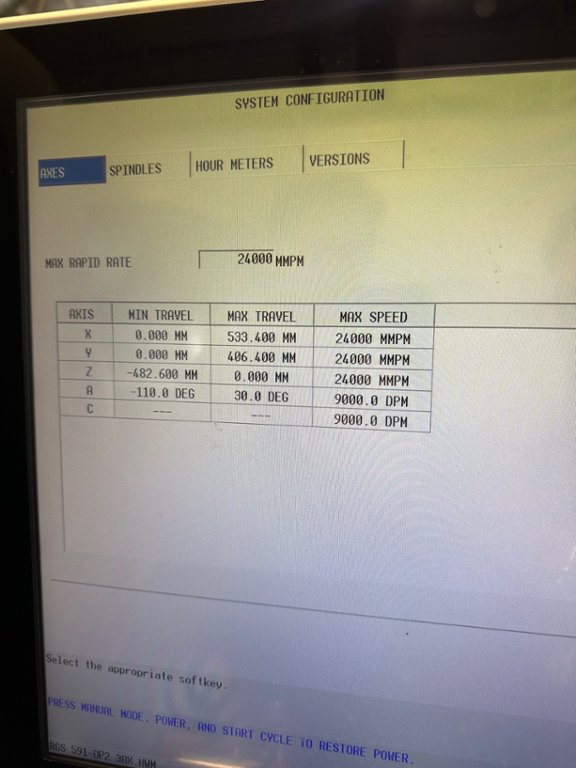

X,Y,Z Axis travel - 660 x 406 x 508mm, Table working surface - 762 x 406mm, Table T Slots - 3 off x 18mm/100mm centres, Maximum table load - 681kg, Spindle nose to table - 101.6mm/610mm, Coolant capacity - 62litres, Spindle taper - CAT 40, Spindle speed - 10,000 RPM, Spindle motor horsepower (1min) - 15HP (11kW)(1 min rating), Spindle motor torque - 73.6 Nm at 1450 RPM, Rapid traverse rate X,Y,Z - 24M/minute, Cutting feed rate - 19M/minute, Positioning accuracy - 0.010mm, Repeatability - 0.005mm, Number of stations - 20/CAT 40, Tool to Tool ATC Time - 2.5 seconds, Tool changer type - Electronic, Maximum tool diameter - 89mm, Maximum tool length - 250mm.

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
