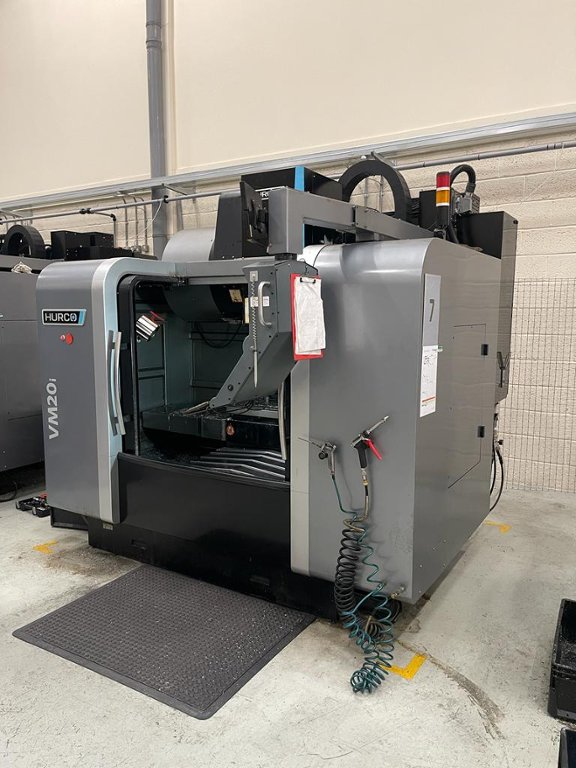

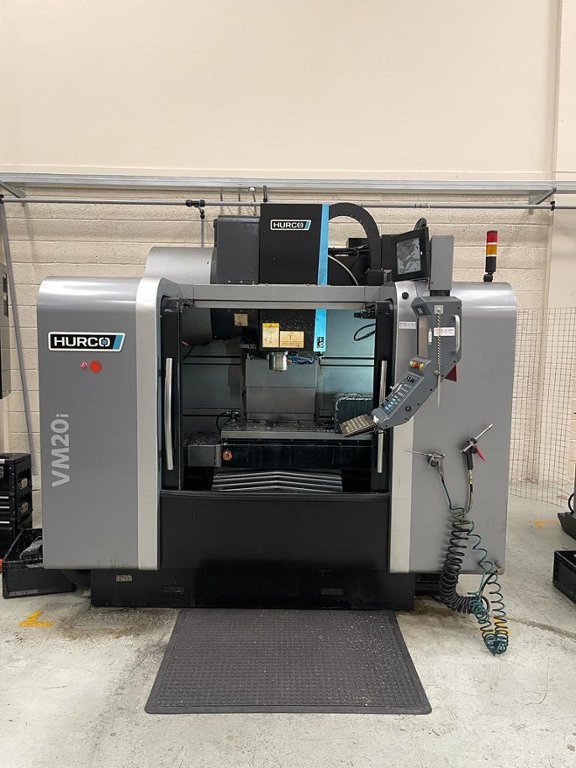

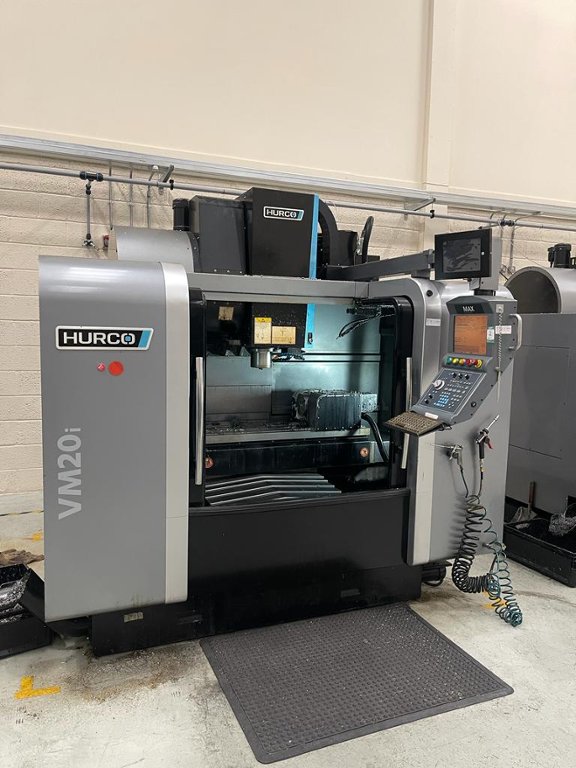

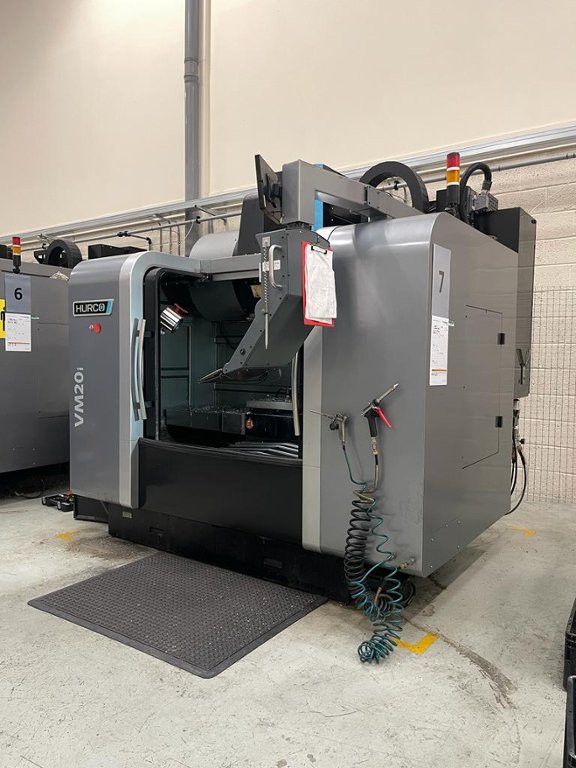

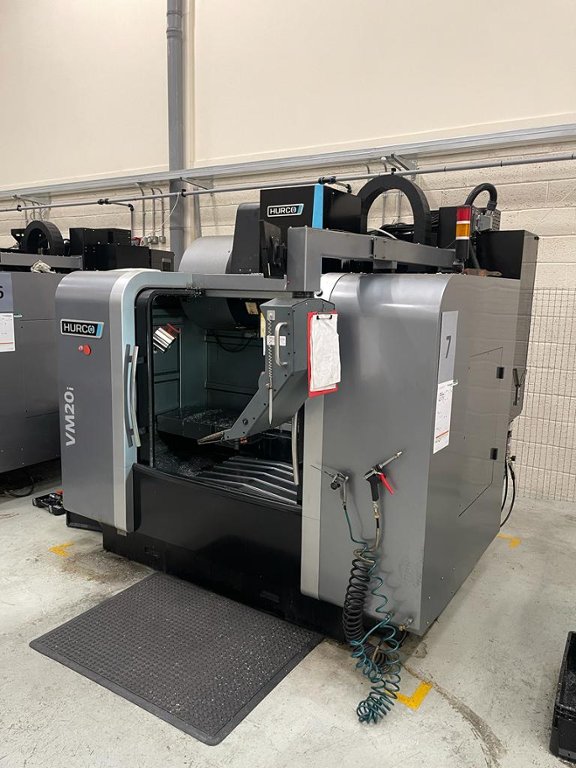

Lot 2 - Hurco VM20i Vertical Machining Centre (2014)
Description:
Vice NOT included
TRAVELS & CAPACITY
X, Y, Z Axis Travel 1016 x 508 x 508 mm
Table Size 1168 x 508 mm
Max. Weight on Table 1800 kg
Spindle Nose to Table Min/Max 102 / 610 mm
T-Slot Size 5 x 18 mm
SPINDLE
Max. Spindle Speed 12000 rpm
Spindle Power (peak - 1 min) 20 hp (15.0 kW)
Spindle Torque (peak - 1 min) 75 ft-lbs @ 1450rpm (102 Nm @ 1450 rpm)

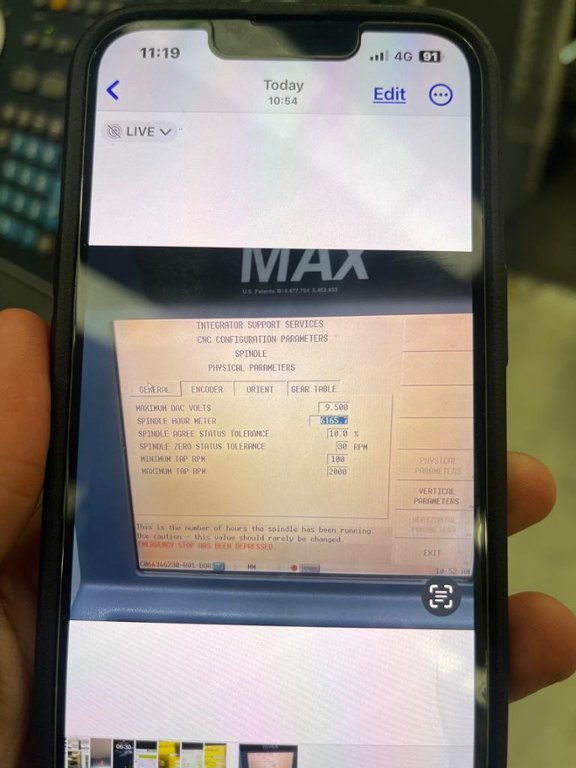

Spindle Hours -
TOOL CHANGER
Tool Type CAT 40 / Big Plus® (CAT/BT 40)
Number Of Tools 20 (24)
Max Tool Diameter 80 mm
Max Tool Length 250 mm
Max Tool Weight 7 kg
FEEDRATES
Rapid Traverse X,Y,Z Axis 1102 in/min (28 m/minute)
Max Programmable Feedrate 1102 inches/minute (25.5 m/minute)
SIZE
Max. Operating Floor Space 3703 x 3007 mm
Machine Height 2,576 mm
Machine Weight 4,100 kg
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
20 Apr 2023 16:10:00 BST

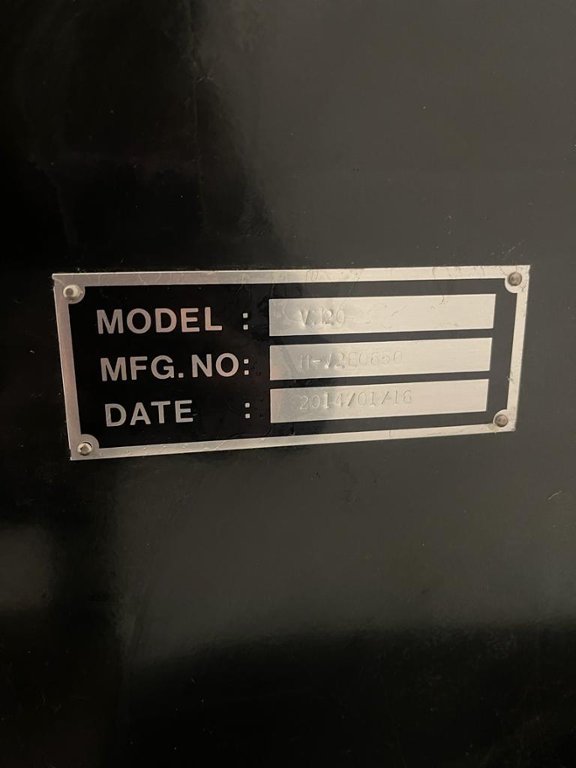

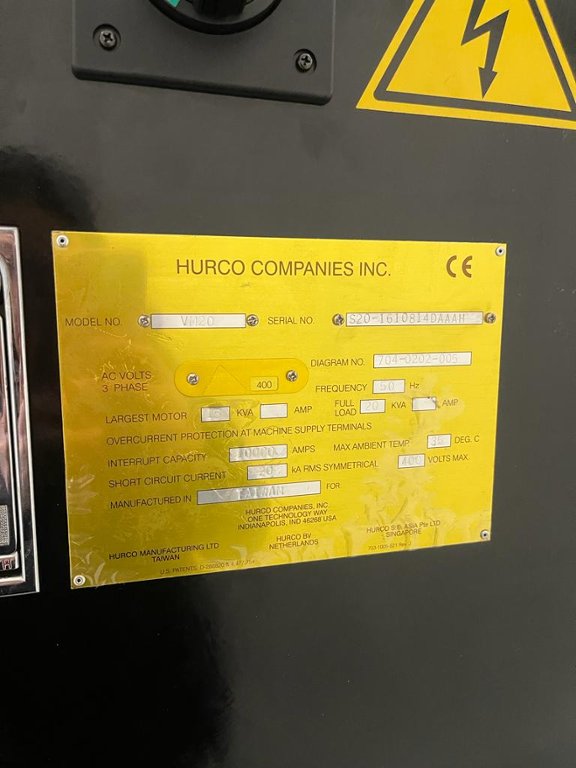

Serial Number: S20-1610814DAAAH
Location: Bedfordshire
Transport information
- Width: 247cm
- Depth: 193cm
- Height: 215cm
- Other Transport Details: £350 - Machines will be disconnected, drained and loaded to suitable transport. Please note the loading charge will be automatically added to purchasers invoice. *No other loading companies will be allowed on to site
