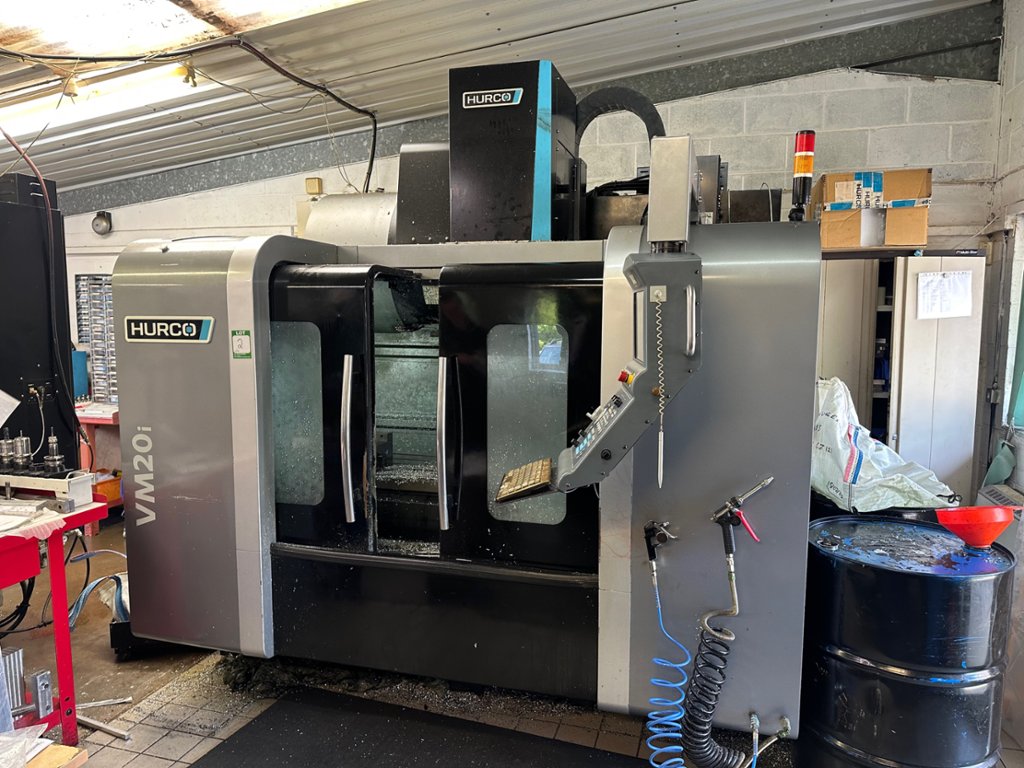

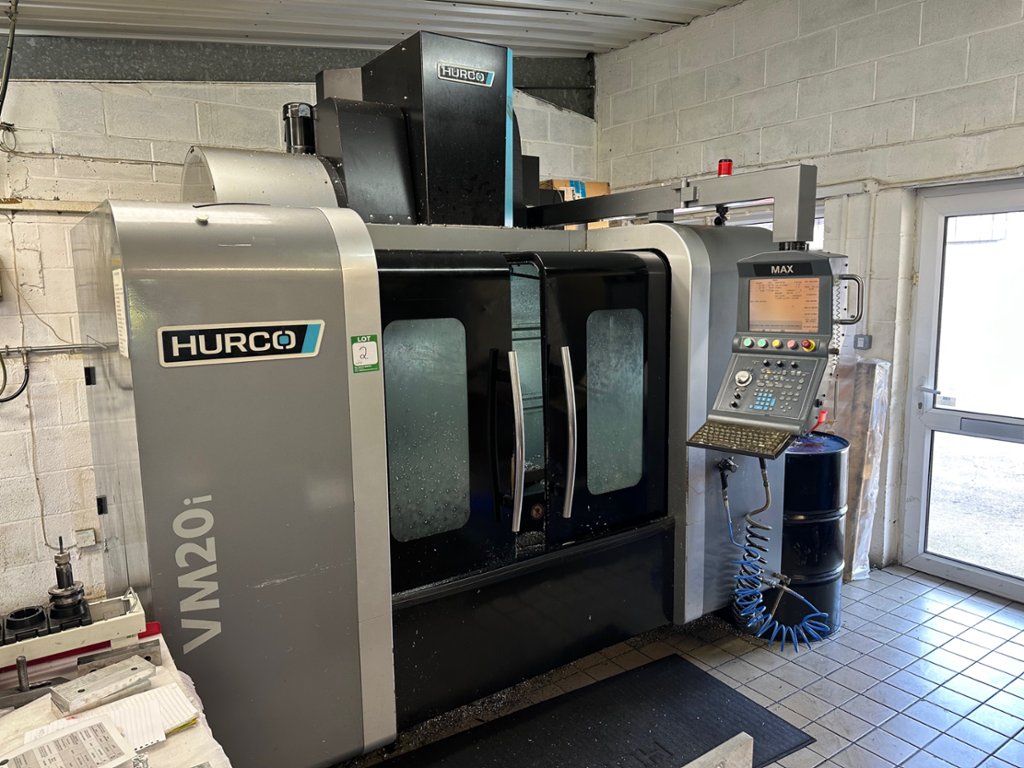

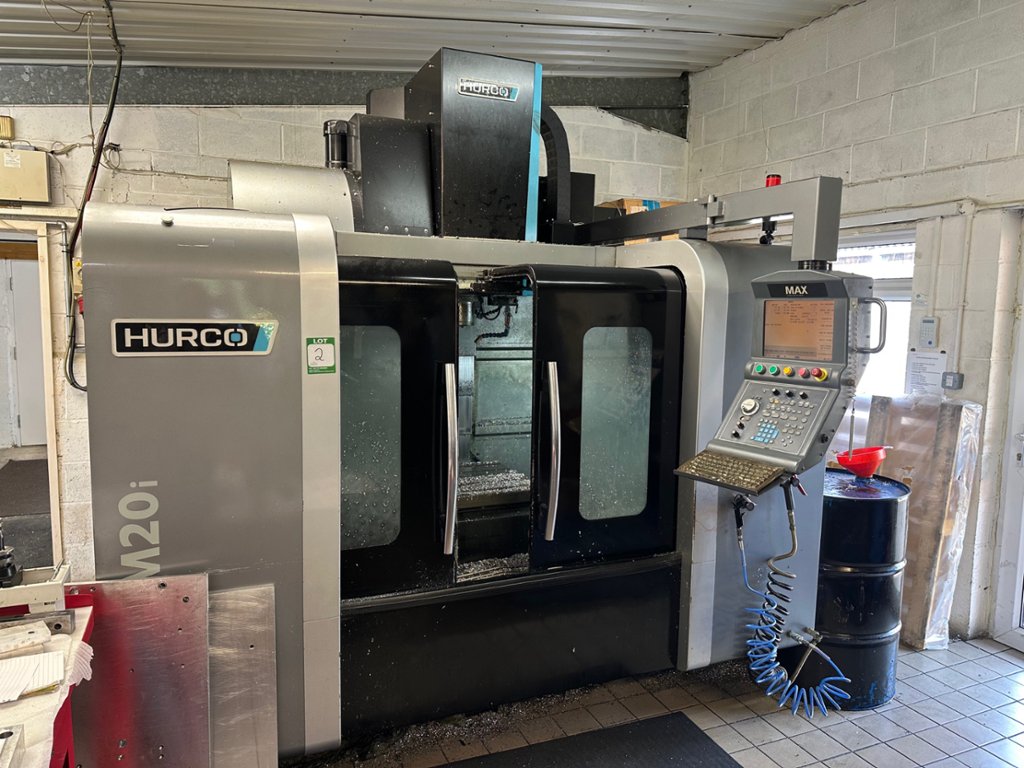

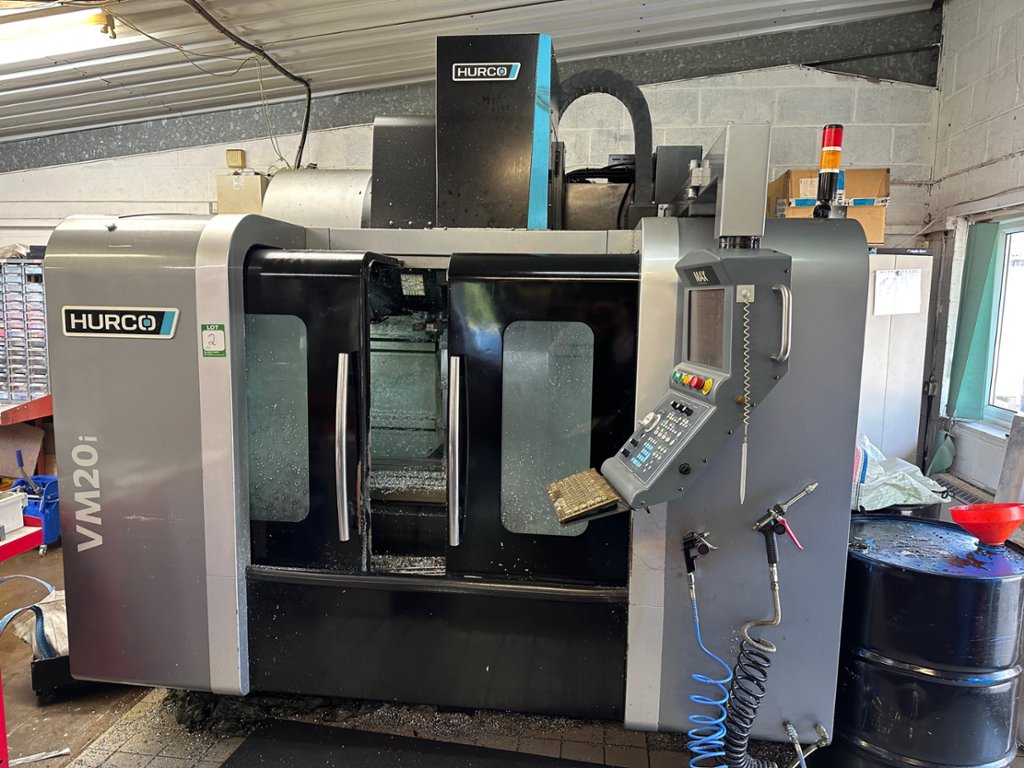

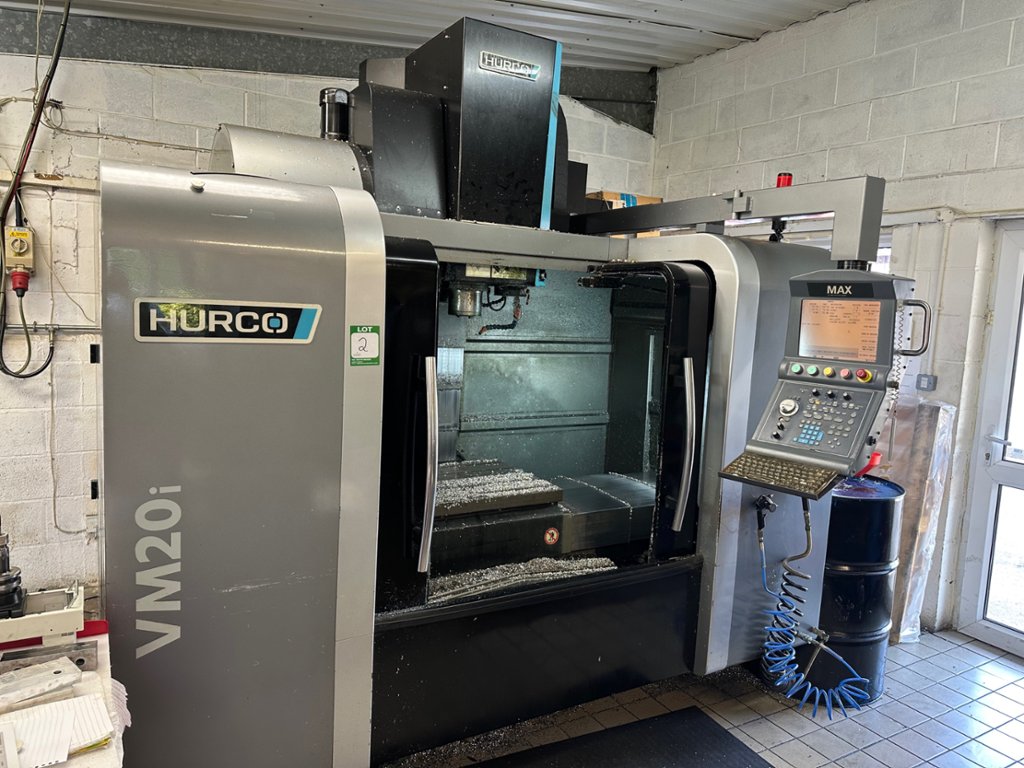

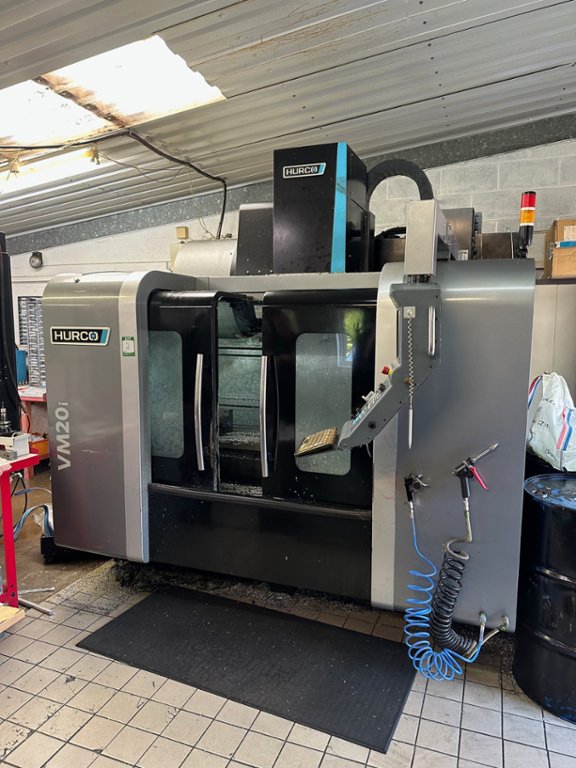

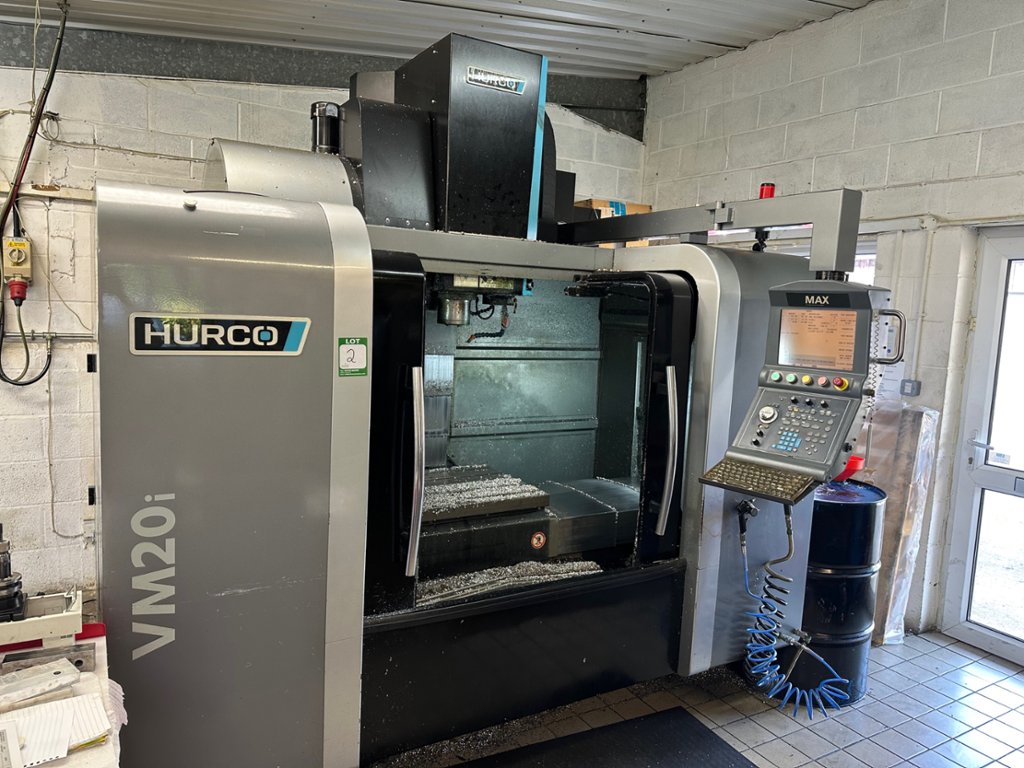

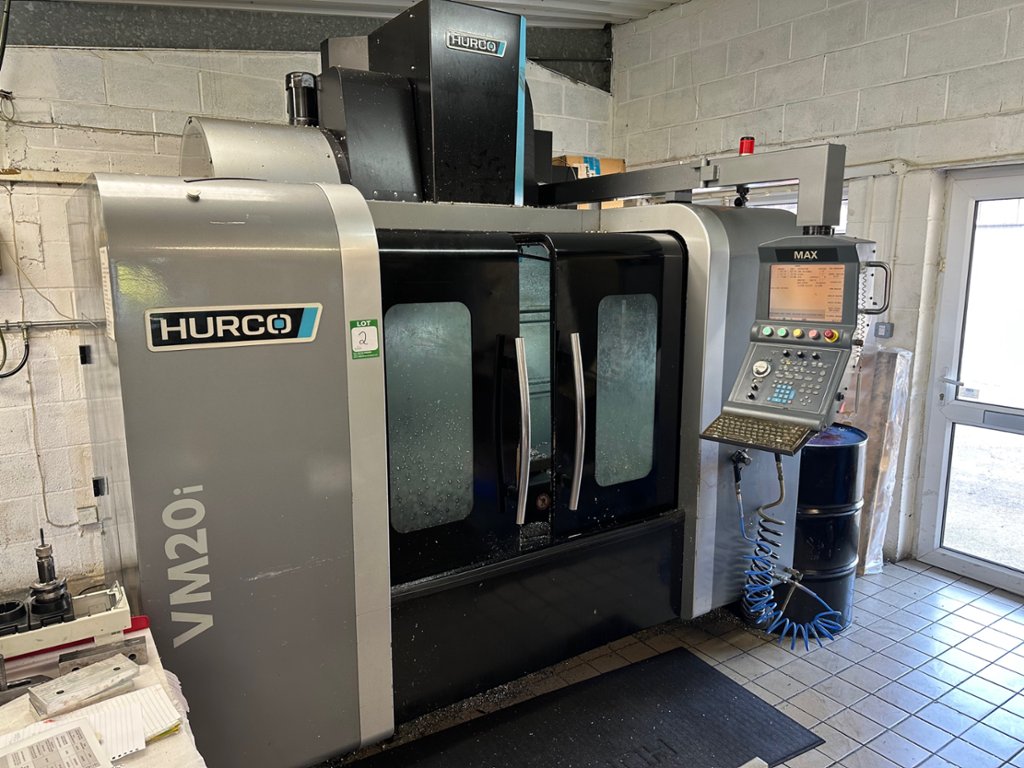

Hurco VM20i Vertical Machining Centre (2014)

Lot 2 - Hurco VM20i Vertical Machining Centre (2014)

Description:

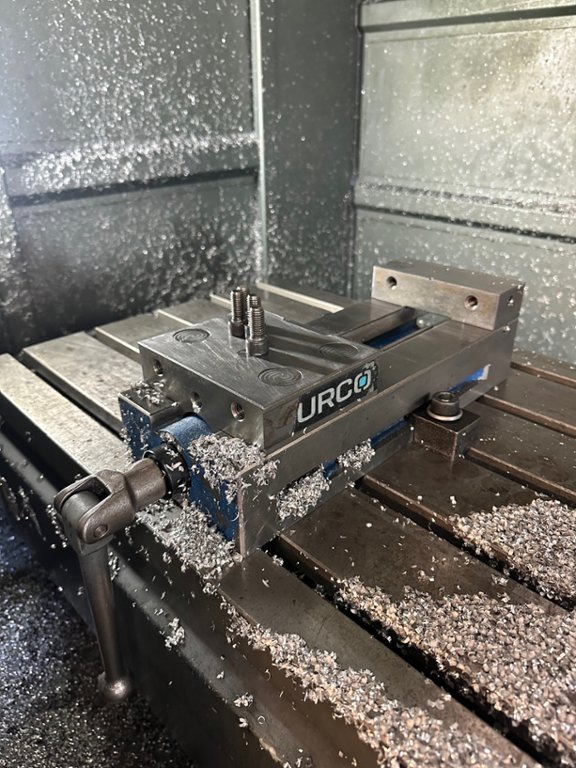

Comes with selection of tooling

TRAVELS & CAPACITY

X, Y, Z Axis Travel 1016 x 508 x 508 mm

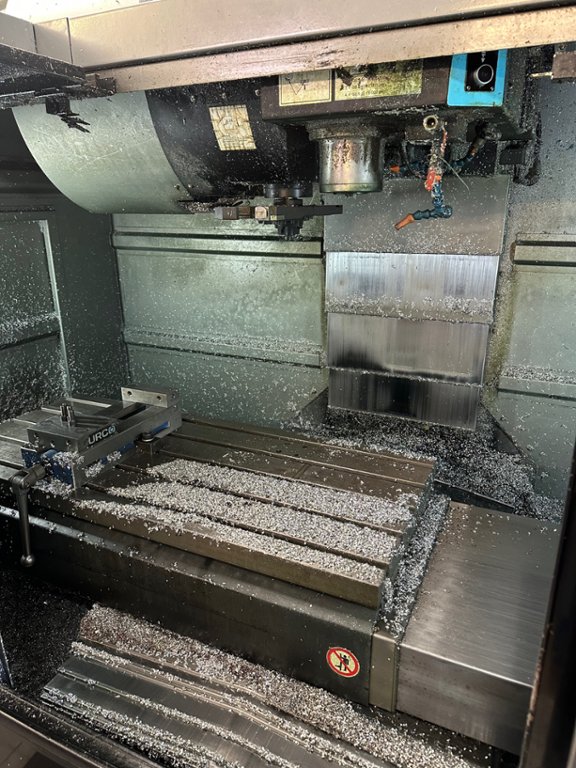

Table Size 1168 x 508 mm
Max. Weight on Table 544 kg
Spindle Nose to Table Min/Max 101.6 / 610 mm
T-Slot Size 5 x 18 mm

SPINDLE

Max. Spindle Speed 10000 rpm
Spindle Power (peak - 1 min) 20 hp (15.0 kW)
Spindle Torque (peak - 1 min) 75 ft-lbs @ 1450rpm (102 Nm at 1450 RPM)

TOOL CHANGER

Tool Type CAT 40
Number Of Tools 20
Max Tool Diameter 89 mm
Max Tool Length 250 mm

FEEDRATES

Rapid Traverse X,Y,Z Axis 24 m/minute

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
