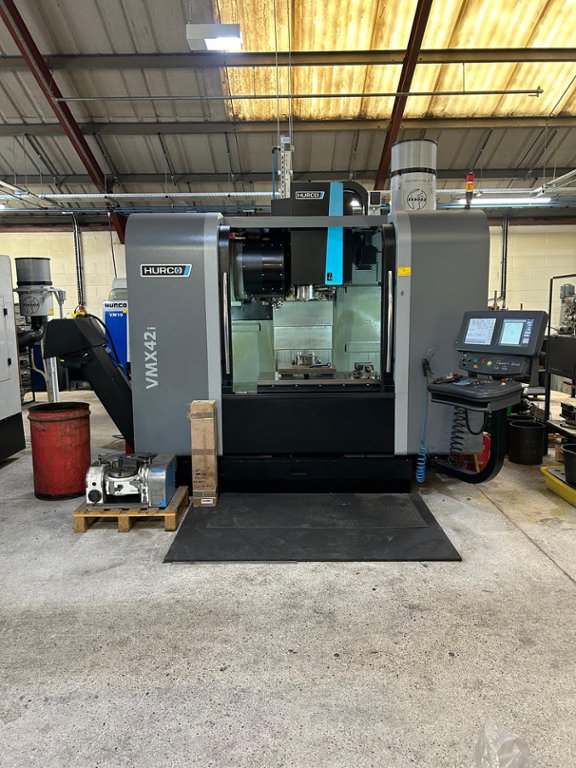

Hurco VMX 42i 5 Axis Machining Centre (2014)

Lot 1 - Hurco VMX 42i 5 Axis Machining Centre (2014)

Description:

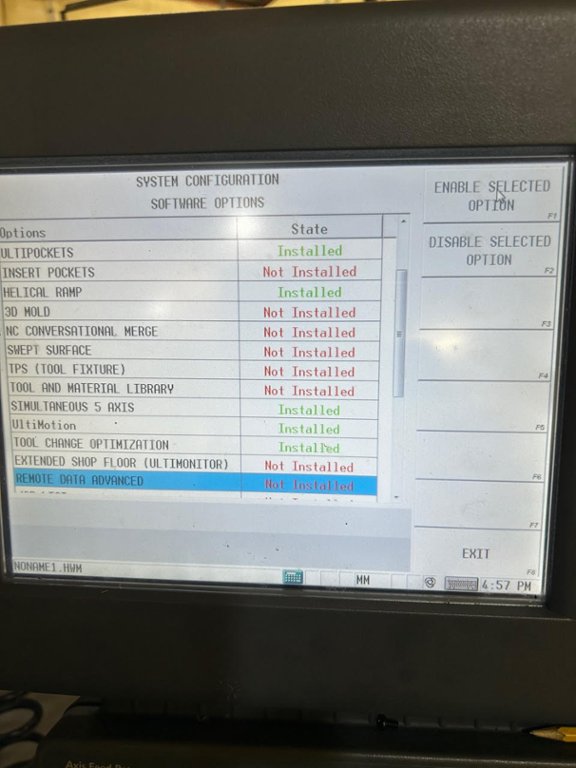

The computer was updated to “H” issue in 2023
It has SK40 tool arm fitted and BT40 boxed
Machine hours 31775
Spindle hours 16905

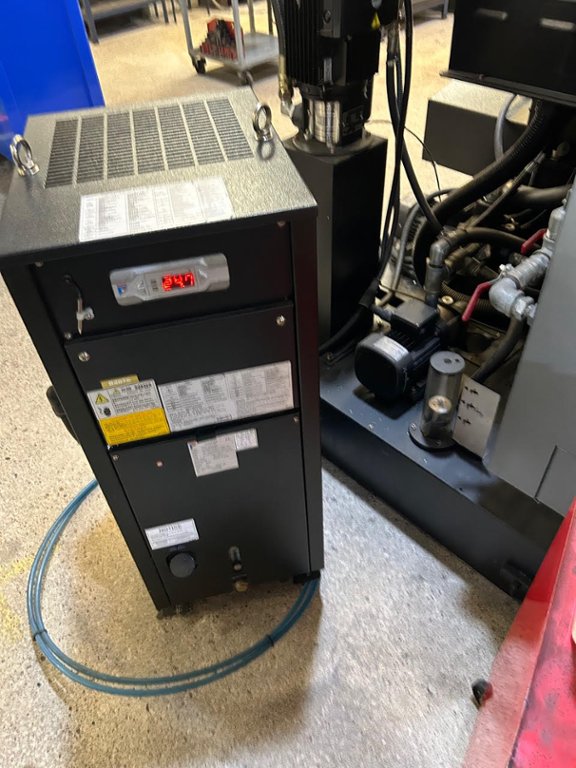

fitted a Filter mist unit

MAIN DRIVE
Number of Spindles: 1
Spindle Speed Range: 12000 1/MIN
Spindle Motor Power: 18 KW
Number of Axis: 5
WORKPIECE
Workpiece Weight: 1360 KG
TABLE
Outer Length: 1270 MM
Outer Width: 610 MM
Min Distance Between Vertical Spindle and Table: 152-762 MM
TOOLS
Slots in Storage: 30
Max Weight: 7 KG
Max Tool Diameter: 79 MM
Max Tool Length: 300 MM
Type of Tool Holder: DIN 40

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Recommended Transport
