Lot 18 - Hydravane Compressor Complete System
Description:

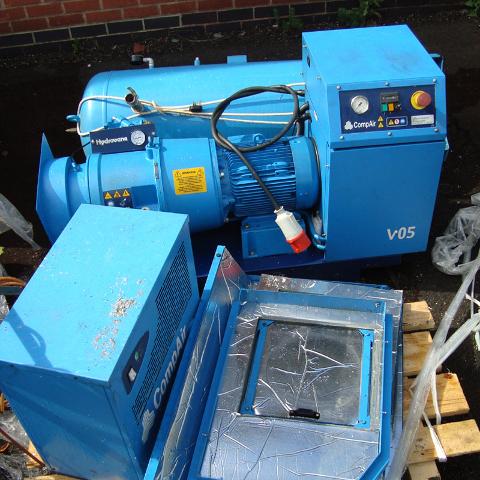

Hydravane compressor - 3 parts (Drier, Compressor, Receiver tank)

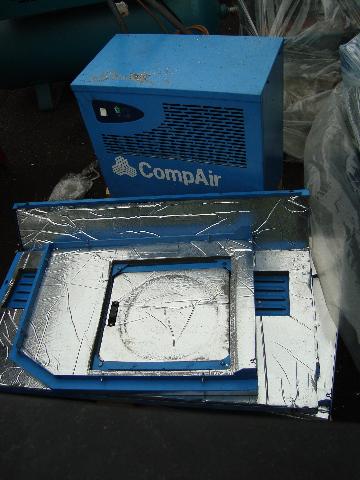

Drier: CompAir F9T (2007)
Serial no. 2200094065
Max absorbtion 1.9A
Cooling circuit: max working pressure: 26 bar, max temp 80 degrees C
Flow Circuit: max pressure 16 bar, max temp 70 degrees C

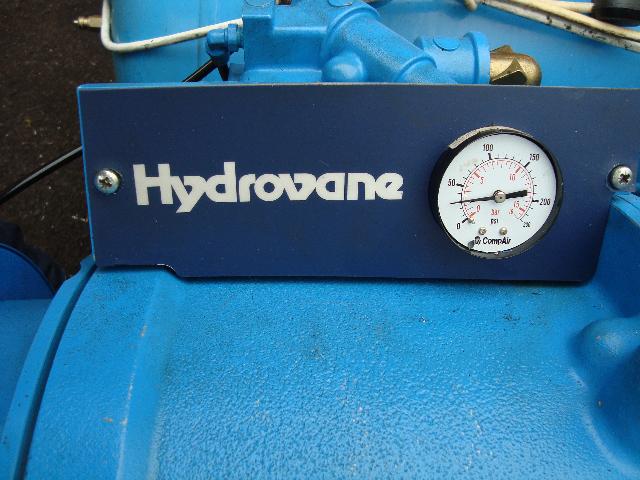

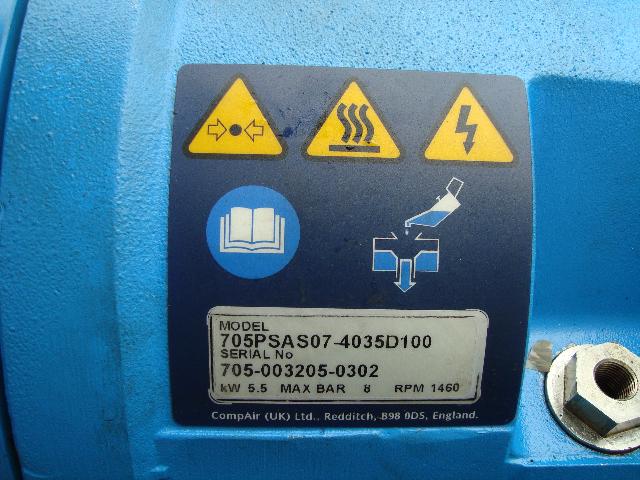

Compressor: Hyrdovane/CompAir 705 PSA (19,786 hrs)
7.5kW motor, max bar: 8, 1,460 max rpm, serial no. 705-003205
Size: 1.3m x 0.5m

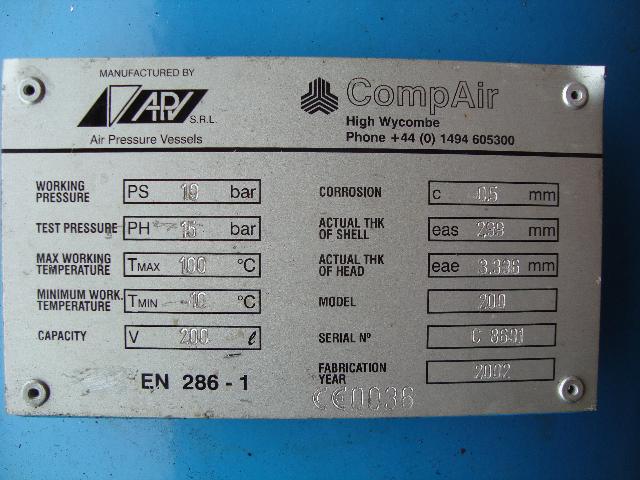

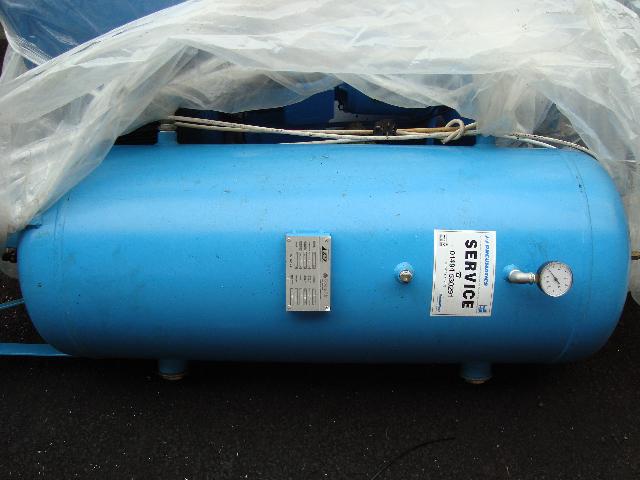

Receiver Tank (2002) Model 200
Working pressure 10 bar, test pressure 15 bar, max working temp 100 degrees C, min working temp -10 degrees C, max capacity 200ltr
Serial no. 8601
Size: 1.6m (H) x 0.45m
