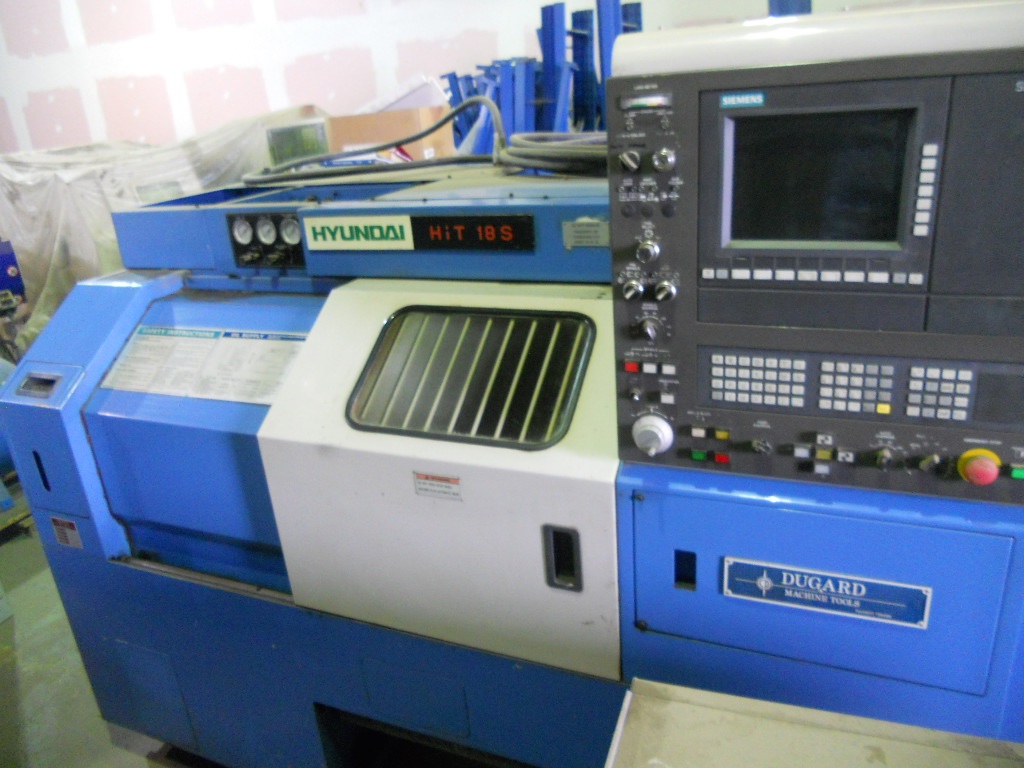

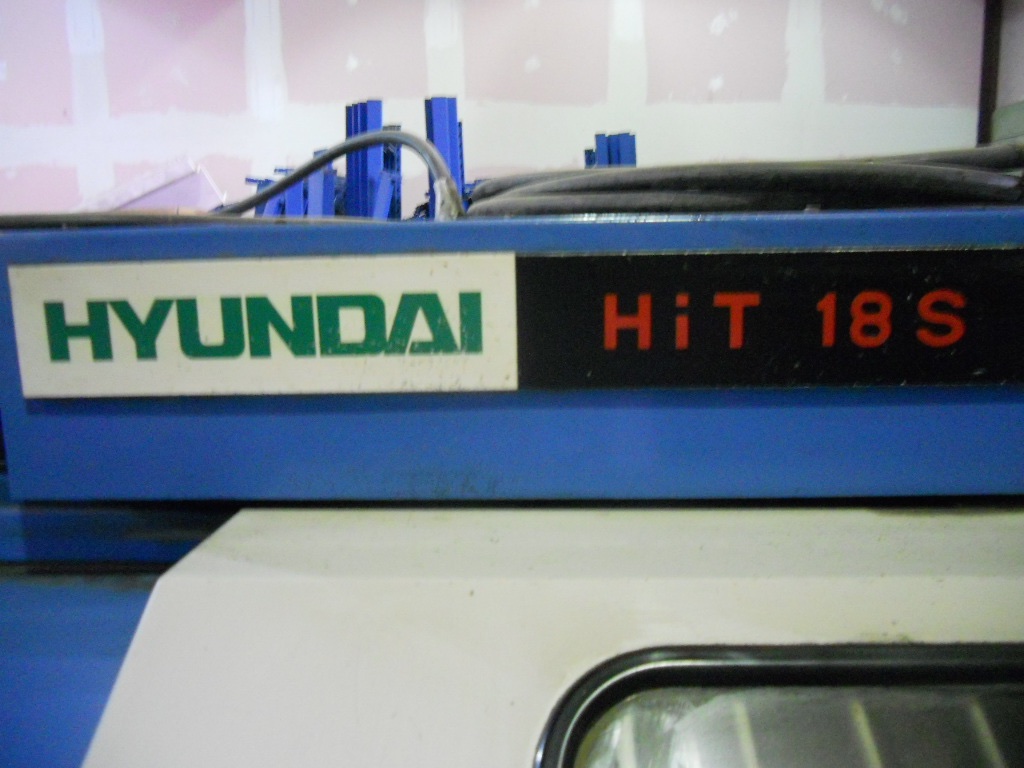

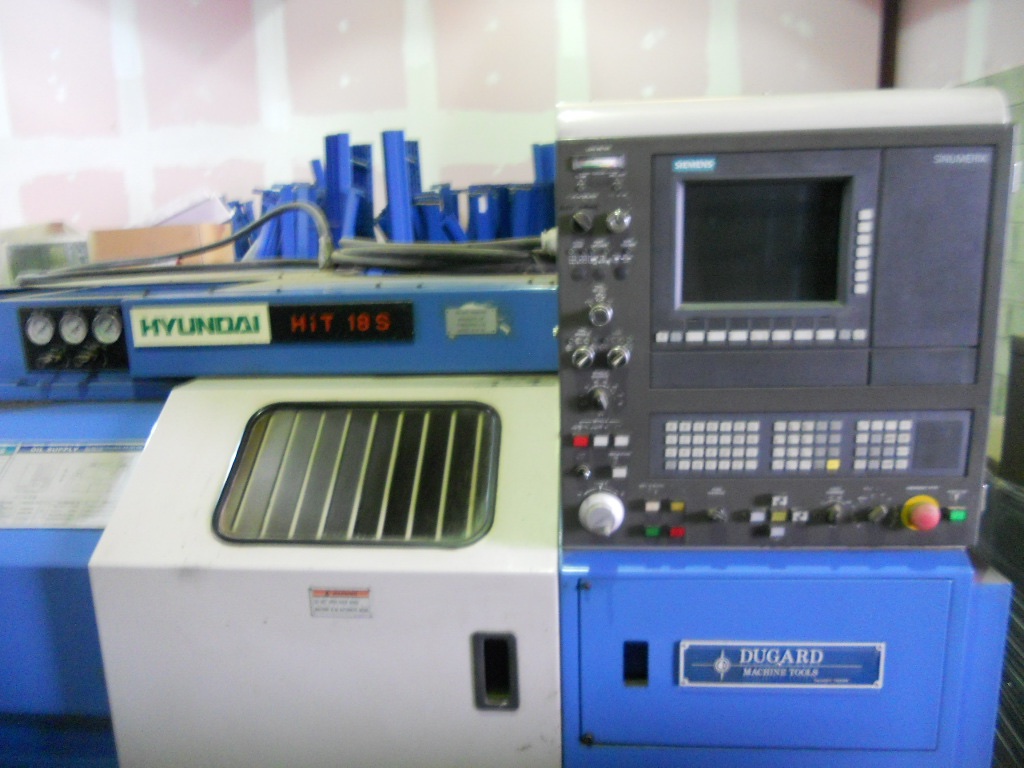

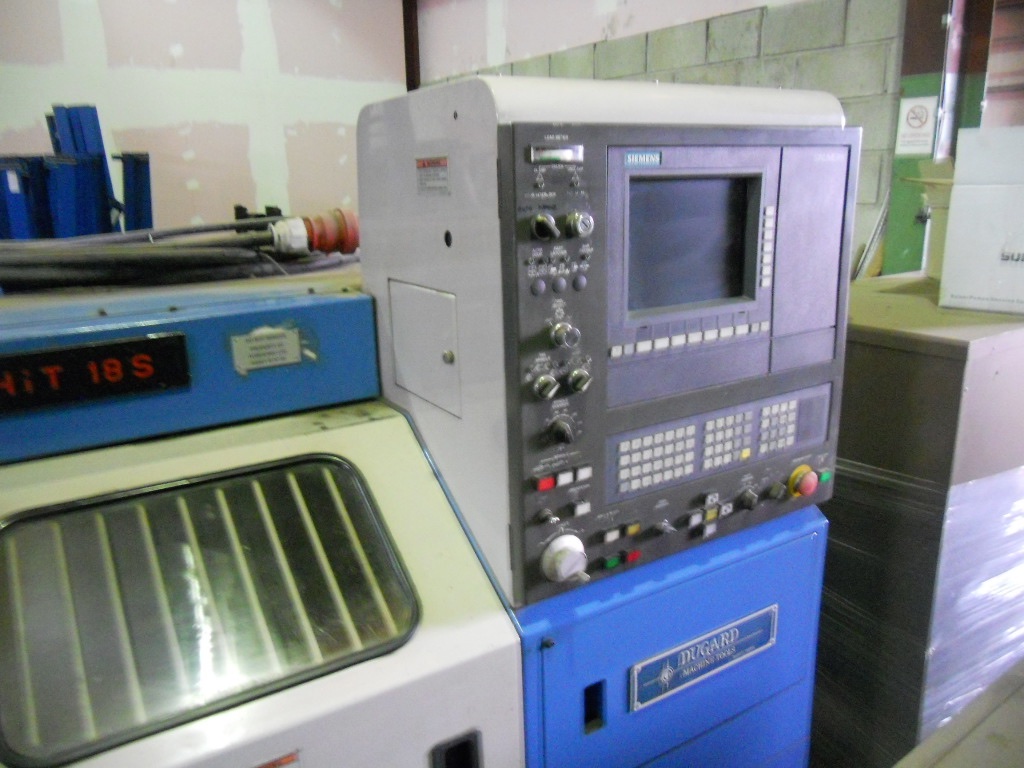

Hyundai Hit 18S CNC Lathe (1996)

Lot 6 - Hyundai Hit 18S CNC Lathe (1996)

Description:

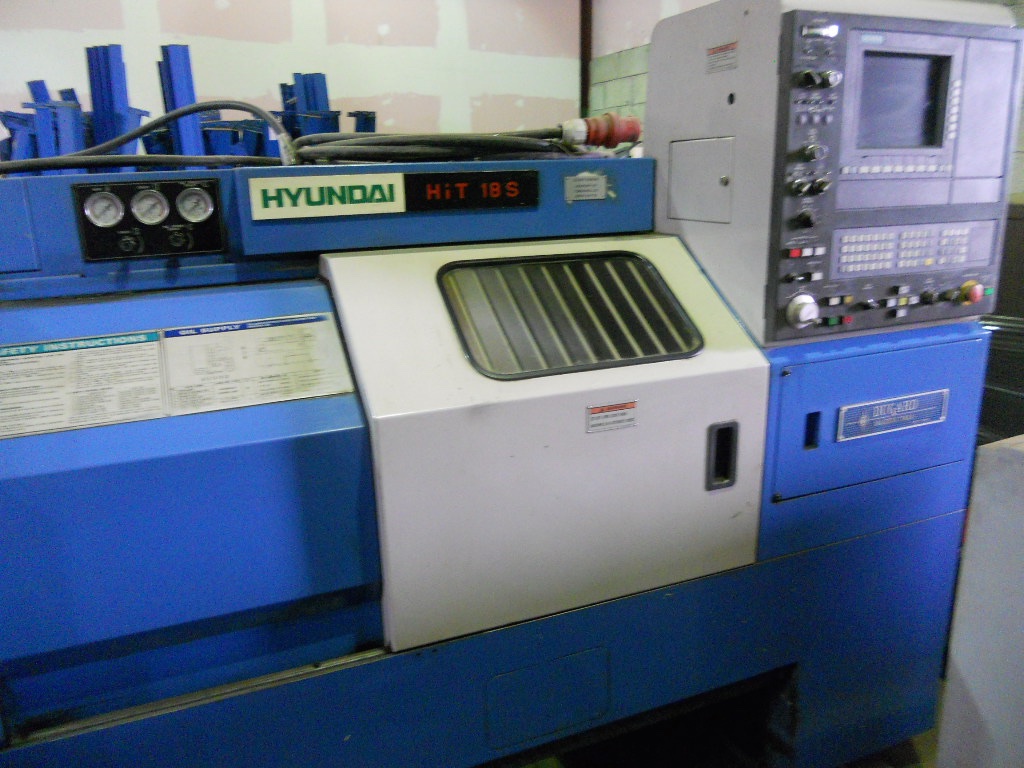

Hyundai Hit 18S CNC Lathe (1996)

Specification
Maximum Swing Diameter: 440mm
Maximum Turned Diameter/Length: 270mm/500mm
Maximum Distance between Centres: 637mm
Maximum Cross Travel X Axis: 180mm
Maximum Longitudinal Travel Z Axis: 510mm
Spindle Nose: JIA A2-8

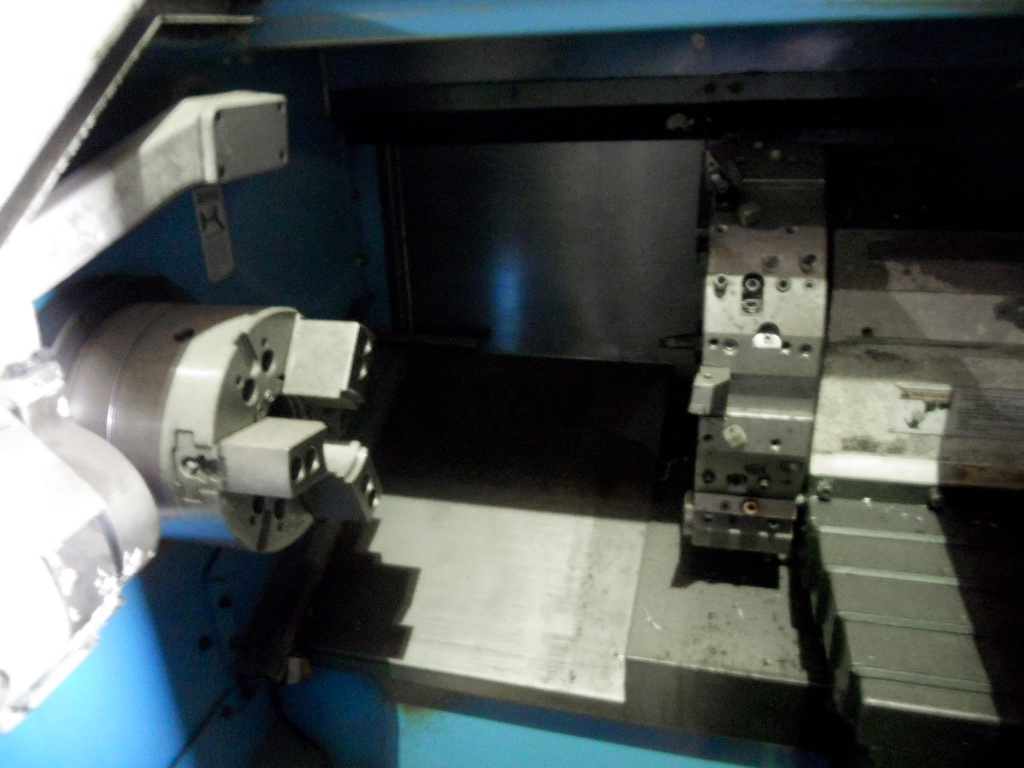

Chuck Size: 252mm
Maximum Bar Capacity with 252mm Chuck: 70mm
Spindle Speeds: 36 – 3,600rpm
Spindle Power: 15kW AC
Number of Turret Tools: 8 Station
Tool Size: 25mm x 25mm
Rapids X & Z Axis: 30m/min.

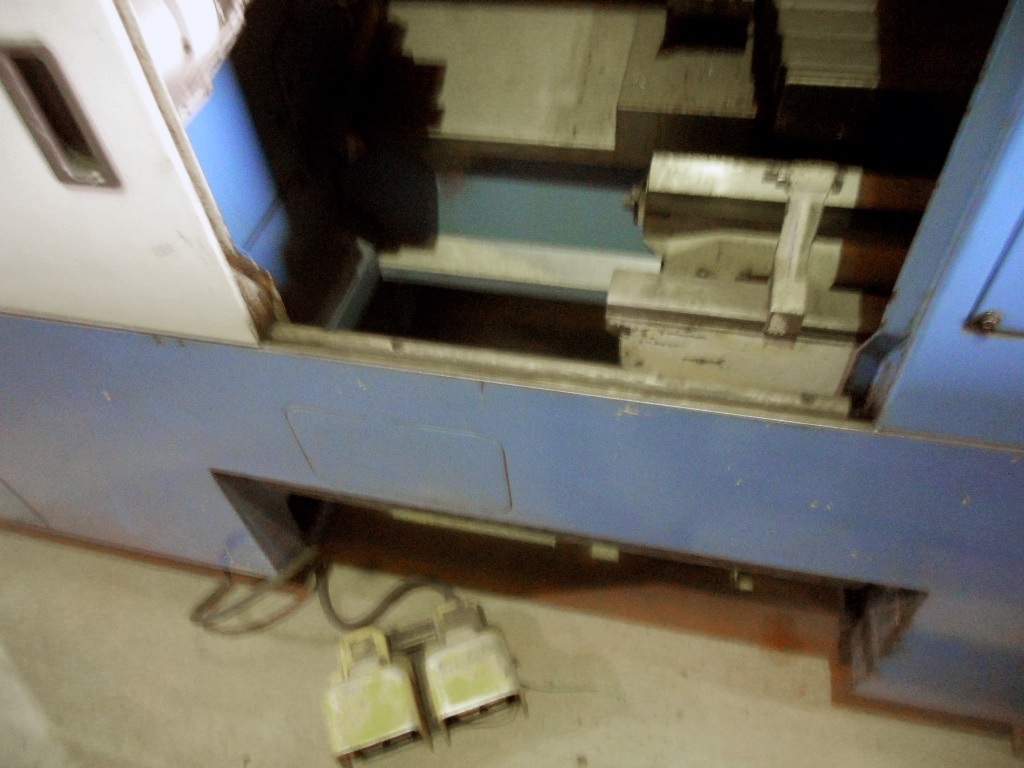

Tail Stock
Machine Weight: 4,300Kg
Floor space (L x W ) 2600 x 1650mm, Height 1830mm

Location: Crewe

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
