Lot 5 - Hyundai Hit 8 CNC Lathe
Description:

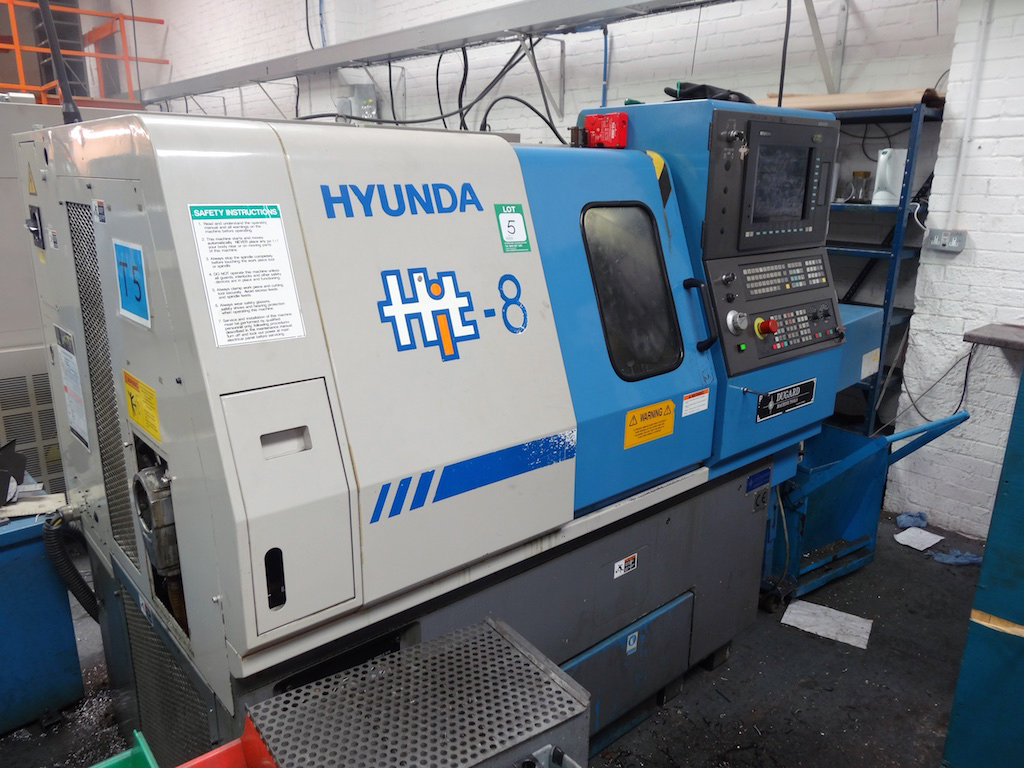

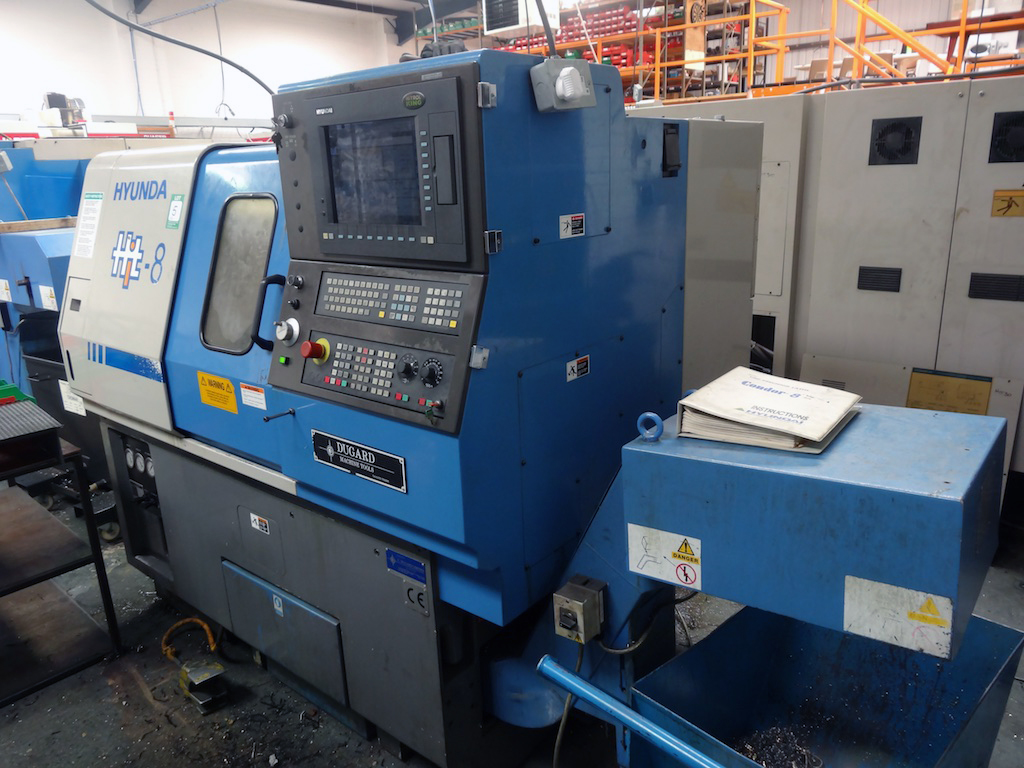

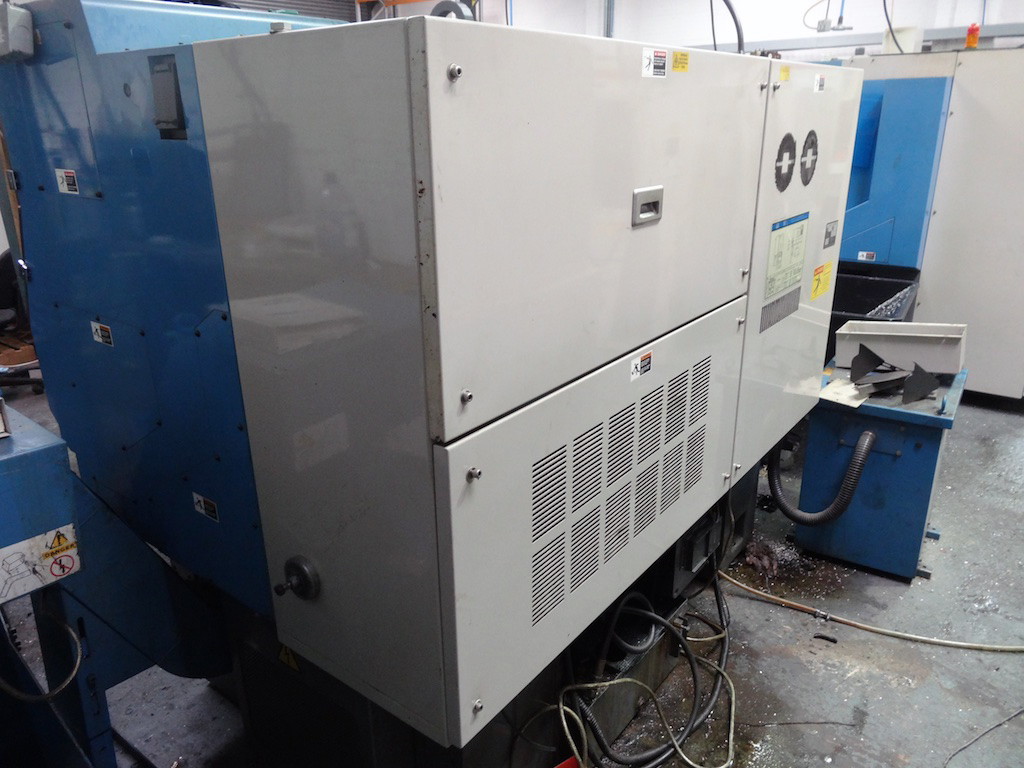

Hyundai Hit 8 CNC Lathe

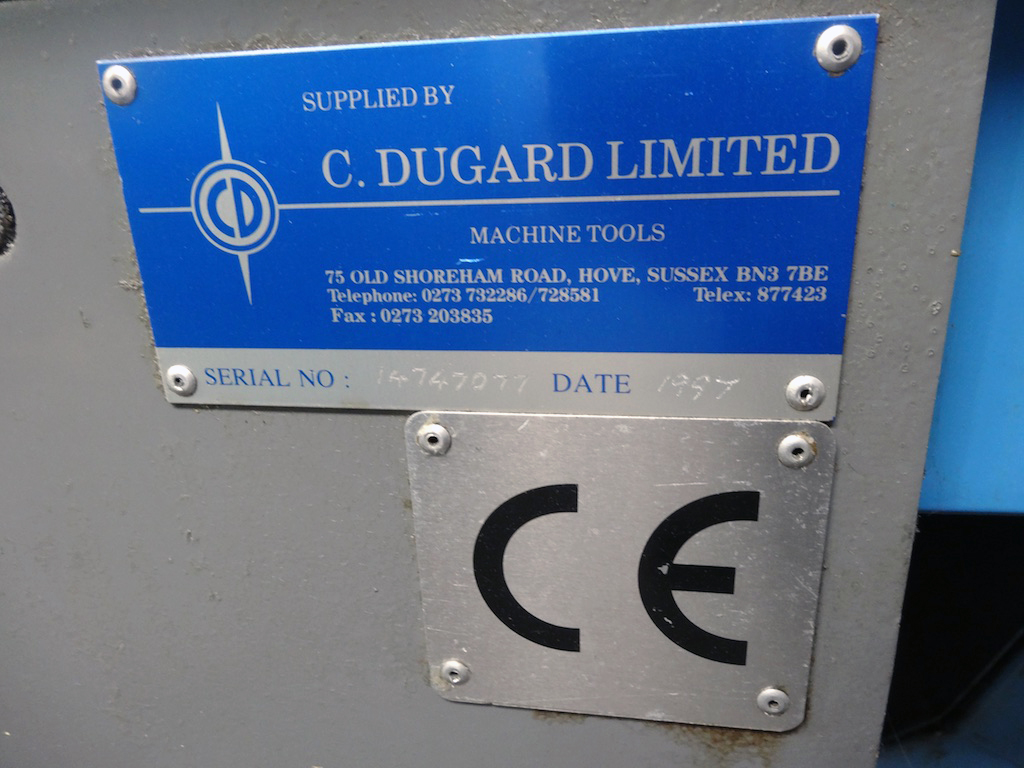

S/n: 14747007
Date: 1997
L x W x H: 2015 x 1368 x 1791mm
Weight: 2700kgs

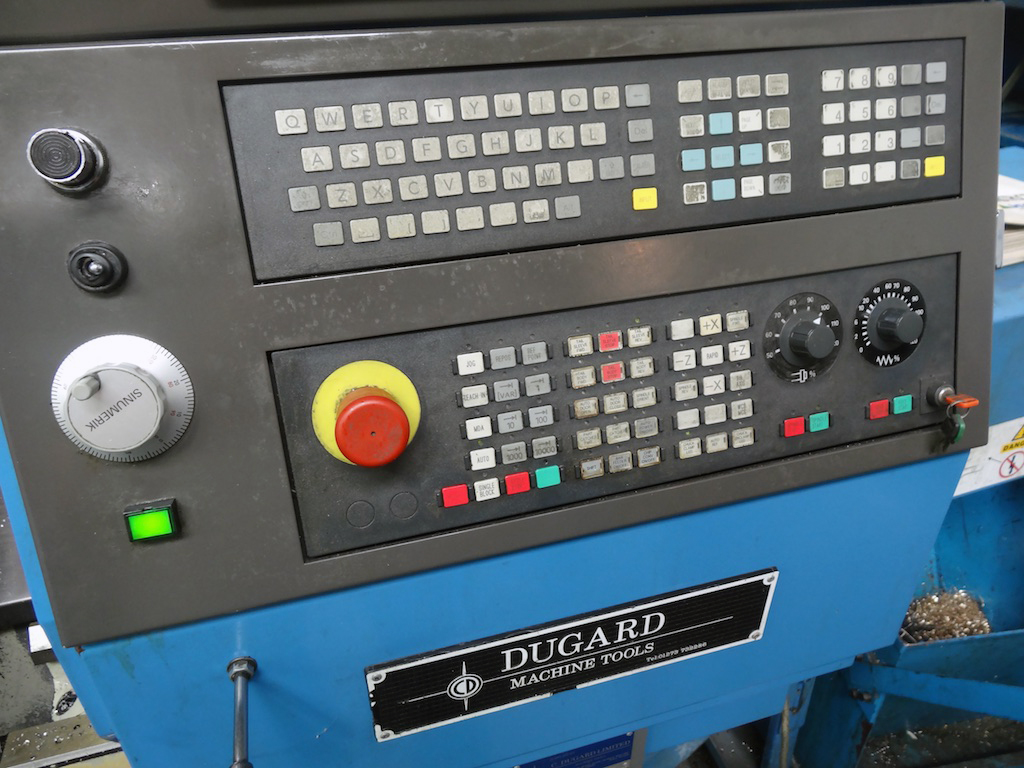

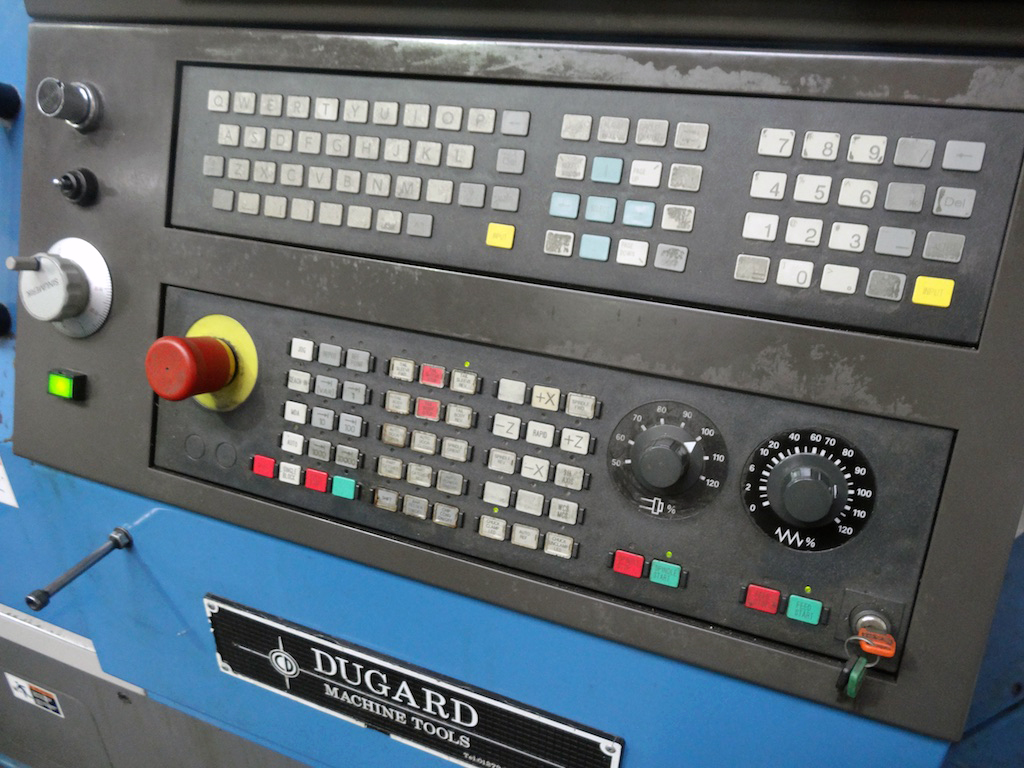

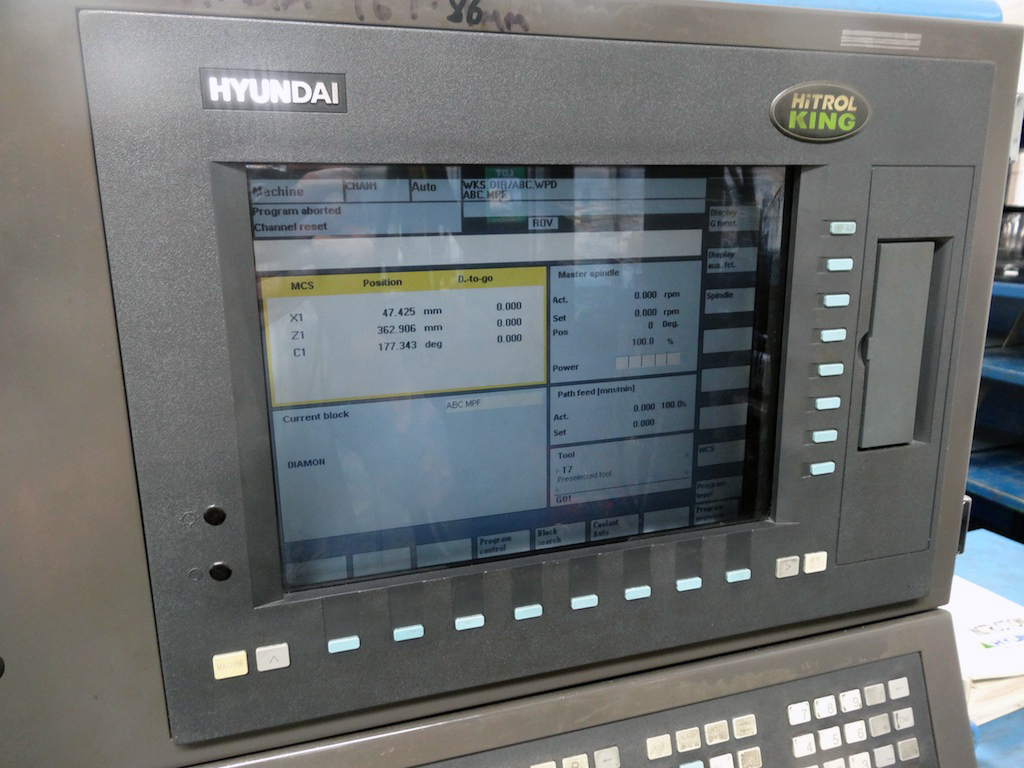

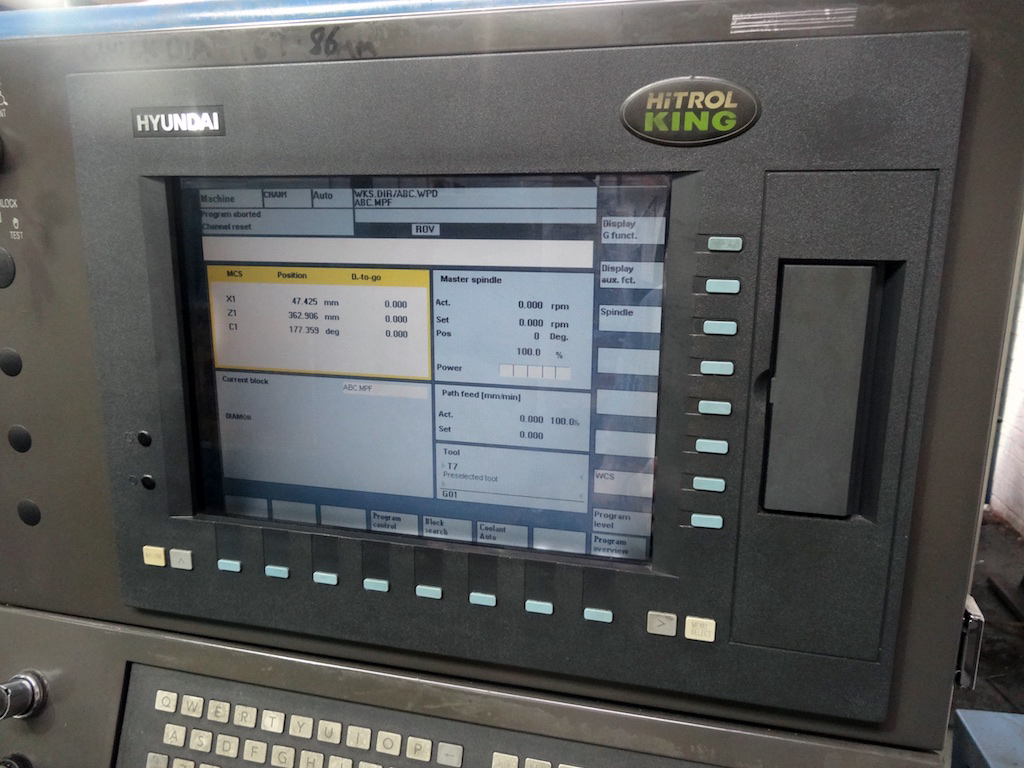

Hyundai control

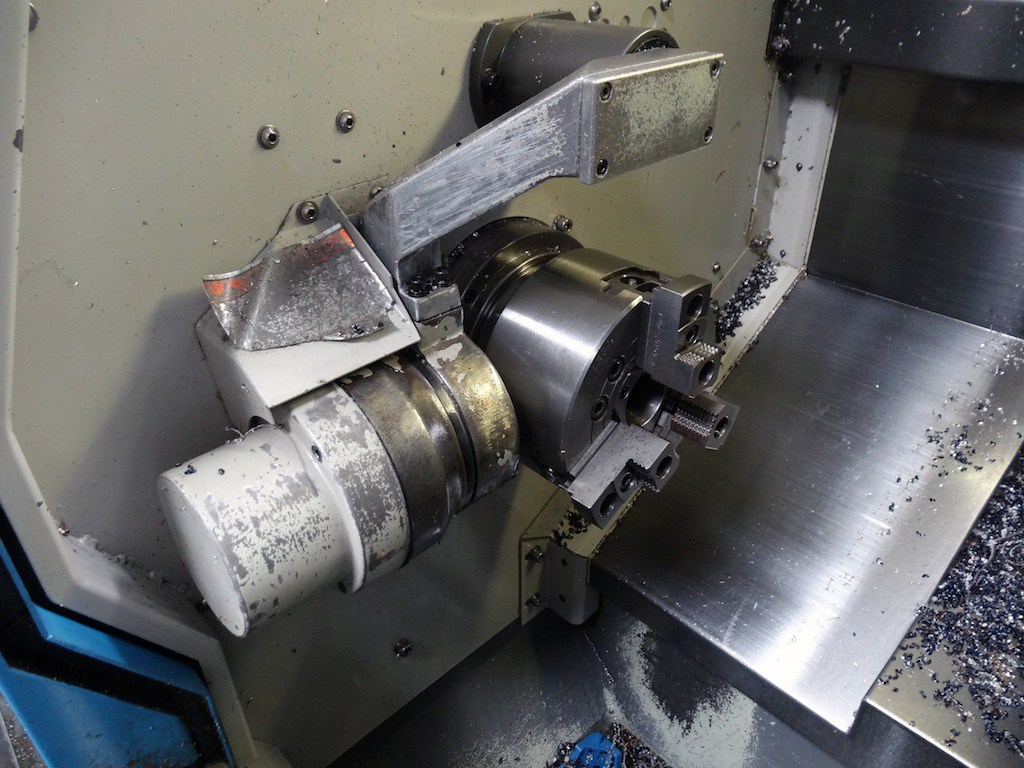

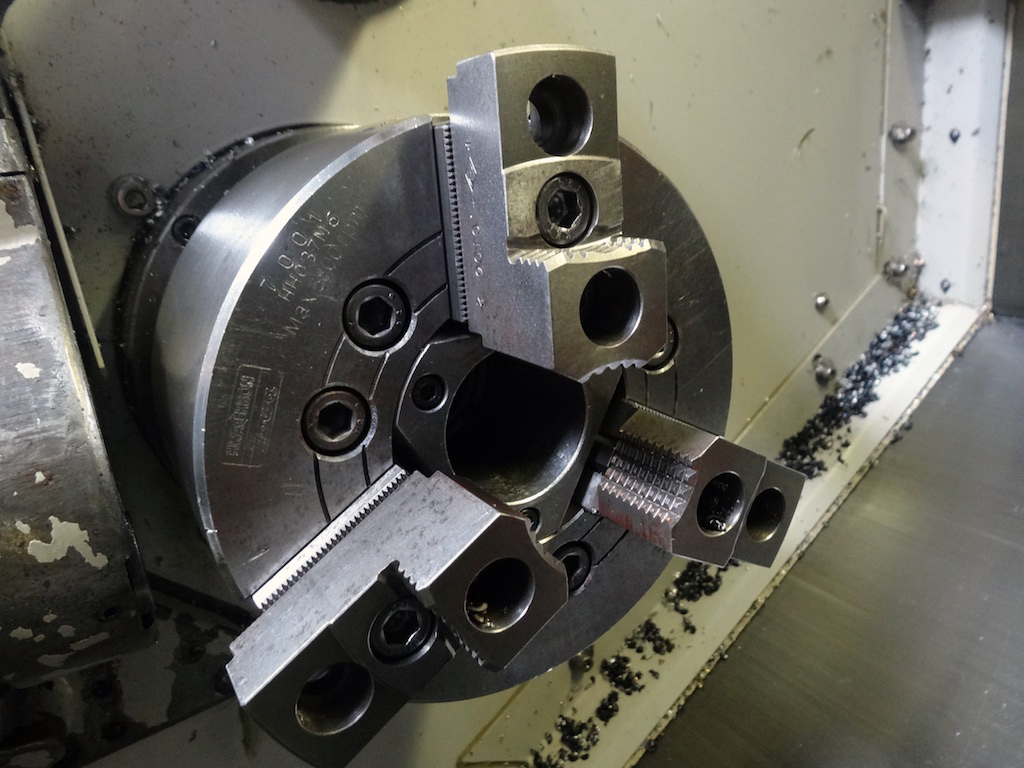

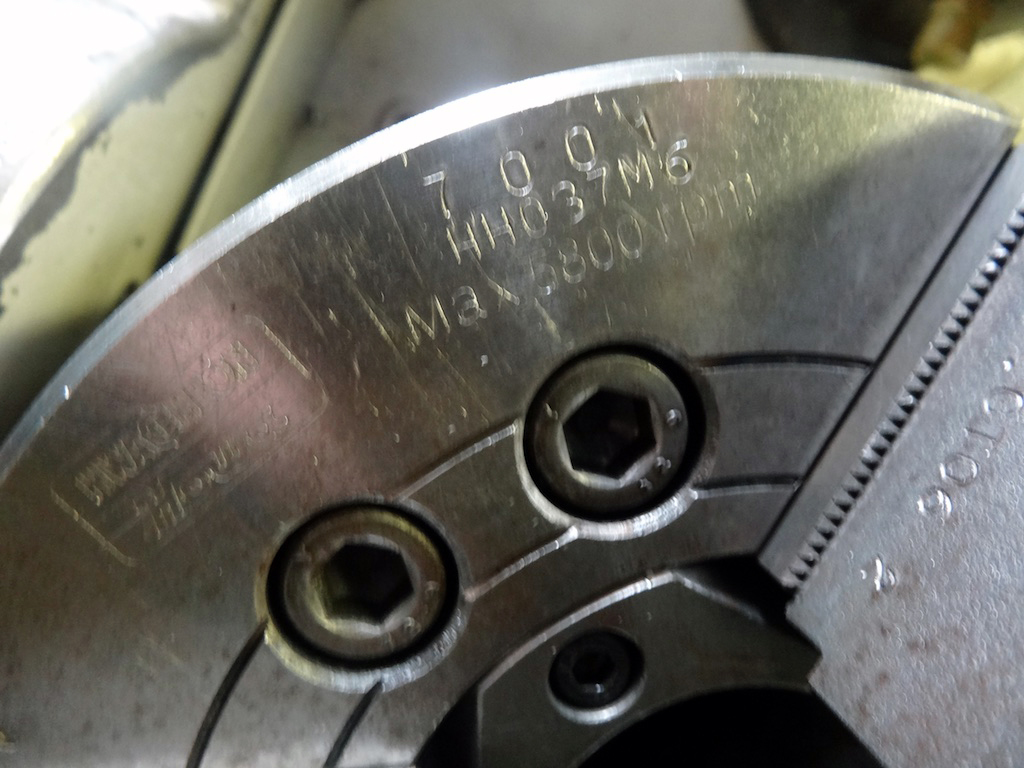

Hwacheon 3” 3 Jaw chuck
Max Rpm: 5800
Max swing: 300mm
Swing on the carriage: 490mm
Max Cutting Dia: 160mm
Max cutting length (shaft): 244mm
Standard cutting dia: 100mm
Distance between section of main spindle and section of turret: 100-390mm
Max bar work capacity: 40mm
Centre height (from ground): 1000mm
Max support weight: 30kg
Main spindle nose: ASA A2-5
Main spindle taper: MT no 4
Speed range of main spindle: 50-5000rpm

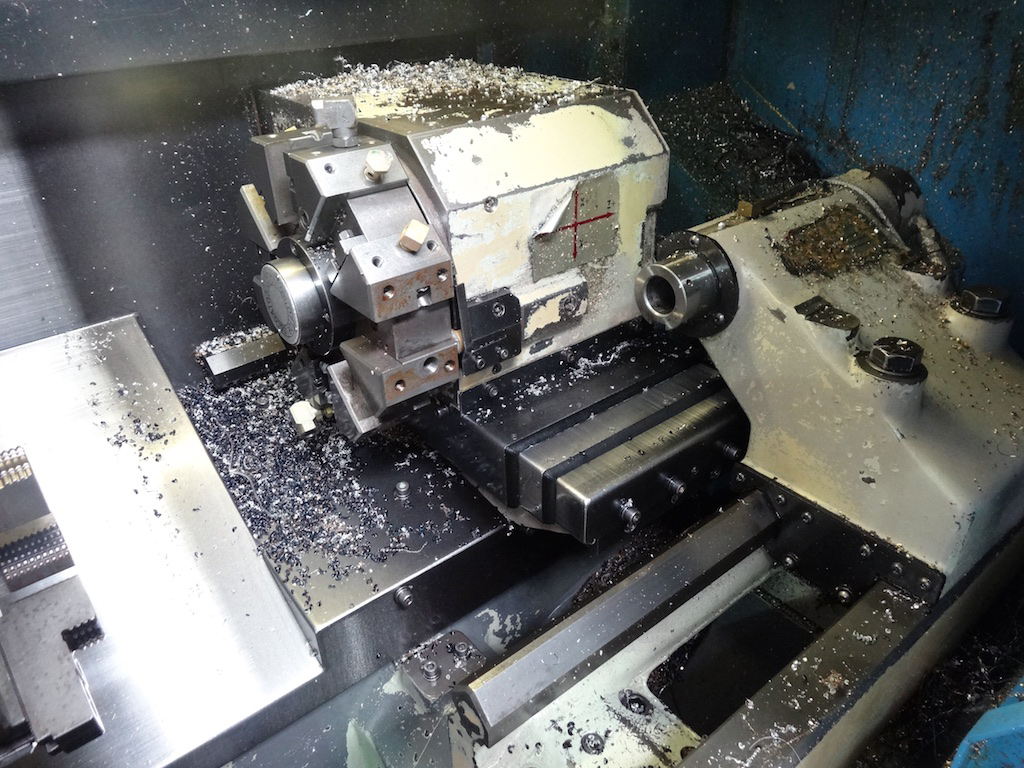

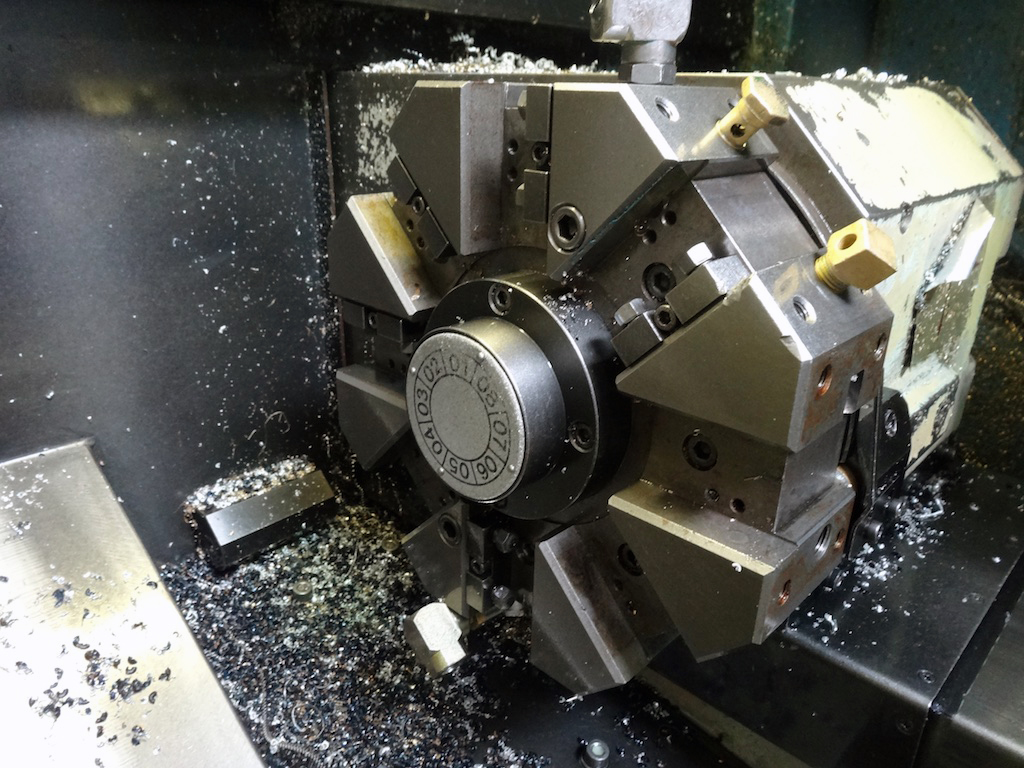

Type of turret: Drum turret of 8 angle
Number of tools: 8
Index time: 0.28 sec/ 1 step
Tool size (outer dia): 20 x 100mm
Tool size (inner dia): max 25mm
Index coupling dia: 180mm

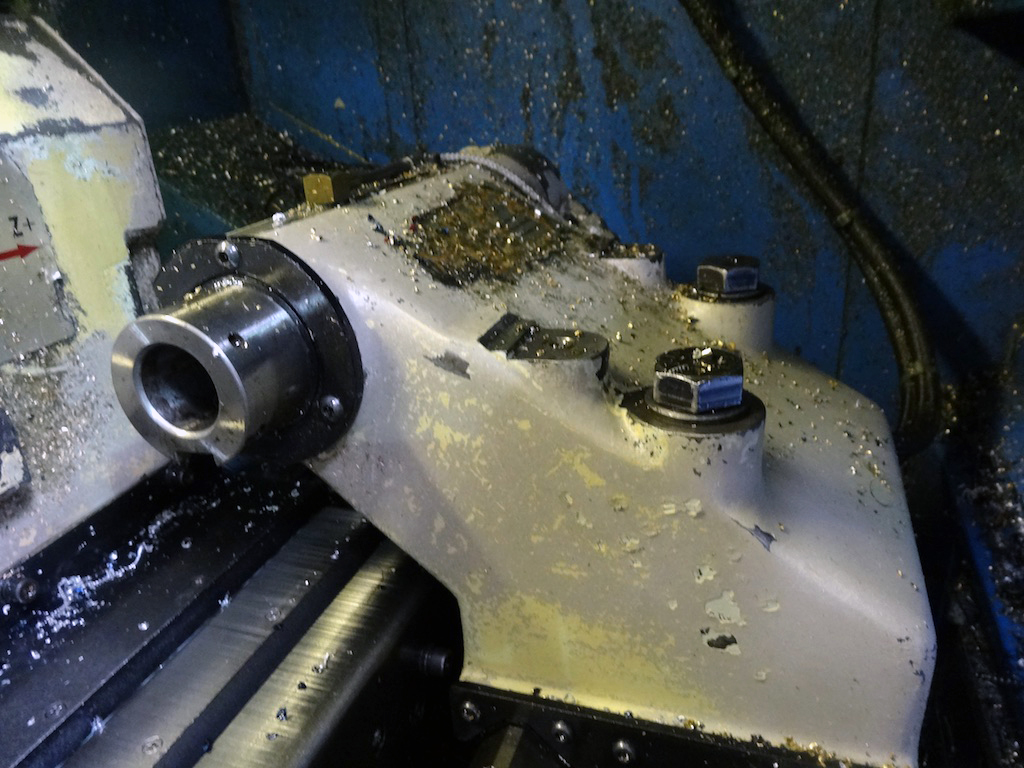

Manual tailstock
Travel:
Amount of transfer on X axis: 100mm
Amount of transfer on Z axis: 290mm
Rapid speed of X: 30m/min
Rapid speed of Z: 30m/min
Shape of bed: Flat
Width of bed: 308

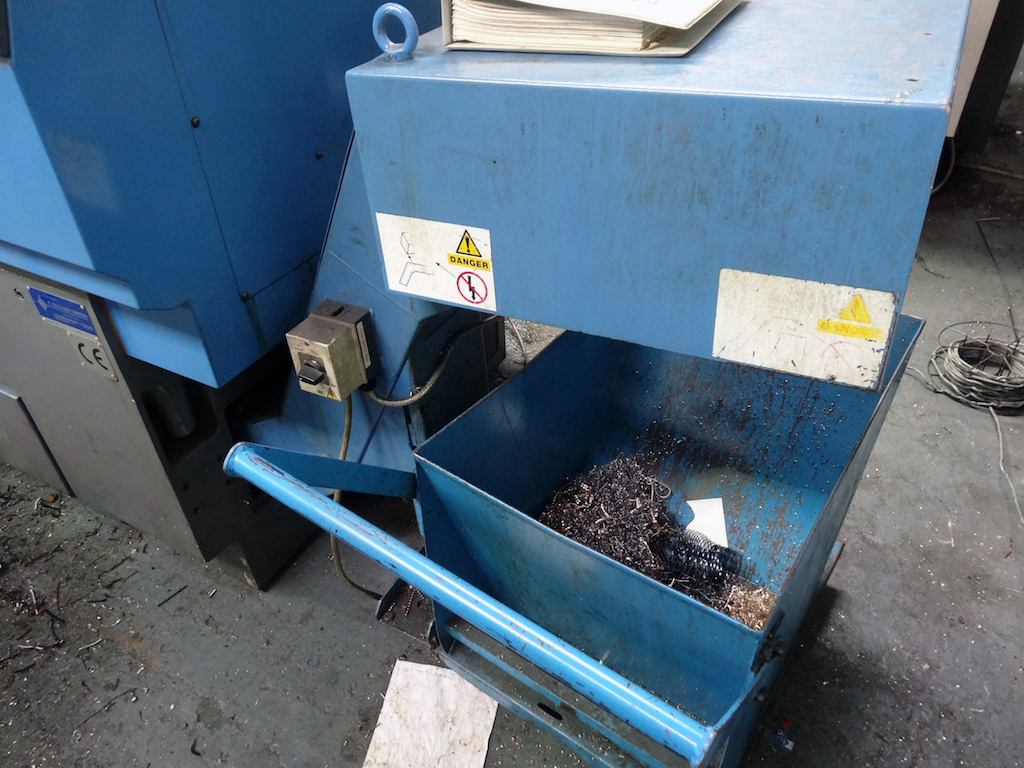

Swarf Conveyor

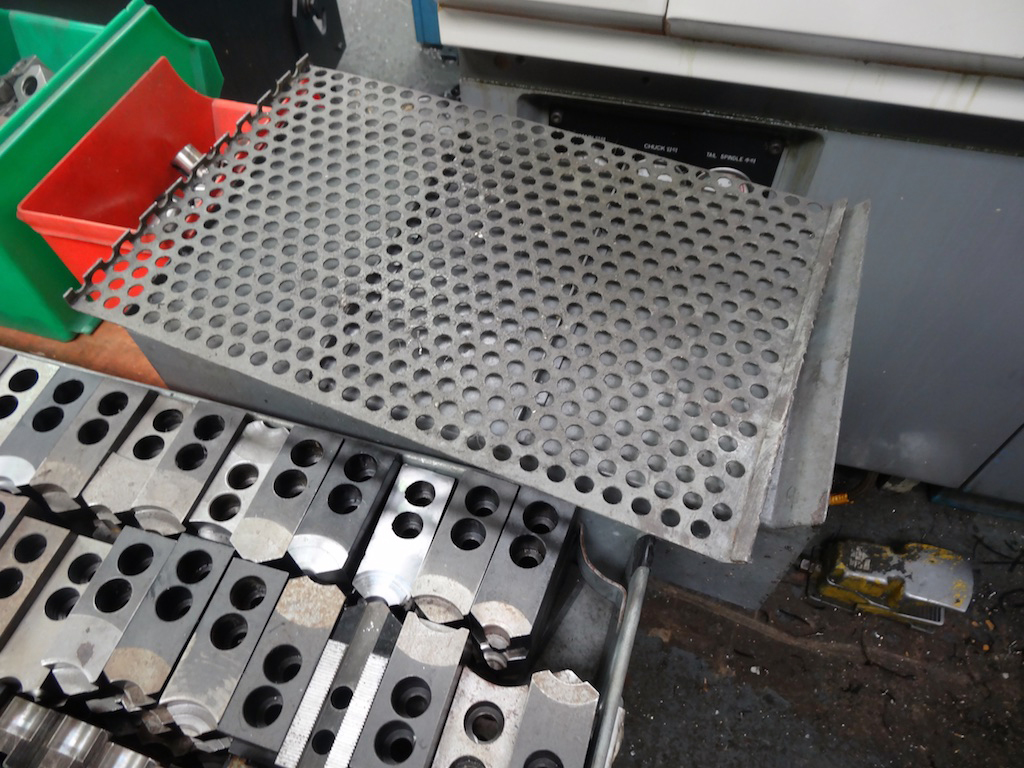

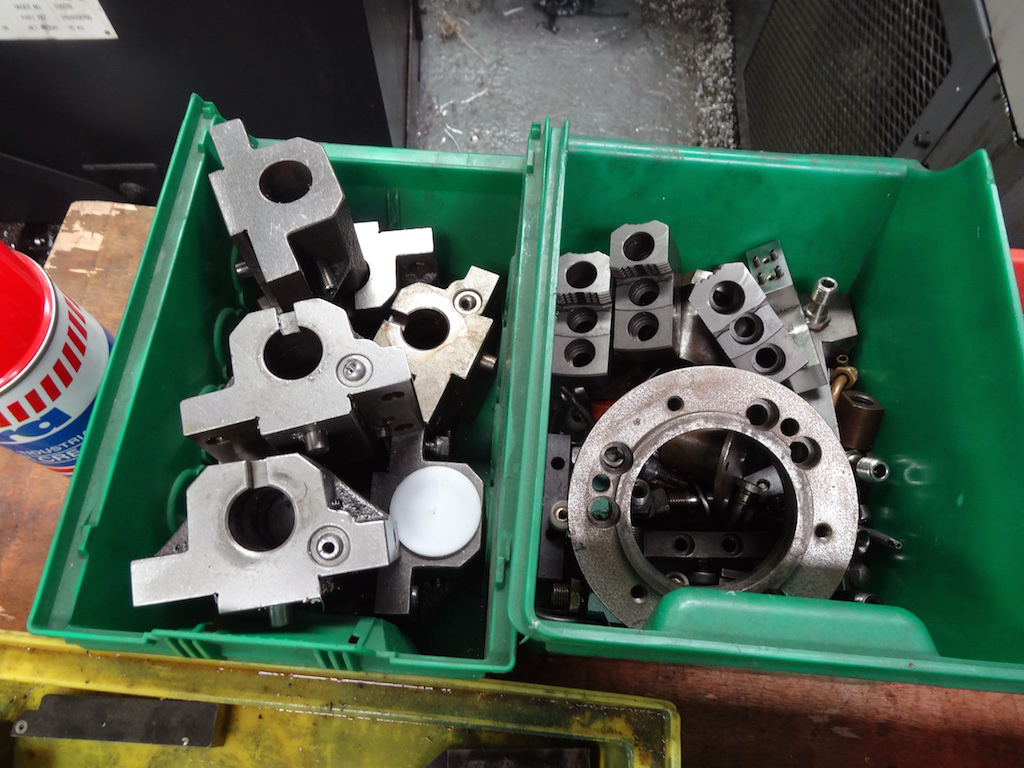

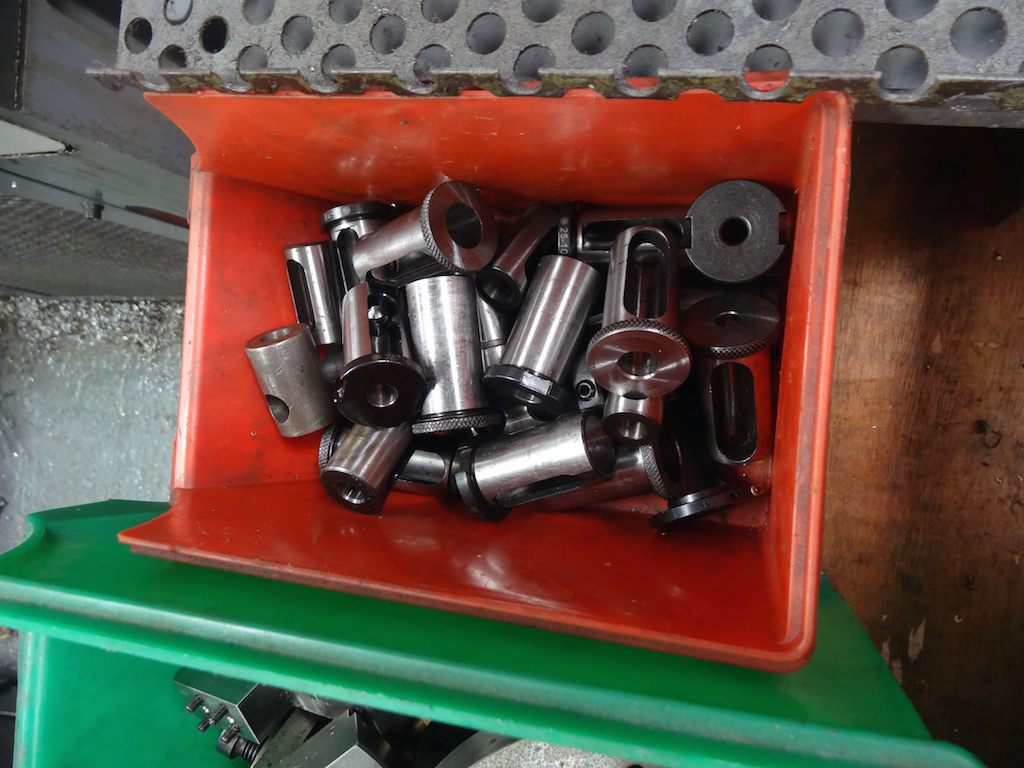

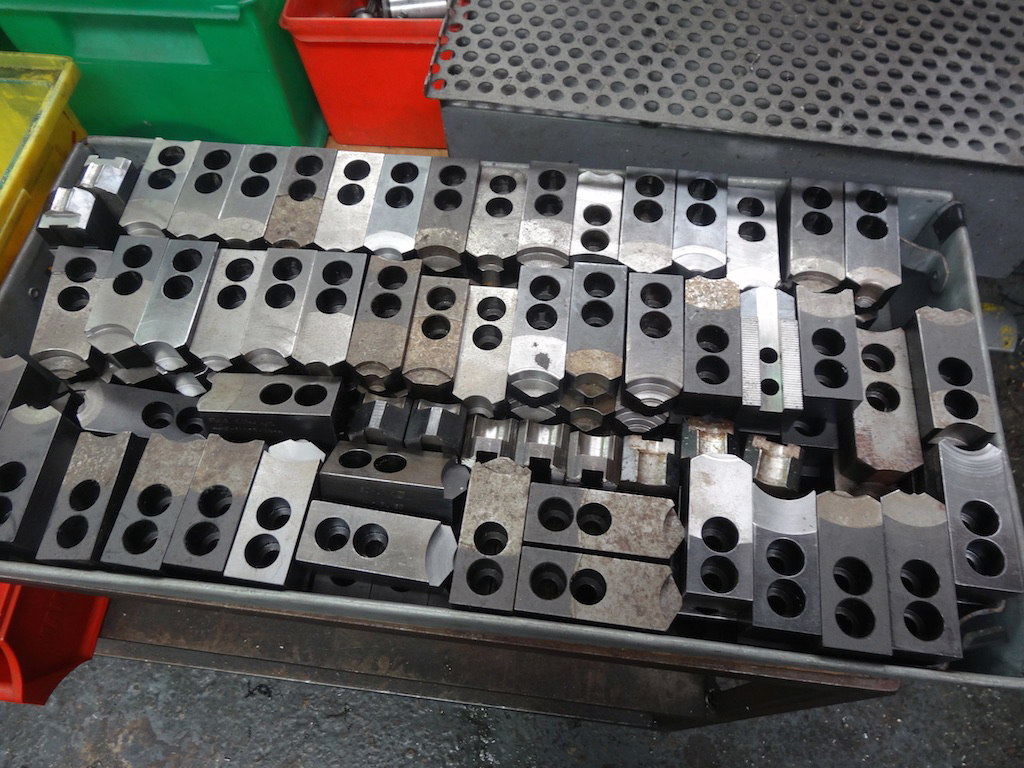

Tooling and tool holders as per photos
Location: Poole
