Lot 1 - JOBS JOMACH 32 5 Axis CNC Gantry Mill
Description:
WIlliams F1 Auction

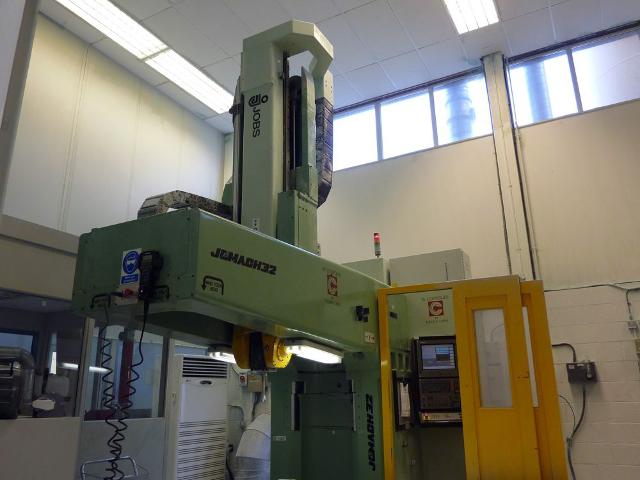

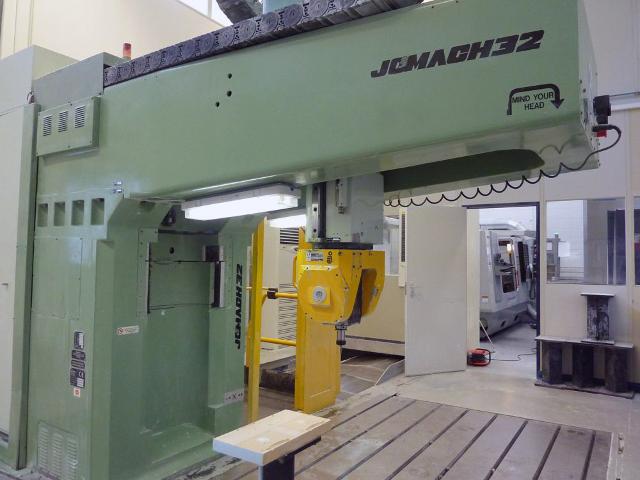

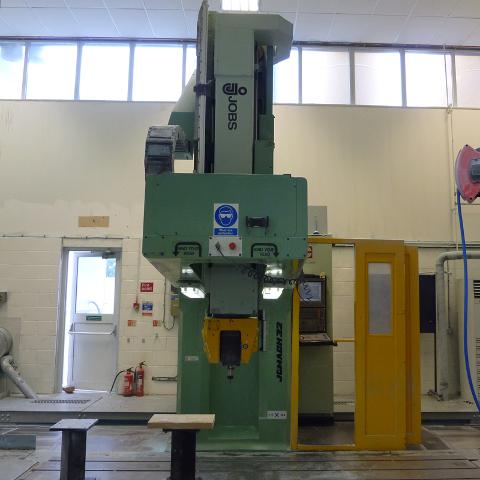

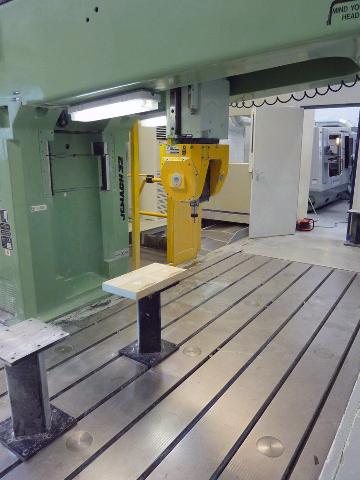

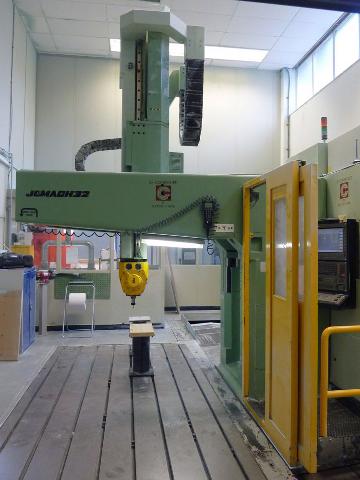

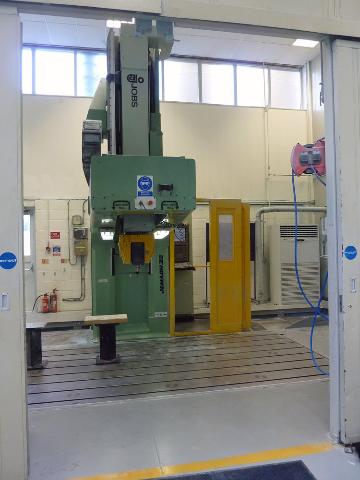

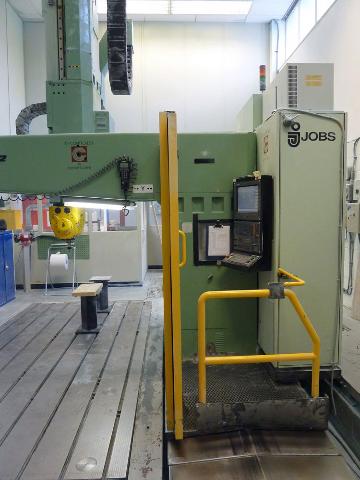

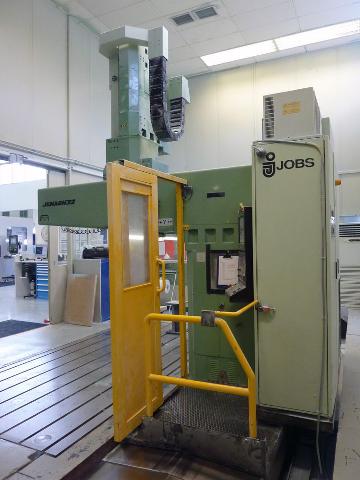

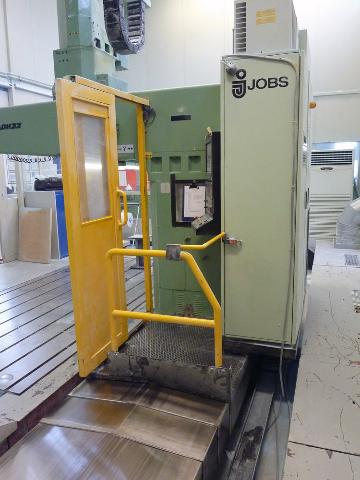

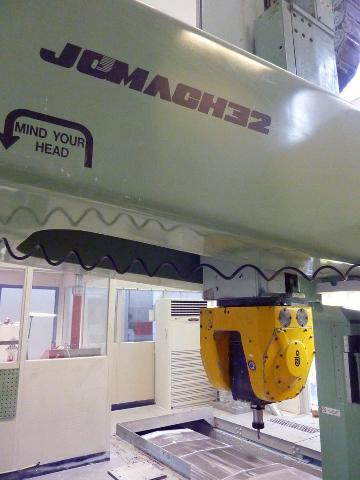

JOBS JOMACH 32 5 Axis CNC Gantry Milling Machine

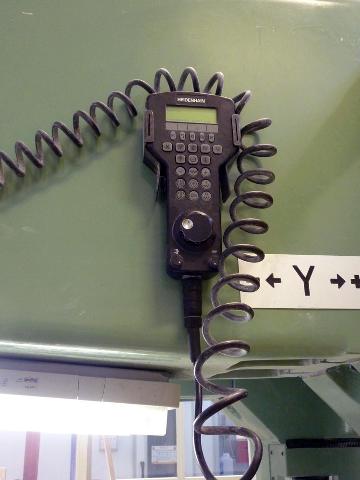

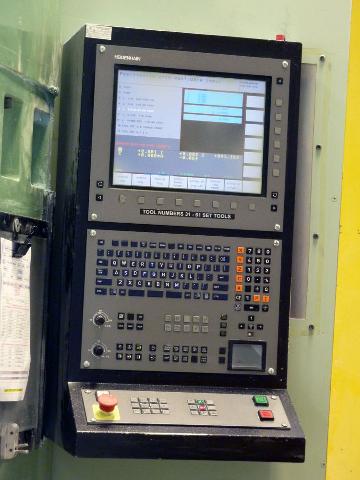

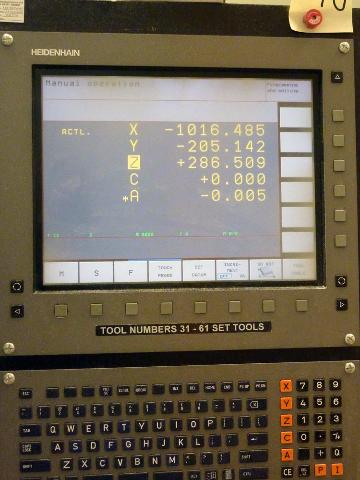

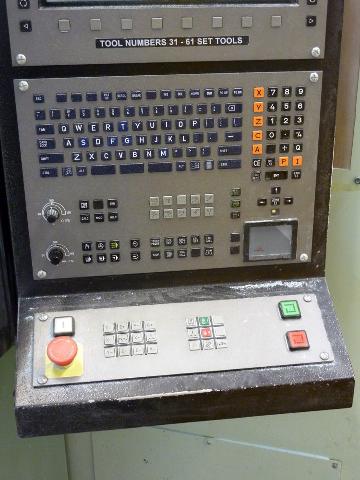

Heidenhain 530 Control (Retrofitted in 2003)

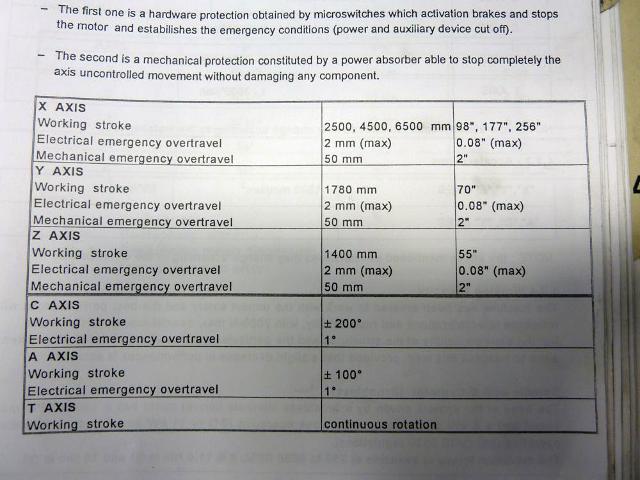

X = 4500mm
Y = 1780mm
Z = 1400mm
A Axis: 190°
C Axis: 400°

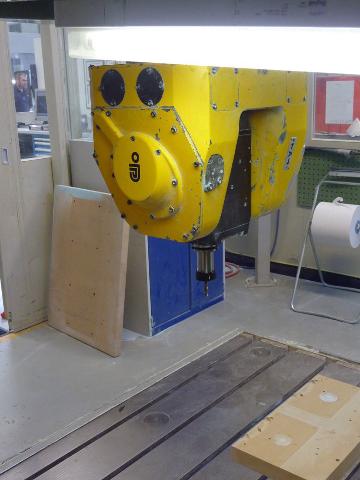

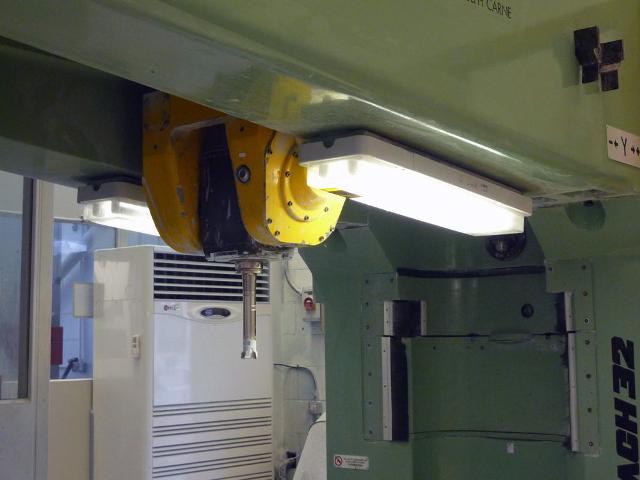

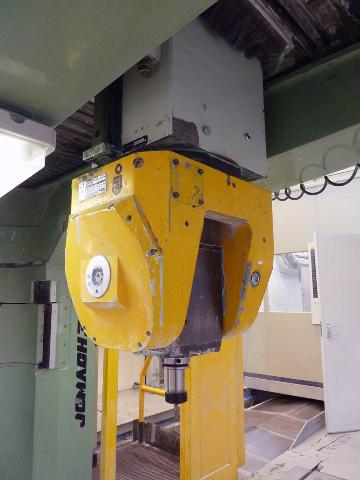

16,000 RPM Spindle
HSK63 Taper
10160mm pm Feed Rate

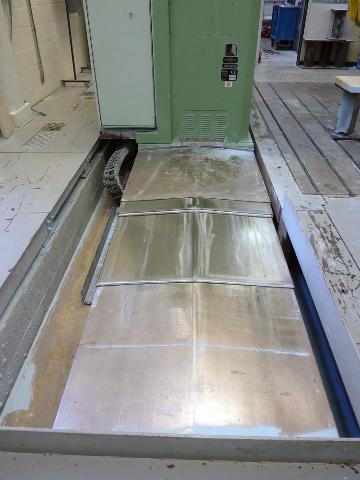

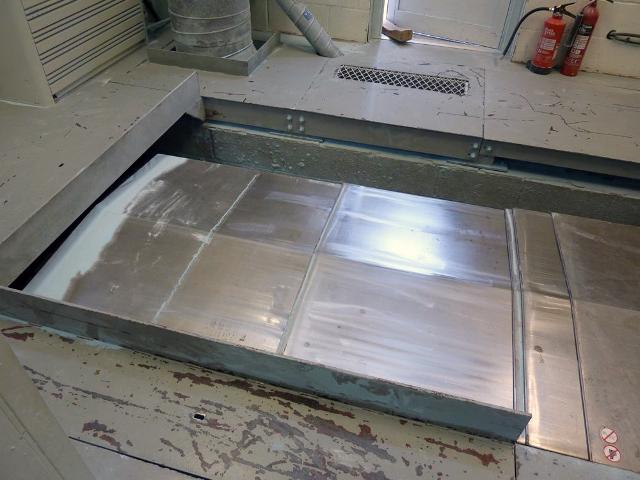

Telescoping Steel Way Covers
Ethernet

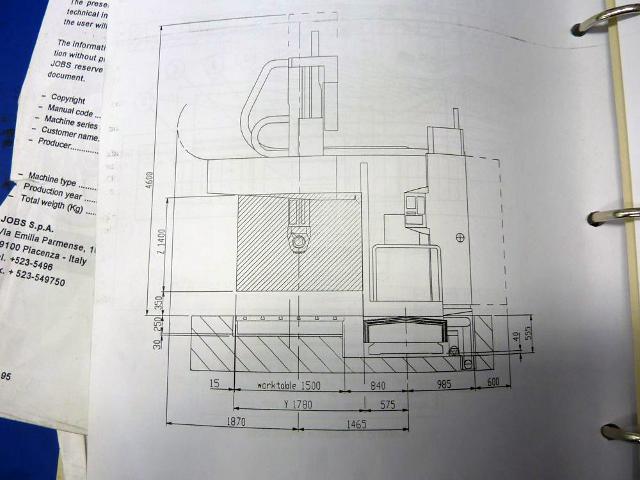

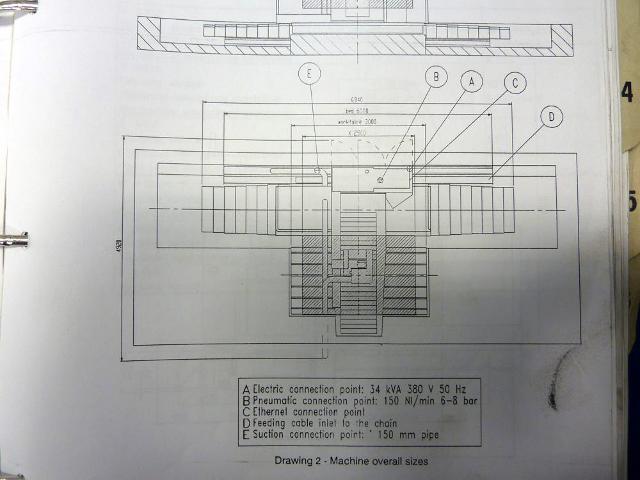

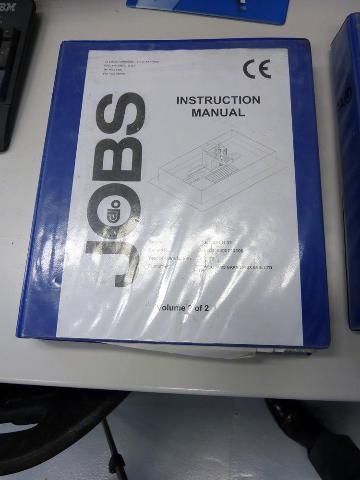

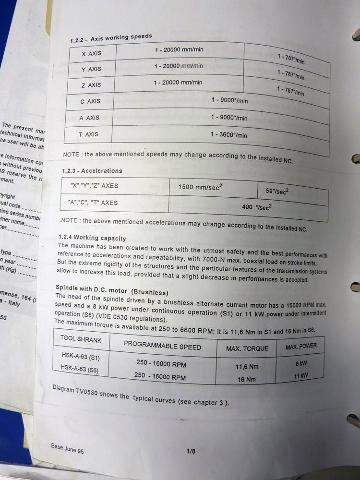

Manuals

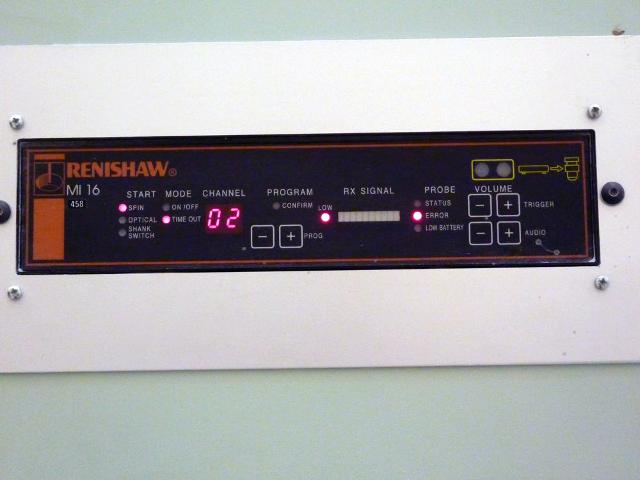

Renishaw MI 16 Probe System, including TT130 touch probe

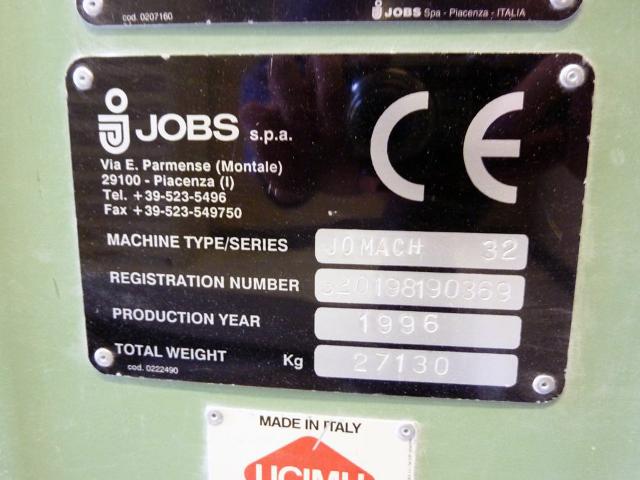

Year of manufacturer 1996

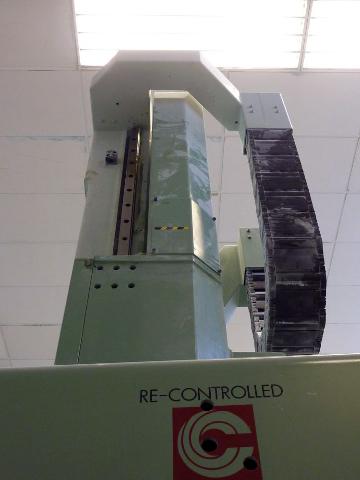

Retrofitted Heidenhain 530 Control, Serviced and maintained to a high standard by DTS.

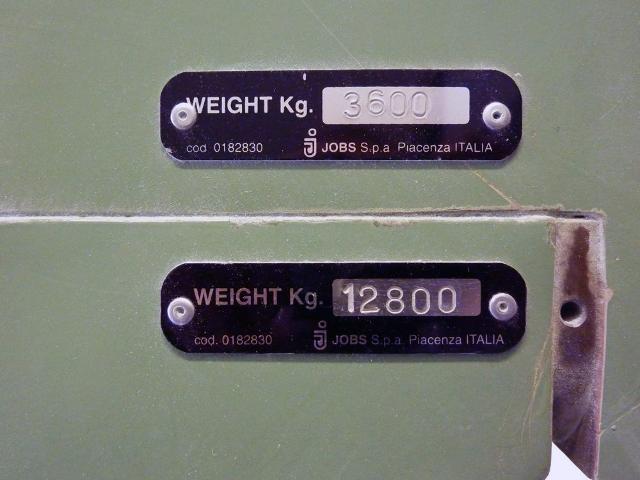

Total Weight 27,130kg
The Jomach 032 is a high speed milling centre that, thanks to its open-sided architecture may be operated in machine shops where space is of a premium, to machine even medium-large workpieces.
Thanks to its simple and particular structure, it offers the best relationship between price and performance.
The Jomach 32 is largely employed in the high speed, high precision production of
electrodes, models and pre-production moulds & dies.
A large number of businesses producing composite components use the Jomach 032 in their production
Machine needs to removed from site no later then Friday 3rd June
DTS UK Ltd, are available for the decommissioning, transportation and recommissioning if required.
Please contact Andy Bailey of DTS on 07887 731545 or 0844 445 7005.
