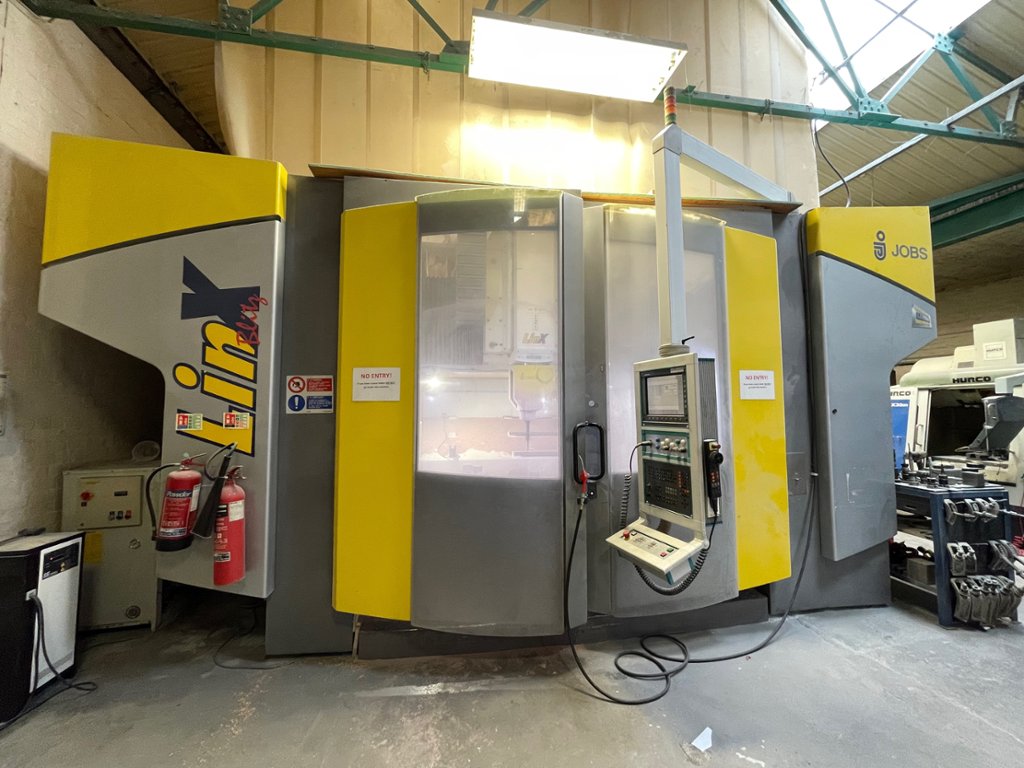

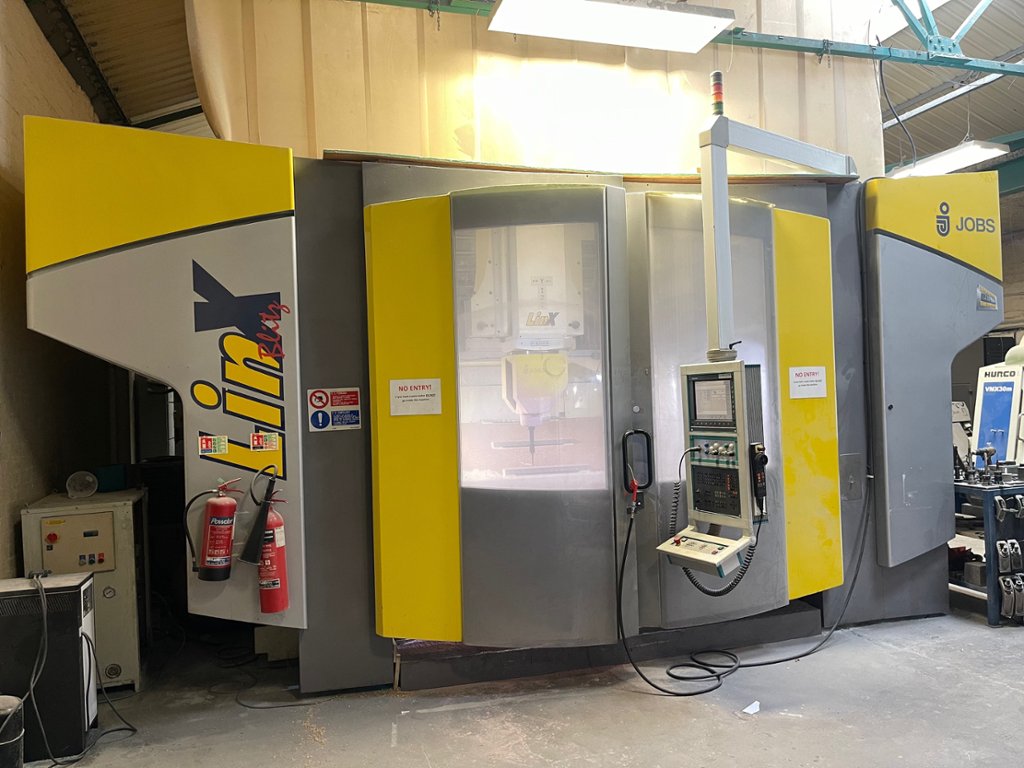

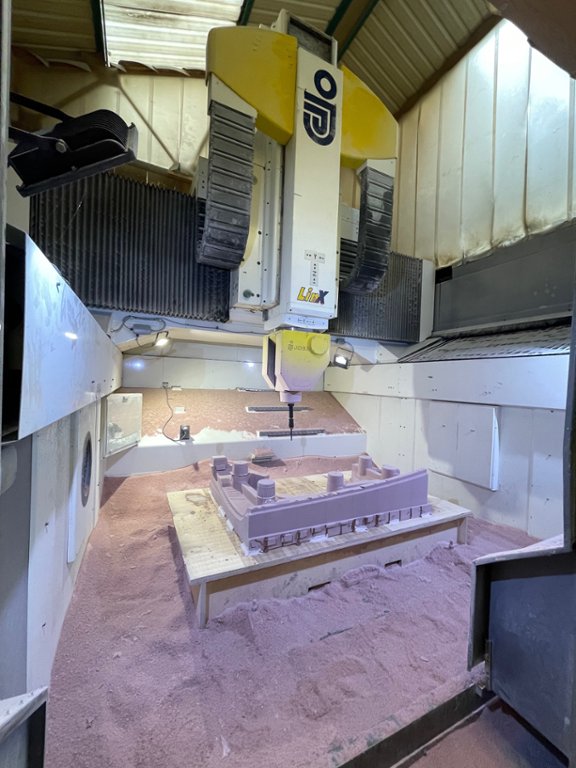

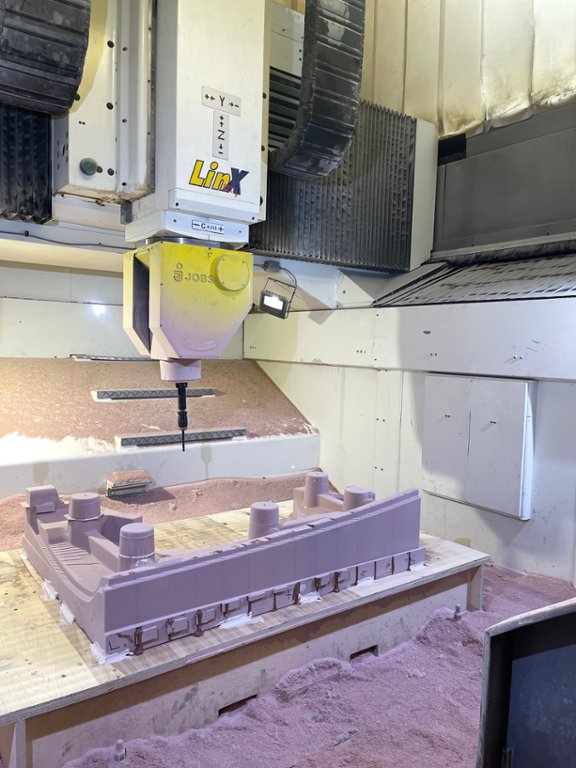

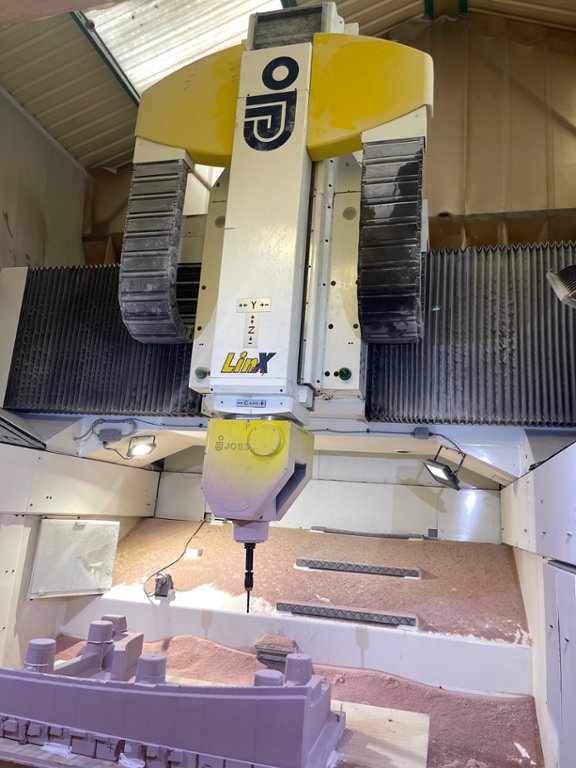

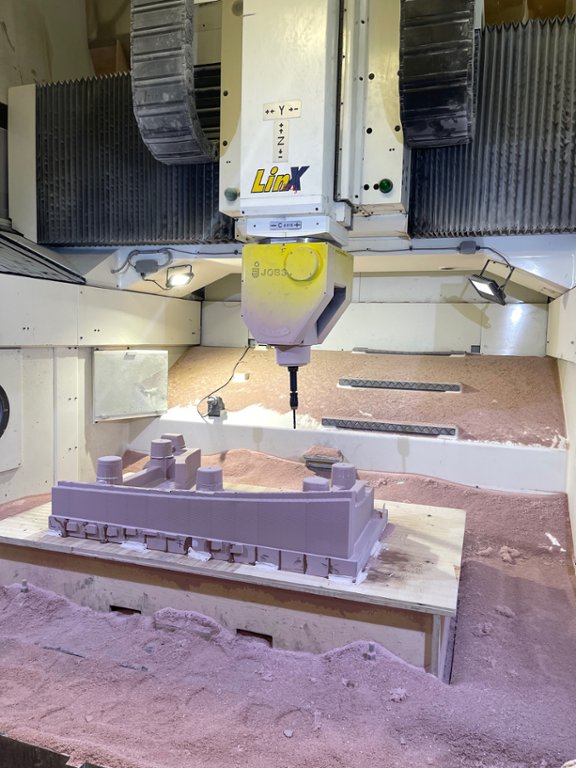

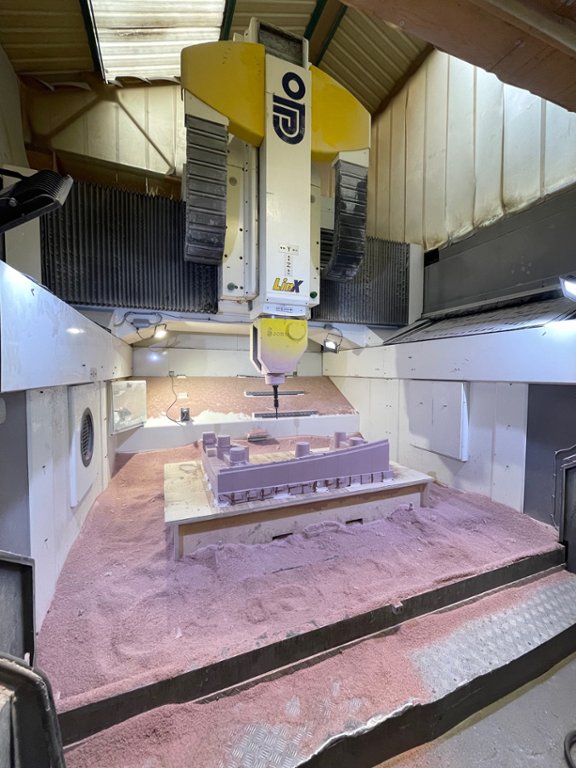

Lot 1 - Jobs Linx Blitz 5 Axis Vertical Machining Centre (2003)
Description:
Specifications:
X-Axis: 102"
Y-Axis: 86"
Z-Axis: 35"

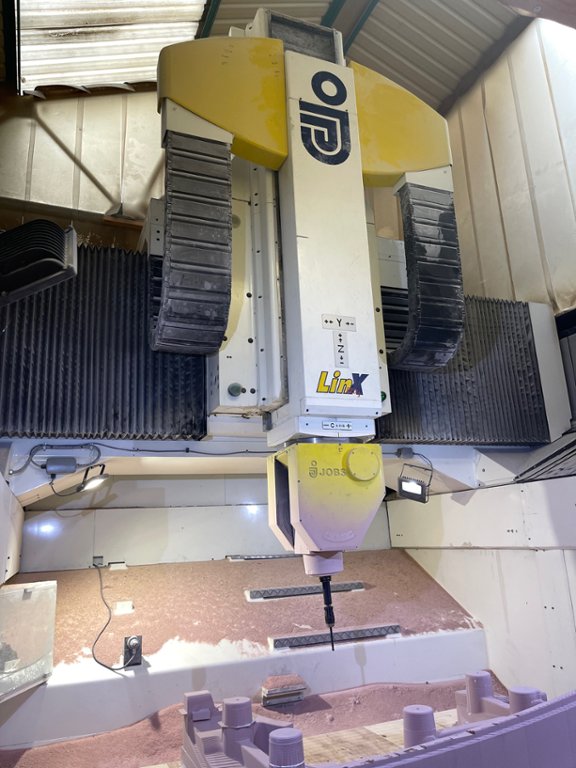

Head Rotation: + / - 200 Degrees
Head Tilting: +90 / -120 Degrees
Distance between columns: 118"

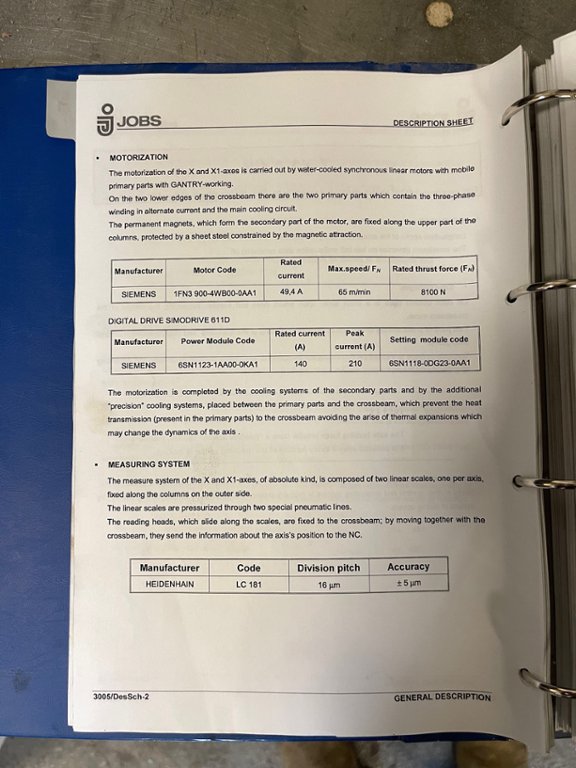

Axes support: Linear Motors
Spindle Power: 38.8 HP
Spindle Speed: 24,000 RPM
Torque: 42 Nm
Spindle Taper: HSK63A
Rapids:
X-Axis: 275 IPM
Y-Axis: 275 IPM
Z-Axis: 275 IPM
A-Axis: 180 Deg / Sec
C-Axis: 180 Deg / Sec
Axes Acceleration: 275 inches / S2

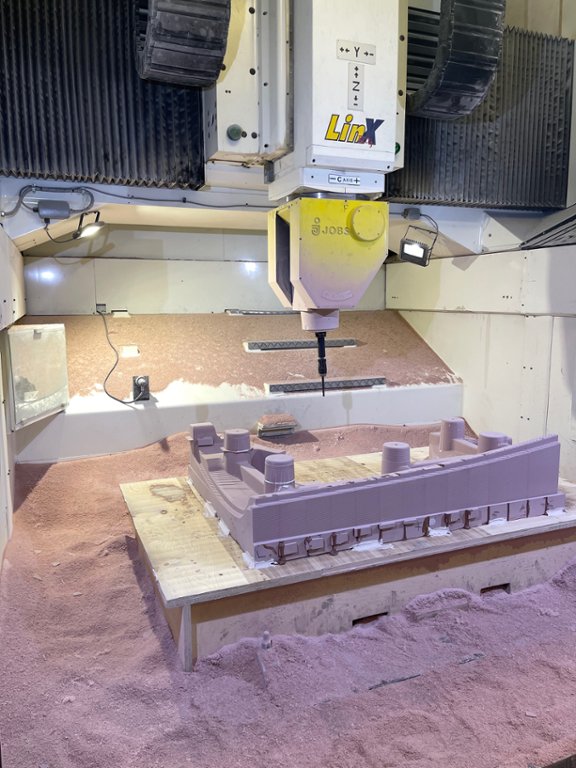

Table:
Dimensions (L x W x H): 105" x 111" x 11.8"
Weight Capacity: 81585 Lbs

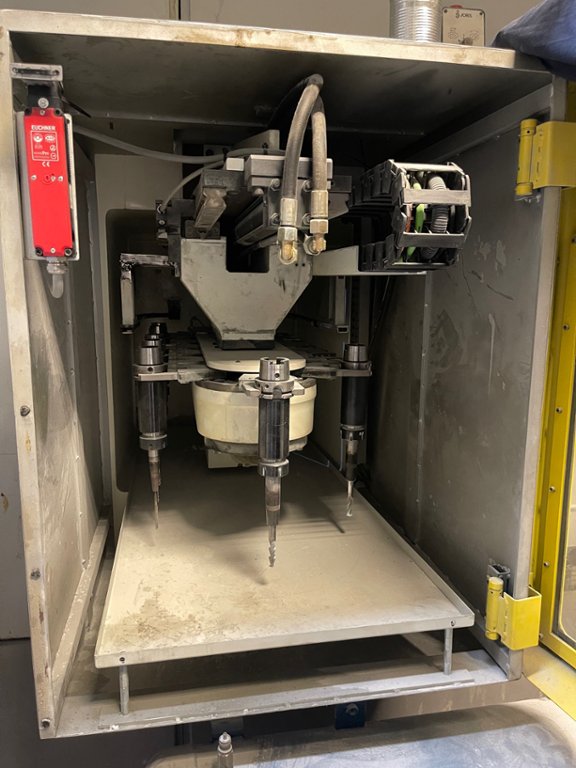

ATC:
Positions: 20
Tool Taper: HSK63A
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
03 Nov 2022 15:00:00 GMT
Opening bid: £2000
Bids: 0
Location: Wolverhampton
Transport information
- Width: 321"
- Depth: 323"
- Height: 153"
- Weight: 74088 Lbs
- Other Transport Details: No loading available on site. Buyer to arrange decommissioning and disconnection of machine.
