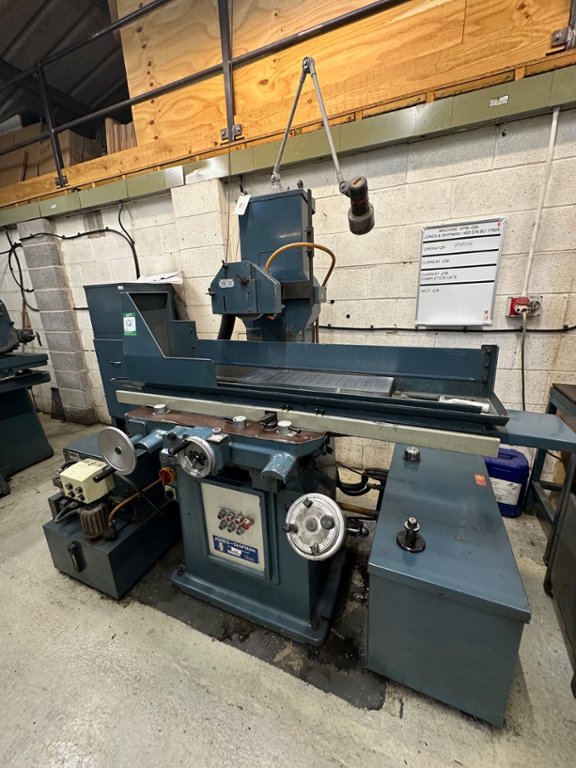

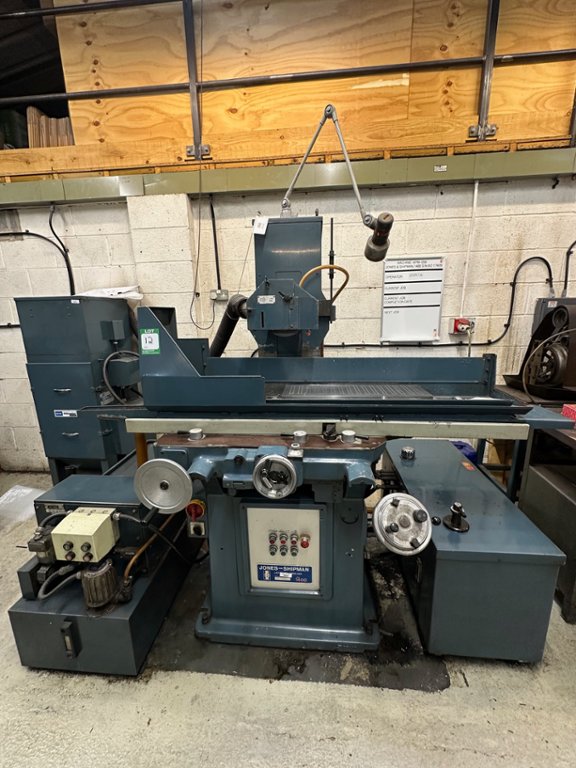

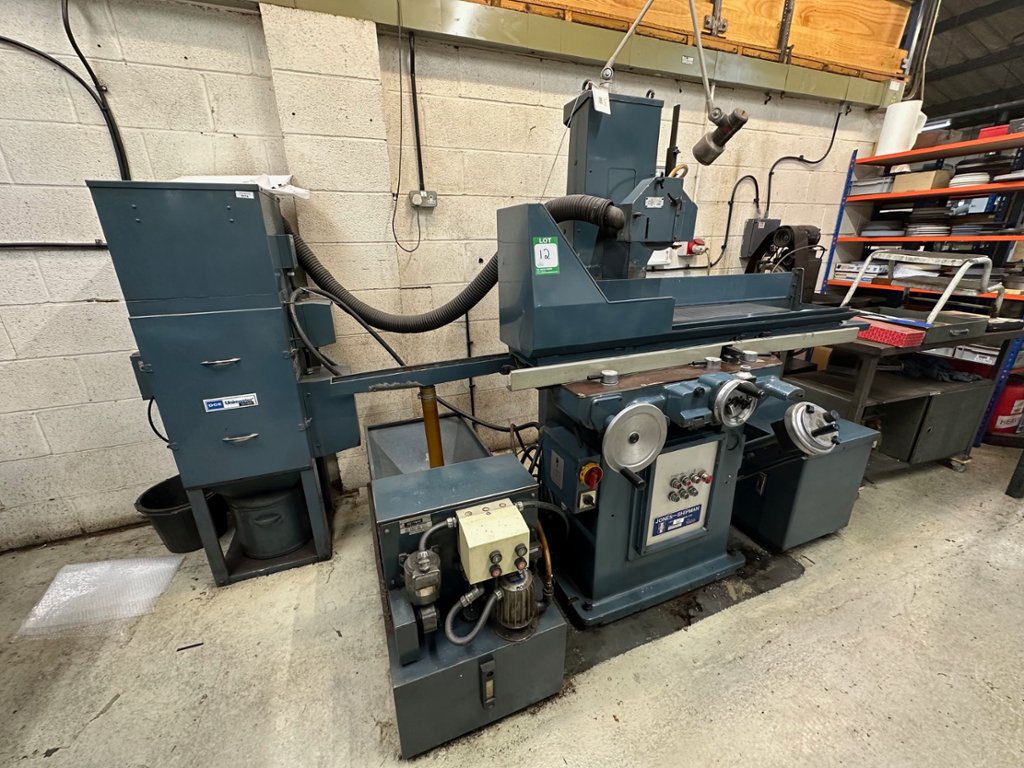

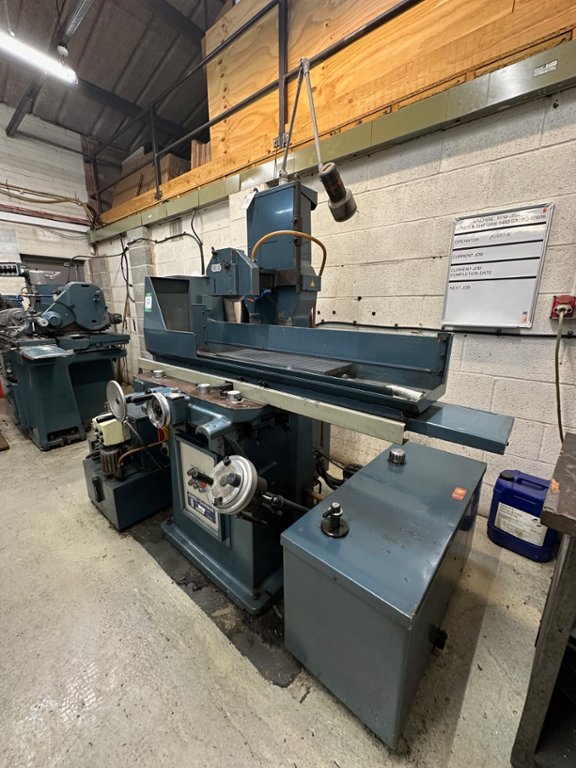

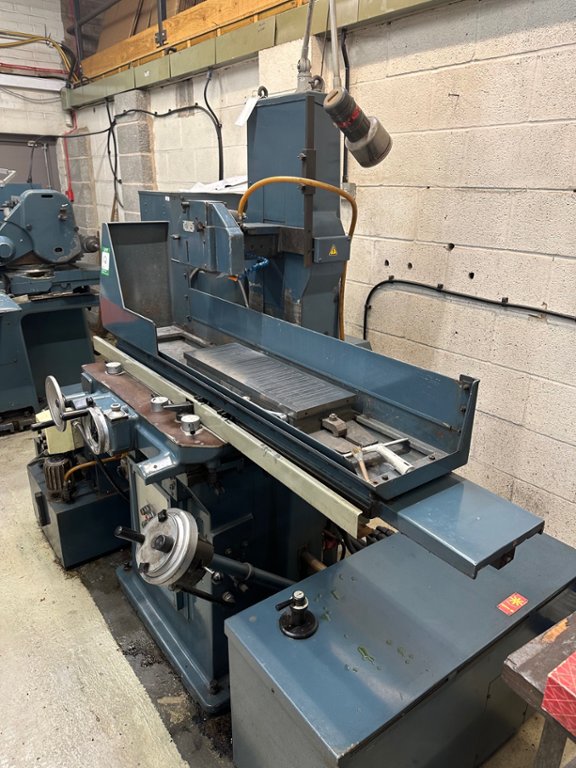

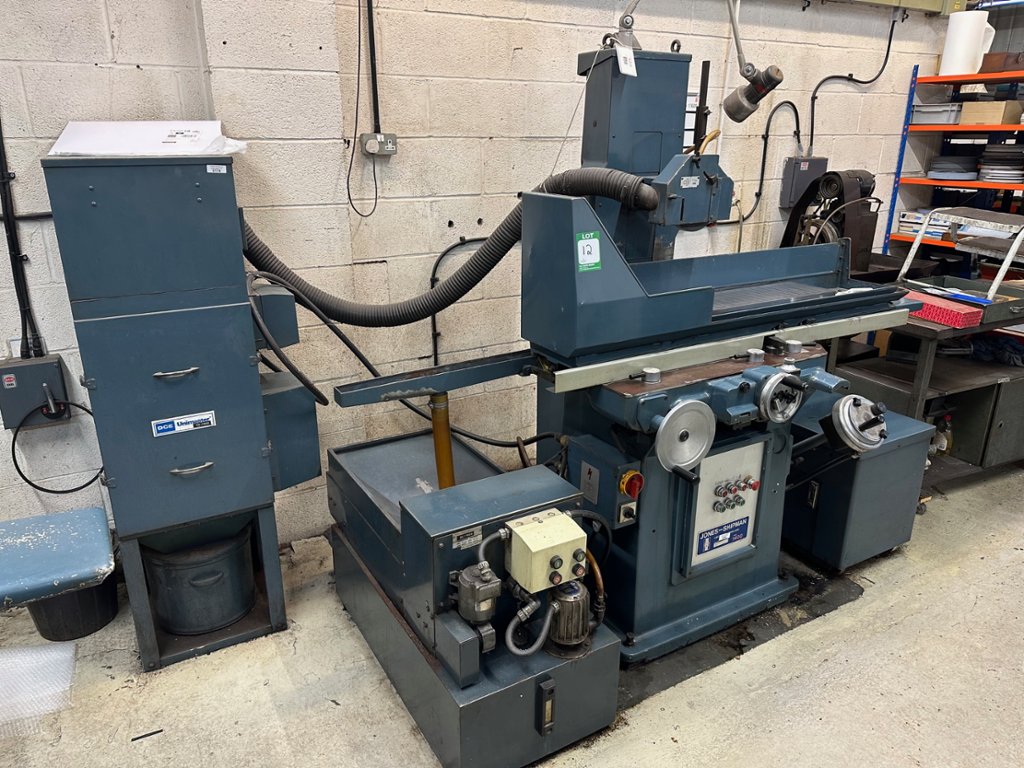

Jones & Shipman 1400 Surface Grinder (1990)

Lot 12 - Jones & Shipman 1400 Surface Grinder (1990)

Description:

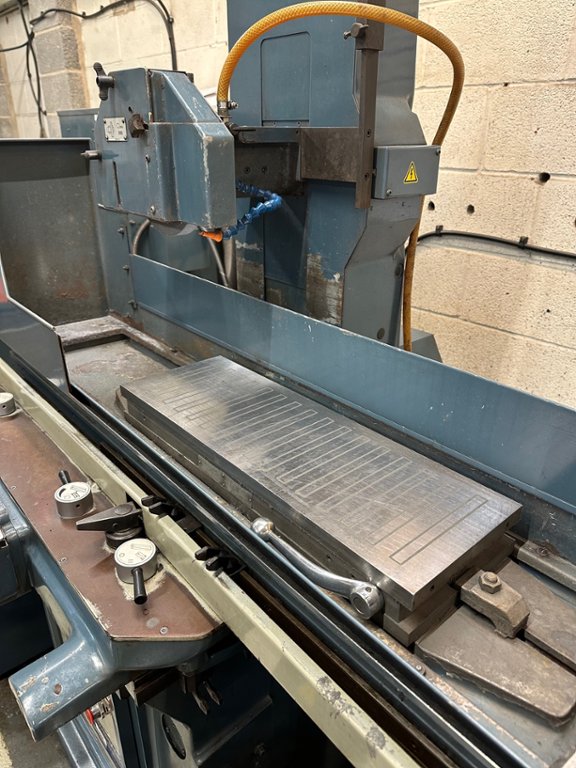

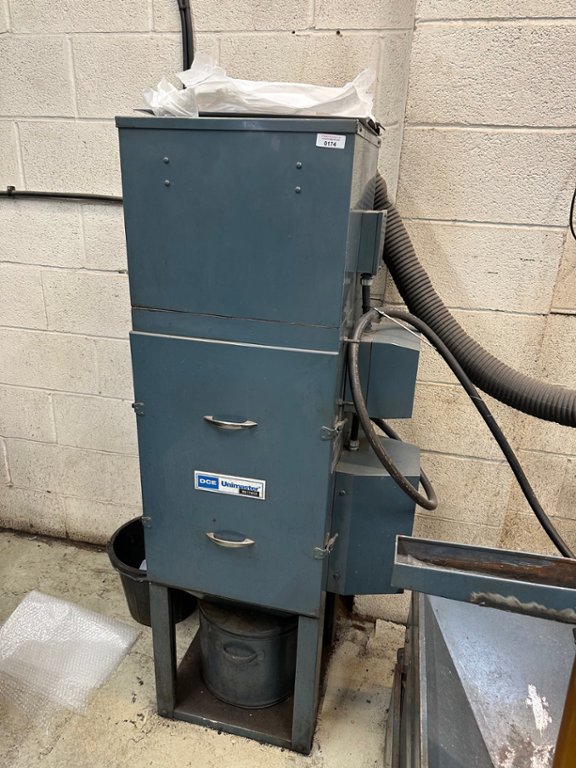

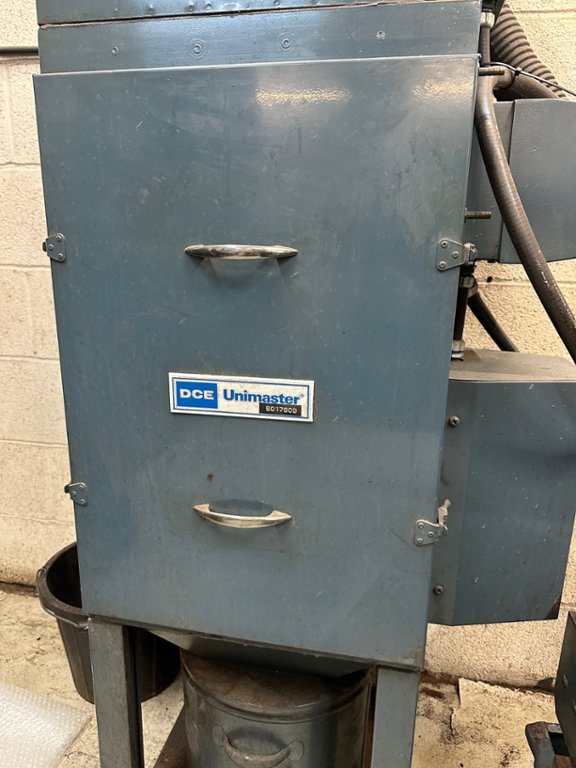

8 x 24” magnetic chuck, hydraulic feed, coolant, power rise & fall of wheelhead, coolant, dust extraction

Table

Longitudinal traverse of Table, Hand and Hydraulic (max) - 625mm, Cros Traverse of Table, Hand and Hydraulic (max) - 200mm, Working surface of Table - 610 x 178mm

Feeds

Table traverse speed range per min - 3-20mm, Traverse of Table movement per one rev of handwheel - 38mm, Cross feed range per stroke at each reversal - 0.175 - 1.75mm, Micrometer cross feed graduated in vertical feed adjustment in increments of - 0.001mm

Wheel-Head

Vertical movement of Wheelhead (max) - 280mm, Wheel spindle centre to table (min) 80mm, Size of grinding wheel - 200 x 20 x 32 mm, Speed of wheel on 50 cycle supply (standard) - 2.450 RPM, Speed of wheel on 60 cycle supply (to order) - 2.900 RPM

Motor

H.P of Wheelhead motor - 1 1/2 CV, H.P of Hydraulic pumo motor - 1 CV

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
