Jones & Shipman 310 Tool and Cutter Grinder

Lot 3 - Jones & Shipman 310 Tool and Cutter Grinder

Description:

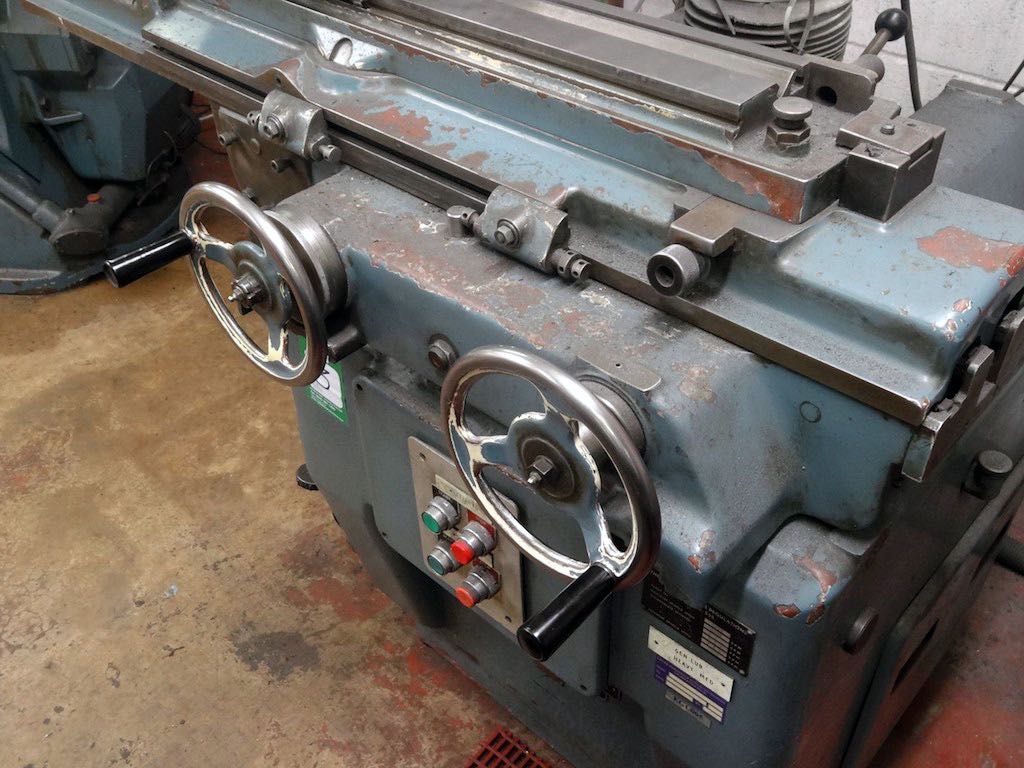

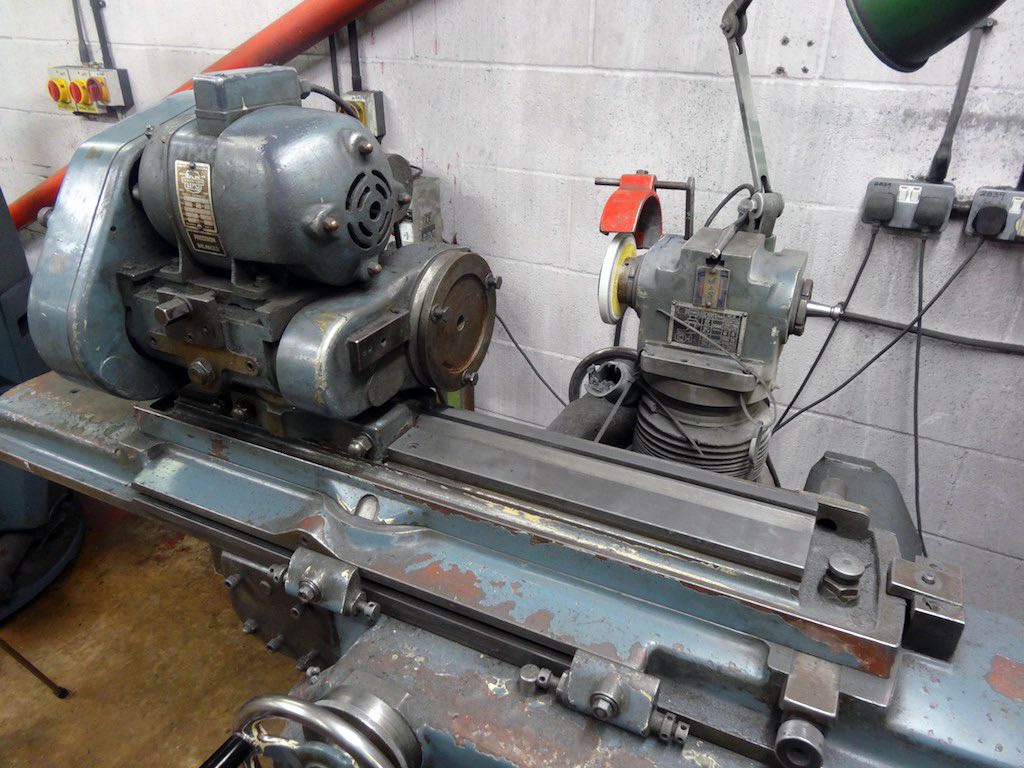

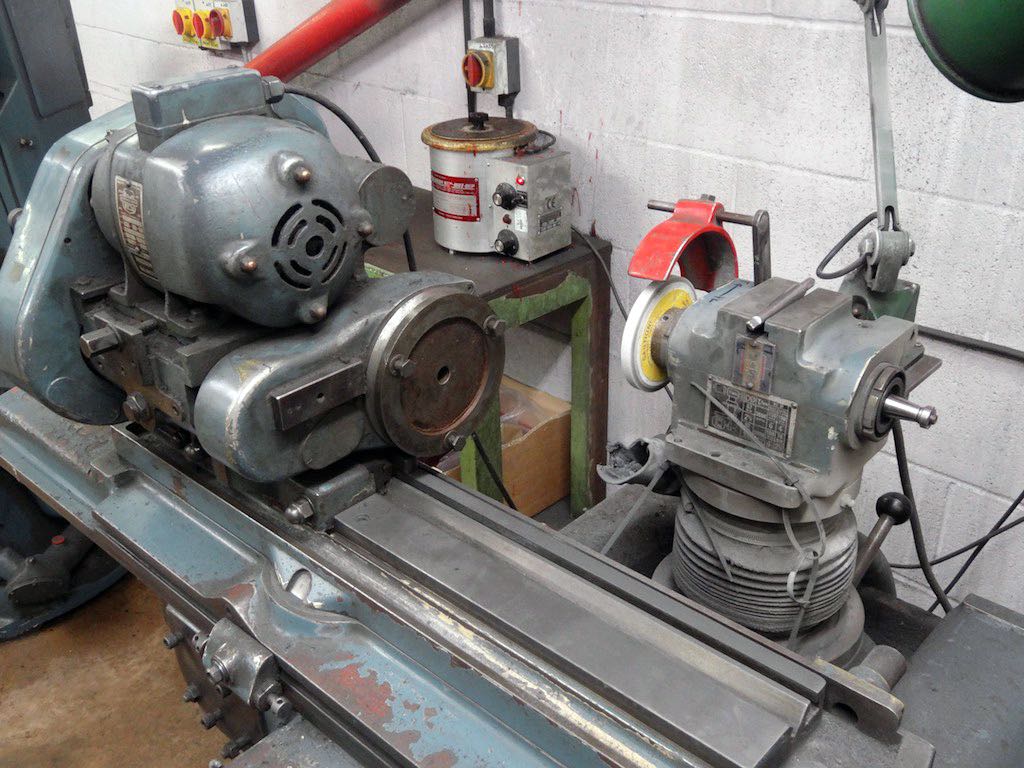

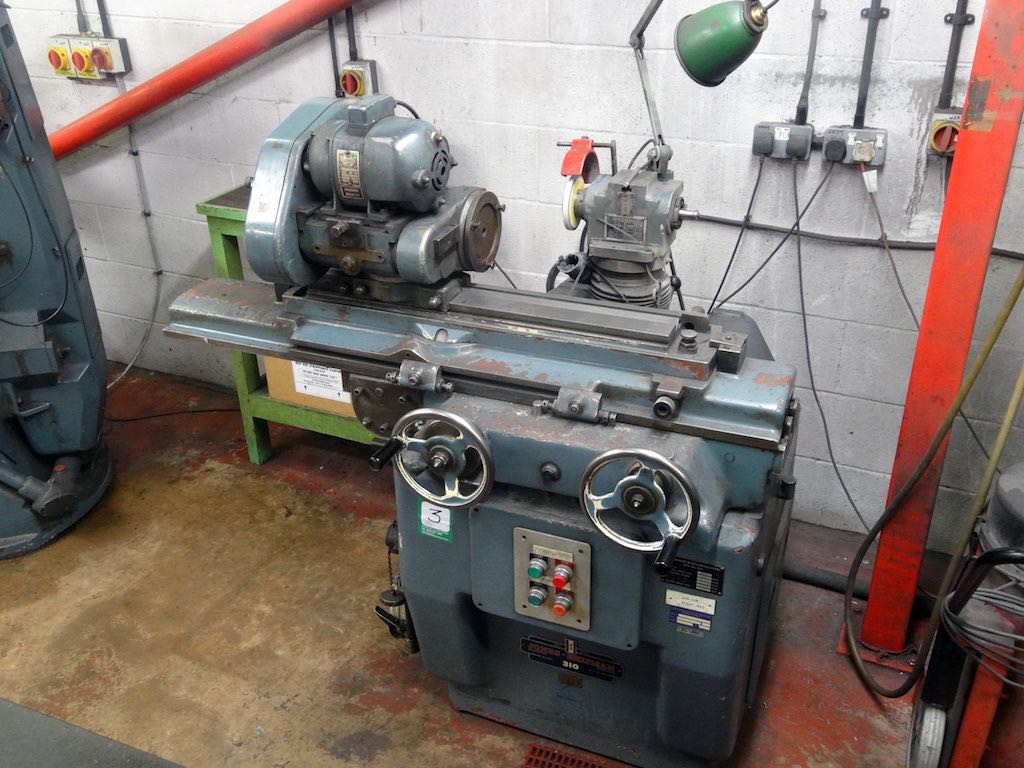

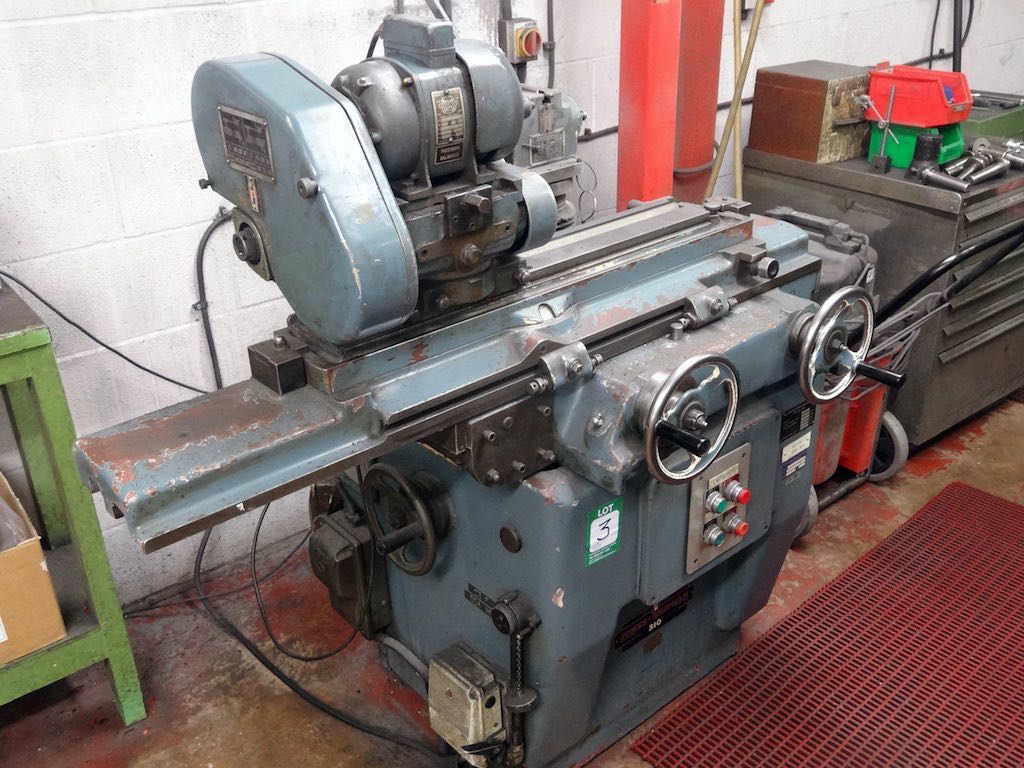

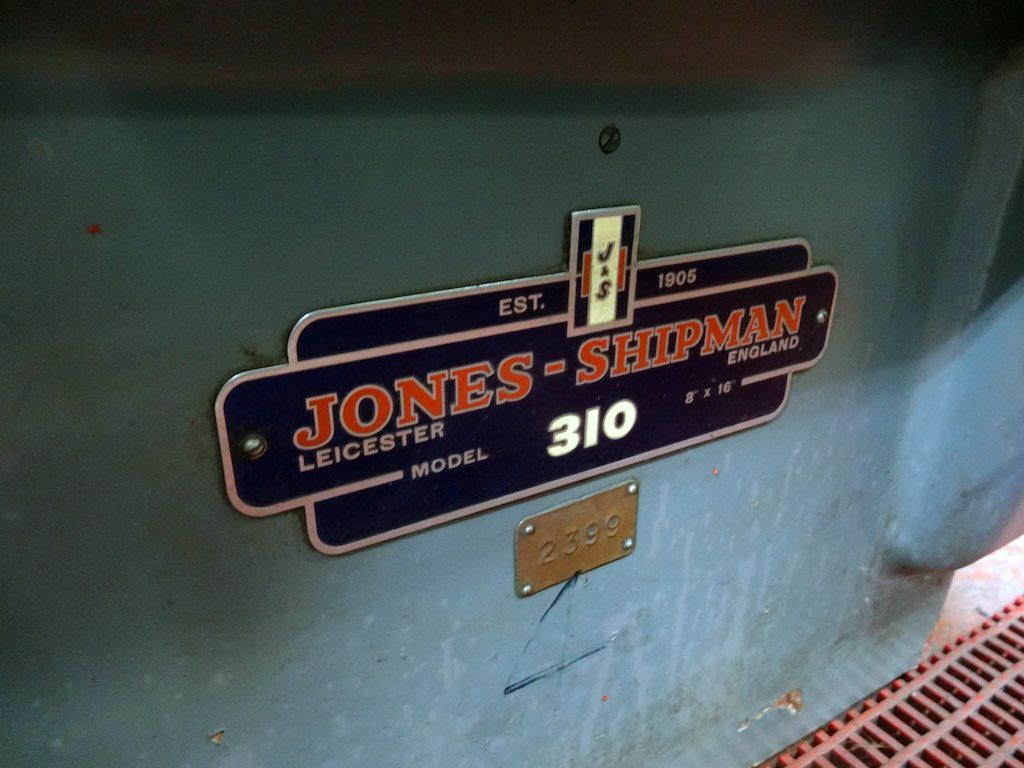

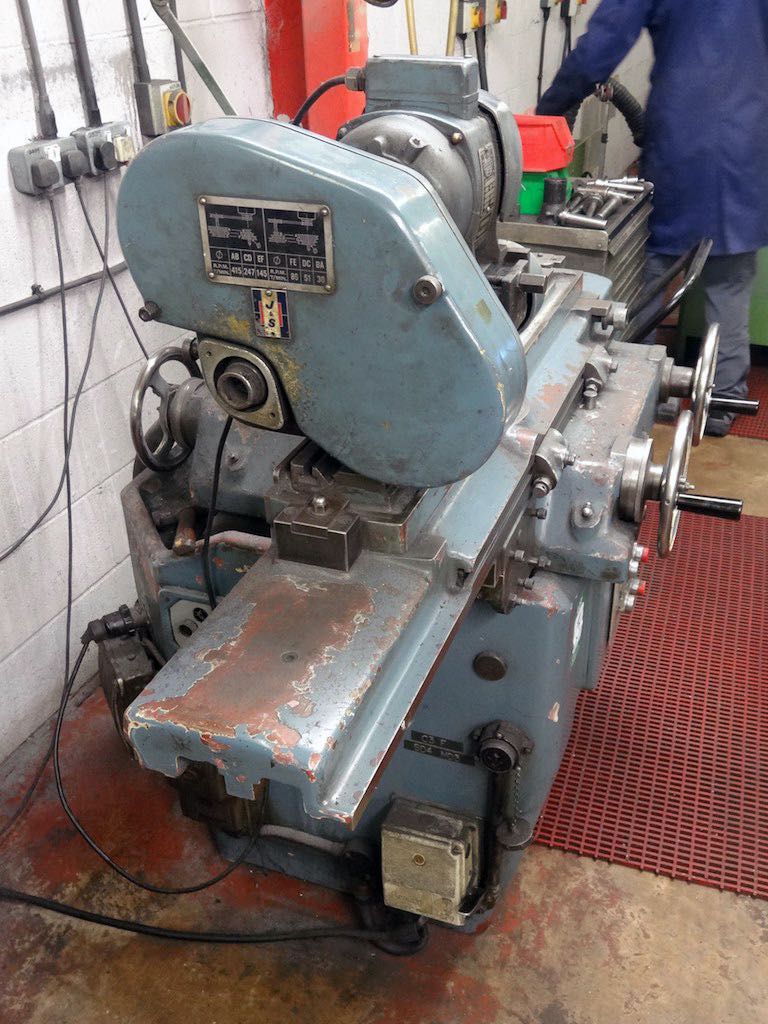

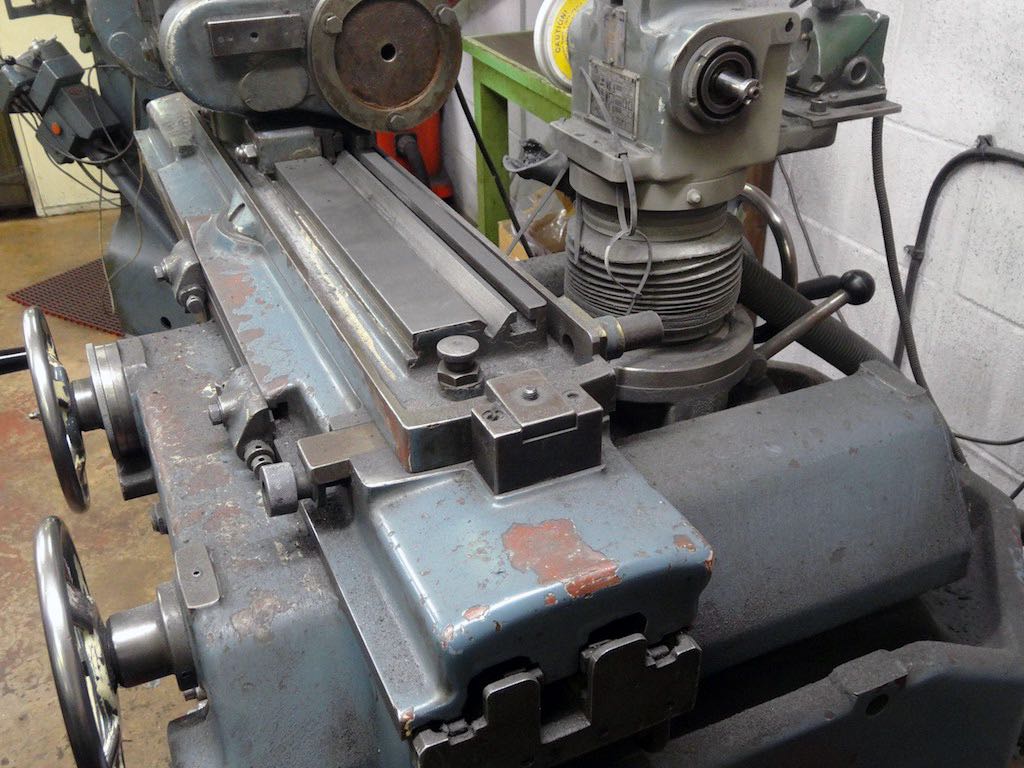

Jones & Shipman 310 Tool and Cutter Grinder

S/n: 2399
L x W x H: 1700x 1200 x 1600mm
Weight: 817kg

Length between cutterhead and right hand tailstock: 350mm
Length between tailstock centres: 480mm
Max swing dia on standard centres: 200mm
Max swing dia on cutterhead: 305mm
Longitudinal traverse: 445mm
Cross traverse: 187mm
Working surface: 750 x 110mm with a 2cm T slot and a V slot
Swivel either side of zero with end locking: 8 deg
Swivel left han side of column with centre locking: 90 deg
Swivel right hand side of column with centre locking: 45 deg
Vertical adjustment: 200mm
Centre of wheel above table: 260 max
Centre of wheel above table: 60mm min
Circular adjustment: 338 deg
Wheel speeds (two) rpm: 3.600-5.000t

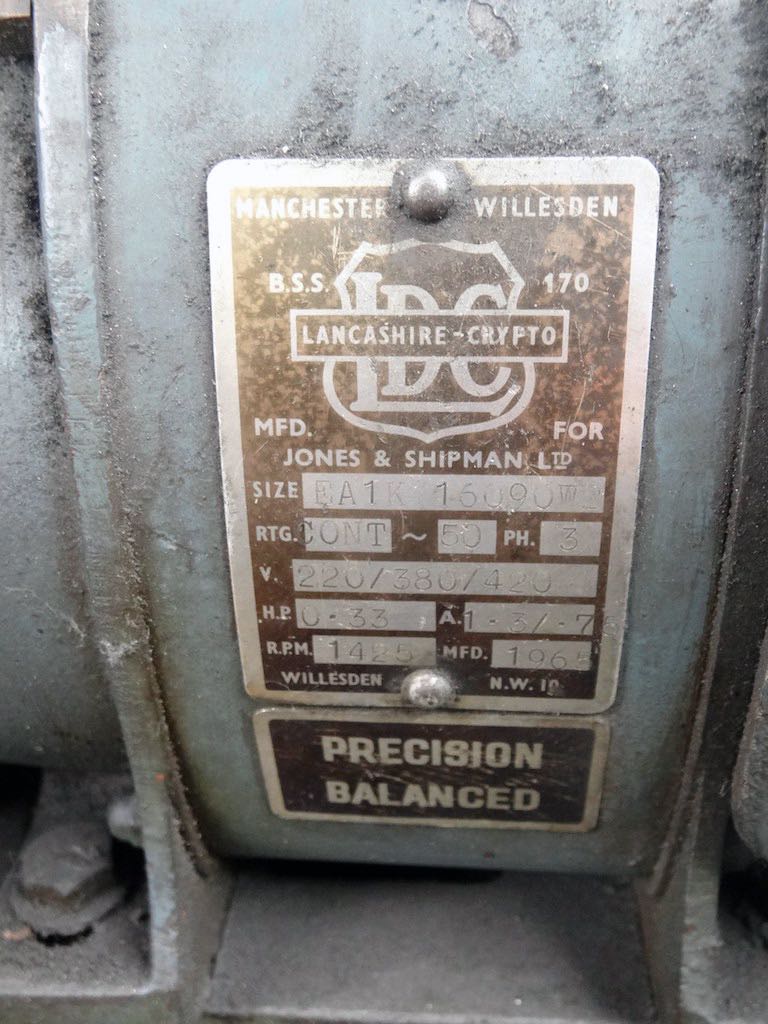

HP of motor: 0.75cv
Spindle Min/Max: 3850/5290

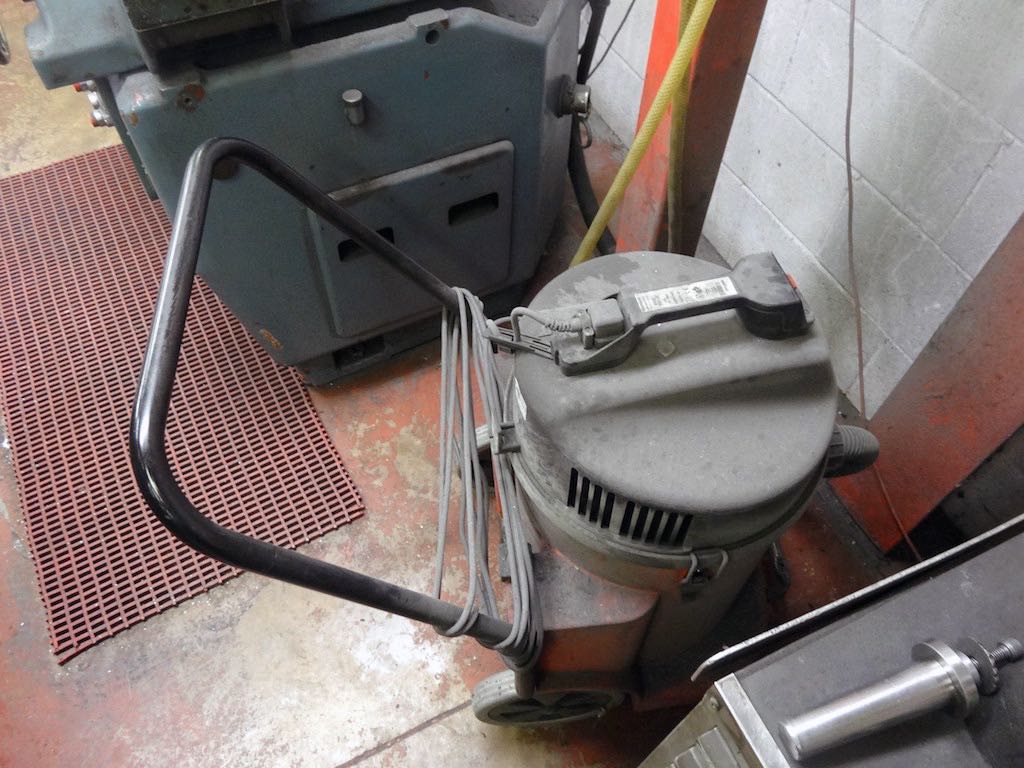

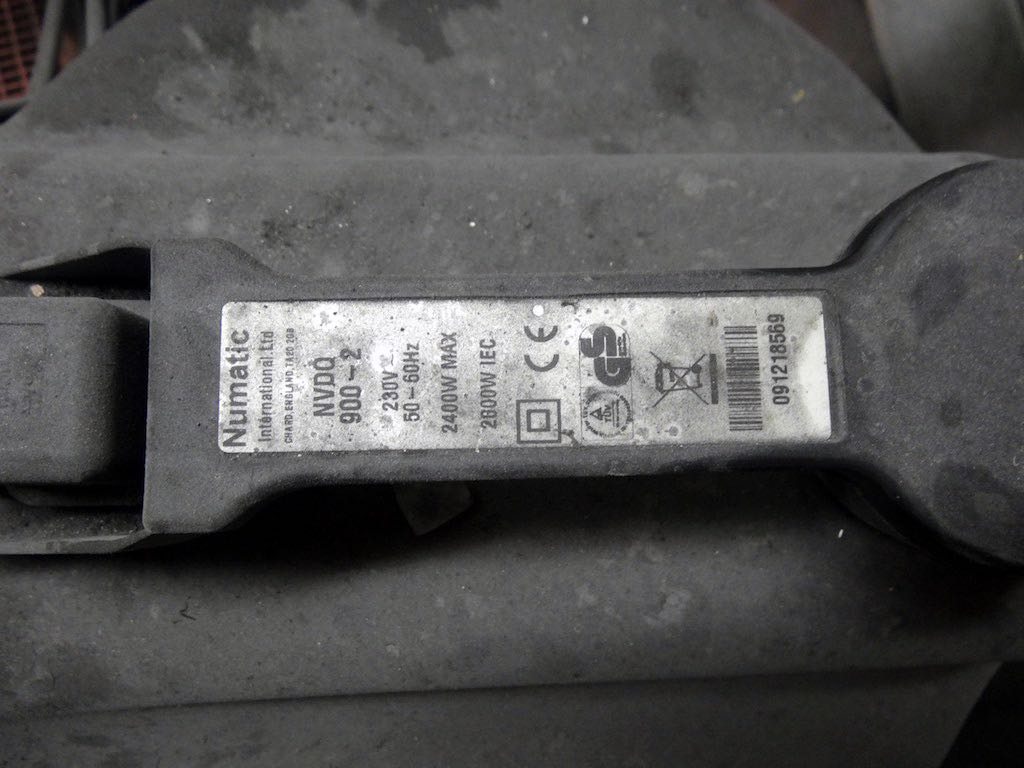

Extraction unit:
Numatic Vac
NVDO 900 2

2" Bore and 120mm wheel

Location: Telford

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
