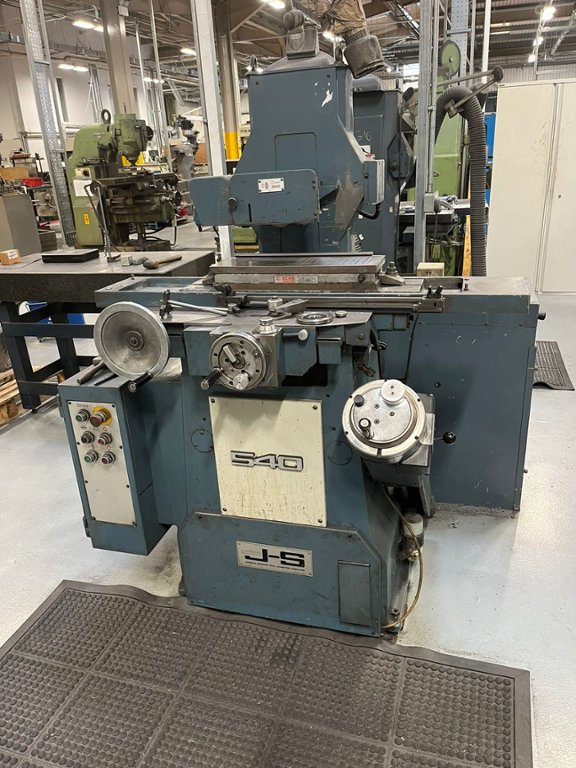

Jones & Shipman 540 Surface Grinder

Lot 4 - Jones & Shipman 540 Surface Grinder

Description:

Working surface of table 457mm x 1523mm, Longitudinal traverse of table (hand) 483mm. Longitudinal traverse of table (hydraulic) 470mm. Total cross traverse of table, hand and hydraulic 168mm. Traverse speed range per minute 1.5 to 18m.Table traverse per revolution of handwheel 60mm. Vertical movement of wheelhead (max.) 280mm.Size of grinding wheel (standard) 180 x 13 x 31.75mm bore. Size of grinding wheel (max.) 180 x 25 x 31.75mm bore. Speed of grinding wheel 3000 rpm.

Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
