Jones & Shipman Format 15-1000M CNC Cylindrical Universal Grinder

Lot 22 - Jones & Shipman Format 15-1000M CNC Cylindrical Universal Grinder

Description:

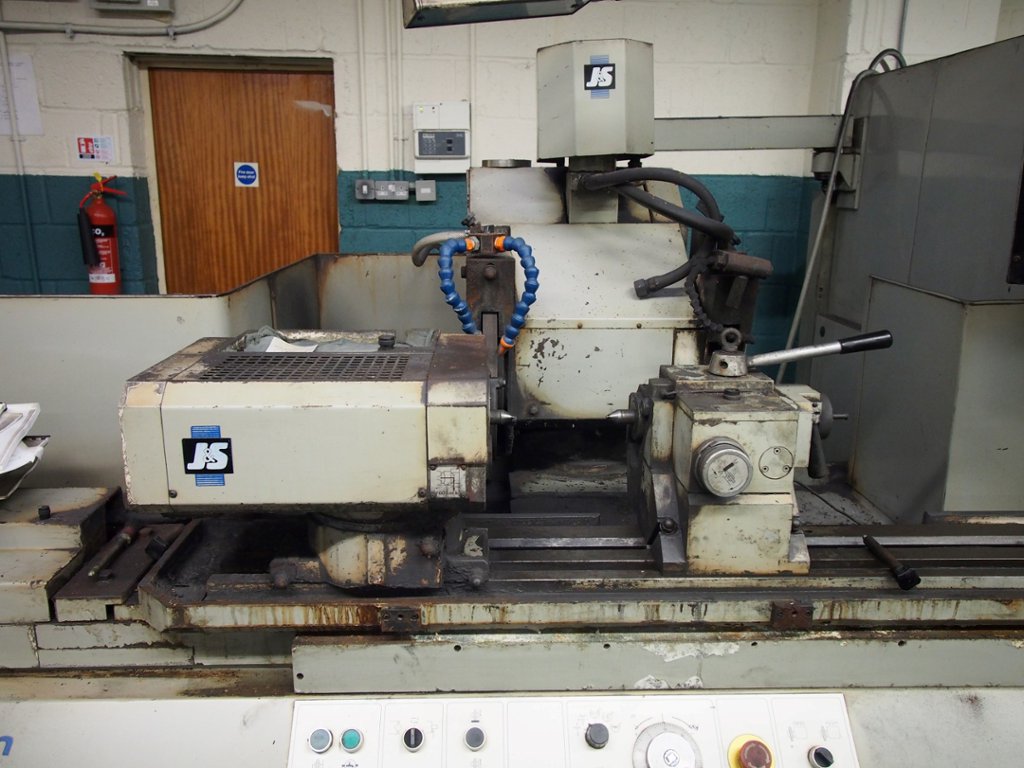

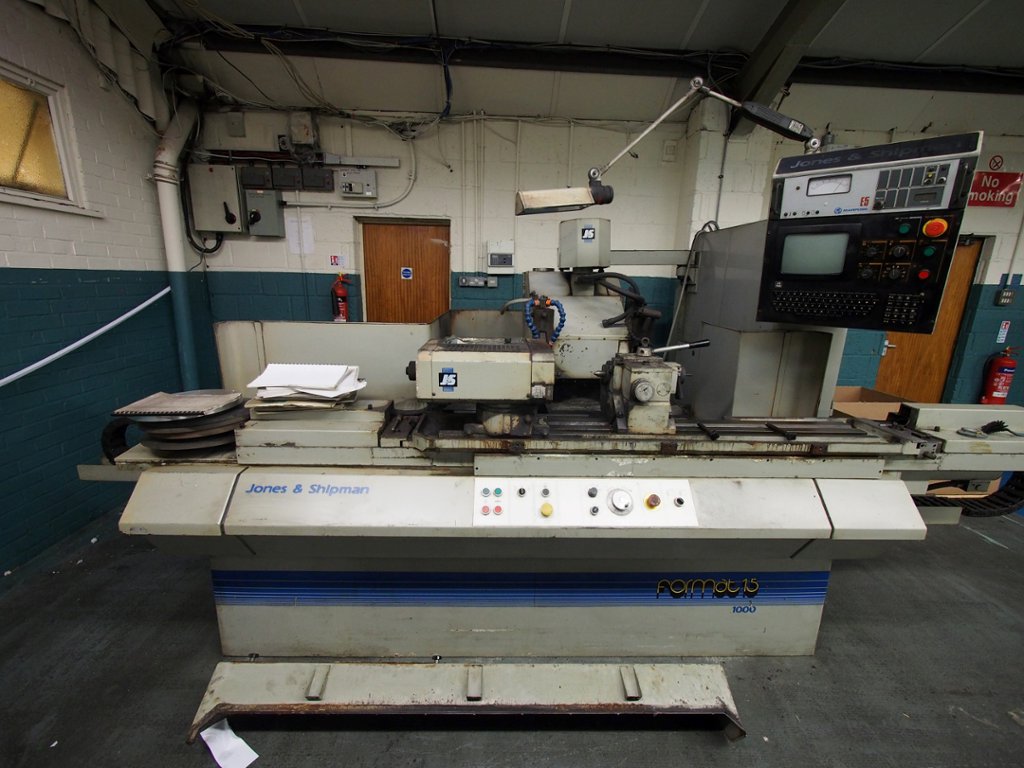

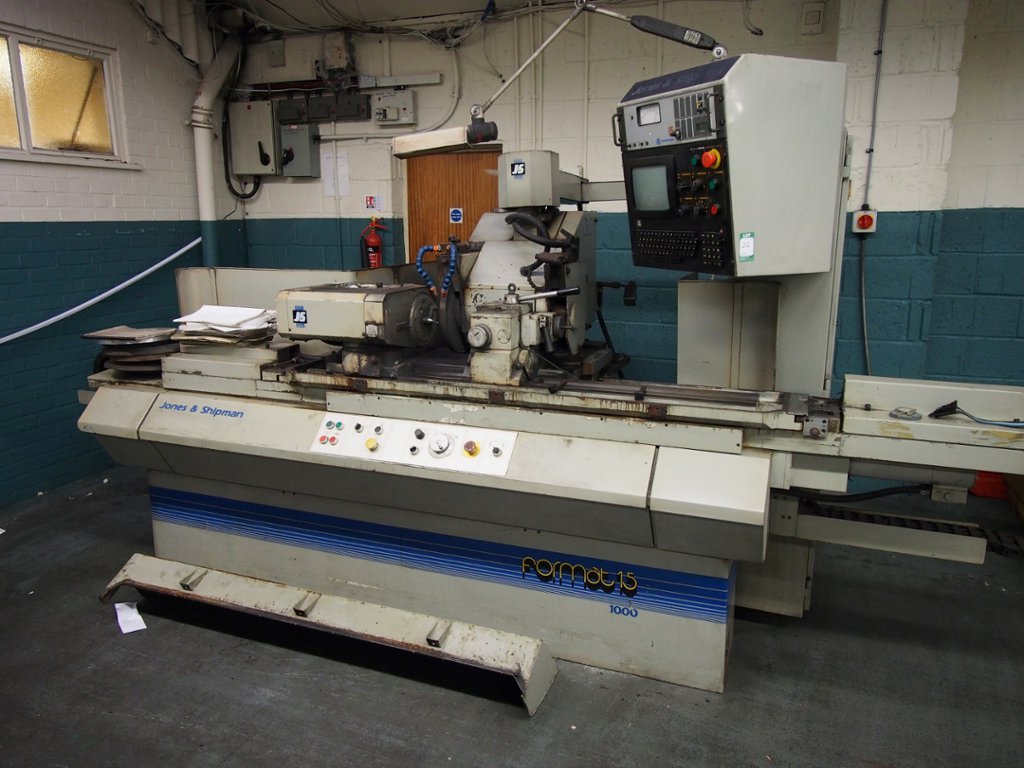

Jones & Shipman Format 15-1000M CNC Cylindrical Universal Grinder

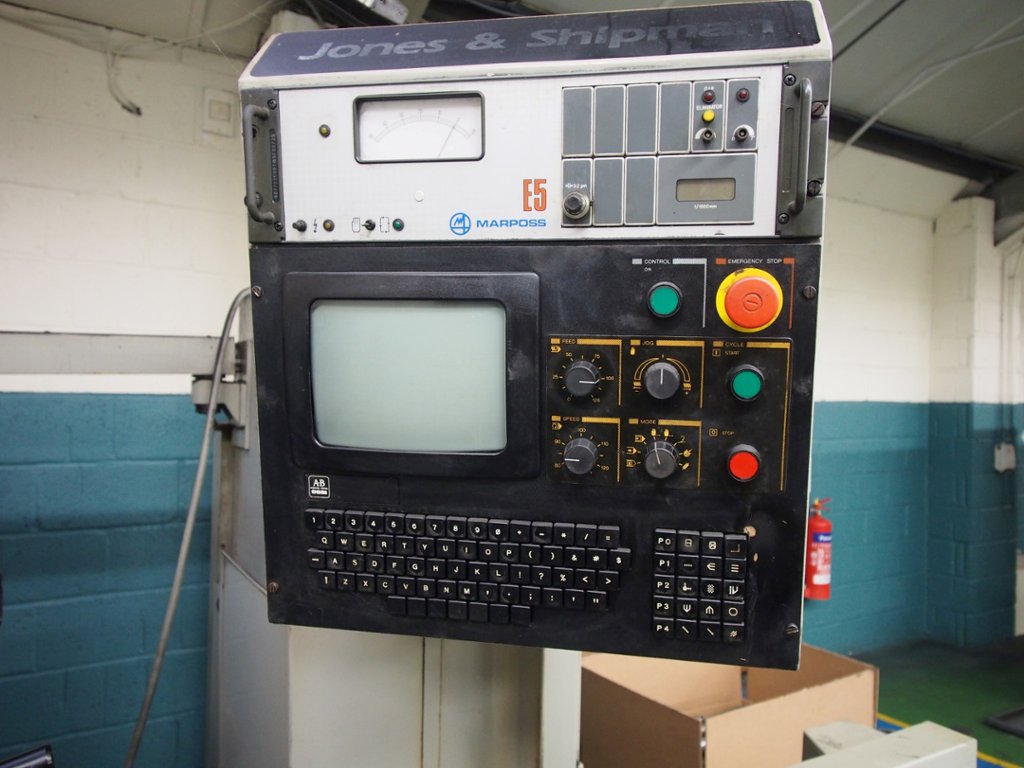

Allen Bradley 8600G CNC Control

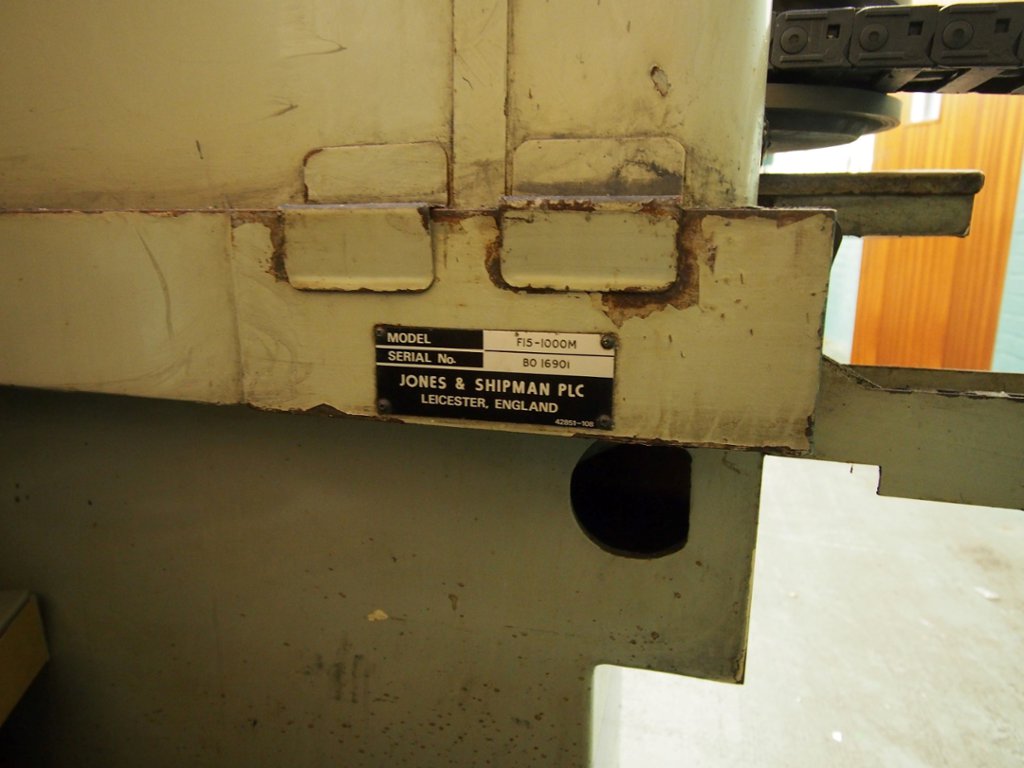

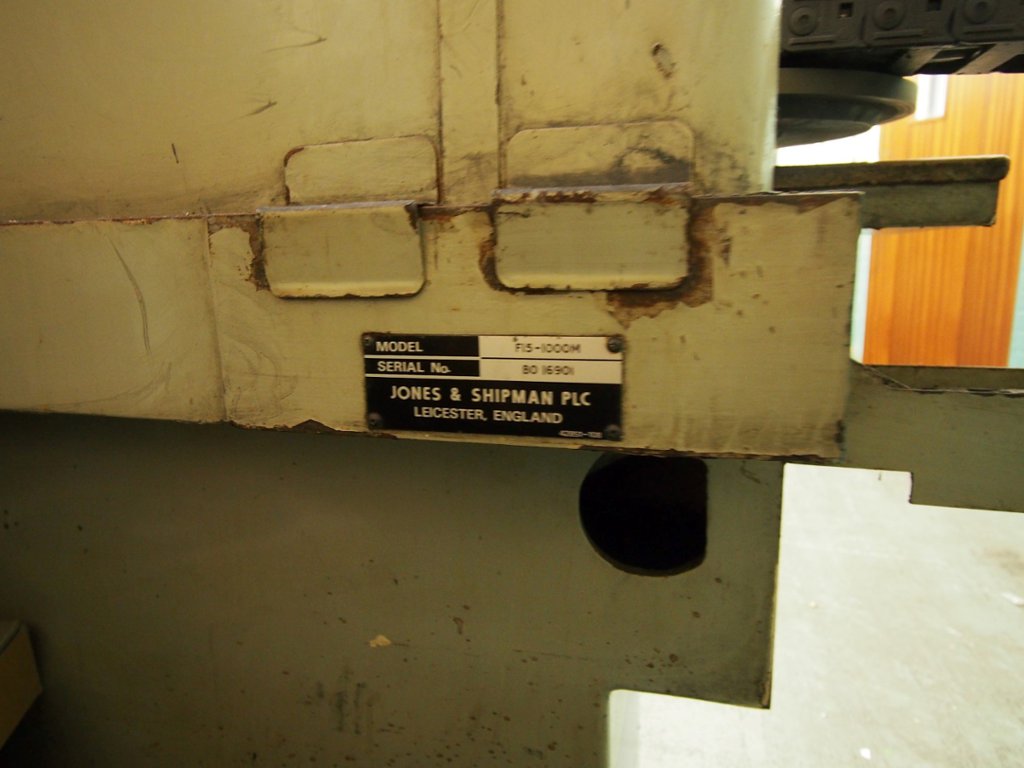

Serial number BO 16901

Capacity
Maximum Diameter Ground 250mm
Distance between Centres 1000mm
Centre Height 178mm
Swing 356mm
Maximum Weight Between Centres 100kgs
Workhead
Speed range 30 to 450rpm
(continuously variable) Centre 5MT
D.C Motor 1.1kW
Swivel angle + & - 15
Swivel encoder resolution (option) 0.001
Table (Z Axis)
Traverse Speed 0.06 to 12000mm/min
Min programmable increment 0.001
Servo input resolution 0.001mm
Table swivel + & - 16 & 18 degrees
Swivel encoder resolution (option) 0.001
Wheelheads (X axis)
Total in feed 205mm
Infeed speed 0.006 to 6000mm/min
Min programmable increment 0.001
Servo input resolution 0.001mm
Wheel speeds (2) 1400 & 1689rpm Motor 5.5kW
Wheel size (left) 350 x25 x 127mm bore
Wheel size (right) 300 x25 x 127mm bore
Motor 4kW
Wheel size 12-38mm
Wheelspindle capacity (bores,min to max) 19-50mm
Wheelspindle speeds 16 – 500rpm Motor 1.1kW

Internal

Swivel wheelhead
Swivel workhead
Tailstock with manually adjusting taper control
Marposs E5

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
