Lot 1 - Jones & Shipman Suprema 1000M Easy Universal Grinder 2013
Description:

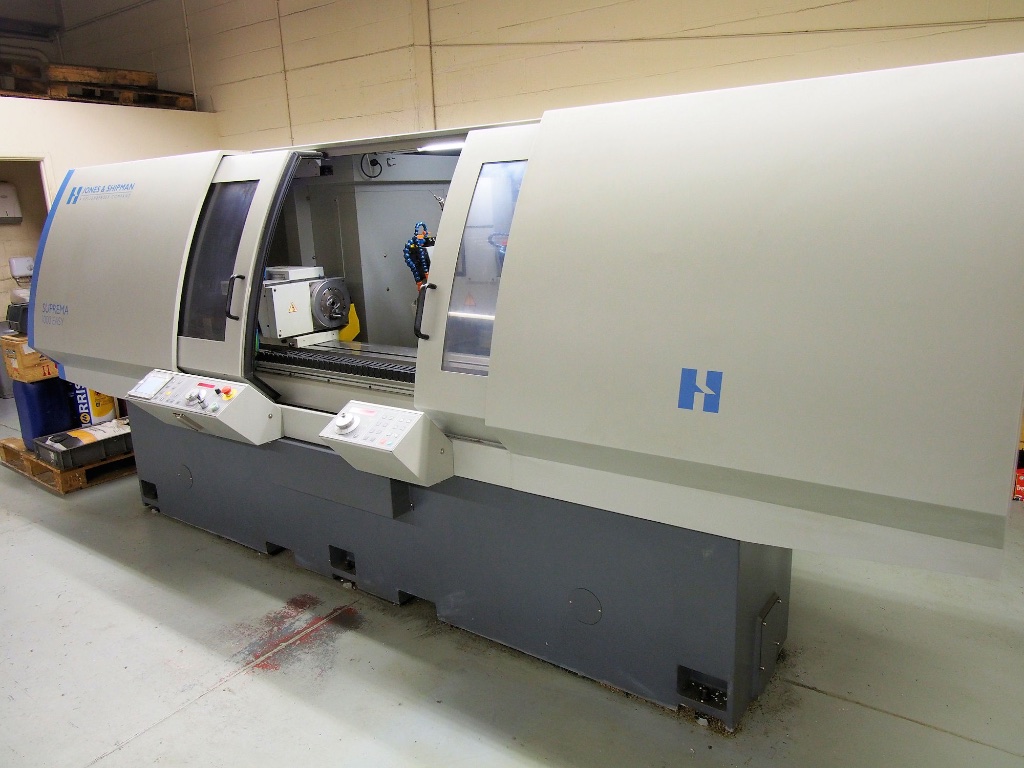

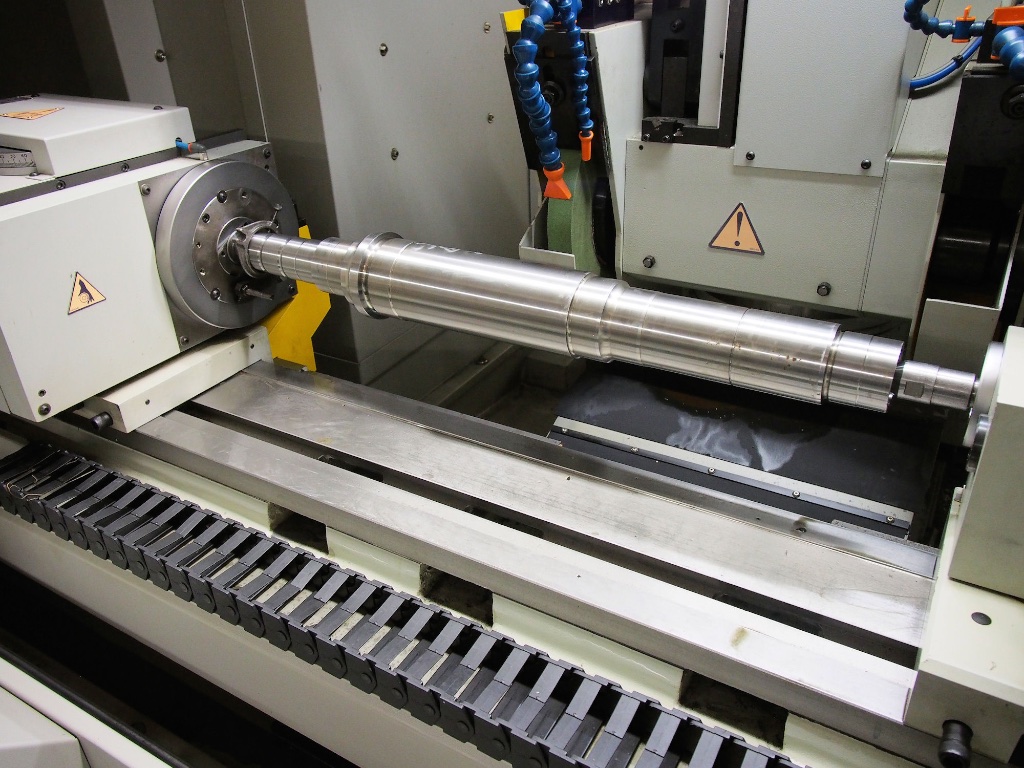

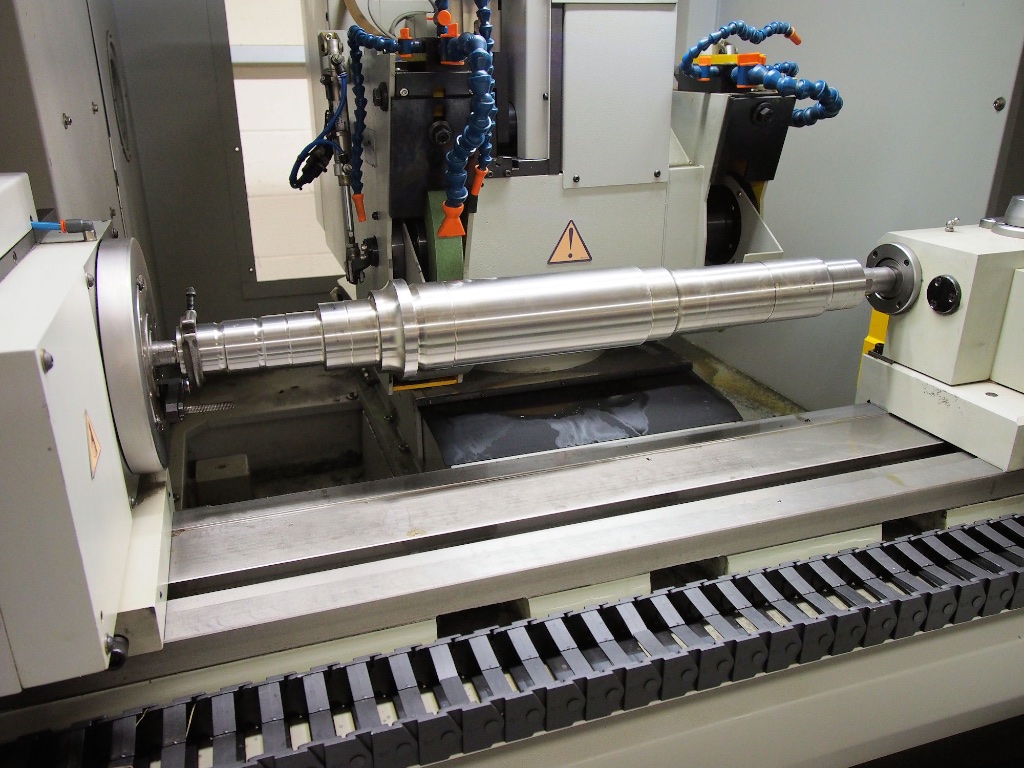

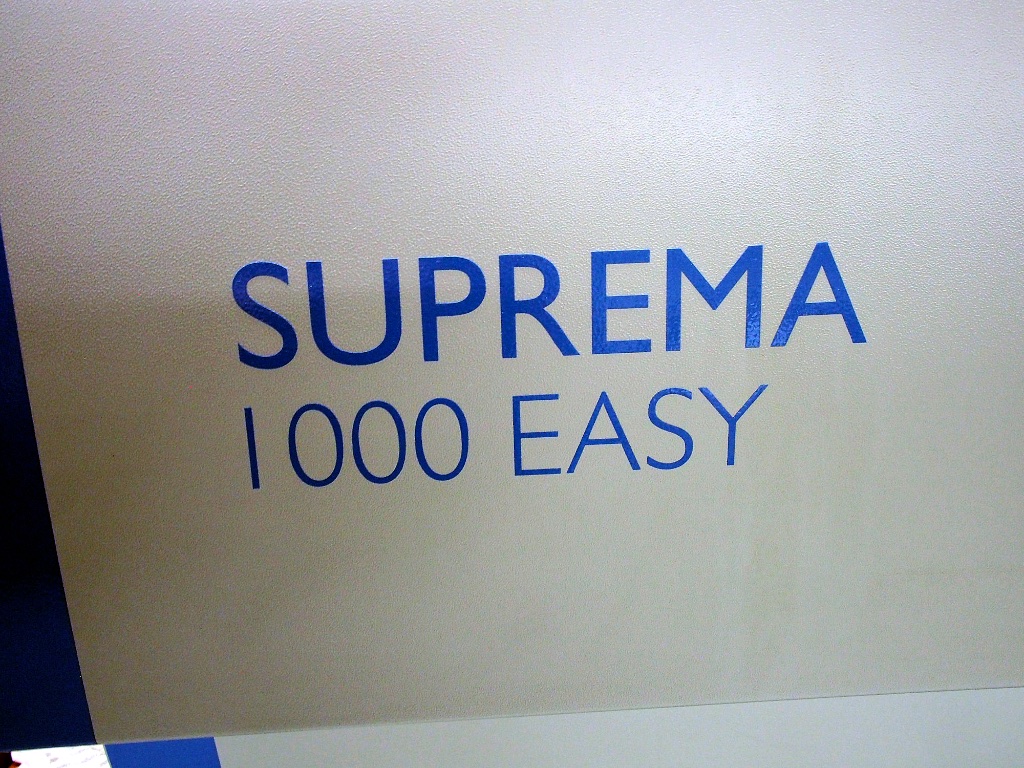

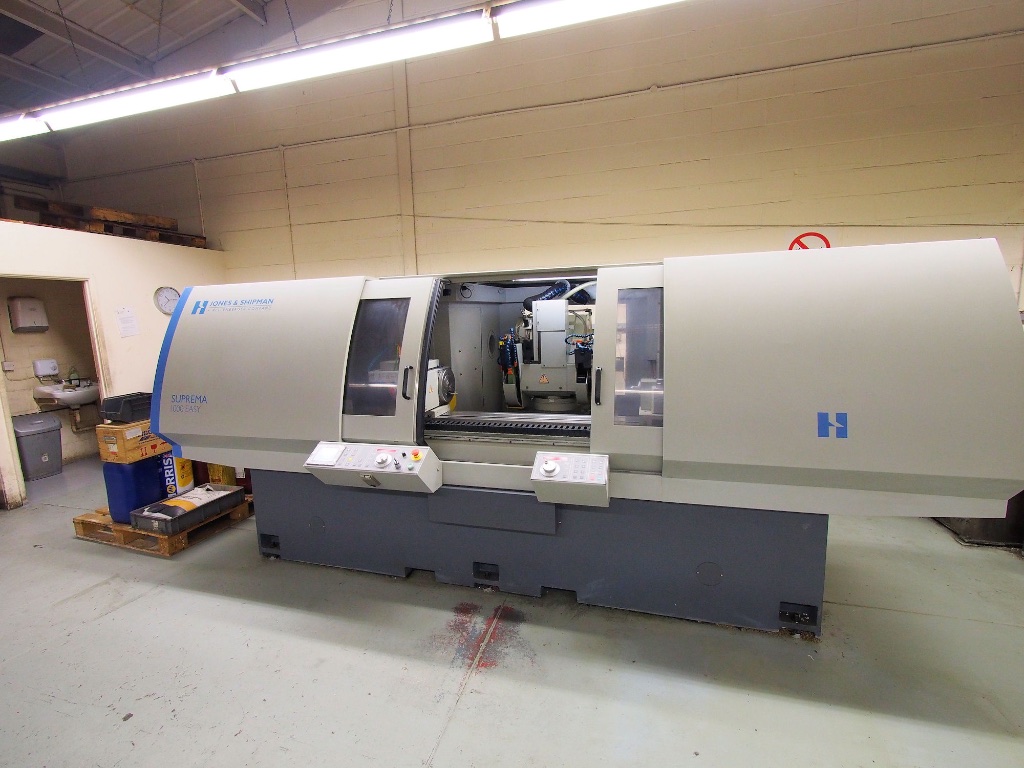

Jones & Shipman Suprema 1000M Easy Universal Grinder

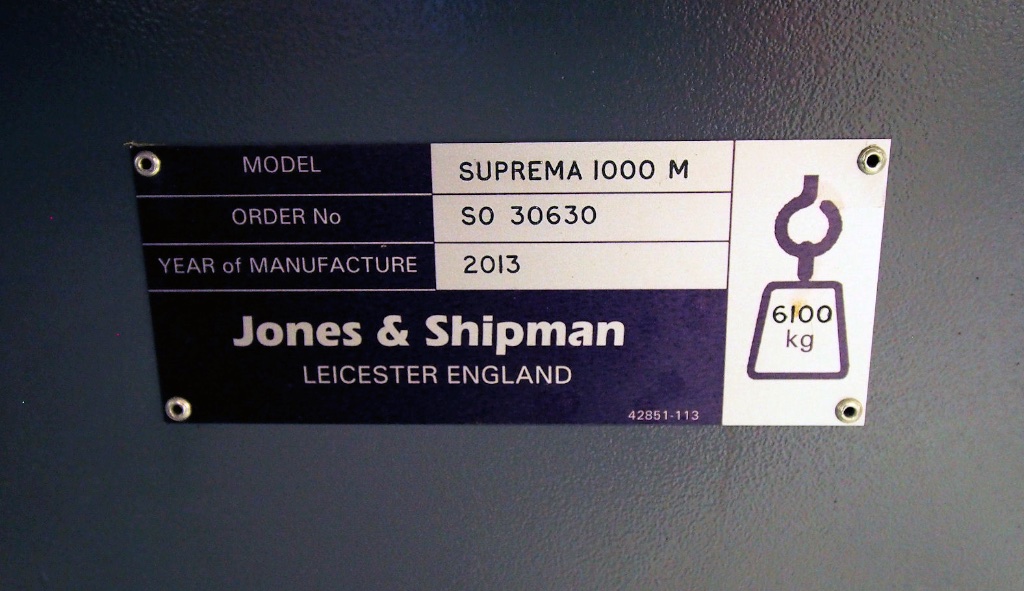

S/n S030630
Year 2013

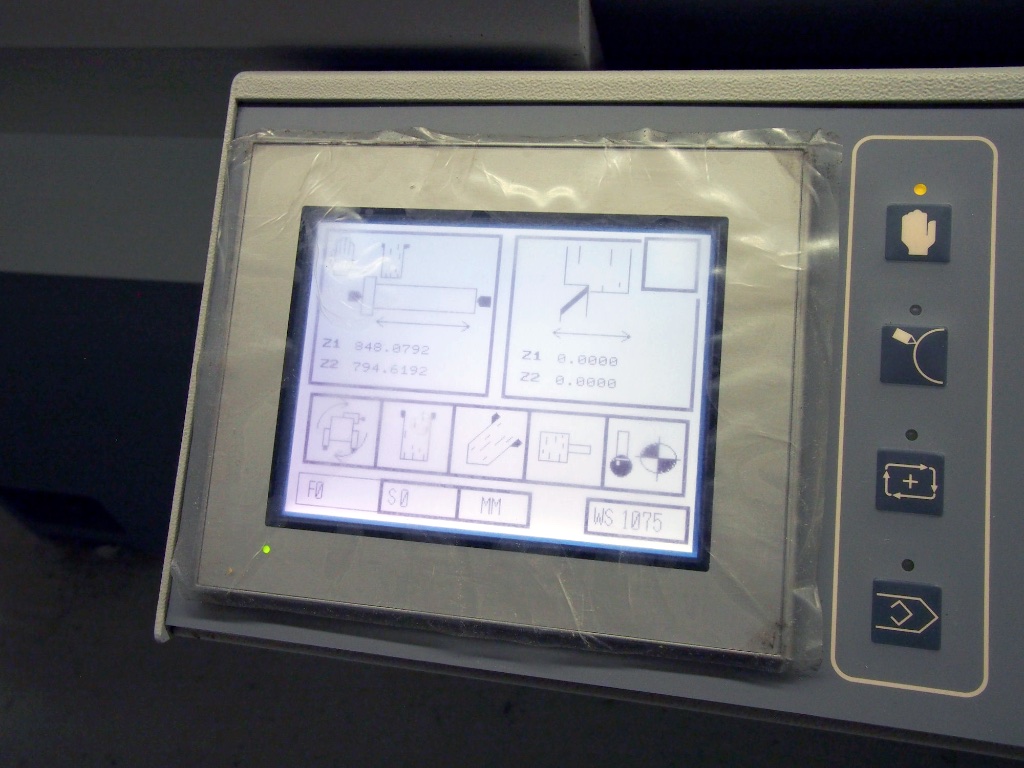

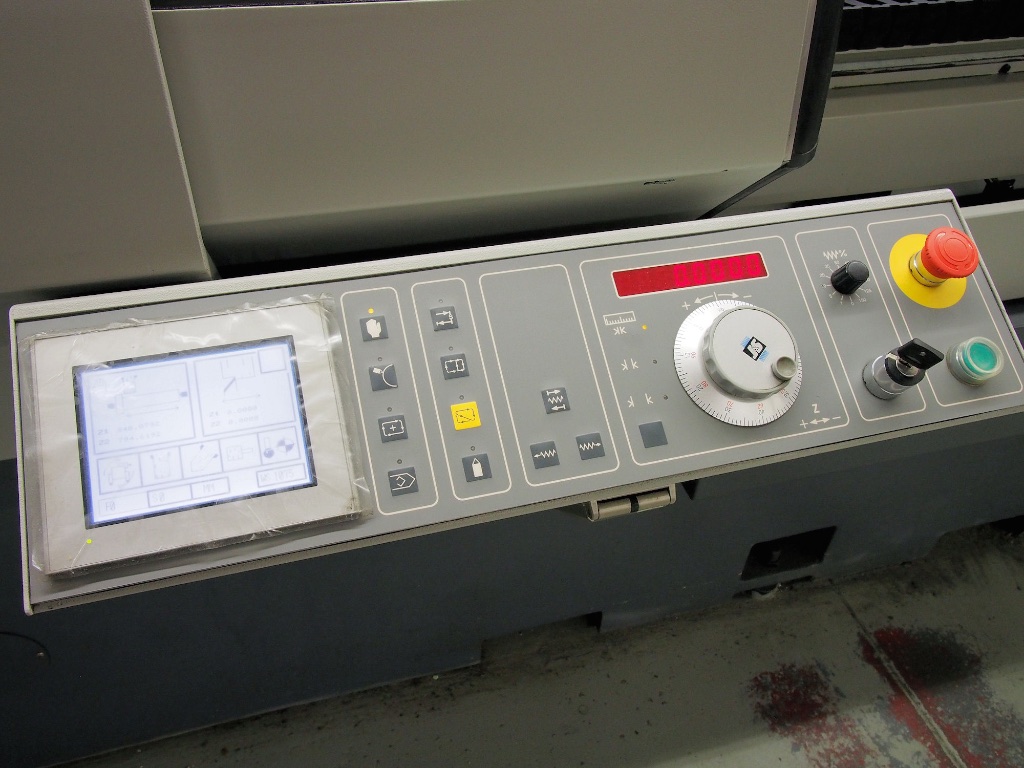

Control: FANUC Easy Touch
Grinding Length: 1000mm
Centre Height: 160mm
Grinding Diameter: 300mm
Maximum Workpiece Weight: 100kg
Z axis Table Traverse Distance: 1145mm
Traverse Speed: 0.0001mm – 12m/minute
Table Swivel – Clockwise/Anticlockwise: +8.2o / -8.2o
Z axis Electronic Handwheel Increment: 0.001, 0.010, 0.100mm
Traverse Control & Feedback: FANUC Digital AC Servo Motor with better than0.00004mm Resolution Integral Encoder
X axis Wheelslide Infeed: 260mm
Total Infeed: 0.0001 – 6m/minute

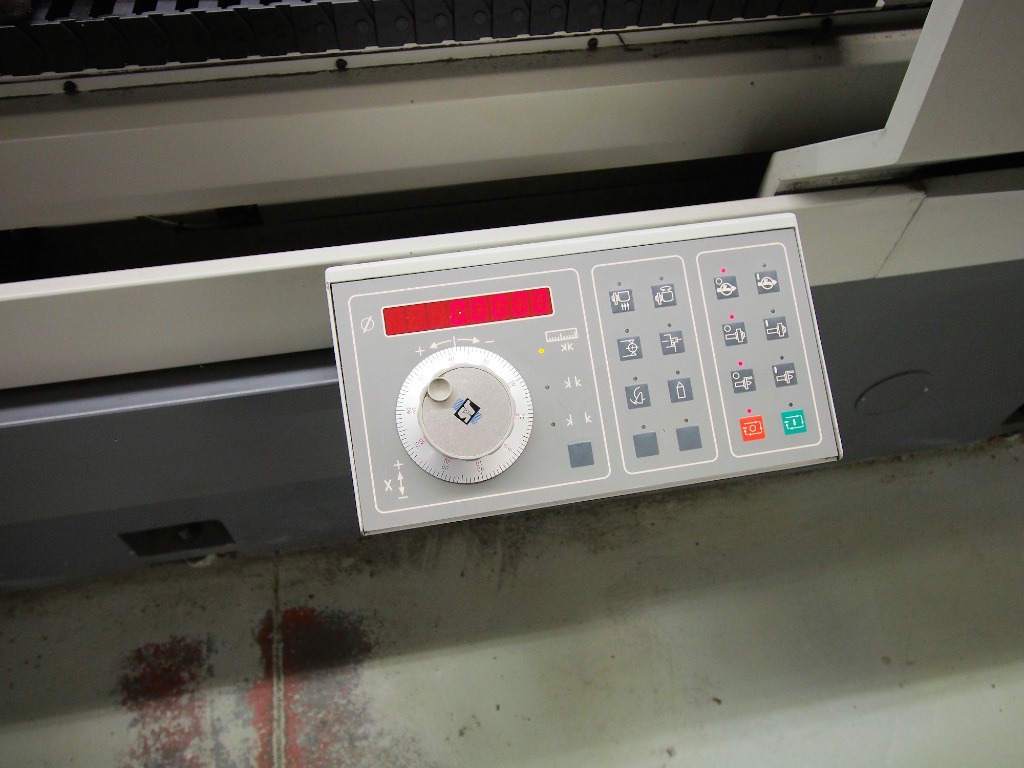

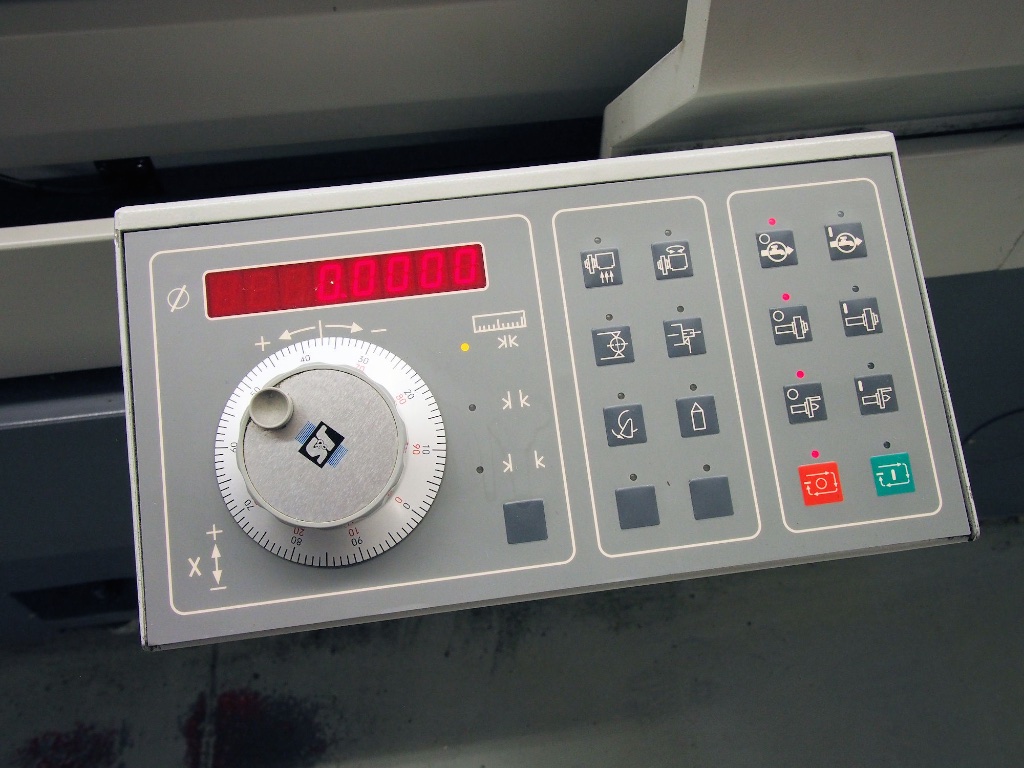

X axis Electronic Handwheel Increment: 0.001, 0.010, 0.100mm
Infeed Control & Feedback: FANUC Digital AC Servo Motor with better than 0.00004mm Resolution Integral Encoder

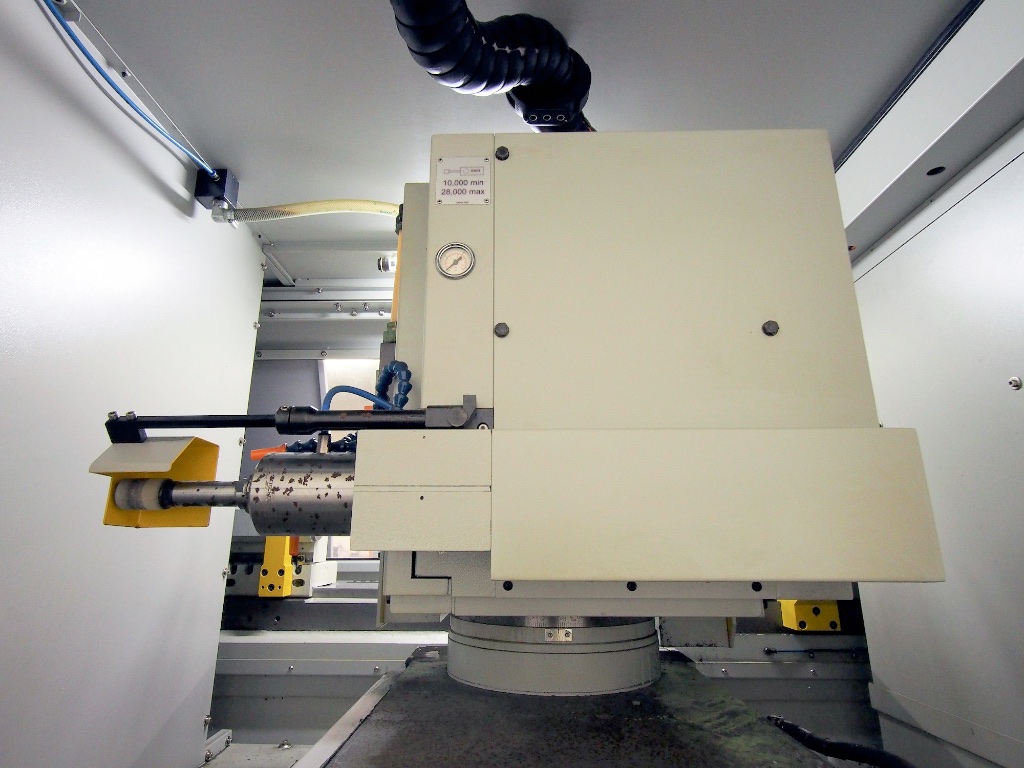

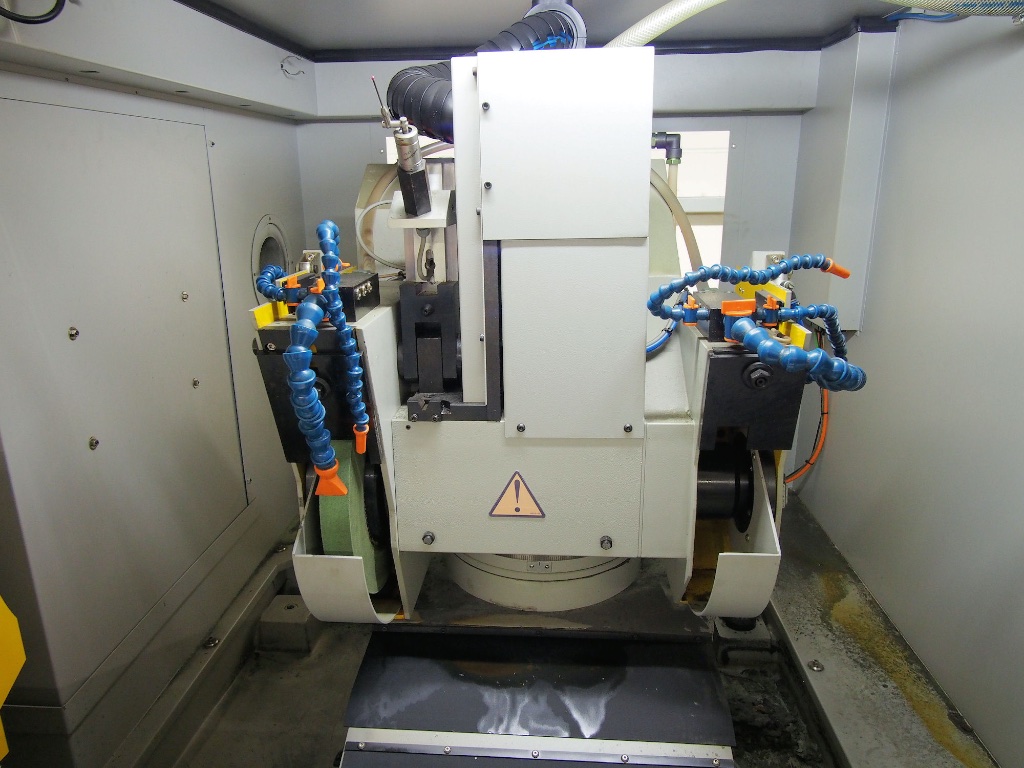

Wheelhead: Twin Wheel Swivelling Type
Main Motor: 4kW
Wheel Speed: 33m/s
Left Hand Wheel: 350 x 50 x 127mm
RightHand Wheel: 300 x 25 x 127mm
Internal Grinding System: Belt Driven
Internal Grinding Spindle Motor : 2.2kW

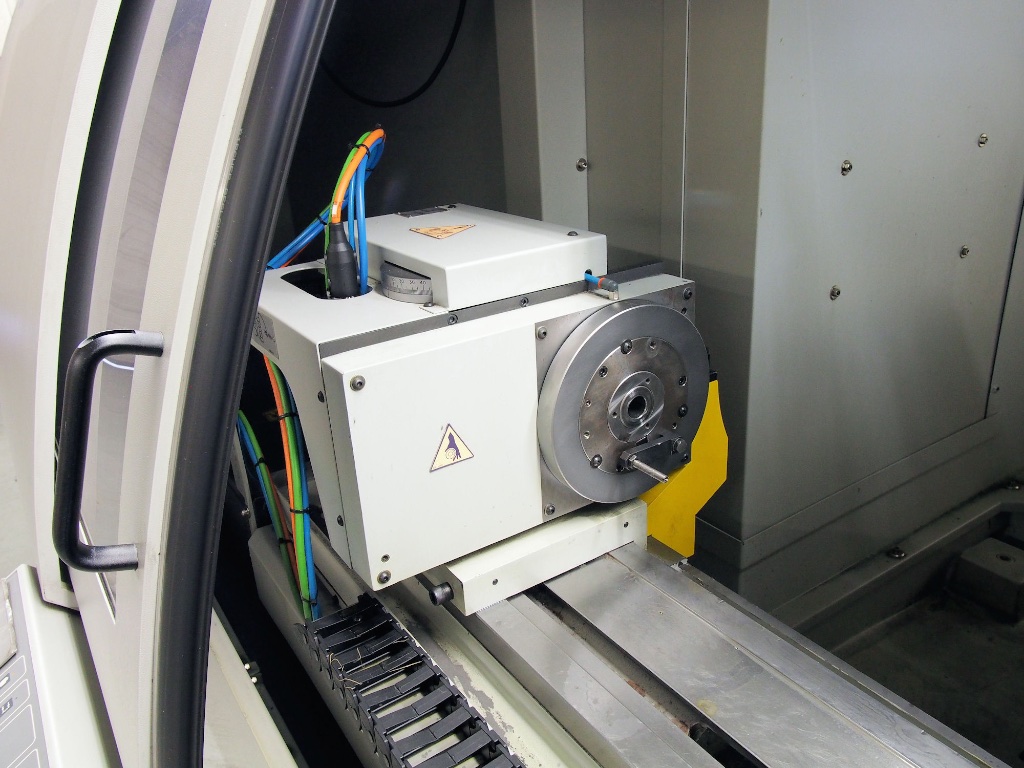

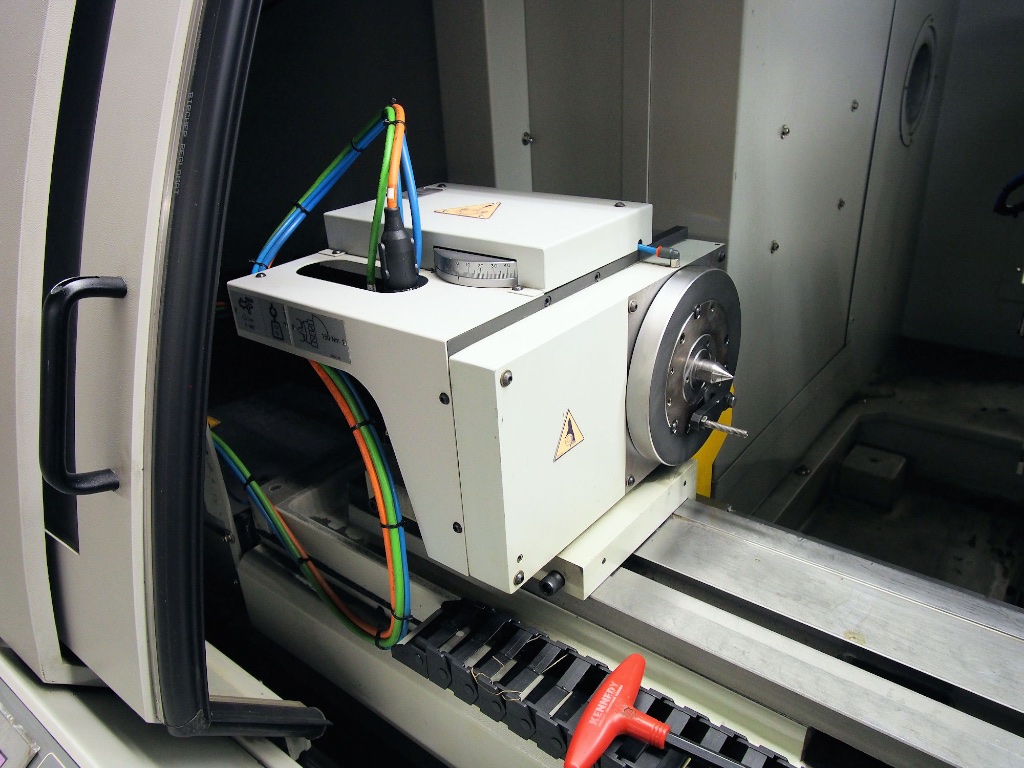

Workhead: Live & Dead Centre
Workhead Swivel Range: +90o / -15o
Speed Range: 0 – 660rpm
Output Torque: 27Nm
Spindle Taper: 3MT
Options Included

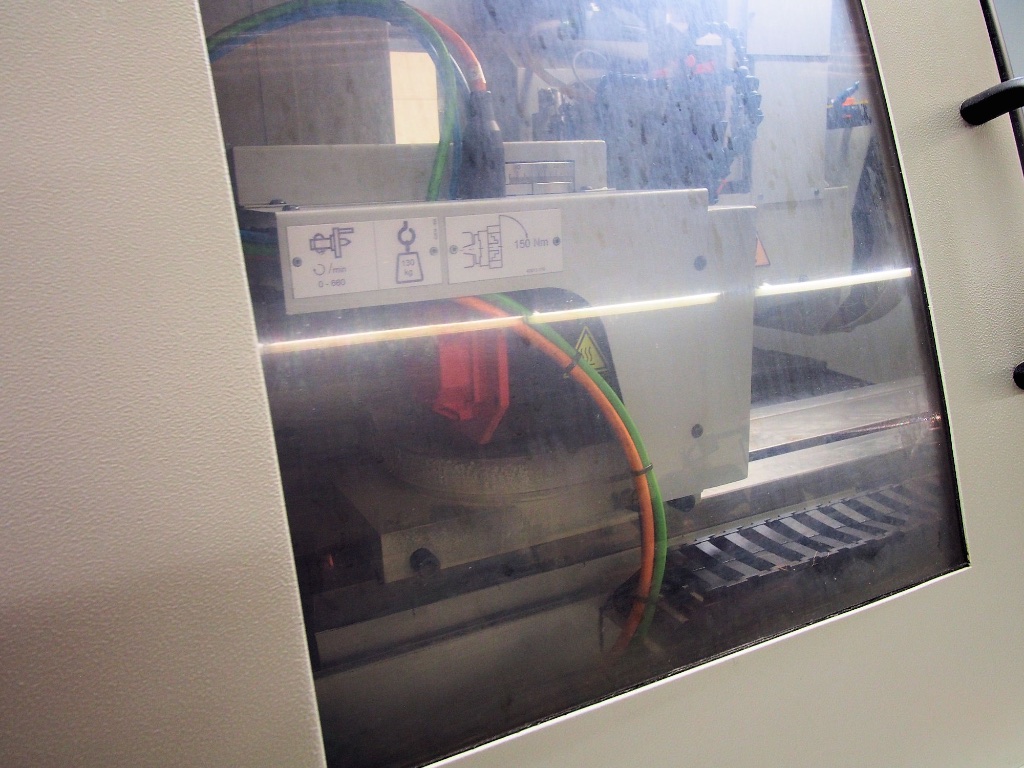

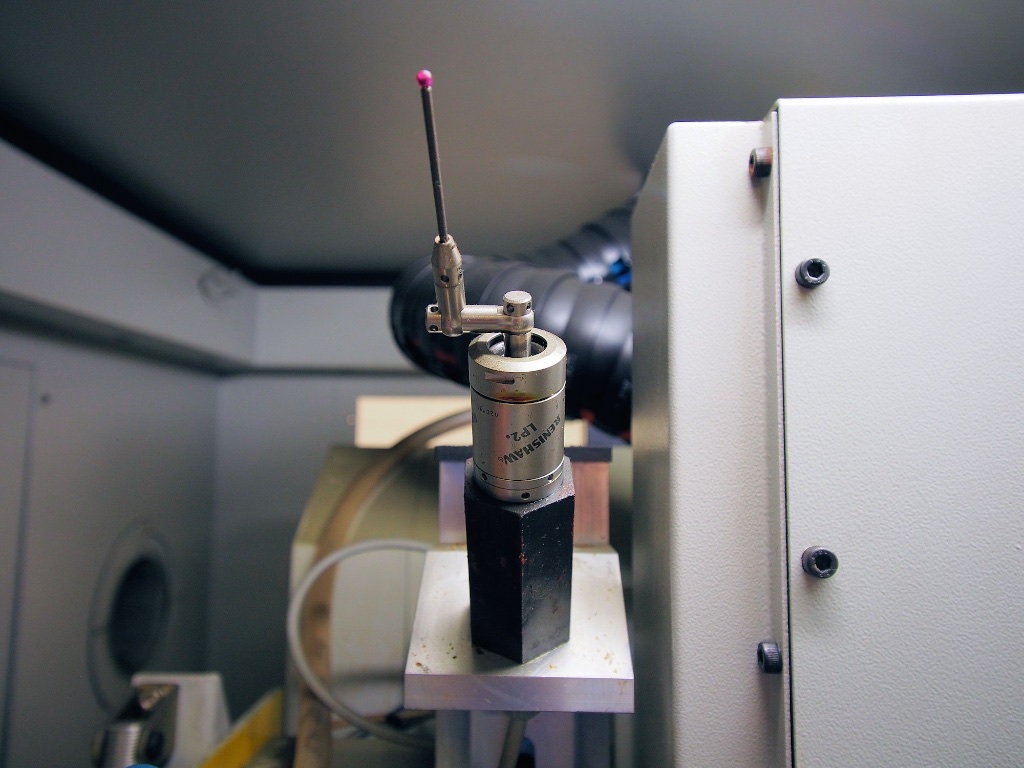

Renishaw LP2 Flag Gauge For Edge Setting And Datum Setting

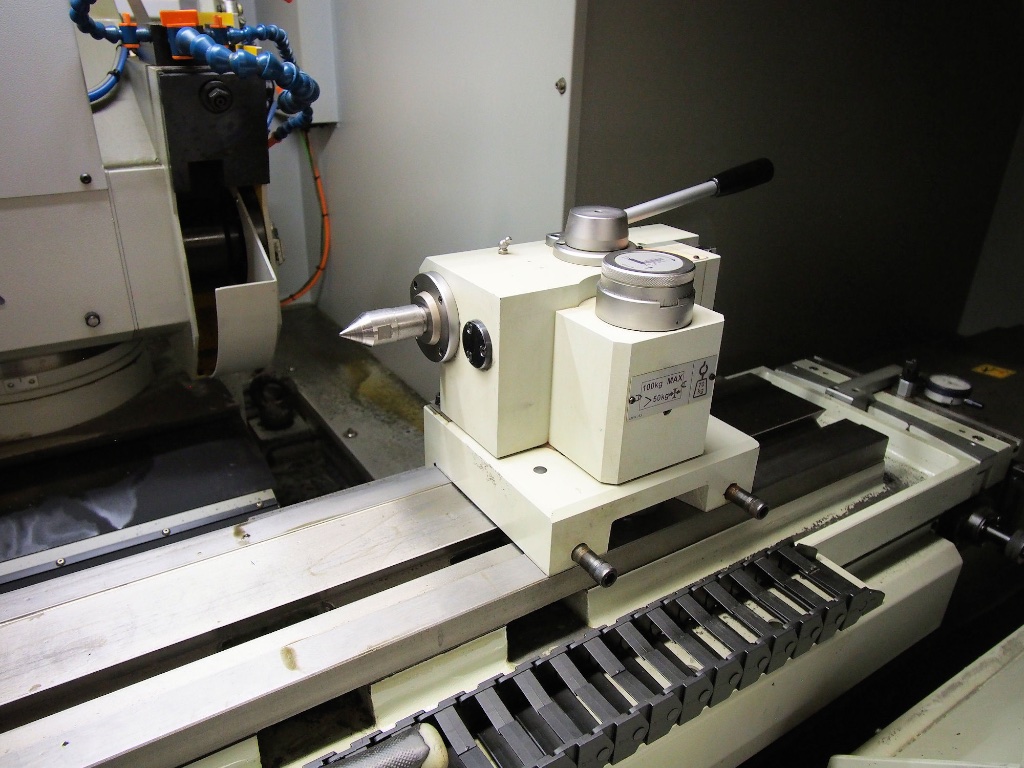

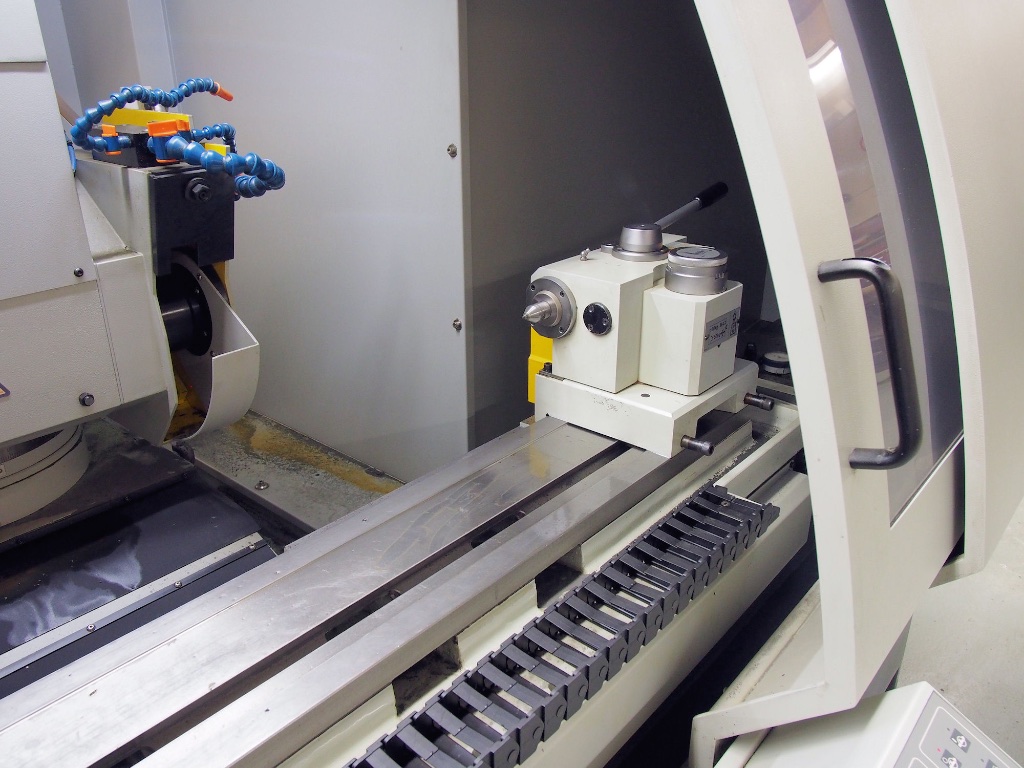

Tailstock
Preparation For Marposs Sizing

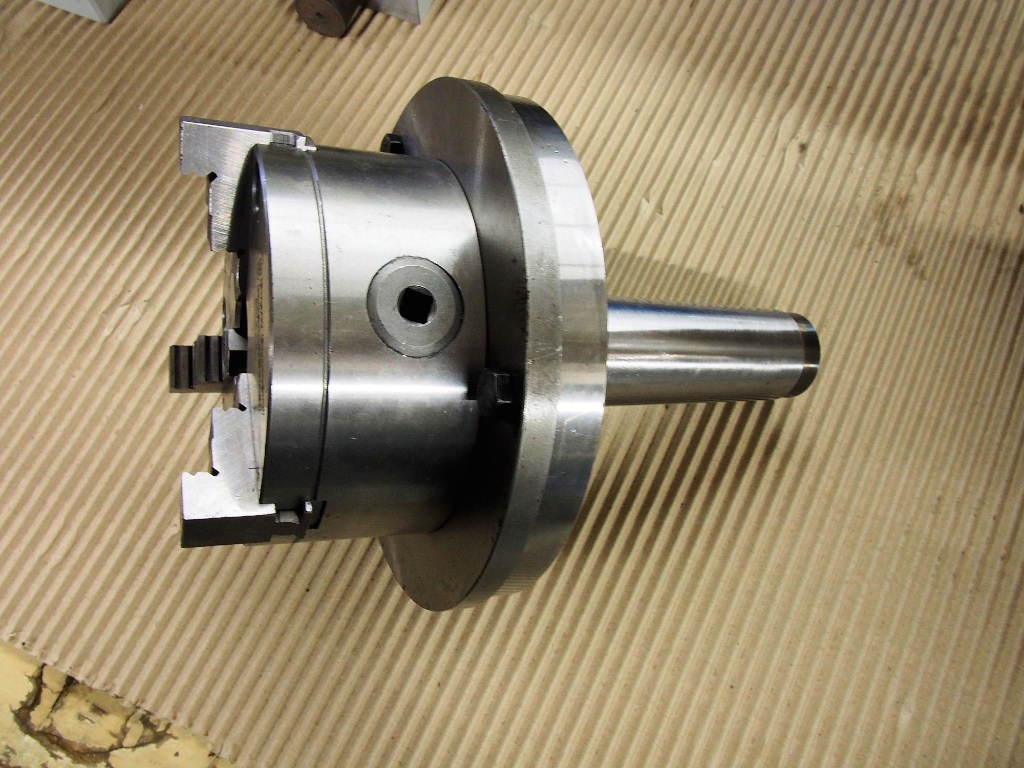

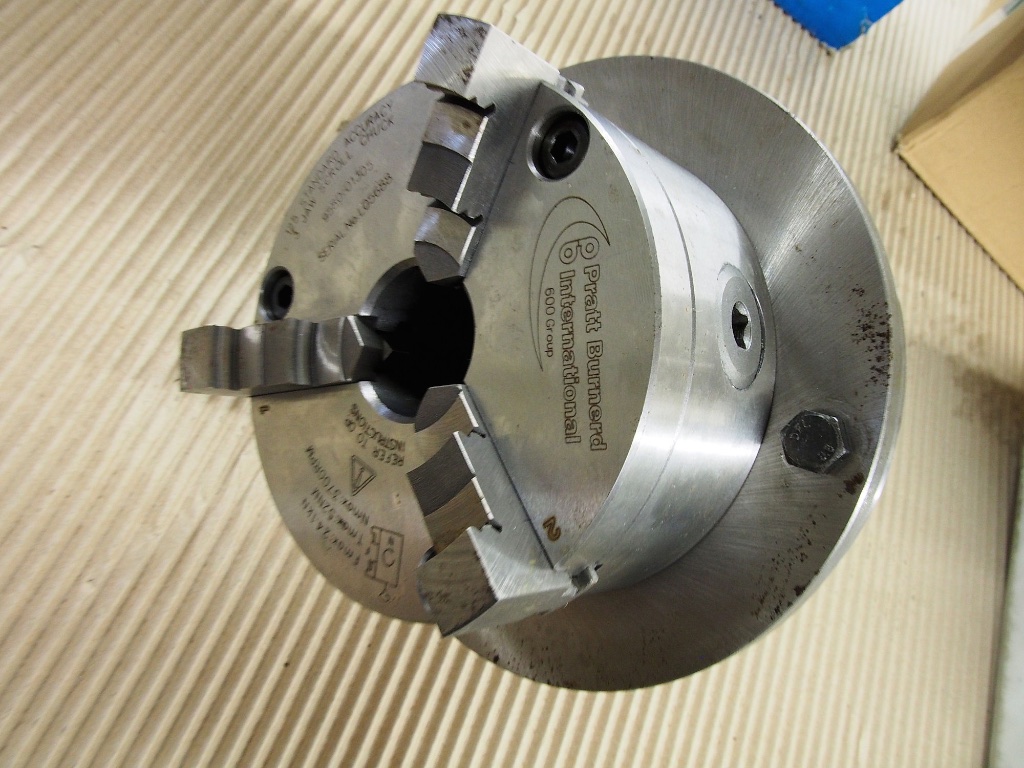

3 Jaw Chuck
Table Mounted Wheel Dresser
Internal Spindle

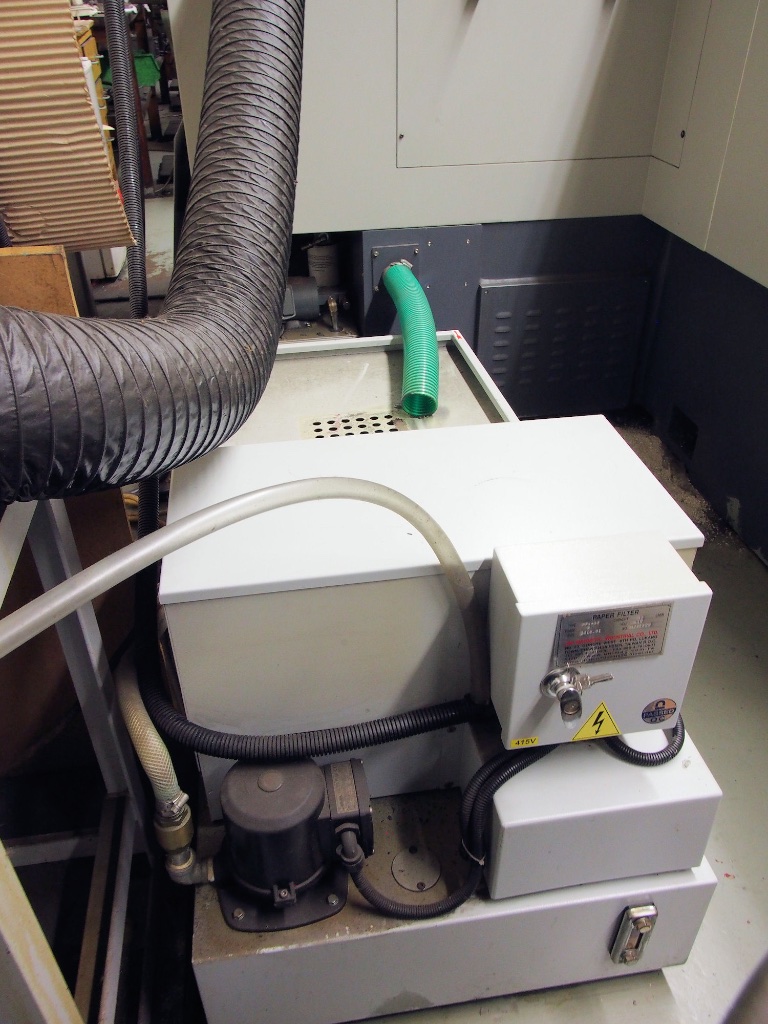

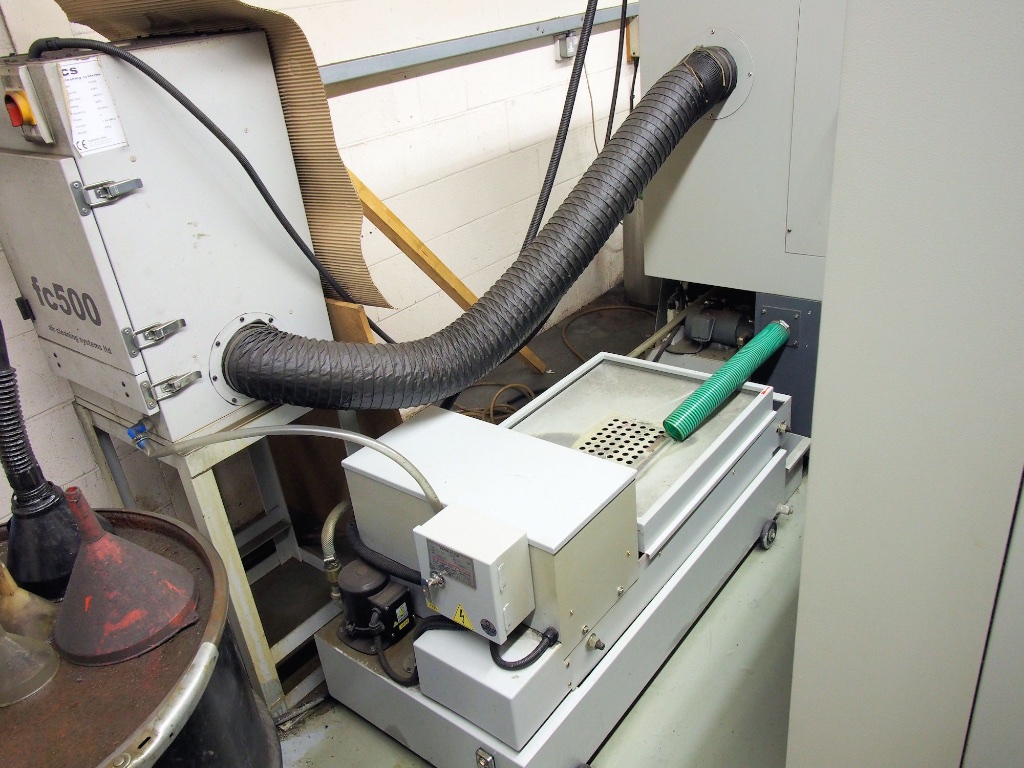

Coolant System With Filtration

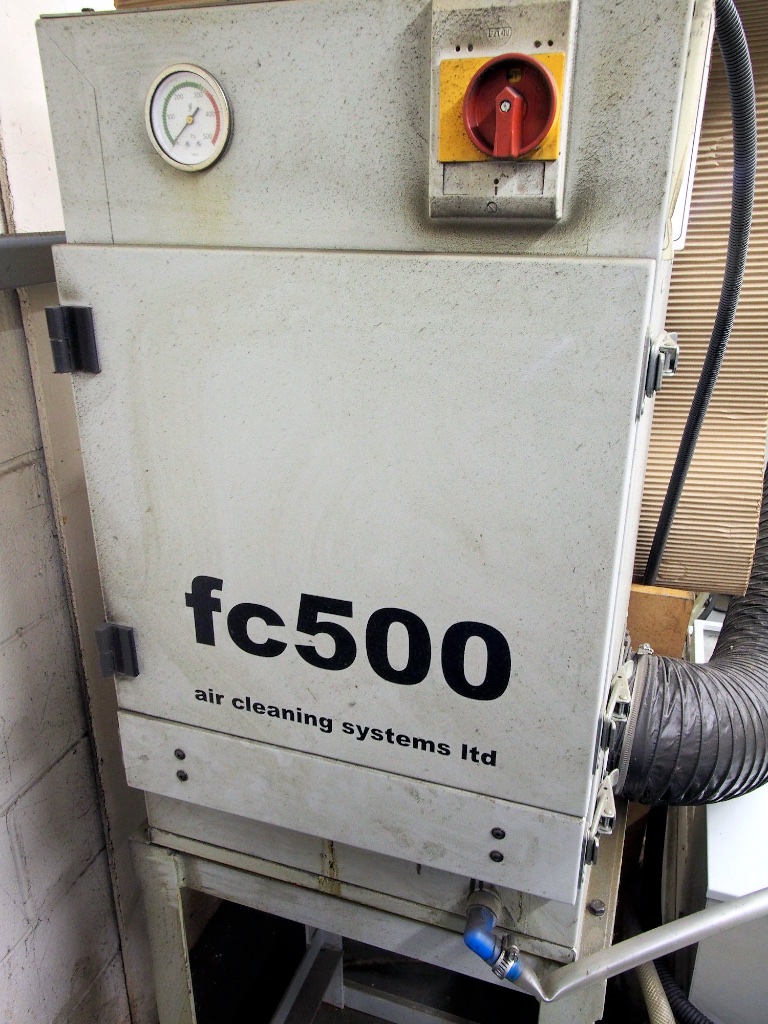

Dust Extraction

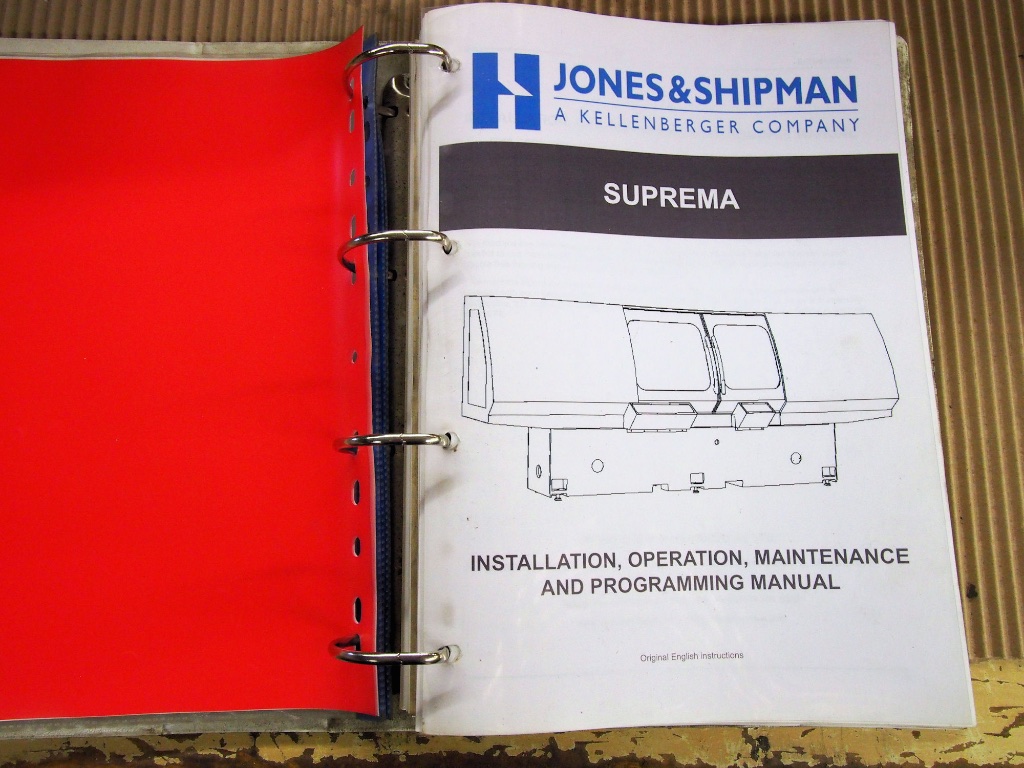

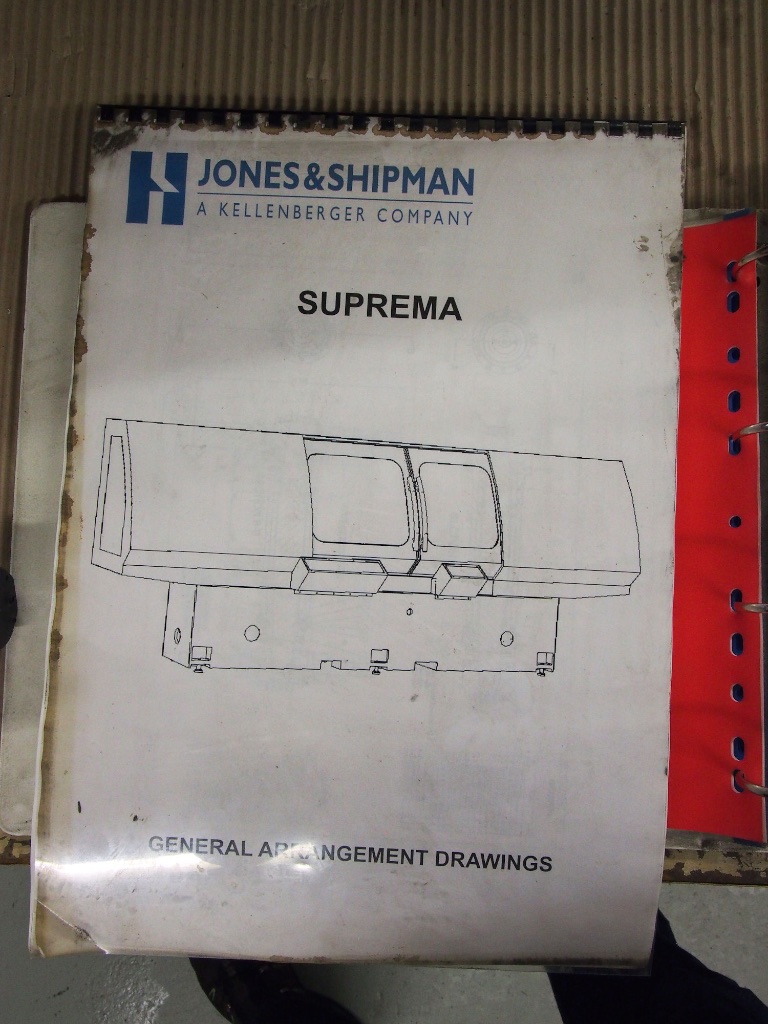

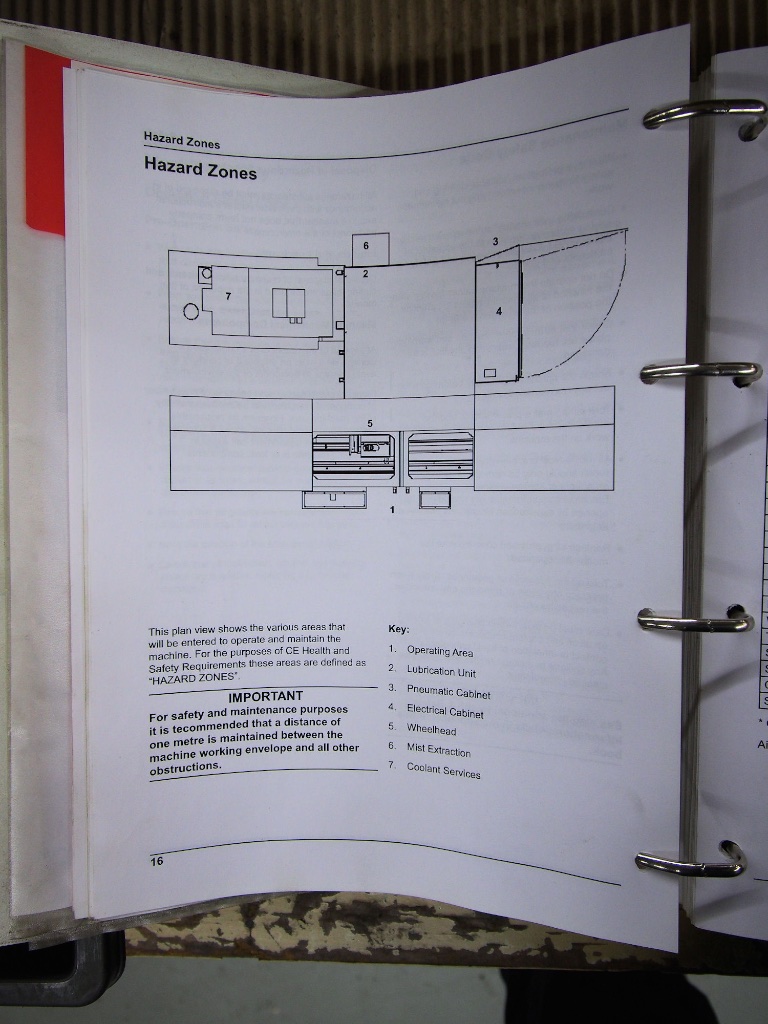

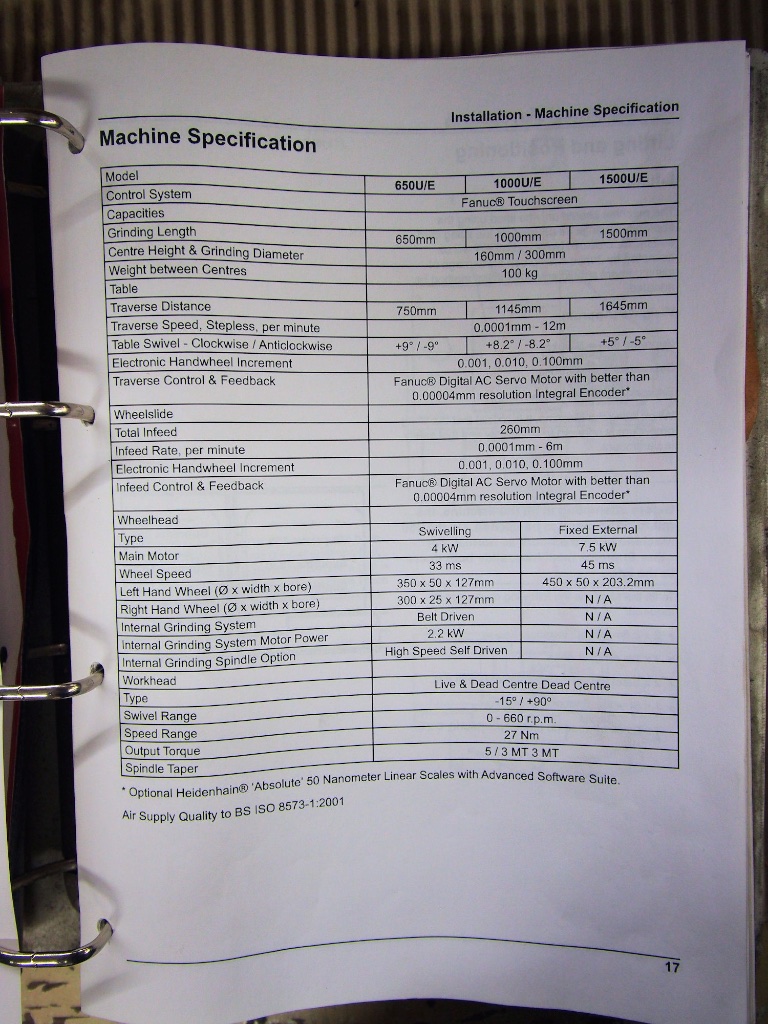

Operation & Maintenance Manuals
Location: Birmingham
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
