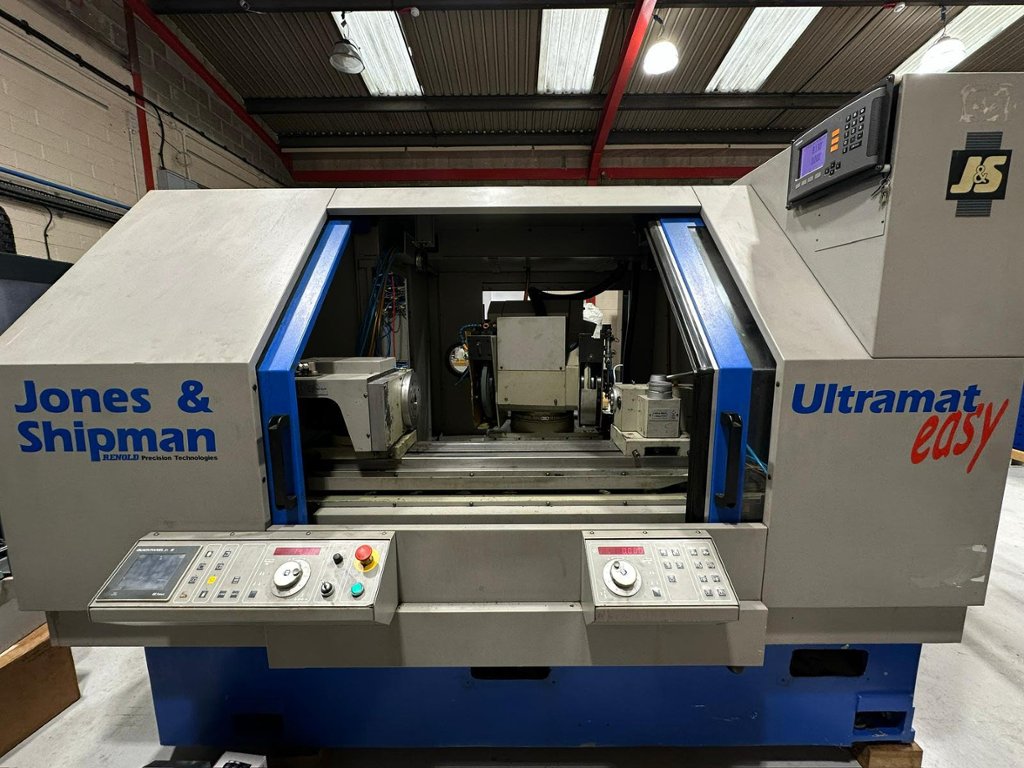

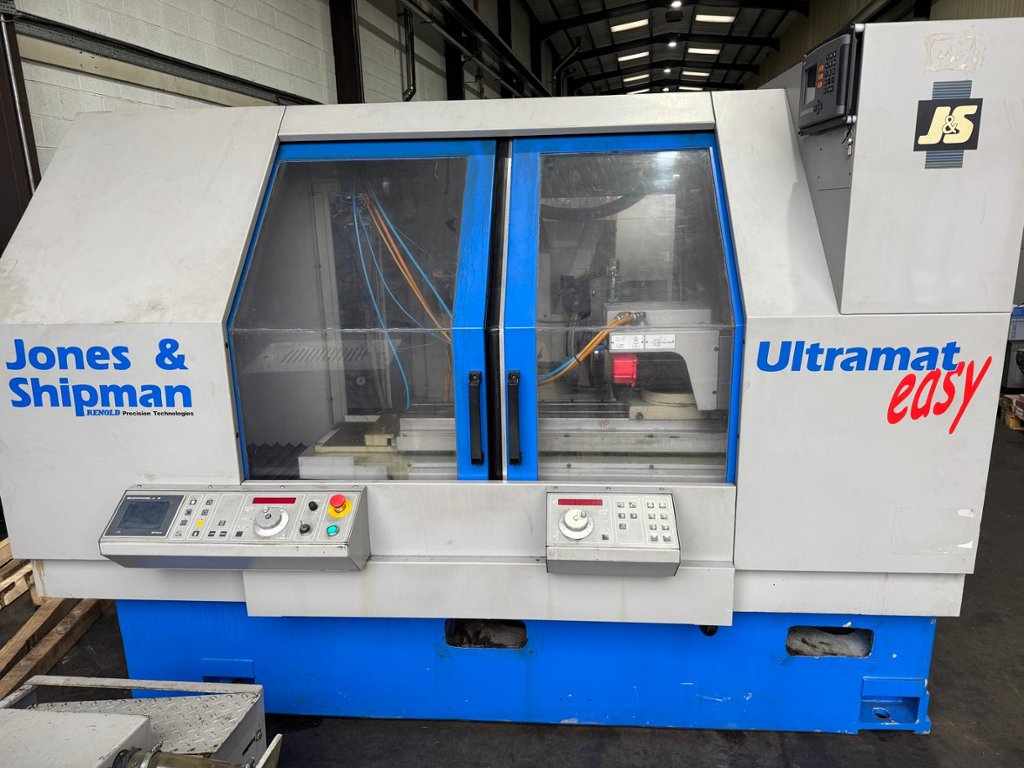

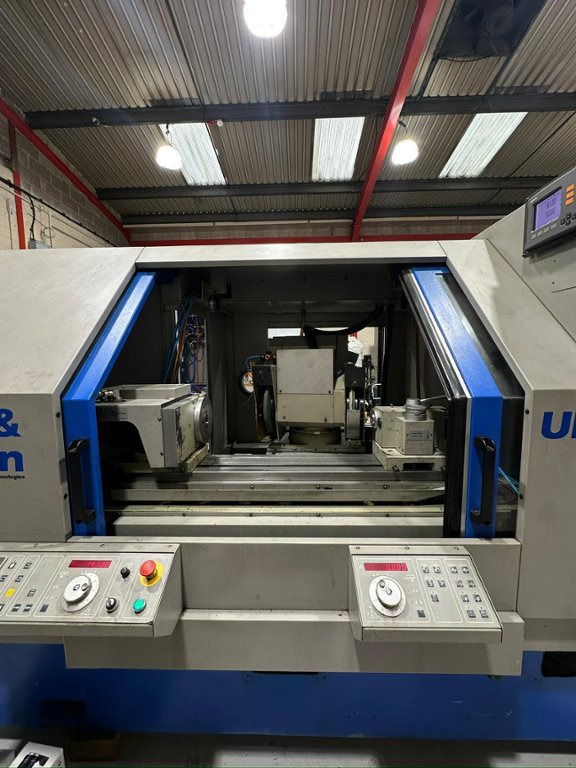

Jones and Shipman Ultramat Easy 650 CNC Tool Room Cylindrical Grinder

Lot 1 - Jones and Shipman Ultramat Easy 650 CNC Tool Room Cylindrical Grinder

Description:

Jones and Shipman Ultramat Easy 650 CNC Tool Room Cylindrical Grinder

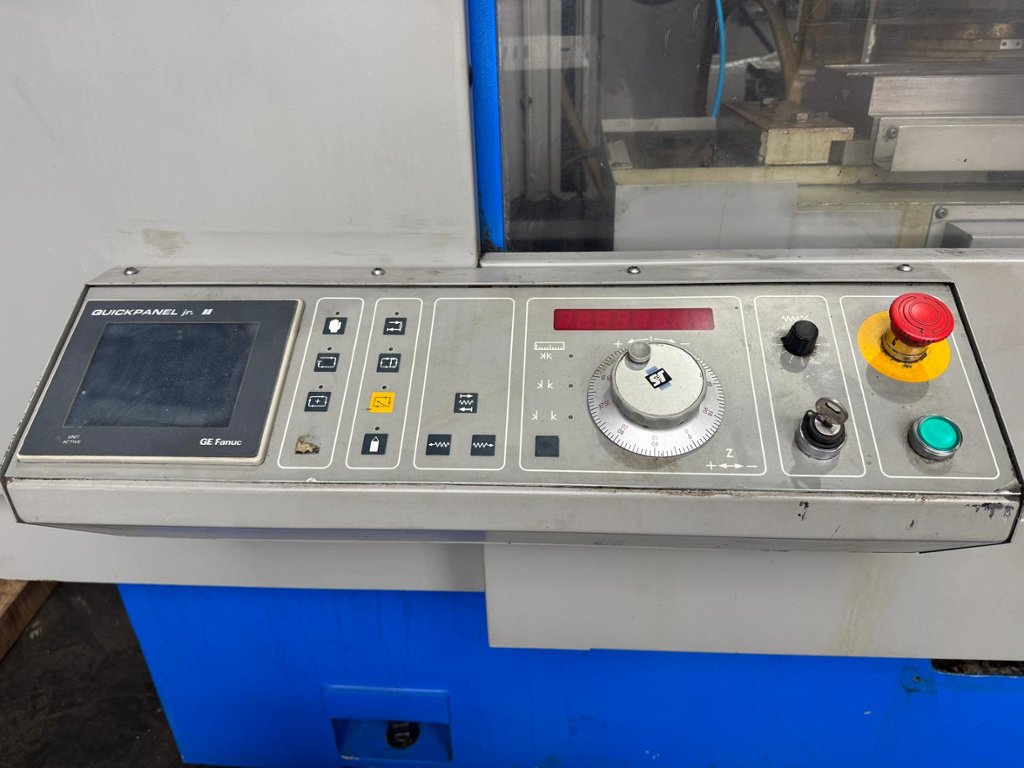

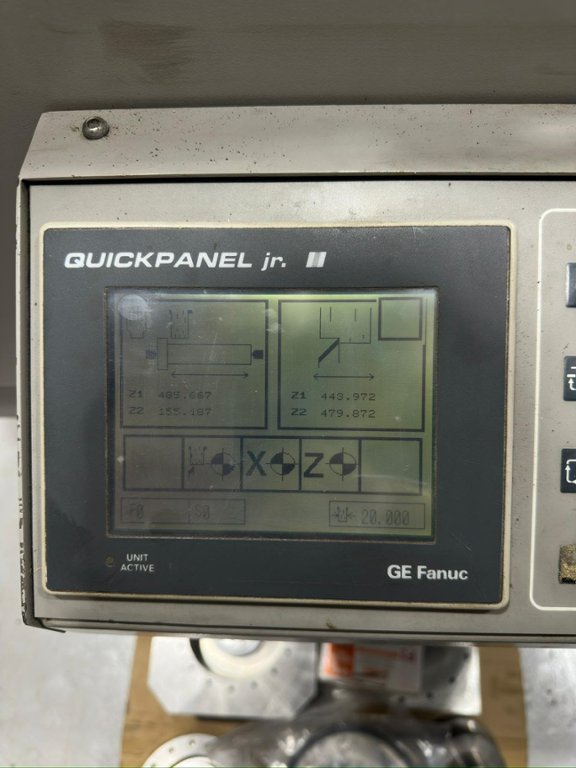

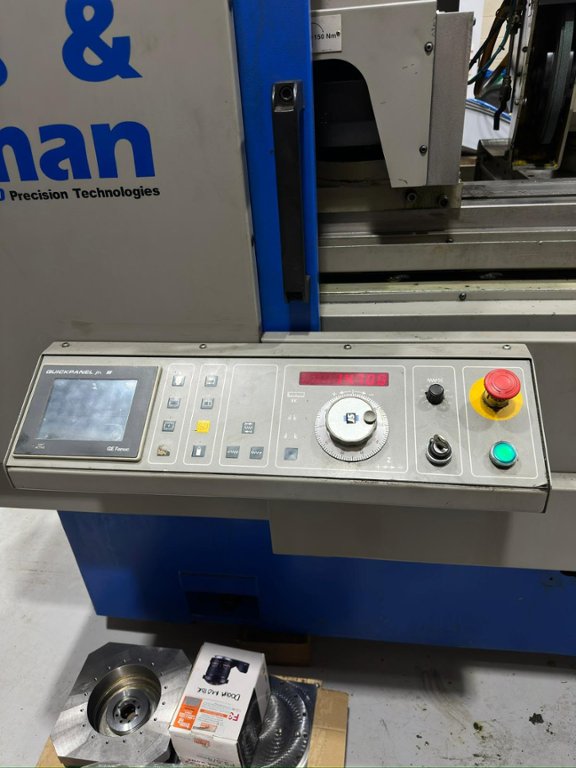

Fanuc Graphic based easy to programme control

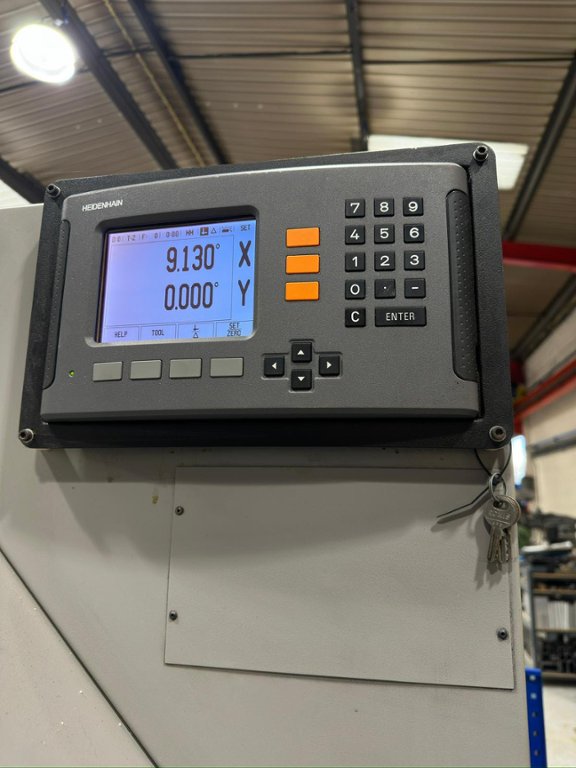

Includes a swivel head with angular DRO

Ultramat Easy, 650mm, with double wheel head and ID attachment on back, with angle encoder on head also

General

Maximum Length between Centres - 650mm, Centre Height - 160mm, Maximum diameter ground - 300mm

Wheelhead (X Axis)

Total Infeed - 260mm, Maximum Speed - 6m/min, Minimum Programmable Increment (diameter) - 0.001mm, HPG Increments - 0.001, 0.01, 0.1mm

E WHEELHEAD

Grinding Wheel

Wheel size, diameter (max)/width/bore - 457 x 50 x 203.2mm, Recessed - 457 x 50 x 203.2mm - Recess = 275 x 25mm deep, Spindle speed - 2174, 2672 RPM, Motor - 7.5kW

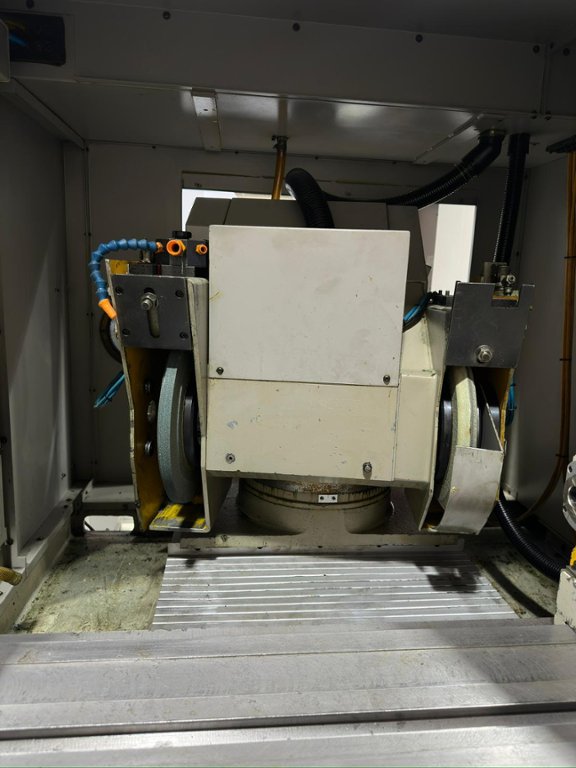

M WHEELHEAD

Swivel Range Clockwise/counter clockwise - 190deg/145deg, Total Infeed - 260mm, Maximum Speed - 6m/min

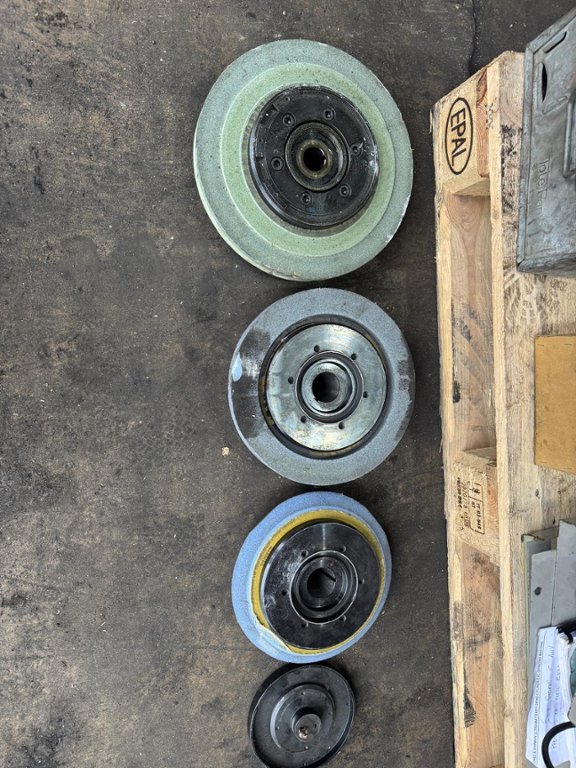

External Grinding Wheels

Wheel size (left), Diameter (Max)/width/bore - 350 x 50 x 127mm - 190 x 12mm deep recessed both sides (210 minimum wheel diameter)

Wheel size (right), diameter (max/width/bore - 300 x 25 x 127mm, Spindle Speeds - 1773, 2069, 2400 RPM, Motor - 4kW

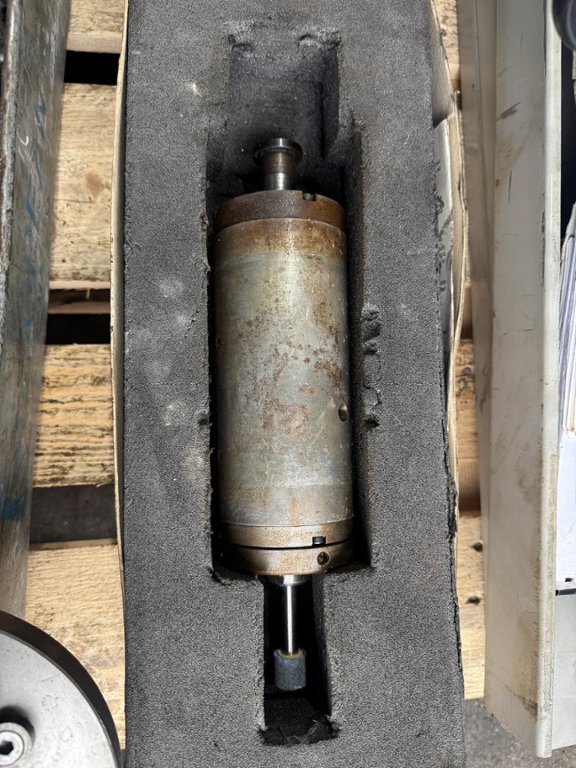

Internal Grinding Wheels

Wheel Size (mm) - Small 10 -20, Medium 25 -40, Large 50 -63, Spindle Speeds (RPM) - Small - 29000, Medium - 165000, Large - 10500, Motor - 2.2kW

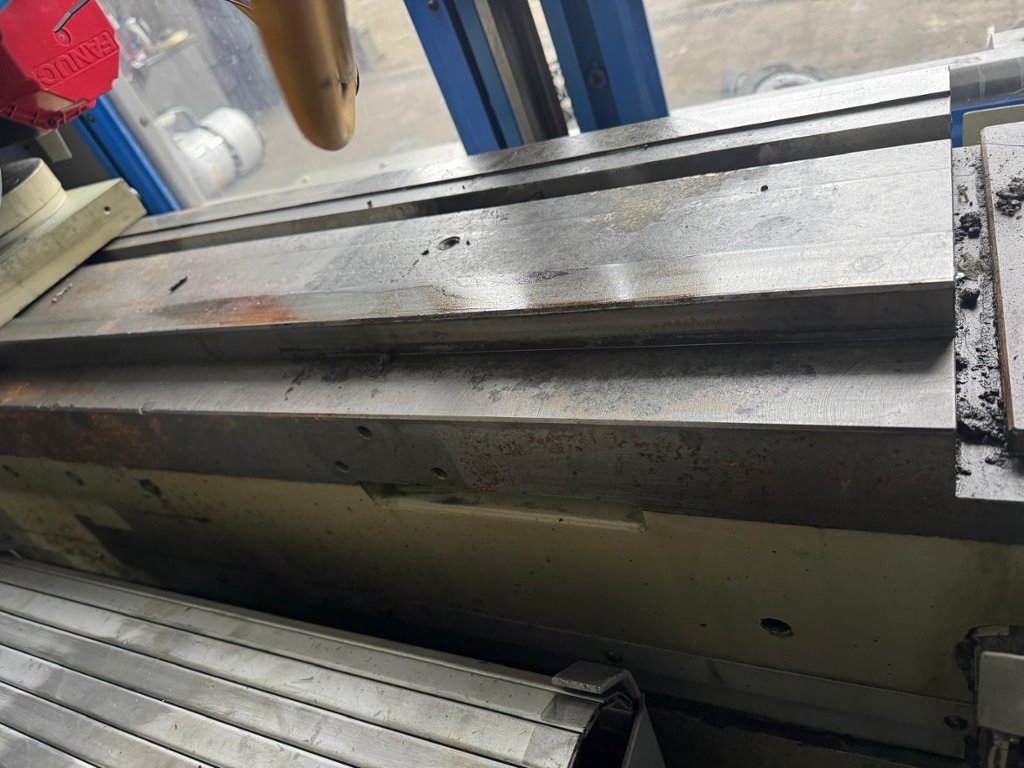

Table (Z Axis)

Maximum Stroke Length - 750mm, Maximum Length Ground - 650mm, Maximum Traverse Speed - 12m/min, Minimum programmable increment (diameter) - 0.001mm, HPG Increments - 0.001, 0.01, 0.01mm, Table Swivel (included angle) - 18" incl CCW, 16" incl CW

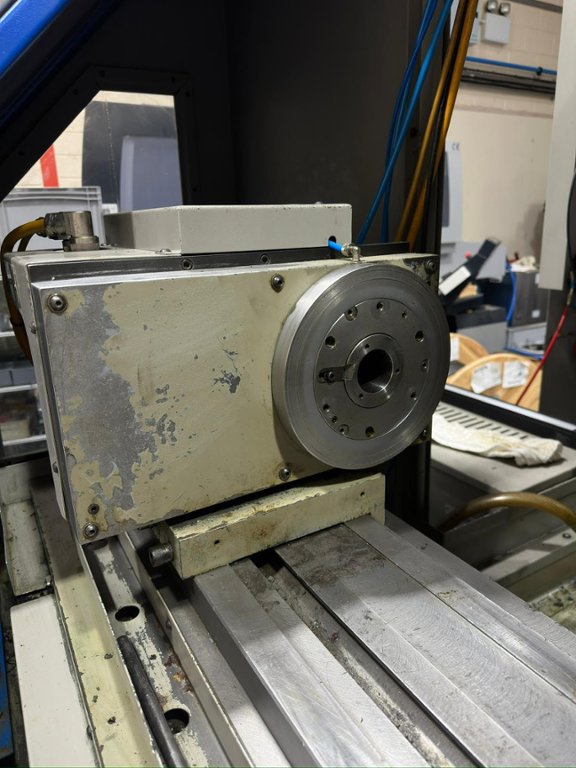

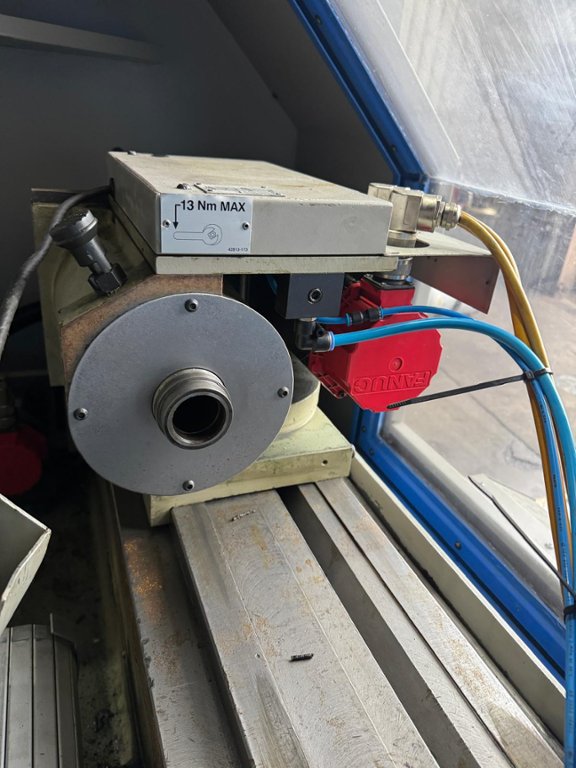

Workhead

Speed Range Continuously variable - 1 - 66RPM, Live Spindle Taper - 5MT, Dead Spindle Taper - 3MT, Maximum Weight between centres - 100kg, Output Torque (continuous)- 27Nm, Swivel Angle - 105deg (+90deg to -15deg)

Tailstock

Spindle Taper (Standard) - 3MT, Poppet Travel - 30mm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
