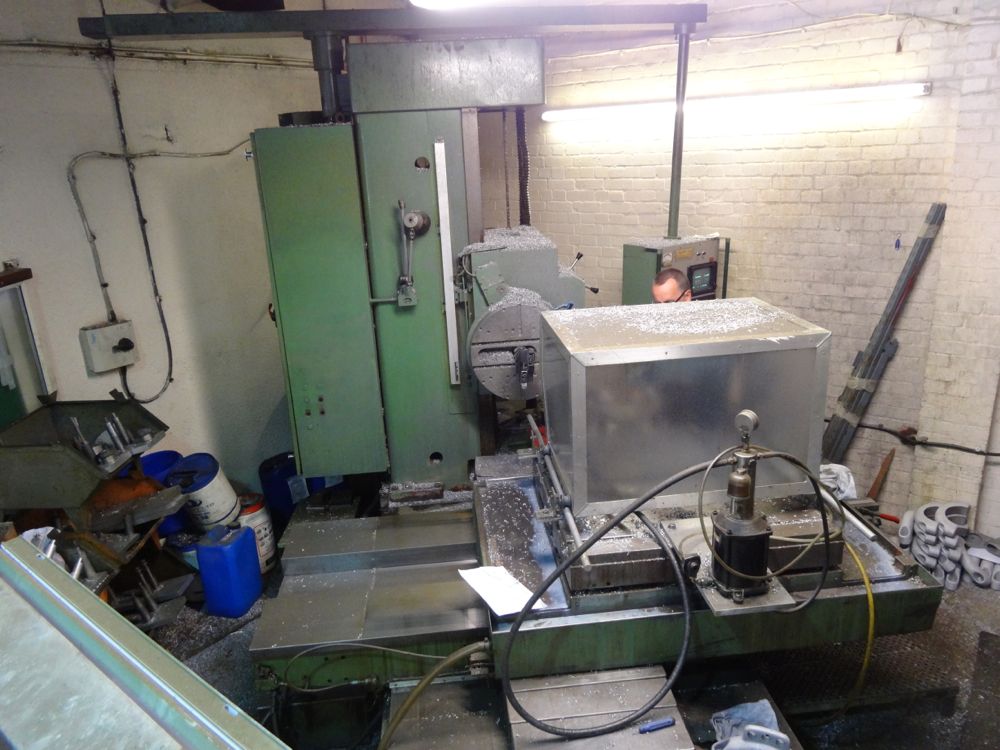

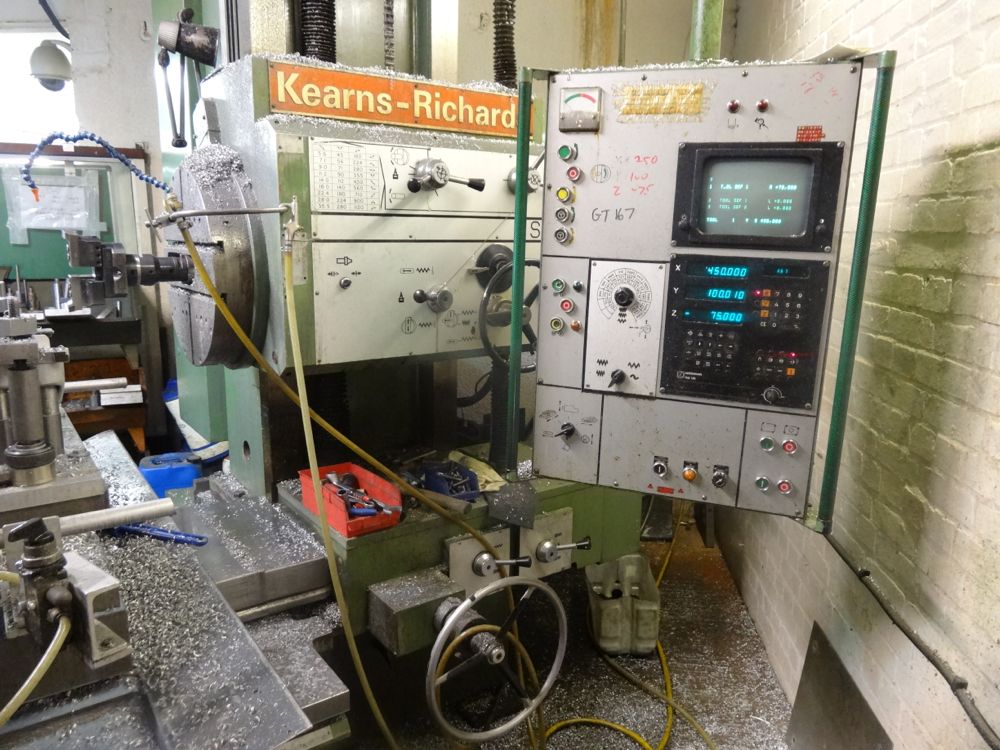

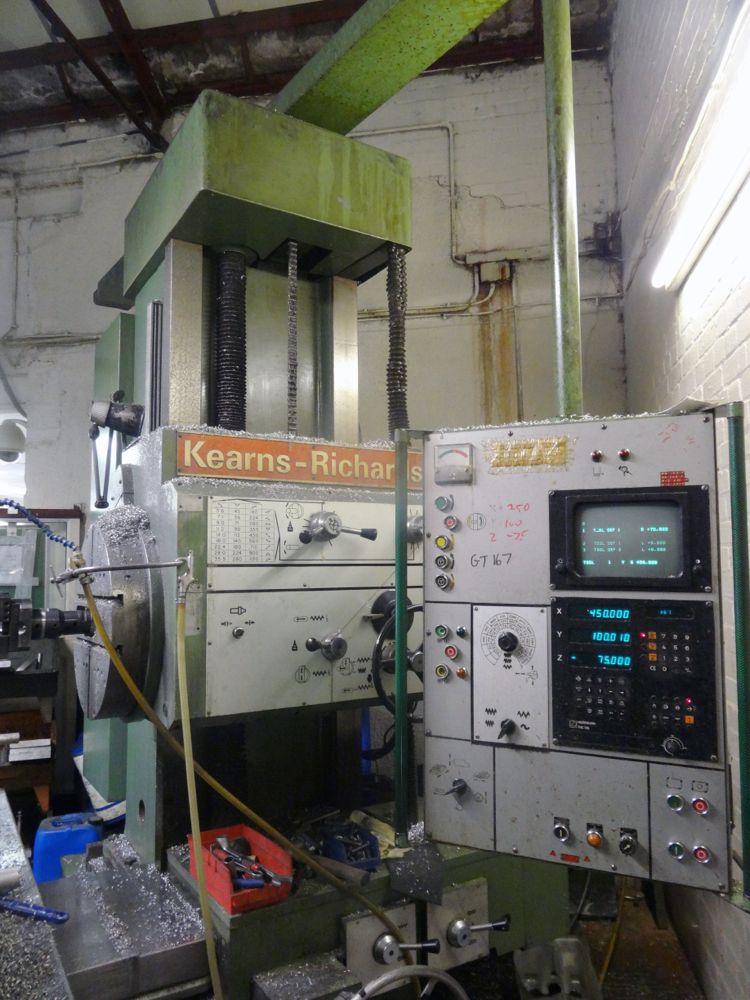

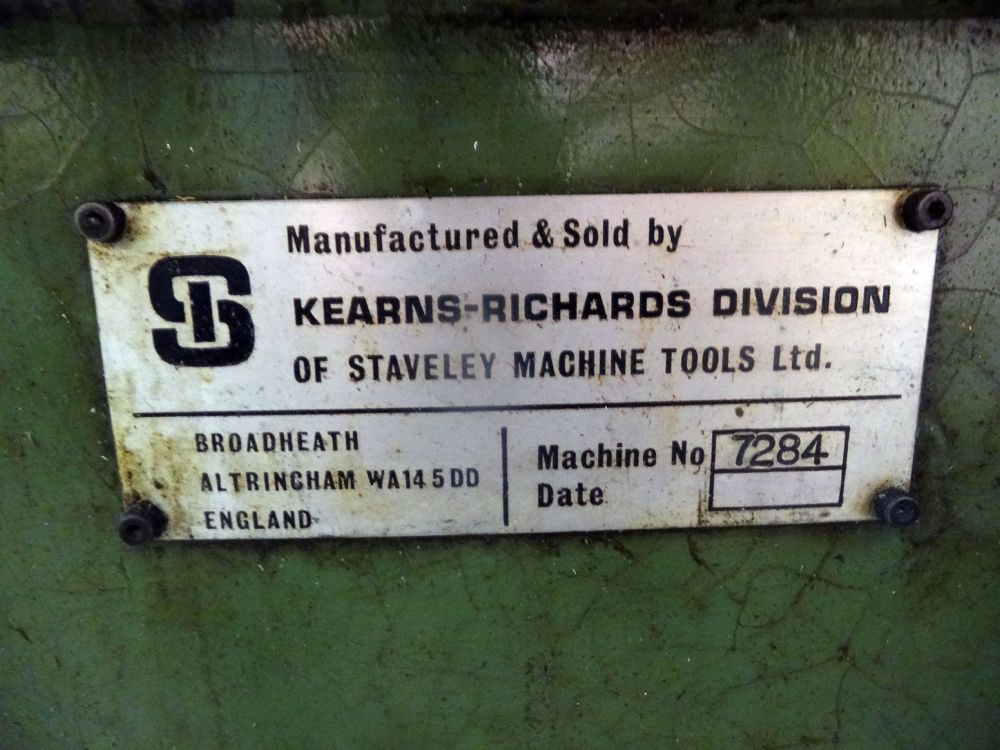

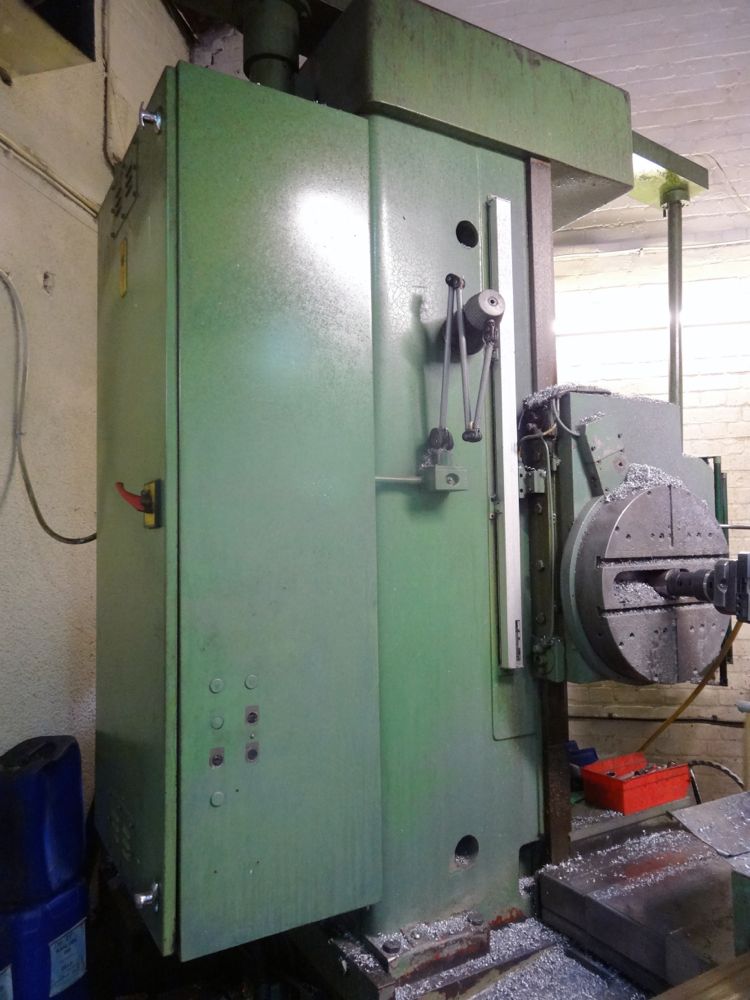

Lot 3 - Kearns & Richards SH75 Horizontal Boring & Milling Machine
Description:
Kearns & Richards SH75 Horizontal Boring & Milling Machine (No Reserve)
Sold Subject to payment.

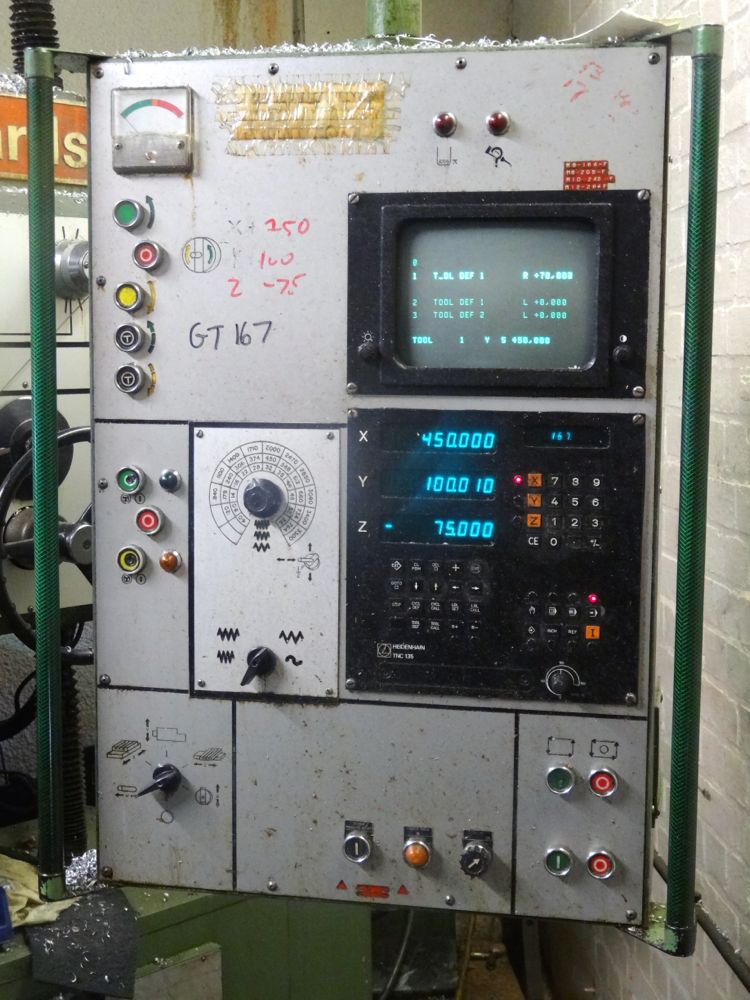

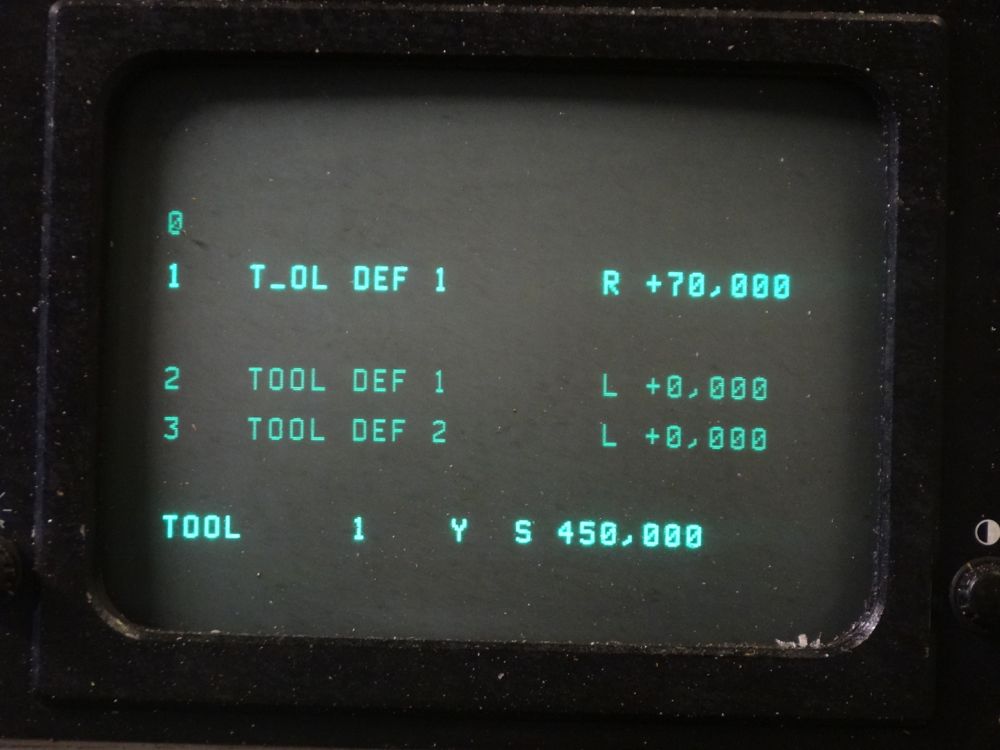

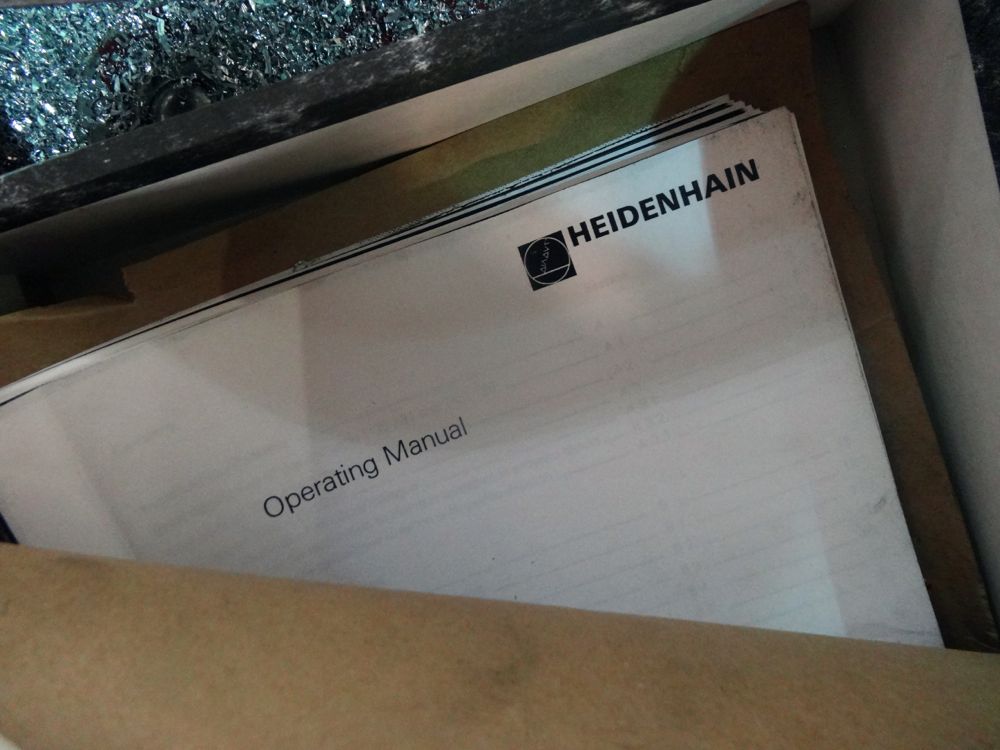

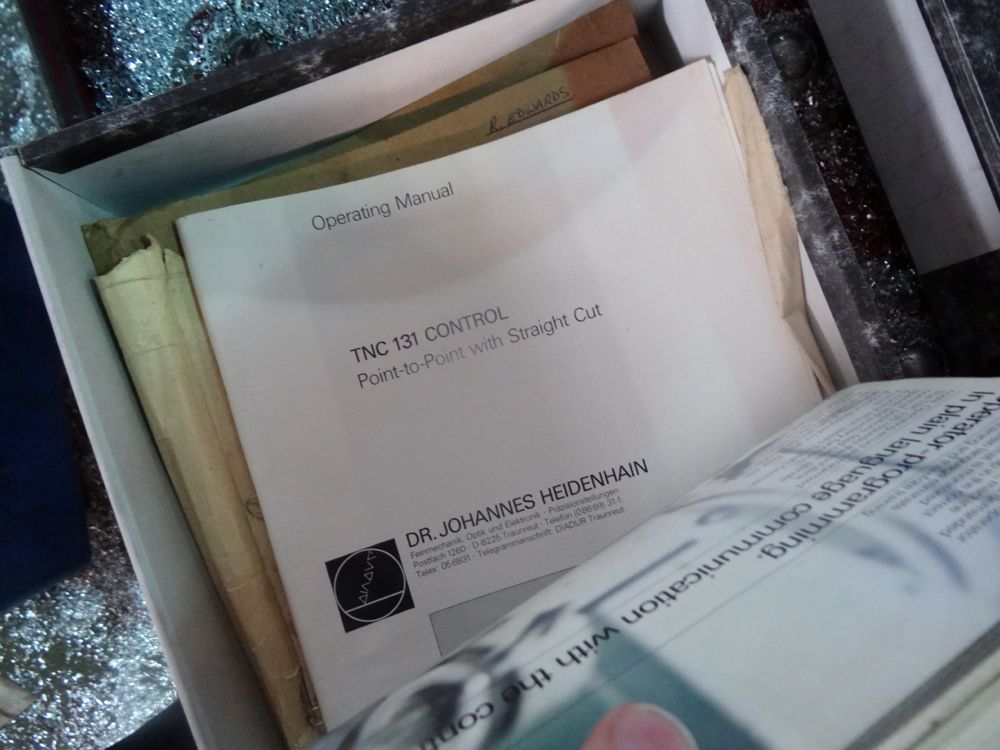

Heidenhain TNC 135 Control
Electrics:
Main Driving Motor (A.C): 7.46kw
Feed Motor: (D.C): 3.7kw
Motors:
9 speed gear box with constant speed of 1440 rpm
Facing head:
Facing capacity dia.: 868mm

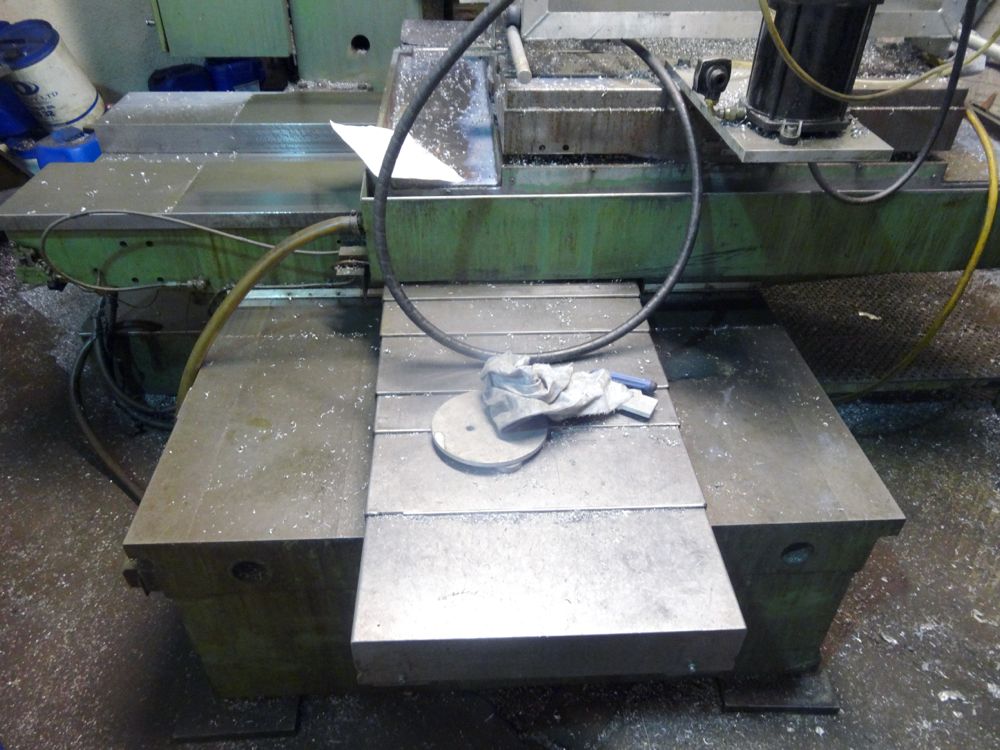

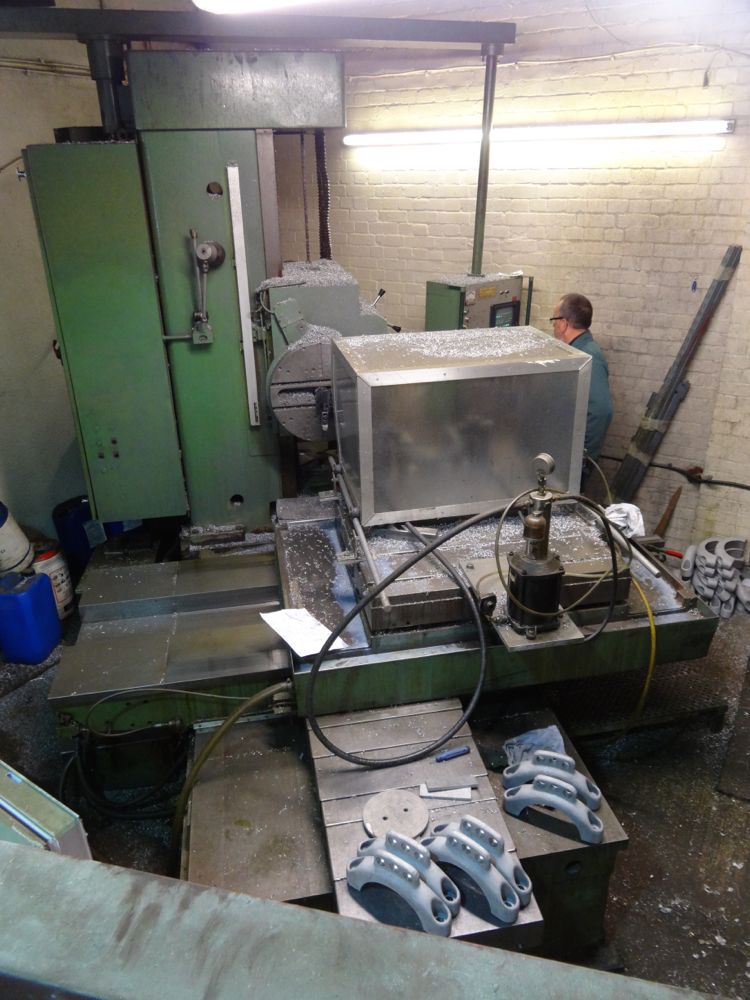

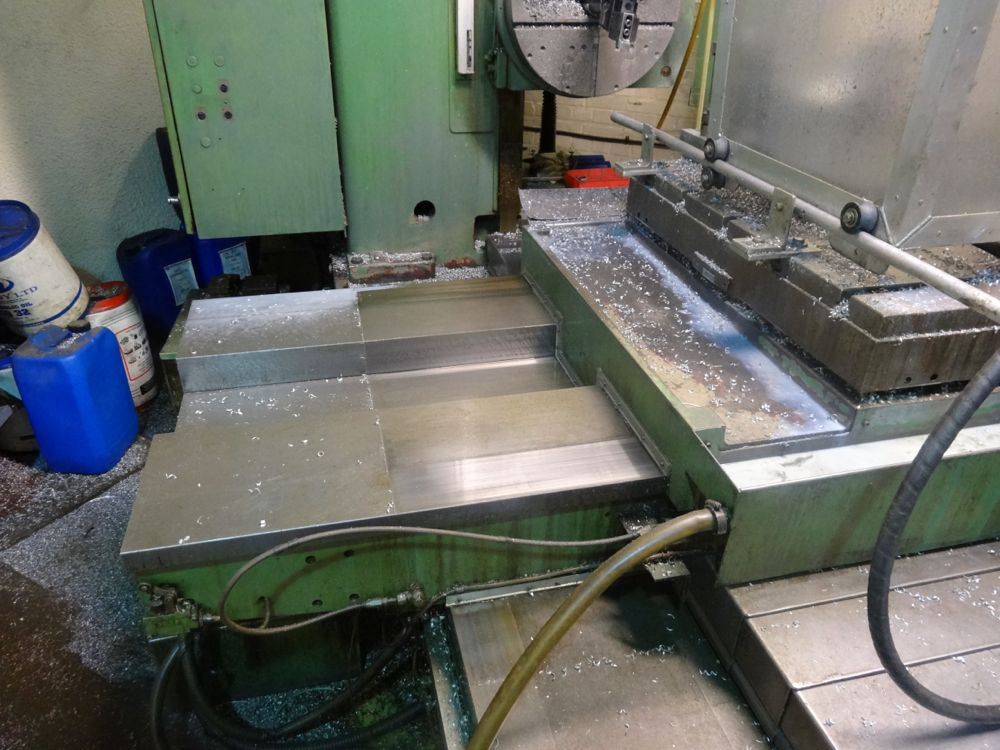

Table:
Revolving Table: 1000mm x 1000mm
Traverse Longitudinal: 1000mm
Transverse: 1250mm
Table loading capacity: 2000kg
Bed:
Width over slideways: 1350
Facing slide to table centre: 1575
Facing slide to boring stay: 2335mm
Speeds:
Traversing spindle: 5.6 to 1120 rev/min
Facing head: 5.6 to 280 rev/min
Rapid power traverse:
Table: Longitudinal: 2500mm/min 3800mm/min
Transverse: 2500mm/min 3800mm/min
Spindle frame: Vertical: 2500mm/min 3800mm/min
Traversing Spindle: Axial: 830mm/min 1260mm/min
Facing Slide: Radial: 830mm/min 1260 mm/min
Quick action “Stay put” emergency stop button

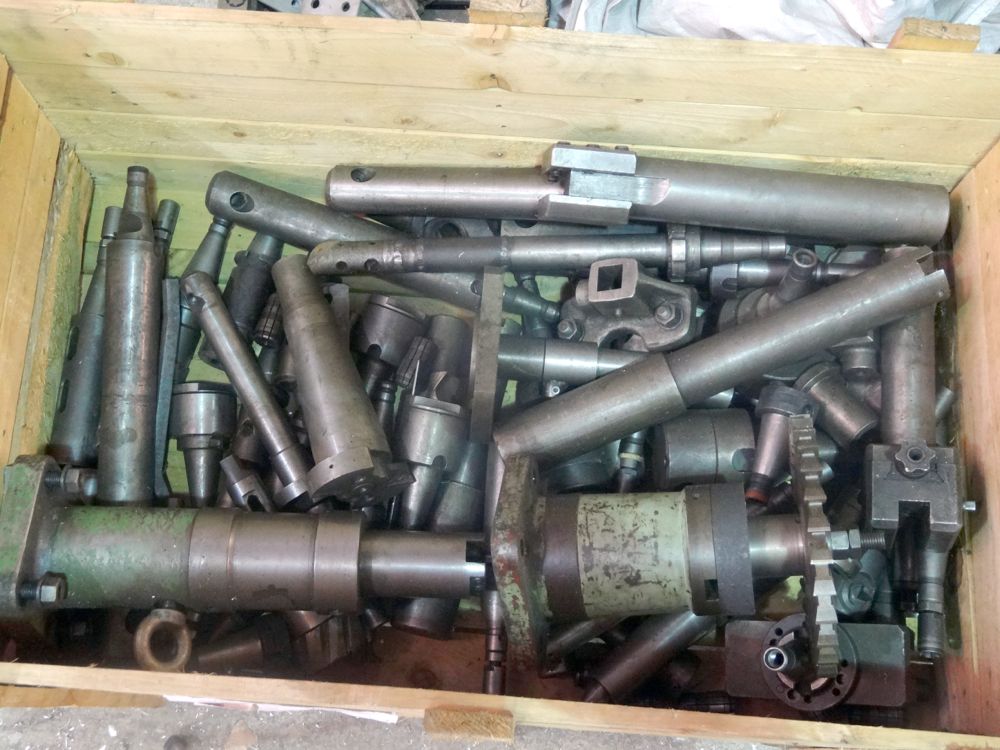

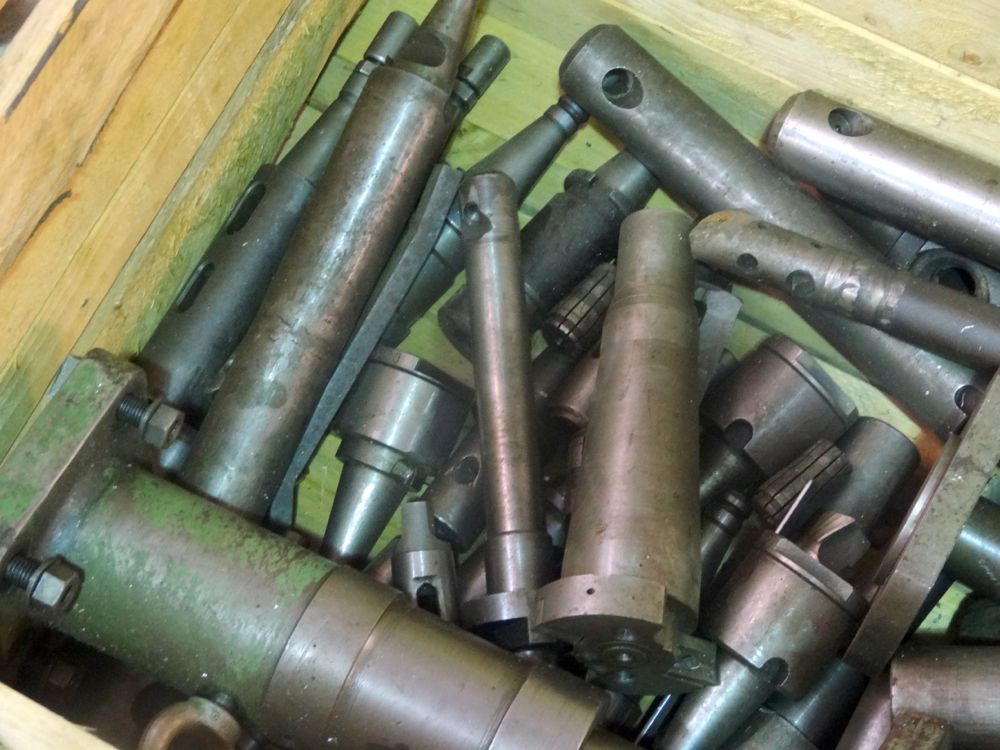

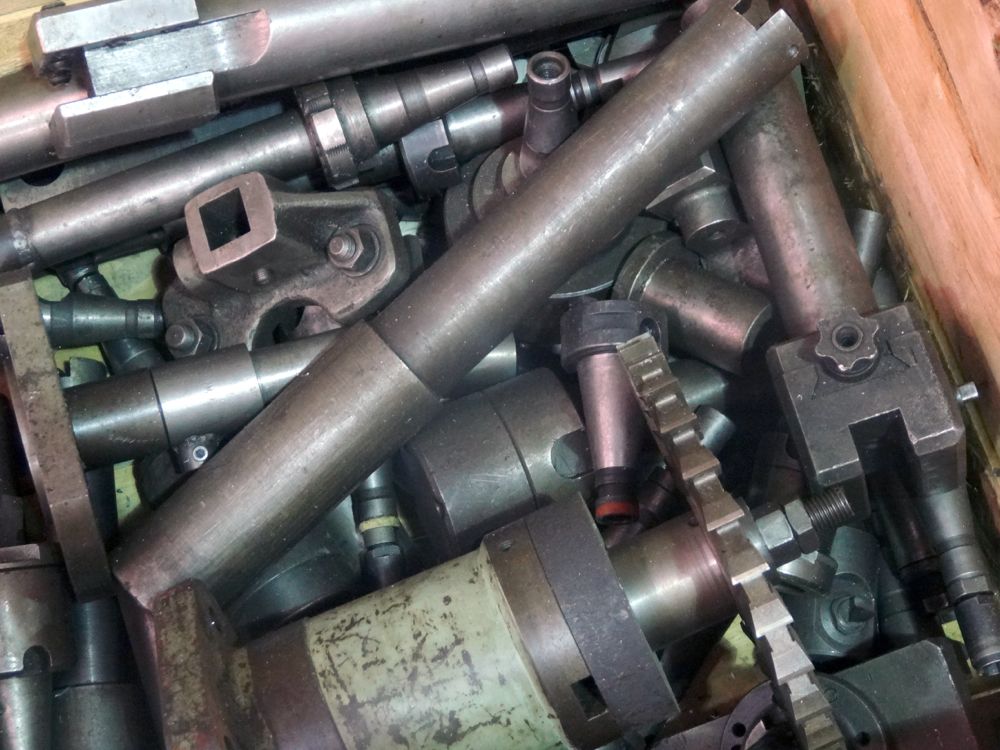

Create of tooling included (See photos)
Weights:
Bed saddle and tables: 5000kg
Bed: 3250kg
Saddle and table: 1750kg
Column spindle frame and balance weight: 4150kg
Column: 1100kg
Balance weight: 1150kg
Spindle frame: 1900kg
Boring Stay: 550kg
Control panel: 150kg
Weight: 10,500kg
Please call for loading/ Transport quation.
Location: Leicester
