Lot 3 - Kellenberger Kel-Varia R 175-1000 CNC Cylindrical Grinder
Description:

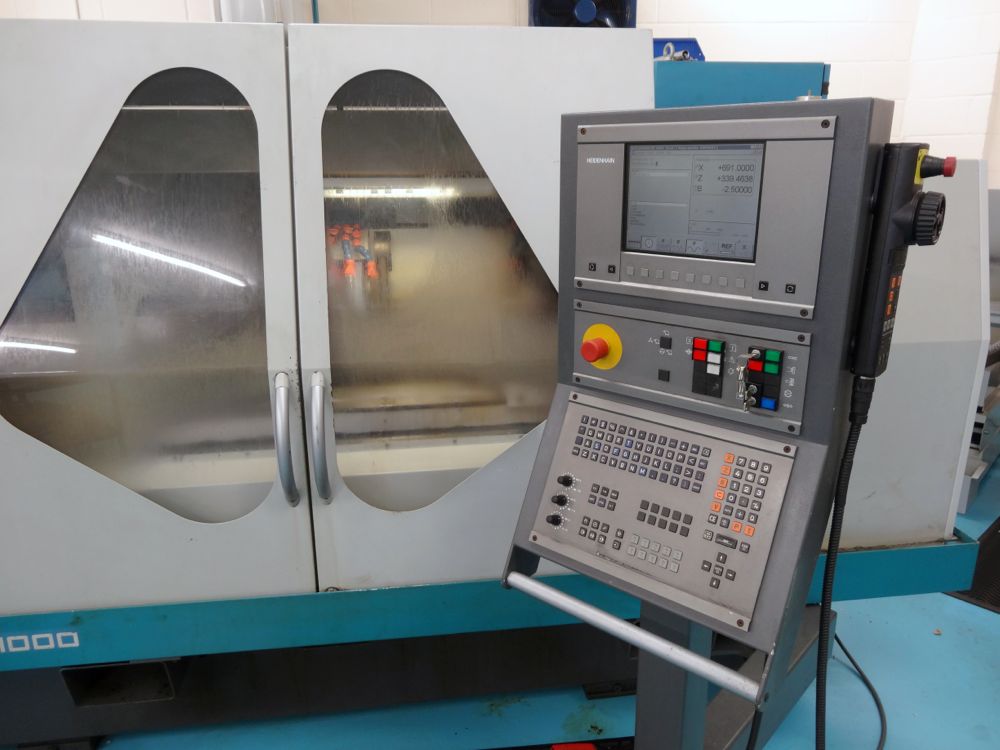

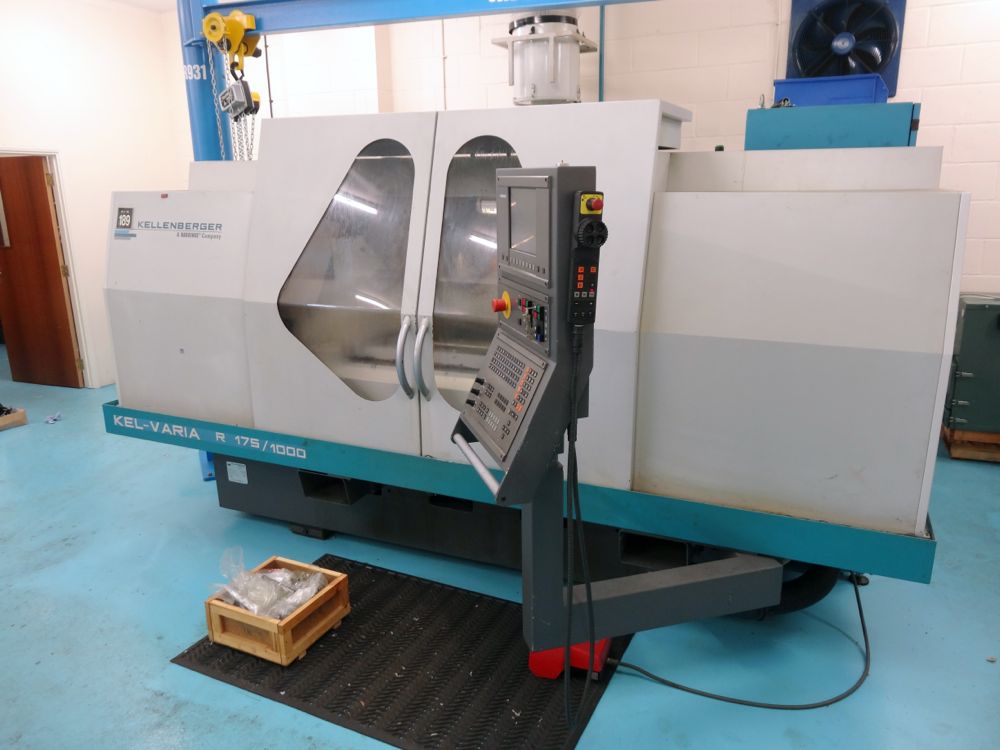

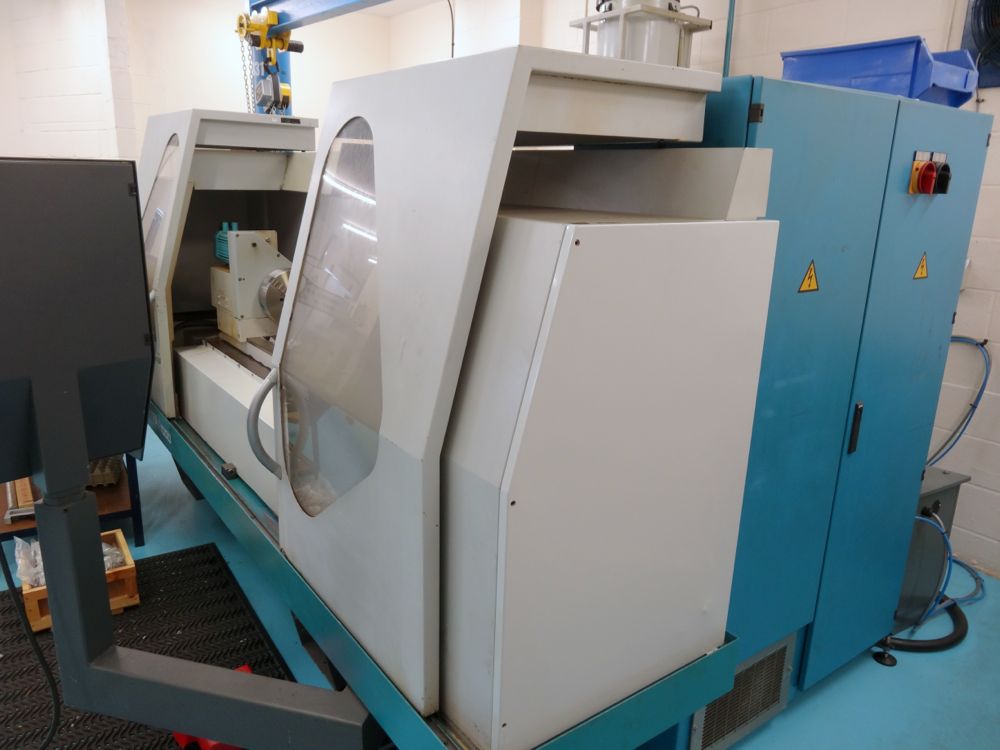

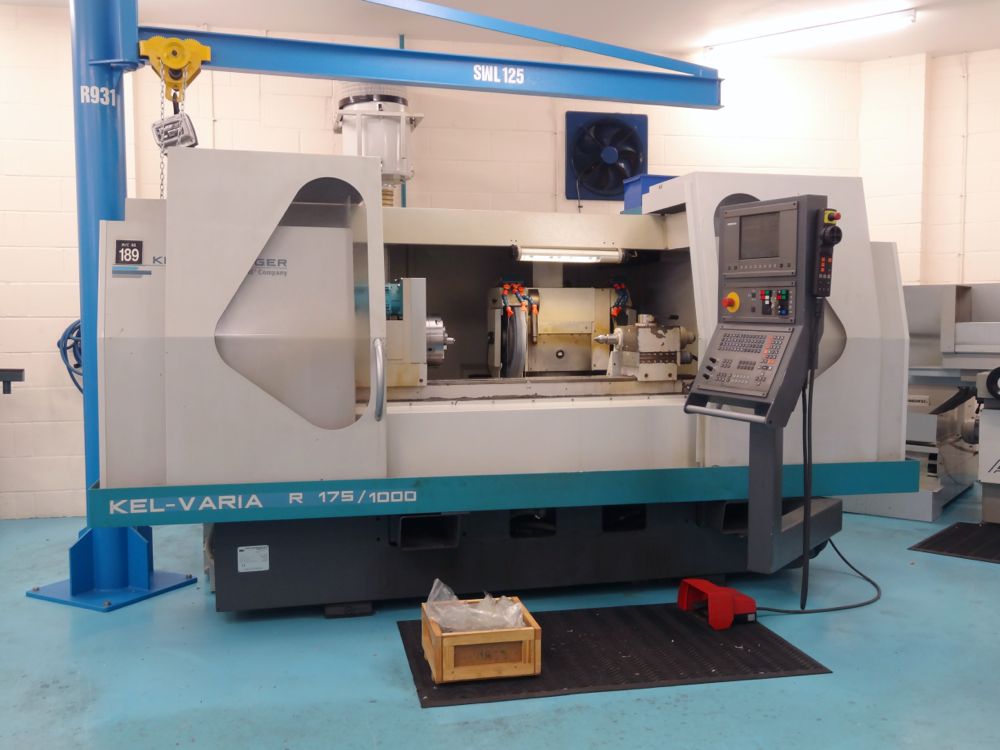

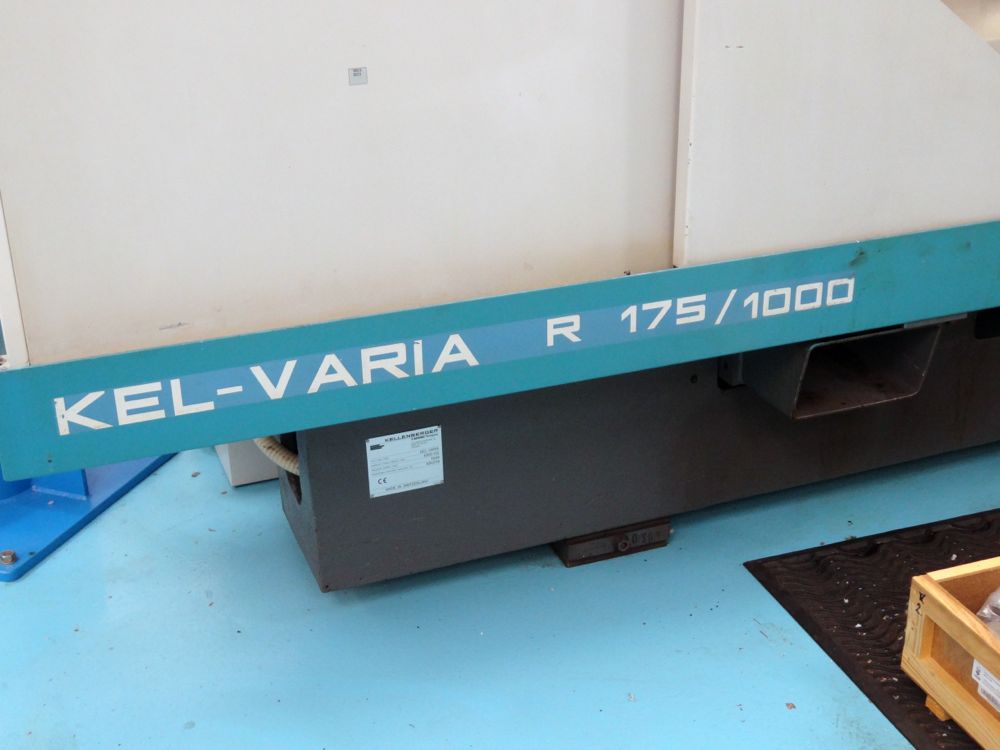

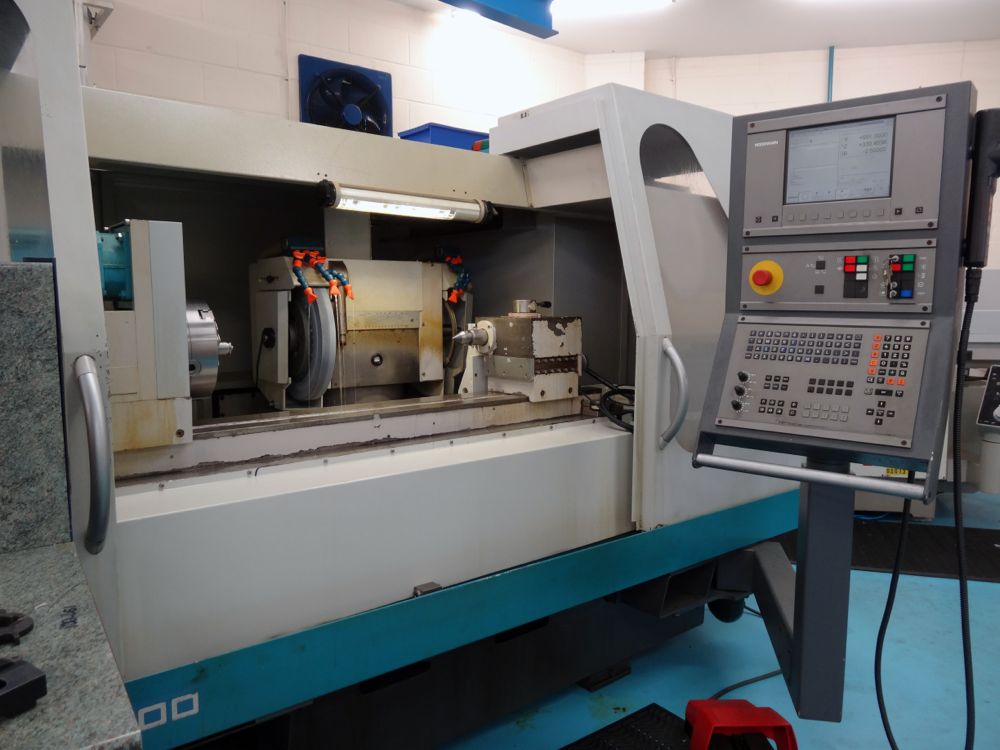

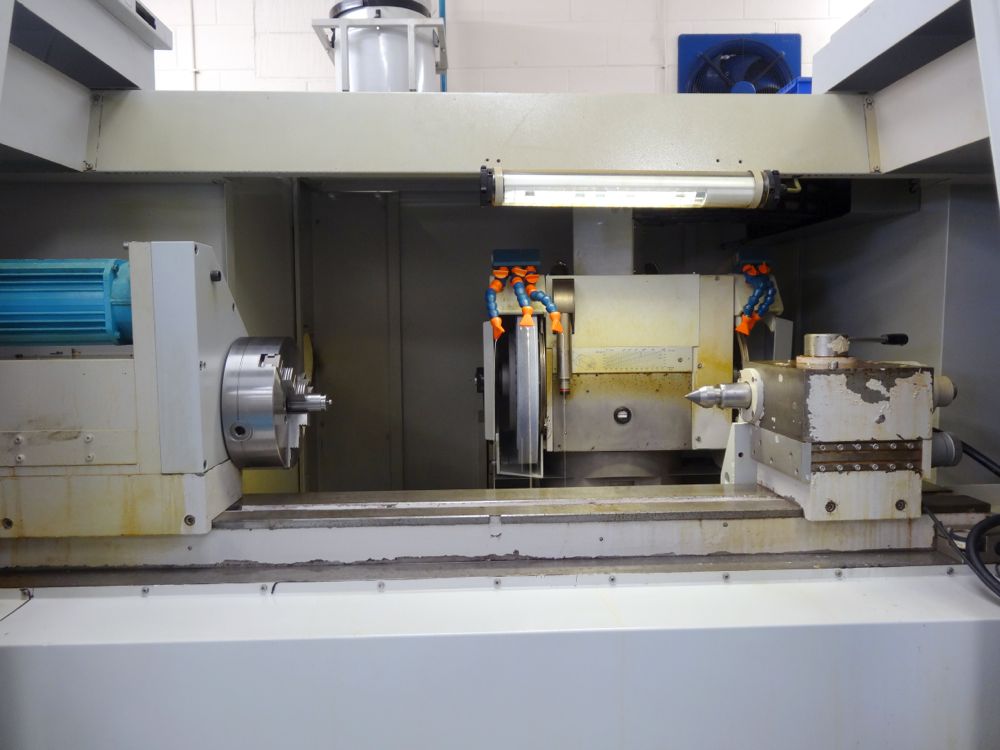

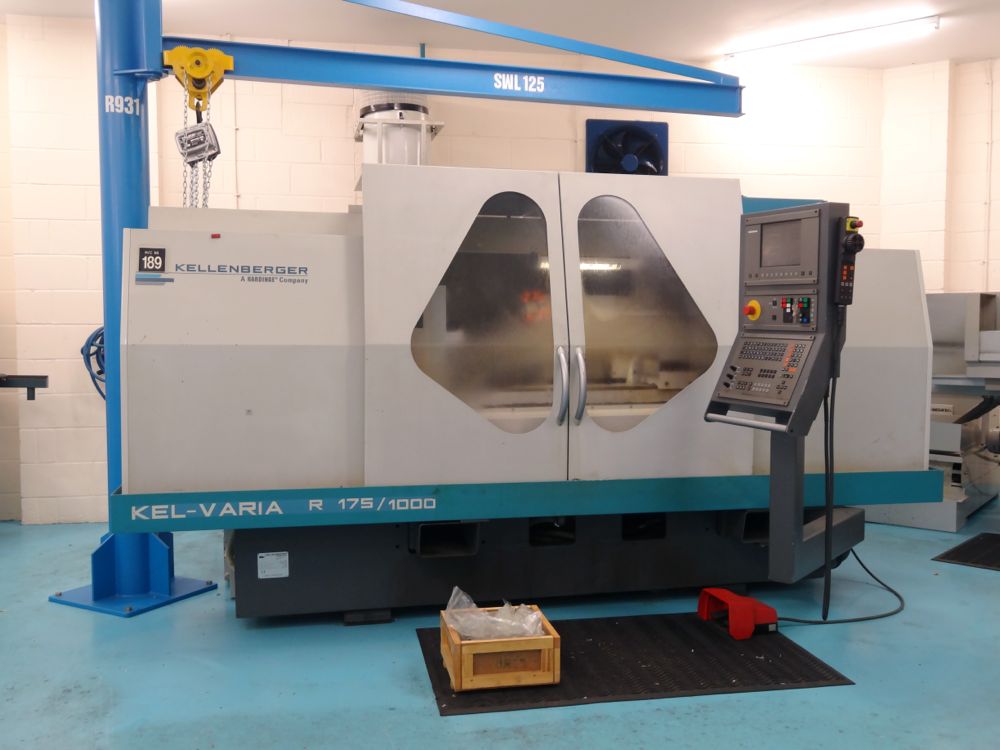

Kellenberger R 175/1000 CNC Cylindrical Grinder
L x W x H: 3750mm x 2015mm x 1950mm (inc control)
Weight: 5000kgs

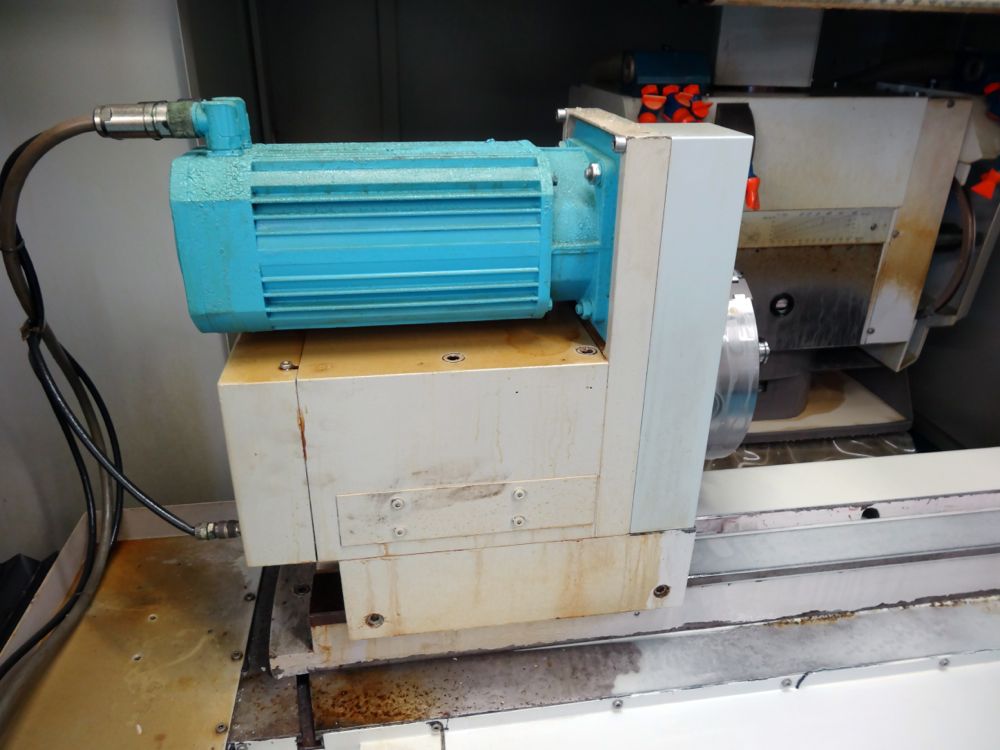

Workhead Standard:
Swiveling range: Clockwise: -10 degrees
Swiveling range: Anticlockwise: +100 degrees
Spindle speed (infinitely variable): 6 - 600min -1
Holding taper internal: MT5
Reduction sleeve: MT5/ MT4
Short taper external: DIN 55026 size 5
Permissible load: 160Nm
Max. load when grinding centres: 150kg

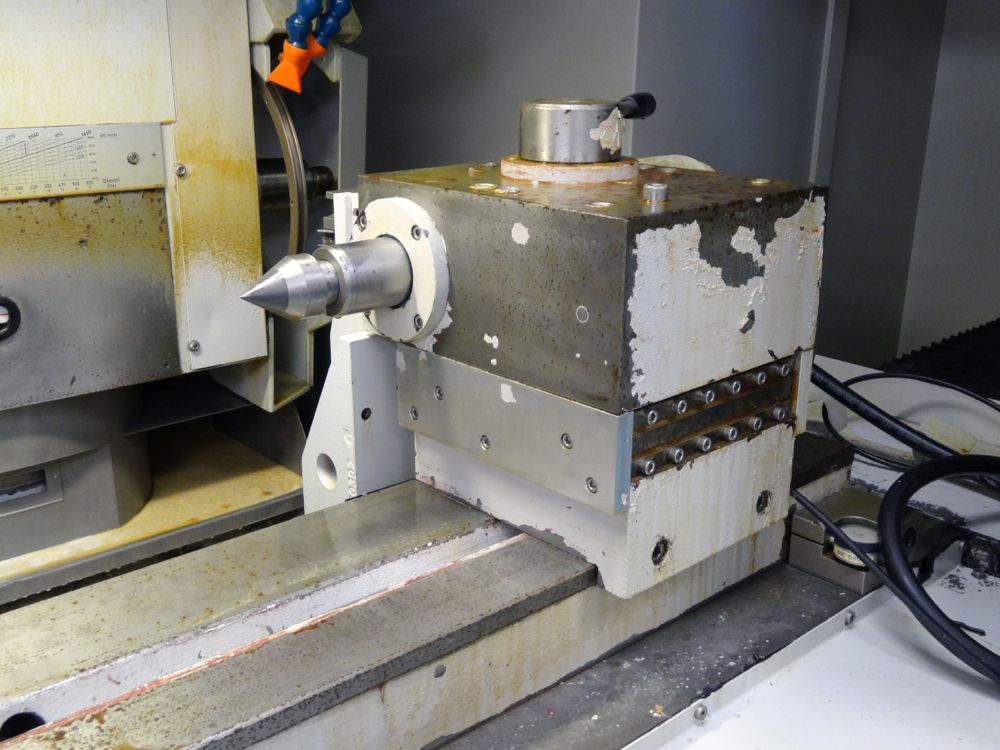

Tailstock:
Holding taper: MT4
Lift of tailstock sleeve: 50mm

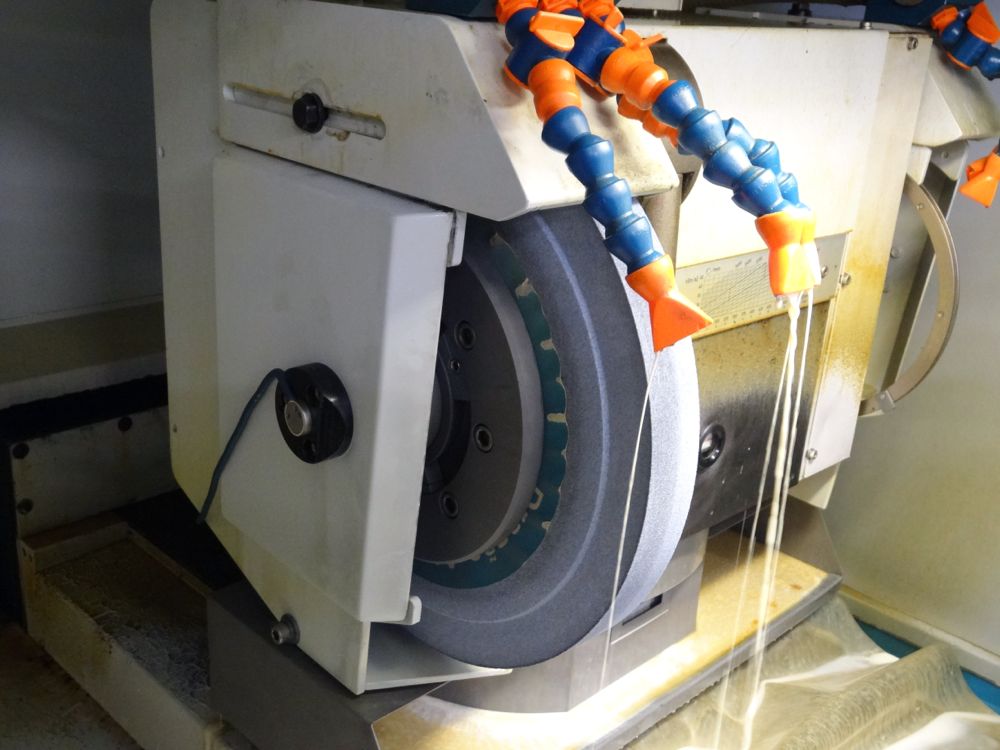

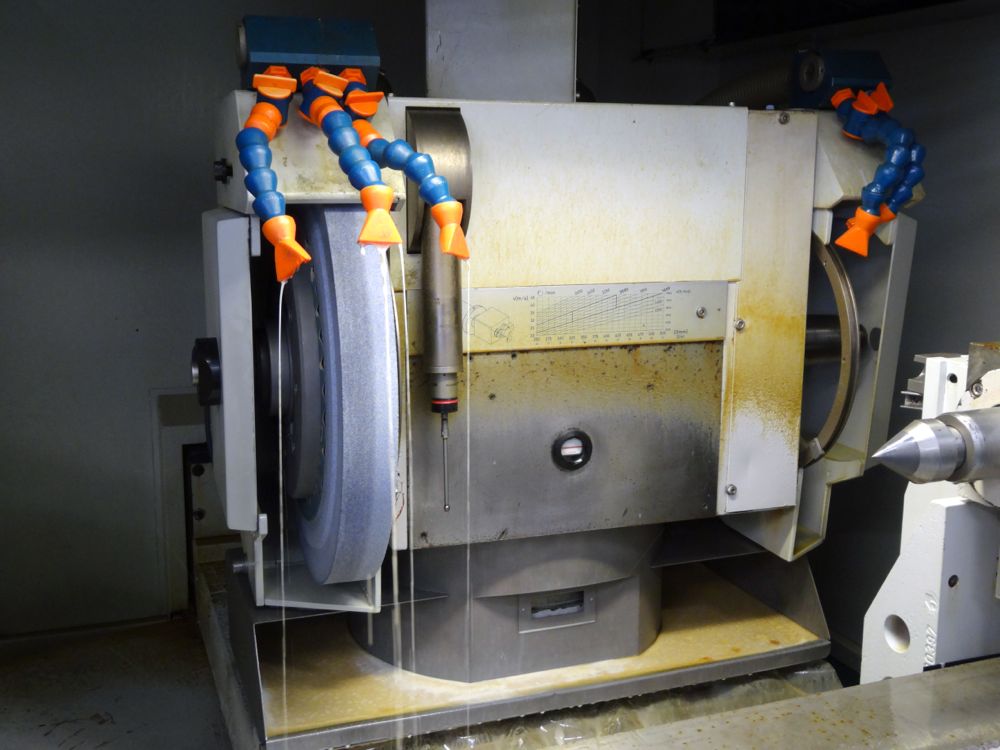

Grinding wheels: max peripheral speed for grinding wheels
Grinding wheel 300: 27ms -1
Grinding wheel 400: 35ms -1
Grinding wheel 500: 45ms -1
Grinding wheel 450: 40ms -1
Z axis:
Distance between centres: 1000mm
Max. travel: 1150mm
Max speed: 15m min -1
Max. resolution:0,1um
Upper table: Distance between centes / Swivelling range
1000mm: 0 up to 9 degrees

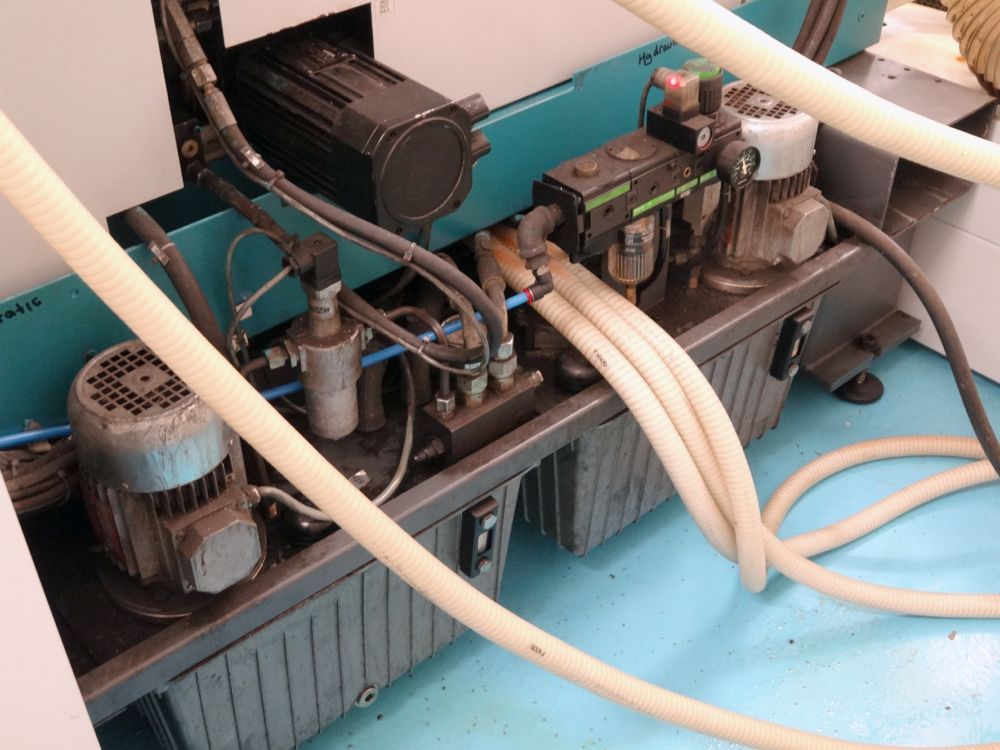

Drive Motors:
Cross slide (X axis): 3000 min -1: output kw: 1.6
Swiveling system for automatic indexing: speed 6000 min -1 output: 1.0kw
Swiveling system with B axis: speed 6000 min -1, output 1.0 kw
Z axis: speed: 3000 min-1, output 1.6 kw
Workhead standard: speed 3000 min -1, output 2.8kw

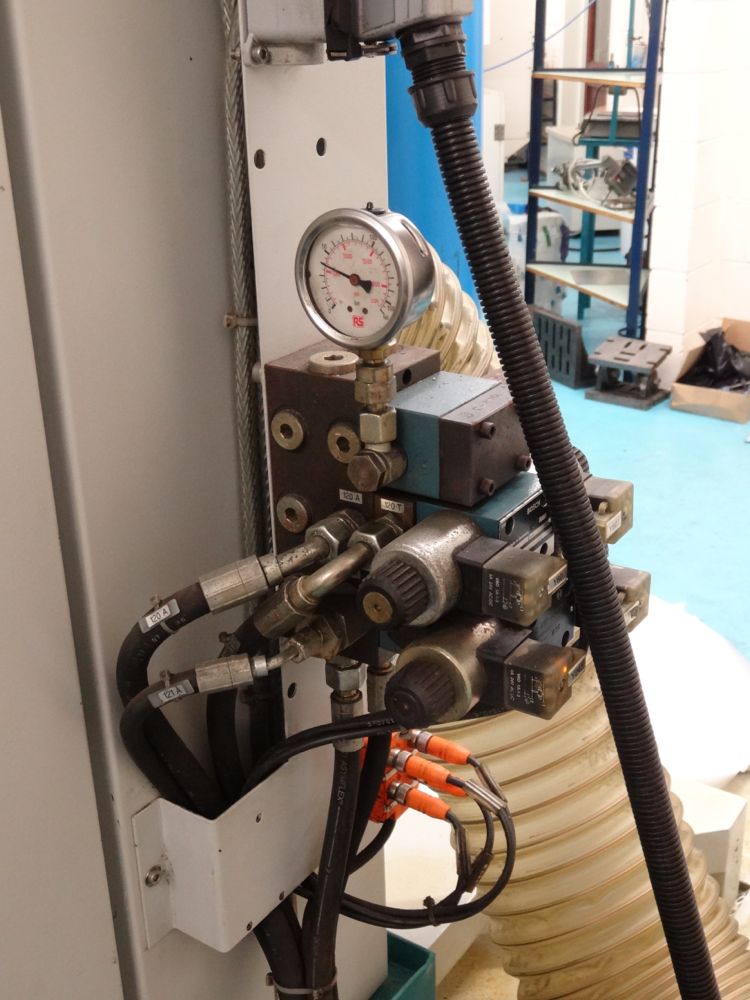

Hydraulic pump: 50Hz: speed: 1500, 60Hz: 1800, output: 50Hz: 0.37, 60Hz 0.44.
Cross Slide:
Max travel: 320mm
Max speed: 7,5 m min -1

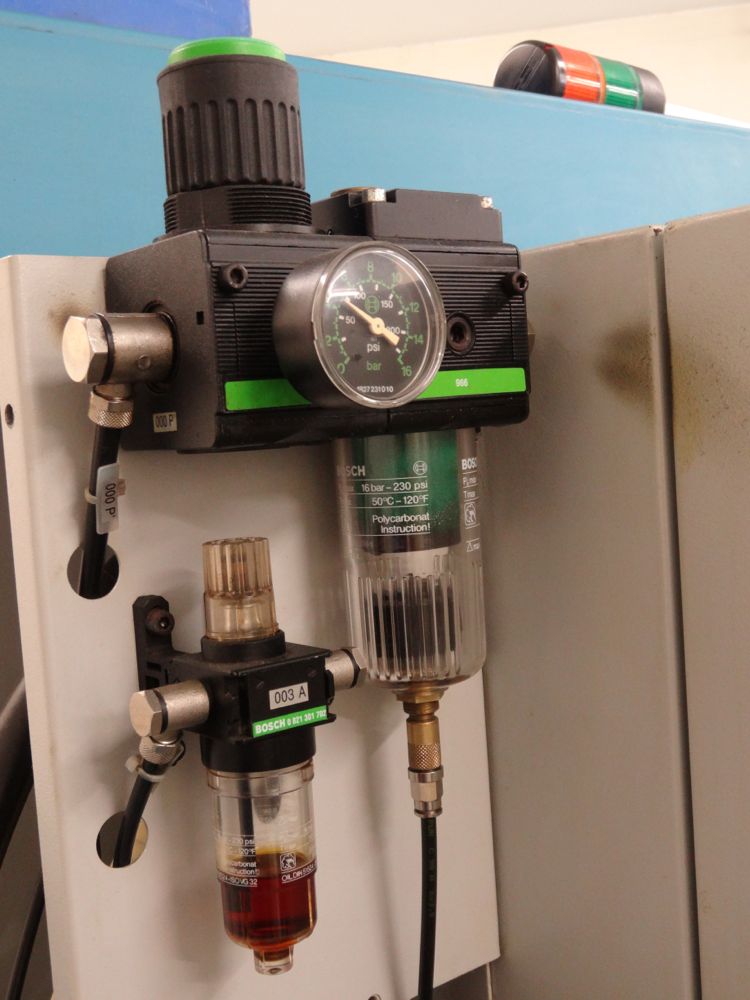

Min. inlet pressure: 6 bar
Air consumption: ca. 0,6 m3/h
Max. inlet pressure: 3 bar

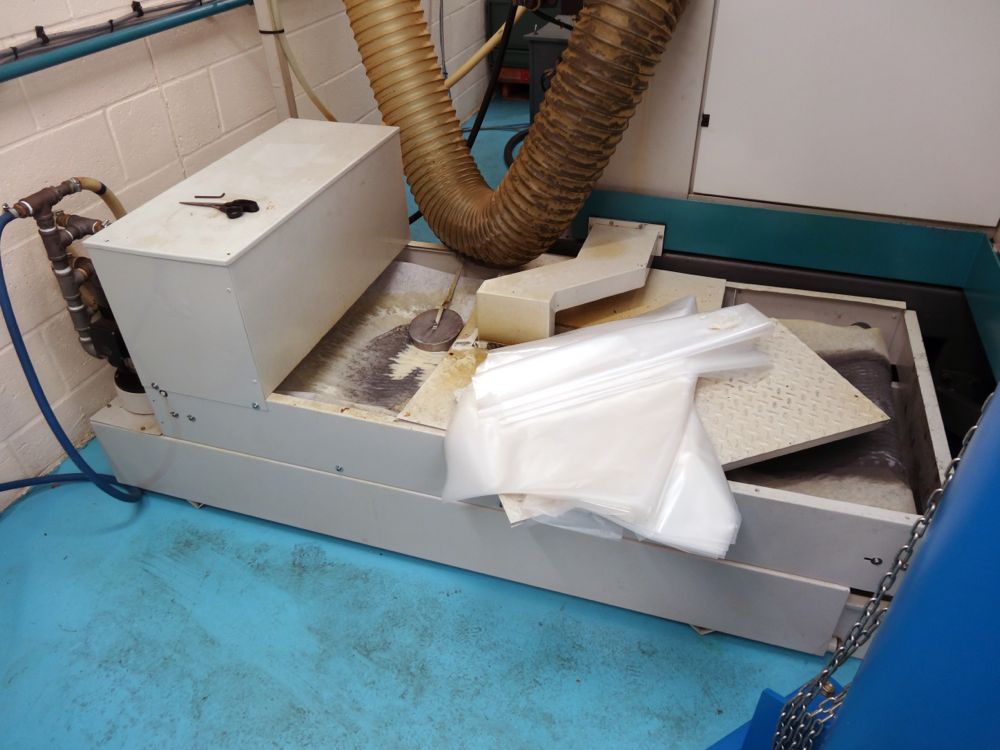

Tank 1: 380mm x 510mm x 620mm
Tank 2: 820mm 2020mm x 790mm

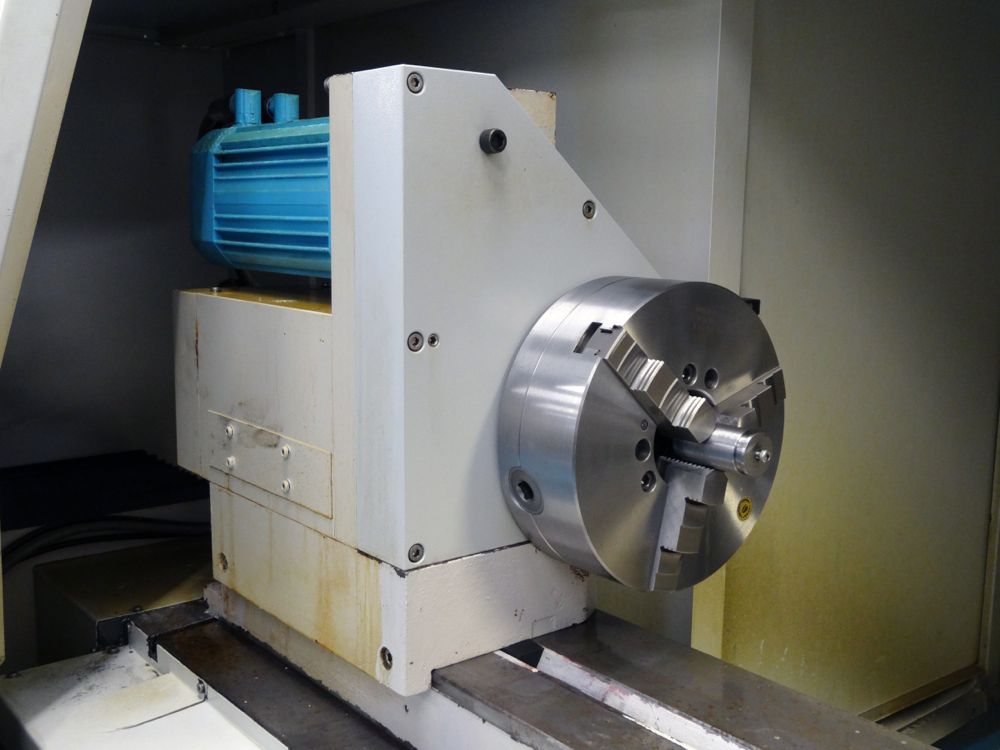

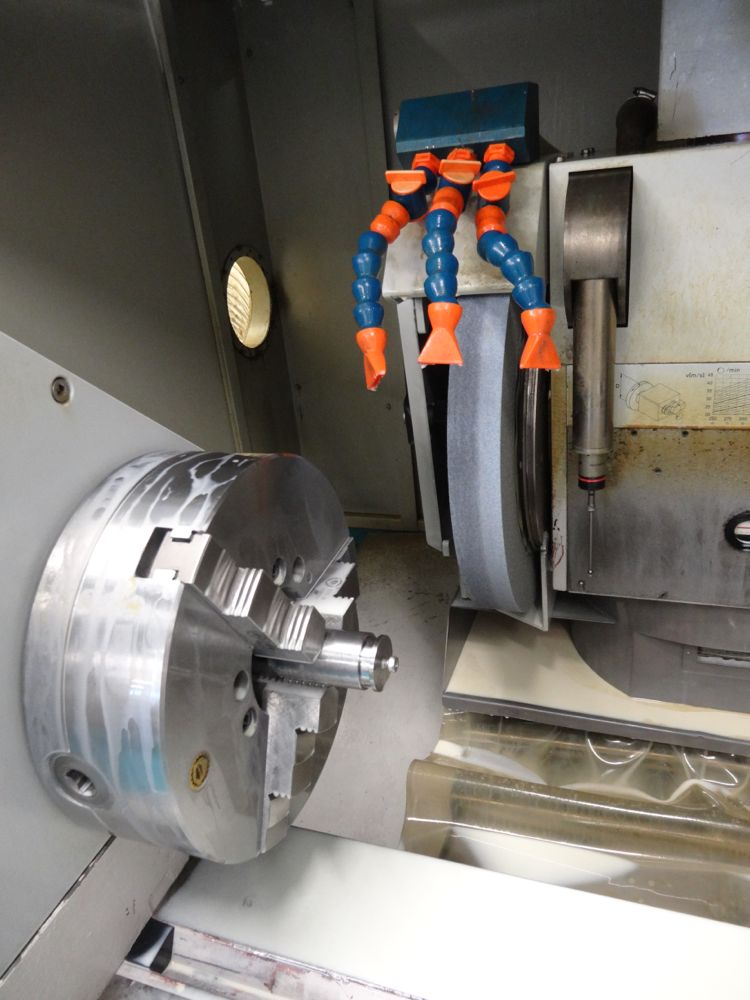

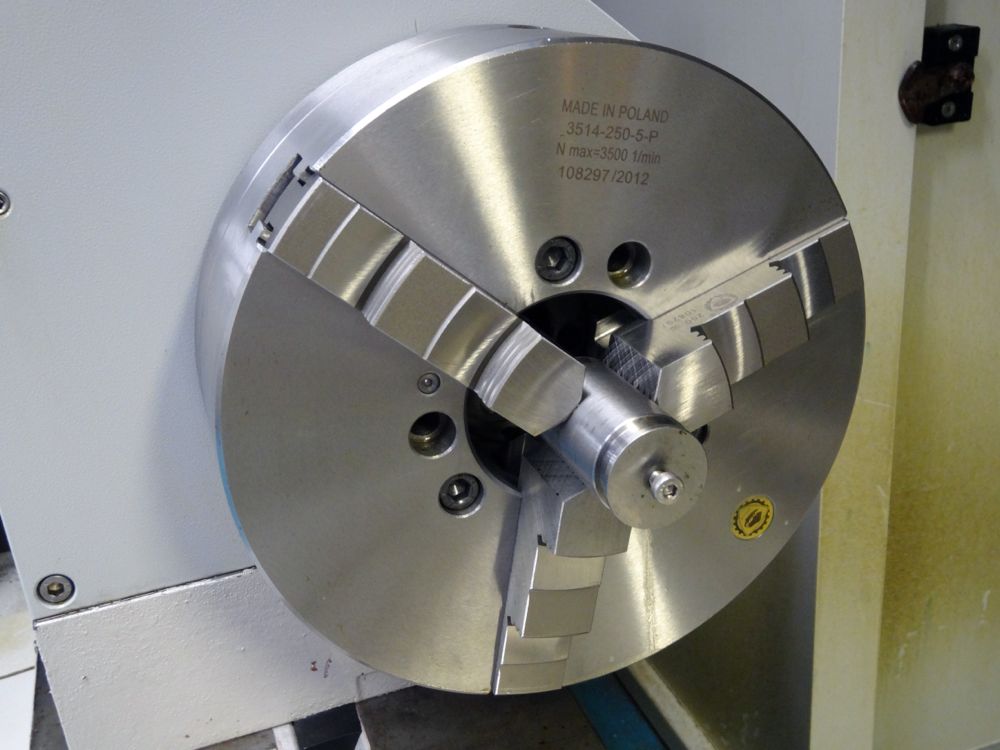

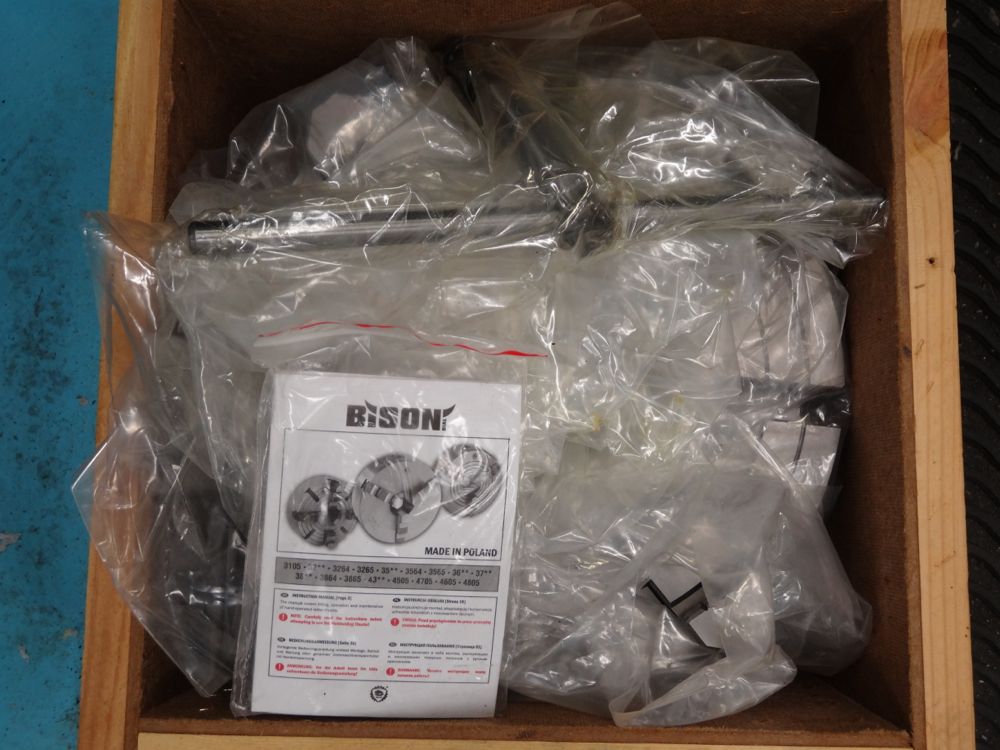

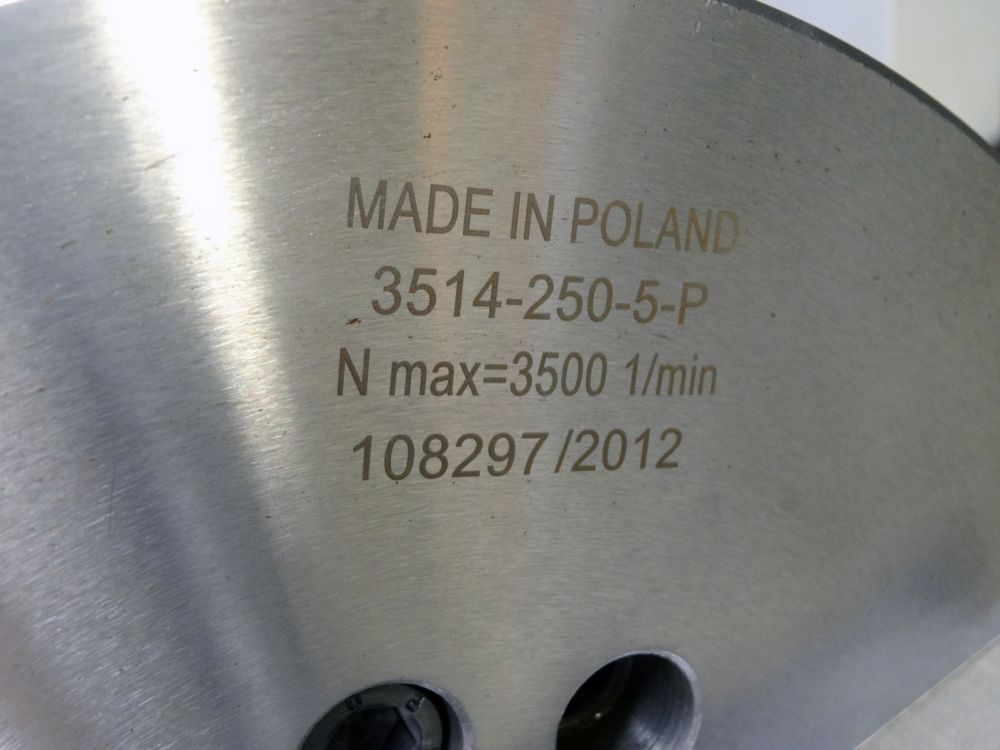

Brand new in box 10” 3 Jaw Chuck
Location: Rushden, Northamptonshire
