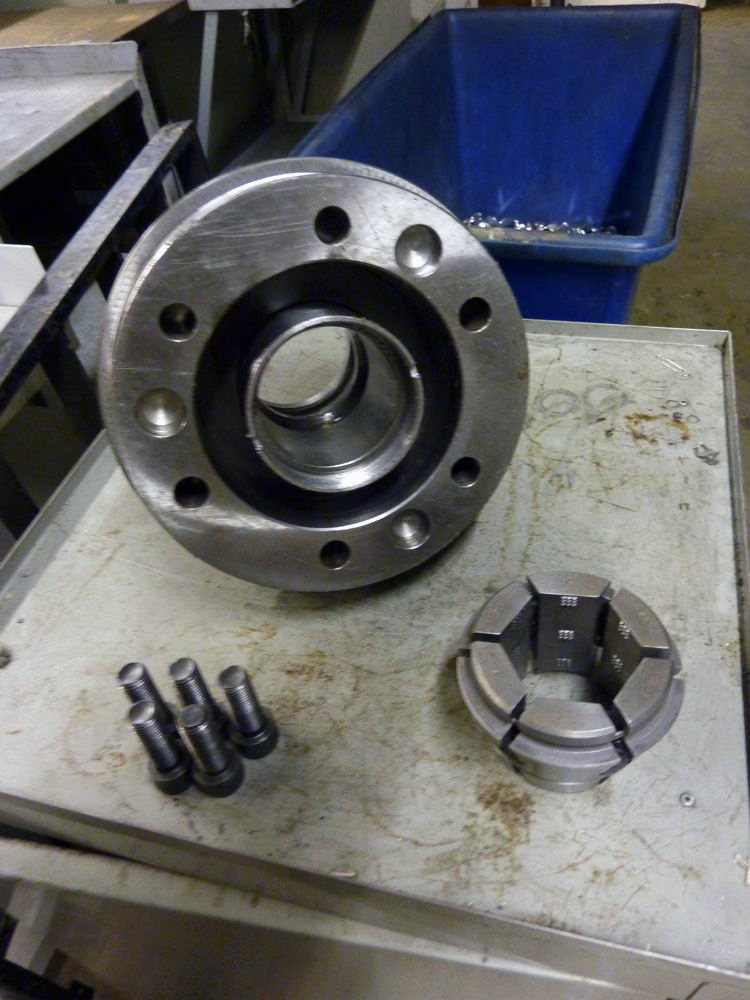

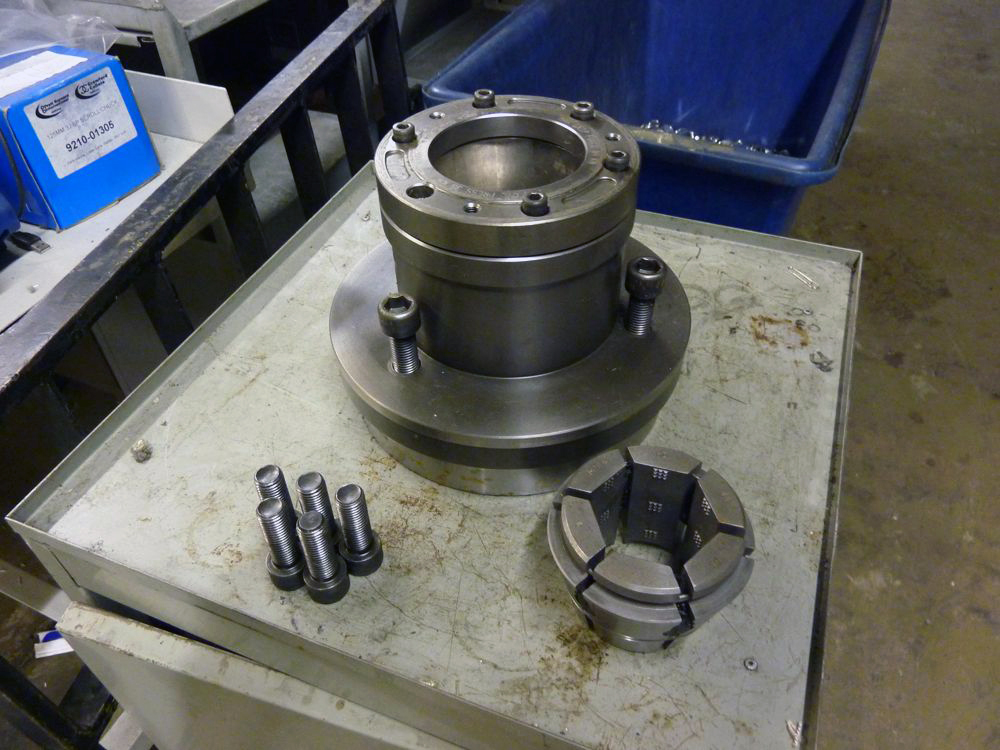

Lot 28 - Kitagawa CRS 66 Short Series Power Collet Chuck
Description:
Kitagawa CRS 66 Short Series Power Collet Chuck
Gripping Range Max 66mm, Min 4mm
Collet Increment 3 mm
Sleeve Stroke 10mm
Max Input Force 84kN
Max Gripping Force 84kN
Max Speed (rpm) 4500
Net Weight 19kg
Matching Cylinder S1875
Collet Ref: D-285

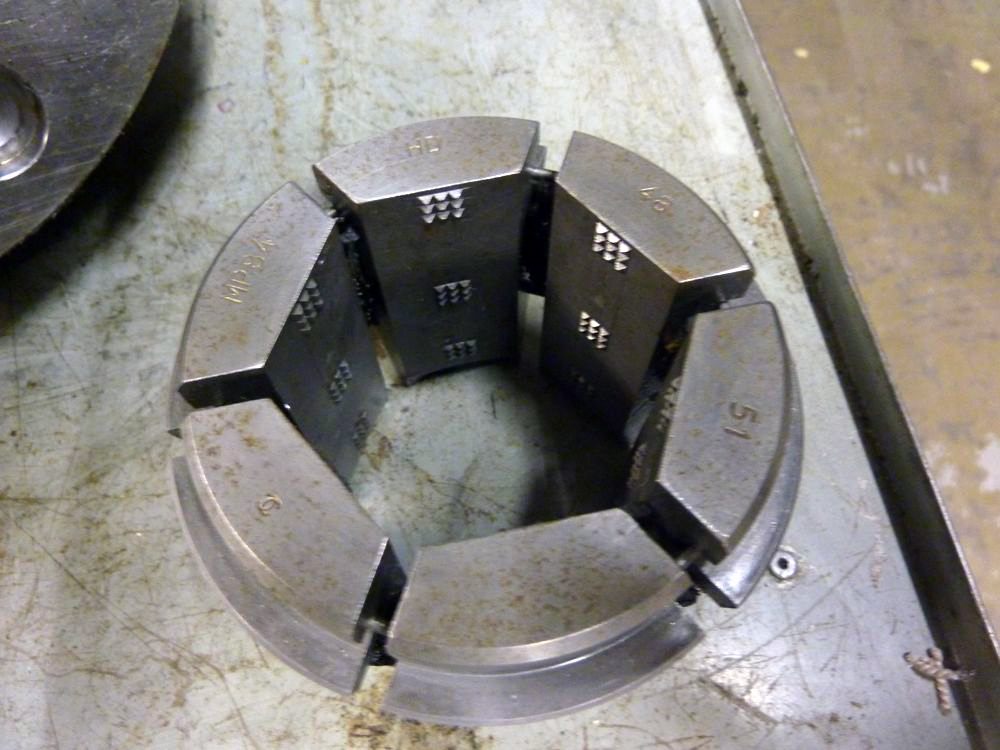

Includes Collet (ref: MP84 - HD - 48 - 51)
Click here to Download full Spec and Dimensions
Location: Coventry CV7 9EL
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
