Klingelnberg HSS350 Worm Grinder

Lot 2 - Klingelnberg HSS350 Worm Grinder

Description:

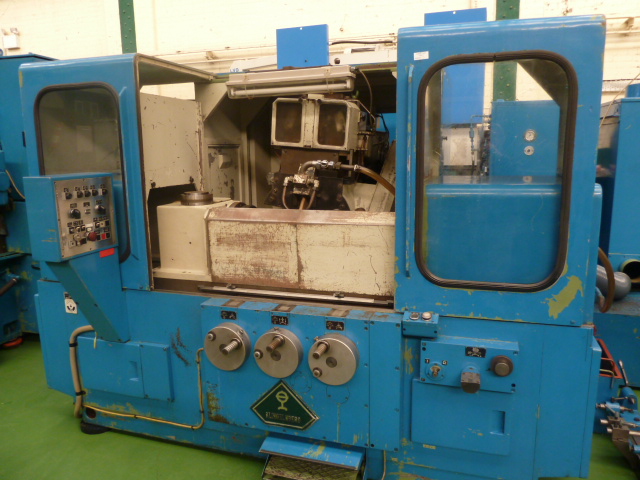

KLINGELNBERG MODEL HSS350 Automatic Worm Grinding Machine

Year of manufacture 1972
Module range 0.5mm-25mm (50 - 1D.P.)
Workpiece dia. 10mm – 350mm (25/64” – 13.3/4”)
Maximum grinding length 500mm (19.5/16)
Number of starts 1 – 30
Maximum lead angle 45°
Range of leads 1mm – 500mm (3/64” – 19. 5/16”)
Workhead bore 130mm (5.1/8”)

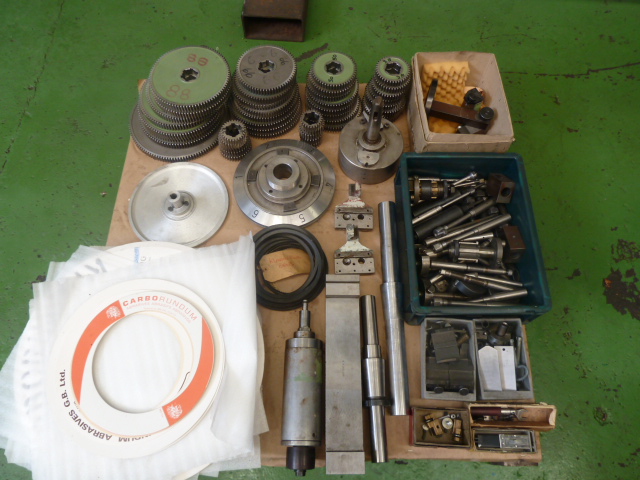

Equipment
Full set of change gears

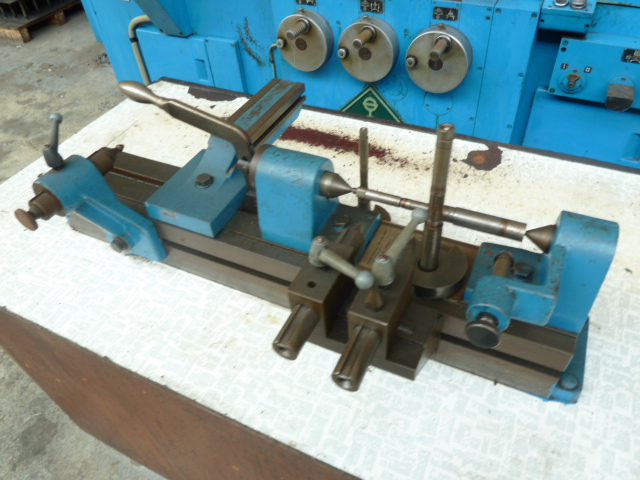

Worm checking machine
Wheel mounts
Manuals
Mandrels

This machine is capable of maintaining closest tolerances and of producing a high quality surface finish on the flanks ground whilst achieving extremely economical production times.
By employing a universally adjustable profile dresser it is possible to grind all standardised flank profiles (ZA, ZN, ZK, ZE) without the aid of a template.
A fully enclosed work area permits intensive wet grinding and therefore heavy duty grinding operation. The work spindle and wheel spindle speeds are variably controlled.

Location: Oldham
