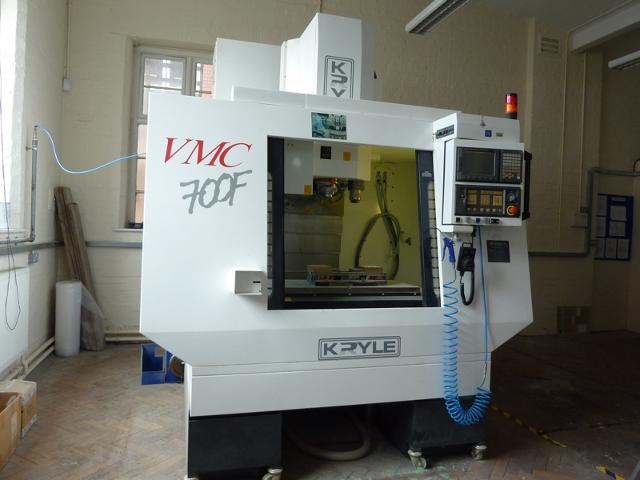

Lot 1 - Kryle VMC 700F 3axis + removable indexed 4th axis - Twin Spindle (Main at 8000rpm and Secondary at 40000rpm)
Description:

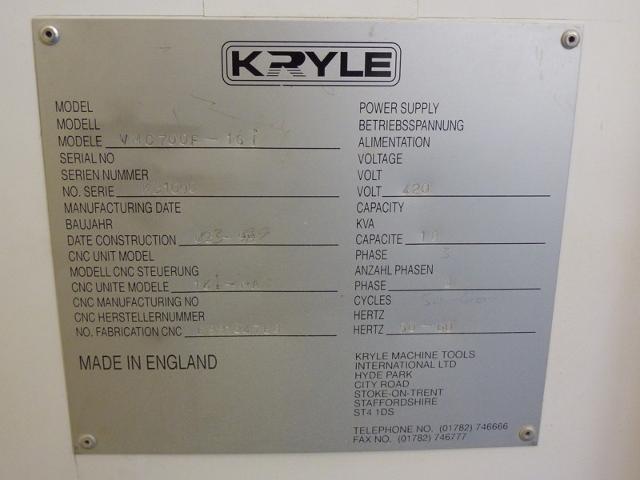

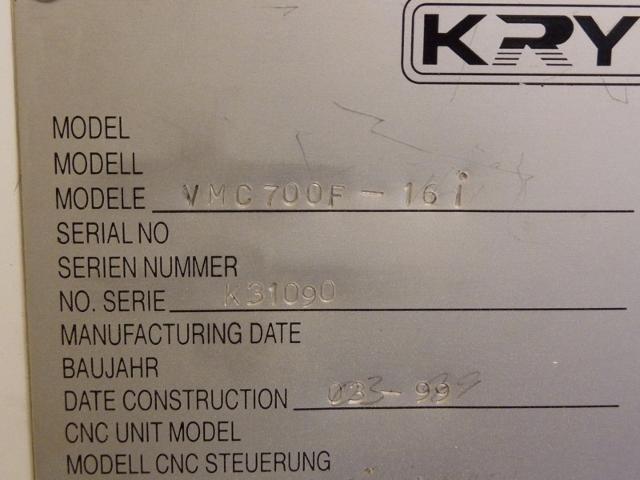

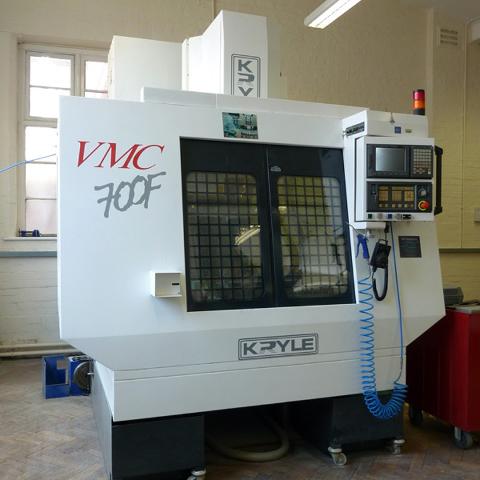

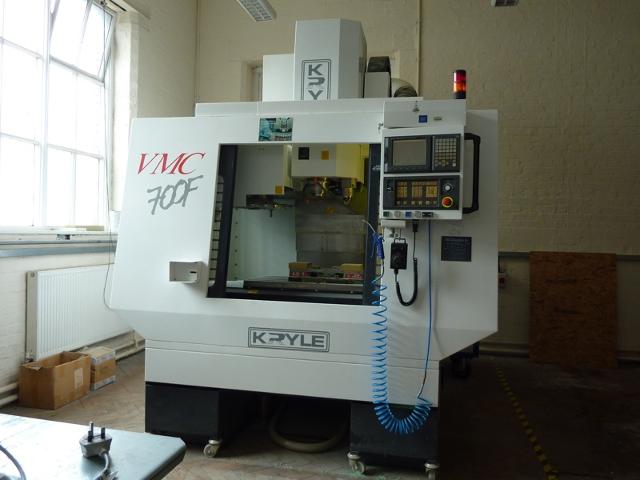

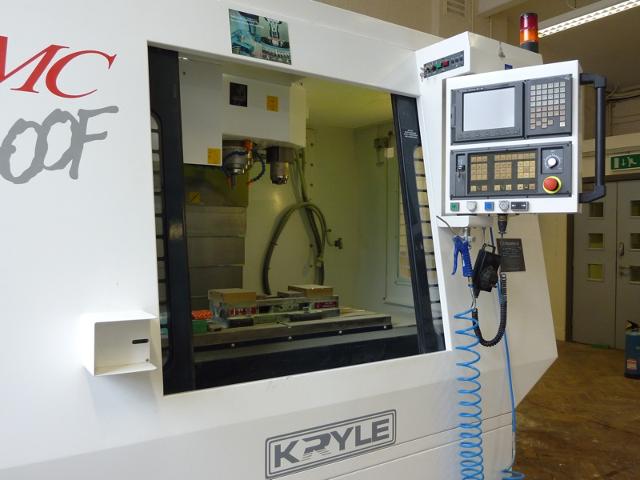

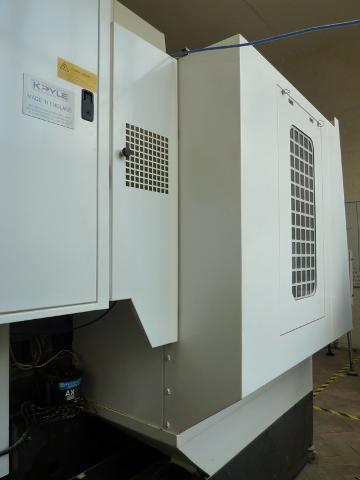

VMC 700F - 16i Kryle Machine from 1999 - 8k & 40k rpm Spindles

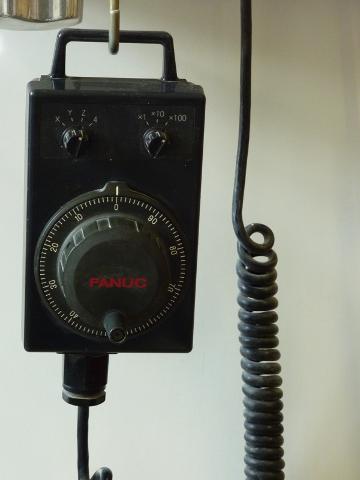

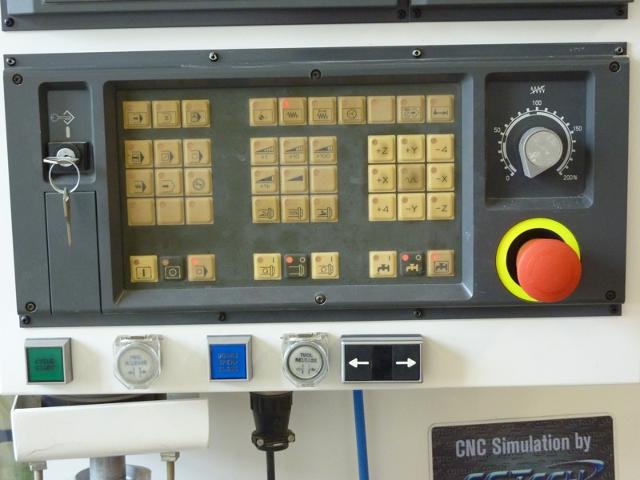

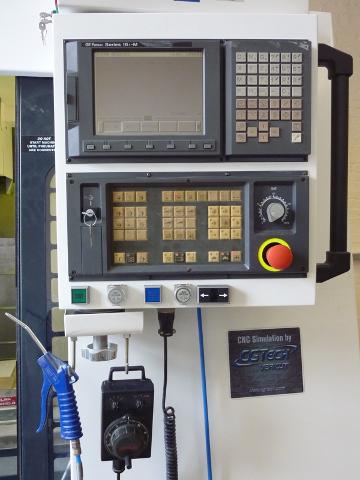

3+1 axis with GE Fanuc Series 16i-M controller.

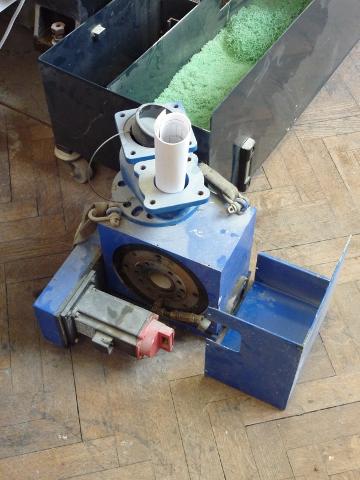

Rotary 4th Axis can be set on the table.

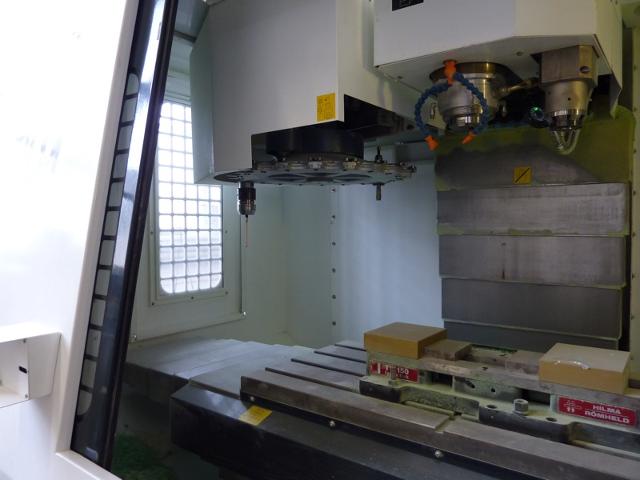

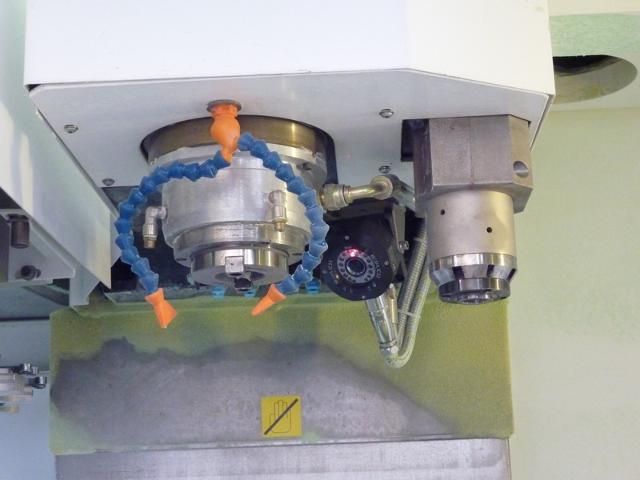

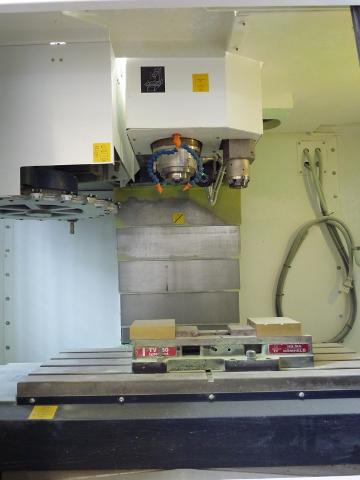

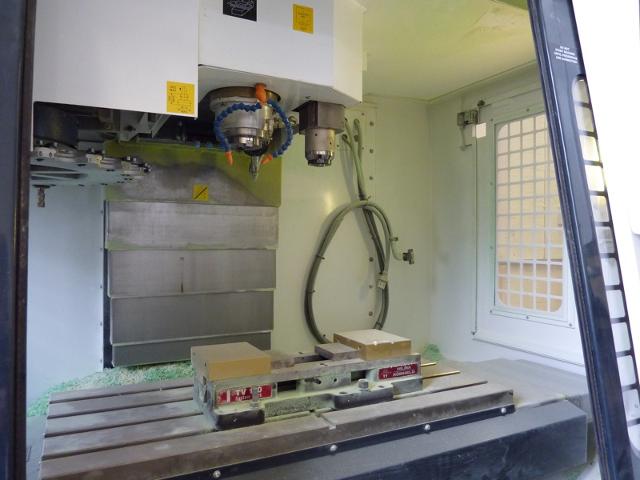

Machine fitted with a conventional 8000rpm 7.5kW spindle for general machining and roughing, plus a 40,000rpm 2kW high speed spindle for finishing.
Capacities: X = 700mm, Y = 450mm, Z = 600mm, incremental 4 axis
Table: 1 x 0.48m
Speeds: X, Y and Z = 30m/min

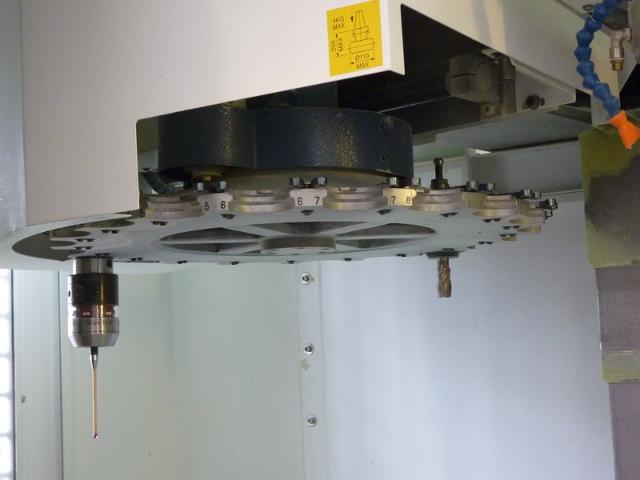

Automatic tool changer: 20 tools

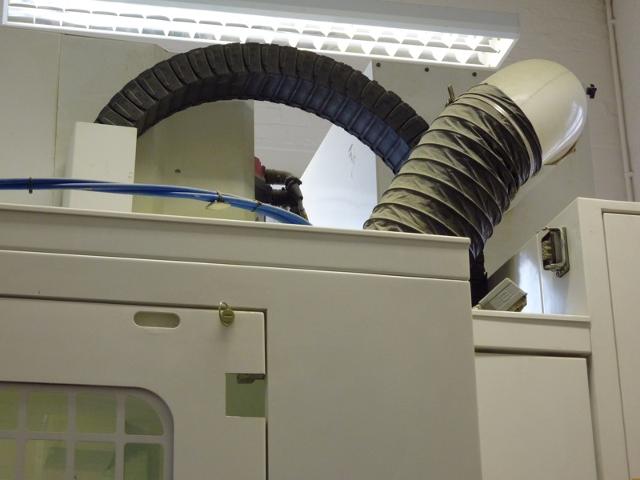

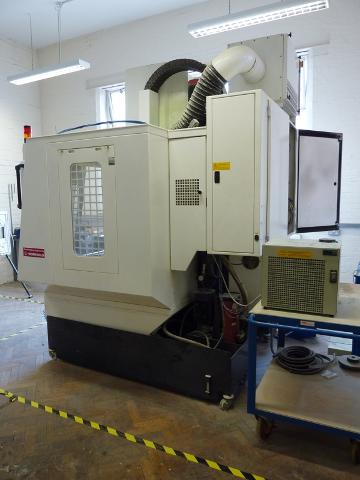

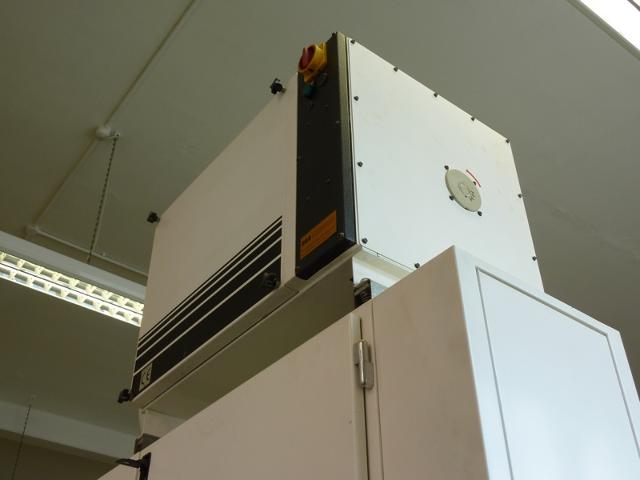

Integrated Extraction system

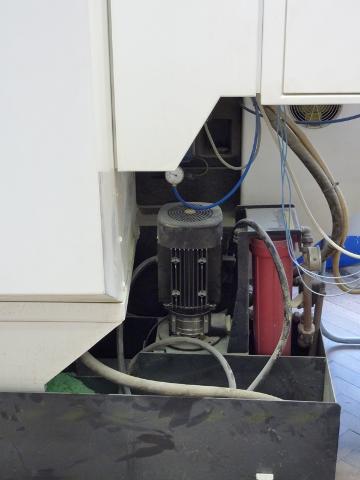

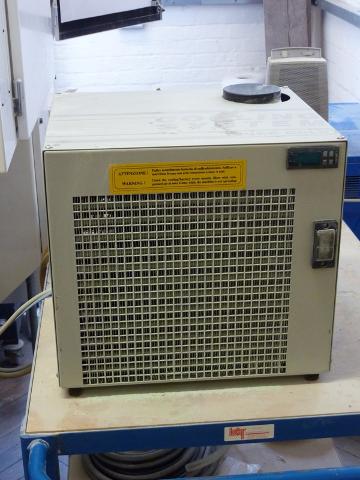

Coolant system installed (never used as the machine has only cut dry resin)

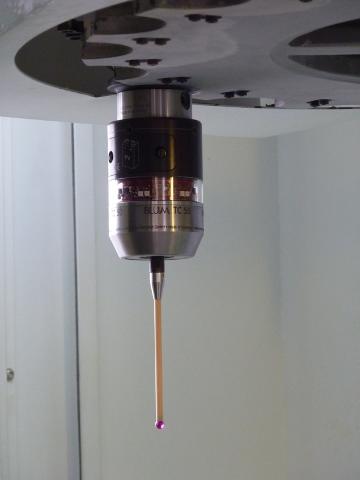

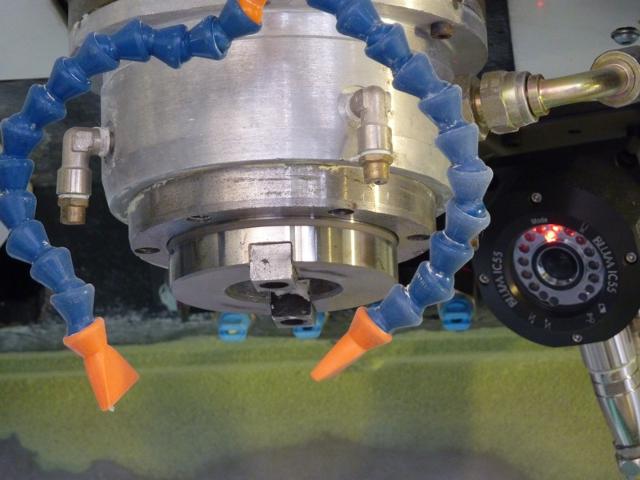

Blum Touch Probe

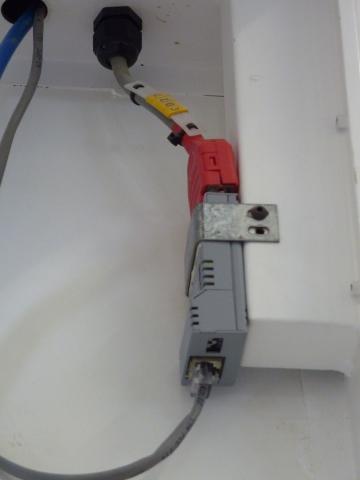

10/100 Ethernet Connection

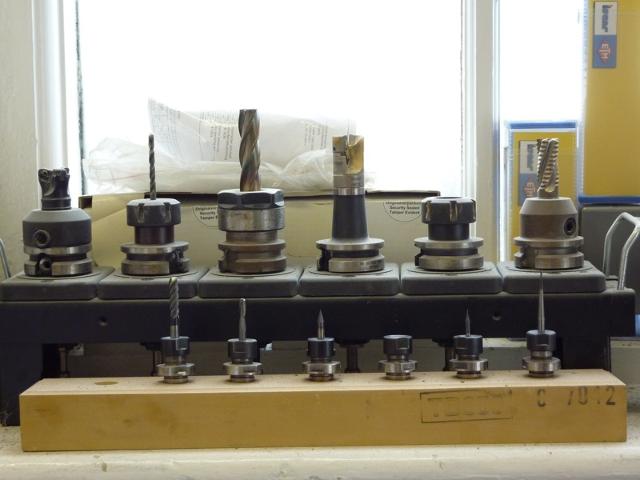

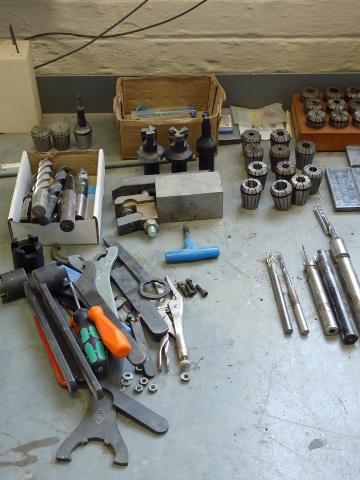

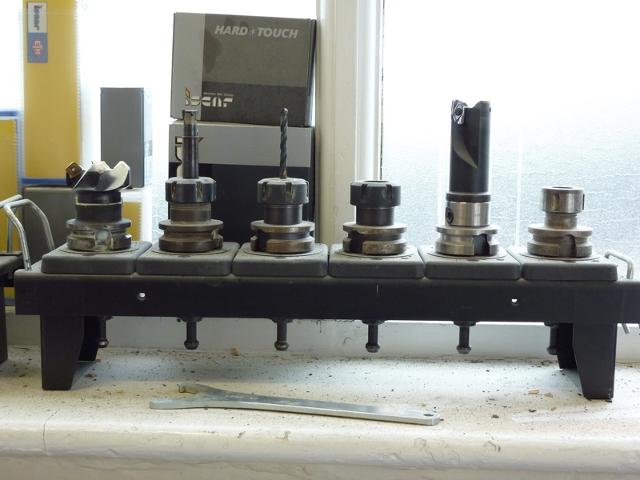

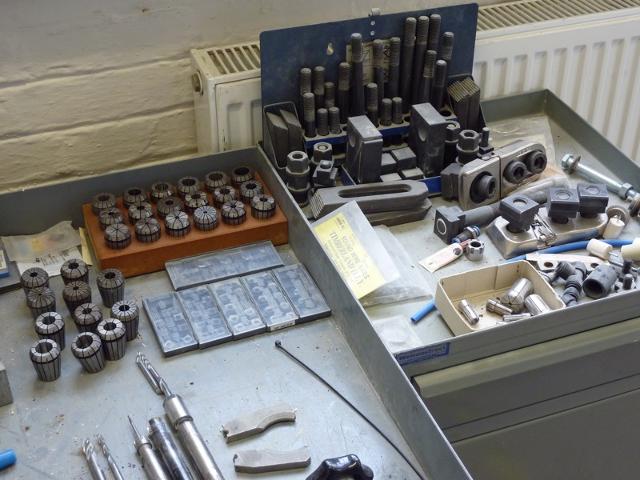

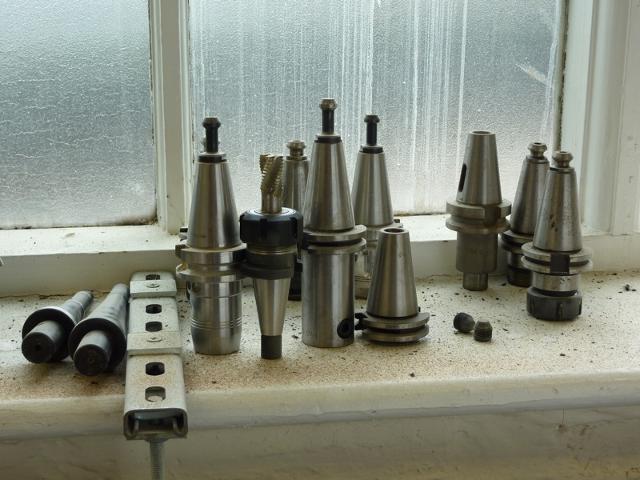

Bundled with numerous tools for both Spindles and All Manuals
This machine is in fully working order and is in pristine condition. It has been used only to cut resin block.
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
