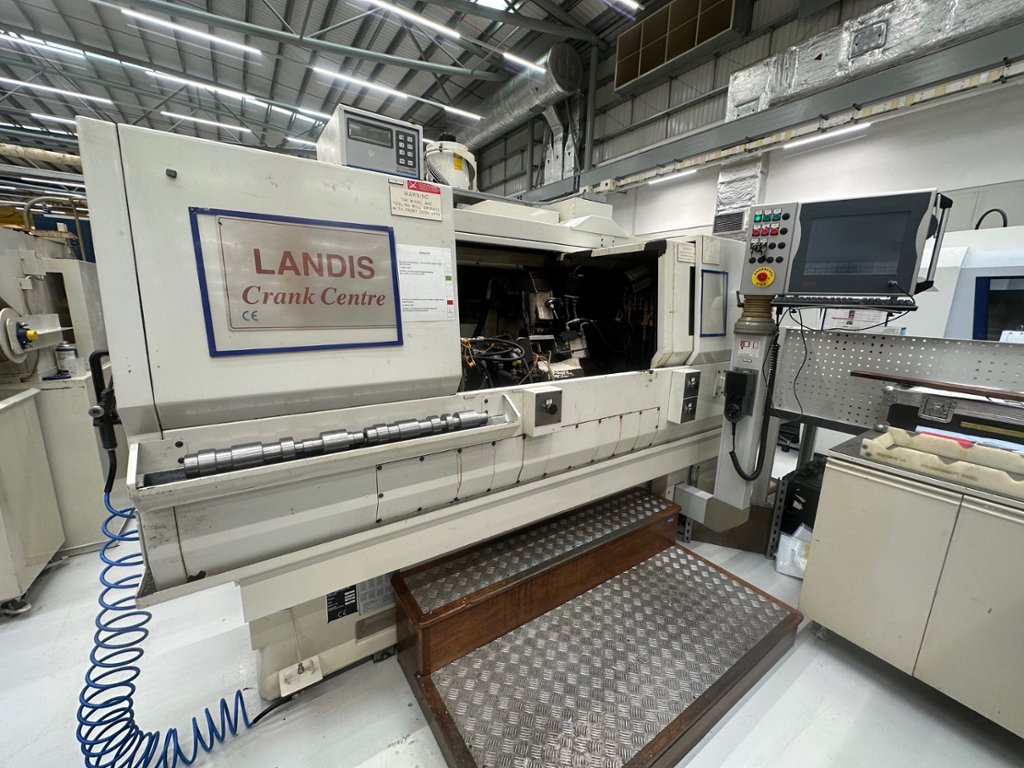

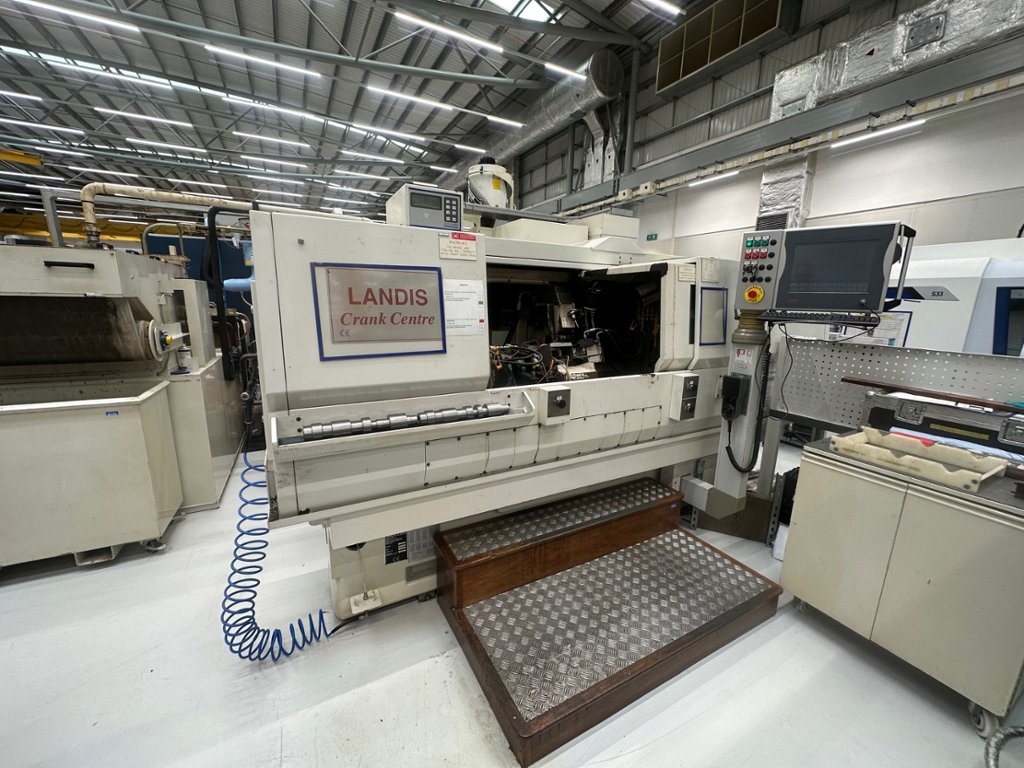

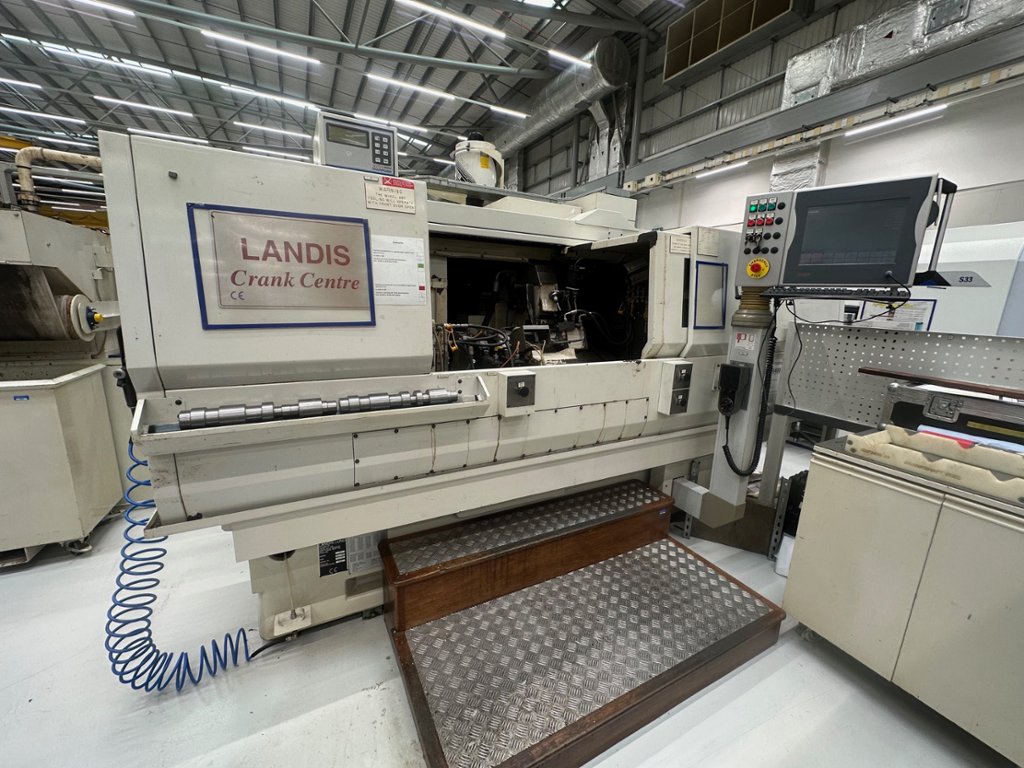

Lot 3 - Landis 3L 6400 CNC Crankpin Grinding machine - Model 3L
Description:
Machine type - CNC Crankpin Grinding machine, Model 3L

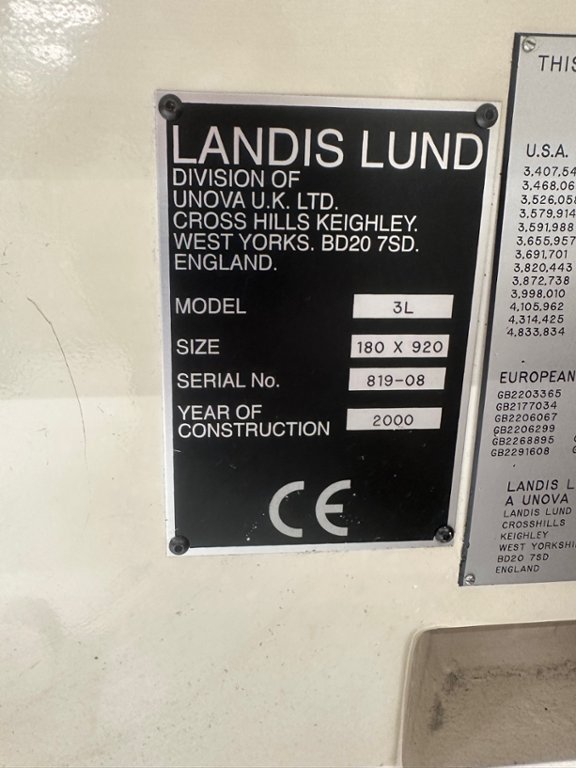

Year of manufacture – 2000
Maximum length capacity between centres - 920 mm

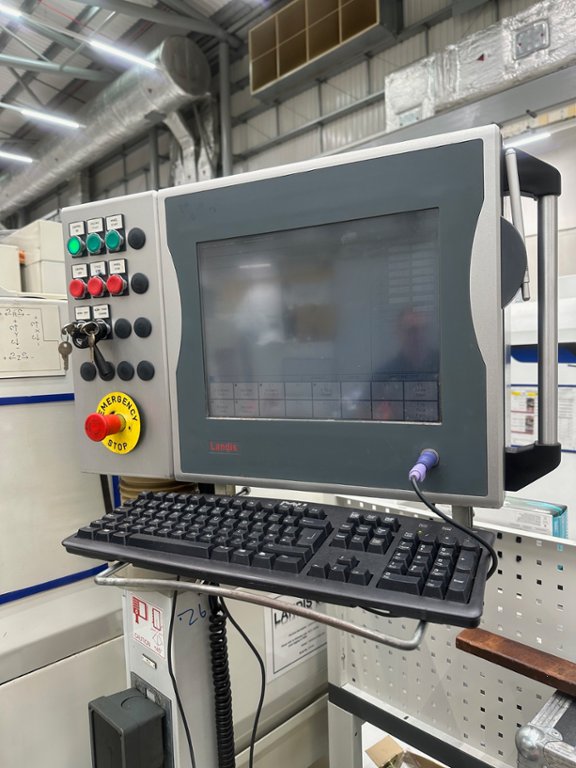

Control System - LANDIS 6400
Sizing gauge – Marposs wheelhead mounted

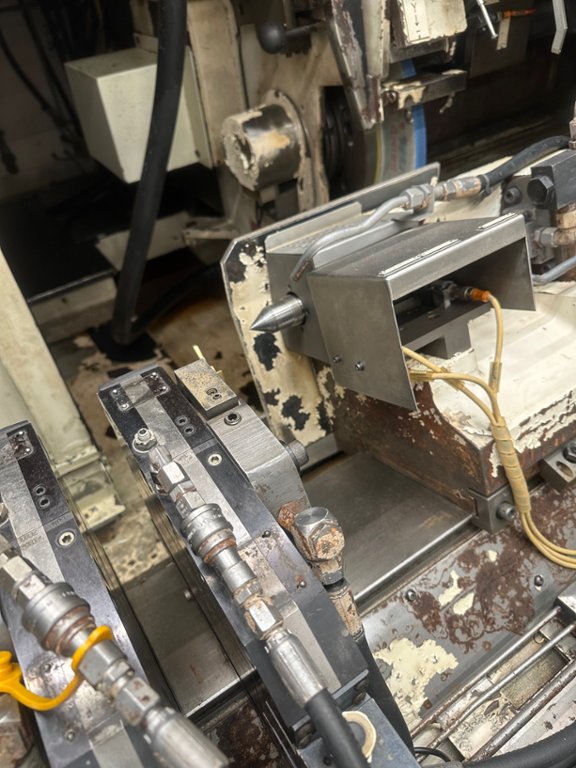

Location gauge – Marposs Touch Probe for radial and lateral location, mounted on a servo axis

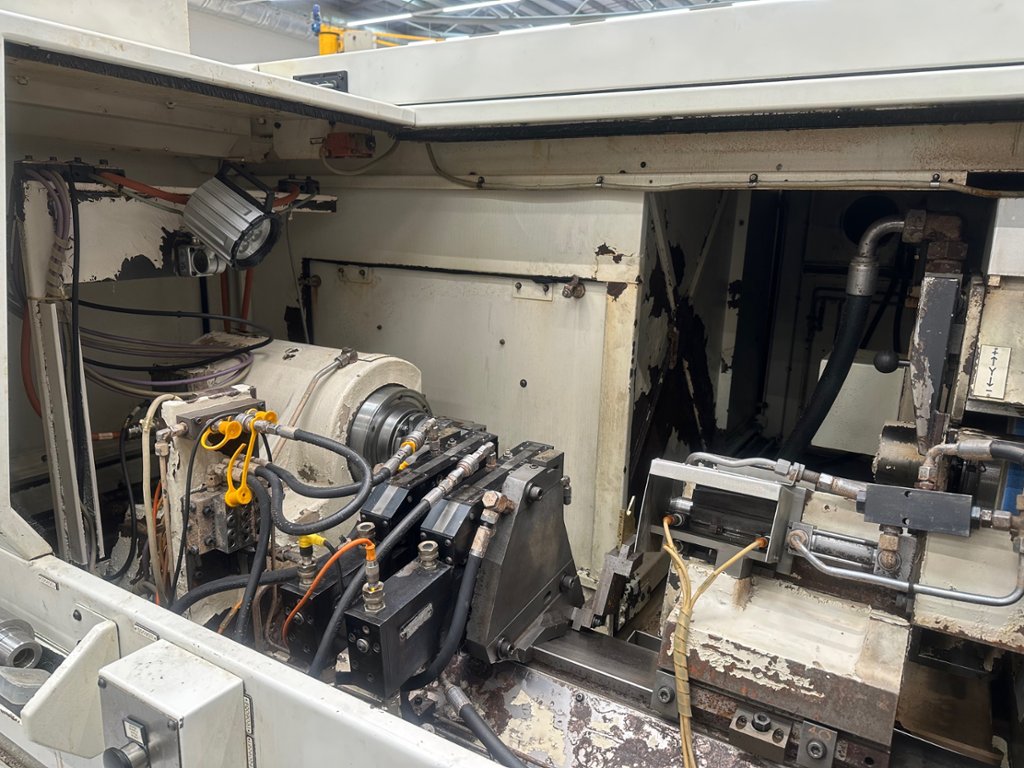

Dresser - LANDIS CNC Truform (Hydraulic Rotary Head)
Workdriver – Manual clamp on workdriver

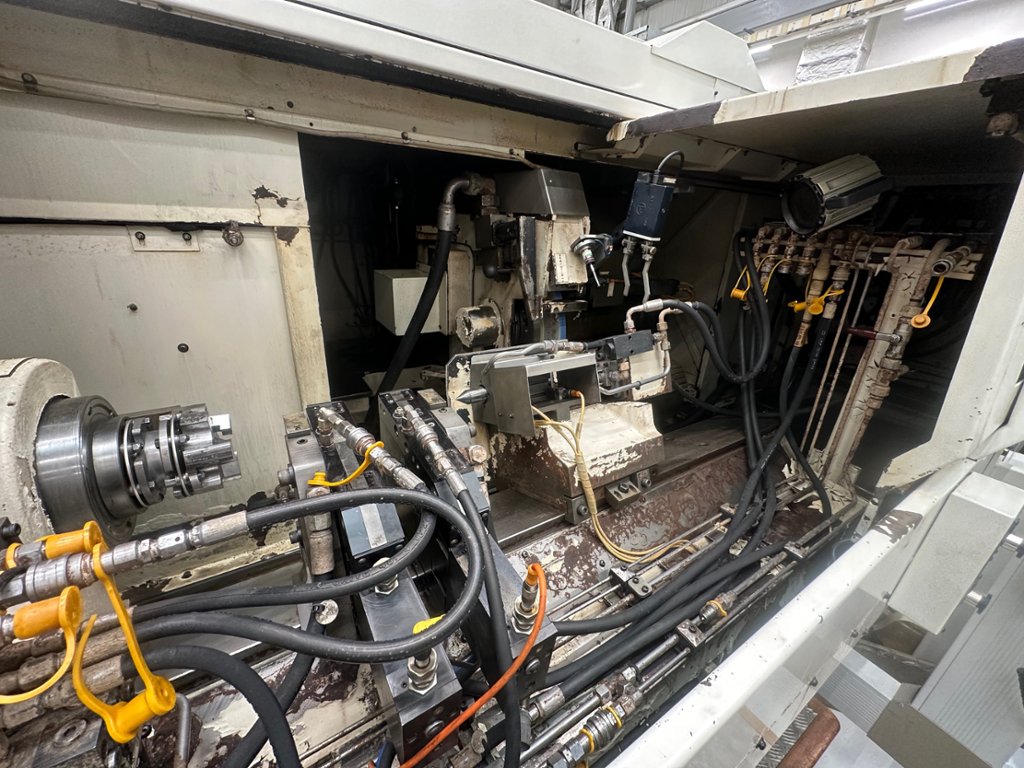

Workrests - Three Arobotech Hydraulic Workrests
Wheeldrive - Belt Drive

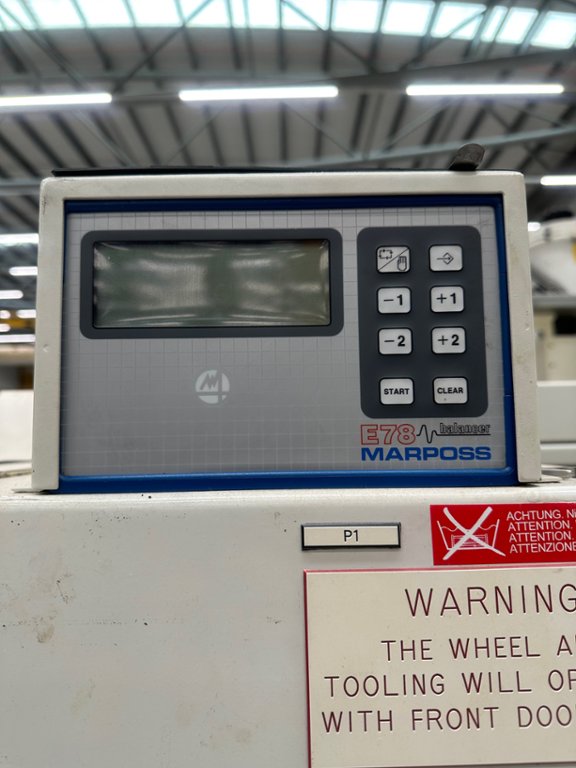

Wheel Balancing – Marposs Automatic

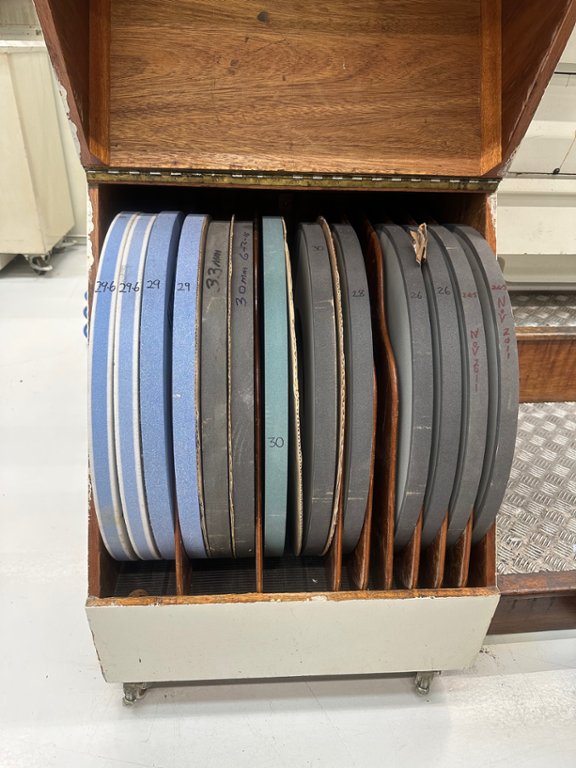

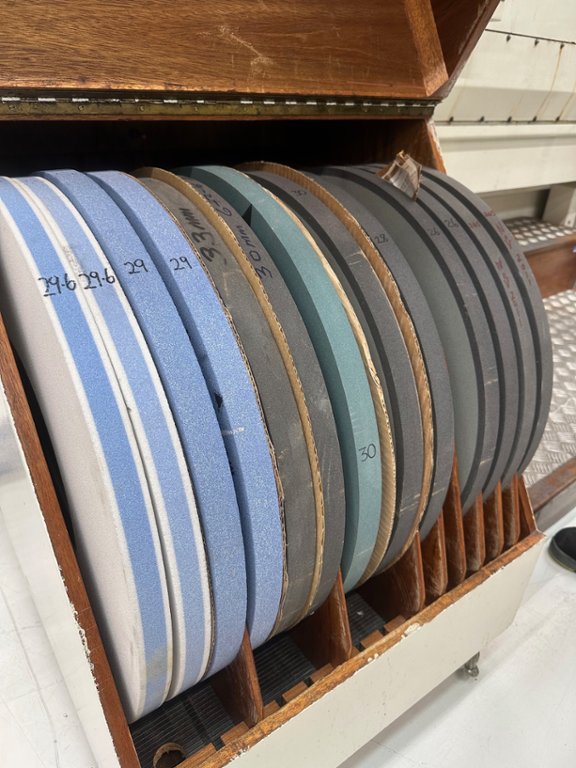

Grinding Wheel Type – Aluminium Oxide or CBN Compatible (Although maximum velocity is limited to 60 m/s).

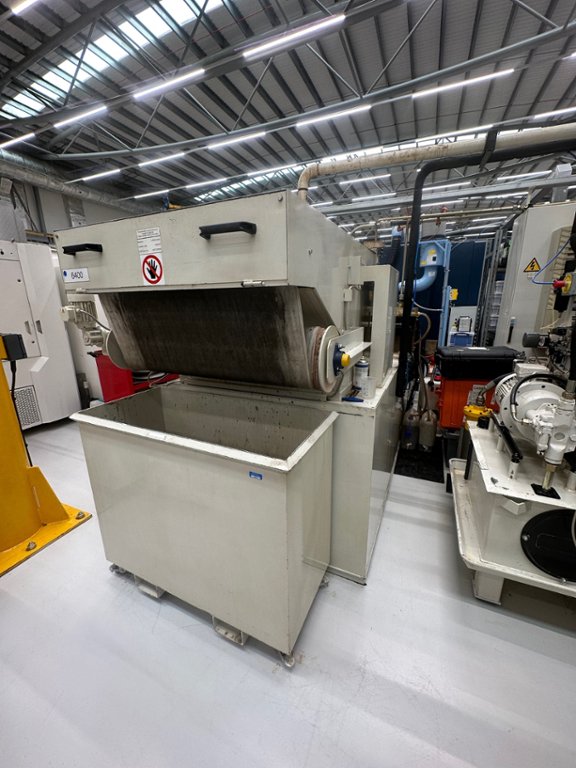

Coolant – Emulsion Type with stand-alone Clarifier

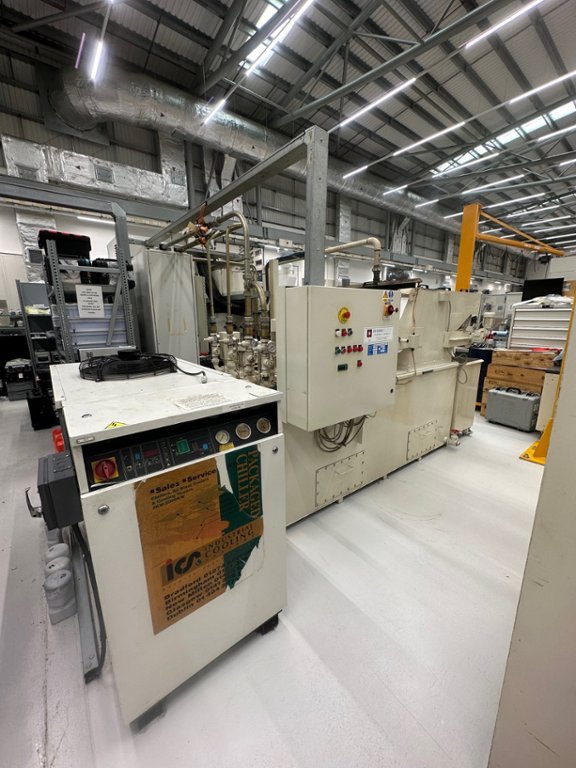

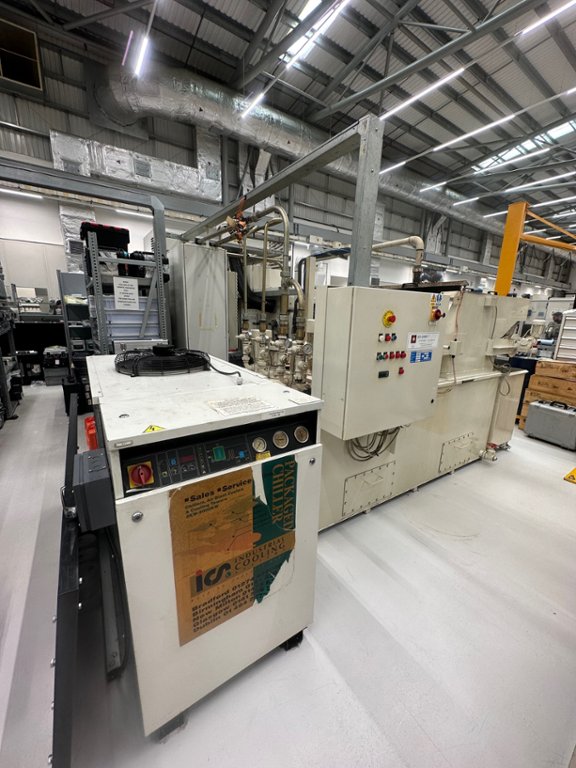

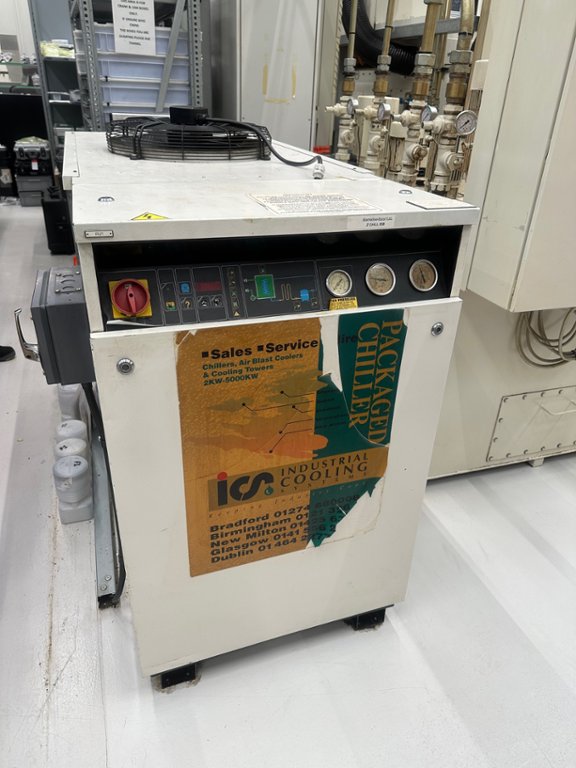

Hydraulic chiller – Stand alone unit

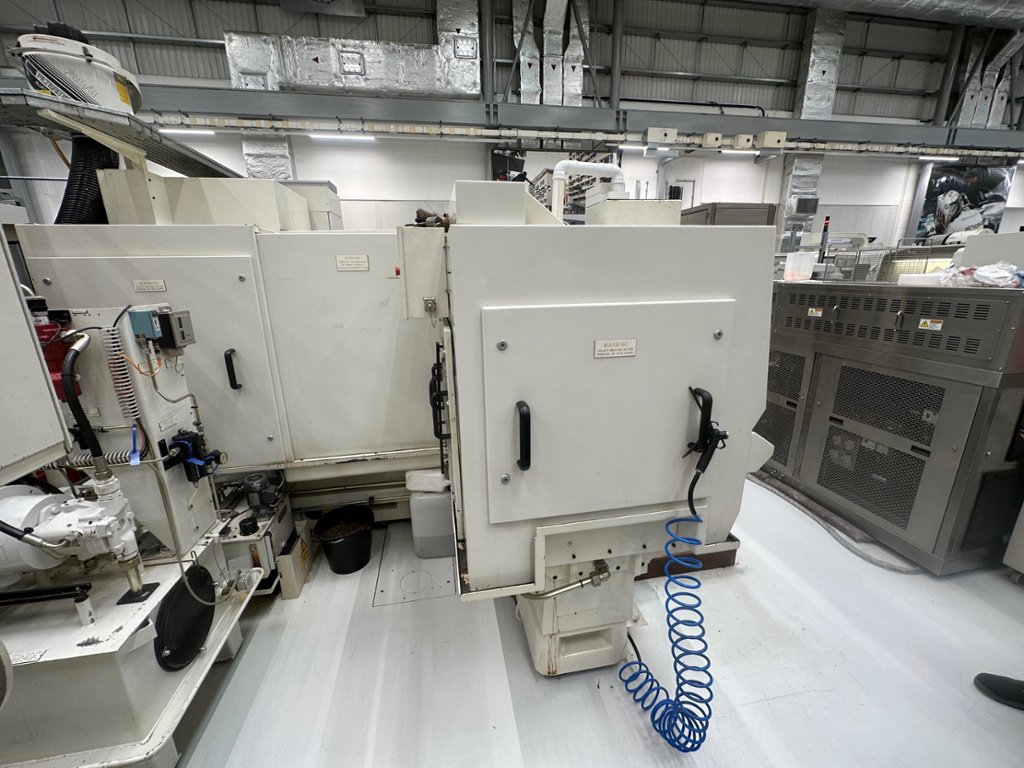

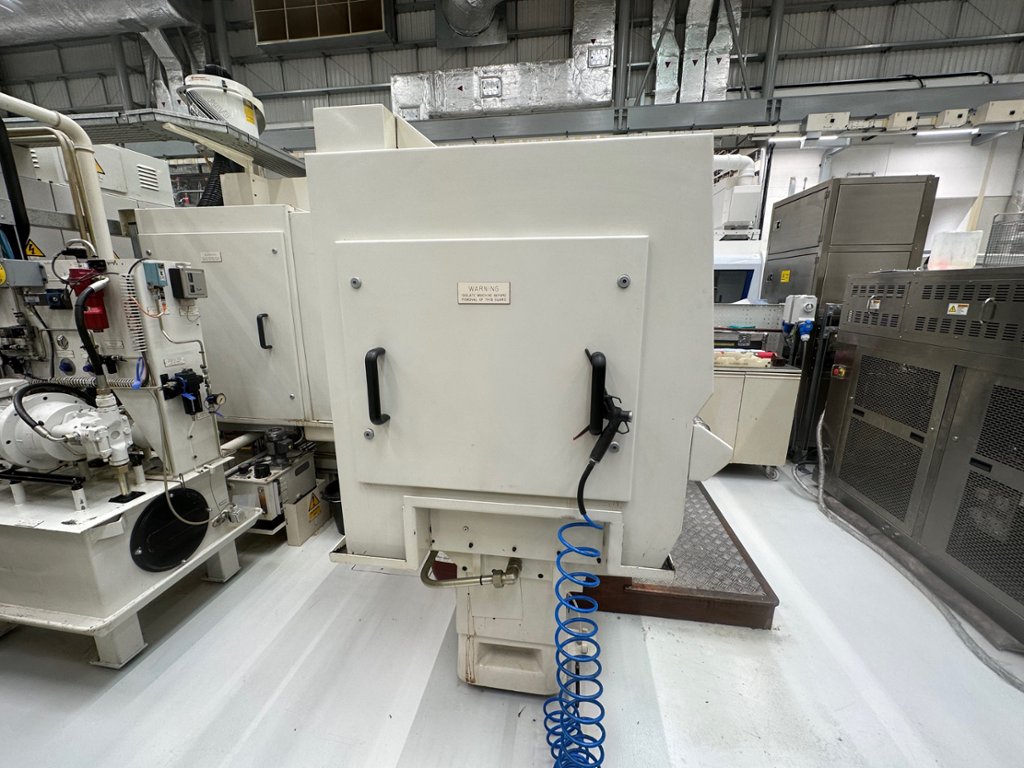

Full Enclosed Machine Guarding
Hydrostatic belt driven wheel spindle (S-Axis)
Hydrostatic wheelhead with ballscrew (X-Axis)
Lubricated vee and flat carriage with ballscrew (Z-Axis)

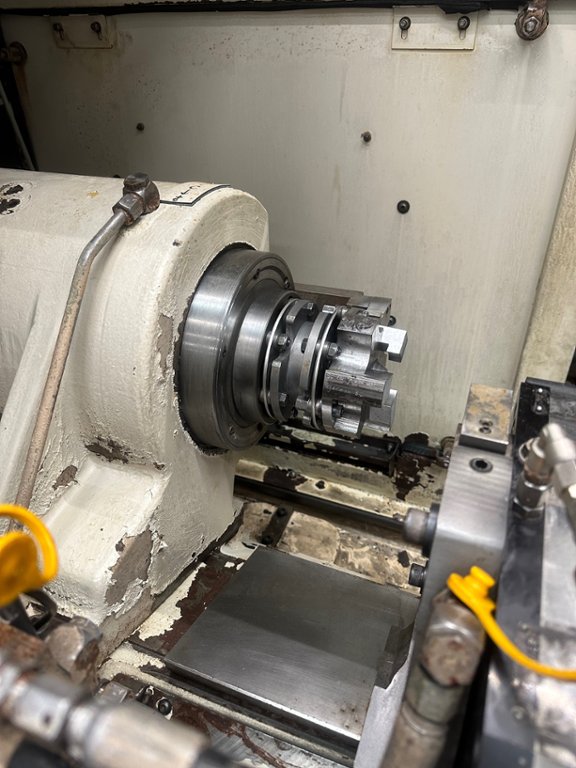

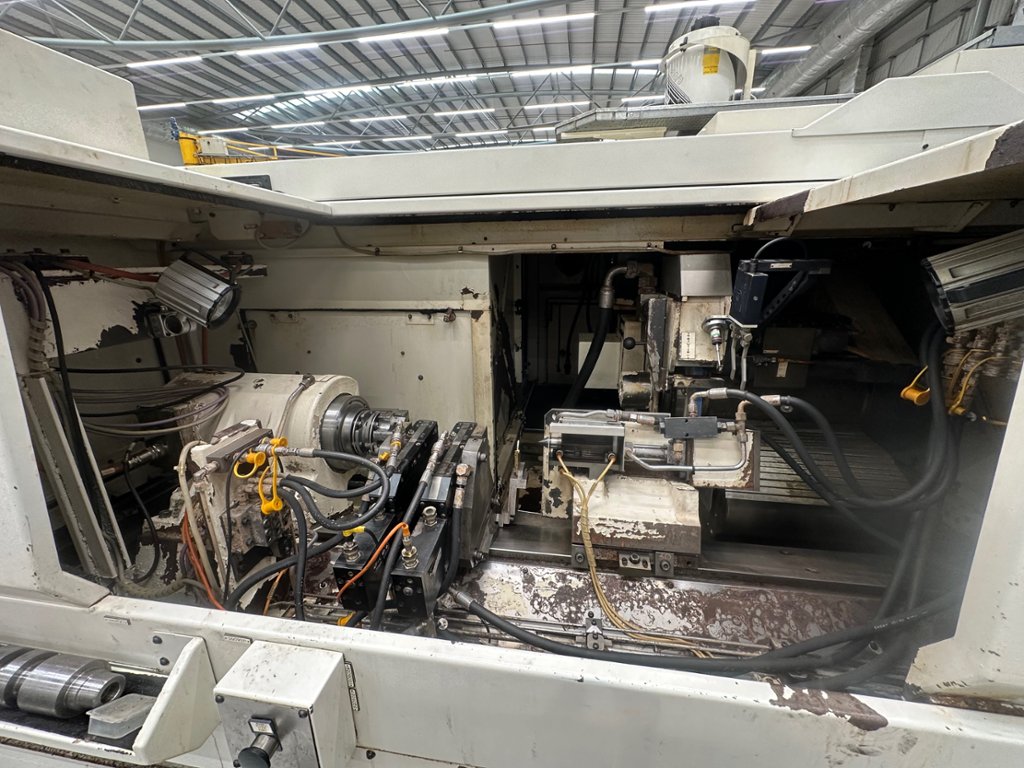

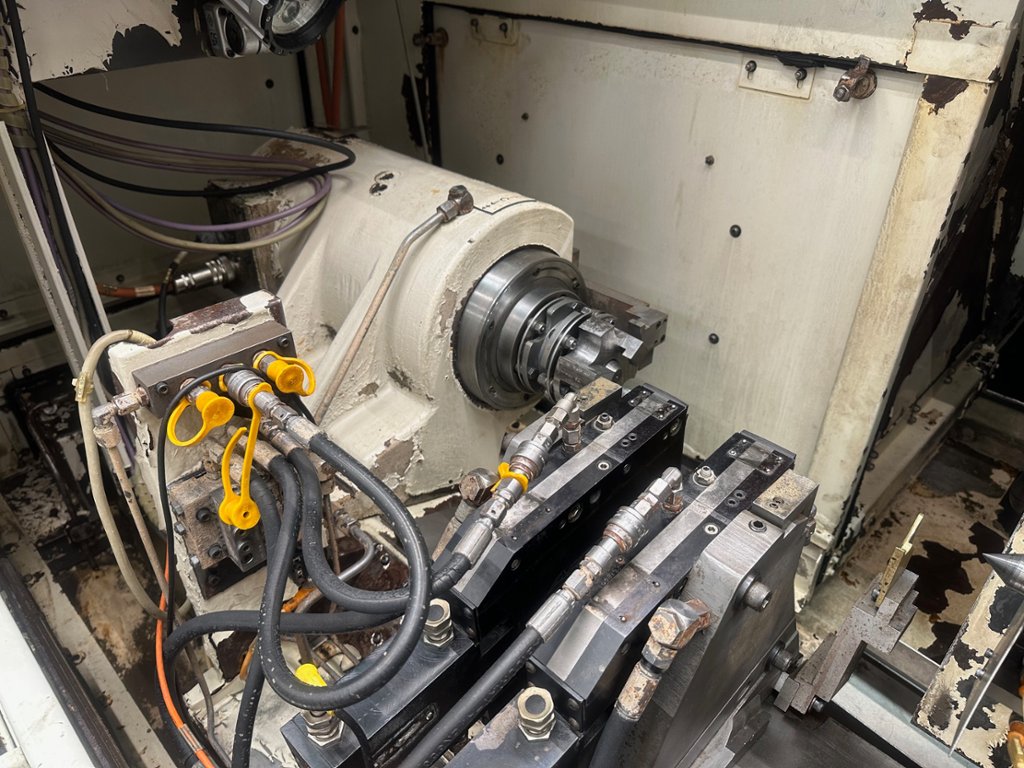

Headstock with live spindle and integral motor (C-Axis)
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
