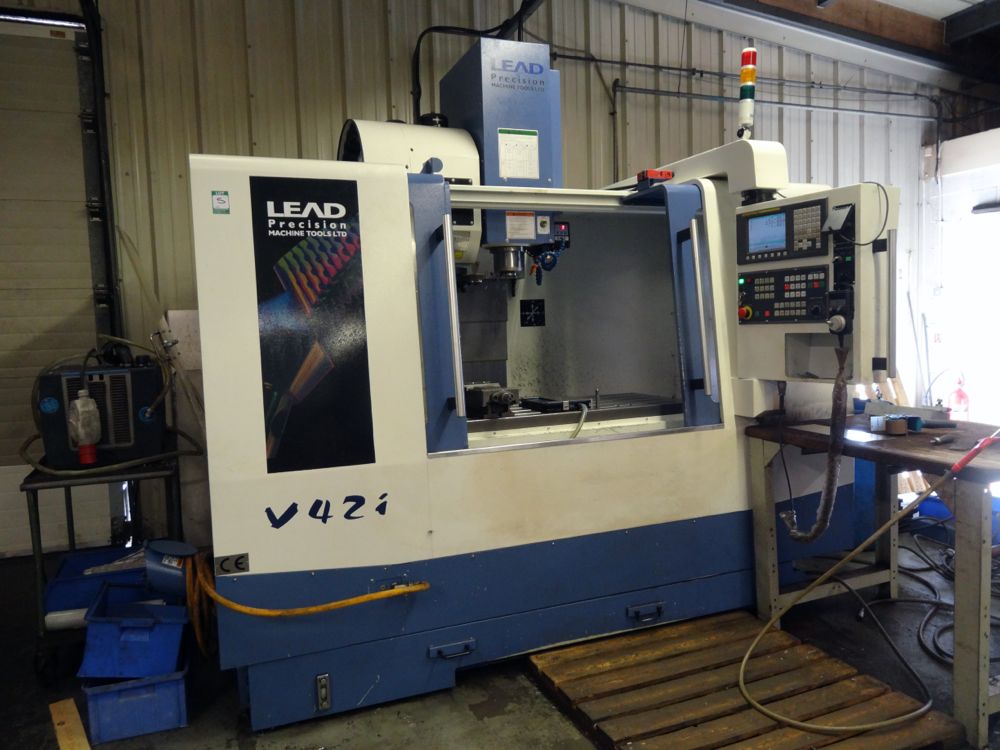

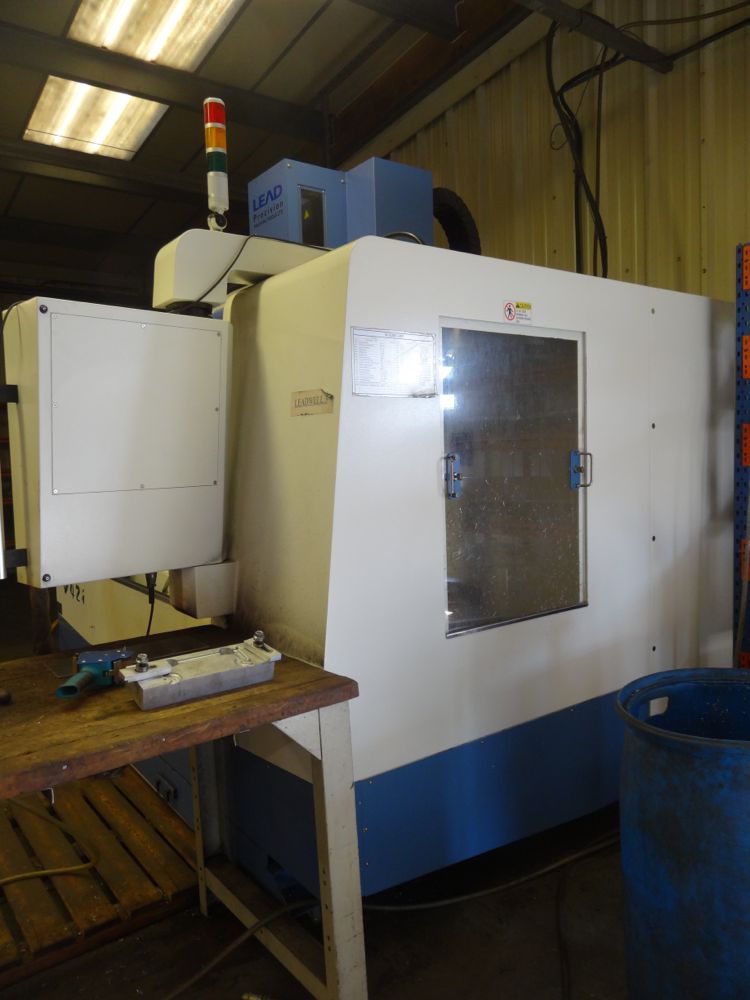

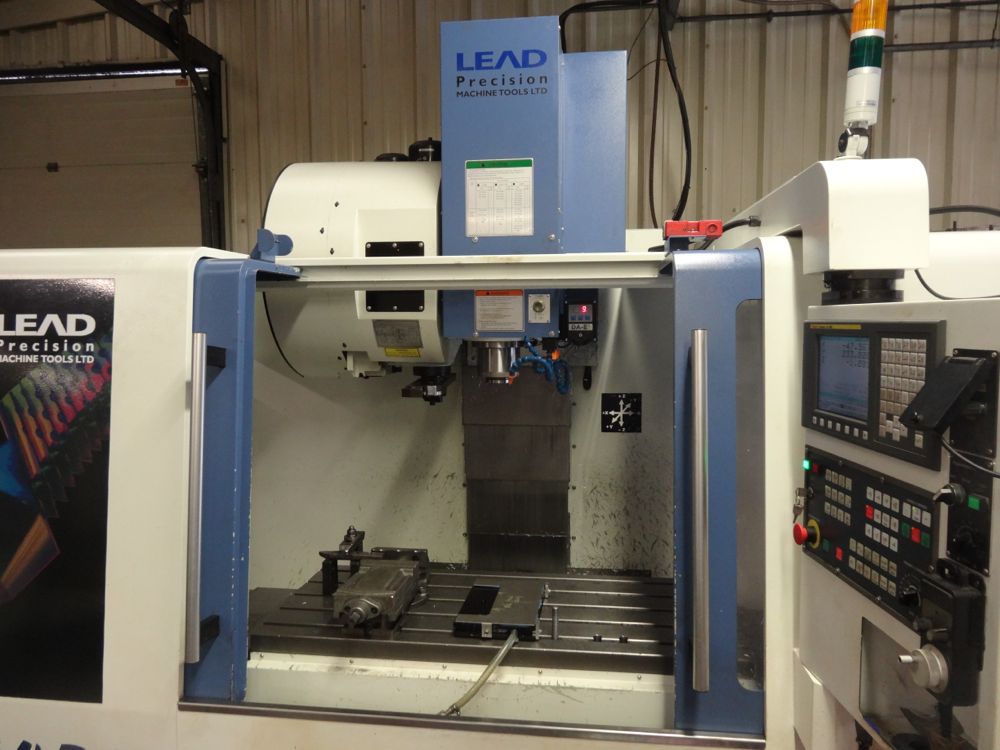

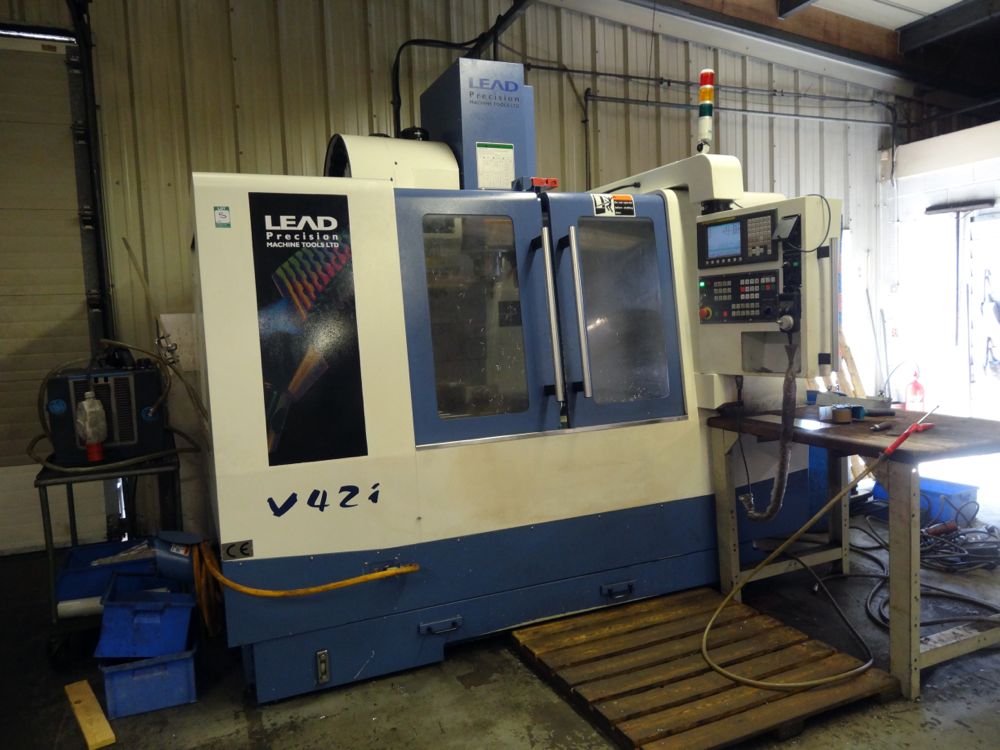

Lot 5 - Lead V42i VMC (Installed Feb 2013)
Description:
Leaderway V42i VMC

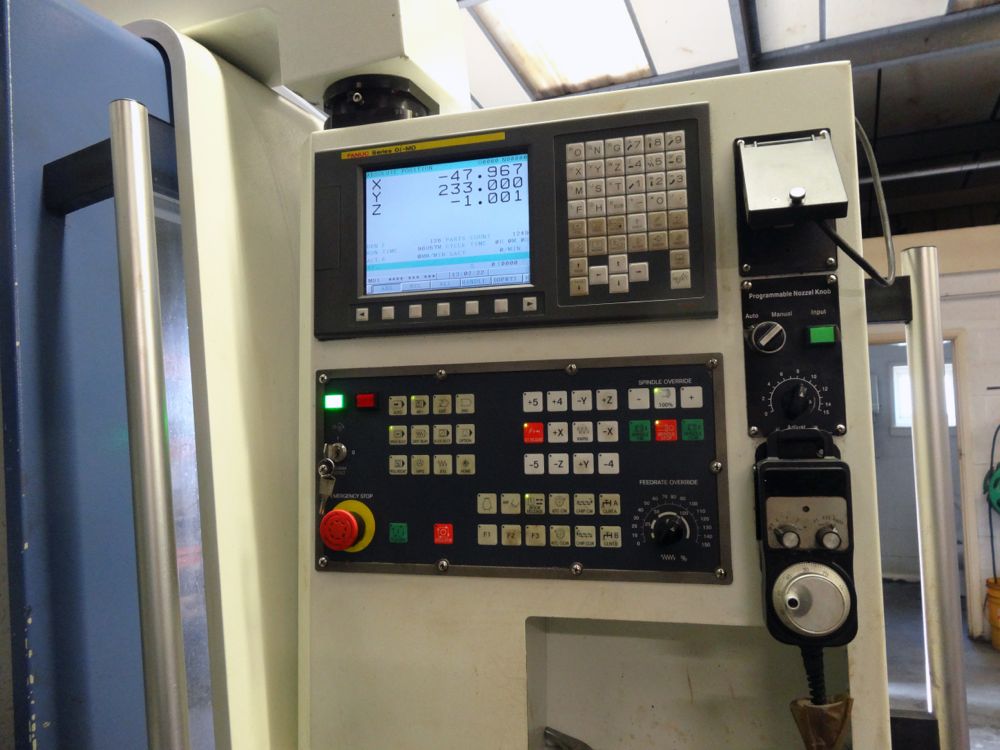

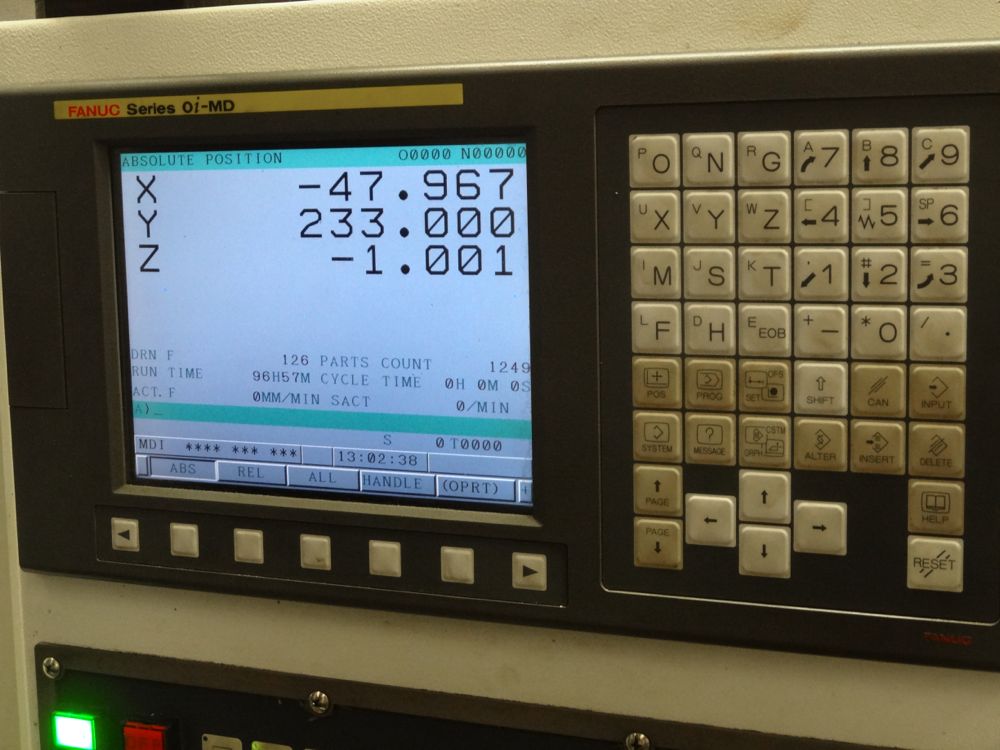

Controller: Fanuc OiMD (8.4” Colour)
X Axis travel: 1066mm
Y Axis travel: 510mm
Z Axis travel: 500mm
Spindle nose to table: 85 - 585mm
Spindle center to column: 520

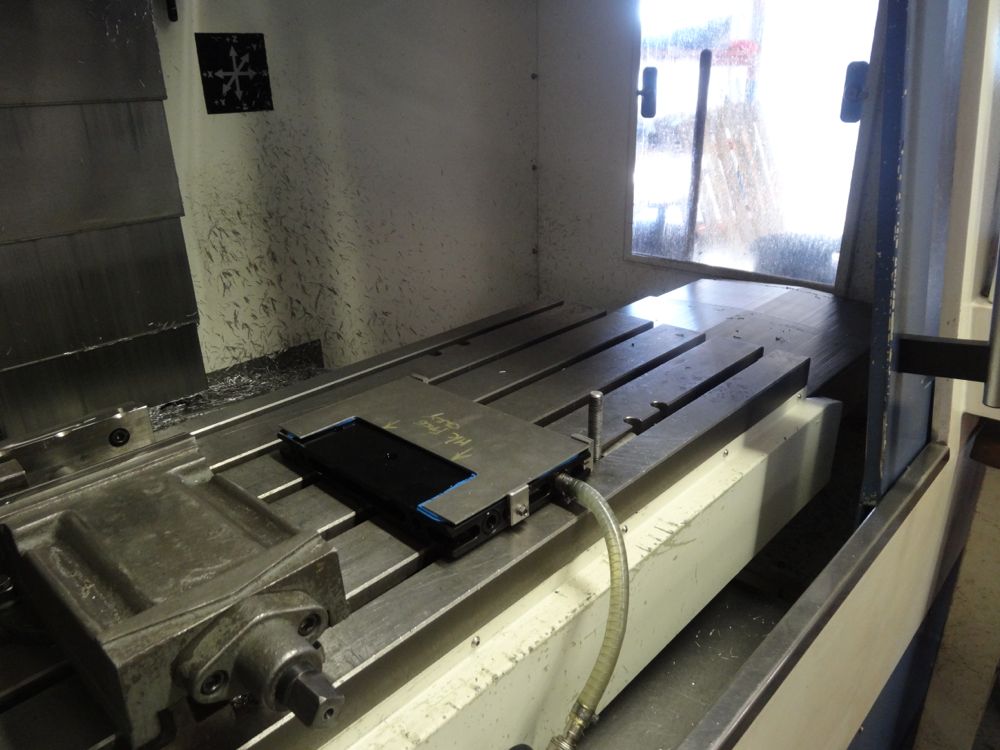

Table size: 1200 x 515mm
Table height: 875mm
T solt size: 5 - 18T x 100mm
Table max load: 400kg
Spindle speed: 10,000rpm

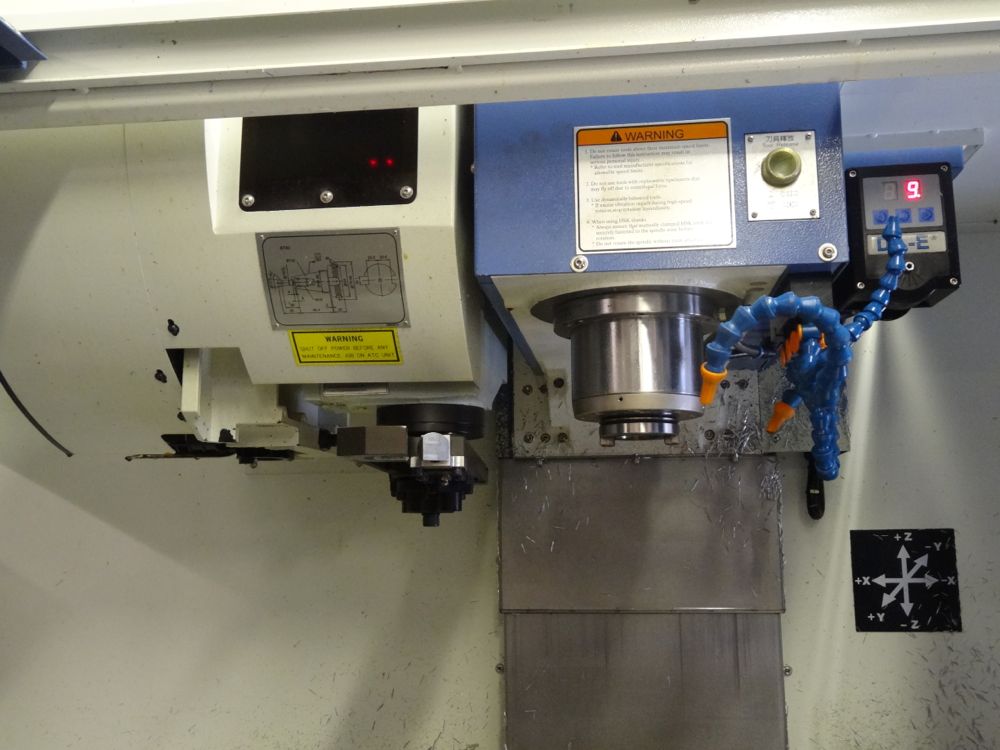

Spindle taper: BT40
Spindle motor: 7.5/11
X/Y/Z rapid traverse: 30/30/20
X/Y/Z feed rate: 1-10
X/Y/Z servo power: 1.8kW

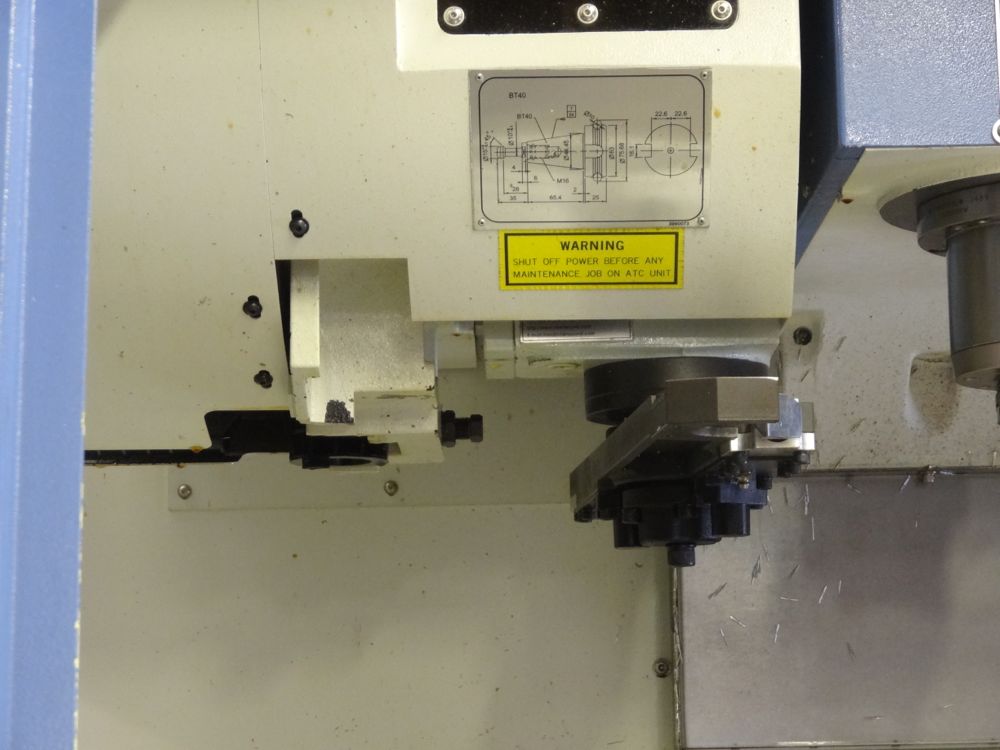

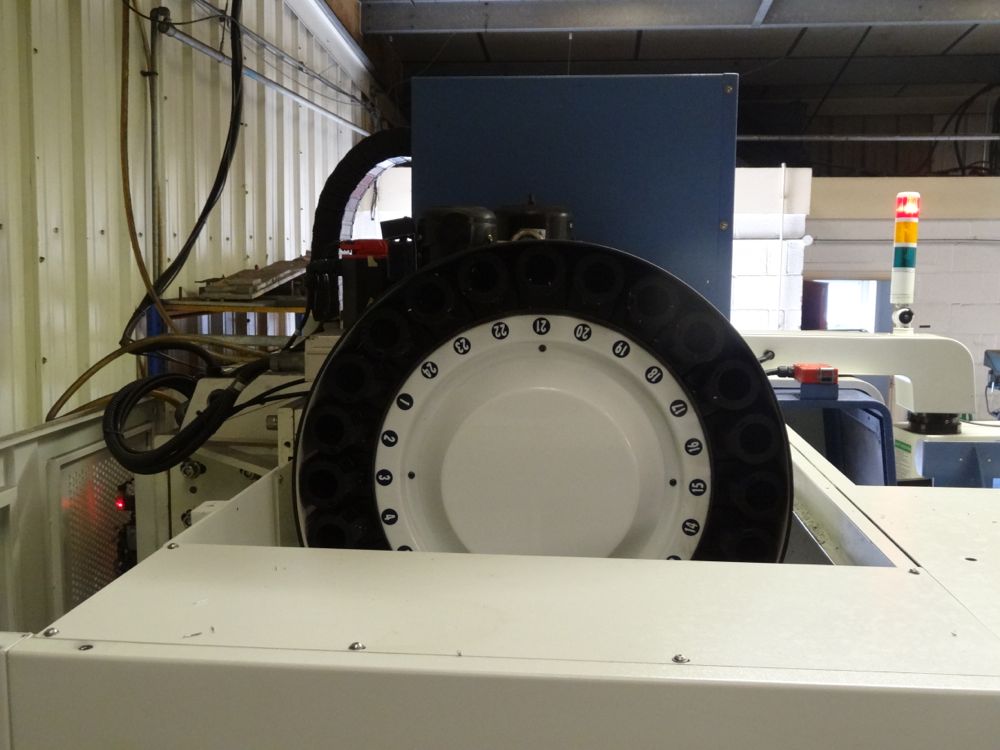

ATC: Drum type
No. of tools:16
ATC time (T - T): 8 seconds
ATC time (C - C): 14
Max tool weight: 7kg
Max tool diameter: 100mm
Max tool diameter (no Adjacent): 125mm
Positioning X/Y/Z: VDI/DGQ 3441 0.015mm
Repeatability X/Y/Z: VDI/DGQ 3441 Ps max 0.01mm
Length: 3100mm
Width: 2200mm
Machine height: 2850mm
Weight: 4600kgs
Pneumatic source requirement: 6bar

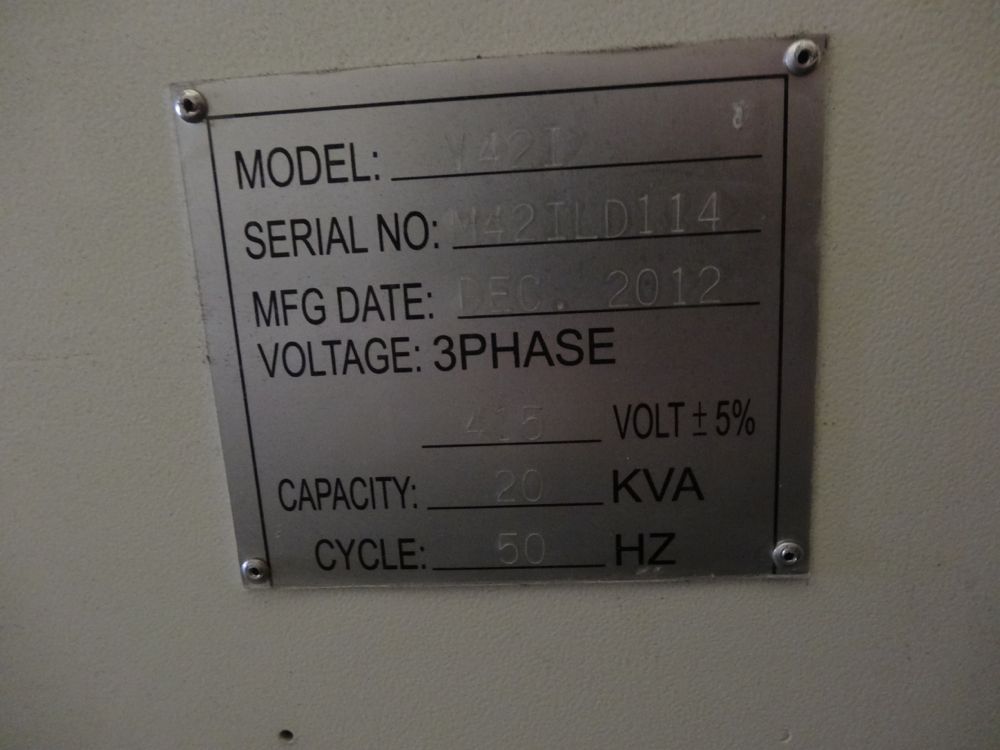

Power Capacity 20KVA
Location: Engments Ltd, Derby

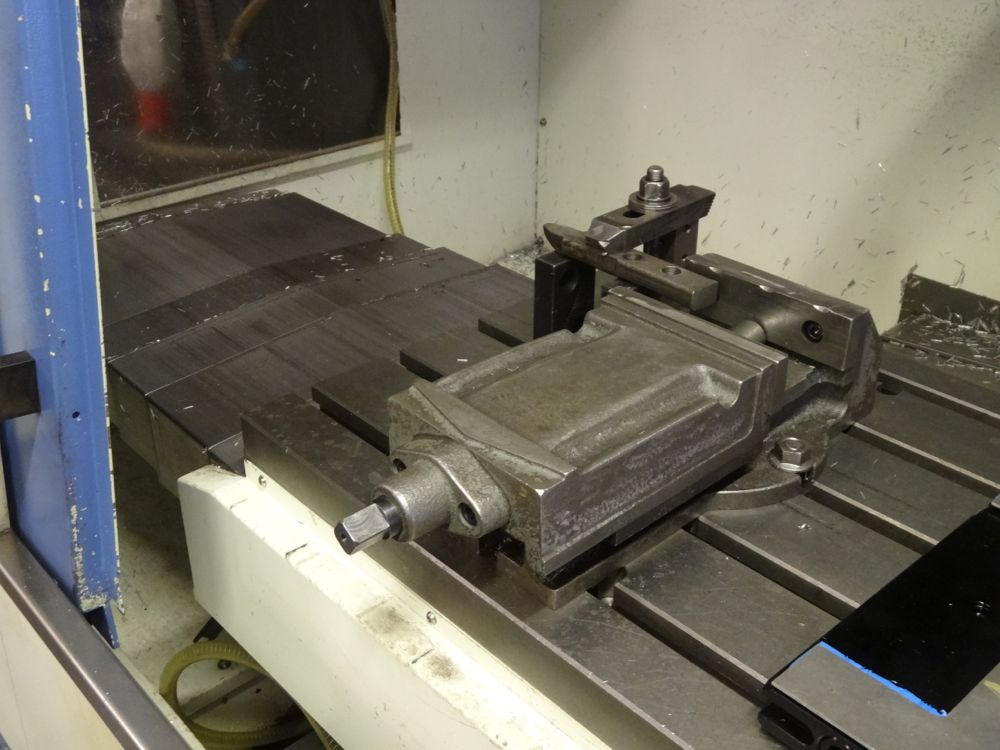

Vice Not Included
Location: Engments Ltd, Derby
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
