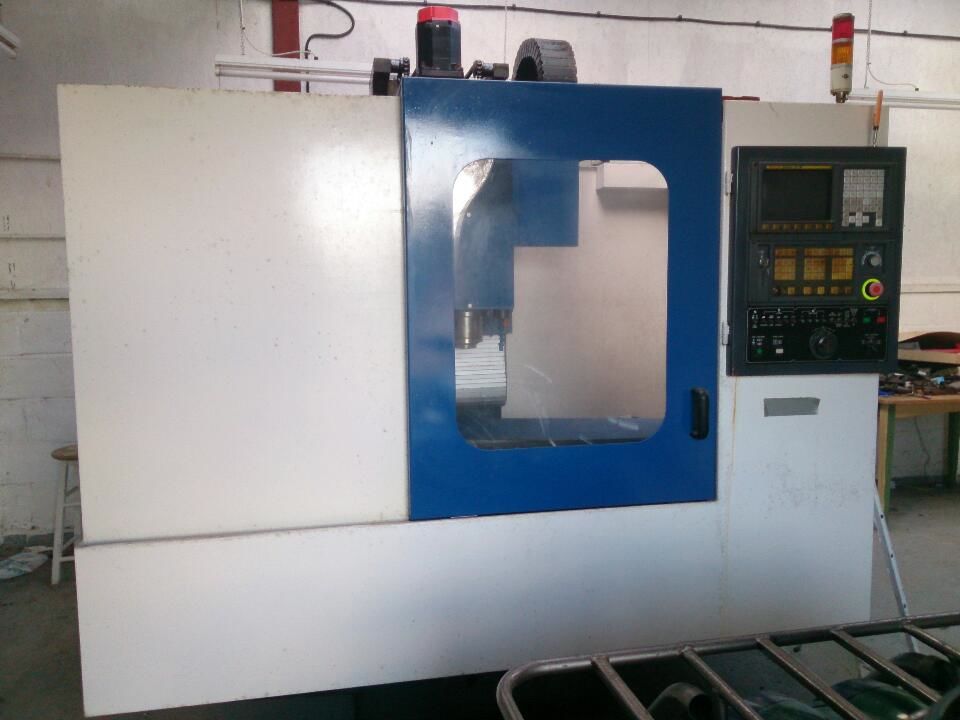

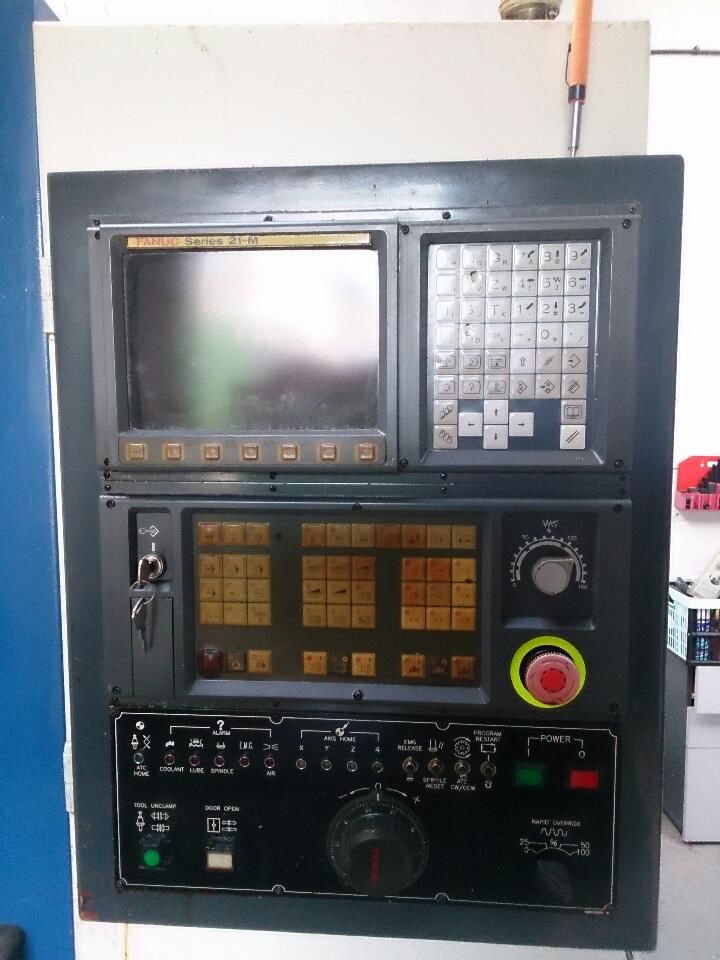

Leadwell V25 VMC with Fanuc 21M Control

Lot 5 - Leadwell V25 VMC with Fanuc 21M Control

Description:

Sn.L131
Lead Machine

Year : 1998
Dimensions : 2300 x 2100 x 2700 mm
Power : 20kva
MACHINE SIZE:

Length - 2300mm
Width - 2100mm
Height - 2650mm

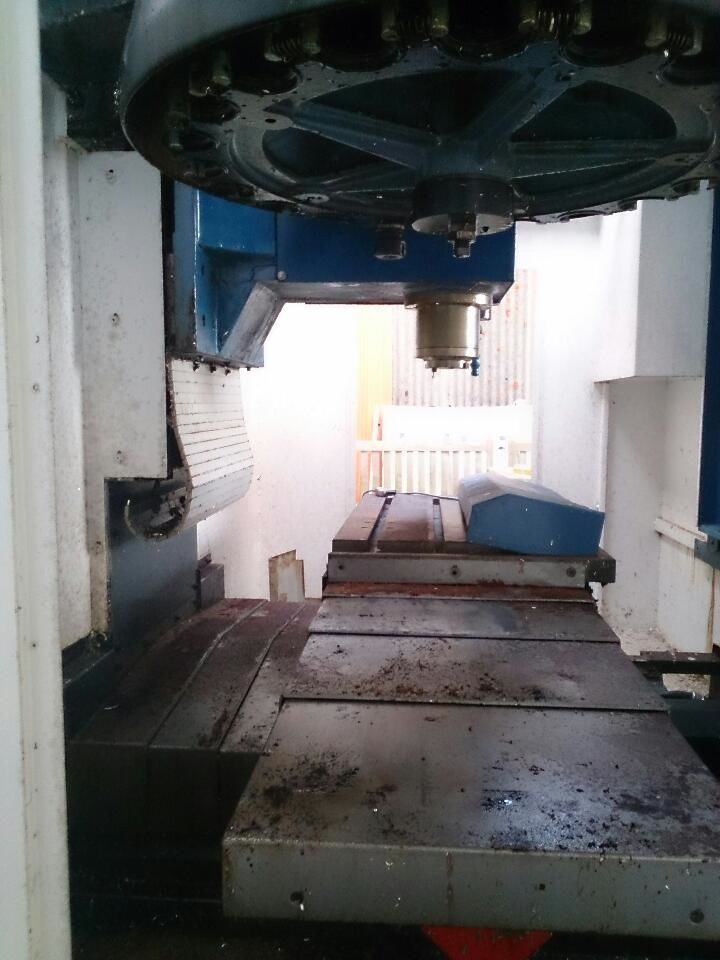

TABLE:

Table size - 770x400mm
Max load capacity - 300kg

TRAVEL:
X/Y/Z axes travel - 650/410/410+110mm
Spindle nose to table surface - 130-540mm

SPINDLE:
Spindle motor (continue) - 5.5kw
(30min) - 7.5kw
Spindle speed (Fanuc) - 80-8000rpm
Spindle taper - 7/24(Mas-bt40)
Gear ratio - 1:1

FEED MOTOR:
X/Y/Z (Fanuc) - 1.0/1.0/2.1kw

FEED RATE:
X/Y/Z rapid feed rate - 20/20/15 m/min
Feed rate X/Y/Z - 0-5m/min

AUTOMATIC TOOL CHANGER:
Tool shank type - BT-40

ATC type - armless
Tool capacity - 20
Max tool diameter - 115mm
Max tool length - 250mm
Max tool weight - 7kg
ATC tool to tool - 7sec
ATC chip to chip - 14sec
Tool pocket pitch - 95mm

CE 1998

380v, 3 phase, 2kv, 5hz,

Weighs Approx 3000kg

Location: East Sussex

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
