Lot 1009 - Lorch V30 Mobil Weld set.WUK 5 CEE 16
Description:
Sold Subject to Payment

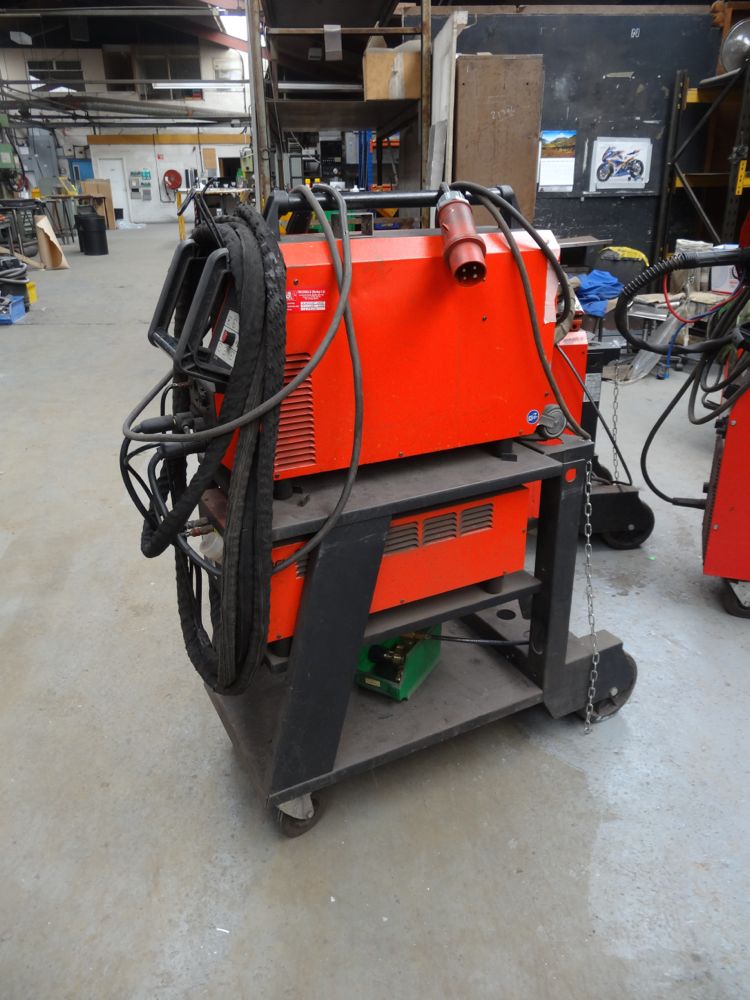

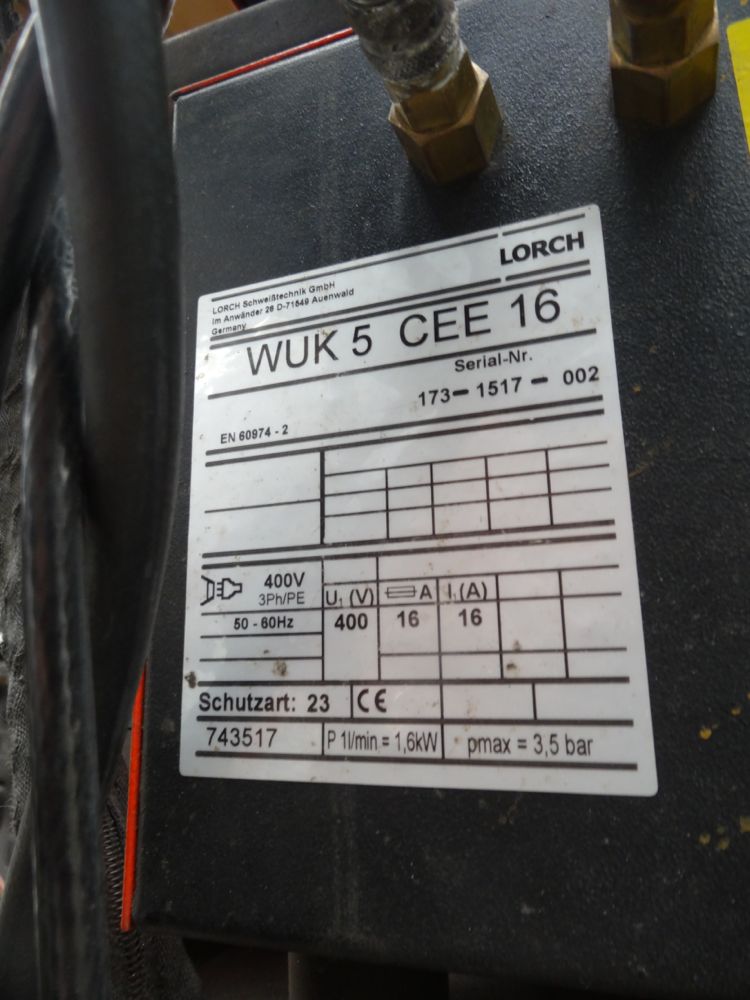

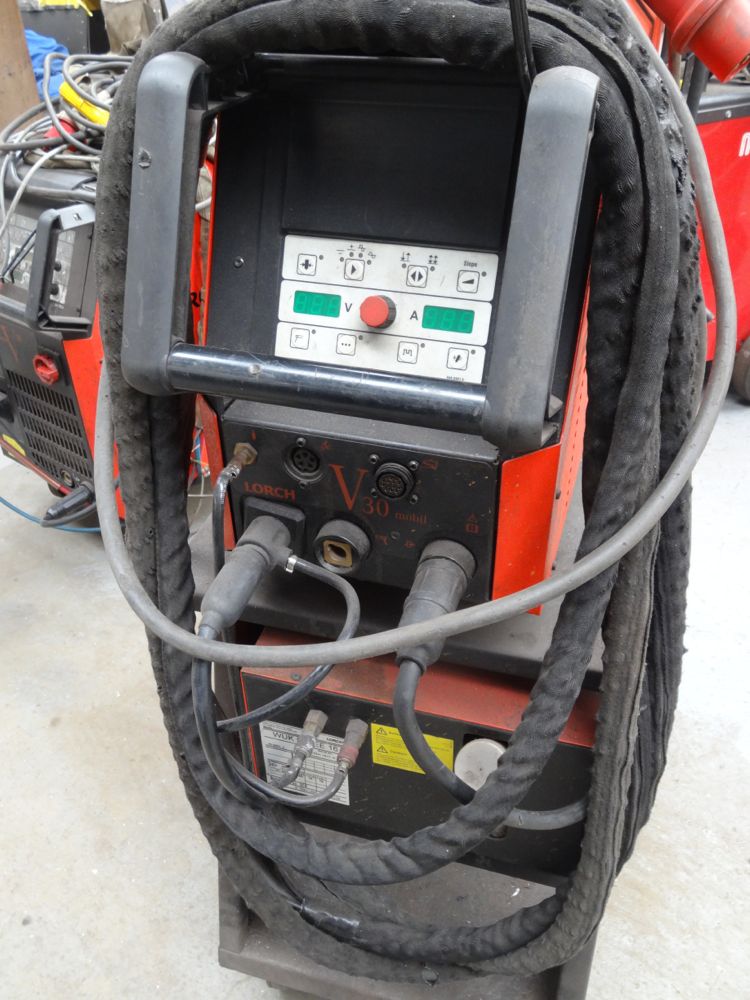

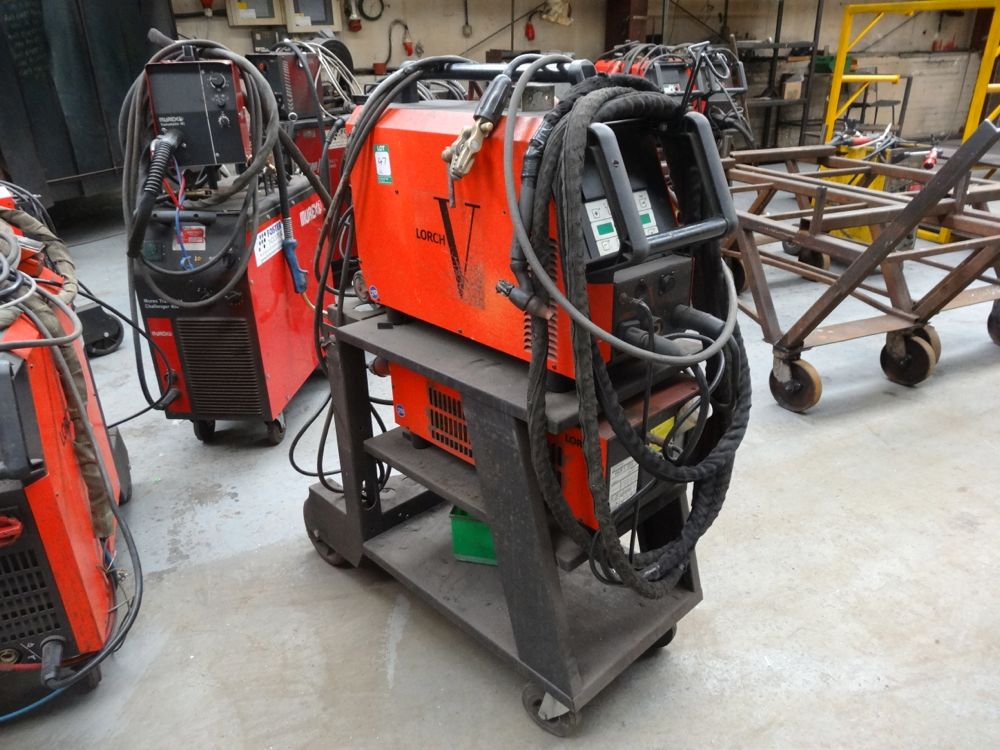

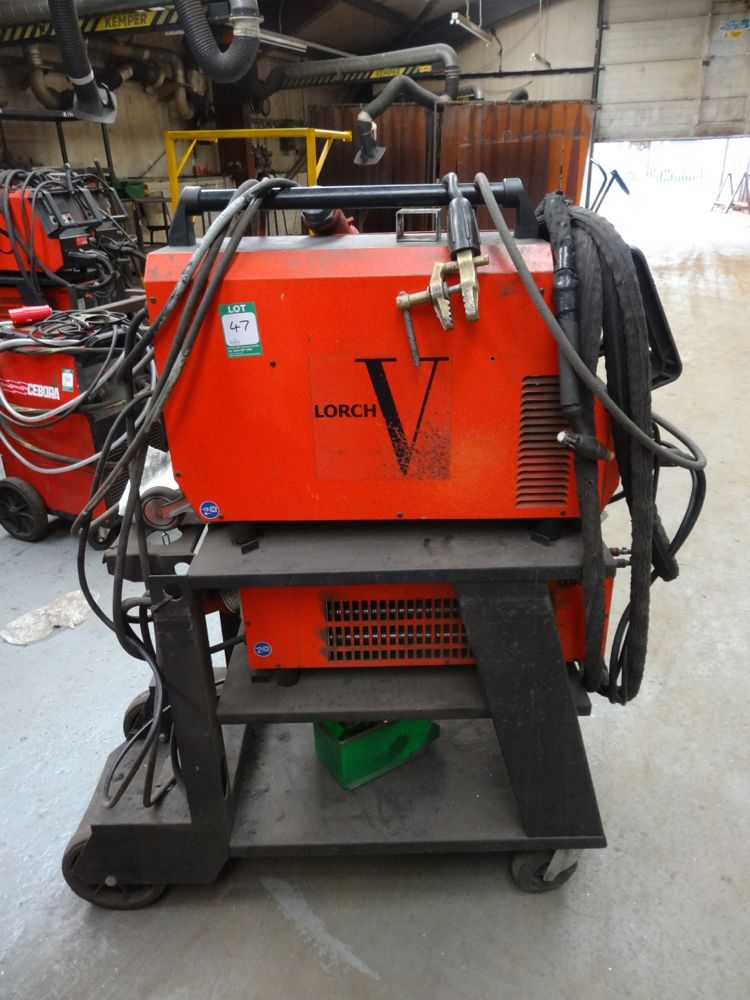

Lorch V30 Mobil Weld set.WUK 5 CEE 16
Welding range min - max A: 3-300
No load voltage V:10-60
Voltage setting: continuously adjustable
Welding current at 100% duty cycle (25°/40°C) DC A: 300/270
Welding current at 100% duty cycle (25°/40°C) AC-DC A: 280/240
Welding current at 60% duty cycle (25°/40°C) DC A: 300/300
Welding current at 60% duty cycle (25°/40°C) AC-DC A: 300/280
Duty cycle at max. current (25°/40°C) DC %: 100/60
Duty cycle at max. current (25°/40°C) AC-DC %: 60/50
Mains voltage (50/60 Hz)+20%/-15%: 3~400V
Mains tolerance +/- %: 15
Mains lead mm2: 4x1,5
Mains plug: CEE16
Mains fusing A: 16
Current consumption I160%/100% DC A mm: 15,8/13,9
Current consumption I160%/100% AC-DC A: 16,0/11,2
Current consumption I1max. DC A: 15,8
Current consumption I1max. AC-DC A: 17,2
Power consumption S160%/100% DC kVA: 10,9/9,6
Power consumption S160%/100% AC-DC kVA: 11,1/7,8
Power consumption S1 max. DC kVA: 10,9
Power consumption S1 max. AC-DC kVA: 11,9
Power factor cos φ: 0,99
Dimensions power source (LxWxH) mm: 812x283x518
Weight (gas-/watercooling) DC kg: 31/-
Weight (gas-/watercooling) AC-DC kg: 38/-
Characteristic line: downwards
Protective system EN 60529 IP 23, isolation class F, cooling type F, noise emission < 70 dB(A), norm EN 60974-1, CE conforming, [S]-Sign
Standard torch 4m gas: WLT 26 UD
Standard torch 4m DC water: WWT 18 SC UD
Standard torch 4m AC-DC water: WWT 18 SC UD
Ground cable 4m: 50 mm 2
Location: Engments Ltd, Derby
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
