Lot 17 - Makino 74 VMC
Description:
Sold

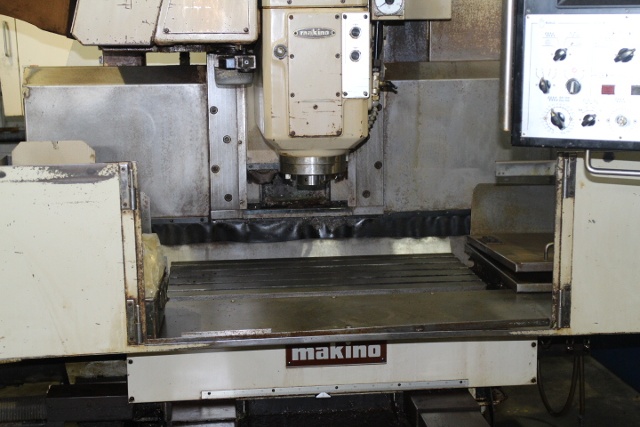

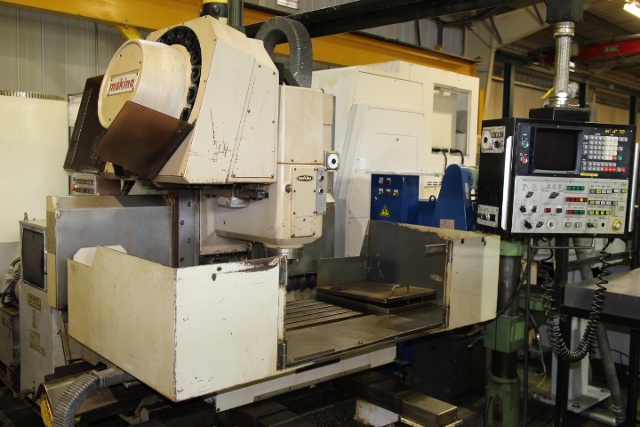

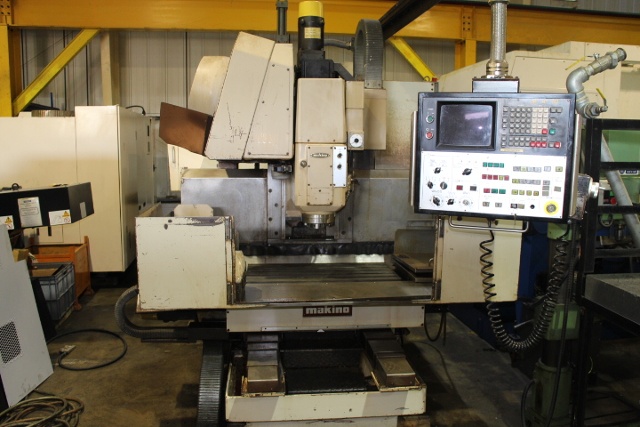

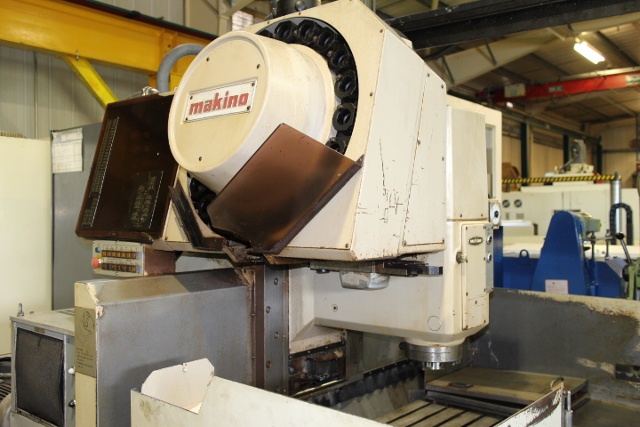

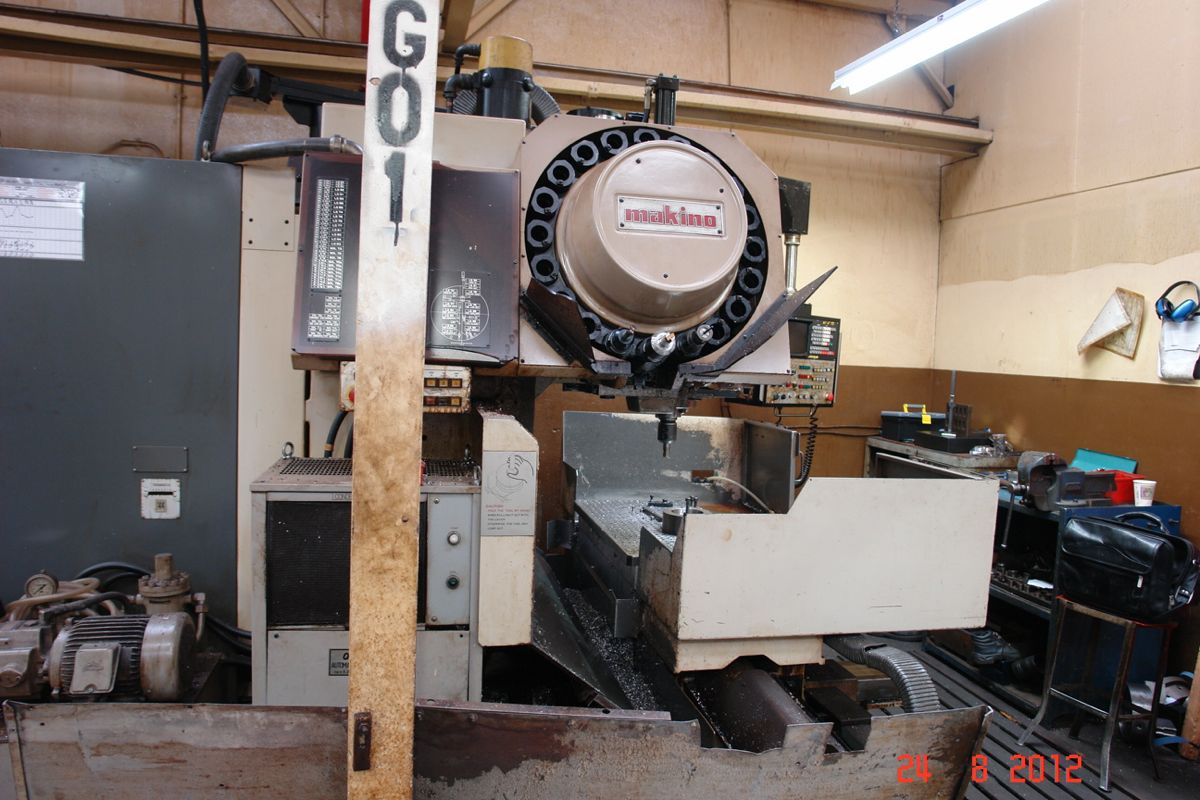

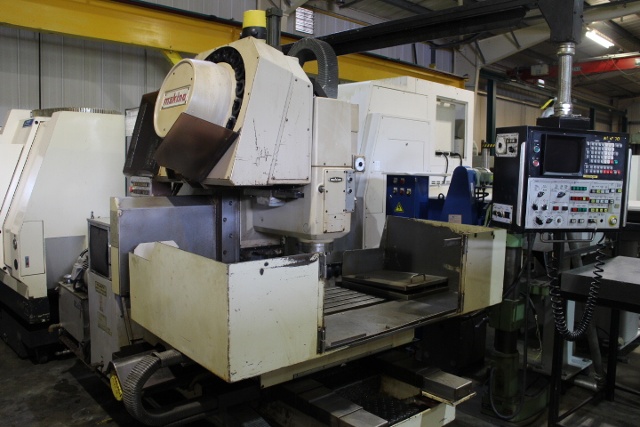

Makino 74 VMC
Year 1983,
Fanuc 6M Control,
Technical details
Table Size: 700 x 450 x 450mm
Maximum Table Load: 997kg
Spindle Nose To Table Top: 200.02 - 650.87mm
X Axis Travel: 700.02mm
Y Axis Travel: 450.09mm
Z Axis Travel: 450.09mm
Rapid Traverse Rate X & Y Axes: 710 IPM
Rapid Traverse Rate Z Axis: 472 IPM
Cutting Feed Rate: 0.004 - 157 IPM
Spindle Taper Cat: 40
Spindle Speeds (2 Speed Geared): 10 - 7,000 RPM
Spindle Motor: 10 HP AC
Tool Changer Capacity: 20 Station ATC
Tool Change Time (Tool To Tool): 3 Seconds
Machine Dimensions (Approximate): 2489.2 x 3403.6 x 2616.2mm
Machine Weight (Approximate): 5896kg
Location: Leicester, can be loaded to a flat bed truck for free.
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
