*NOW SOLD* Matsuura MAM72-35V/PC32 5-Axis Vertical Machining Centre (2020)

Lot 2 - NOW SOLD Matsuura MAM72-35V/PC32 5-Axis Vertical Machining Centre (2020)

Description:

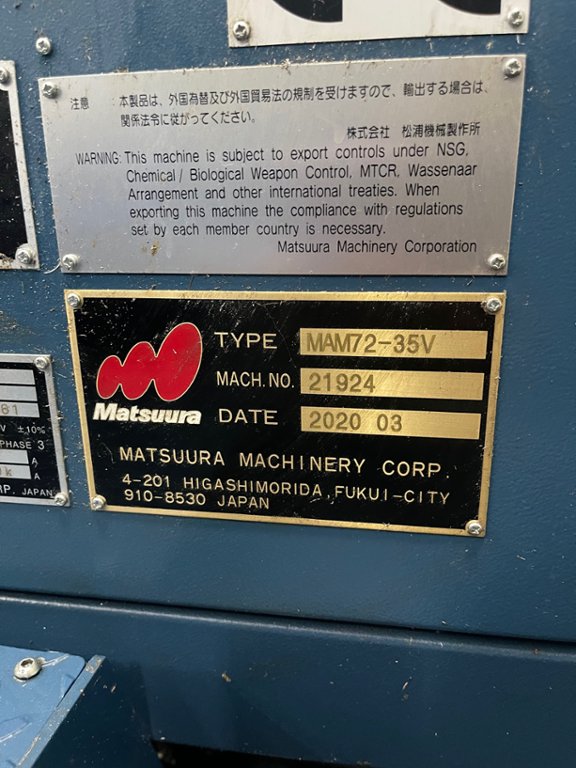

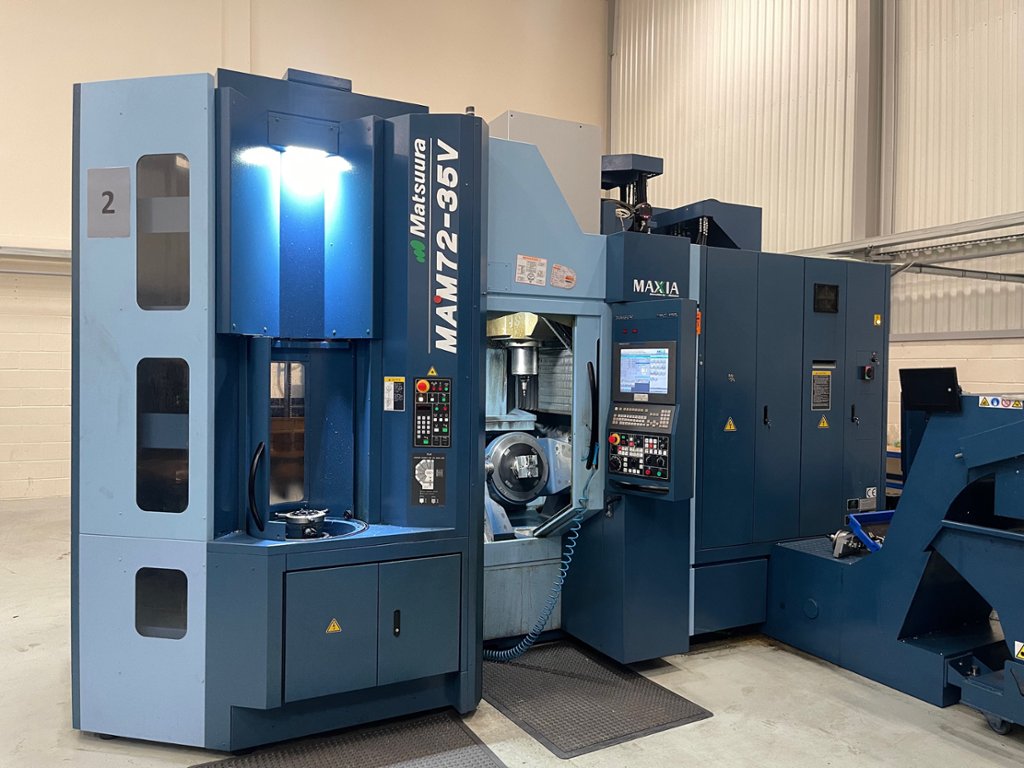

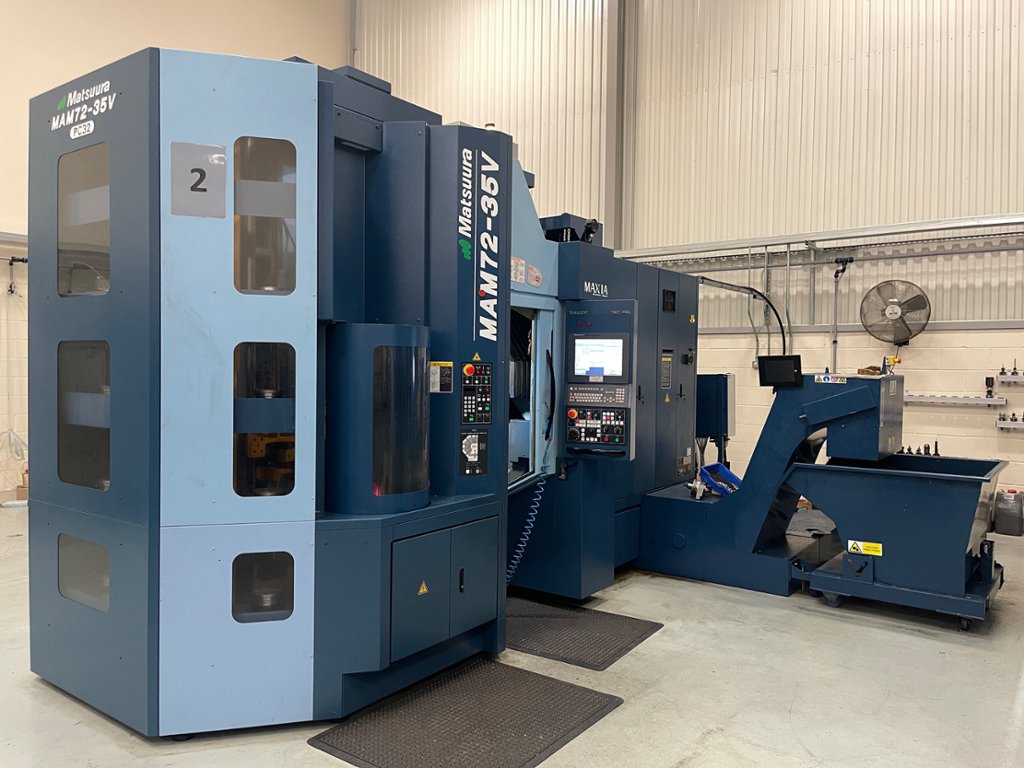

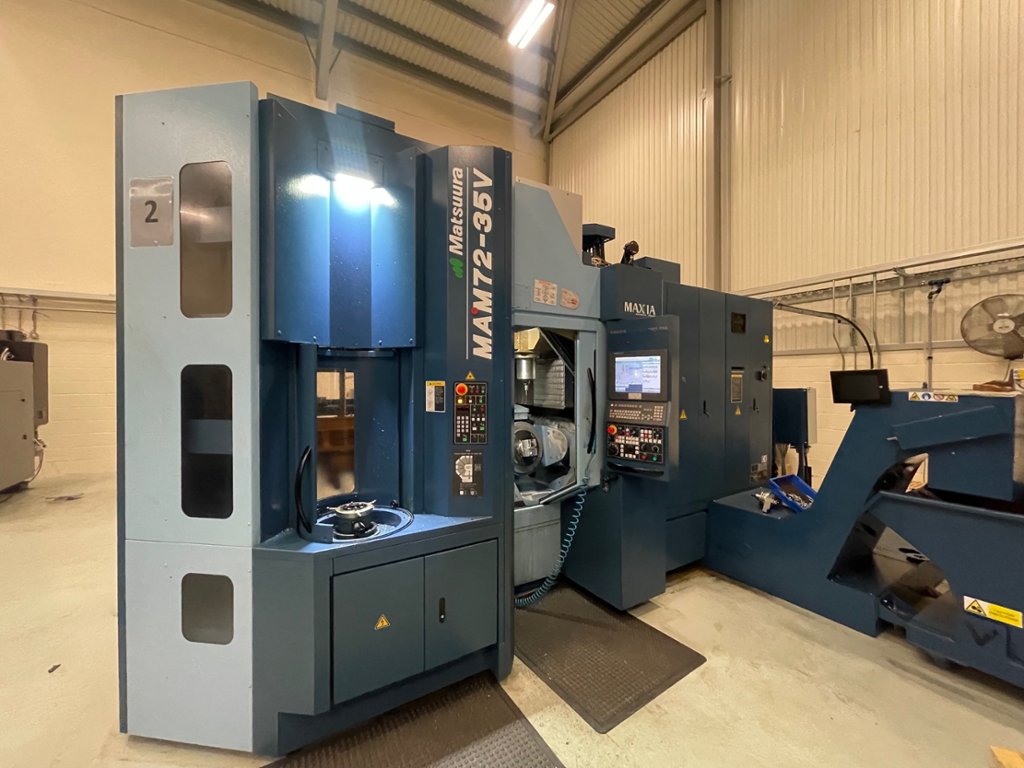

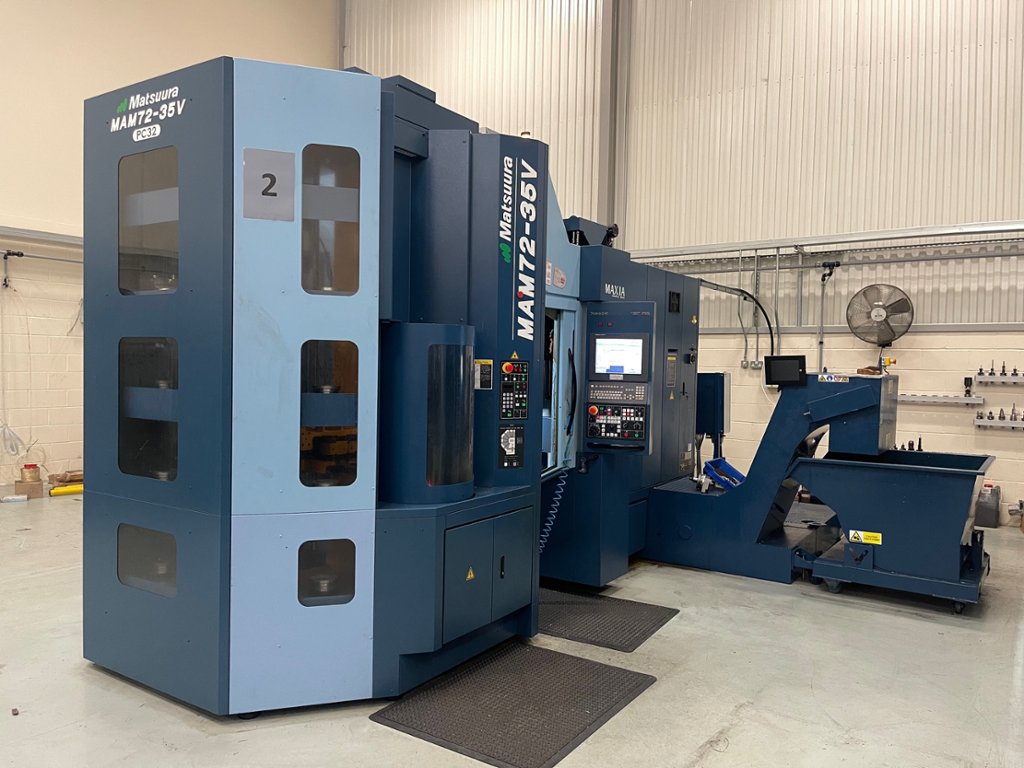

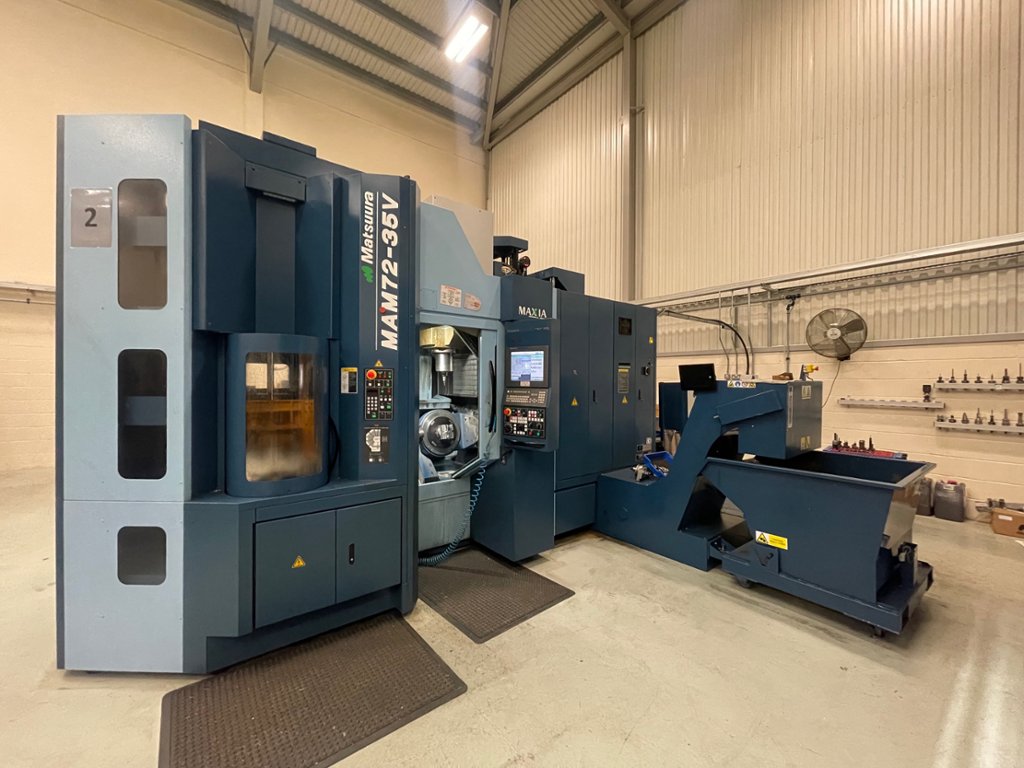

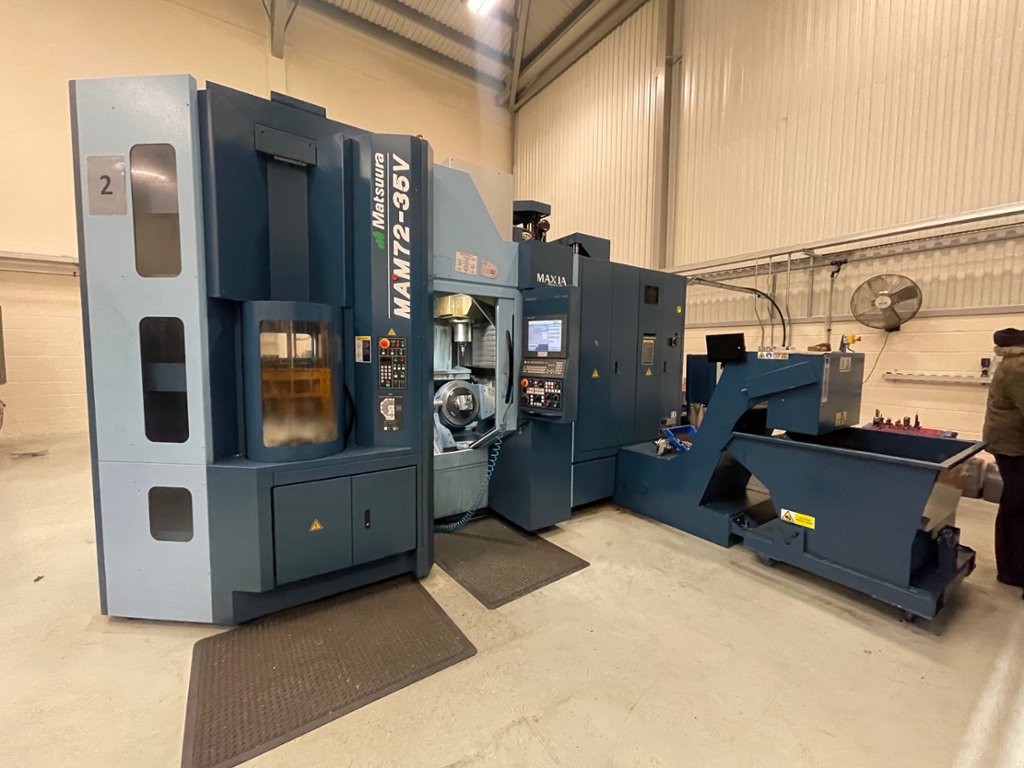

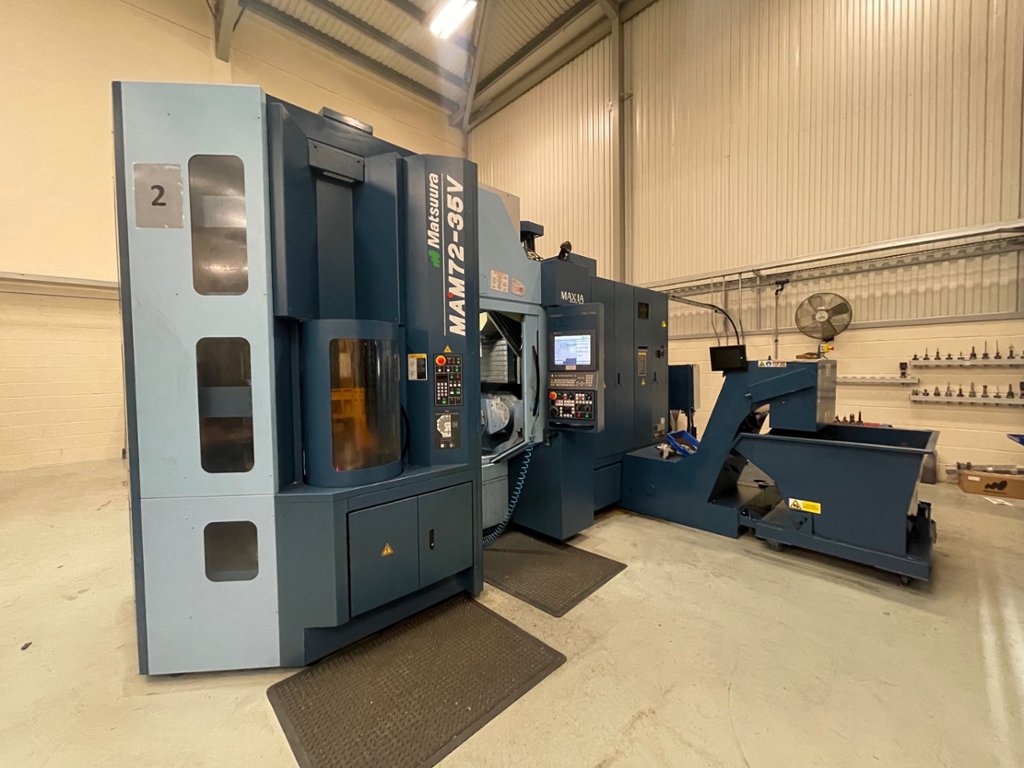

Matsuura MAM72-35V/PC32 5-Axis Vertical Machining Centre (2020)

*These machines rarely come up on the market they can conduct unmanned machining with ease. We have learned that the 72 in the model number means 72 hours of unmanned machining and the 35 is 350mm maximum workpeice dia. This means that when you leave work Friday lunch time, you could return monday lunch and get a free weekend - every weekend plus all over your weekday overnights.

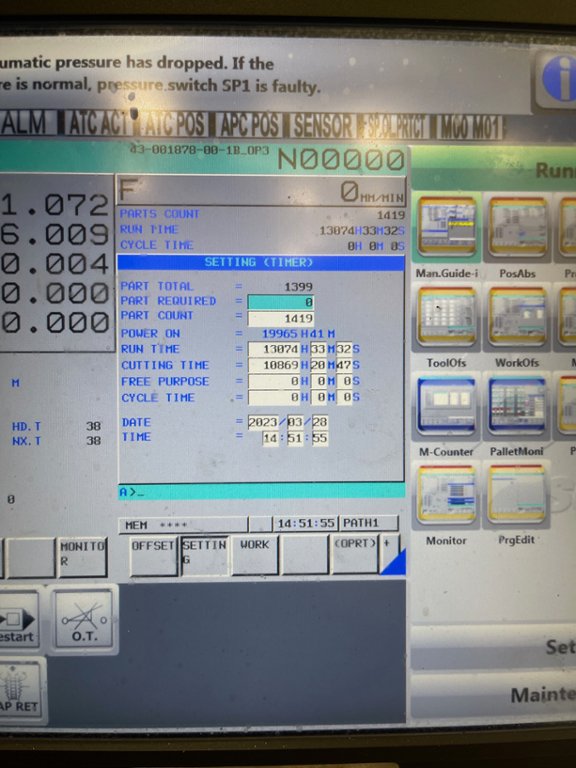

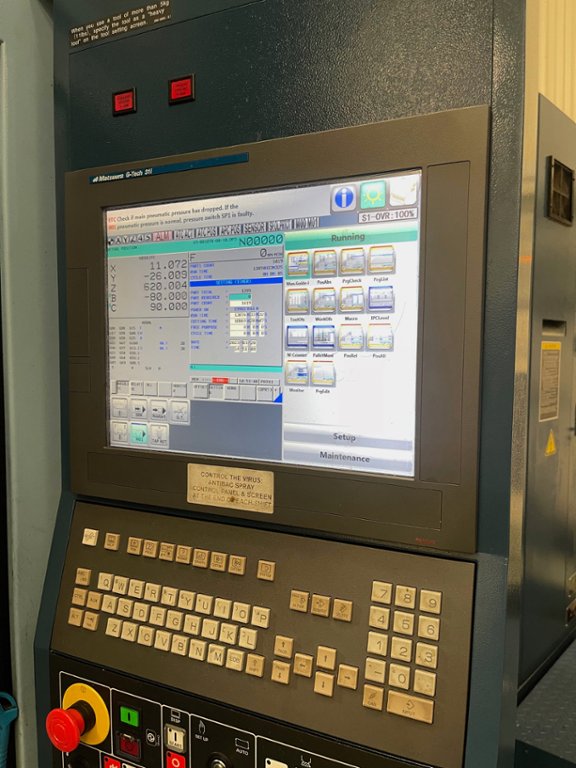

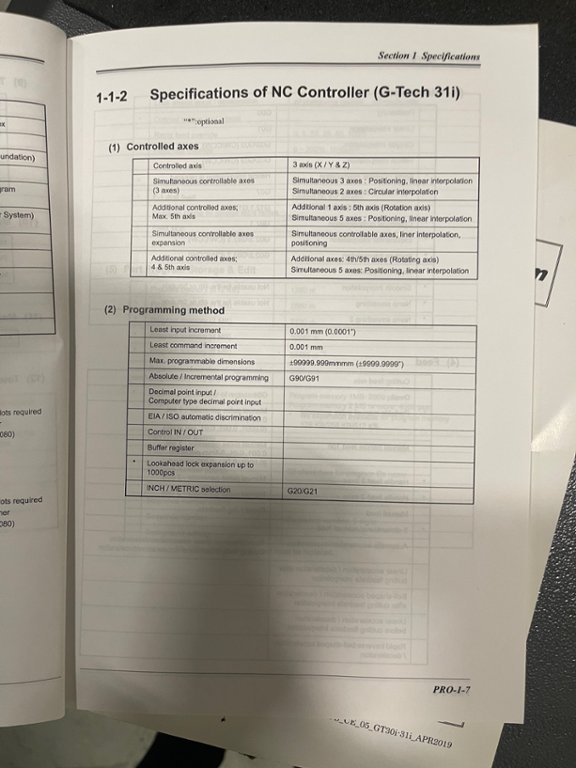

G-Tech 31iB Control

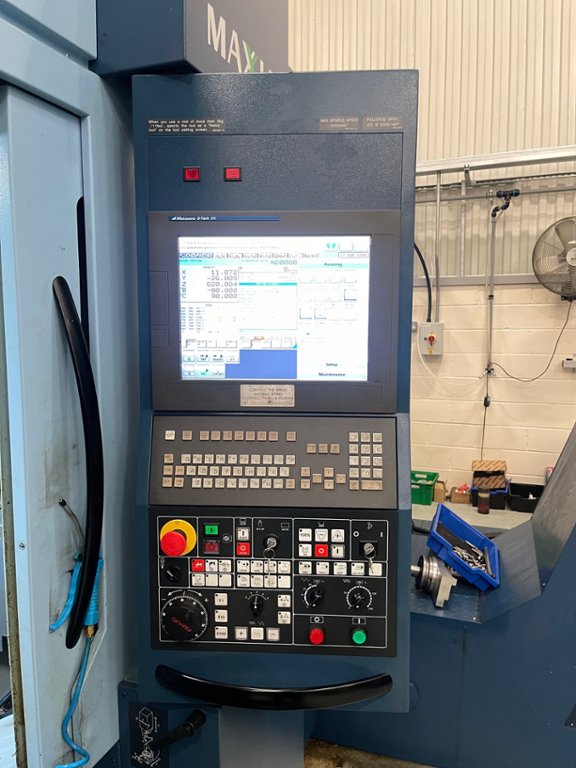

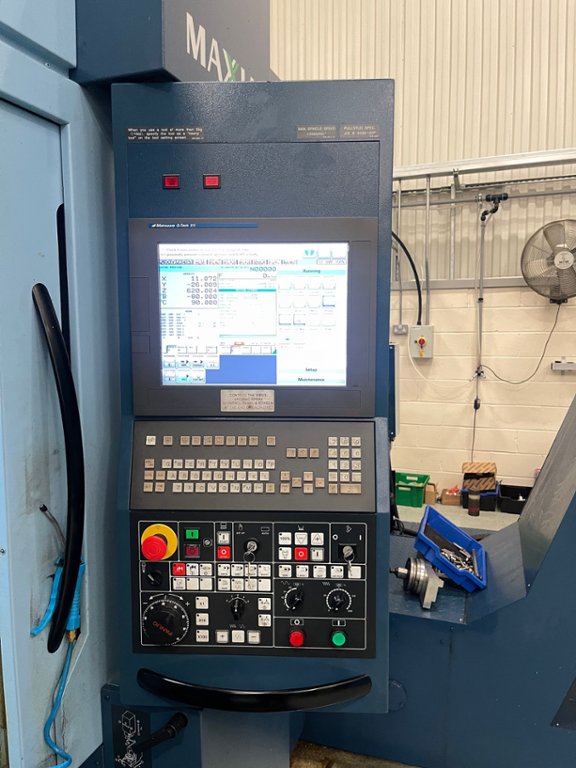

Large 15" Operation i Panel (LCD/Colour Touch Screen)

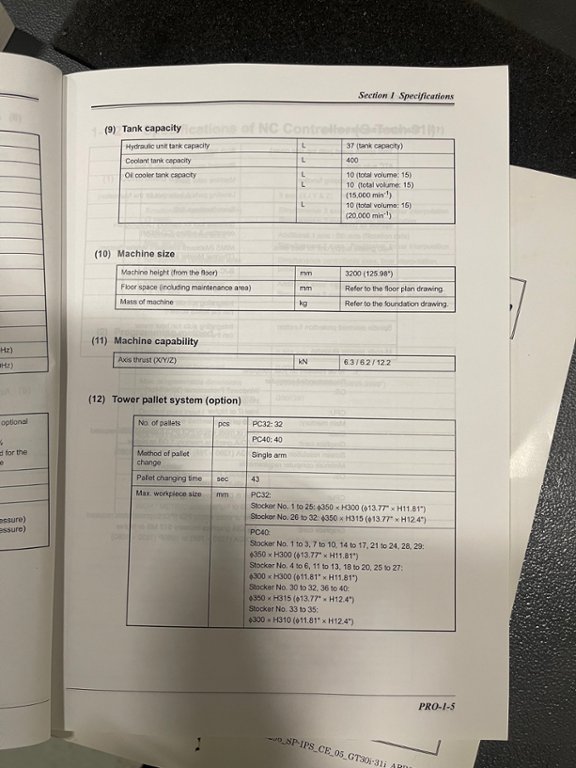

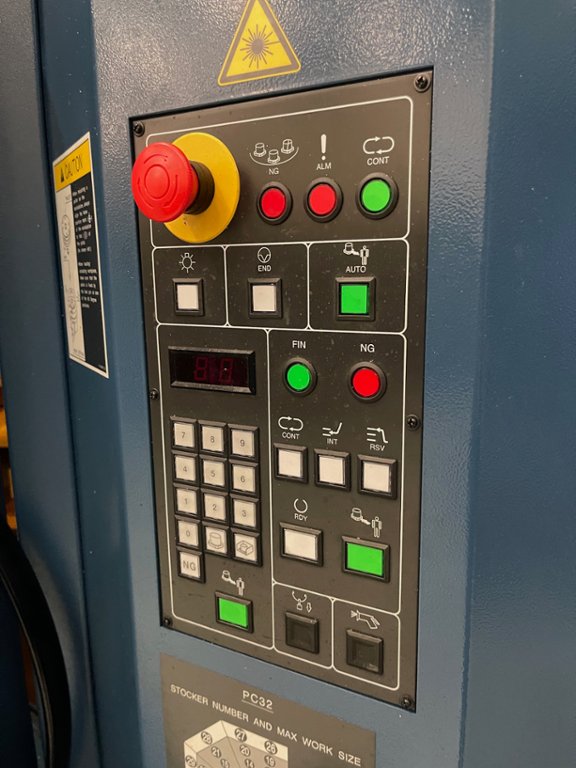

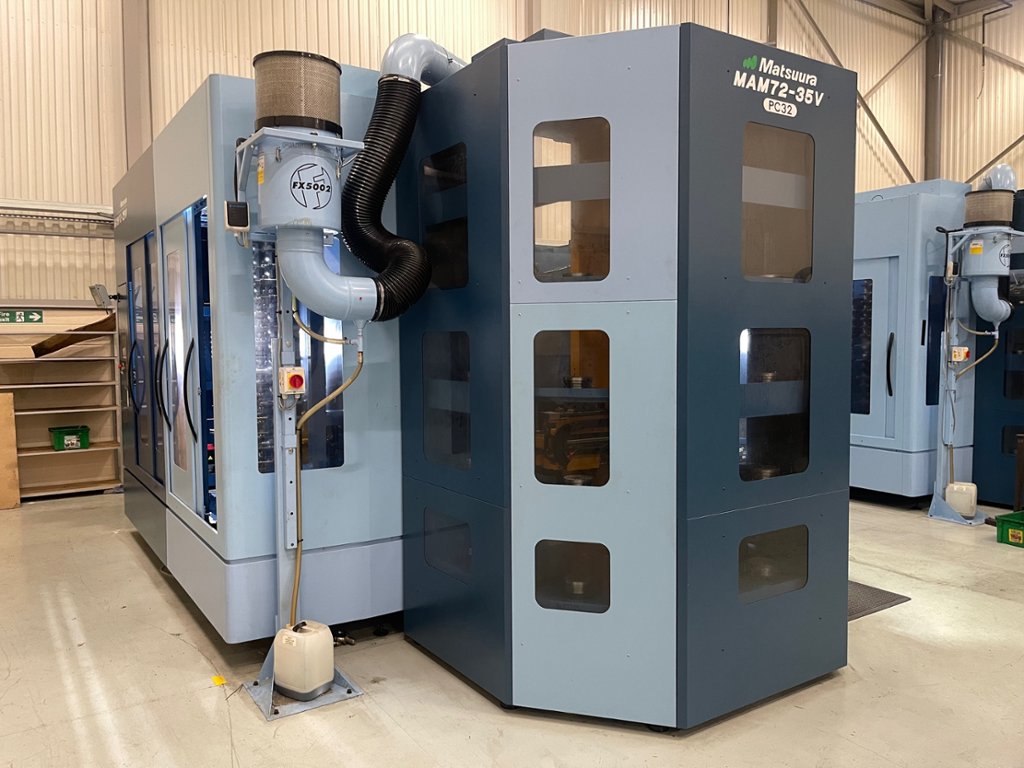

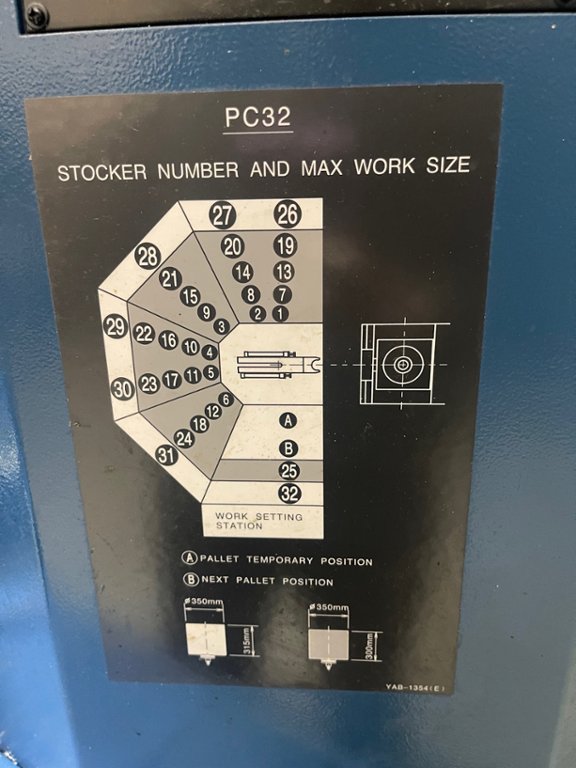

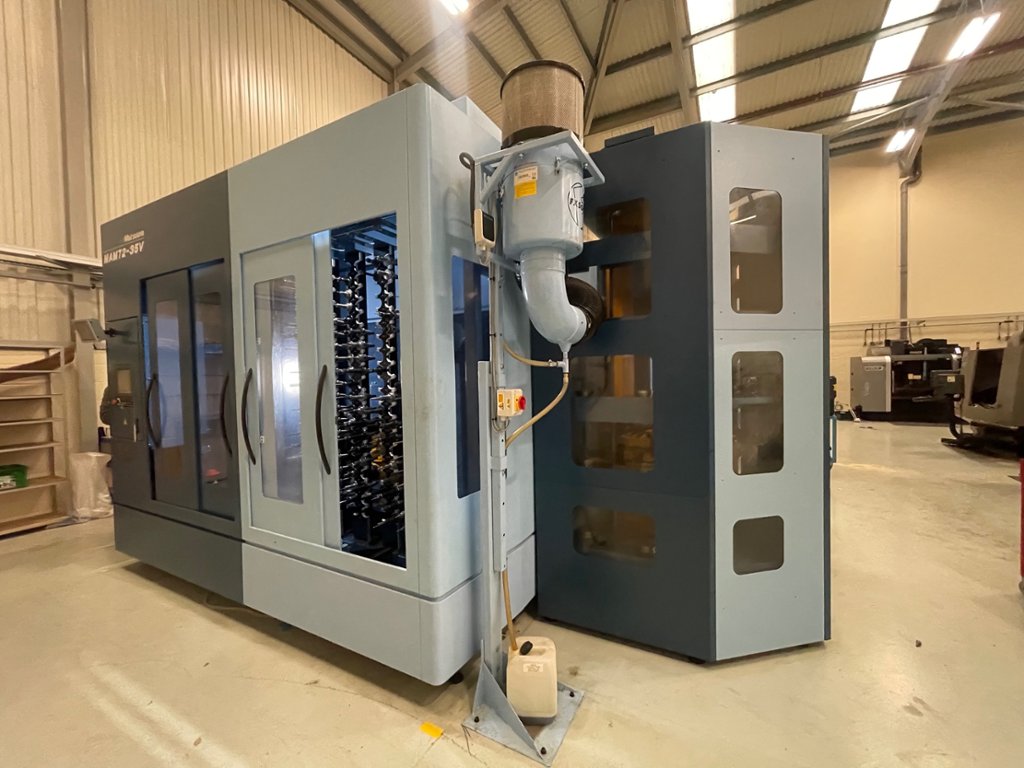

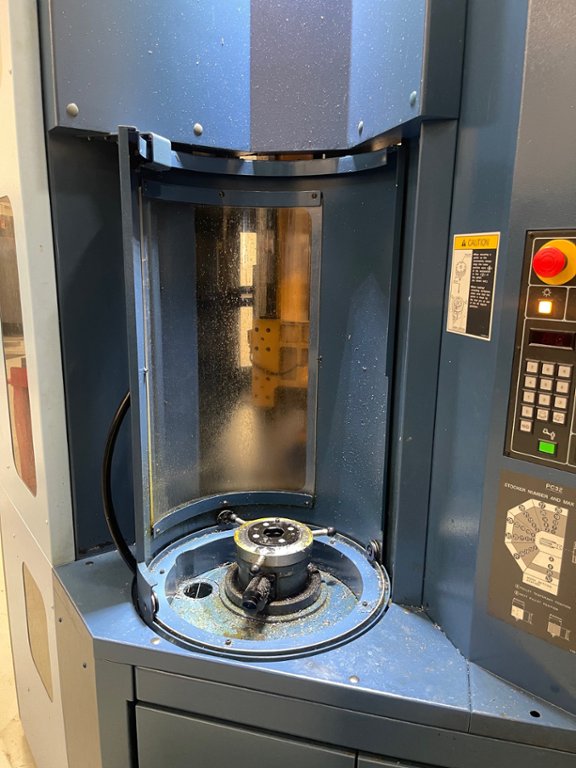

32 Tower Pallet Changer System
32 off 130 mm Diameter Pallets each having a 60 kg Load Capacity
350 mm Diameter x 300 mm High Workpiece Size

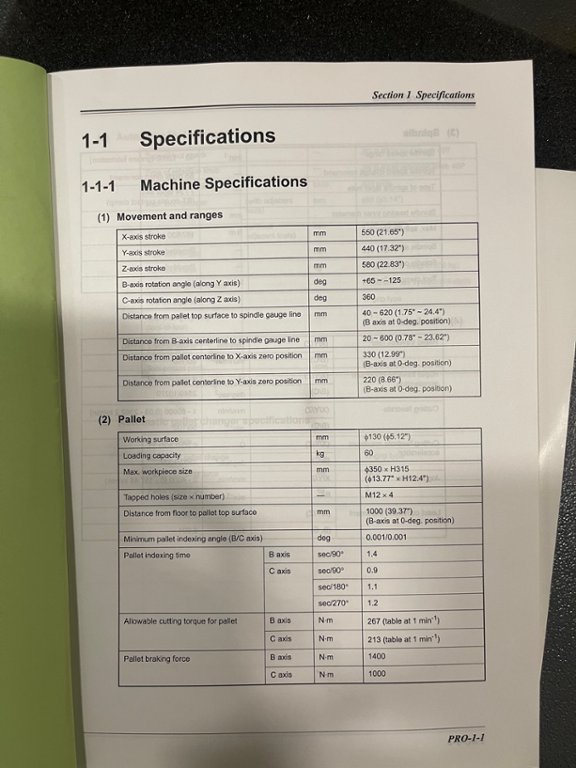

Axis Movements: X, 550 mm / Y, 440 mm / Z, 580 mm

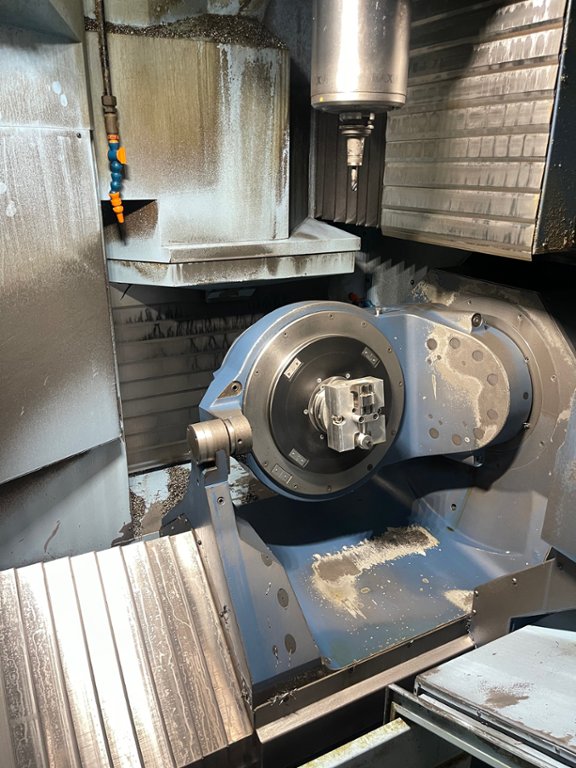

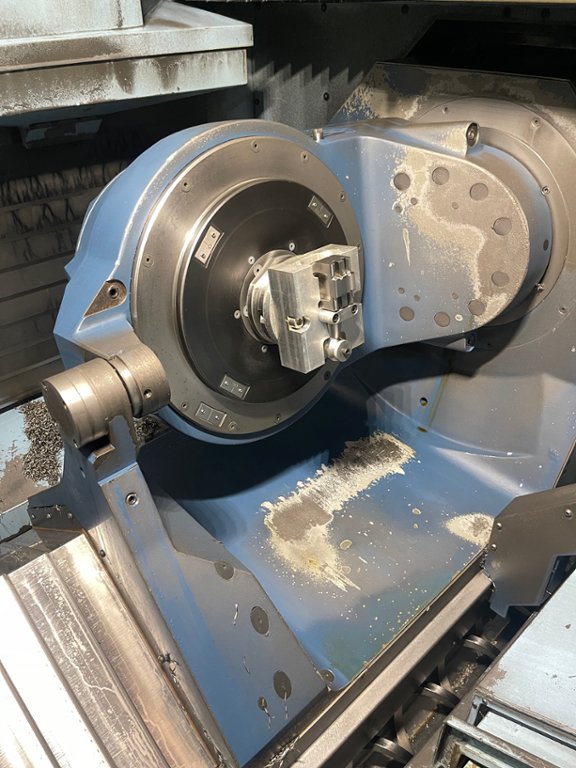

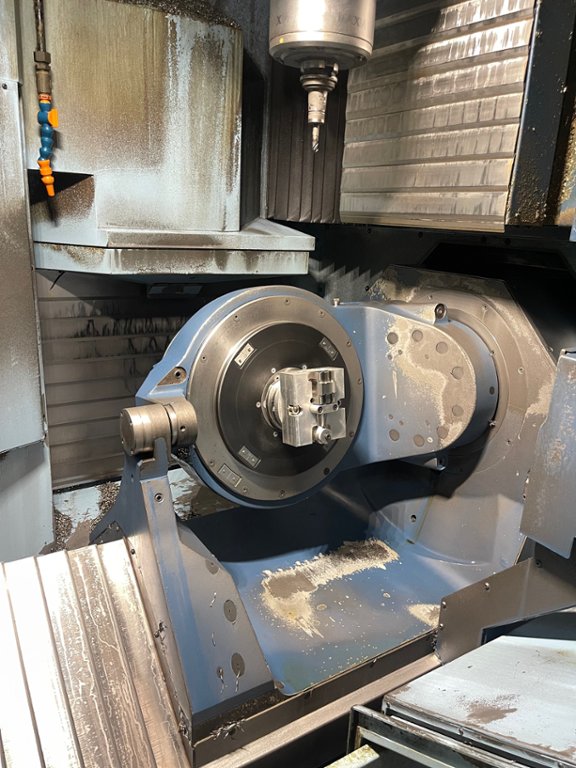

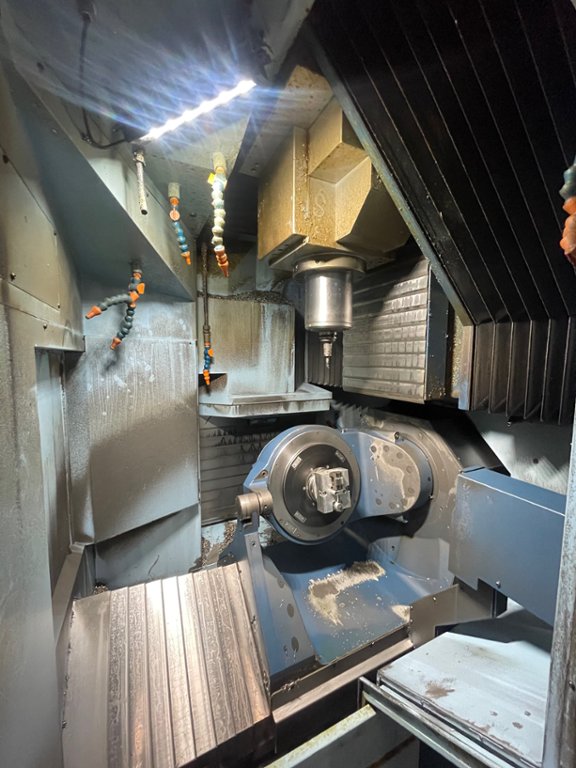

4th and 5th Axis Movements: B, +65° to -125° / C, 360°
Spindle Overload Protection / Synchronised Tapping Function Direct Drive B/C Axis with Scale Feedback Workpiece Counter (9 "M" Functions) Work Light / Auto Grease Supply Unit / Chip Flush NC Memory 0.5MB / 1,000 Registered Programs / Ethernet Interface Custom Macro / Skip Function / Helical Interpolation

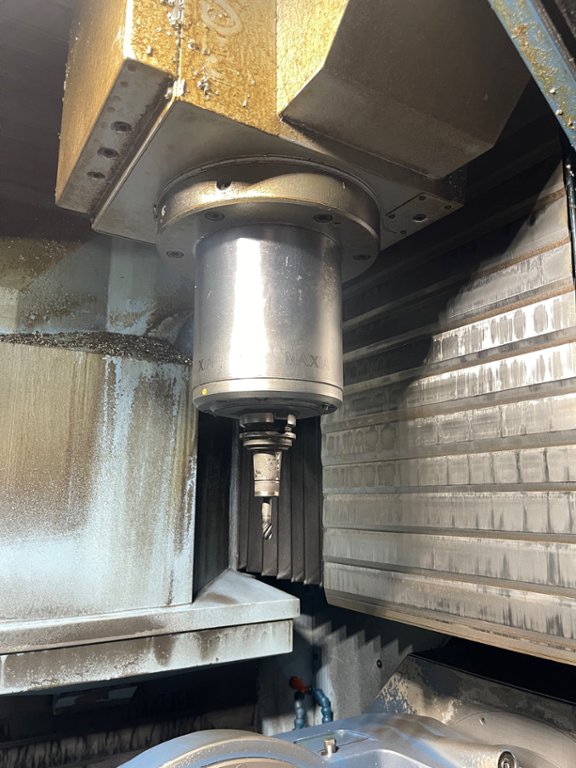

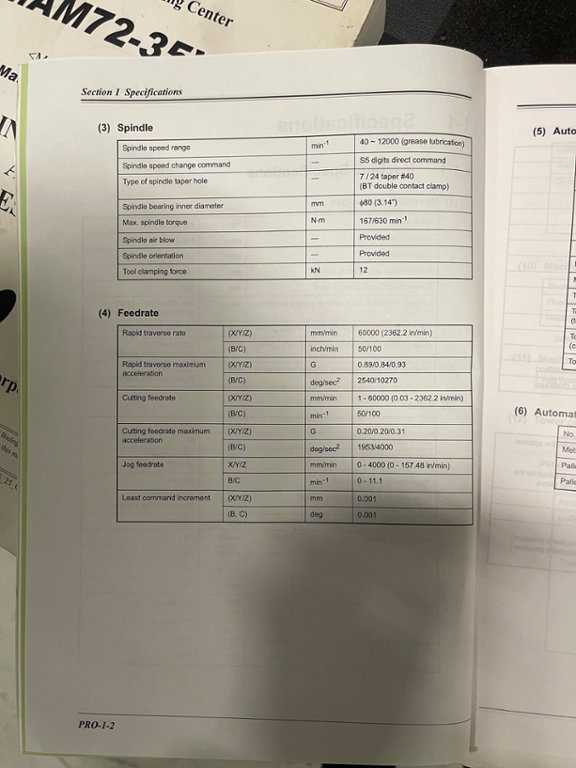

- 15,000 rpm, BT40, Big Plus Spindle

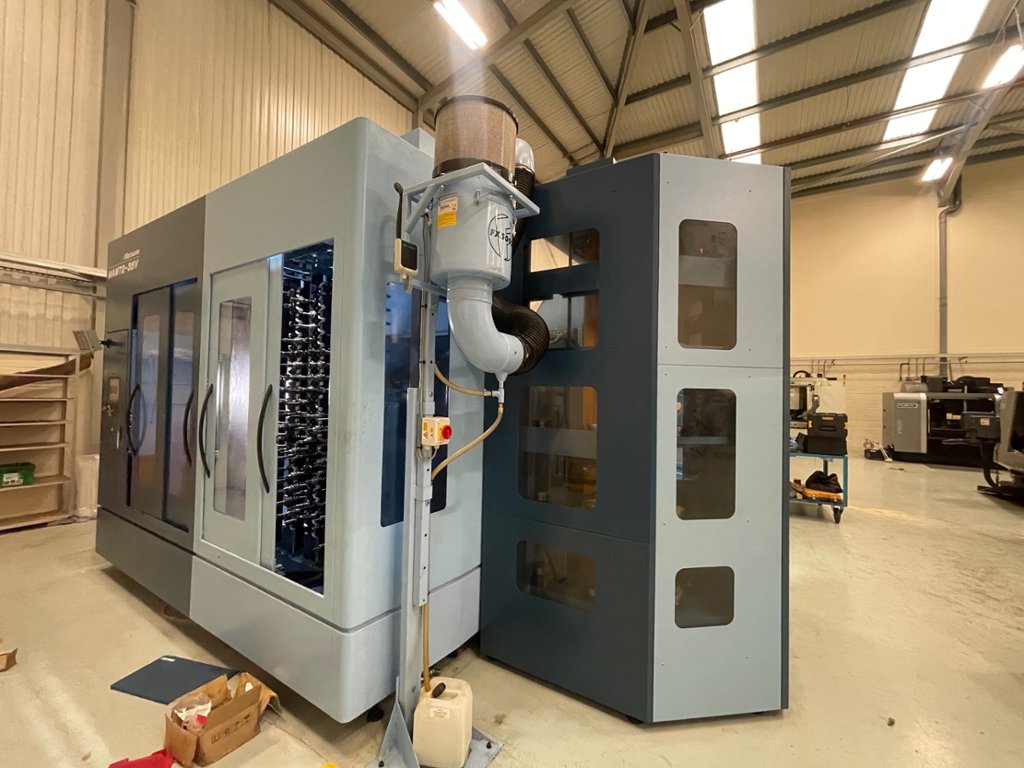

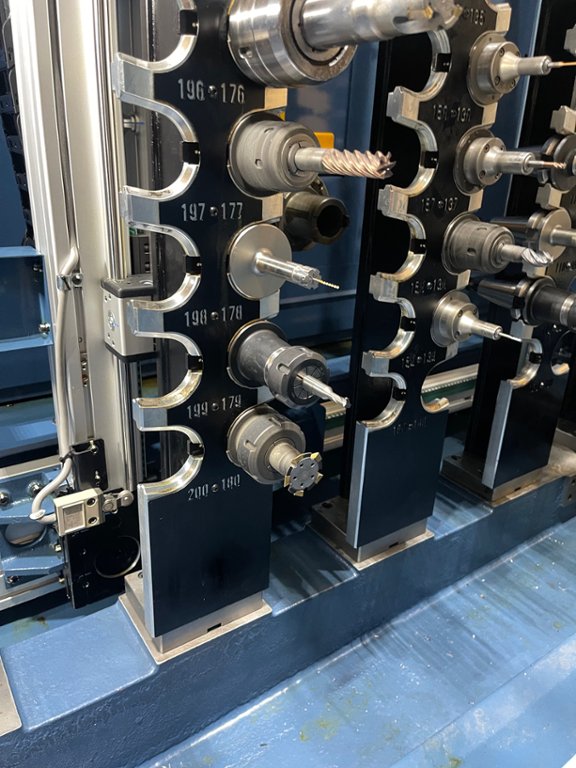

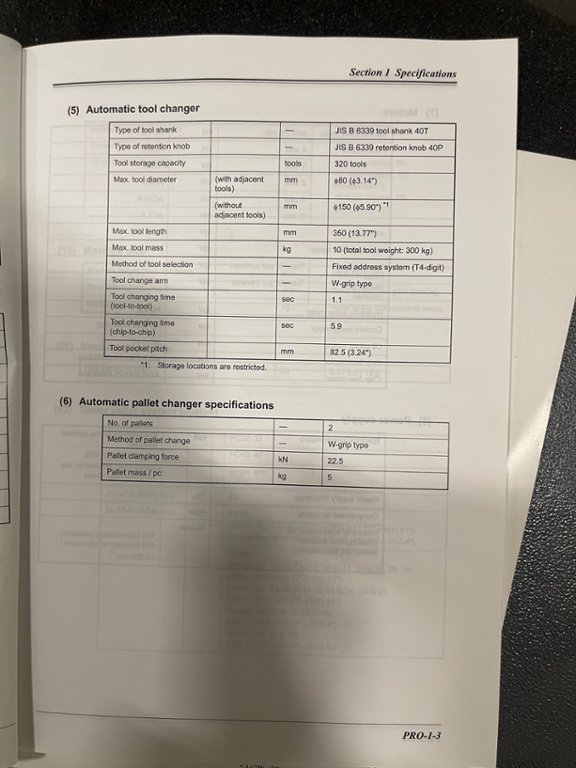

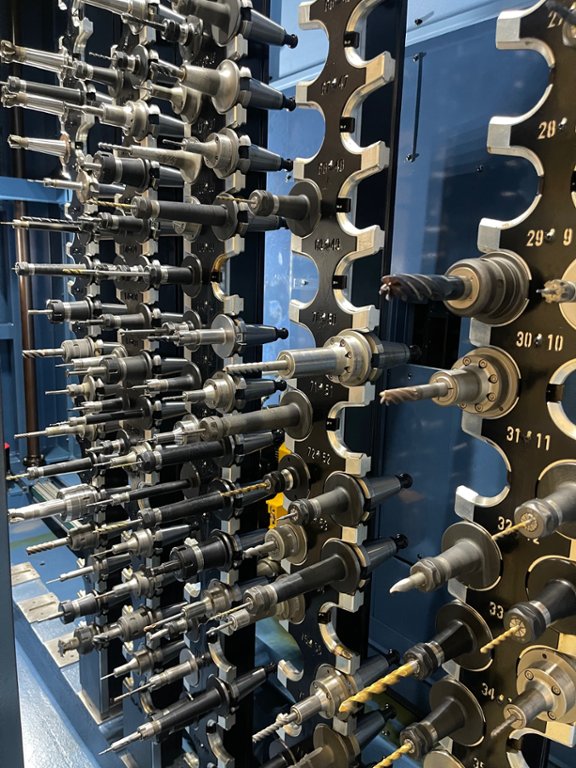

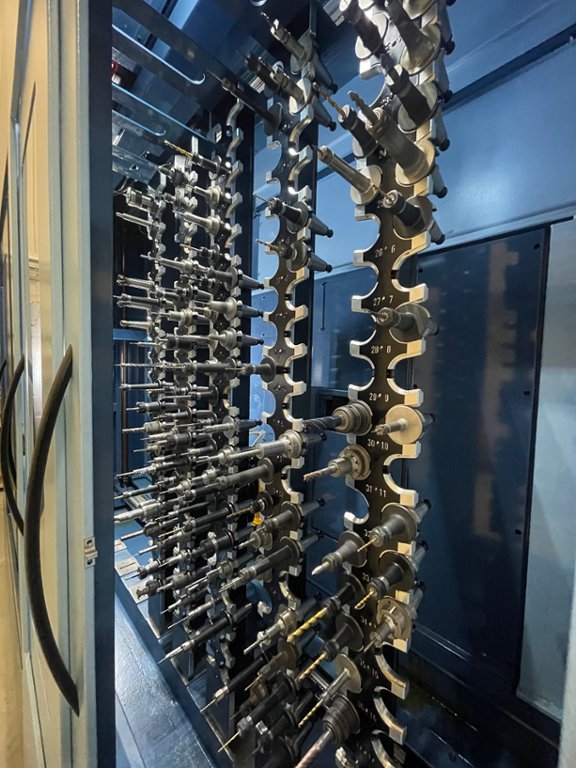

- 200 Tools on a 320 Tool Magazine Base (Expandable)
- Scale Feedback X, Y and Z Axis - Internal Spiral Chip Conveyors
- Spindle Load Monitoring Function
- Renishaw Laser Tool Measure and Breakage Detection Probe
- Renishaw RMP600 Spindle Probe + Artefact & Inspection Plus Software

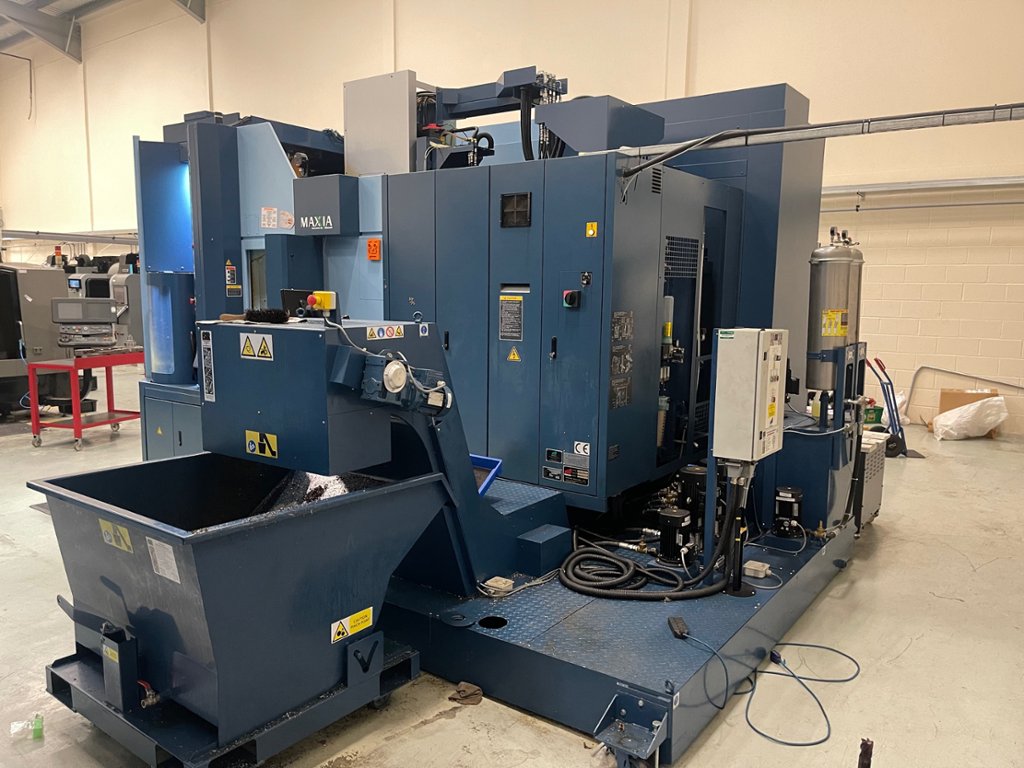

- FSE Swarf Management System including Drum Filtration, Lift-up Conveyor (Side Exit) and Chip Bin
- 20 Bar Through the Spindle Coolant (Duplex Filtration)

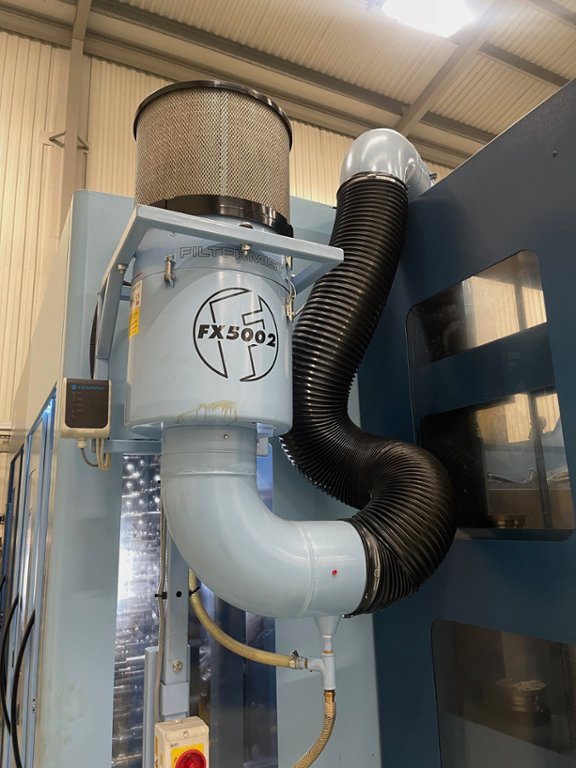

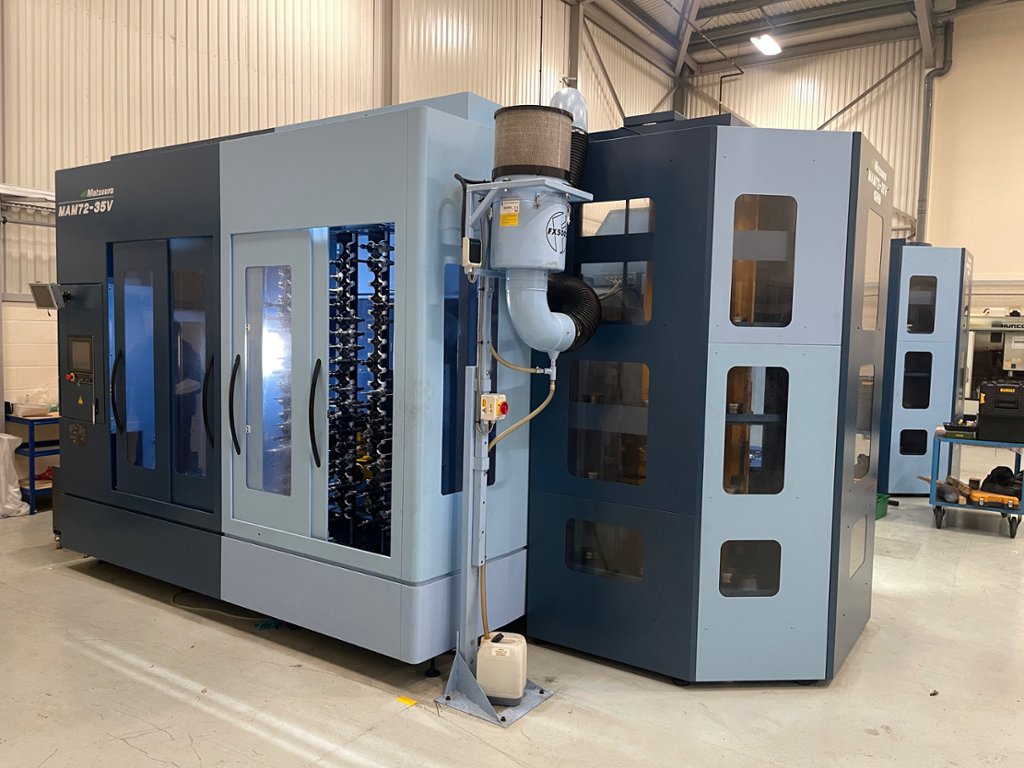

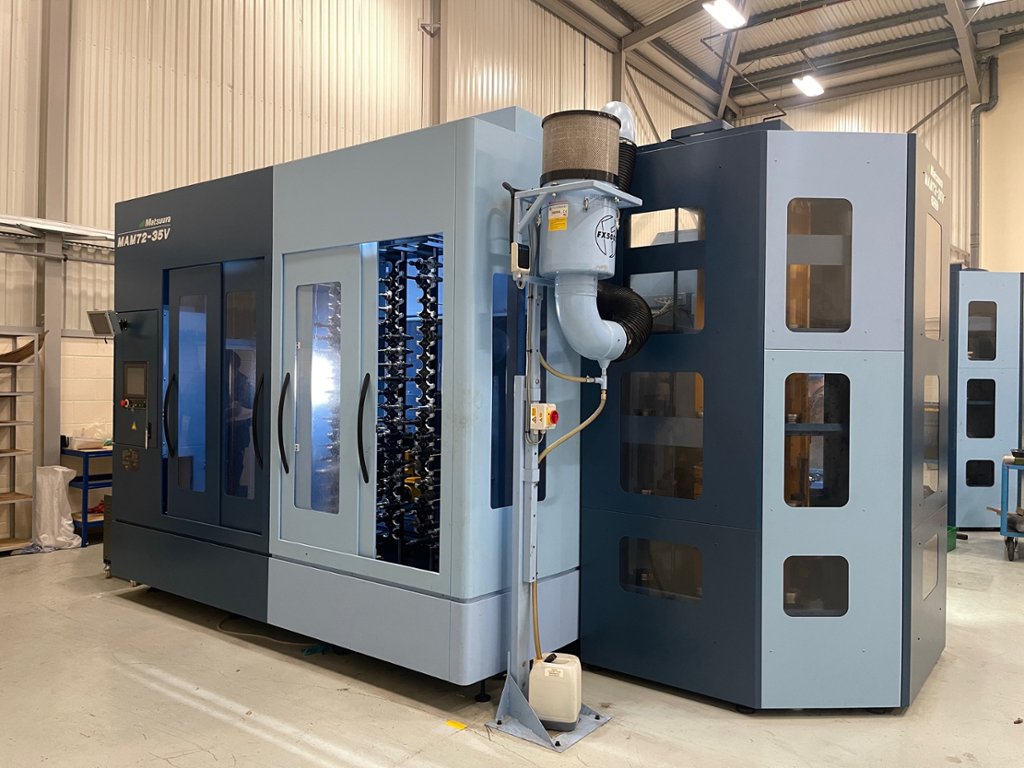

- FX5000 Filtermist Unit including Floor Stand
- IGES Data Files (Machine Models for Verification)
- High Speed Machining and 5 Axis Software Package:
- IZ-2/150NF including HPCC RISC for High Speed Machining
- Large Memory Function, 1GB Data Server
- NANO Smoothing Software / Optimal Torque Acceleration/Deceleration
- Tilted Work Plane Command / Inverse Time Feed, G93
- Tool Centre Point Control for 5 Axis Cutting, G43.4/G49
- Work Set-up Error Compensation, G54.4 - 3D Cutter Compensation, G41.2/G42.2/G41.3
- Tool Posture Control by Tool Centre Point Control

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
