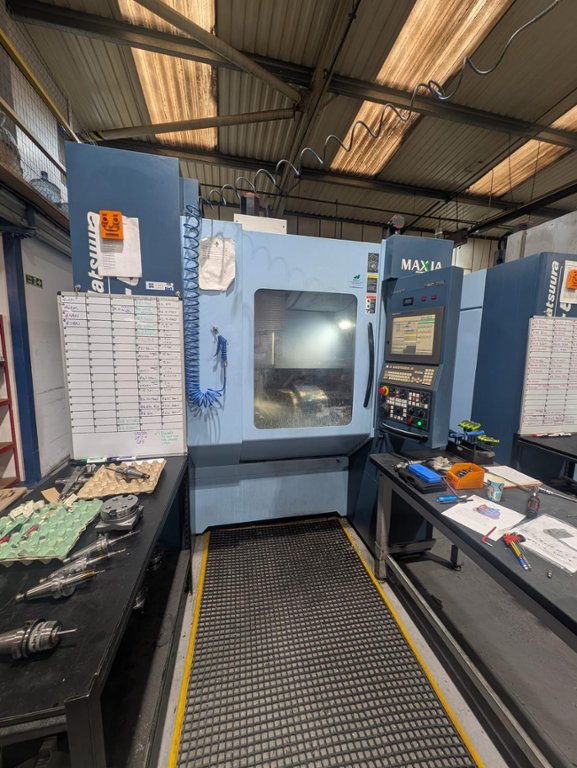

Matsuura MX 520 5-axis Vertical CNC Machining Centre (2015)

Lot 1 - Matsuura MX 520 5-axis Vertical CNC Machining Centre (2015)

Description:

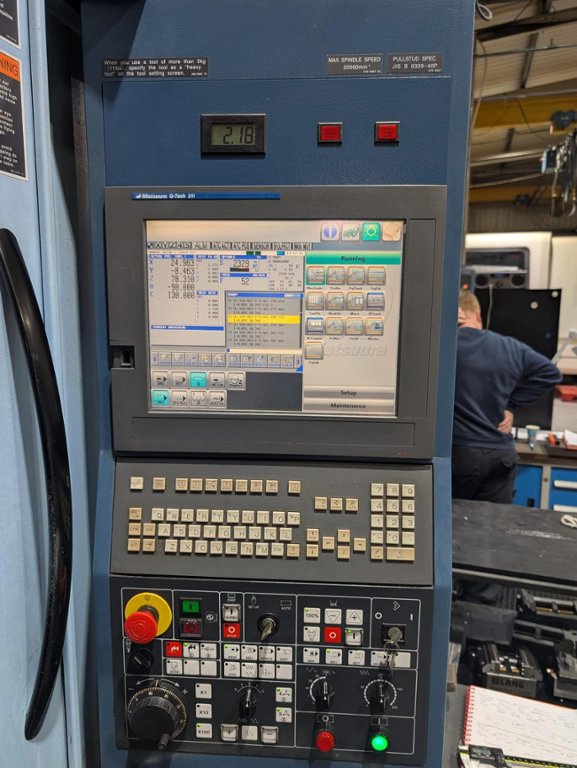

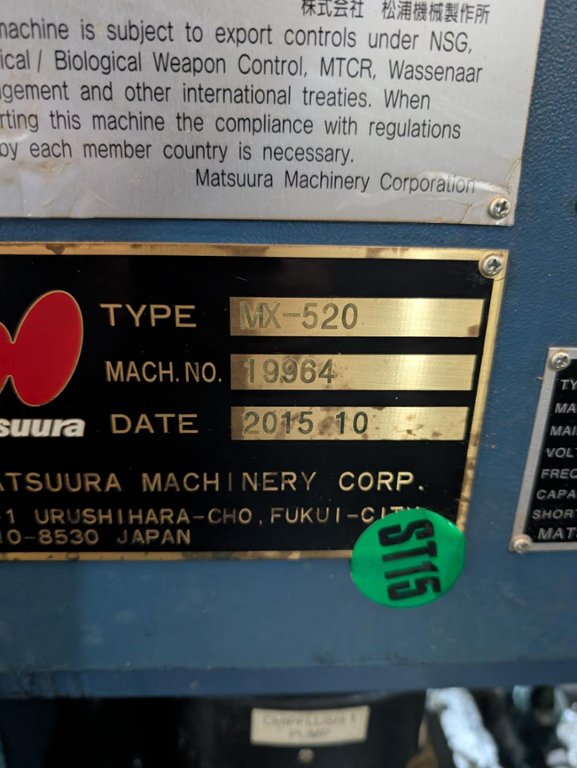

Matsuura MX-520 / G-Tech 31i Control 10.4" LCD/Colour Screen

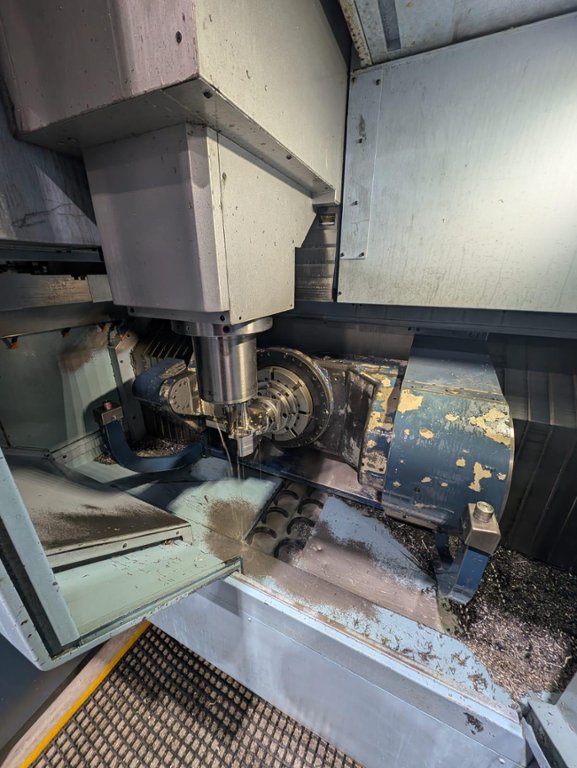

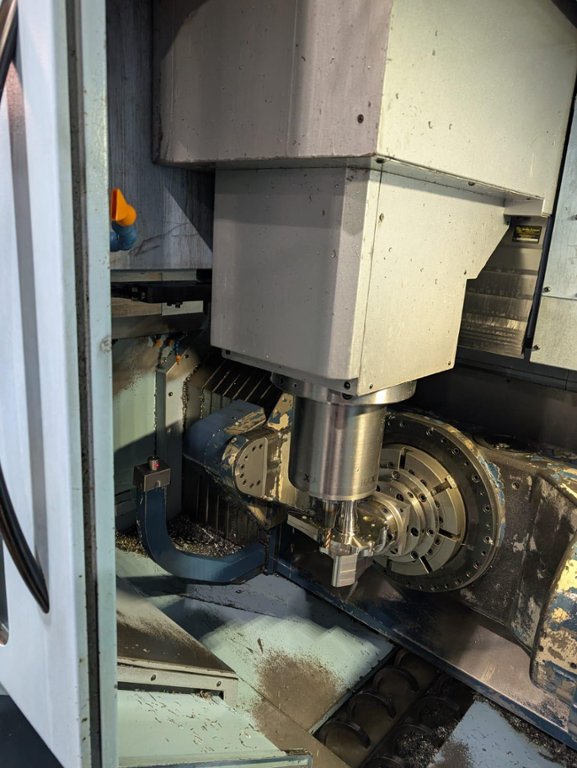

5 Axis Integral Unit with a 300 mm Diameter Work Table
520 mm Diameter x 350 mm High Work Piece Size
Maximum Workpiece Weight of 200 kg
Axis Movements: X, 630 mm / Y, 560 mm / Z, 510 mm

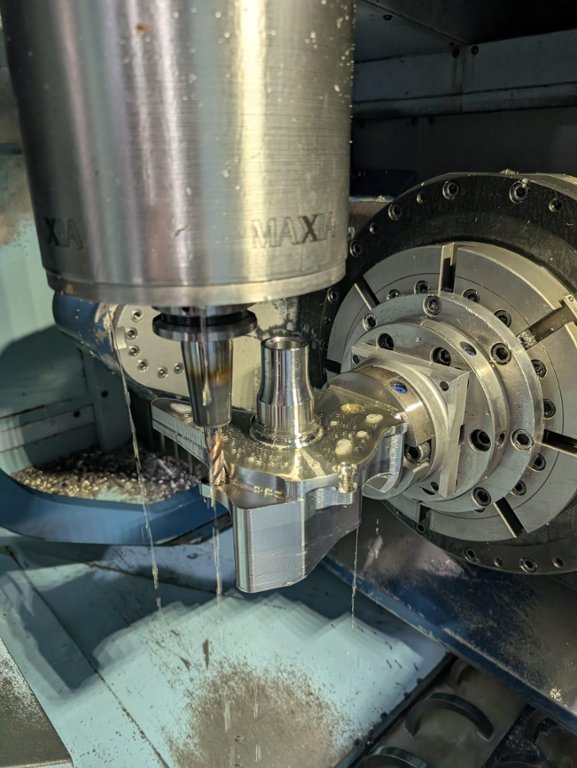

4th and 5th Axis Movements: A, -125° to +10° / C, 360°
Scale Feedback on A and C Axes
Work Light / Auto Grease Supply Unit / Chip Flush System
Spindle Overload Protection / Ethernet Interface
NC Memory 0.5MB / 1,000 Registered Program Store
Helical Interpolation / Tool Offsets, 64 Sets
Synchronised Tapping Function
Macro Program Function G65 / Skip Function G31
- 20,000 rpm, BT40 Big Plus Spindle
- 90 Tool ATC Magazine (Chain Type)
- Internal Spiral Chip Conveyor
- Spindle Load Monitoring Function

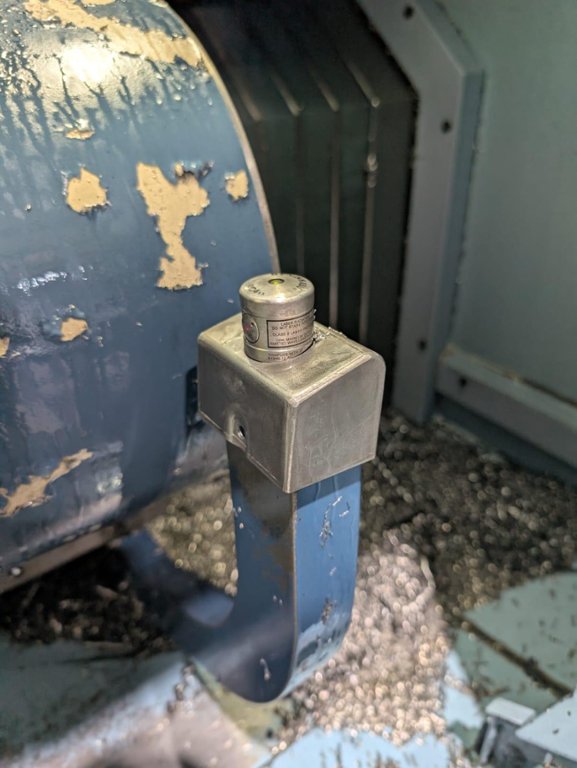

- Renishaw NC4 Laser Tool Measure and Breakage Detection Probe
- Renishaw RMP600 Spindle Probe

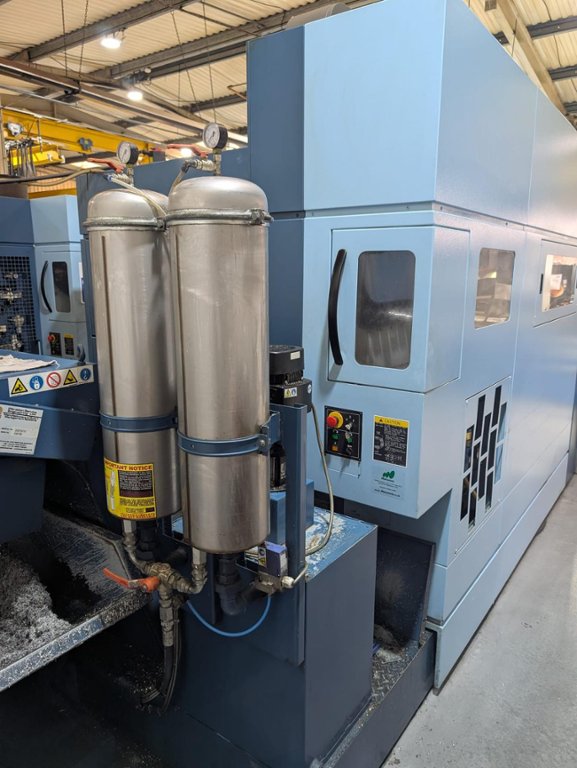

- 20 Bar High Pressure Coolant Through the Spindle with Duplex
Filtration and a Superclean Tank
- Swarf Management System including Drum Filtration, Lift-up
Conveyor and Chip Bin
- Filtermist Unit with Steel Ducting and Stand
- 5 Axis, High Speed Software Package

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
