MAZAK Dual Turn 20 Lathe (1999)

Lot 8 - MAZAK Dual Turn 20 Lathe (1999)

Description:

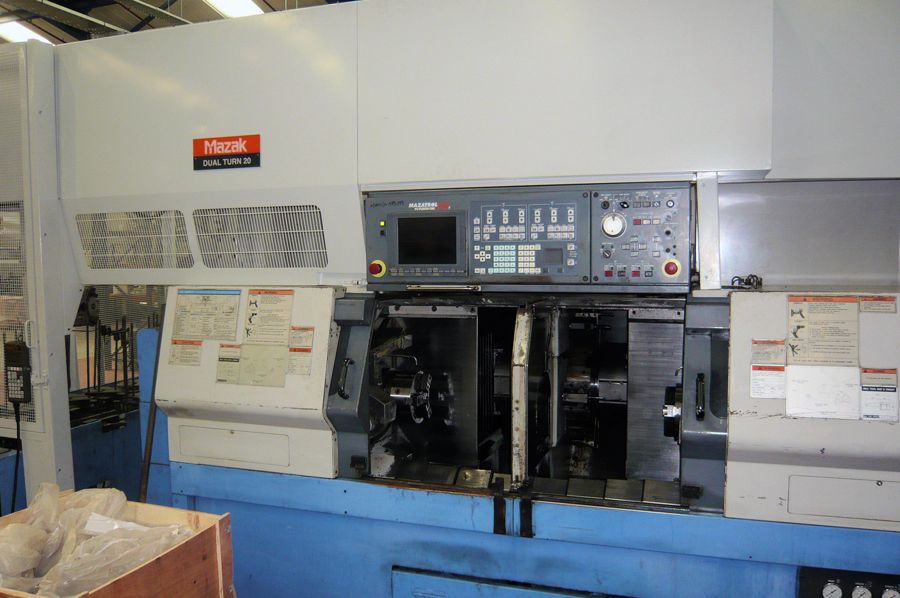

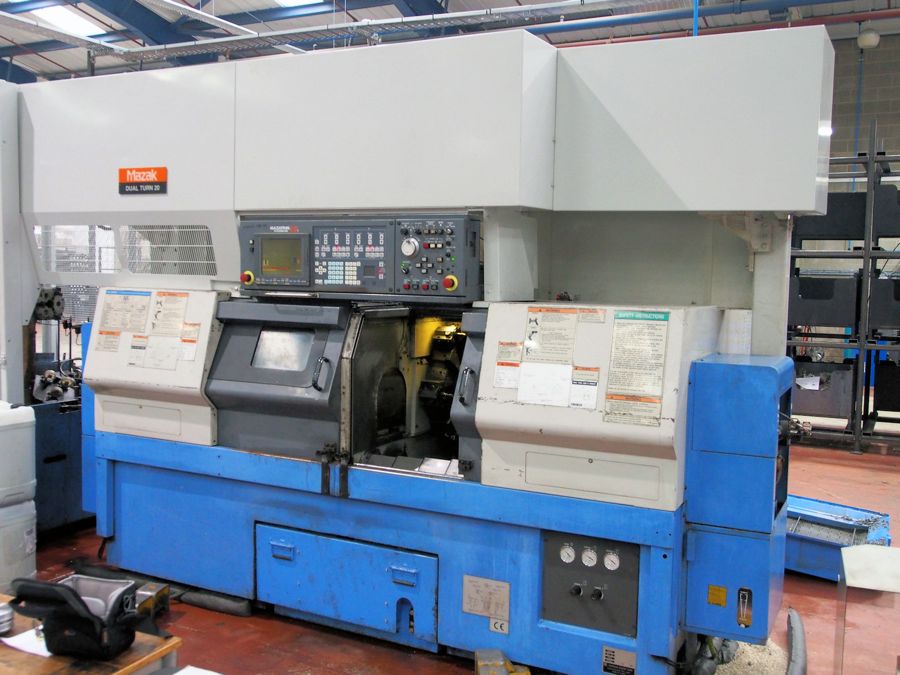

MAZAK Dual Turn 20 (1999)

Chuck Size: 8" Hyd. Chucks
Maximum Swing: 320mm
Standard Cutting Diameter: 254mm
Maximum Cutting Length: 150mm
Distance Between Spindle Faces: 1249mm
X Axis Travel - Both Turrets: 230mm / 230mm
Z Axis Travel - Both Turret: 500mm / 500mm
Spindle Motor 30 min / Continuous: 20 HP / 15 HP
Spindle Torque: 246 ft./lbs.
Spindle Speed: 35 - 5,000 RPM
Spindle Nose/Spindle Bore/Bar Capacity: A2-6" / 2.4" / 2.0"

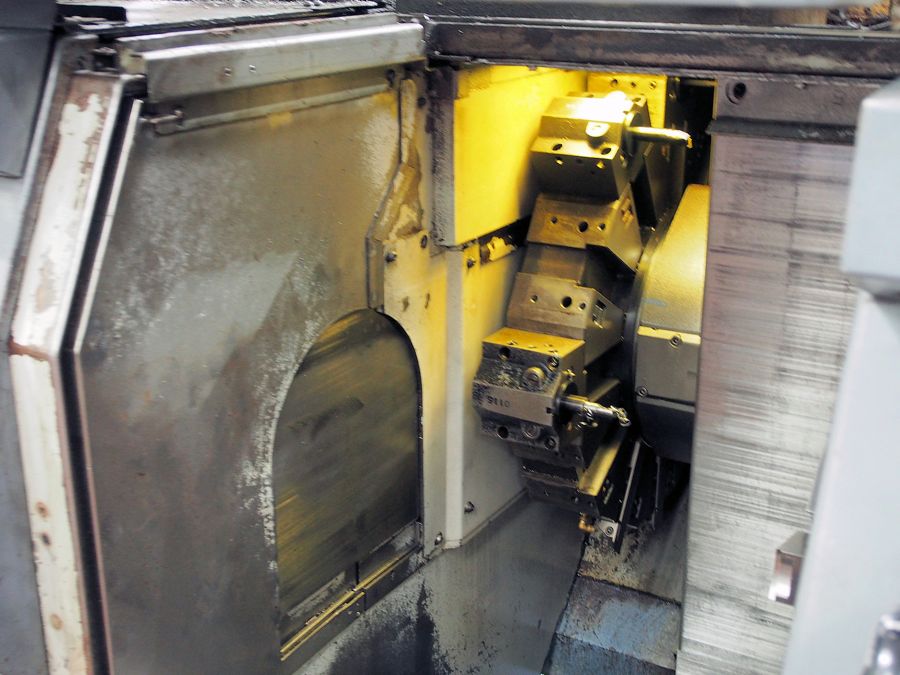

Type of Turrets: (2) 12 Posit. Drums
Rapid Traverse X Axis / Z Axis: 30 m/minute
Max Cutting Feedrate X / Z Axis: 5m/minute
Machine Dimensions (machine only): 3606 x 1854 x 2057mm
Machine Weight (machine only): 6600kg

Equipped with
GL100C Gantry Robot Loader

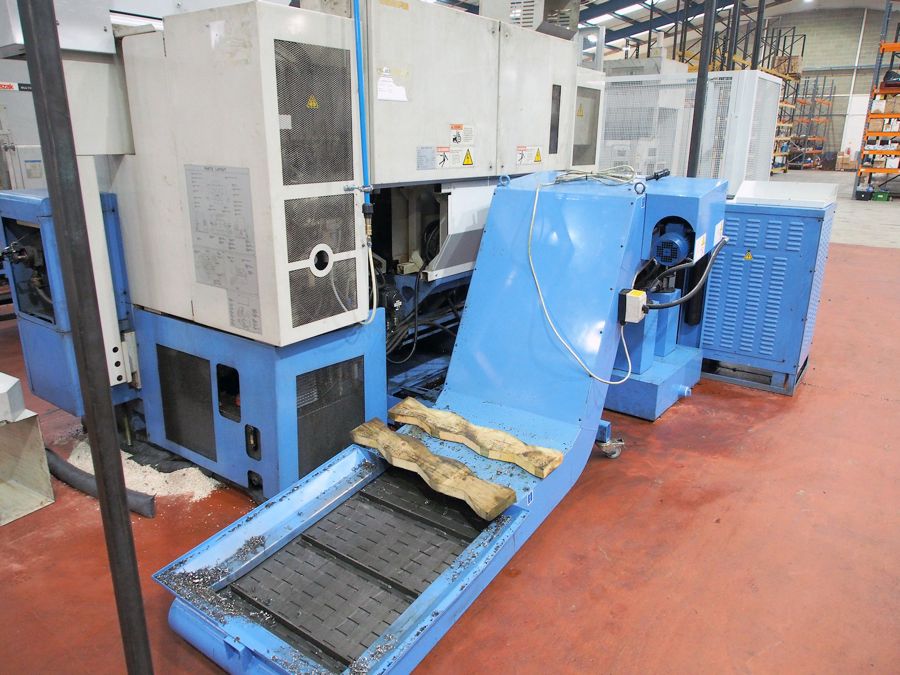

Rear Exit Chip Conveyor
Turret Air Blast (both)
Additional Cool. Nozzle (both)

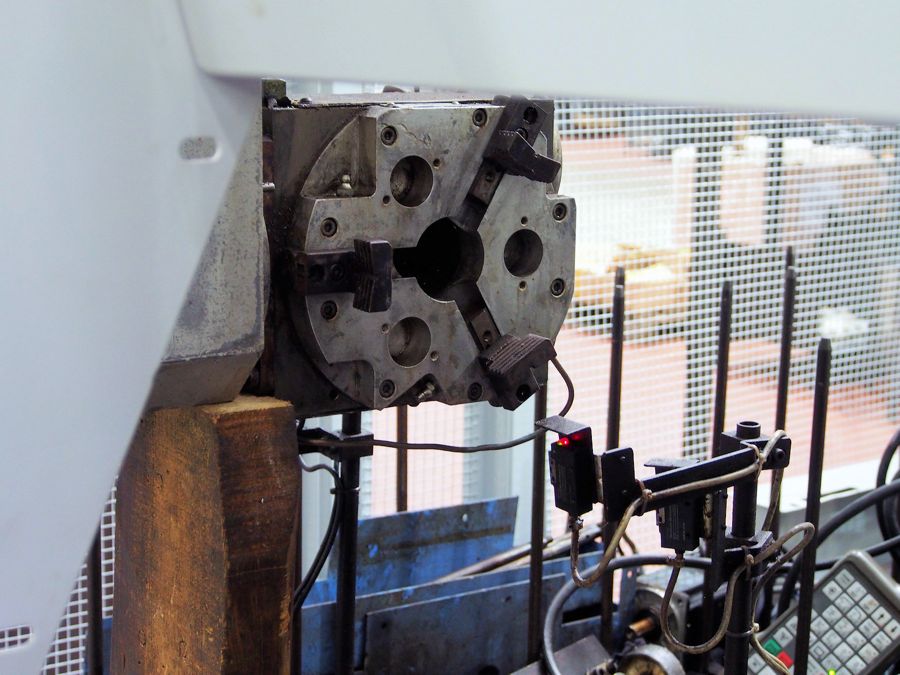

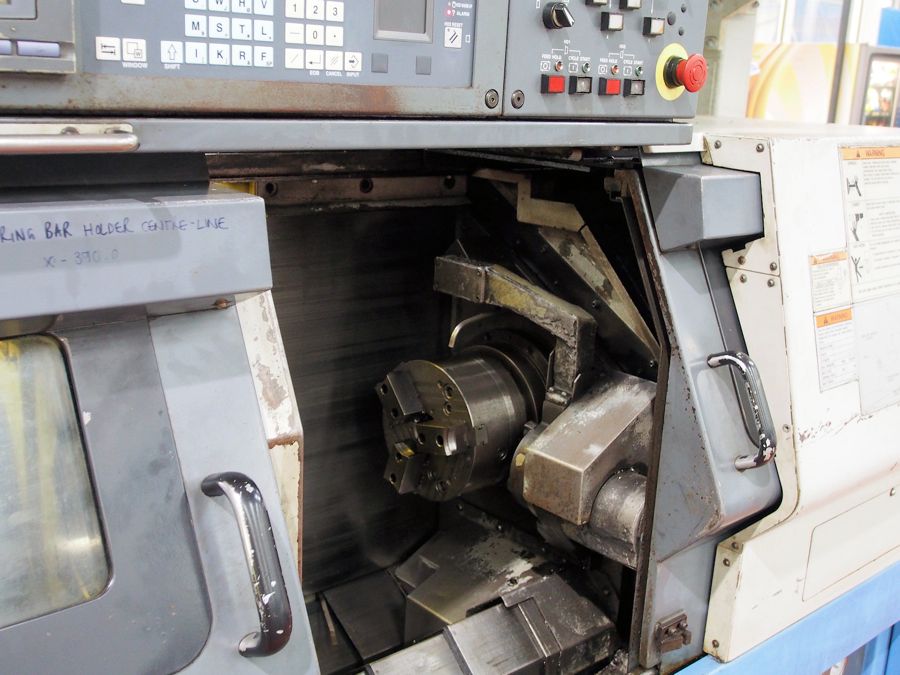

8" 2 x Hydraulic Chucks
Twin Spindle Design

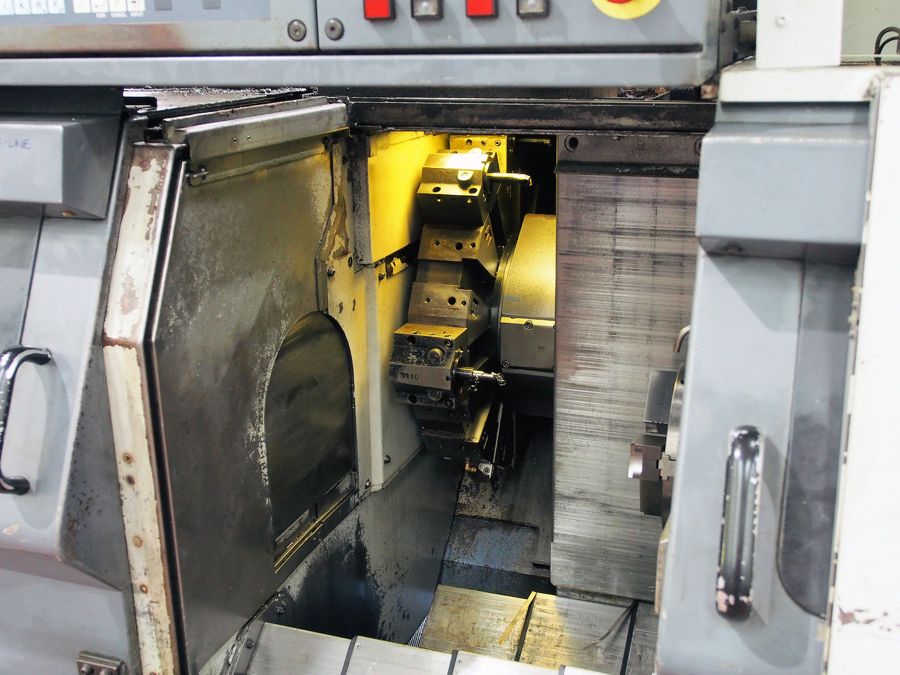

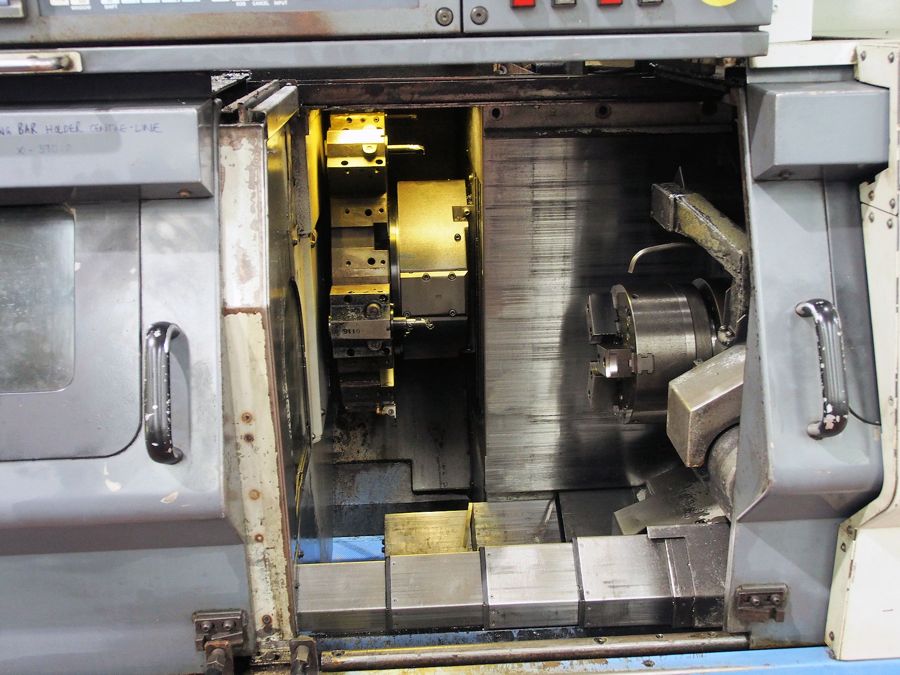

Twin Turret Design
Auto Power Off
Automatic Tool Eye (both)

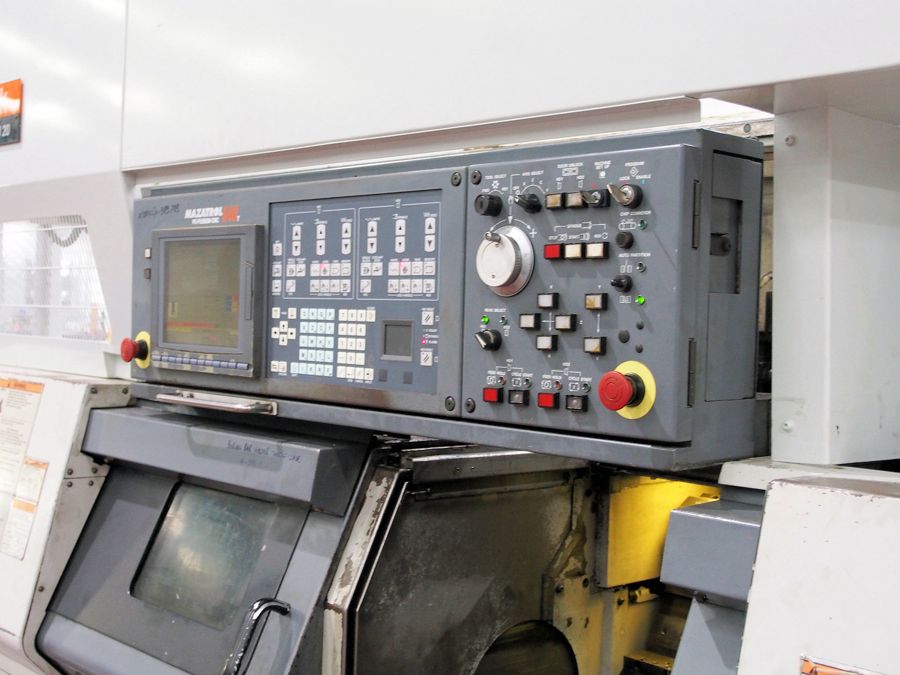

Color Graphics Control
Chuck Air Blast (both)
Chuck Jaws Open/Close (both)

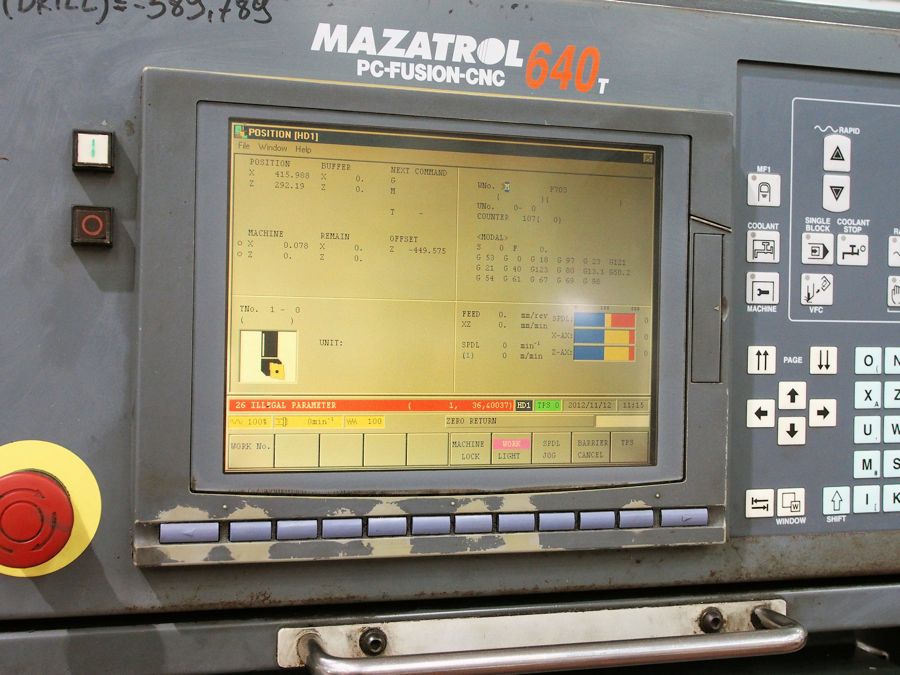

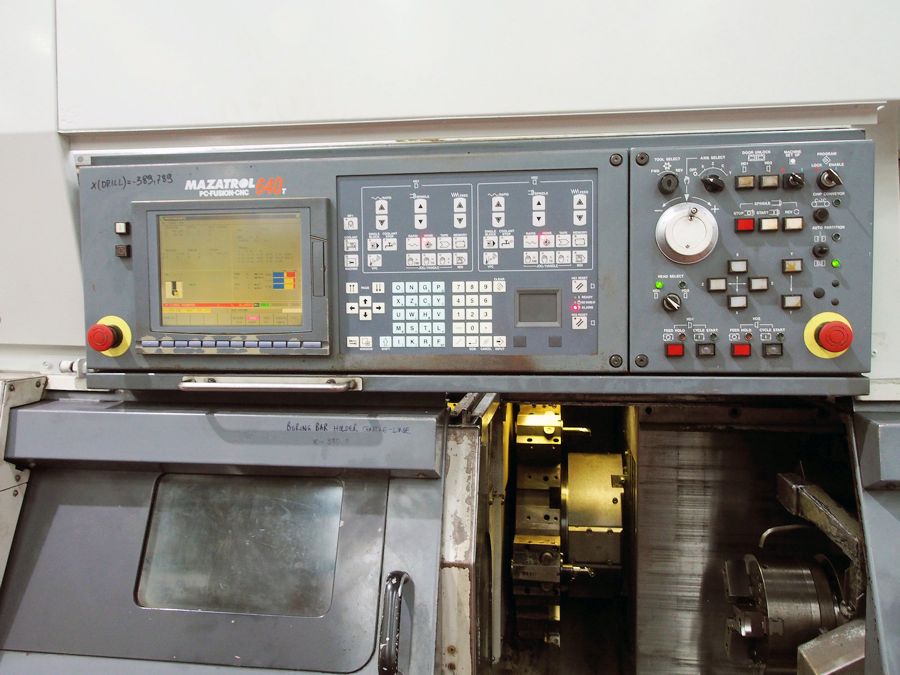

Fusion 640 control

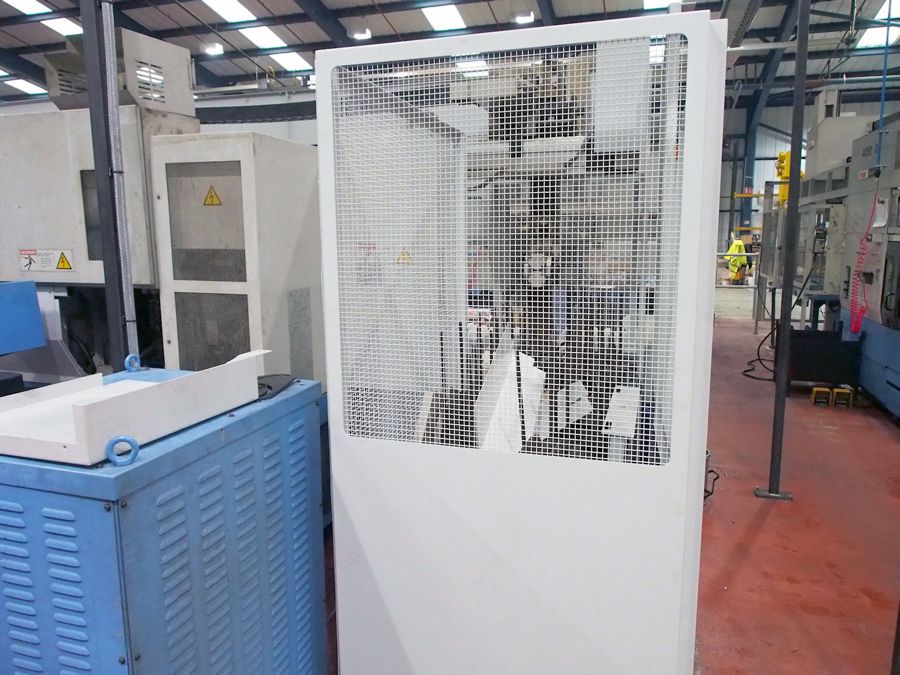

Gantry Loader
Swarf conveyor

Has just had a full Mazak Service but now requires a new spindle encoder.

Location: Keighley, West Yorkshire
