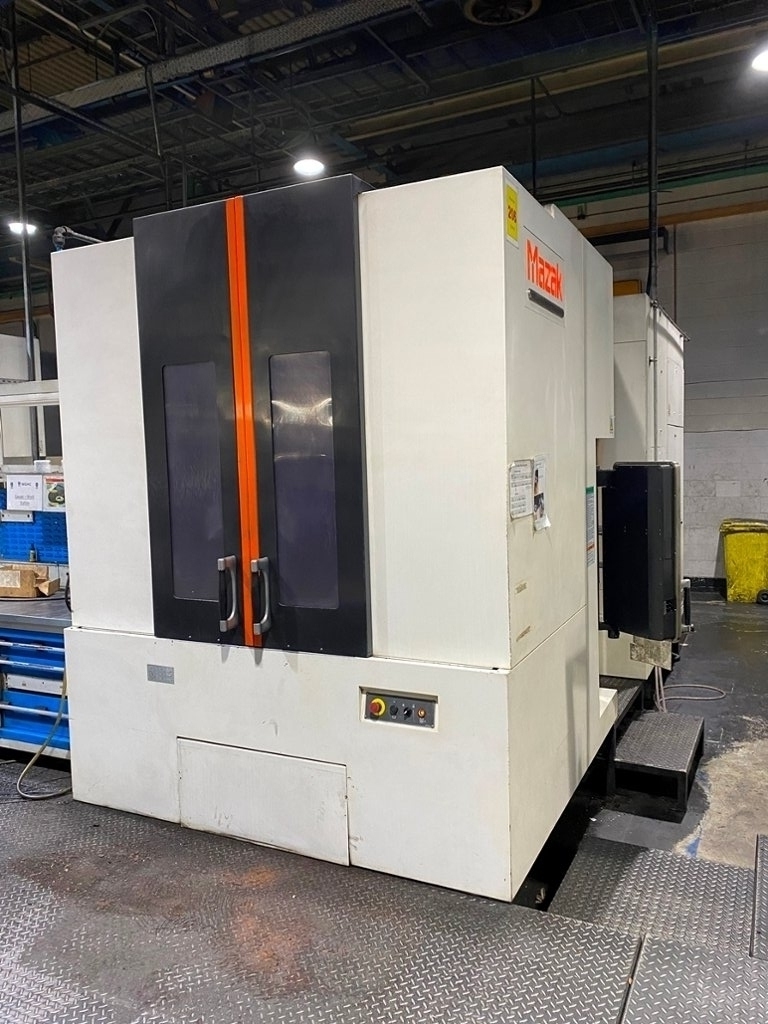

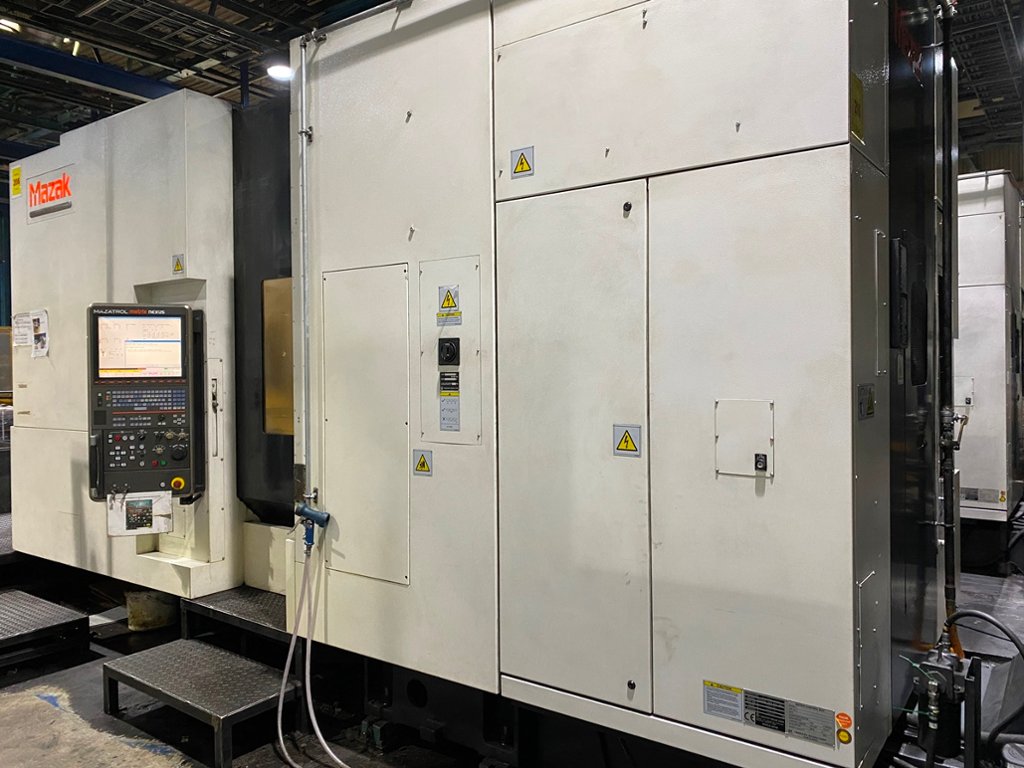

Mazak HCN 6000 Machining Centre (2011)

Lot 2 - Mazak HCN 6000 Machining Centre (2011)

Description:

The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

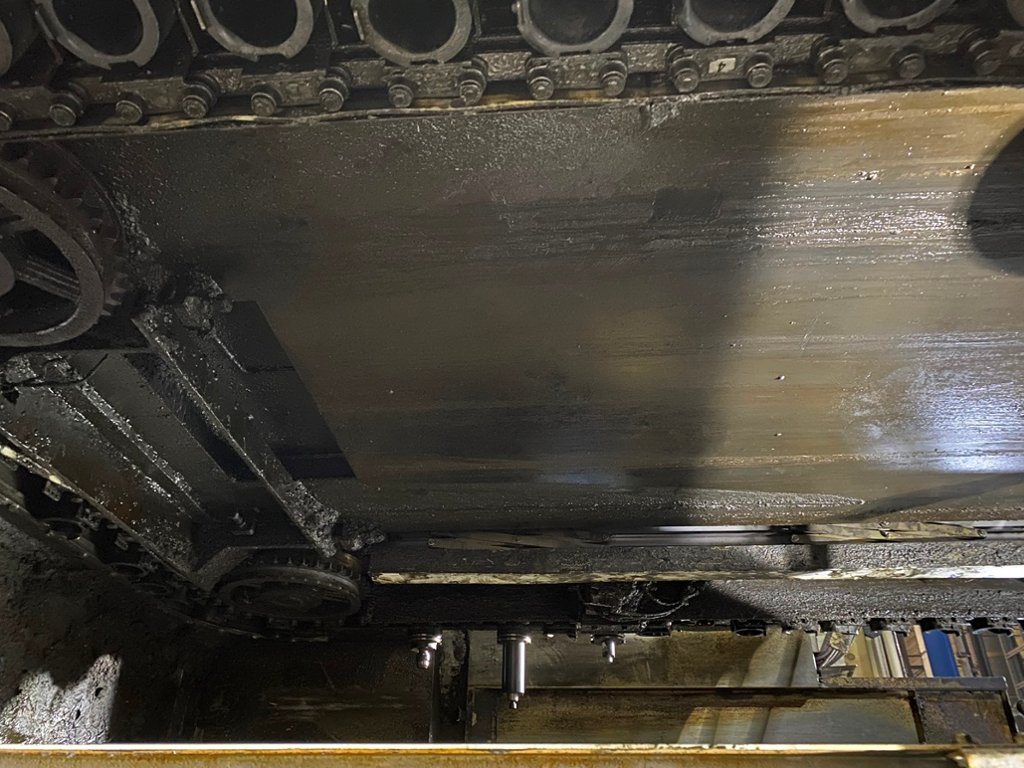

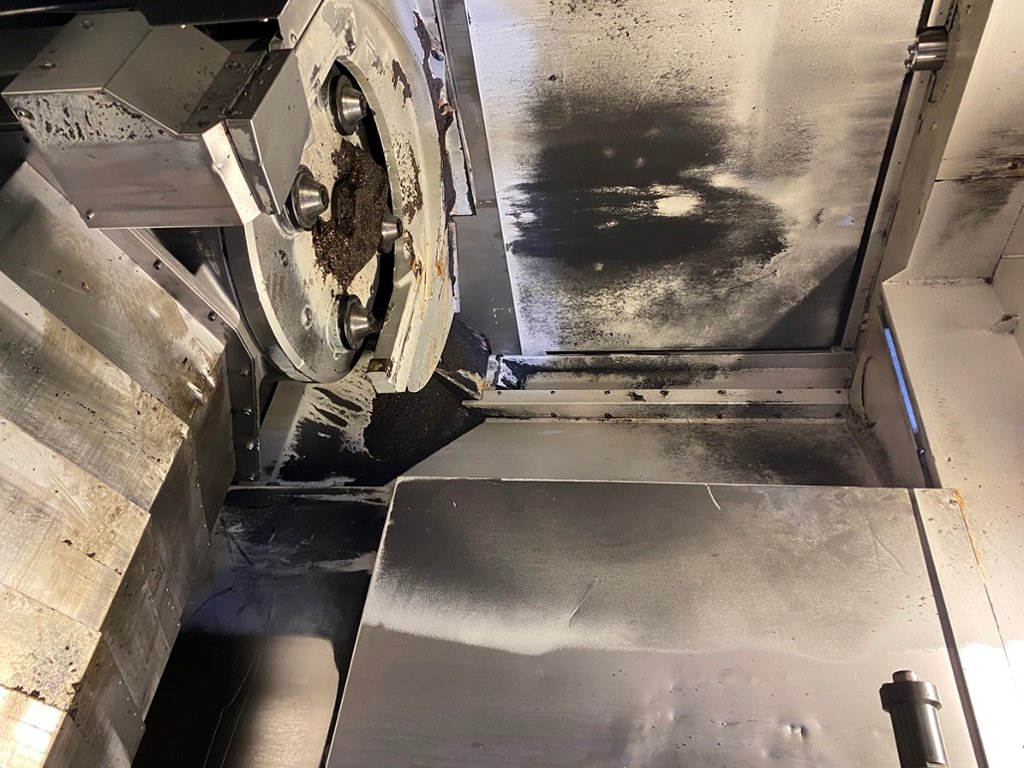

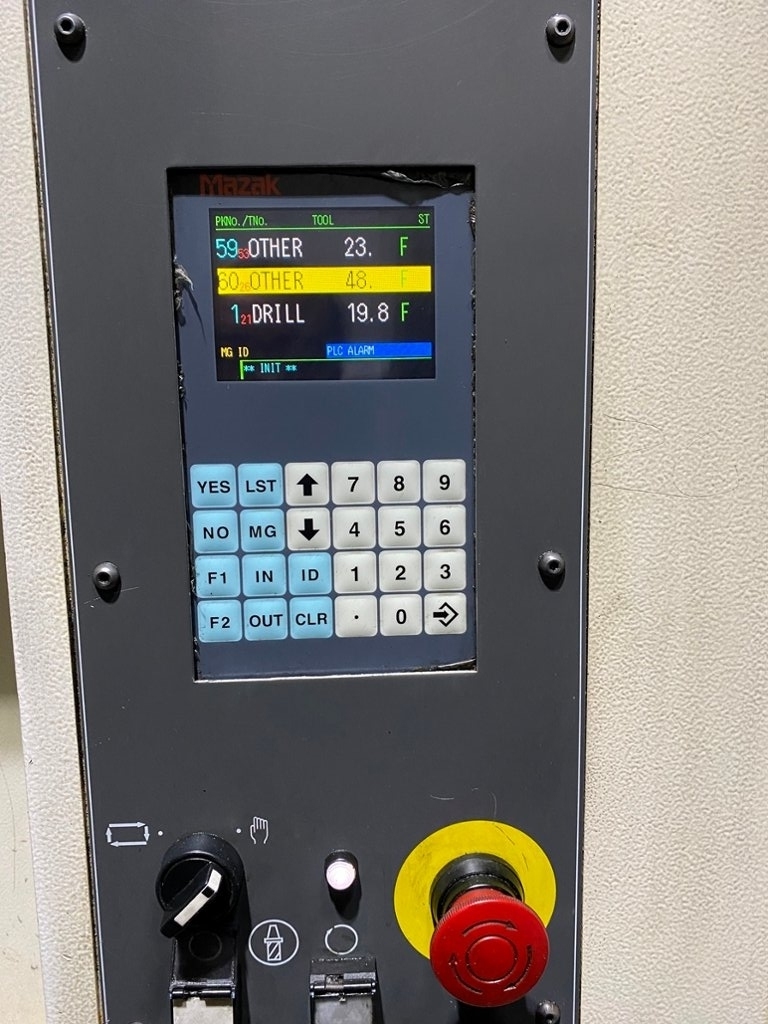

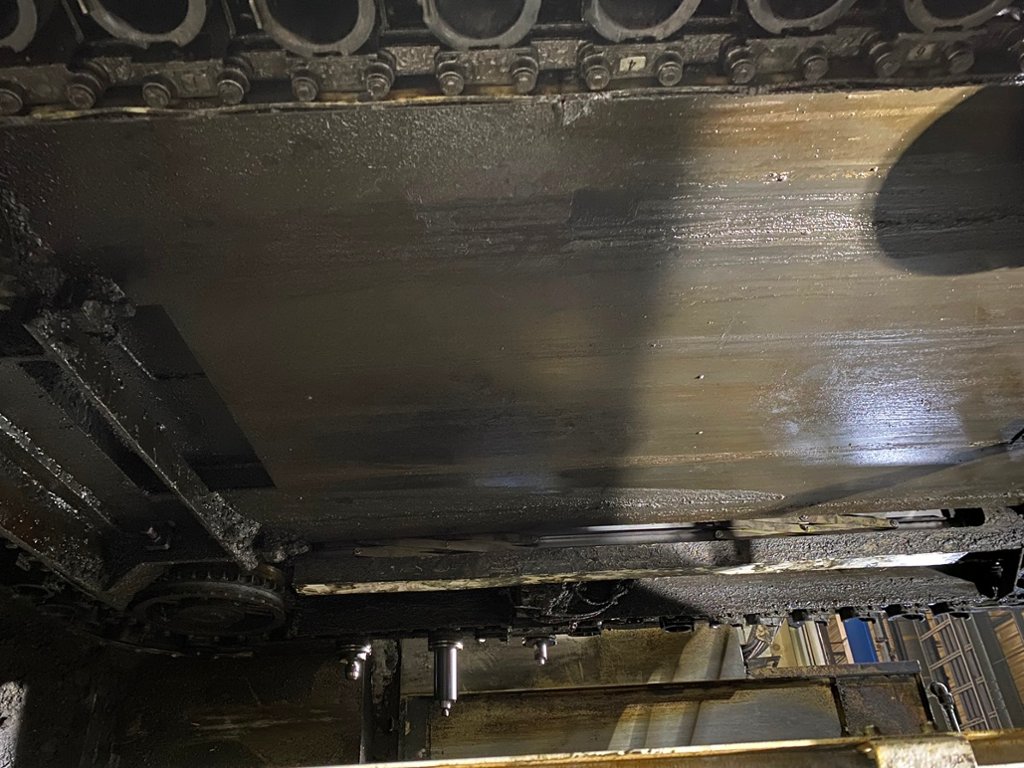

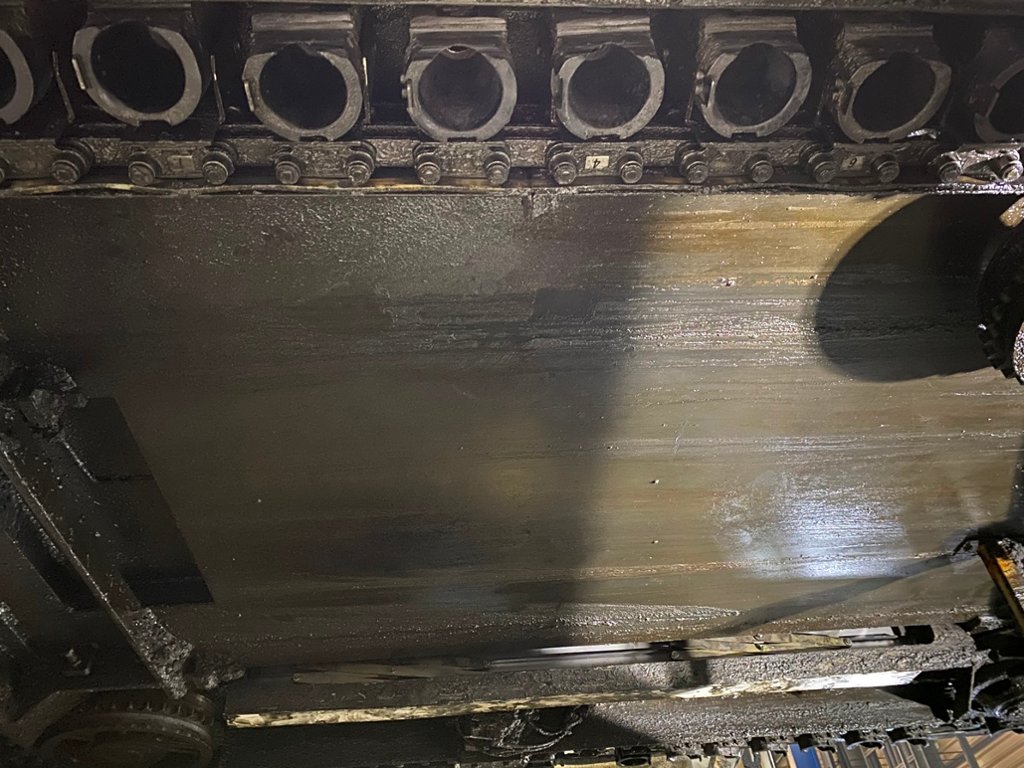

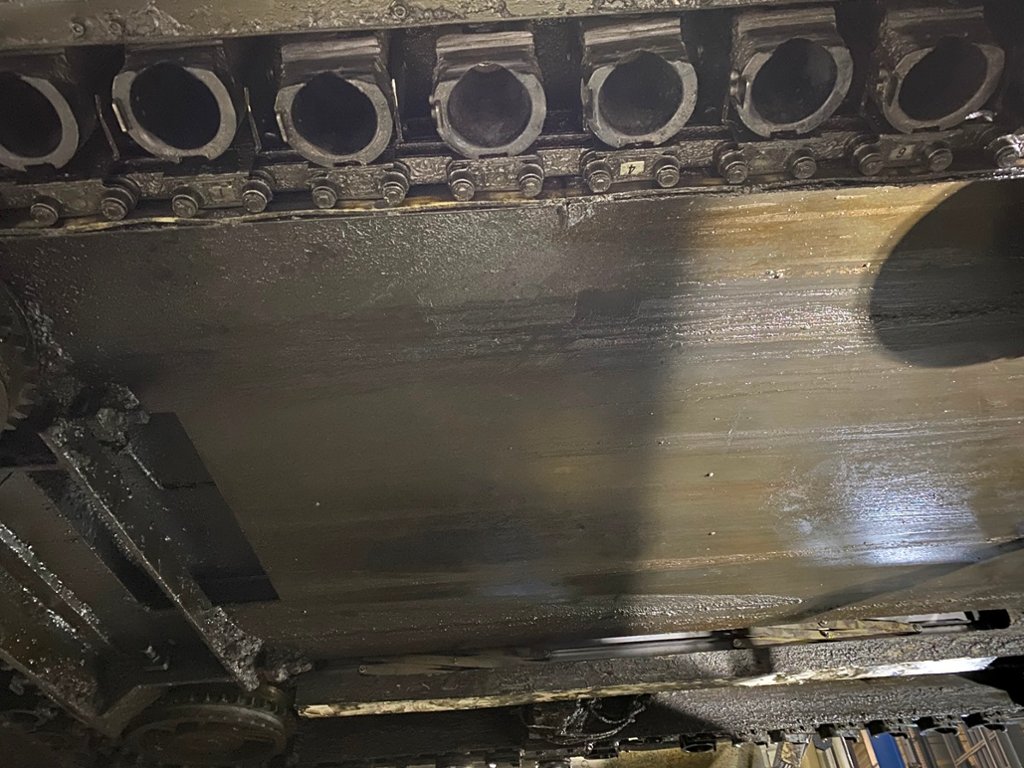

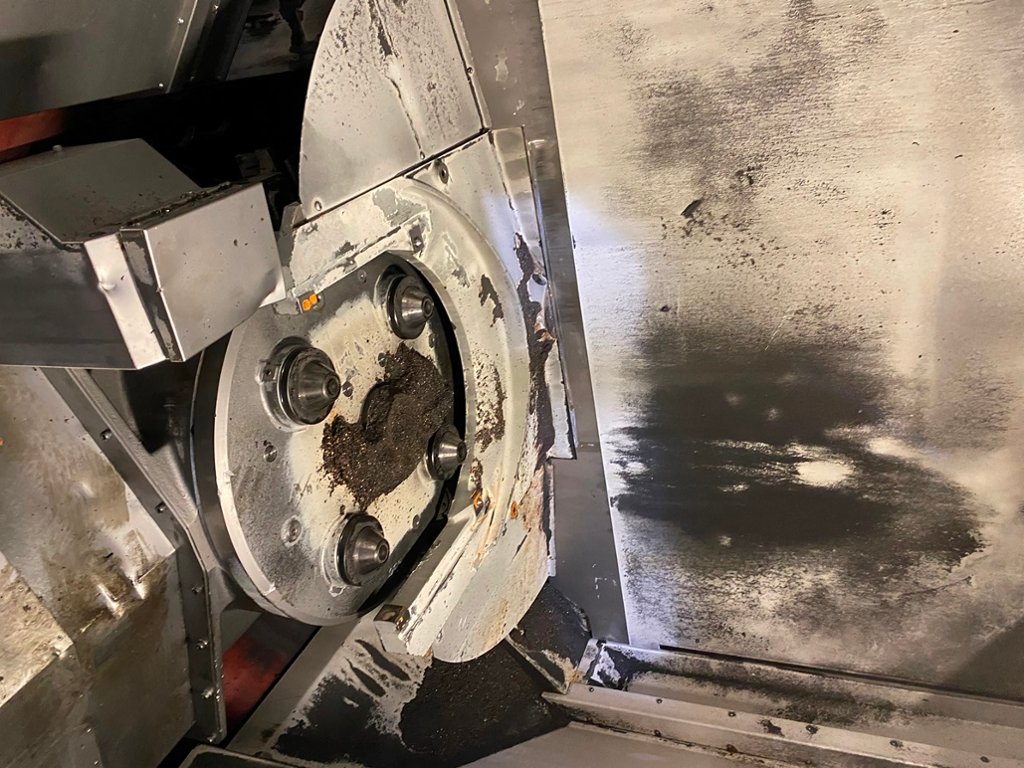

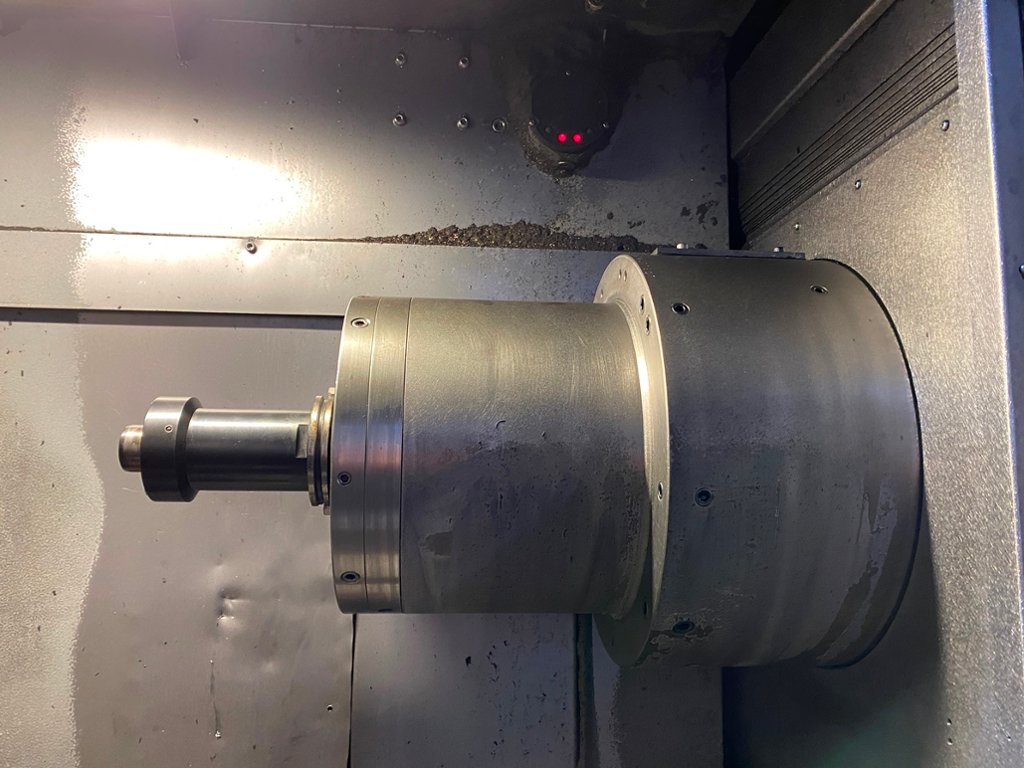

Pallet Size - 19.685″ X 19.685″, X-Axis Travels - 31.5″, Y-Axis Travels - 31.5″, Z-Axis Travels - 31.5″, Distance From Spindle Center To Top Of Pallet - 3.94″ ~ 35.43″, Distance From Spindle Nose To Pallet Center - 5.91″ ~ 37.40″, Maximum Table Load - 2,204 LBS, Maximum Workpiece Height - 39.37″, Maximum Workpiece Diameter - 35.43″, Spindle Nose - CAT 50, Spindle RPM 10,000, Spindle HP - (30 MIN/CONT) 50 / 40, Spindle Torque - 388 FT/LBS, Obtains Full HP @ 3400 RPM, Constant Torque Range - 35 ~ 3400 RPM, Magazine Capacity - 120 ATC, Tool-To-Tool Time - 1.8 SEC, Chip-To-Chip Time (APPROX.) - 3.5 – 4.0 SEC, Maximum Tool Diameter - 4.3″, Max.Tool DIA.W/ADJ PKTS EMPTY 9.84″, Maximum Tool Length - 19.69″, Maximum Tool Weight - 66 LBS., Rapid Travers Rate - 2362 IPM, Maximum Programmable Feedrate - 2362 IPM

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
